CB Antenna location and quantity advice

Discussion in 'Audio & Video' started by pAP, Feb 29, 2012.

  1. Feb 29, 2012 at 12:22 PM
    #1
    pAP

    pAP [OP] ==========

    Joined:
    Feb 15, 2011
    Member:
    #51218
    Messages:
    1,554
    Gender:
    Male
    First Name:
    Chris
    NJ
    Vehicle:
    11 Tacoma SR5
    ARB locker and OBA, All Pro front & rear bumper, All Pro IFS skid & modified t-case skid, Custom Trans Skid., 4x Innovations sliders, Custom tire carrier/bed bars, Warn Winch, Fox 2.5" Front coilover, Walker Evans 2.5" rear Shock, All pro Leaf, All Pro U-bolt flip, Baja Designs lights, PIA 510 lights, TRD exhaust cut back, Doug Thorley Pipe Bomb
    So, I need someones opinion who is in the know. I am going with the Midland 75-822 (may or may not make a difference what CB I go with??) and am looking for some advice on the Antennas. I am contemplating these set-ups:
    dual 4'
    single 4'
    dual 3'
    single 3'

    I really would like to limit the height of the antenna for the purpose of wheeling in the woods. I plan on mounting it on the center bed-bar in this pic.[​IMG]

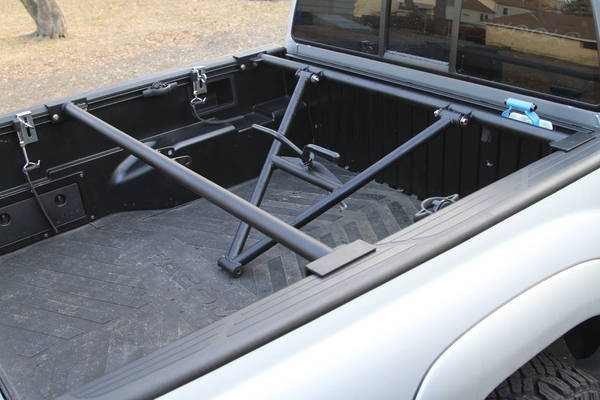

    I welded mounting tabs at each connection between bed bar and bed rail support. I was thinking of mounting either one on each side(passenger and driver) or one on the passenger side.

    Will there be a significant benefit to having a dual set-up? The CB is for the purpose of wheeling with a group. No real extended terrain use... i don't think. I would rather stick with a single set-up if the benefits are not significant enough for a dual.

    Also, should I go with a grounded or non grounded set-up?

    Thank you!

  2. Feb 29, 2012 at 12:24 PM
    #2
    SnowroxKT

    SnowroxKT AK SnowroxKT

    Joined:
    Dec 11, 2011
    Member:
    #68604
    Messages:
    3,958
    Gender:
    Male
    First Name:
    Kyle
    Anchorage Alaska
    Vehicle:
    Roxy '95 Manual 4x4
    SAS locked geared
    Single looks better imo

  3. Feb 29, 2012 at 12:28 PM
    #3
    george2pak

    george2pak Well-Known Member

    Joined:
    Sep 11, 2009
    Member:
    #22634
    Messages:
    838
    Gender:
    Male
    First Name:
    BIG G
    Phoenix,AZ
    Vehicle:
    4x4 sr5 TRD offroad
    Brute Force Fab front& rear bumper with winch, sliders, skid plates by Relentless, tires 285/75/16" , wheels by SCS , CB Stryker SR497 etc
    Most of the people at CB Shops that I talk with , recomendet One antena with ground.(4' should do the job)

  4. Feb 29, 2012 at 12:31 PM
    #4
    TotalBrutal

    TotalBrutal Well-Known Member

    Joined:
    Sep 3, 2011
    Member:
    #62860
    Messages:
    153
    Gender:
    Male
    First Name:
    Dan
    Vancouver Island, BC
    Vehicle:
    2007 V6 4X4
    Front 5100s @ 0, OME 844s, Rear 5100s, AFE pro dry filter
    I get 25+ km range with my single 4'... no need for a double IMO.

    I keep mine behind the cab like you are talking about as well, just off to one side and it still works good... Keeps it from being knocked off from low branches and stuff too!

  5. Feb 29, 2012 at 12:39 PM
    #5
    pAP

    pAP [OP] ==========

    Joined:
    Feb 15, 2011
    Member:
    #51218
    Messages:
    1,554
    Gender:
    Male
    First Name:
    Chris
    NJ
    Vehicle:
    11 Tacoma SR5
    ARB locker and OBA, All Pro front & rear bumper, All Pro IFS skid & modified t-case skid, Custom Trans Skid., 4x Innovations sliders, Custom tire carrier/bed bars, Warn Winch, Fox 2.5" Front coilover, Walker Evans 2.5" rear Shock, All pro Leaf, All Pro U-bolt flip, Baja Designs lights, PIA 510 lights, TRD exhaust cut back, Doug Thorley Pipe Bomb
    Ok. Sounds good. I am leaning towards the single 4'. I don't want to mount it right behind the cab though because I don't want the antenna wacking the cab when a branch grabs it. I will be mounting it on the center bar. I would think the cb would get a better signal there a well.

    Thank you!

  6. Feb 29, 2012 at 12:43 PM
    #6
    kd8bao

    kd8bao Well-Known Member

    Joined:
    Mar 29, 2011
    Member:
    #53990
    Messages:
    507
    Gender:
    Male
    First Name:
    Henry
    Cleveland
    Vehicle:
    2000 Excursion 7.3L - Ex '11 Taco DCSB
    Single with a good ground. If your gonna do it over the open space you might wanna look for an antenna with radials at the base. They are a series of wires that simulate the roof or metal surface that the antenna uses to direct and reflect the signal.

    This one is from Wilson electronics.


    The problem with running dual antennas with both hooked up is you polarize the signal. Which means dual whips behind can will radiate the signal to your sides, for argument sake probably 80:20. Like 800' sideways and 200' front to back. That is why a single with a good ground plane is preferred.

  7. Feb 29, 2012 at 12:45 PM
    #7
    45acp

    45acp Paint me back in Wyoming again...

    Joined:
    Aug 9, 2009
    Member:
    #20861
    Messages:
    6,481
    Gender:
    Male
    First Name:
    Jonathan
    Boring, Wisconsin
    Vehicle:
    bone stock / unmolested 04 2.7L
  8. Feb 29, 2012 at 12:47 PM
    #8
    PrezidentRedz

    PrezidentRedz Uncivilized Creations Prez

    Joined:
    Nov 17, 2008
    Member:
    #10820
    Messages:
    3,687
    Gender:
    Male
    First Name:
    Redz
    Owings, MD
    Vehicle:
    00 Taco 4x4 Xtra Cab, Locked and Lifted.
    Custom Everything! WHAT º¿º
    Just get the 9' Stainless still whip... best 1/4wave antenna out there. and it only cost 25$

  9. Feb 29, 2012 at 12:54 PM
    #9
    pAP

    pAP [OP] ==========

    Joined:
    Feb 15, 2011
    Member:
    #51218
    Messages:
    1,554
    Gender:
    Male
    First Name:
    Chris
    NJ
    Vehicle:
    11 Tacoma SR5
    ARB locker and OBA, All Pro front & rear bumper, All Pro IFS skid & modified t-case skid, Custom Trans Skid., 4x Innovations sliders, Custom tire carrier/bed bars, Warn Winch, Fox 2.5" Front coilover, Walker Evans 2.5" rear Shock, All pro Leaf, All Pro U-bolt flip, Baja Designs lights, PIA 510 lights, TRD exhaust cut back, Doug Thorley Pipe Bomb
    Thanks for the helpful info. I will go with the single 4' antenna.

  10. Mar 1, 2012 at 12:41 AM
    #10
    01TacoBuz

    01TacoBuz Well-Known Member

    Joined:
    Feb 7, 2012
    Member:
    #72297
    Messages:
    471
    Gender:
    Male
    In the woods
    Vehicle:
    01 Tacoma SR5
    K&N drop in filter, URD rear simulator, Deck plate mod/home made CAI, No rear cat, MagnaFlow muffler
    I was into Cb radios for many years until about 10 years ago I decided to get into ham radio

    Any question/questions unanswered, I will do my best to help if I can, just pm me if need be

    Keep this in mind, your antenna is the single most important part of your station, be it mobile or a base station

    You are going to talk and hear, only as good as your antenna is, also your swr=standing wave ratio, needs to be 1.5 to 1 or lower, your local cb shops can set this for you if you dont have a meter or dont know how to use one

    You can have 1000 watts but ya still wont be heard very well, nor will you hear others very well if your antenna is not right

    It is easier for a newcomer to setup one single antenna vs two

    If you are willing to go with a bigger antenna for mobile use, the old trusty 102 inch steel whip is hard to beat

    One of the easiest antenna`s on the market to setup is a Wilson magnet mount, if you plan on running a small amp the Wilson 1000 is a good choice, for just a barefoot radio the Lil Wil is a good choice

    The magnet does a pretty good job as far as having a good ground, so theres no need in running ground wire

    If ya have a garage and ya dont wanna hit the garage door you can take it off and set it in the bed of the pickup

    Antenna location ?
    The best place on a pickup is in the center of the roof, it will be sitting on top of all of the metal making for a very good groundplane

    Namebrand/type of radio ?
    I dont know what everyones idea of a lot of money is but there are many good ones on the market starting at 75 bucks going up to 400 bucks, it just depends on how much ya wanna spend

    Regardless of which radio ya choose to go with, take it to a well known cb shop in your area and have them peak and tune it for good output and modulation

    A standard Cobra 25 Ltd classic will run ya in the neighborhood of 75 bucks and add about 25 bucks for it to be peaked and tuned, the Cobra 25 does a pretty good job if the antenna is right

    Or you can go with a Galaxy or a Connex, either are good choices, I prefer the Connex, these can be had for around 200 to 400 bucks depending on the model

    Hope this was helpful, good luck with what ever ya choose to go with

  11. Mar 12, 2012 at 7:00 PM
    #11
    pAP

    pAP [OP] ==========

    Joined:
    Feb 15, 2011
    Member:
    #51218
    Messages:
    1,554
    Gender:
    Male
    First Name:
    Chris
    NJ
    Vehicle:
    11 Tacoma SR5
    ARB locker and OBA, All Pro front & rear bumper, All Pro IFS skid & modified t-case skid, Custom Trans Skid., 4x Innovations sliders, Custom tire carrier/bed bars, Warn Winch, Fox 2.5" Front coilover, Walker Evans 2.5" rear Shock, All pro Leaf, All Pro U-bolt flip, Baja Designs lights, PIA 510 lights, TRD exhaust cut back, Doug Thorley Pipe Bomb

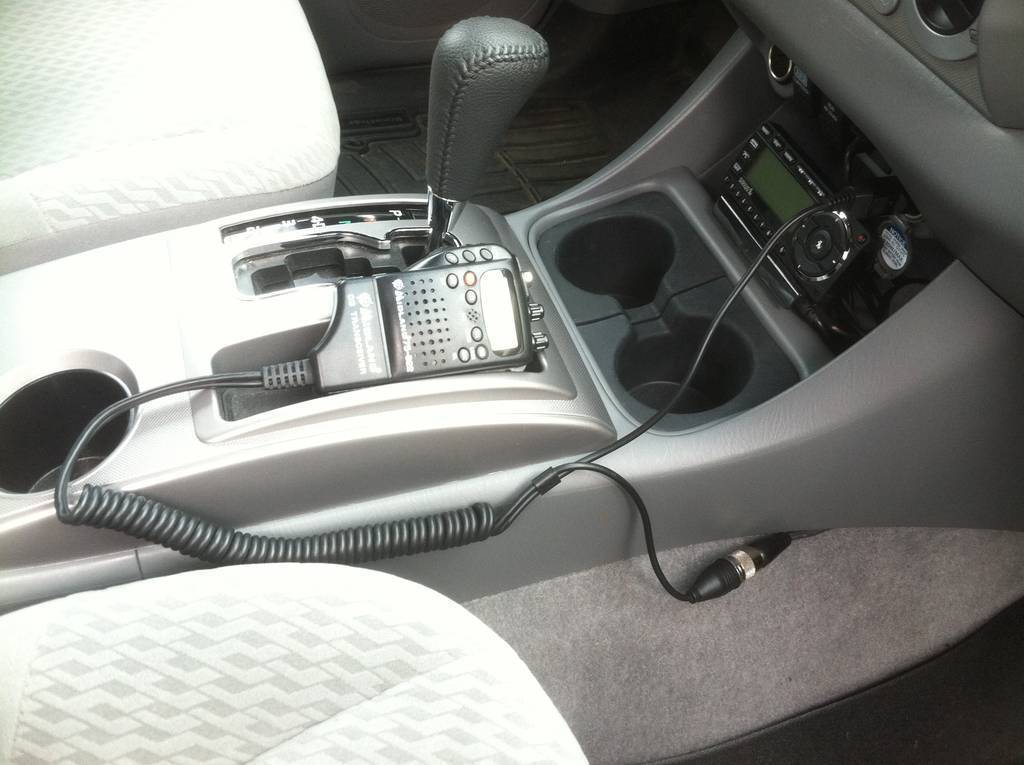

    Thank you for the advice. I ended up sticking with a NGP set-up in the middle of my bed. It works really well for what I intend. I can hear and talk clearly. Just need to test the range now. It seems this will be perfect for the woods.

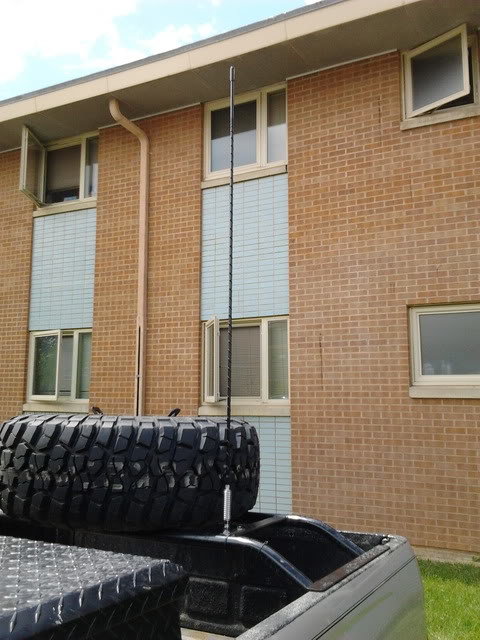

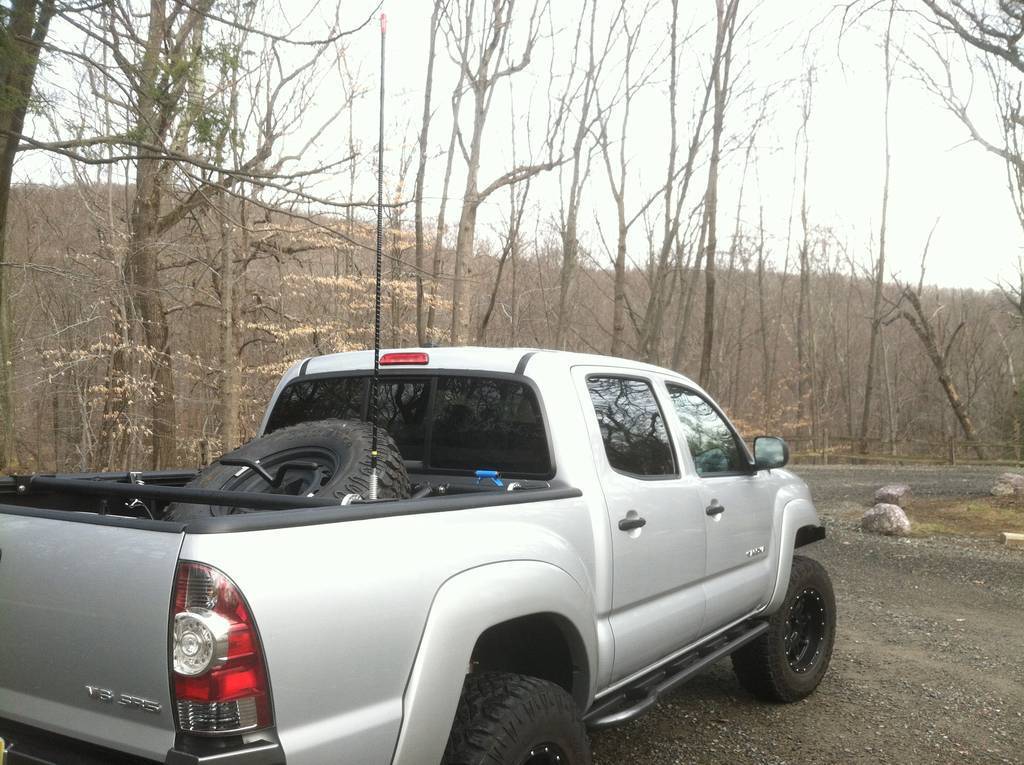

    [​IMG]
    [​IMG]

  12. Mar 12, 2012 at 7:03 PM
    #12
    saundern

    saundern Swerve for nothing

    Joined:
    Dec 10, 2009
    Member:
    #27342
    Messages:
    2,645
    Gender:
    Male
    First Name:
    Nick
    Upstate, SC
    Vehicle:
    2002 SR5 4x4
    i have the 4 foot firestik, i'm tossing around the idea of getting rid of it for a 3 foot one

  13. Mar 12, 2012 at 7:07 PM
    #13
    pAP

    pAP [OP] ==========

    Joined:
    Feb 15, 2011
    Member:
    #51218
    Messages:
    1,554
    Gender:
    Male
    First Name:
    Chris
    NJ
    Vehicle:
    11 Tacoma SR5
    ARB locker and OBA, All Pro front & rear bumper, All Pro IFS skid & modified t-case skid, Custom Trans Skid., 4x Innovations sliders, Custom tire carrier/bed bars, Warn Winch, Fox 2.5" Front coilover, Walker Evans 2.5" rear Shock, All pro Leaf, All Pro U-bolt flip, Baja Designs lights, PIA 510 lights, TRD exhaust cut back, Doug Thorley Pipe Bomb

    Why is that? Is yours mounted right behind the cab? I went with a 4' in the middle of the bed rail so it doesn't whack the cab.

  14. Mar 15, 2012 at 1:22 PM
    #14
    dwsyab

    dwsyab Old Man

    Joined:
    Jan 5, 2012
    Member:
    #70007
    Messages:
    89
    Gender:
    Male
    First Name:
    David
    Sturbridge MA
    Vehicle:
    2012 TRD Offroad
    TRD Exhaust, rear diff breather mod, CB Radio
    I've been thinking about installing dual 4' antennas at the rear of the bed to either side of the tailgate using door jamb mounts. I was under the impression that dual antennas act as their own ground plane and would also provide best transmission range to the front and rear of the vehicle. Given that the bed is partially plastic and ground continuity suspect, I would also run a direct ground wire to the frame for each antenna.

    Looking for feedback on using two vs. one at this location.

  15. Mar 15, 2012 at 1:39 PM
    #15
    LUSETACO

    LUSETACO Here for the Taco Pron

    Joined:
    Jun 27, 2009
    Member:
    #18991
    Messages:
    10,427
    Gender:
    Male
    First Name:
    Dennis
    Aim-ish country PA
    Vehicle:
    Make: Chevy Model: Pile
    Yes
    Two is not better than one. Not to mention a huge pain in the ass to tune. Most guys running dual set-ups only have one antenna hooked up and just do it for looks.

  16. Mar 15, 2012 at 1:45 PM
    #16
    pAP

    pAP [OP] ==========

    Joined:
    Feb 15, 2011
    Member:
    #51218
    Messages:
    1,554
    Gender:
    Male
    First Name:
    Chris
    NJ
    Vehicle:
    11 Tacoma SR5
    ARB locker and OBA, All Pro front & rear bumper, All Pro IFS skid & modified t-case skid, Custom Trans Skid., 4x Innovations sliders, Custom tire carrier/bed bars, Warn Winch, Fox 2.5" Front coilover, Walker Evans 2.5" rear Shock, All pro Leaf, All Pro U-bolt flip, Baja Designs lights, PIA 510 lights, TRD exhaust cut back, Doug Thorley Pipe Bomb
    This is the advice I got on two antenna vs one:

  17. Mar 15, 2012 at 1:47 PM
    #17
    saundern

    saundern Swerve for nothing

    Joined:
    Dec 10, 2009
    Member:
    #27342
    Messages:
    2,645
    Gender:
    Male
    First Name:
    Nick
    Upstate, SC
    Vehicle:
    2002 SR5 4x4
    it WAS mounted behind the cab, now its on my toolbox

    I park alot in garages because all my business takes place in the city so i'm tired of it wacking the roof when i pull in and out

  18. Mar 15, 2012 at 4:47 PM
    #18
    dwsyab

    dwsyab Old Man

    Joined:
    Jan 5, 2012
    Member:
    #70007
    Messages:
    89
    Gender:
    Male
    First Name:
    David
    Sturbridge MA
    Vehicle:
    2012 TRD Offroad
    TRD Exhaust, rear diff breather mod, CB Radio
    From everything that I have read, co-phased (dual) antenna installations create a radiation pattern that favors communication directly in front and back of the vehicle. This is why truck semi drivers favor this type of installation. If they work on big rigs why won't they work on pick-ups?

    Co-phase antennas can improve performance on vehicles that lack good ground plane characteristics (fiberglass motorhomes, trucks, etc.). Instead of using available metal to reflect the radiated energy, the antennas use each others field. This is one of the reasons I thought it might work well when mounted in the rear of a taco since these truck beds are plastic.

  19. Mar 15, 2012 at 4:53 PM
    #19
    186000mps

    186000mps ..Slingin' up mud and we're scarying off bunnies..

    Joined:
    Aug 29, 2011
    Member:
    #62581
    Messages:
    786
    Gender:
    Male
    First Name:
    Charles
    Wimberley, TX
    Vehicle:
    01 Tacoma V6 4WD
    Bilstein 5100's, Toytec front adjustable coilover kit, Exporear leafs, Fox resi rears, Slotted & Drilled front rotors, 33x12.50 BFG ATs on Outlaw II 15 x 10s, Bushwacker cutout flares, K&N cold air intake with aluminum sheathing water baffles, ARB bumper with XD9000 winch with wireless remote, IPF 900XS lights, Flowmaster cat-back exhaust, Rhino bed liner, UWS gullwing toolbox with tools and recovery gear. 48" Hi-Lift Jack secured under toolbox.
    Semi's use them because of they typically drive on roads, with traffic in front and behind them. Off road use typically has other users in a non-linear orientation, a front and back configuration would limit your ability to communicate to your left and right sides.

    Also dual antennas need much more distance between them than a typical pick up can provide to reach optimal tuning. Truckers mount them on their mirrors as far from each other as possible.

  20. Mar 16, 2012 at 7:47 AM
    #20
    dwsyab

    dwsyab Old Man

    Joined:
    Jan 5, 2012
    Member:
    #70007
    Messages:
    89
    Gender:
    Male
    First Name:
    David
    Sturbridge MA
    Vehicle:
    2012 TRD Offroad
    TRD Exhaust, rear diff breather mod, CB Radio
    I just found this info on Co-Phasing Mobile Antennas

    "Co-Phasing antennas simply means taking two identical antennas, mounting them on the vehicle and feeding them in-phase. One of the biggest misconception of radio operators is what kind of effect this has on the radiation pattern. Most people think that after you Co-Phase two mobile antennas, your signal will be strongest in line with the vehicle body (meaning the signal is strongest down the road straight in front of you and straight behind you also. This is the theoretical effect that you would get from co-phasing two omnidirectional antennas. However, to realize this effect you need to satisfy a couple of requirements. For one, a good earth ground with long (over a wavelength or so) radial wires is required. Secondly, at CB frequencies the closest you would be able to place these antennas are about 18 feet apart. Since it is impossible to satisfy these requirements, the effect of co-phasing is seriously diminished. Unfortunately, even the "Radio Shack Antenna Book" states that co-phasing two mobile antennas will produce a two directional signal.

    So then, is there any advantage to co-phasing two mobile antennas? Why yes, there is. Before we noted that the radiation pattern of a single antenna is "pulled" where there is the most metal vehicle body. You can see the pattern is not perfectly omnidirectional like we would expect it be. As we travel down the road, you will notice signal fade ("flutter" or "waver") from this uneven radiation pattern. Co-phasing two antennas will even out the pattern irregularities. Instead of making the pattern more two directional, it will make it more omnidirectional. Do not expect more "gain" from two antennas. Figure 3 shows how co-phased antennas clean up the radiation pattern. Read the section "Co-Phasing" for instructions on how to make a harness to feed your co-phased antennas. It best to get them as far apart as possible. The best way would be to mount one on the front bumper in the center and one on the back bumper in the center also. Most people think this looks silly (me included!) and mount one on each side of the vehicle."
