Center mount 4wd

Discussion in 'Long Travel Suspension' started by dirt designs, Dec 31, 2013.

  1. dirt designs

    dirt designs [OP] Well-Known Member

    Joined:
    Jan 9, 2013
    Member:
    #94822
    Messages:
    101
    Gender:
    Male
    First Name:
    Steve
    slo
    Vehicle:
    01 Tacoma race truck
    Only factory parts left is cab and frame rails
    Well not really center mount due to the diff flange offsets, but will still be a badass project to finish up the truck.

    Specs so far:
    Engine: LS3 - from 2012 camaro. Stock for now, will be built to 550-600hp later

    Trans: 4L80e - built by Jakes Performance. Stage 5 (1500hp/1500ft-lbs street capable)

    Tcase: Atlas II with 300m input/output

    Front diff: Currie 9+ center section. ARB locker, 5.13 gears, 934 stubs

    Axleshafts: RCV cvs and axelshafts

    Hubs: Spidertrax ulimate unit bearings

    Steering: Most likely Howe steering rack

    Front suspension: Still being designed but will have 20in travel, 2.5cos, and 3.0bypasses.

    [​IMG]

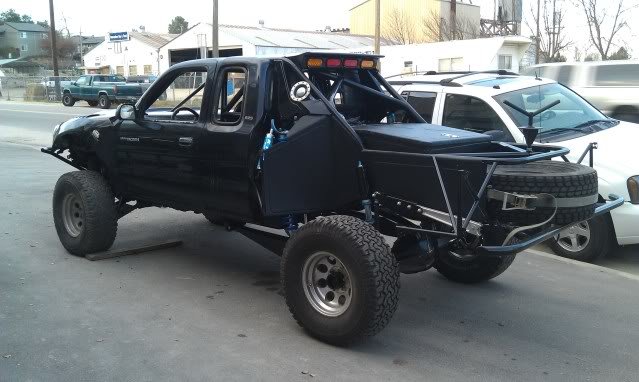

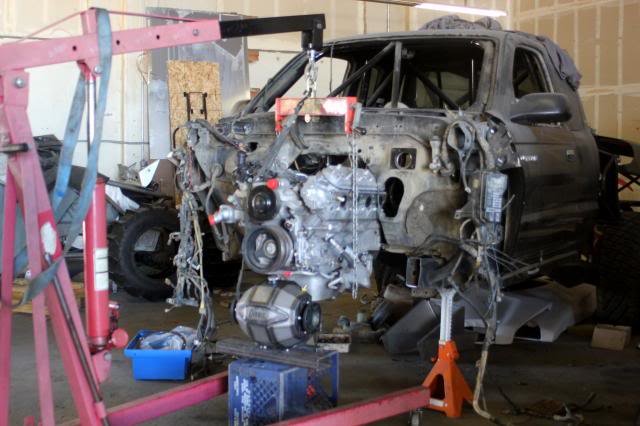

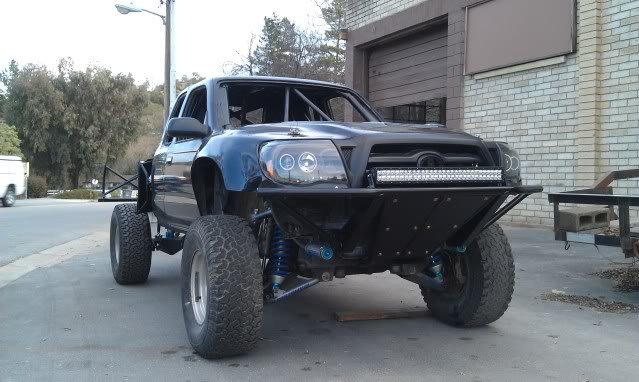

    Heres some pics from the backhalf build/new clip

    [​IMG]
    [​IMG]

    Fuel lines are all black now
    [​IMG]

    Has 3.0 bypasses in rear now
    [​IMG]

    Everythings all ziptied up. Blue hose is fuel hose thats covering the plastic air locker line
    [​IMG]
    [​IMG]

    The allusive sway bar.
    [​IMG]

    Single piece driveshaft. 3.5" tube, 1350 rear joint, and 1310 up front. When the truck comes back it will have the engine pushed back about a foot so the driveline will be shortened.
    [​IMG]

    A little hard to see the side plating in the pic, but a little more elaborate then the first set.
    [​IMG]

    Interior was all stripped down and shot all black, minus the dash. The dash will be getting a few modifications next time its in then powder coated. I like the look of it already, but we have to fit a gps and maybe a couple other doo dads. Also made a co2 tank holder in the ext cab section, will take a pic later.
    [​IMG]

    And the storage tank. Already wired for 2 optimas inside.
    [​IMG]

  2. Mxpatriot

    Mxpatriot Busted Knuckles Fabrication

    Joined:
    Nov 18, 2009
    Member:
    #26163
    Messages:
    2,674
    Gender:
    Male
    First Name:
    Chase
    Vehicle:
    '06 4x4 AP LT
    Money pit.
    Oh yea!!!!! Tag for updates

  3. richardbui23

    richardbui23 Running For Mayor of TW

    Joined:
    Apr 26, 2011
    Member:
    #55580
    Messages:
    16,411
    Gender:
    Male
    First Name:
    Richard
    Arlington Texas
    Vehicle:
    07 DCSB PreRunner Zombie Unit Mall Crawler
    Wheels and tires,Bilstein 5100's OME 884's 3 inch lift
  4. TPain

    TPain Boss

    Joined:
    Sep 21, 2012
    Member:
    #87426
    Messages:
    300
    Gender:
    Male
    First Name:
    Tanner
    Asheville, NC
    Vehicle:
    01 SR5 Supercharged
    This is exciting

  5. Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,668
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    Whoa... that's gonna be awesome when it's up and running!

  6. 2000GTacoma

    2000GTacoma Well-Known Member

    Joined:
    Jan 29, 2011
    Member:
    #50183
    Messages:
    2,183
    Gender:
    Male
    Snow Hill NC
    Vehicle:
    00 Tacoma Ext. 3.4L SR5
    subbed to see the rest of this

  7. Spoonman

    Spoonman Granite Guru

    Joined:
    Sep 11, 2011
    Member:
    #63328
    Messages:
    7,811
    Gender:
    Male
    First Name:
    Jamie
    Calgary
    Vehicle:
    2006 Campster Mobile
    My truck is MAGIC
    Sweet, what kind of storage box?

  8. steve o 77

    steve o 77 braaap

    Joined:
    Nov 29, 2009
    Member:
    #26726
    Messages:
    19,880
    Gender:
    Male
    First Name:
    Steven
    In a corn field, OH
    Vehicle:
    2001 4x4 SR5 Xtra Cab V6
    265/75/16 BFG A/T's, OME 881's, Wheelers 5 leaf pack, 5100's, Home Made Sliders
  9. 45acp

    45acp Paint me back in Wyoming again...

    Joined:
    Aug 9, 2009
    Member:
    #20861
    Messages:
    5,707
    Gender:
    Male
    First Name:
    Jonathan
    Boring, Wisconsin
    Vehicle:
    bone stock/unmolested 04 2.7L
    Oh my...

  10. VanCity4x

    VanCity4x Out fer a Rip eh Bud

    Joined:
    Aug 1, 2011
    Member:
    #60970
    Messages:
    1,367
    Gender:
    Male
    First Name:
    DJ
    BC
    Vehicle:
    05 TRD OR Prerunner 4x4
    Prerunner conversion FJ TCase Locked front & rear 4.56 gears Brute Force Hybrid Dirty 5's See build thread
    Sick setup, subd

  11. dirt designs

    dirt designs [OP] Well-Known Member

    Joined:
    Jan 9, 2013
    Member:
    #94822
    Messages:
    101
    Gender:
    Male
    First Name:
    Steve
    slo
    Vehicle:
    01 Tacoma race truck
    Only factory parts left is cab and frame rails
    Box is split internally and pretty well water proof against rain and mobbing, not submerged. Batteries in the front and open storage in the back. In the front section there is dual optimas with room for full spare oil+fluid+coolant storage OR a very big bag of tools. The rear section is about 36" wide x 24" deep x 16" tall(?).

  12. AK 08TACO

    AK 08TACO Well-Known Member

    Joined:
    Sep 21, 2010
    Member:
    #43613
    Messages:
    468
    Gender:
    Male
    First Name:
    Kyle
    Wasilla, AK
    Vehicle:
    08 Tacoma
    :popcorn: that's gonna be sick!

  13. zbaldo

    zbaldo Well-Known Member

    Joined:
    Feb 10, 2012
    Member:
    #72550
    Messages:
    436
    Gender:
    Male
    First Name:
    Ozzy
    Torrance, Ca
    Vehicle:
    99 4Runner SR5 4X4
    Stock as Stock can be with duratracs and a roof rack
    I don't know a thing about long travel and all but that is one clean truck. Very nice and good luck with the build.

  14. 450rider

    450rider Well-Known Member

    Joined:
    Nov 5, 2011
    Member:
    #66525
    Messages:
    133
    Gender:
    Male
    Oregon
    Vehicle:
    98 4x4 SR5 Maroon
    Leveling Kit, K&N Filter, Rockford Fosgate speakers, mono block amp, 4 channel amp, capacitor, sub and both amp kits and a Pioneer DVD player By-passed
  15. Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    49,301
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    96.5 FrankenTaco & 03 Stock dbl cab
    BFG KM2 33x12.5 tires, Wheelers Type B rims, Allpro 1.5'' Wheel spacers w/extended thread lug nuts 2 Alpine 10'' Type Xs 2 Kicker 6X9s 4 Sony 5 1/4s Pioneer 4100 HU Sway bar removed 4 Hella 500 HIDs Frankenstein Leaf packs 1'' lift shackles Eibach coils 5100s front 10'' 5150s rear BAMF BPV bracket Deckplate mod Elite Front bumper Magnaflow 14'' muffler Elite Off Road Rear bumper with Tire gate with jerry can and fold down table, BAMF sliders, Custom Homemade Bed, rack/roof rack, CVT Mt. Shasta Roof Top Tent, 20lb CO2 tank, BAMF diff skid custom front skid, GM CS144 140 amp alternator Blitzpro 21s HAWK side LEDs Blitzpro Custom made side mirror lights, LightForce 240 Blitz llights, Piaa 510 ION fogs, XRC8 Winch w/in cab controls,
    Good god..

    :popcorn:

  16. losers101

    losers101 Well-Known Member

    Joined:
    Apr 11, 2012
    Member:
    #76738
    Messages:
    304
    Gender:
    Male
    First Name:
    Brandan
    Texas
    Vehicle:
    96 4x4 V6 LX
    K&N CAI, Magnaflow 14", pioneer headunit, 4 kicker 6 1/2, dual 8" kicker subs in tool cubbies, JL amps, Donahoe coilovers, allpro 3" leafs, trail-gear 5.5" greasable shackles, custom plate bumper, warn M8000
  17. Delmarva

    Delmarva Mayor of TW

    Joined:
    Oct 22, 2008
    Member:
    #10148
    Messages:
    35,616
    Gender:
    Male
    First Name:
    Mike
    Tucson, AZ
    Vehicle:
    09 TRD OR S/C 4x4
    TRD S/C, Full OME Suspension, LR UCAs, Relentless Front Bumper, Derpwerx Fab HC Rear Bumper, 285/75/16 Revos, XD Hoss Wheels, Safari Snorkel, Infiniti FX-R HID Retrofit, Airbags in rear, Optima Yellow top, Besttop, All-Pro Skid, All-Pro HD Sliders
    Interesting

  18. dirt designs

    dirt designs [OP] Well-Known Member

    Joined:
    Jan 9, 2013
    Member:
    #94822
    Messages:
    101
    Gender:
    Male
    First Name:
    Steve
    slo
    Vehicle:
    01 Tacoma race truck
    Only factory parts left is cab and frame rails

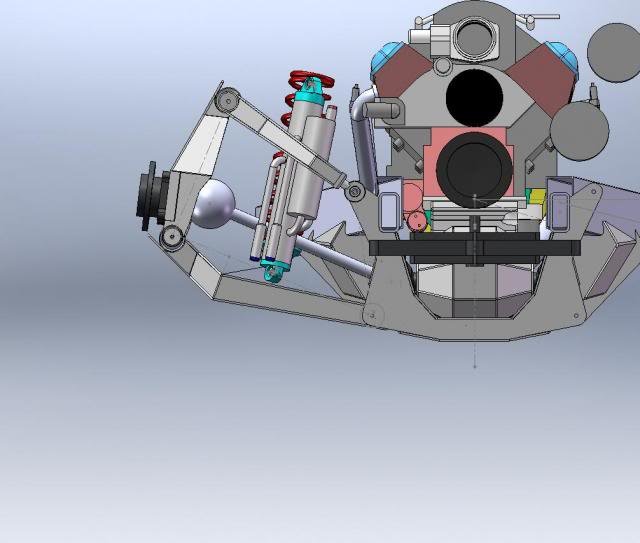

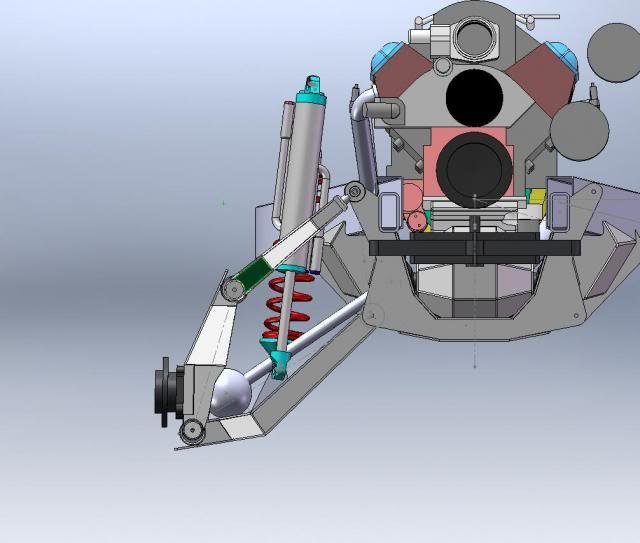

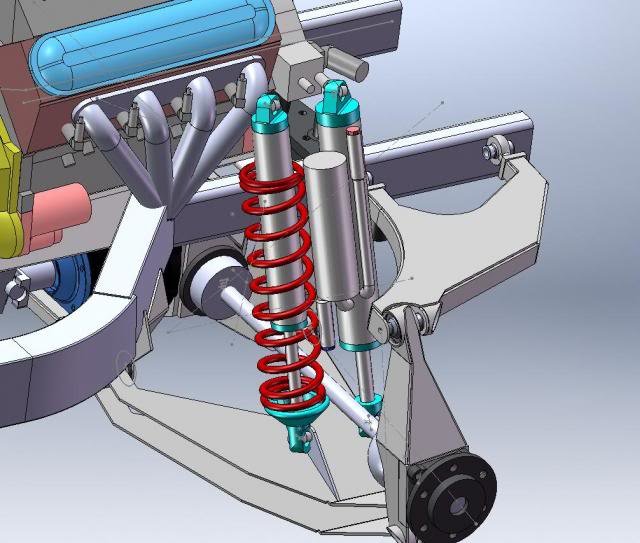

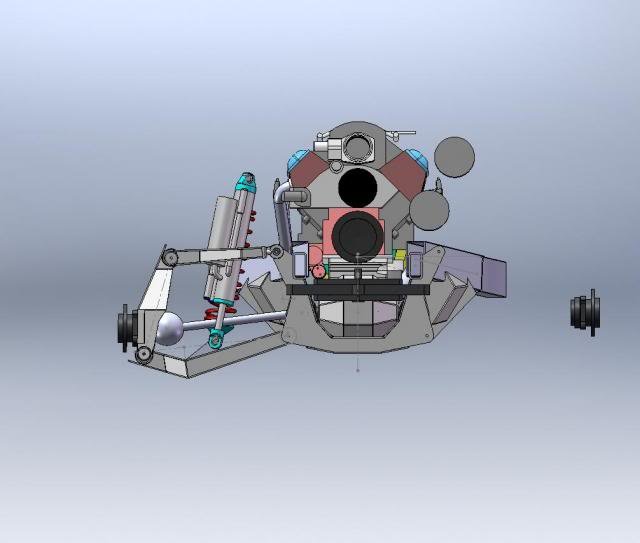

    Few update pics of the CAD. Its getting pretty close to start cutting plate, tubing, and mounting parts. I am still trying to figure what rack i want to use. Its narrowed down to Howe, just trying to decide which one. Dont mind some of the interference parts/shocks they were only for quick mockup on some other parts.

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  19. Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    49,301
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    96.5 FrankenTaco & 03 Stock dbl cab
    BFG KM2 33x12.5 tires, Wheelers Type B rims, Allpro 1.5'' Wheel spacers w/extended thread lug nuts 2 Alpine 10'' Type Xs 2 Kicker 6X9s 4 Sony 5 1/4s Pioneer 4100 HU Sway bar removed 4 Hella 500 HIDs Frankenstein Leaf packs 1'' lift shackles Eibach coils 5100s front 10'' 5150s rear BAMF BPV bracket Deckplate mod Elite Front bumper Magnaflow 14'' muffler Elite Off Road Rear bumper with Tire gate with jerry can and fold down table, BAMF sliders, Custom Homemade Bed, rack/roof rack, CVT Mt. Shasta Roof Top Tent, 20lb CO2 tank, BAMF diff skid custom front skid, GM CS144 140 amp alternator Blitzpro 21s HAWK side LEDs Blitzpro Custom made side mirror lights, LightForce 240 Blitz llights, Piaa 510 ION fogs, XRC8 Winch w/in cab controls,
    whhoooaaaa

    crazy design!

  20. steve o 77

    steve o 77 braaap

    Joined:
    Nov 29, 2009
    Member:
    #26726
    Messages:
    19,880
    Gender:
    Male
    First Name:
    Steven
    In a corn field, OH
    Vehicle:
    2001 4x4 SR5 Xtra Cab V6
    265/75/16 BFG A/T's, OME 881's, Wheelers 5 leaf pack, 5100's, Home Made Sliders
    Awesome. I love that upper arm.
