Center mount 4wd

Discussion in 'Long Travel Suspension' started by dirt designs, Dec 31, 2013.

  1. Apr 1, 2014 at 10:24 AM
    #61
    Hambone155

    Hambone155 Well-Known Member

    Joined:
    Jul 9, 2008
    Member:
    #7844
    Messages:
    729
    Gender:
    Male
    omaha
    Vehicle:
    Causing Butthurt is my job
    port and polish intake manifold, supercharger, pulley for charger, lifted, tires, deckplate, (doing full engine build)
    Its sad what gives me a stiffy now...

  2. Apr 21, 2014 at 6:23 PM
    #62
    Bgt51ridescr

    Bgt51ridescr Active Member

    Joined:
    Nov 10, 2013
    Member:
    #116331
    Messages:
    34
    Gender:
    Male
    First Name:
    Brian
    CA
    Vehicle:
    '16 Tacoma TRD Offroad 4x4 longbed
    bed cover, method wheels, BFG all terrains, blacked out exterior chrome
    Any photos of progress or? :goingcrazy:

  3. Apr 28, 2014 at 11:46 PM
    #63
    dirt designs

    dirt designs [OP] Well-Known Member

    Joined:
    Jan 9, 2013
    Member:
    #94822
    Messages:
    120
    Gender:
    Male
    First Name:
    Steve
    slo
    Vehicle:
    01 Tacoma race truck
    Only factory parts left is cab and frame rails

    Been a little while. Had some hold ups, but the truck is coming along.

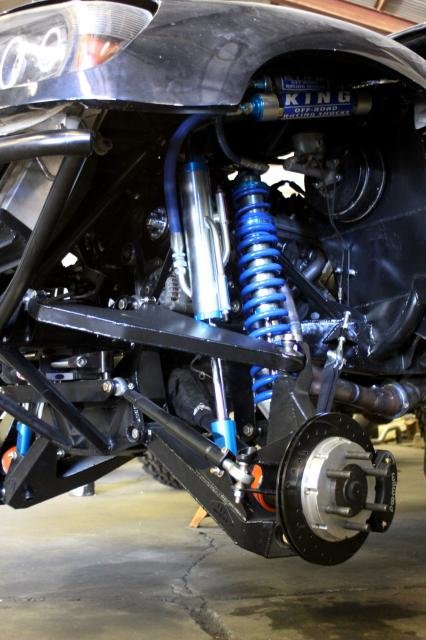

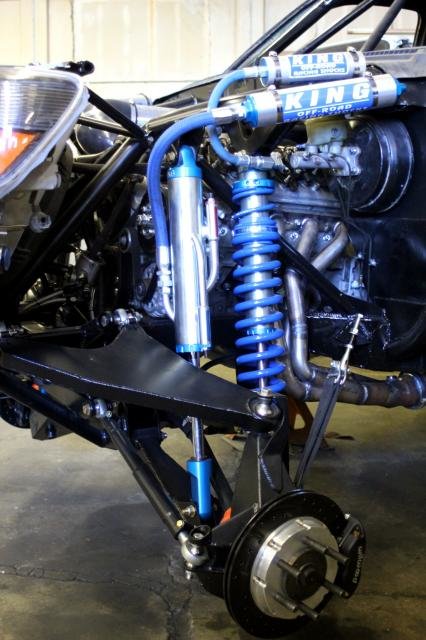

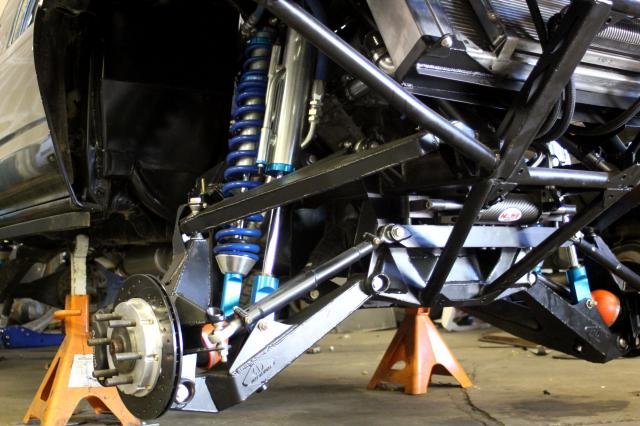

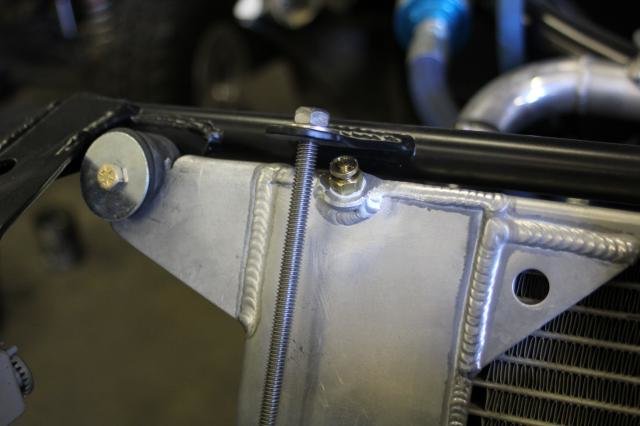

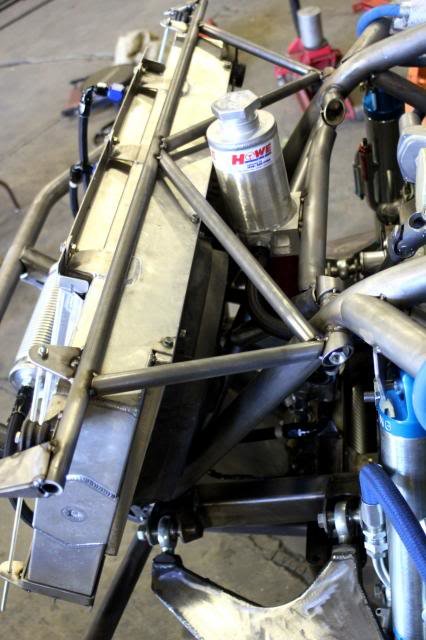

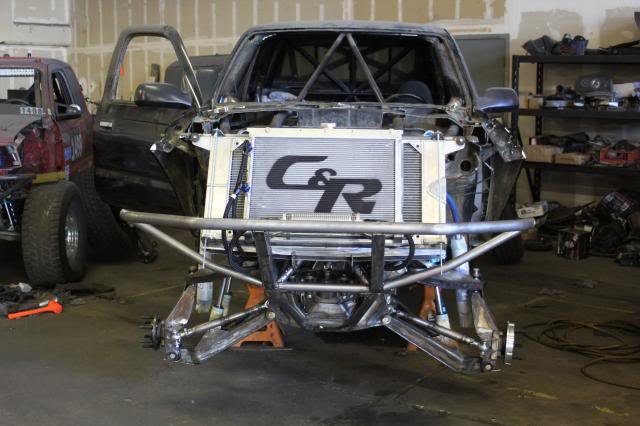

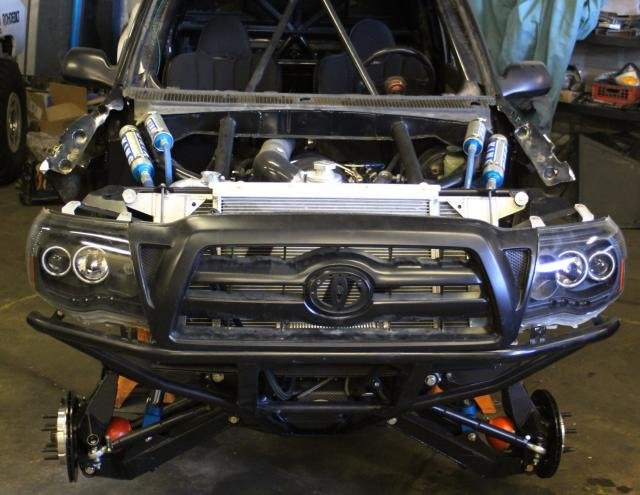

    Large C&R trans cooler in front of a CBR race-class radiator w/ dual 16in fans.



    It was a snug fit, but the power steering reservoir fit perfectly!



    The steering setup only needs a few more lines made and then its ready to go. We just finished up the steering shaft supports today but I forgot to get updated pics.

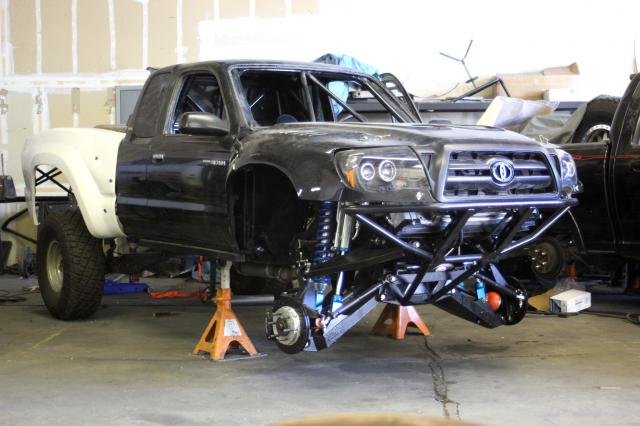

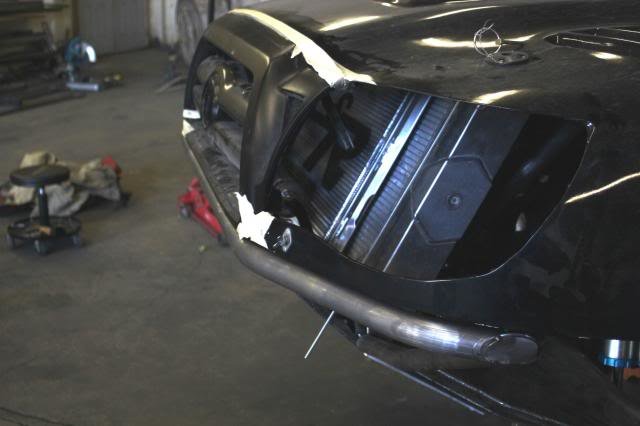

    The bumper is going to be a tight valance with RG style smasher up front.


  4. Apr 29, 2014 at 1:10 AM
    #64
    AK 08TACO

    AK 08TACO Well-Known Member

    Joined:
    Sep 21, 2010
    Member:
    #43613
    Messages:
    1,102
    Gender:
    Male
    First Name:
    Kyle
    Wasilla, AK
    Excellent Work! :drool:

  5. Jun 12, 2014 at 1:16 PM
    #65
    Lil'Taco

    Lil'Taco Well-Known Member

    Joined:
    Jul 1, 2010
    Member:
    #39694
    Messages:
    907
    Gender:
    Male
    First Name:
    Scotty
    Corvallis, OR
    Vehicle:
    2010 PreRunner Sport DCSB
    Grillcraft grill, Weather Tech floor mats, HID headlights and fog lights, aFe CAI, Borla Cat-back exhaust, Total Chaos +2" Long Travel, Coil Bucket Gussets, Spindle Gussets, LCA Cam Gussets, Glassworks 4" fenders, B.A.M.F. rock sliders with fill plates, Blitzpro 21S LED light bar w/ B.A.M.F. behind the grill light bar mount, Red Label Off-road tube bumper, Redline hood struts.... It has more stuff done to it now.
    Mother of Mary! Sub'd

  6. Jul 3, 2014 at 12:47 PM
    #66
    rideexileex

    rideexileex Well-Known Member

    Joined:
    Jun 1, 2012
    Member:
    #79884
    Messages:
    244
    Gender:
    Male
    First Name:
    Sean
    Seattle
    Vehicle:
    2000 4Runner
  7. Jul 3, 2014 at 4:49 PM
    #67
    TCMach

    TCMach 4Runner Dude

    Joined:
    Oct 23, 2013
    Member:
    #115088
    Messages:
    39
    Gender:
    Male
    First Name:
    Tyler
    FoCo
    Vehicle:
    00 4runner lifted, armored, blah blah
    Kings on Kings
    Jeez! this is the coolest tacoma I've seen in forever! Excellent fab work

  8. Jul 3, 2014 at 5:24 PM
    #68
    Tuctaco

    Tuctaco Well-Known Member

    Joined:
    Jul 6, 2011
    Member:
    #59417
    Messages:
    673
    Gender:
    Male
    First Name:
    Todd
    Tucson, AZ
    Vehicle:
    2012 MGM TRD OR 4x4
    Katzkins, Redline hood struts, Pop & Lock,285/75/16 Toyo Open County ATll, 16X8 Konig Countersteer, Icon extended coilovers, Icon rear shocks, Icon progressive leaf pack, LR UCA's, extended brake lines,
    Very nice OP.

  9. Jul 3, 2014 at 5:26 PM
    #69
    Large

    Large Red

    Joined:
    Sep 10, 2011
    Member:
    #63268
    Messages:
    22,124
    Gender:
    Male
  10. Jul 8, 2014 at 9:57 PM
    #70
    sytfu510

    sytfu510 INSTAGRAM: sytfu510

    Joined:
    Aug 27, 2011
    Member:
    #62453
    Messages:
    4,673
    Gender:
    Male
    First Name:
    Alex
    Bay Area
    Vehicle:
    06 DBL Cab Long Bed TRD Sport
    Dirt Designs LT kit DMZ LT Kit TRD Supercharger SCS Wheels BAMF
  11. Jul 10, 2014 at 9:40 PM
    #71
    dirt designs

    dirt designs [OP] Well-Known Member

    Joined:
    Jan 9, 2013
    Member:
    #94822
    Messages:
    120
    Gender:
    Male
    First Name:
    Steve
    slo
    Vehicle:
    01 Tacoma race truck
    Only factory parts left is cab and frame rails
    Updates very soon. Im sure a lot of you have been seeing some ig pics, but ill upload some real camera pics tomorrow night. Truck is just waiting on wiring to show up and then to get all the aluminum work done at another shop down south.

  12. Jul 14, 2014 at 9:23 PM
    #72
    dirt designs

    dirt designs [OP] Well-Known Member

    Joined:
    Jan 9, 2013
    Member:
    #94822
    Messages:
    120
    Gender:
    Male
    First Name:
    Steve
    slo
    Vehicle:
    01 Tacoma race truck
    Only factory parts left is cab and frame rails
    Still waiting on wiring before the truck heads out for aluminum work,* but here's some update pics for those of you not following on ig (these pics are much better res anyways).

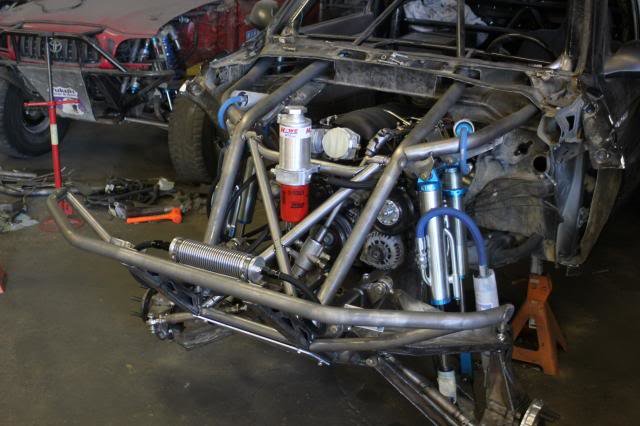

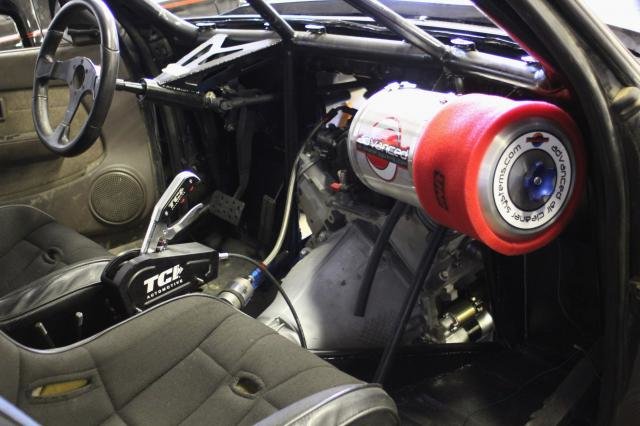

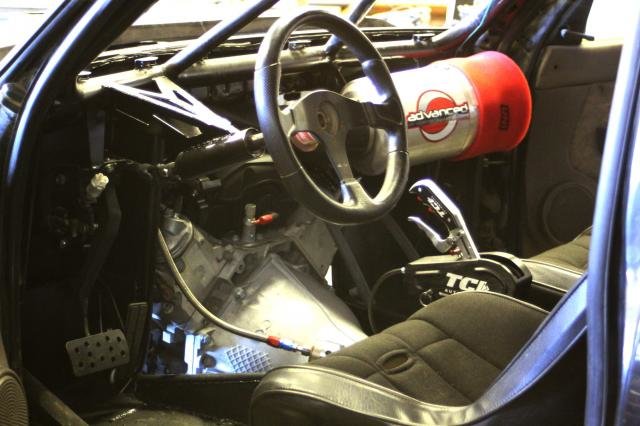

    Cut the old dash out to make room for the huge air filter and a new dash.

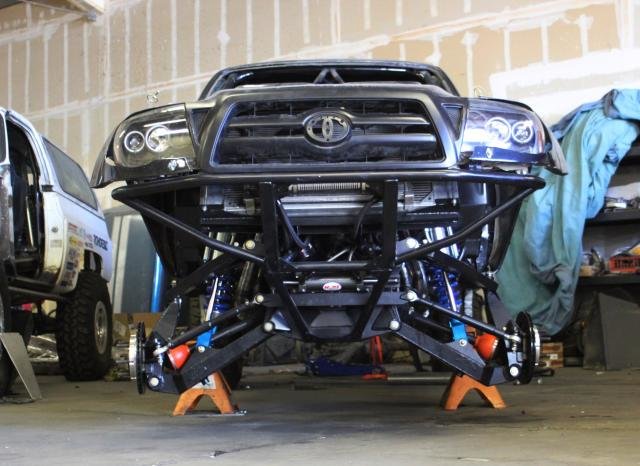

    Some under hood shots



    We also welded in an air purge valve to get all the air out of the cooling system

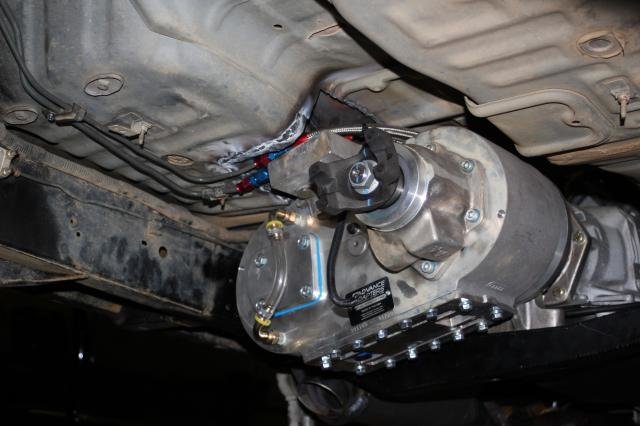

    After we get the front drive shaft figured out and in we'll build a skid plate to protect the exhaust and trans pan

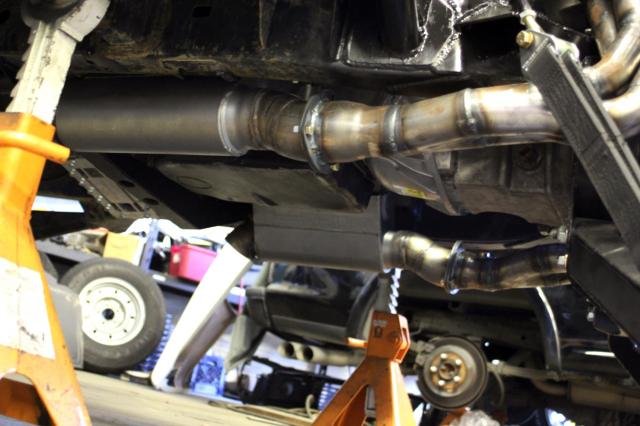

    Cleaned up the fuel lines to avoid the drive shafts and exhaust

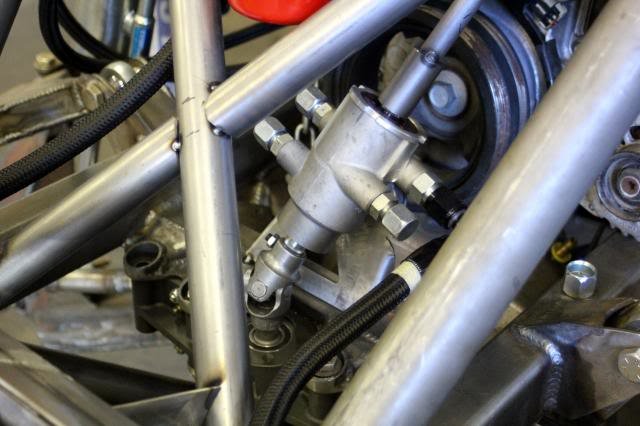

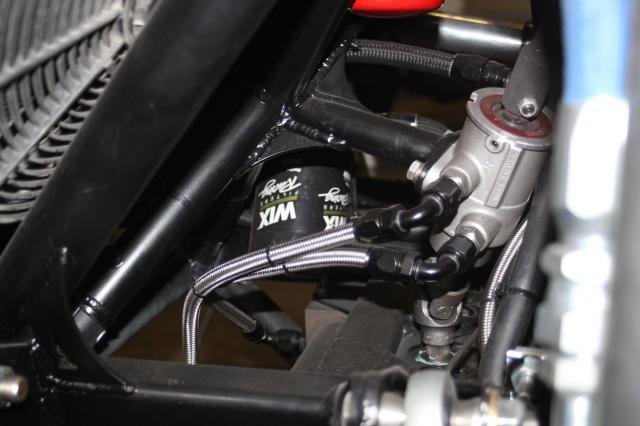

    Trans filter and PS steering servo with ss ptfe hoses


  13. Jul 14, 2014 at 9:47 PM
    #73
    nfs257

    nfs257 Well-Known Member

    Joined:
    Jun 22, 2011
    Member:
    #58691
    Messages:
    7,624
    Gender:
    Male
    First Name:
    Chris
    Menifee, Ca -> Tucson, Az -- April
    Vehicle:
    09 DCLB PreRunner MGM SR5 Debadged
    Trac Performance built Prerunner
    What's your Instagram?

  14. Jul 15, 2014 at 3:27 PM
    #74
    DIRT YOTA

    DIRT YOTA Aka EL ROJO

    Joined:
    Jun 22, 2010
    Member:
    #39302
    Messages:
    6,355
    Gender:
    Male
    First Name:
    Cory
    Camarillo, CA
    Vehicle:
    03' dbl cab with some stuff
    Badass!!! I can't wait to see this thing mob in person!!!

  15. Jul 15, 2014 at 3:48 PM
    #75
    Cr250jumper

    Cr250jumper Señor member

    Joined:
    Dec 2, 2010
    Member:
    #47033
    Messages:
    11,291
    Gender:
    Male
    The moon
    Vehicle:
    50 shades of tan©
    Tacoma with some stuff melted to it
    .....and I'm spent

  16. Jul 16, 2014 at 10:26 AM
    #76
    dirt designs

    dirt designs [OP] Well-Known Member

    Joined:
    Jan 9, 2013
    Member:
    #94822
    Messages:
    120
    Gender:
    Male
    First Name:
    Steve
    slo
    Vehicle:
    01 Tacoma race truck
    Only factory parts left is cab and frame rails
    Dirt designs :D

  17. Jul 16, 2014 at 10:16 PM
    #77
    Rebel Taco 22

    Rebel Taco 22 mall crawler

    Joined:
    Mar 20, 2011
    Member:
    #53387
    Messages:
    1,601
    Gender:
    Male
    First Name:
    Parker
    Birmingham, AL
    Vehicle:
    04 taco 4x4 TRD Debadged
    Shrockworks front bumper Shrockworks sliders Tacoma sport rims painted grey 285/70/17 BFG KM2 AEM cold air intake Grey wire mod Donahoe/Icon coilovers 4crawler 1'' BL CBI cutbed rear bumper Bud-Built skids Inchworm e-locker skid
    Any pictures of how you are getting the driveshaft to the front diff? You said you have to pull the engine to take the 3rd out so I figured it would be pretty tight.

  18. Jul 25, 2014 at 10:46 AM
    #78
    dirt designs

    dirt designs [OP] Well-Known Member

    Joined:
    Jan 9, 2013
    Member:
    #94822
    Messages:
    120
    Gender:
    Male
    First Name:
    Steve
    slo
    Vehicle:
    01 Tacoma race truck
    Only factory parts left is cab and frame rails
    No pics yet. I will most likely be notching the trans pan. And we no longer have to pull engine to get the front 3rd out. I also notched and welded the oil pan so the 3rd comes right out. MUCH better setup
