Cheap/Free Mods

Discussion in 'Technical Chat' started by piercedtiger, Dec 28, 2007.

  1. Mar 3, 2014 at 5:22 PM
    #1581
    CousinVinny92

    CousinVinny92 New Member

    Joined:
    Mar 3, 2014
    Member:
    #124436
    Messages:
    3
    Gender:
    Male
    Great mod!!!! Worth the $5 and is very useful!

  2. Mar 4, 2014 at 6:51 AM
    #1582
    Frogsauce

    Frogsauce Well-Known Member

    Joined:
    May 20, 2013
    Member:
    #104546
    Messages:
    765
    Gender:
    Male
    Chesapeake Bay
    Vehicle:
    16 TRD Offroad
    Link in my sig, I re-ran all the breathers.

    Froggyhill likes this.
  3. Mar 6, 2014 at 8:08 AM
    #1583
    ThomasMore66

    ThomasMore66 We can't stop here, this is bat country!

    Joined:
    Feb 9, 2013
    Member:
    #97155
    Messages:
    7,256
    Gender:
    Male
    Dallas/Fort Worth & Durango
    Vehicle:
    Supercharged 2013 TRD Offroad 4wd
    TRD Supercharger, TRD exhaust, Leather seats, running boards removed (why it came with them I cannot imagine), Salex organizers, BAMF behind-the-grill light bar, Rigid SR-20 and SR-Q - Spots mounted behind stock grill, color-matched grill, WeatherTech FloorLiner DigitalFit floor mats, Tech Deck, Avid bolt-on slider/step converted to weld on by TW member Achirdo, Diaz Fabrication Model T, Icon Stage 4 with OME Dakar rear leaf springs, OME Driveshaft spacer, Toytec 1" Front Diff Drop, FN BFD 18"x9" GMG Wheels, BFG KO2 285-65-18 tires, Ultragauge mounted above mirror, Tuffy Box lockable storage, MattGecko rear window security bar, Relentless Fab tailgate protector, CSJumper 700 lumen flood pattern back-up LED's, modified BeeRadd under-hood lighting with two KC Cyclones; KB Voodoo cargo management system and standard rails, AllPro hi-lift jack mount, 48" hi-lift, RCI Metalworks aluminum front skid, Flyzeye 3VP-RS in glovebox and console, AFE CAI, Coupe fuse box cover, battery hold-down bracket and CAI air-box cover, Wurton pod led's installed as bed lights on Lowbrow Customs motorcycle fork brake line aluminum brackets, Pop-n-Lock PL5400, Extang Solidfold 2.0, Rechelon Retro's, Moromoto LED fogs, URD Y-pipe, Walbro 255lph fuel pump, Speedhut AFR and Boost gauges, Cravenspeed gauge holder, CMC by Tandem Automotive, 70mm throttle body, CSF radiator, Doug Thorley shorties, Vibrant 7101 cats, SOS Offroad front and rear bumpers, Smoothflow 2.5” SC pulley, Steeda SC belt tensioner, roostfactor belt wrap kit, switch Pro 9100 in custom Tandem Automotive holder, WAT trans valvebody, FIC 650cc injectors, HP Tuner.
  4. Mar 19, 2014 at 6:47 PM
    #1584
    Taco03

    Taco03 Well-Known Member

    Joined:
    Sep 30, 2011
    Member:
    #64386
    Messages:
    98
    Gender:
    Male
    First Name:
    Michael
    Vancouver,WA
    Vehicle:
    06 Tacoma SR5 TRD DBL Cab
    So I did the driver seat mag lite mount. Then I got the annoying rattle from the batteries bouncing around. So here is what I did to fix that

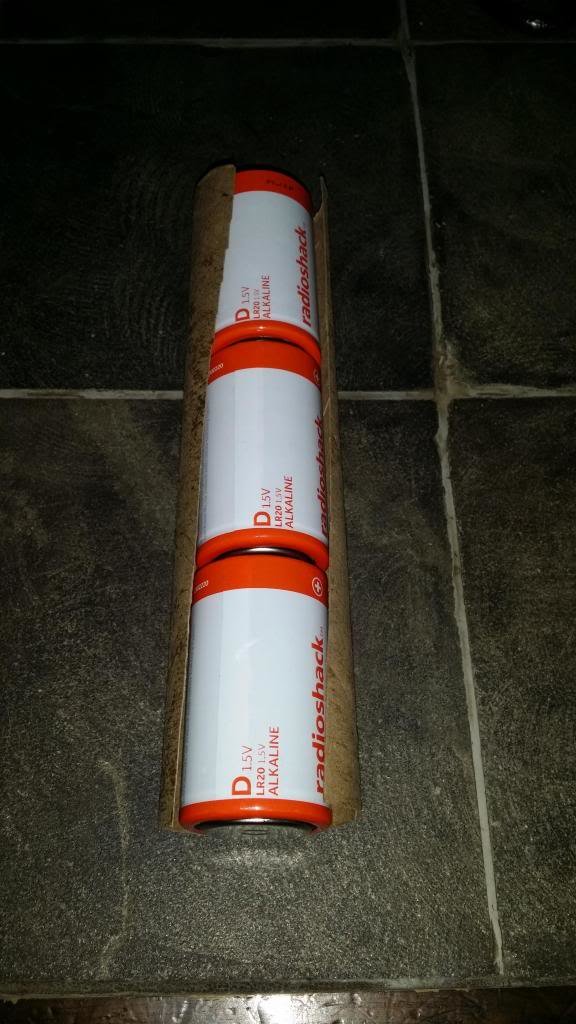

    [​IMG]

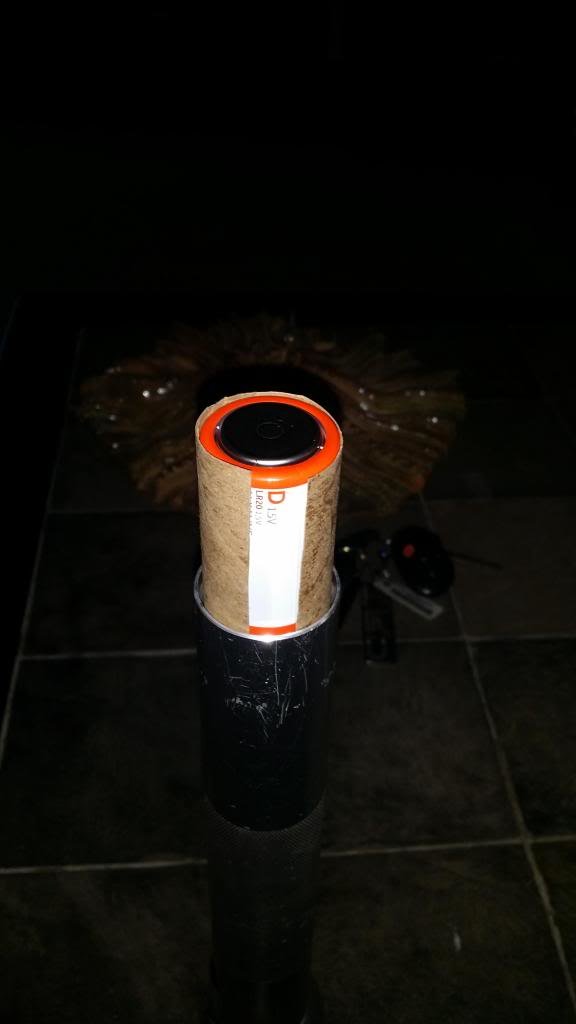

    Took an ordinary Paper towel roll and cut it to size.
    All nice ad tucked away and no more rattle.

    Last edited: Mar 19, 2014
  5. Mar 20, 2014 at 8:42 AM
    #1585
    BigMick

    BigMick Member

    Joined:
    Jan 26, 2013
    Member:
    #96203
    Messages:
    16
    Gender:
    Male
    First Name:
    Mick
    Annapolis, MD
    Vehicle:
    2013 PreRunner
    Extang Trifecta Bed Cover, Intermittent Wiper Stalk, Backup Camera, Camera-View in Radio
    Press and hold the recirc button for 30sec, then it will stay on recirc. This works in every setting except Defrost.

  6. Mar 20, 2014 at 8:46 AM
    #1586
    DEEVON911

    DEEVON911 Semi-Pro

    Joined:
    Apr 11, 2010
    Member:
    #35030
    Messages:
    15,191
    Gender:
    Male
    First Name:
    Dave
    Bethel Park, PA. Burb of da Burgh.
    Vehicle:
    2010 MGM Mostly Stock Off-Road 4x4
    TRD Cat-back Exhaust. Semi-Debadged. Trimmed down stock Antenna. Weathertech vent visors. TRD FJ Cruiser Center Cap Wheel Mod. 265/75/16 Firestone Destination A/T,s . Inverter tapped into for outlet in cab. Tacomaworld sticker which adds 5 hp.
    Great idea!

  7. Mar 21, 2014 at 11:13 AM
    #1587
    doughboy

    doughboy Well-Known Member

    Joined:
    Dec 8, 2009
    Member:
    #27214
    Messages:
    423
    Gender:
    Male
    norcal
    Vehicle:
    2010 Tacoma TRD 4x4
    hid head lights, hid fog lights, always on fog lights, bed lights

    This mod comes with an unwanted side effect of powering the entire tail light circuit. Hence you will see dash and radio backlight blink, and your taillights and parking lights as well.

    if the truck is completely off with hazards on, both left and right signals will be blinking, since this is connected to parking lights, you can see it will actually power the whole tail light circuit. The original mod that uses relays is actually a better designed mod.


    the mod connects the parking light ground line to the front left and right signals. This in turn powers the entire tail light circuit shown below and the next picture.



    A warning should be added to this mod description.

  8. Mar 21, 2014 at 12:08 PM
    #1588
    piercedtiger

    piercedtiger [OP] Devout Atheist

    Joined:
    Oct 29, 2007
    Member:
    #3284
    Messages:
    6,446
    Gender:
    Male
    First Name:
    Jon
    Southern Tier, NY
    Vehicle:
    2015 F150 3.5EB SCEW 6.5ft
    Interesting... I've had this mod done for at least 6 years, and the dash/radio lights never blink.

  9. Mar 21, 2014 at 12:46 PM
    #1589
    doughboy

    doughboy Well-Known Member

    Joined:
    Dec 8, 2009
    Member:
    #27214
    Messages:
    423
    Gender:
    Male
    norcal
    Vehicle:
    2010 Tacoma TRD 4x4
    hid head lights, hid fog lights, always on fog lights, bed lights

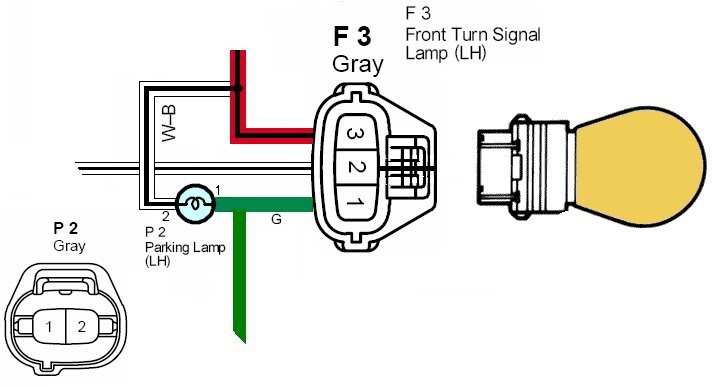

    see this thread

    http://www.tacomaworld.com/forum/lighting/320457-alternating-signals-stealth-mode-help.html

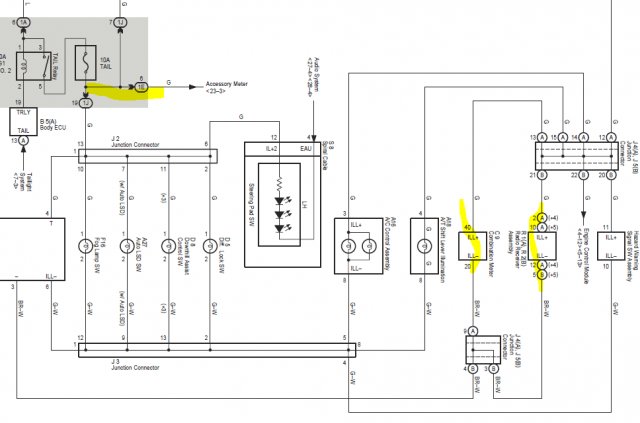

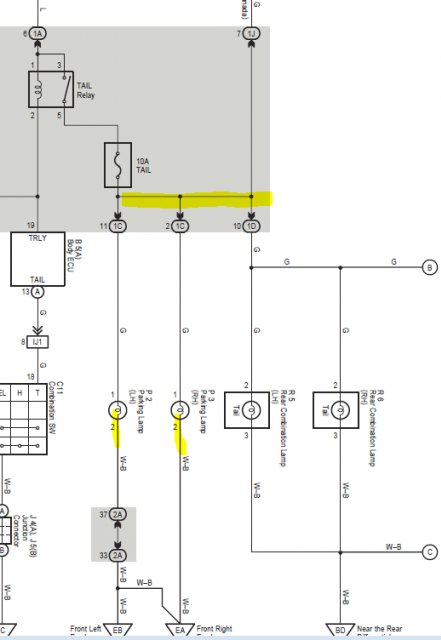

    the circuit diagram speaks for itself. there are no guesses here.

    not only this, the mod has the other bad side effect of causing the other side signal to blink if truck has factory dtrl. again, explained clearly in the circuit diagram why it happens.

    Last edited: Mar 21, 2014
  10. Mar 21, 2014 at 1:37 PM
    #1590
    piercedtiger

    piercedtiger [OP] Devout Atheist

    Joined:
    Oct 29, 2007
    Member:
    #3284
    Messages:
    6,446
    Gender:
    Male
    First Name:
    Jon
    Southern Tier, NY
    Vehicle:
    2015 F150 3.5EB SCEW 6.5ft
    Whatever you say. I'm just saying I've never had those problems in 6 years.

    Then again, I have a 2006, the OP in that other thread has a 2011, and I have no idea what year you have. Or if the wiring changed. That could be the problem.

    Or just be caused by the OEM DTRL since you had the OP disable that.

    You seem to be saying I would see the tail lights flash when I keyless lock/unlock, and I never do. Only the turn signals.

    What year are those wire diagrams for?

  11. Mar 21, 2014 at 1:52 PM
    #1591
    doughboy

    doughboy Well-Known Member

    Joined:
    Dec 8, 2009
    Member:
    #27214
    Messages:
    423
    Gender:
    Male
    norcal
    Vehicle:
    2010 Tacoma TRD 4x4
    hid head lights, hid fog lights, always on fog lights, bed lights
    diagram is for 2006. I think it should be the same from 2005 to 2011. I did not do this mod, the other thread post OP that has a 2011 asked for help/explanation and I just looked at the wiring diagram and the answer is right there in black and white that explains every behavior he sees.

    He is not using LED, so current can flow both ways. I'm guessing you are probably using LEDs?

  12. Mar 21, 2014 at 1:56 PM
    #1592
    piercedtiger

    piercedtiger [OP] Devout Atheist

    Joined:
    Oct 29, 2007
    Member:
    #3284
    Messages:
    6,446
    Gender:
    Male
    First Name:
    Jon
    Southern Tier, NY
    Vehicle:
    2015 F150 3.5EB SCEW 6.5ft
    I am not using any LEDs. However, if he's not doing the other DTRL mod I posted then he didn't cut another set of wires. Also, you're the first person I've seen mention this issue since I posted that mod. Fairly sure others would have mentioned it and it would be a common problem by now.

  13. Mar 21, 2014 at 2:05 PM
    #1593
    doughboy

    doughboy Well-Known Member

    Joined:
    Dec 8, 2009
    Member:
    #27214
    Messages:
    423
    Gender:
    Male
    norcal
    Vehicle:
    2010 Tacoma TRD 4x4
    hid head lights, hid fog lights, always on fog lights, bed lights
    I'm sure there is an explanation why yours work fine.

    As I mentioned in the other thread, the OP did not even say anything about both left and right parking lights blinking at half brightness before I mentioned that based on the diagram, the left and right parking lights are wired in series and will light up half as bright.

    Just to confirm, with your truck completely off, no keys, turn on the hazards, and check your dashboard backlight to see if it blinks (perhaps faintly?) with the hazard blinking or not.

    if you switch on your parking lights, the dashboard back light comes on correct?
    since the mod connects the parking light ground to the front signal hot line, as long as there is a path to ground somewhere in the tail light circuit, the whole tail light circuit will blink when the front signals are blinking when hazards are on. So if yours does not blink, then there is no path to ground on the parking light circuit. In the first image I posted, you can see the path to ground via combination tail light.

    I also see for this mod to work, the parking light cannot be LED, since the bulb is reverse biased in order to alternate when the parking light is switched off. I think this mod originated from toyota nation and I posted this same message there to see if the person who came up with this mod will comment.

    Last edited: Mar 21, 2014
  14. Mar 21, 2014 at 3:58 PM
    #1594
    doughboy

    doughboy Well-Known Member

    Joined:
    Dec 8, 2009
    Member:
    #27214
    Messages:
    423
    Gender:
    Male
    norcal
    Vehicle:
    2010 Tacoma TRD 4x4
    hid head lights, hid fog lights, always on fog lights, bed lights

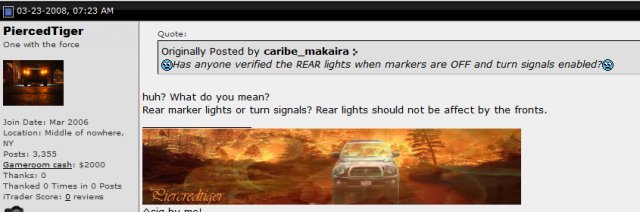

    This post in TN from back in 2008 is describing this problem. So this is not new.


  15. Mar 21, 2014 at 9:34 PM
    #1595
    piercedtiger

    piercedtiger [OP] Devout Atheist

    Joined:
    Oct 29, 2007
    Member:
    #3284
    Messages:
    6,446
    Gender:
    Male
    First Name:
    Jon
    Southern Tier, NY
    Vehicle:
    2015 F150 3.5EB SCEW 6.5ft
    http://youtu.be/P7fnBqV9ZMY

  16. Mar 21, 2014 at 9:56 PM
    #1596
    Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,332
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    Some LEDs are non-polarized. All of the dash lamps I replaced in my Suburban were non-polarized. There was a small circuit in the base of the LED.
    The drawback was the circuit prevented dimming.

  17. Mar 21, 2014 at 10:20 PM
    #1597
    doughboy

    doughboy Well-Known Member

    Joined:
    Dec 8, 2009
    Member:
    #27214
    Messages:
    423
    Gender:
    Male
    norcal
    Vehicle:
    2010 Tacoma TRD 4x4
    hid head lights, hid fog lights, always on fog lights, bed lights
    are your front signal and parking lights white? or are they amber and only look white in the video? your tail light (below signal, above reverse) is not LED ? Do you have any other mods? do you have stock dtrl or no dtrl? you got me on this one.

  18. Mar 22, 2014 at 7:45 AM
    #1598
    piercedtiger

    piercedtiger [OP] Devout Atheist

    Joined:
    Oct 29, 2007
    Member:
    #3284
    Messages:
    6,446
    Gender:
    Male
    First Name:
    Jon
    Southern Tier, NY
    Vehicle:
    2015 F150 3.5EB SCEW 6.5ft
    What part of "no LEDs" don't you get? I already told you I'm not running a single LED if it wasn't there from the factory. I haven't even replace the map or dome lights.

    Amber bulbs, stock lens assemblies from Rockauto, replaced after hitting a deer.

    I don't have the factory DTRL, I have the one I listed here using the 3rd hole on the turn signal socket.

  19. Mar 22, 2014 at 8:41 AM
    #1599
    doughboy

    doughboy Well-Known Member

    Joined:
    Dec 8, 2009
    Member:
    #27214
    Messages:
    423
    Gender:
    Male
    norcal
    Vehicle:
    2010 Tacoma TRD 4x4
    hid head lights, hid fog lights, always on fog lights, bed lights
    I was just trying to clarify, as some 2nd gen taillight uses LED from factory.

    Anyway, I figured out why you do not see this problem, only after you said you also have the 3rd wire dtrl mod.

    As I have previously mentioned, the key is the path to ground. And you can clearly see from this mod diagram, the hot side of the parking brake (pin1 green) is connected to the DIM filament (pin 1) of the signal bulb, then to ground (implied, since obviously, the other side of the filament is connected to ground). This is the path of least resistance, therefore, turning on the hazard with parking lights off does not affect the rest of the taillight circuit, since the current flows from turn signal (pin 3 red/black) to parking light (pin 2 black/white) to turn signal pin 1 to ground. I bet if you look closely at your turn signal (you might need to remove it from the housing, as it may be hard to see through the housing lens), both filaments are on if your engine is off and hazards are on. And if you disconnect the connection to signal light pin 1, you will see the rest of the tail light circuit light up.


    I try to understand the principle why mods work. Most people just follow the mod blindly without understanding why it works.
    I think it is worthwhile to add a warning/caveat of the side effect if the third wire dtrl mod is not done.

  20. Mar 22, 2014 at 8:43 AM
    #1600
    replica9000

    replica9000 Just your average meatbag.

    Joined:
    Apr 6, 2008
    Member:
    #5782
    Messages:
    15,449
    First Name:
    Jason
    Lake Chargoggagoggmanchauggagoggchaubunagungamaugg
    Vehicle:
    2019 T4R OR Premium
    The 2009+ LED taillights still use regular bulbs for the blinkers.
