Check out my new enclosure! And an Amp Q

Discussion in 'Audio & Video' started by wakeman135, May 1, 2010.

  1. May 1, 2010 at 11:16 PM
    #1
    wakeman135

    wakeman135 [OP] Member

    Joined:
    Feb 6, 2010
    Member:
    #30843
    Messages:
    14
    Gender:
    Male
    First Name:
    Brandon
    Vancouver, WA
    Vehicle:
    2002 Tacoma SR5 4x4
    3" Toytec Spacers, Rear AAL, Bilstein 5100 in rear, Kenwood Excelon 994 HU, CTX65CS front components, ID IDQ10D4V.3, PowerBass 1100 5ch amp, 6" deckplate mod, 55w 8000k HIDs

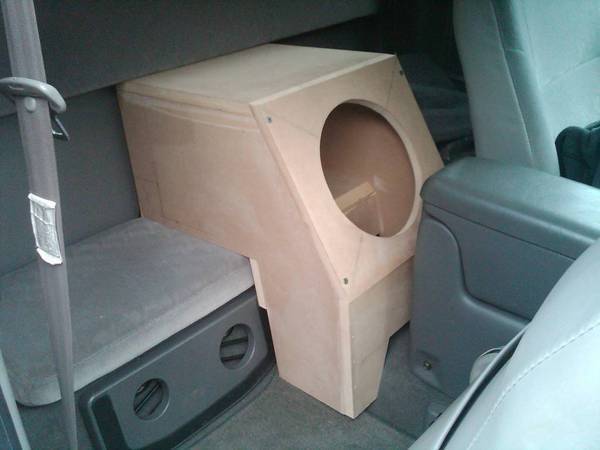

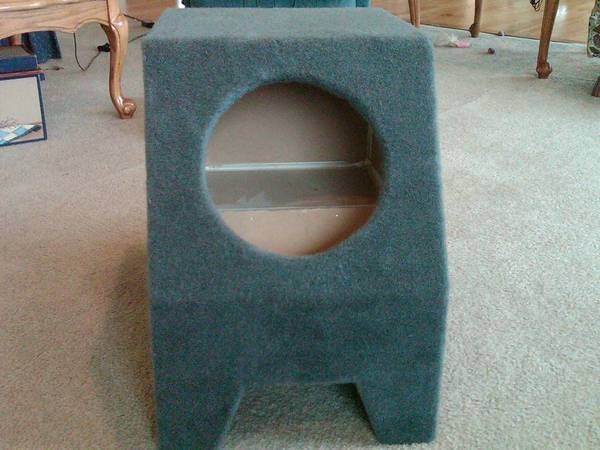

    So i have been working on this enclosure the last few days. I dont really have any assembly/construction photos (i got to carried away with getting it done) but here is the finish product, preceded by a semi-finished uncarpeted picture.
    [​IMG]
    [​IMG]

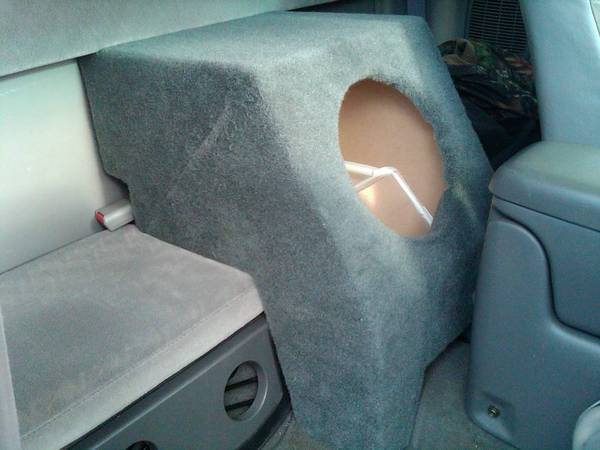

    [​IMG]I think it turned out sweet. It allows me to still use the rear seats, it also doubles as a killer armrest. It comes out to roughly .9cuft. Im installing an idq10d4v.3.

    Now for my amp question, Im running the sub listed above as well as ID ctx65cs components up front. I will be running my rears off HU power for now. What 4-channel can you recommend to run this set up, or should i spring for a 5-channel for eventually amping my rears? what can you recommend based of experience?

    IDQ10 RMS is 500watts
    CTX65CS RMS is 100watts

    so 700 watts rms total

    Thanks y'all!

  2. May 1, 2010 at 11:22 PM
    #2
    wakeman135

    wakeman135 [OP] Member

    Joined:
    Feb 6, 2010
    Member:
    #30843
    Messages:
    14
    Gender:
    Male
    First Name:
    Brandon
    Vancouver, WA
    Vehicle:
    2002 Tacoma SR5 4x4
    3" Toytec Spacers, Rear AAL, Bilstein 5100 in rear, Kenwood Excelon 994 HU, CTX65CS front components, ID IDQ10D4V.3, PowerBass 1100 5ch amp, 6" deckplate mod, 55w 8000k HIDs
    Might i ad, i have looked at the following amps but want to be sure of the best amp for my money before i buy:
    Alpine PDX-5
    JL HD900/5
    Powerbass ASA1100.5x
    haven't looked into any 4 channels yet

    Budget <$400
    I know there are many more amps and opinions so i would like everyone's input. i listed to alot of everything, mostly country and rock, not really any rap. I think that is all the information you might need. Thanks!

  3. May 1, 2010 at 11:23 PM
    #3
    derekAV

    derekAV Well-Known Member

    Joined:
    Nov 14, 2009
    Member:
    #25921
    Messages:
    573
    Gender:
    Male
    First Name:
    derek
    Humboldt
    Vehicle:
    2000 4x4 reg. cab
    looks awsome man! good work!

  4. May 2, 2010 at 12:22 AM
    #4
    ItalynStylion

    ItalynStylion Sounds Gooooood

    Joined:
    Jun 15, 2009
    Member:
    #18467
    Messages:
    4,865
    Gender:
    Male
    First Name:
    Steven
    DFW, Tx.
    Vehicle:
    09 Double Cab TRD Sport 4x4
    What impedance is the IDQ sub?

  5. May 2, 2010 at 1:03 AM
    #5
    wakeman135

    wakeman135 [OP] Member

    Joined:
    Feb 6, 2010
    Member:
    #30843
    Messages:
    14
    Gender:
    Male
    First Name:
    Brandon
    Vancouver, WA
    Vehicle:
    2002 Tacoma SR5 4x4
    3" Toytec Spacers, Rear AAL, Bilstein 5100 in rear, Kenwood Excelon 994 HU, CTX65CS front components, ID IDQ10D4V.3, PowerBass 1100 5ch amp, 6" deckplate mod, 55w 8000k HIDs
    It is dual 4 ohm. I plan on wiring it to 2 ohm impedance.

  6. May 2, 2010 at 9:07 AM
    #6
    ItalynStylion

    ItalynStylion Sounds Gooooood

    Joined:
    Jun 15, 2009
    Member:
    #18467
    Messages:
    4,865
    Gender:
    Male
    First Name:
    Steven
    DFW, Tx.
    Vehicle:
    09 Double Cab TRD Sport 4x4
    If you only plan to run a front set of speakers and a sub (good idea) you can get away with a beefy 4 channel. Other than that, get a 5 channel like the PDX5 and go at it.

  7. May 2, 2010 at 10:51 AM
    #7
    wakeman135

    wakeman135 [OP] Member

    Joined:
    Feb 6, 2010
    Member:
    #30843
    Messages:
    14
    Gender:
    Male
    First Name:
    Brandon
    Vancouver, WA
    Vehicle:
    2002 Tacoma SR5 4x4
    3" Toytec Spacers, Rear AAL, Bilstein 5100 in rear, Kenwood Excelon 994 HU, CTX65CS front components, ID IDQ10D4V.3, PowerBass 1100 5ch amp, 6" deckplate mod, 55w 8000k HIDs
    Stylion,
    Will running a 4 channel and bridging two of the channels to run the sub limit the capabilities of my HU's (kenwood excelon 994) eq options? Will i be able to adjust the "subwoofer" contol or will i just be adjusting the rear two channels to for my sub control? thanks

  8. May 2, 2010 at 10:54 AM
    #8
    sooner07

    sooner07 1/2 man 1/2 amazing

    Joined:
    Feb 17, 2008
    Member:
    #4783
    Messages:
    1,400
    Gender:
    Male
    First Name:
    A A Ron
    DFW, Texas
    Vehicle:
    Debadged 2008 Rugged Trail
    Always working on the stereo, painted the front skid plate black to match the truck, debadged , toy tech ultimate lift kit, light racing UCAs, ARB bumper Looking into a supercharger and new exhaust.
    You would just run the outs from your HU that are labled "sub" to the rear channels of the amp. You would not be limiting your eq setting from the HU if you ran it this way. If you ran the rear outputs to the amp, then you would be limiting the EQ settings for the subs.

  9. May 2, 2010 at 11:48 AM
    #9
    ItalynStylion

    ItalynStylion Sounds Gooooood

    Joined:
    Jun 15, 2009
    Member:
    #18467
    Messages:
    4,865
    Gender:
    Male
    First Name:
    Steven
    DFW, Tx.
    Vehicle:
    09 Double Cab TRD Sport 4x4
    ^this

  10. May 2, 2010 at 2:53 PM
    #10
    wakeman135

    wakeman135 [OP] Member

    Joined:
    Feb 6, 2010
    Member:
    #30843
    Messages:
    14
    Gender:
    Male
    First Name:
    Brandon
    Vancouver, WA
    Vehicle:
    2002 Tacoma SR5 4x4
    3" Toytec Spacers, Rear AAL, Bilstein 5100 in rear, Kenwood Excelon 994 HU, CTX65CS front components, ID IDQ10D4V.3, PowerBass 1100 5ch amp, 6" deckplate mod, 55w 8000k HIDs
    ^^^ That"s exactly what i wanted to know. Thanks alot.

  11. May 2, 2010 at 4:02 PM
    #11
    sirsaechao

    sirsaechao Well-Known Member

    Joined:
    May 29, 2009
    Member:
    #17772
    Messages:
    2,930
    Gender:
    Male
    First Name:
    Tim
    Commifornia
    Vehicle:
    2002 Toyota Tacoma SR5 TRD 3.4L 4X4 V6
    To much to list...see sig for more...
    First and foremost you should be banned for not getting dimensions, build pics. Secondly...900/5

  12. May 2, 2010 at 6:31 PM
    #12
    glandnut

    glandnut Grease Monkey

    Joined:
    Jul 8, 2009
    Member:
    #19461
    Messages:
    286
    Gender:
    Male
    Florida
    Vehicle:
    09' MGM TRD DC Sport LB
    secret stuff.
    You can get a PDX-5 for under $400, but no way on the 900/5. I wish I could afford a 900/5, but they are steep!

  13. May 2, 2010 at 6:33 PM
    #13
    wakeman135

    wakeman135 [OP] Member

    Joined:
    Feb 6, 2010
    Member:
    #30843
    Messages:
    14
    Gender:
    Male
    First Name:
    Brandon
    Vancouver, WA
    Vehicle:
    2002 Tacoma SR5 4x4
    3" Toytec Spacers, Rear AAL, Bilstein 5100 in rear, Kenwood Excelon 994 HU, CTX65CS front components, ID IDQ10D4V.3, PowerBass 1100 5ch amp, 6" deckplate mod, 55w 8000k HIDs
    Ha ha well i have all the dimensions, you never asked. :D overall dimensions are 14.5" wide x 20.25" deep x 20.75" tall. The sealed portion for the sub is a little more complicated dimensions as there are a few angles that come into play. Luckily, i have the whole project drawn to scale so i can do it again :cool:

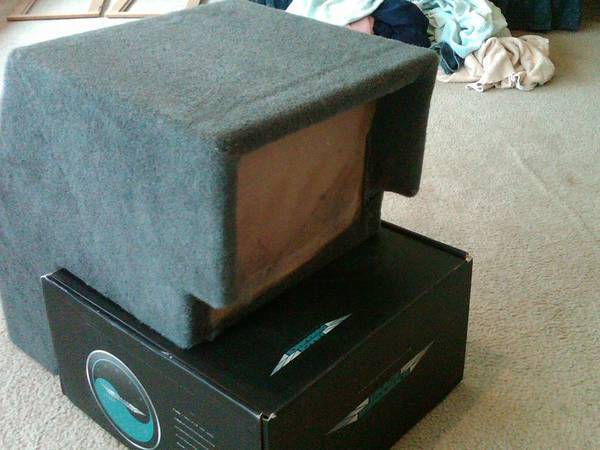

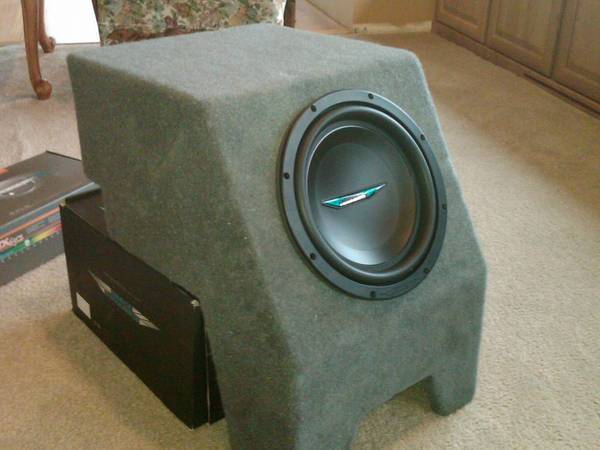

    here are a few more photos
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  14. May 2, 2010 at 6:57 PM
    #14
    DevL

    DevL Well-Known Member

    Joined:
    Feb 23, 2010
    Member:
    #31952
    Messages:
    1,923
    Gender:
    Male
    HD900/5 is much better than the PDX5 but its $700 online and I got a quote for $75 from a dealer. The sub gets 500W no matter if its 2Ohms or 4Ohms with the HD900/5. I could actually hear a difference in sound quality between a PDX5 and HD900/5. Otherwise I would not have decided to spend the extra money. If you can save more money up get the HD900/5.

  15. May 2, 2010 at 7:02 PM
    #15
    jurrelyap5

    jurrelyap5 Coooooooach!

    Joined:
    Jul 23, 2009
    Member:
    #20078
    Messages:
    113
    Gender:
    Male
    First Name:
    Coach.
    That is genius! How much did it cost you to make? Time+money-wise. Thanks!

  16. May 2, 2010 at 7:51 PM
    #16
    itsmyturn

    itsmyturn Well-Known Member

    Joined:
    Mar 24, 2008
    Member:
    #5502
    Messages:
    414
    Gender:
    Male
    Victorville, CA
    Vehicle:
    08 dbl cab TRD sport
    afe Pro-Dry S dropin, Readylift leveling kit, TRD skid plate, Alpine CDA-9887, 6K D2S HID
    props on a nice looking/functioning enclosure

  17. May 2, 2010 at 10:26 PM
    #17
    wakeman135

    wakeman135 [OP] Member

    Joined:
    Feb 6, 2010
    Member:
    #30843
    Messages:
    14
    Gender:
    Male
    First Name:
    Brandon
    Vancouver, WA
    Vehicle:
    2002 Tacoma SR5 4x4
    3" Toytec Spacers, Rear AAL, Bilstein 5100 in rear, Kenwood Excelon 994 HU, CTX65CS front components, ID IDQ10D4V.3, PowerBass 1100 5ch amp, 6" deckplate mod, 55w 8000k HIDs
    I think with carpet and glue, a full 4x8 of mdf, right around 55 dollars or so. i have plenty of glue left to do one or two more tho. And as far as mdf, a 4x8 sheet is enough for 2 enclosures. it took 2 evenings to build it and an hour to carpet it. The most time spent was getting the dimensions i wanted.

  18. May 2, 2010 at 10:28 PM
    #18
    jurrelyap5

    jurrelyap5 Coooooooach!

    Joined:
    Jul 23, 2009
    Member:
    #20078
    Messages:
    113
    Gender:
    Male
    First Name:
    Coach.


    Thank you sir! Props to you.

  19. May 3, 2010 at 8:46 AM
    #19
    sirsaechao

    sirsaechao Well-Known Member

    Joined:
    May 29, 2009
    Member:
    #17772
    Messages:
    2,930
    Gender:
    Male
    First Name:
    Tim
    Commifornia
    Vehicle:
    2002 Toyota Tacoma SR5 TRD 3.4L 4X4 V6
    To much to list...see sig for more...
    Make more cause I'll buy one.

  20. May 3, 2010 at 8:52 AM
    #20
    nad

    nad mmmm tacos!

    Joined:
    May 18, 2009
    Member:
    #17388
    Messages:
    3,075
    Gender:
    Male
    First Name:
    Jordan
    Canada
    Vehicle:
    2014 Sierra All Terrain
    good job man it looks very nice! :thumbsup:
