    I am trying to identify power and ground on the wiring for the climate control in a facelift gen 2.
    I want to tap in a few LEDs for my interior.

    Can anyone point me in the right direction?

    truck is a 2014 TRD OR 4x4

  2. Oct 19, 2020 at 11:07 PM
    #2
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,326
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

    DG92071 likes this.
  3. Oct 20, 2020 at 6:11 AM
    #3
    BIG EYE

    BIG EYE [OP] Well-Known Member

    Joined:
    Mar 26, 2010
    Member:
    #33987
    Messages:
    546
    Gender:
    Male
    First Name:
    David
    San Diego, CA
    Vehicle:
    14 TRD OR 4x4

    Thank you!

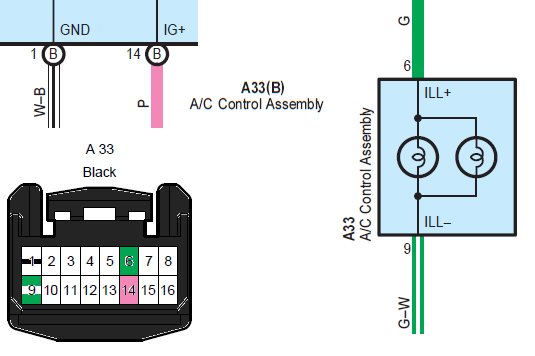

    To make sure I am reading this right:

    14 is power?
    1 is ground?

  4. Oct 20, 2020 at 6:34 AM
    #4
    MY50cal

    MY50cal ---- Tread Lightly ---- Leave No Trace

    Joined:
    Apr 5, 2009
    Member:
    #15613
    Messages:
    3,985
    Gender:
    Male
    First Name:
    Mojo
    Chester County, PA
    Vehicle:
    09 PM RC / 05 SWB AC (RIP)
    Yep.
    Tap into the green/white (No.9) at the back of the climate control plug for the dimmer circuit. You could tap into the green (No.6) for power, but they are some small ass wires.

  5. Oct 20, 2020 at 7:51 AM
    #5
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,326
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Yes

  6. Oct 20, 2020 at 8:07 AM
    #6
    BIG EYE

    BIG EYE [OP] Well-Known Member

    Joined:
    Mar 26, 2010
    Member:
    #33987
    Messages:
    546
    Gender:
    Male
    First Name:
    David
    San Diego, CA
    Vehicle:
    14 TRD OR 4x4

    Thank you

  7. Oct 20, 2020 at 8:09 AM
    #7
    BIG EYE

    BIG EYE [OP] Well-Known Member

    Joined:
    Mar 26, 2010
    Member:
    #33987
    Messages:
    546
    Gender:
    Male
    First Name:
    David
    San Diego, CA
    Vehicle:
    14 TRD OR 4x4

    Are you saying to use No. 9 for power so the LEDs will dim with the other lights?

  8. Oct 20, 2020 at 8:32 AM
    #8
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,326
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    What switches are you going to use?

  9. Oct 20, 2020 at 8:43 AM
    #9
    MY50cal

    MY50cal ---- Tread Lightly ---- Leave No Trace

    Joined:
    Apr 5, 2009
    Member:
    #15613
    Messages:
    3,985
    Gender:
    Male
    First Name:
    Mojo
    Chester County, PA
    Vehicle:
    09 PM RC / 05 SWB AC (RIP)
    Yep.
    No. Tacoma's use a negative dimmer circuit, so if want your LED's to dim along with everything else - tie into No.9. The power can be grabbed from just about anywhere, depending on how many you have/amp draw.

    Maybe some more details on your LED setup will help. I've been assuming they'll be for a sort of cockpit accent lighting, using small single LED's placed around.

  10. Oct 20, 2020 at 8:45 AM
    #10
    BIG EYE

    BIG EYE [OP] Well-Known Member

    Joined:
    Mar 26, 2010
    Member:
    #33987
    Messages:
    546
    Gender:
    Male
    First Name:
    David
    San Diego, CA
    Vehicle:
    14 TRD OR 4x4


    I ordered these LEDs. https://www.amazon.com/gp/product/B01NAHYUBD
    I plan to wire a few in , no switch.

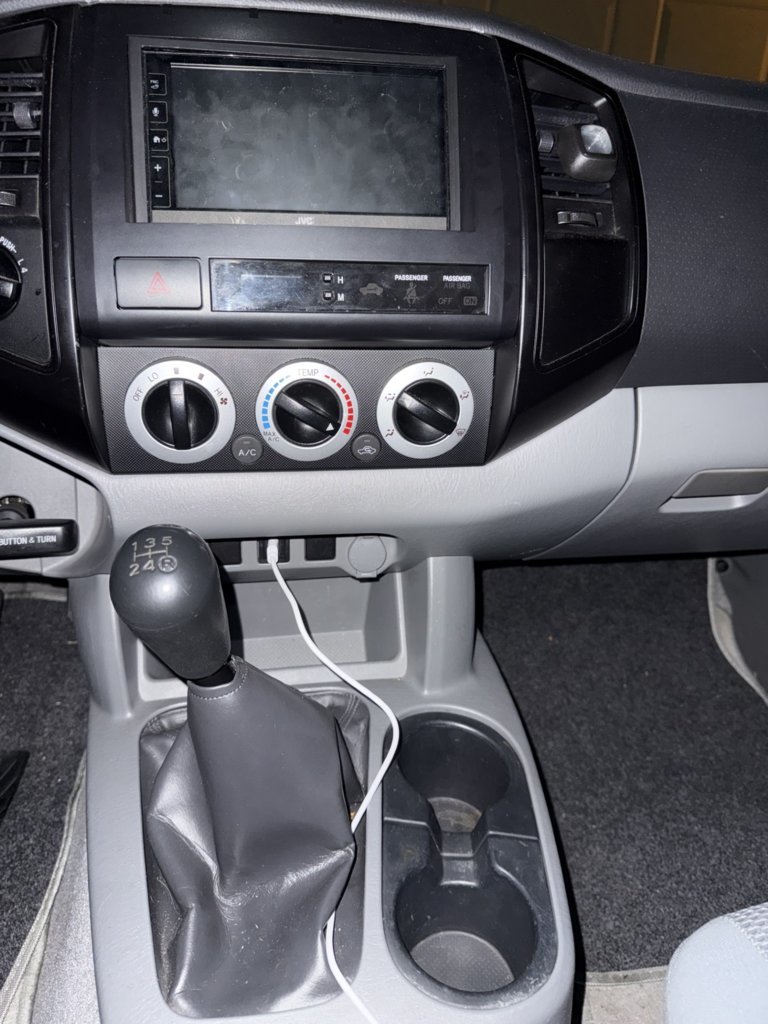

    Thinking one in the cup holder, one in the tray behind the cup holder, and one or two in the foot well on the driver and passenger side.

    I was going to tap the wires behind the "cig lighter" (I've done this in past cars), but was thinking if I tap into the climate control unit, they will function with the lights rather than always on

  11. Oct 20, 2020 at 8:46 AM
    #11
    BIG EYE

    BIG EYE [OP] Well-Known Member

    Joined:
    Mar 26, 2010
    Member:
    #33987
    Messages:
    546
    Gender:
    Male
    First Name:
    David
    San Diego, CA
    Vehicle:
    14 TRD OR 4x4

    ^^ that is the plan - interior accent lights.

    I ordered these LEDs. https://www.amazon.com/gp/product/B01NAHYUBD
    I plan to wire a few in , no switch.
    Thinking one in the cup holder, one in the tray behind the cup holder, and one or two in the foot well on the driver and passenger side.

    I was going to tap the wires behind the "cig lighter" (I've done this in past cars), but was thinking if I tap into the climate control unit, they will function with the lights rather than always on

  12. Oct 20, 2020 at 8:49 AM
    #12
    JdevTac

    JdevTac Bawnjourno

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    5,256
    Gender:
    Male
    First Name:
    Josh
    GA/MD
    Vehicle:
    2013 DC TRD-OR 4x4 Pyrite Mica (sold)
    Probably easier to tap the shifter light circuit if it’s just a few small LEDs. Easier to route those to cupholder area then going from HVAC down. You have to pop up all those plastics anyway.

  13. Oct 20, 2020 at 8:53 AM
    #13
    BIG EYE

    BIG EYE [OP] Well-Known Member

    Joined:
    Mar 26, 2010
    Member:
    #33987
    Messages:
    546
    Gender:
    Male
    First Name:
    David
    San Diego, CA
    Vehicle:
    14 TRD OR 4x4
    +


    You mean the wires that connect to the LED bulb that lights up the gears?

    I forgot about that light......
