Clutch squeak Linear Spring swap (TW how to)

Discussion in '1st Gen. Tacomas' started by Rucas, May 28, 2011.

  1. May 28, 2011 at 8:30 PM
    #1
    Rucas

    Rucas [OP] 1st gen > 2nd gen

    Joined:
    Dec 5, 2009
    Member:
    #27040
    Messages:
    4,031
    Gender:
    Male
    First Name:
    Lucas
    Northern Colorado
    Vehicle:
    1st gen. 4x4 MANual
    sparkles, fairys, and happy things.
    I found a lot of threads asking about how to fix the 1st gen squeaky clutch spring.
    But I could only find the "how to's" on other forums, so I thought I would make one for TW.
    -This fix only took about 20 minutes, and the hardest part was positioning my body right so I could get up in there.

    Very simple fix requires:
    -Linear spring about 5" x 7/16" and about .047 wire thickness
    (I found one at ace 4 1/2" x 15/32" and .014 wire thickness)
    -screwdriver

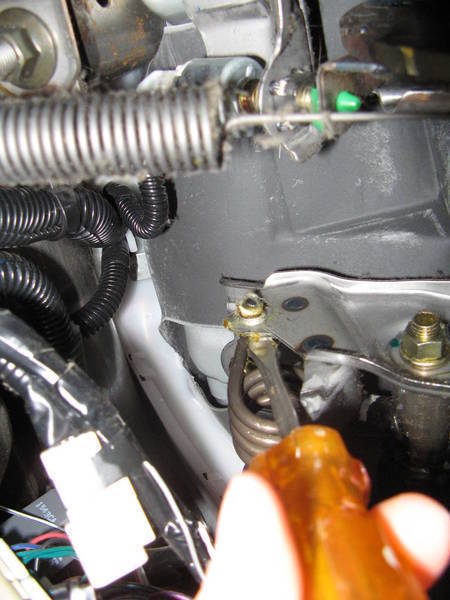

    1st: I took the screw driver and dislodged one end of the origional spring. After that I just pulled the whole spring out.
    [​IMG]

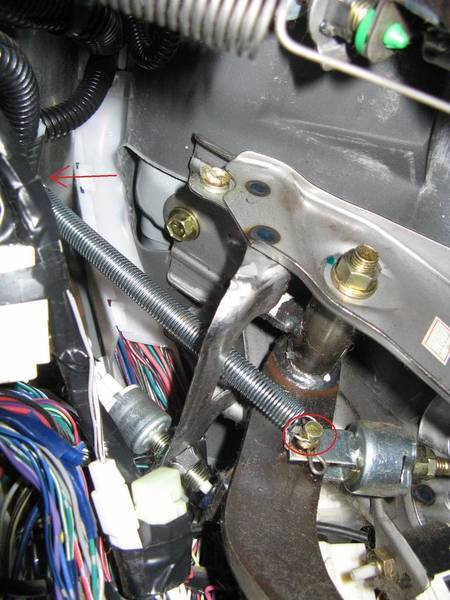

    2nd: One end of the spring will attach to a welded tab where the arrow in this picture is pointing to. And the other end will attach to the circled part on the clutch pedal.
    [​IMG]

    :D enjoy
    (sorry if the pictures aren't as descriptive as they can be, it was pretty tight down there, but hopefully anyone gets the idea)

  2. May 28, 2011 at 8:33 PM
    #2
    Rucas

    Rucas [OP] 1st gen > 2nd gen

    Joined:
    Dec 5, 2009
    Member:
    #27040
    Messages:
    4,031
    Gender:
    Male
    First Name:
    Lucas
    Northern Colorado
    Vehicle:
    1st gen. 4x4 MANual
    sparkles, fairys, and happy things.
  3. May 28, 2011 at 11:41 PM
    #3
    newskooler

    newskooler Well-Known Member

    Joined:
    Sep 29, 2010
    Member:
    #43989
    Messages:
    225
    Gender:
    Male
    First Name:
    Nick
    Lake Shastina,ca
    Vehicle:
    03 Tacoma x-cab TRD SR5
    881/5100 front, 5100 rear, AAL, K&N intake, Diff breather, grey wire mod, tg Low pro and sliders, Custom tube bumper, pinch weld mod, and more... smoked taillights, fabtech tire carrier, sony headunit, 12v always power mod, #70 unhappy clutch spring mod,
    Is that a number #70 spring from the hardware store? Thats what I used It gave me a soft clutch feel.

  4. May 29, 2011 at 8:06 AM
    #4
    Rucas

    Rucas [OP] 1st gen > 2nd gen

    Joined:
    Dec 5, 2009
    Member:
    #27040
    Messages:
    4,031
    Gender:
    Male
    First Name:
    Lucas
    Northern Colorado
    Vehicle:
    1st gen. 4x4 MANual
    sparkles, fairys, and happy things.
    No I couldn't find the #70 spring from true value hardware.
    the one i used is 4.5 inches long and has .041 wire thickness. I honestly cant feel a difference.

  5. Jun 16, 2011 at 7:51 AM
    #5
    Rucas

    Rucas [OP] 1st gen > 2nd gen

    Joined:
    Dec 5, 2009
    Member:
    #27040
    Messages:
    4,031
    Gender:
    Male
    First Name:
    Lucas
    Northern Colorado
    Vehicle:
    1st gen. 4x4 MANual
    sparkles, fairys, and happy things.
    like a dream still

  6. Jun 16, 2011 at 4:58 PM
    #6
    Rucas

    Rucas [OP] 1st gen > 2nd gen

    Joined:
    Dec 5, 2009
    Member:
    #27040
    Messages:
    4,031
    Gender:
    Male
    First Name:
    Lucas
    Northern Colorado
    Vehicle:
    1st gen. 4x4 MANual
    sparkles, fairys, and happy things.
    Looks alright.
    That little play probablly wont affect the clutch mechanics.
    As long as it returns correctly, you should be good.

  7. Jun 17, 2011 at 1:10 AM
    #7
    Rucas

    Rucas [OP] 1st gen > 2nd gen

    Joined:
    Dec 5, 2009
    Member:
    #27040
    Messages:
    4,031
    Gender:
    Male
    First Name:
    Lucas
    Northern Colorado
    Vehicle:
    1st gen. 4x4 MANual
    sparkles, fairys, and happy things.
    okay, well if you think that the spring isnt getting the tension then you probabll need a shorter spring.

    If your worried that it will slip off, theres a problem. On mine theres plenty of tension on both ends, that I cant imagine it comming loose.

  8. Mar 4, 2012 at 10:40 AM
    #8
    Rucas

    Rucas [OP] 1st gen > 2nd gen

    Joined:
    Dec 5, 2009
    Member:
    #27040
    Messages:
    4,031
    Gender:
    Male
    First Name:
    Lucas
    Northern Colorado
    Vehicle:
    1st gen. 4x4 MANual
    sparkles, fairys, and happy things.
    same!
    Im thinking of trying different springs so see if I like a lighter pressure spring.

  9. Mar 4, 2012 at 11:20 AM
    #9
    Rucas

    Rucas [OP] 1st gen > 2nd gen

    Joined:
    Dec 5, 2009
    Member:
    #27040
    Messages:
    4,031
    Gender:
    Male
    First Name:
    Lucas
    Northern Colorado
    Vehicle:
    1st gen. 4x4 MANual
    sparkles, fairys, and happy things.
    strange. I never tried that.

  10. Apr 2, 2012 at 5:33 PM
    #10
    YotaKid62

    YotaKid62 Dirty mall crawler

    Joined:
    Dec 7, 2011
    Member:
    #68355
    Messages:
    1,202
    Gender:
    Male
    First Name:
    Forrest
    North Dakota
    Vehicle:
    00 Tacoma TRD Sr5 5 speed
    Grey Wire Locker Mod, 3" coil spacers & custom leaf packs, 2" BL, Skyjacker rear nitro shocks, Monroe front gas shocks; 15" eclipse sub & 1400 watt visonik amp with Kenwood stereo, Billet Petals, Black Aries series Grille guard, ebay baja lights (unsure of brand)
    I did this earlier...funny toyota wouldn't just do that to begin with instead of that stupid plastic bushing. I got a different spring but I like a firmer clutch feel so its all good:thumbsup:

  11. Apr 2, 2012 at 7:08 PM
    #11
    TacomaJPP

    TacomaJPP To secure peace, is to prepare for war

    Joined:
    Dec 5, 2010
    Member:
    #47218
    Messages:
    567
    Gender:
    Male
    East TN
    Vehicle:
    03 4WD TRD XTD Cab
    Snugtop Camper Brushguard
    I bought the same spring as the brake pedal uses. In fact, I bought two and keep the extra in the truck.

  12. Apr 3, 2012 at 2:35 AM
    #12
    n0ms

    n0ms Well-Known Member

    Joined:
    Oct 8, 2011
    Member:
    #64844
    Messages:
    673
    Gender:
    Male
    First Name:
    Angel
    San Diego
    Vehicle:
    1st gen i4 single cab 4x4
    Celica seats, Icon in rear and front with icon ucas, omd leaf springs, deckplate mod, lce header, Tundra brake swap.
    How's the clutch feel? Firm or soft? The same?

  13. Apr 3, 2012 at 9:36 AM
    #13
    newskooler

    newskooler Well-Known Member

    Joined:
    Sep 29, 2010
    Member:
    #43989
    Messages:
    225
    Gender:
    Male
    First Name:
    Nick
    Lake Shastina,ca
    Vehicle:
    03 Tacoma x-cab TRD SR5
    881/5100 front, 5100 rear, AAL, K&N intake, Diff breather, grey wire mod, tg Low pro and sliders, Custom tube bumper, pinch weld mod, and more... smoked taillights, fabtech tire carrier, sony headunit, 12v always power mod, #70 unhappy clutch spring mod,
    Mine felt almost the same, maybe slightly stiffer. I've got about 12k miles on it without any problems.

  14. Apr 3, 2012 at 6:29 PM
    #14
    TacomaJPP

    TacomaJPP To secure peace, is to prepare for war

    Joined:
    Dec 5, 2010
    Member:
    #47218
    Messages:
    567
    Gender:
    Male
    East TN
    Vehicle:
    03 4WD TRD XTD Cab
    Snugtop Camper Brushguard
    It's slightly firmer than stock.

  15. Apr 3, 2012 at 6:33 PM
    #15
    Rucas

    Rucas [OP] 1st gen > 2nd gen

    Joined:
    Dec 5, 2009
    Member:
    #27040
    Messages:
    4,031
    Gender:
    Male
    First Name:
    Lucas
    Northern Colorado
    Vehicle:
    1st gen. 4x4 MANual
    sparkles, fairys, and happy things.
    I agree. Its almost like they were going to, but then decided for some reason to do it the other way.

  16. Apr 10, 2012 at 9:17 AM
    #16
    YotaKid62

    YotaKid62 Dirty mall crawler

    Joined:
    Dec 7, 2011
    Member:
    #68355
    Messages:
    1,202
    Gender:
    Male
    First Name:
    Forrest
    North Dakota
    Vehicle:
    00 Tacoma TRD Sr5 5 speed
    Grey Wire Locker Mod, 3" coil spacers & custom leaf packs, 2" BL, Skyjacker rear nitro shocks, Monroe front gas shocks; 15" eclipse sub & 1400 watt visonik amp with Kenwood stereo, Billet Petals, Black Aries series Grille guard, ebay baja lights (unsure of brand)
    Haha, yea but I've been going in for oil changes, since I hate doing them, but i think i'm gonna start doin them myself and save a few $$$

  17. Apr 12, 2012 at 11:28 PM
    #17
    Fejurty

    Fejurty Member

    Joined:
    Jan 16, 2012
    Member:
    #70781
    Messages:
    7
    Gender:
    Male
    Vancouver
    Vehicle:
    02 Ext Cab TRD
    This is a great solution. I found a similar spring in Canada, shortened it a bit and swapped it out in about 15 minutes. It's hard to get your arms in there but after a little contortion you'll figure it out. Pretty much all the rebound comes from the slave cylinder anyway, I"m not sure what the spring really does. Either way, i was surprised how quiet it was after.

    Thanks for the info. Easy mod.

  18. Apr 13, 2012 at 12:19 PM
    #18
    Rucas

    Rucas [OP] 1st gen > 2nd gen

    Joined:
    Dec 5, 2009
    Member:
    #27040
    Messages:
    4,031
    Gender:
    Male
    First Name:
    Lucas
    Northern Colorado
    Vehicle:
    1st gen. 4x4 MANual
    sparkles, fairys, and happy things.
    :wink:

  19. May 28, 2012 at 11:07 PM
    #19
    Madjik_Man

    Madjik_Man The Rembrandt of Rattle Can

    Joined:
    Dec 2, 2009
    Member:
    #26893
    Messages:
    10,238
    Gender:
    Male
    Boulder, CO
    Vehicle:
    1998 Ext Cab TRD 5MT sunfire red pearl
    About 25 pounds of spray paint and vinyl dye
    So to be sure...

    I remove that huge ass torsion spring (is that what it's called?) in the first pic and get rid of it entirely. Then replace it with that #70 spring (or brake pedal return spring) by hooking it up to the clutch pedal and the welded tab under the dash.

    And that's it?

    Does it return the pedal so that it makes contact with the cruise control switch?

  20. May 29, 2012 at 8:39 AM
    #20
    trmarshall1

    trmarshall1 The Least Interesting Man In The World

    Joined:
    Apr 7, 2012
    Member:
    #76438
    Messages:
    522
    Gender:
    Male
    First Name:
    Tim
    San Jose, CA
    Vehicle:
    02 Tacoma 4x4 TRD Supercharged
    4" Pro-Comp Lift, TRD cat back exhaust, grey wire mod, clutch pedal linear spring mod
    Yes, at least on mine, it solved the non engaging cruise control. No more sticking my foot behind it to pull it up that extra smidgen.:laughing:
