Clutch squeak Linear Spring swap (TW how to)

Discussion in '1st Gen. Tacomas (1995-2004)' started by Rucas, May 28, 2011.

  1. Mar 16, 2013 at 4:32 PM
    #101
    BRP27

    BRP27 When I grow up I want to be just like Me

    Joined:
    Oct 16, 2009
    Member:
    #24381
    Messages:
    417
    Gender:
    Male
    So far south in Texas my feet are in salt water
    Vehicle:
    04 4X4 Tacoma SR5
    3 in Ultimate ToyTec, set @ 2.5 in. AAL PINCH Weld Mod ( beat the pinch weld over inside the fender) Painted the pinch weld on bottom of cab Black Hi Lift Knock off
    I replaced the clutch spring with a OEM brake sping 2 to 3 months ago. Super easy, just pry out the stupid coil spring and hook up a brake spring.Takes 10 min. I used a OEM brake spring . I checked it yesterday and it is working fine. Clutch feels fine, good pedal feel.

  2. May 11, 2013 at 4:34 PM
    #102
    Yooper159

    Yooper159 New Member

    Joined:
    May 11, 2013
    Member:
    #103970
    Messages:
    2
    Gender:
    Male
    First Name:
    Miles
    UP Of Michigan
    Vehicle:
    2003 Tacoma 4x4 5spd
    Stock
    My clutch pedal was not coming all the way up. it would stop about a half inch from top and I would also hear a definite spring creak sound when using the clutch pedal. The toyota dealer I brought it to looked at it and bleed the master and slave clutch cylinders and told me they would need to replace the master cylinder ie another $150 on top of the $80 charged to diagnos the problem. I did not agree. I could tell it was something connected to the clutch spring. Attached is the diagram of the clutch pedal linkage under the dash. I ORDERED AND replaced the little plastic "U" shaped shim 31301P that rides between the clutch pedal return spring and the clutch rod arm seen in the diagram. The part cost $3.18. I replaced it myself by removing the entire clutch assembly from the fire wall. Wasn't too bad, but if you show a mechanic the diagram and part they can do it for $100 or so. THIS LITTLE PLASTIC SHIM FIXES THE SQUEAK AND THE CLUTCH NOT RETURNING TO TOP. CLUTCH PEDAL WORKS LIKE NEW AS IT SHOULD.

    Squeaky Tacoma clutch pedal plastic shim.bushing.jpg

  3. Jul 18, 2013 at 7:55 PM
    #103
    HF13

    HF13 Well-Known Member

    Joined:
    May 20, 2013
    Member:
    #104598
    Messages:
    45
    Gender:
    Male
    First Name:
    Aaron
    North Central FL
    Vehicle:
    '04 4X4 TRD Xtra Cab
    Pretty sure this is what everyone is trying to Avoid doing. Im gonna try and use the brake return spring and ill let you all know how it works, whered u get that brake spring again Madjikman?

  4. Jul 18, 2013 at 8:00 PM
    #104
    HF13

    HF13 Well-Known Member

    Joined:
    May 20, 2013
    Member:
    #104598
    Messages:
    45
    Gender:
    Male
    First Name:
    Aaron
    North Central FL
    Vehicle:
    '04 4X4 TRD Xtra Cab
    BTW Madjikman your clutch pedal looks like it has been brazed with a torch...pretty good looking brazing job if i might say so myself.

  5. Jul 19, 2013 at 6:18 AM
    #105
    Madjik_Man

    Madjik_Man The Rembrandt of Rattle Can

    Joined:
    Dec 2, 2009
    Member:
    #26893
    Messages:
    10,464
    Gender:
    Male
    Boulder, CO
    Vehicle:
    1998 Ext Cab 4x4 TRD 5MT sunfire red pearl
    About 25 pounds of spray paint and vinyl dye
    From another member (I sent him material for the cup holder tabs, he sent me the spring).

    You can get it at the dealer or online. It's like $2.50

  6. Oct 11, 2014 at 10:22 AM
    #106
    BV227

    BV227 Member

    Joined:
    Sep 17, 2014
    Member:
    #138512
    Messages:
    5
    Gender:
    Male
    Vehicle:
    02 Tacoma
    I know this thread is over a year old, but am hoping someone will revisit it for me. I've paid my dues with a piece of scalp, three busted knuckles, and and hour of contorted, upside down labor - - how in hell do you get the damn coil spring off to start with? Does it take some tool I've never seen before?

  7. Oct 11, 2014 at 11:44 AM
    #107
    Rucas

    Rucas [OP] 1st gen > 2nd gen

    Joined:
    Dec 5, 2009
    Member:
    #27040
    Messages:
    4,032
    Gender:
    Male
    First Name:
    Lucas
    Northern Colorado
    Vehicle:
    1st gen. 4x4 MANual
    sparkles, fairys, and happy things.
    as you can see in my first picture, I just took a flat head and pried it out on the side of the coil spring where it goes into the hole.

    ** careful when it does come out because it has a lot of kinetic energy.

  8. Oct 11, 2014 at 12:08 PM
    #108
    BRP27

    BRP27 When I grow up I want to be just like Me

    Joined:
    Oct 16, 2009
    Member:
    #24381
    Messages:
    417
    Gender:
    Male
    So far south in Texas my feet are in salt water
    Vehicle:
    04 4X4 Tacoma SR5
    3 in Ultimate ToyTec, set @ 2.5 in. AAL PINCH Weld Mod ( beat the pinch weld over inside the fender) Painted the pinch weld on bottom of cab Black Hi Lift Knock off
    Ya you just line up and start prying. Use of gloves and protective eye wear is recommended. I remember a bit of pucker factor prying the spring out:)

    Last edited: Oct 11, 2014
  9. Oct 12, 2014 at 7:23 AM
    #109
    Yooper159

    Yooper159 New Member

    Joined:
    May 11, 2013
    Member:
    #103970
    Messages:
    2
    Gender:
    Male
    First Name:
    Miles
    UP Of Michigan
    Vehicle:
    2003 Tacoma 4x4 5spd
    Stock

    HI,
    I highly recommend removing the entire clutch pedal assembly. once outside it's pretty easy to replace the plastic shims/bushings. The mounting studs go through the firewall and also the master cylinder. It sounds like extra work, but believe me it's the way to go. I tried popping the coil while it was under the dash too, I couldn't do it.

  10. Oct 27, 2014 at 2:18 PM
    #110
    5280

    5280 old school

    Joined:
    May 6, 2013
    Member:
    #103615
    Messages:
    48
    Gender:
    Female
    Colorado front range
    Vehicle:
    99 Tacoma TRD
    OME 881, Dakars, Raven topper, PIAA fog lights, dog mod and a couple other things...
    Thanks Rucas for posting this - my squeaky old clutch squeaks no more! Also thanks to Madjik Man for additional help.

  11. Oct 27, 2014 at 2:26 PM
    #111
    Madjik_Man

    Madjik_Man The Rembrandt of Rattle Can

    Joined:
    Dec 2, 2009
    Member:
    #26893
    Messages:
    10,464
    Gender:
    Male
    Boulder, CO
    Vehicle:
    1998 Ext Cab 4x4 TRD 5MT sunfire red pearl
    About 25 pounds of spray paint and vinyl dye
    Awesome!

    Glad it worked out. I can't believed I lived so long with that noise before doing this.

    How does the pedal feel now?

  12. Oct 28, 2014 at 5:03 AM
    #112
    5280

    5280 old school

    Joined:
    May 6, 2013
    Member:
    #103615
    Messages:
    48
    Gender:
    Female
    Colorado front range
    Vehicle:
    99 Tacoma TRD
    OME 881, Dakars, Raven topper, PIAA fog lights, dog mod and a couple other things...
    Pedal is much better; feels "right," for lack of a better description.☺️

  13. Nov 13, 2014 at 5:11 PM
    #113
    tomtom

    tomtom Well-Known Member

    Joined:
    Jul 15, 2012
    Member:
    #82706
    Messages:
    4,834
    Gender:
    Male
    The Desert SW
    Vehicle:
    03 Tacoma TRD
    OME lift w/ 882s and Dakar leaf packs, Elite front and rear bumpers, Rocky Road Rock Sliders
    From left to right:
    1. 4Cyl Clutch Pedal Return Spring, Part # 90507-14030
    2. Brake Pedal Return Spring, Part # 90905-07028
    3. Brake Pedal Return Spring "W/VSC", Part # 90905-07020

    [​IMG]

    Going with #1 for now.

  14. Nov 13, 2014 at 5:50 PM
    #114
    tomtom

    tomtom Well-Known Member

    Joined:
    Jul 15, 2012
    Member:
    #82706
    Messages:
    4,834
    Gender:
    Male
    The Desert SW
    Vehicle:
    03 Tacoma TRD
    OME lift w/ 882s and Dakar leaf packs, Elite front and rear bumpers, Rocky Road Rock Sliders

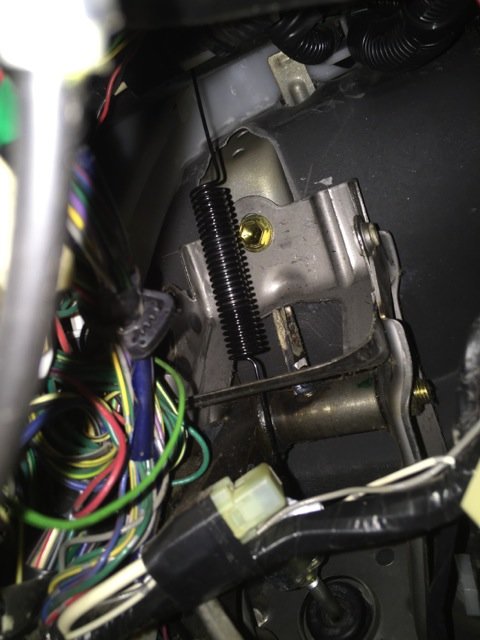

    Not pressed:
    [​IMG]

    Depressed:
    [​IMG]

    No contact on the pedal assembly cross brace (as expected). Minor contact on the torsional spring tab.

  15. Nov 13, 2014 at 5:54 PM
    #115
    Madjik_Man

    Madjik_Man The Rembrandt of Rattle Can

    Joined:
    Dec 2, 2009
    Member:
    #26893
    Messages:
    10,464
    Gender:
    Male
    Boulder, CO
    Vehicle:
    1998 Ext Cab 4x4 TRD 5MT sunfire red pearl
    About 25 pounds of spray paint and vinyl dye
    On my phone so maybe I don't see it well, but which spring did you use?

  16. Nov 13, 2014 at 6:11 PM
    #116
    tomtom

    tomtom Well-Known Member

    Joined:
    Jul 15, 2012
    Member:
    #82706
    Messages:
    4,834
    Gender:
    Male
    The Desert SW
    Vehicle:
    03 Tacoma TRD
    OME lift w/ 882s and Dakar leaf packs, Elite front and rear bumpers, Rocky Road Rock Sliders
    The 4 Cyl. clutch pedal return spring. 90507-14030

    BTW, I think the spring you used is Part #90905-07028.

  17. Nov 13, 2014 at 9:00 PM
    #117
    Rucas

    Rucas [OP] 1st gen > 2nd gen

    Joined:
    Dec 5, 2009
    Member:
    #27040
    Messages:
    4,032
    Gender:
    Male
    First Name:
    Lucas
    Northern Colorado
    Vehicle:
    1st gen. 4x4 MANual
    sparkles, fairys, and happy things.
    so it does make contact a little with the torsion spring tab?

  18. Nov 13, 2014 at 9:01 PM
    #118
    Bennett707

    Bennett707 Yeti Hunter

    Joined:
    Apr 28, 2012
    Member:
    #77793
    Messages:
    11,104
    Gender:
    Male
    Oregon
    Vehicle:
    '04 V6 3.4 TRD
    zip ties and scotch tape (duct tape is too expensive)
    i make contact with both spring tab and cross bar. a ziptie holding it up prevents it from making noises lol

  19. Nov 14, 2014 at 12:39 AM
    #119
    tomtom

    tomtom Well-Known Member

    Joined:
    Jul 15, 2012
    Member:
    #82706
    Messages:
    4,834
    Gender:
    Male
    The Desert SW
    Vehicle:
    03 Tacoma TRD
    OME lift w/ 882s and Dakar leaf packs, Elite front and rear bumpers, Rocky Road Rock Sliders
    yes, sir. As does both brake pedal springs.

    Possible other options to solve include grinding the tab down a little or getting a 4Cyl clutch pedal.

  20. Nov 14, 2014 at 3:32 PM
    #120
    Rucas

    Rucas [OP] 1st gen > 2nd gen

    Joined:
    Dec 5, 2009
    Member:
    #27040
    Messages:
    4,032
    Gender:
    Male
    First Name:
    Lucas
    Northern Colorado
    Vehicle:
    1st gen. 4x4 MANual
    sparkles, fairys, and happy things.
    hmmm I don't think I've had that problem on my truck. I wonder if the clutch pedal assemblies are different.
