CNC - G Codes - Project

Discussion in 'Technology' started by theduck911, Nov 22, 2011.

  1. Nov 22, 2011 at 6:14 PM

    theduck911 [OP] Max's Canadian Twin

    Oct 28, 2010
    First Name:
    Northwestern Ontario, Canada
    Locked and Geared!
    Hey Guys,

    Figured I'd see if anyone here knows anything about writing G-codes for CNC machines as I just can't manage to understand it.

    Machine is a Emco-F1-CNC.

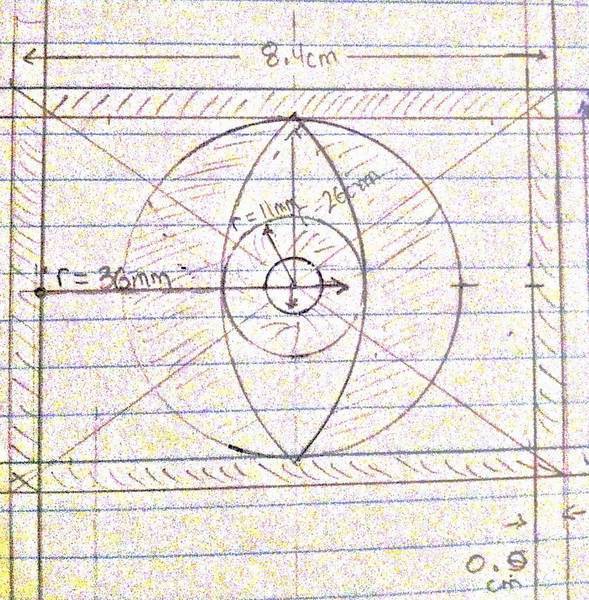

    Image below is what we have to CNC, just a basic eye-ball type design.

    Shaded Areas are to be removed.

    Outer Circle of Eye - Radius = 26mm
    Eyelid Eclipse - Radius =36mm (From centre of edge, as shown below)
    Pupil - Radius = 11mm
    Inner most circle - Radius = 4mm


    Basically have CNC the above out of a little-blue CNC block so feed & spindle speeds aren't really important as it won't really generate any heat.

    Any help would be awesome.
