COMPLETED 5th Gen 4Runner BBK upgrade for 2nd Gen Tacomas

Discussion in 'Technical Chat' started by nudavinci64, Aug 4, 2017.

  1. Apr 6, 2019 at 11:38 PM
    #181
    Taco-Obsessed

    Taco-Obsessed Wildlife Peeping Tom

    Joined:
    Dec 23, 2018
    Member:
    #276756
    Messages:
    6,590
    Gender:
    Male
    First Name:
    Shawn
    San Jose
    Vehicle:
    2015 4x4 DCLB: Work in Progress
    Never ending
    Sub for future project. Thanks OP and @tacomgee for the thread reference

    nudavinci64 [OP] and tacomgee like this.
  2. Apr 7, 2019 at 5:01 AM
    #182
    buyobuyo

    buyobuyo Read The Fucking Manual

    Joined:
    Jan 24, 2008
    Member:
    #4417
    Messages:
    6,134
    Gender:
    Male
    First Name:
    Jeremy
    Camden, AR
    Vehicle:
    08 PreRunner SR5, I4, Manual, Silver
    A thing or two...
    Just did this yesterday. I need to bleed the brakes again because my pedal is super soft.


    ACEkraut, Nate87 and Hit n Run like this.
  3. Apr 7, 2019 at 9:10 AM
    #183
    97duc748

    97duc748 Well-Known Member

    Joined:
    Sep 1, 2014
    Member:
    #137386
    Messages:
    152
    Gender:
    Male
    Vehicle:
    07 Tacoma
    Snugtop, lift, Prinsu Rack and lead foot.
    @buyoboyo did you end up getting the pedal sorted out? I feel like my pedal is slightly different but it may just be my head playing tricks on me. My pedal is firm but seems to engage lower on the pedal stroke. I was just curios if you noticed anything similar?

    So far I have liked the new brakes, mainly because my last set of brakes were causing issues (vibration) but seems to work better. I have an armored (Front, rear bumpers, full sliders), bigger wheels and tires, and a canopy with bed platform. The truck is almost always loaded with stuff for recovery, jacking, and survival if I get stuck or broke. What are your thoughts now that you have had a chance to drive the new brakes?

  4. Apr 7, 2019 at 9:23 AM
    #184
    buyobuyo

    buyobuyo Read The Fucking Manual

    Joined:
    Jan 24, 2008
    Member:
    #4417
    Messages:
    6,134
    Gender:
    Male
    First Name:
    Jeremy
    Camden, AR
    Vehicle:
    08 PreRunner SR5, I4, Manual, Silver
    A thing or two...
    My pedal is similar. There is a lot of stroke before it firms up. I plan on bleeding them again to see if it makes it better. I lost a lot of fluid (drained the reservoir to min) putting the passenger side caliper on.

  5. Apr 7, 2019 at 5:07 PM
    #185
    09TRDSport4x4

    09TRDSport4x4 OCD Approved!

    Joined:
    Oct 13, 2014
    Member:
    #140292
    Messages:
    1,059
    Gender:
    Male
    First Name:
    Nick
    Southwest Ohio
    Vehicle:
    2009 TRD Sport 4x4
    285/70/17 Nitto | SCS F5s | Elka 2.5 | Elka 2.0 | ICON AAL

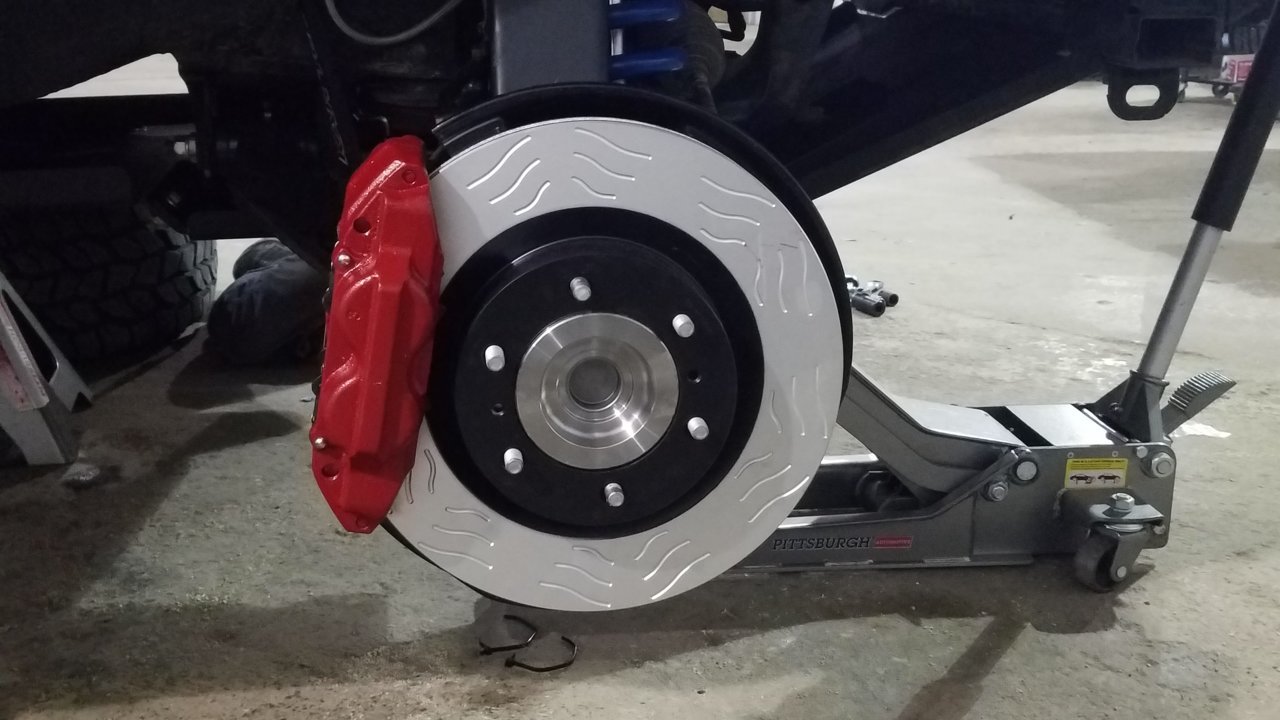

    I just completed this upgrade with stainless steel front lines and TRD Performance brake pads on my truck today with a lot of help from @EdinCincinnati!

    [​IMG]

    We bled and flushed the brake lines until clear fluid with no bubbles was coming out at each corner. We also used the Toyota TechStream software to bleed the ABS module. And after my initial drive home (roads were wet, so no chance to do the break in procedure for the TRD pads yet) I’m not thrilled with the pedal feel. The pedal feels almost the same, if not worse than it did before with the same characteristics that @buyobuyo described. The pedal doesn’t seem to engage right away and when it does it feels somewhat firm but not nearly as firm as I had hoped. I know breaking in the pads will help a lot with the initial “bite” but I’m thinking there’s still air in the system somewhere and that I’ll need to try to bleed it again. I may order some speed bleeders and give it another shot.

    Hit n Run and buyobuyo like this.
  6. Apr 8, 2019 at 8:35 AM
    #186
    VE7OSR

    VE7OSR Well-Known Member

    Joined:
    Dec 12, 2011
    Member:
    #68608
    Messages:
    4,933
    Gender:
    Male
    First Name:
    Rob II
    Okanagan, Canada
    Vehicle:
    05 DCLB TRD Sport
    Armour: All-Pro Skid plates - IFS, transmission, and transfer case. Pelfreybilt rear standard plate bumper, Metal Tech Sliders w/ kickout and dimple die filler plates. Front Suspension: OME 885 + NitroCharger 9000 shocks + 1/2" spacers for a 3" lift. Superbumps replacing stock bumpstops. Camburg ball joint UCA SS braid brake lines Future: ADS Extended length, extended length UCA BJ to increase droop capability Rear Suspension: All-Pro Expedition rear leafs, Walker Evans 27" rear shocks, extended rear brake lines (Wheelers Offroad), U -bolt flip kit, rear Timbren bumpstops. Future: Hammer Hangers, Shock relocate, ADS 12" or 14" shock. Interior: Weatherteck floor liners - front, Wet Okoles- front, ScanGauge, LED interior & map lights. Power moonroof. Exterior: Raider Cobra canopy, retrofit headlight by Insight, LED bulbs all around, modified flasher unit for LEDs. Rear diff breather mod. Front diff vibe problem, driver's side needle bearing replaced with ECGS bushing. yet to install: HID Blazer Fog Retrofit, LED Flood & Spot, + switches, fuse panel. swaybar relocate blocks (build my own)
    So it is very much sounding that upgrading the master cylinder from 13/16" bore to a 1* bore is a necessary step for this upgrade.

  7. Apr 8, 2019 at 8:54 AM
    #187
    KCTaco77

    KCTaco77 Well-Known Member

    Joined:
    Aug 11, 2014
    Member:
    #135883
    Messages:
    229
    Gender:
    Male
    Kansas City
    Vehicle:
    2011 Tacoma 4X4
    3" Lift, AMP Running Boards and tailgate step, ANZO head and tail lights.
    @09TRDSport4x4 and @buyobuyo, have you adjusted your rear brakes as well? Mine were soft at first until I adjusted the rear brakes which firmed up the pedal feel. After doing the break in procedure and about 300 to 400 miles of regular driving my brakes have firmed up and feel a lot better now.

  8. Apr 8, 2019 at 9:00 AM
    #188
    09TRDSport4x4

    09TRDSport4x4 OCD Approved!

    Joined:
    Oct 13, 2014
    Member:
    #140292
    Messages:
    1,059
    Gender:
    Male
    First Name:
    Nick
    Southwest Ohio
    Vehicle:
    2009 TRD Sport 4x4
    285/70/17 Nitto | SCS F5s | Elka 2.5 | Elka 2.0 | ICON AAL
    I have not adjusted the rear brakes @KCTaco77. I didn’t think I needed to since my parking brake only goes down about 7 clicks when I use it (I read if the parking brake only goes down 6-8 clicks that means the rear drums were properly adjusted). I’m going to attempt to bleed the brakes again tonight and don’t mind adjusting the rear drums while I’m under there, but I’ve never done it before. This is my first ever vehicle with drum brakes...

  9. Apr 8, 2019 at 9:22 AM
    #189
    nudavinci64

    nudavinci64 [OP] Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    6,810
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    I agree with folks the pedals does feel different. From reading up upgrading to the 1" bore may actually make it worse. I can't recall who did it but they ended up swapping back. Also this would only work for sport models. Offroad with the electronic booster is a no go or too expensive to find say a 4runner version (possibly prep for rear discs)

    Make sure you add the stainless lines if you did not. That will firm up the pedal. The other thing is adding ton's of steel and other things come into play. When I tested it with stock pads It was stopping quicker than stock. Since then I have added a ton of steel and I have had to adjust my braking due to various factors. I have some TRD pads on order from the recent 40% off so I will give that a shot and see how it goes. I also just went up to a 315/70/17 tires and soon have a swing out coming so I will be fully loaded down and heavy. I expect the braking will not be as good as the original post but I am curious to see how much.

    Its also key to bleed the master and if you have an off road you need some help here. Overall Its been good for me, a few moments I feel its not been good but a lot has changed on the truck since then.

  10. Apr 8, 2019 at 9:25 AM
    #190
    09TRDSport4x4

    09TRDSport4x4 OCD Approved!

    Joined:
    Oct 13, 2014
    Member:
    #140292
    Messages:
    1,059
    Gender:
    Male
    First Name:
    Nick
    Southwest Ohio
    Vehicle:
    2009 TRD Sport 4x4
    285/70/17 Nitto | SCS F5s | Elka 2.5 | Elka 2.0 | ICON AAL
    What’s the process for bleeding the master?

  11. Apr 8, 2019 at 9:35 AM
    #191
    KCTaco77

    KCTaco77 Well-Known Member

    Joined:
    Aug 11, 2014
    Member:
    #135883
    Messages:
    229
    Gender:
    Male
    Kansas City
    Vehicle:
    2011 Tacoma 4X4
    3" Lift, AMP Running Boards and tailgate step, ANZO head and tail lights.
    Since I have an auto transmission I don't have the lever parking brake so not sure how many clicks it should take for proper adjustment, but I've never had good luck with the rear brakes being adjusted correctly even though they are supposed to be self adjusting. I just jack up the truck till the rear wheels are off the ground and adjust them manually until the brakes start to drag when spinning the rear wheels.
    Here is a how to video on how I manually adjust my rear brakes.
    https://www.youtube.com/watch?v=iN6z0oIZLBk

  12. Apr 8, 2019 at 1:40 PM
    #192
    buyobuyo

    buyobuyo Read The Fucking Manual

    Joined:
    Jan 24, 2008
    Member:
    #4417
    Messages:
    6,134
    Gender:
    Male
    First Name:
    Jeremy
    Camden, AR
    Vehicle:
    08 PreRunner SR5, I4, Manual, Silver
    A thing or two...
    Nope. Didn't adjust the drums.

  13. Apr 8, 2019 at 1:51 PM
    #193
    buyobuyo

    buyobuyo Read The Fucking Manual

    Joined:
    Jan 24, 2008
    Member:
    #4417
    Messages:
    6,134
    Gender:
    Male
    First Name:
    Jeremy
    Camden, AR
    Vehicle:
    08 PreRunner SR5, I4, Manual, Silver
    A thing or two...
    Non-VSC bleeding
    VSC bleeding


    Drum adjusting procedure

  14. Apr 8, 2019 at 3:50 PM
    #194
    09TRDSport4x4

    09TRDSport4x4 OCD Approved!

    Joined:
    Oct 13, 2014
    Member:
    #140292
    Messages:
    1,059
    Gender:
    Male
    First Name:
    Nick
    Southwest Ohio
    Vehicle:
    2009 TRD Sport 4x4
    285/70/17 Nitto | SCS F5s | Elka 2.5 | Elka 2.0 | ICON AAL
    We bled the brakes manually again today after work. Both rears were bubble free and a few straggling bubbles came out of the front two, but was quickly followed by a solid stream of clear fluid. The pedal feels less soft now than it did, but it still has a bit of a long feel to it (I have to push it down more than I’d like to get the brakes to engage). I don’t have to prime the brakes to get a firm feel, it’s a consistent feel at every push. And the longer press isn’t new to my truck, the factory brakes were the same way.

    I’m going to try to find somewhere to break the TRD pads in tonight and then see how it feels. After the pads are broken in, I’ll probably drive it for a week or so then I want to try to bleed it again just to see if any more air comes out. Overall, I’m pleased with the upgrade but I won’t have a solid feel for any increase in stopping power until I get the pads broken in.

  15. Apr 8, 2019 at 7:17 PM
    #195
    mr.trd

    mr.trd Are you Recreationally Insane?

    Joined:
    Jul 9, 2008
    Member:
    #7842
    Messages:
    1,444
    Gender:
    Male
    First Name:
    Brant
    Pocatello, Idaho
    Vehicle:
    '06 S/C 1GR-FE DCSB
    Icon coilovers w 14" 700lb springs, Icon billet UCA w/ Delta joints, custom built Icon rear resi-shocks, Icon stage 3 rear leaf pack, Archive Garage Hammer Hangers w/ homemade spreader bar, superbumps up front and timbren bumps in the rear, Crown brake lines, U-bolt flip,4.88's with front ARB locker and ARB dual compressor mounted behind back seat, 285/75R17 BFG A/T KO2's on Bronze Icon Alloy Compression's, 5th gen T4R budget big brake kit, CBI Off-Road Fab. custom Trailmaster 2.0 with swing-away tire carrier, CBI custom tube front bumper, CBI kickout sliders, CBI full flat belly skids including gas tank,CBI Ditch Light brackets w/ Heretic Studio Quattro's, Heretic Studio's 30" Amber on the front, Heretic Studio 40" bar under the Front Runner Roof Rack, Expedition Essentials RAM mount, Leer used shell, OEM black chrome sport headlights, fog lights always on mod, rear locker anytime mod, TRD supercharger, URD Ucon-EMS, Deatschwerks 255 fuel pump w/ URD external fuel filter kit, AFE intake paired to a Safari Snorkel, URD spec-U exhaust w/ factory Tundra muffler behind URD equal length headers.
    I did mine this weekend also and am battling the same thing. Feels like I have to push alot farther down on the pedal to get them to start to bite. Once they bite they do pretty good though. But if you are supposed to only get 6-8 clicks out of the e brake for it to work good mine rears need adjusted. My e brake goes to the floor and it still moves enough to catch the parking pall on my sloped driveway. I was going to use one of the tech's vacuum bleeder tomorrow night and flush out the super blue fluid I just put in it back in August but can't decide what fluid to go with to flush it with. Thinking I will try the Pentosin. Really hope I can get the pedal feel back as I love to feel the brakes bite high up on the pedal stroke.

  16. Apr 9, 2019 at 8:05 AM
    #196
    09TRDSport4x4

    09TRDSport4x4 OCD Approved!

    Joined:
    Oct 13, 2014
    Member:
    #140292
    Messages:
    1,059
    Gender:
    Male
    First Name:
    Nick
    Southwest Ohio
    Vehicle:
    2009 TRD Sport 4x4
    285/70/17 Nitto | SCS F5s | Elka 2.5 | Elka 2.0 | ICON AAL
    Broke in the pads last night using the TRD Performance instructions (10 consecutive 60 to 5-10 mph hard stops without completely stopping until the brakes have time to cool). The rotors now have a nice bluish tint in the veins and a grayish film on the surface from the pads (exactly what the instructions said I should see). Drove the truck to work this morning and the pedal feels a bit firmer but still doesn’t engage very high. The instructions say I’ll need to complete another heat cycle before the pads reach optimum braking performance so I may take it out again later and do a few hard stops to heat it back up.

    Overall, I am very happy with this upgrade. I think the pedal travel is always going to feel a bit long compared to other vehicles, but the stopping power has definitely improved. During the first several hard stops last night the brakes felt stronger than my OEM setup ever did and as the pads continue to break in the pedal should have even more of a “bite” to it. I’m gonna drive it for a week or so and try to find a wet or gravel road to kick the ABS on a few times before I bleed it one last time. I’m hoping if there’s any air left in the lines a few more hard stops and forcing the ABS to kick on will push the bubbles out towards the calipers and drums so that I can get it all out with the next bleed.

    And in the meantime I might pickup stainless lines for the rear to install with my next regularly scheduled brake fluid flush. I’m definitely going to stay on top of keeping the fluid clean and clear.

  17. Apr 10, 2019 at 3:12 AM
    #197
    buyobuyo

    buyobuyo Read The Fucking Manual

    Joined:
    Jan 24, 2008
    Member:
    #4417
    Messages:
    6,134
    Gender:
    Male
    First Name:
    Jeremy
    Camden, AR
    Vehicle:
    08 PreRunner SR5, I4, Manual, Silver
    A thing or two...
    Adjusted the drums last night per the FSM and bled the brakes using my PowerBleeder. I got a few micro bubbles out of both fronts and the rear passenger, but I'm not certain whether those were actual bubbles or something that formed in the drain tube as it filled with fluid. Either way the pedal feels a lot better. I'd dare say that it's back to how it was before at least. I didn't a couple of hard brakings to do a little pad bedding. The first one that I did felt pretty good. The next one that I did the pedal gradually sank to the floor the more I pushed on the pedal, which was a little disconcerting. The pedal was pretty squishy again after that but firmed back up after a bit. I didn't get a chance to do any more hard brakings cycles before I got home.

  18. Apr 10, 2019 at 8:24 AM
    #198
    09TRDSport4x4

    09TRDSport4x4 OCD Approved!

    Joined:
    Oct 13, 2014
    Member:
    #140292
    Messages:
    1,059
    Gender:
    Male
    First Name:
    Nick
    Southwest Ohio
    Vehicle:
    2009 TRD Sport 4x4
    285/70/17 Nitto | SCS F5s | Elka 2.5 | Elka 2.0 | ICON AAL
    After breaking in the pads and driving on this setup for a few days now, I’m convinced there’s still air in the system. The new calipers, rotors and TRD pads definitely bite harder than my OEM setup ever did, but the pedal still feels too soft. I’m going to try to find time to adjust the rear drums and bleed the brakes again this weekend or early next week. The truck stops great right now but if I can firm the pedal up a bit, I’ll be extremely satisfied with this upgrade.

    Also, I want to add for reference, that the 5th Gen 4Runner calipers fit great behind the OEM 30mm offset Sport wheels with 1” wheel spacers. This makes sense seeing as most 4Runner wheels have a 5-10mm offset but I just wanted to confirm for anyone else who uses stock wheels.

    [​IMG]

    Last edited: Apr 10, 2019
    nudavinci64 [OP] and buyobuyo like this.
  19. Apr 10, 2019 at 10:19 AM
    #199
    VE7OSR

    VE7OSR Well-Known Member

    Joined:
    Dec 12, 2011
    Member:
    #68608
    Messages:
    4,933
    Gender:
    Male
    First Name:
    Rob II
    Okanagan, Canada
    Vehicle:
    05 DCLB TRD Sport
    Armour: All-Pro Skid plates - IFS, transmission, and transfer case. Pelfreybilt rear standard plate bumper, Metal Tech Sliders w/ kickout and dimple die filler plates. Front Suspension: OME 885 + NitroCharger 9000 shocks + 1/2" spacers for a 3" lift. Superbumps replacing stock bumpstops. Camburg ball joint UCA SS braid brake lines Future: ADS Extended length, extended length UCA BJ to increase droop capability Rear Suspension: All-Pro Expedition rear leafs, Walker Evans 27" rear shocks, extended rear brake lines (Wheelers Offroad), U -bolt flip kit, rear Timbren bumpstops. Future: Hammer Hangers, Shock relocate, ADS 12" or 14" shock. Interior: Weatherteck floor liners - front, Wet Okoles- front, ScanGauge, LED interior & map lights. Power moonroof. Exterior: Raider Cobra canopy, retrofit headlight by Insight, LED bulbs all around, modified flasher unit for LEDs. Rear diff breather mod. Front diff vibe problem, driver's side needle bearing replaced with ECGS bushing. yet to install: HID Blazer Fog Retrofit, LED Flood & Spot, + switches, fuse panel. swaybar relocate blocks (build my own)
    If you put in stainless braided lines to replace OEM rubber lines, need to do this on both front and rear, otherwise you will feel an inconsistent braking.

  20. Apr 10, 2019 at 11:04 AM
    #200
    09TRDSport4x4

    09TRDSport4x4 OCD Approved!

    Joined:
    Oct 13, 2014
    Member:
    #140292
    Messages:
    1,059
    Gender:
    Male
    First Name:
    Nick
    Southwest Ohio
    Vehicle:
    2009 TRD Sport 4x4
    285/70/17 Nitto | SCS F5s | Elka 2.5 | Elka 2.0 | ICON AAL
    You know, I was thinking about that last night. I think I’m going to order rear lines and speed bleeders. Once they arrive I’ll adjust the rear drums, install the speed bleeders and rear stainless lines then bleed everything again. I’d like to think that doing all of that should firm the pedal up as much as possible.
