COMPLETED 5th Gen 4Runner BBK upgrade for 2nd Gen Tacomas

Discussion in 'Technical Chat' started by nudavinci64, Aug 4, 2017.

  1. Aug 5, 2019 at 8:11 PM
    #221
    nudavinci64

    nudavinci64 [OP] Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    6,656
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    wheelwell.com has $200 off $400 right now. Get some nicer rotors and pads for the setup and call it a day. Just picked up some DBA 4000 T3 rotors. they are back ordered but you can still order. cant beat that.

    mr.trd likes this.
  2. Aug 13, 2019 at 1:58 PM
    #222
    nudavinci64

    nudavinci64 [OP] Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    6,656
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....

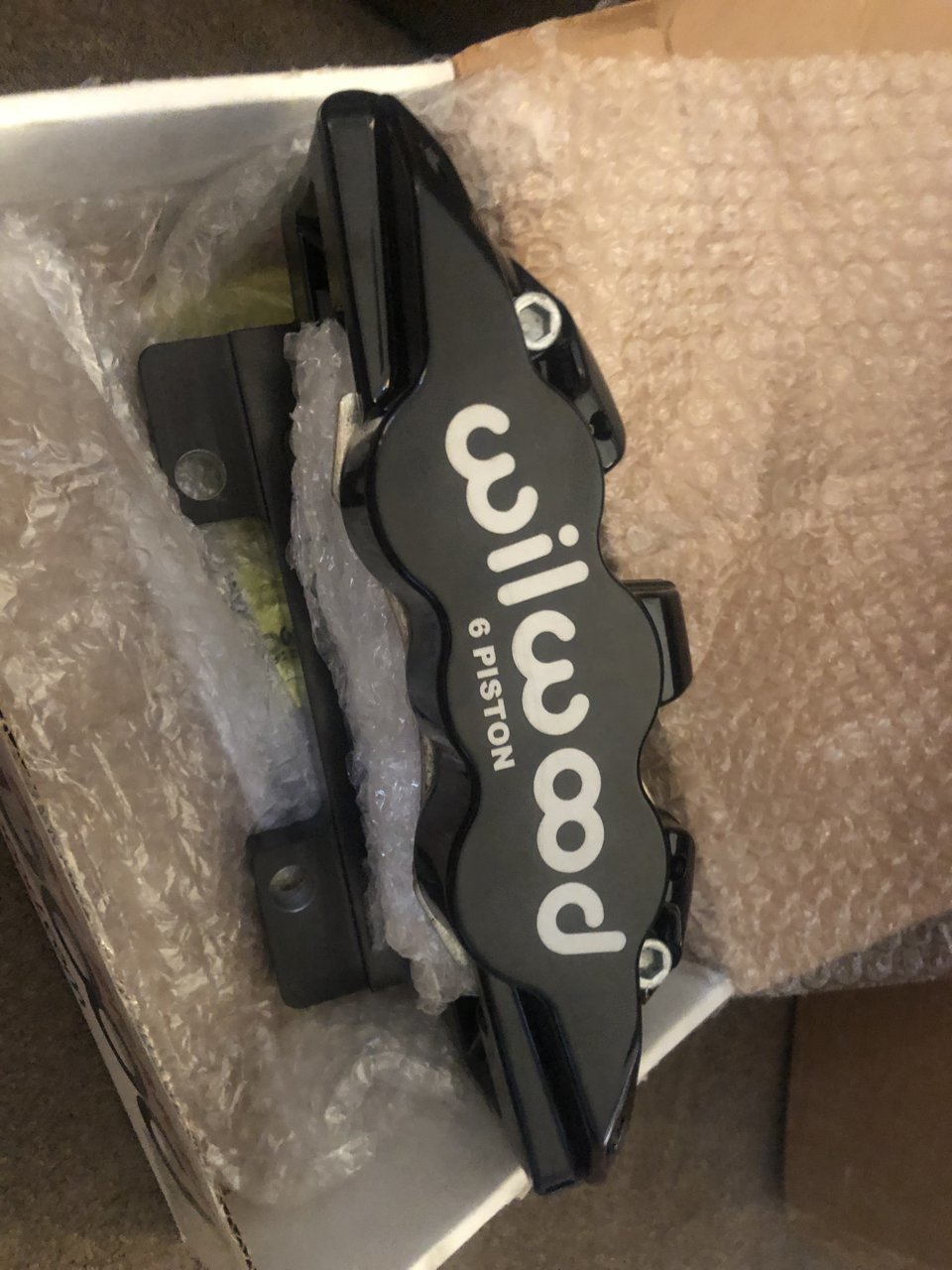

    T4R setup getting an upgrade...


  3. Aug 14, 2019 at 8:03 AM
    #223
    Naveronski

    Naveronski Well-Known Member

    Joined:
    Sep 14, 2013
    Member:
    #112501
    Messages:
    7,487
    Gender:
    Male
    First Name:
    Why are you here if you don't drive a Tacoma?
    Fort Worth
    Vehicle:
    2014 MGM DCSB TRD:OR
    Thank you for this, I was wondering about it.

    I’m considering doing this next time I change my brakes.

    17 pages is a ton to read! Has anyone pulled/quoted specific posts to pay attention to?

  4. Aug 14, 2019 at 8:19 AM
    #224
    nudavinci64

    nudavinci64 [OP] Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    6,656
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    Page 1. I can add the note that you may need to cut the shield. I did not cut the 4runner shields with the gussets. Its close but no cutting needed. Probably depends on how they welded the gussets.

    MY50cal likes this.
  5. Aug 14, 2019 at 8:44 AM
    #225
    Naveronski

    Naveronski Well-Known Member

    Joined:
    Sep 14, 2013
    Member:
    #112501
    Messages:
    7,487
    Gender:
    Male
    First Name:
    Why are you here if you don't drive a Tacoma?
    Fort Worth
    Vehicle:
    2014 MGM DCSB TRD:OR
    That’s likely.

    Even reusing my stock shields for my stock brakes, I had to bend the shields.

  6. Aug 14, 2019 at 8:47 AM
    #226
    nudavinci64

    nudavinci64 [OP] Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    6,656
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    yah I just took a screwdriver or ratchet and pushed a couple parts away but did not cut. Its close, I will add a note for gussets as I did not have it when I first installed.

    Naveronski likes this.
  7. Aug 14, 2019 at 8:56 AM
    #227
    nudavinci64

    nudavinci64 [OP] Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    6,656
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    Added a note about spindle gussets and the wilwood upgrade. Any other key points message me and we can add it to the first post.

    Naveronski likes this.
  8. Aug 14, 2019 at 9:08 AM
    #228
    09TRDSport4x4

    09TRDSport4x4 OCD Approved!

    Joined:
    Oct 13, 2014
    Member:
    #140292
    Messages:
    1,055
    Gender:
    Male
    First Name:
    Nick
    Southwest Ohio
    Vehicle:
    2009 TRD Sport 4x4
    285/70/17 Nitto | SCS F5s | Elka 2.5 | Elka 2.0 | ICON AAL
    It might be worth including OEM part numbers for rotors and pads in the first post for people who want to go the OEM route. And I’d have to scroll back or look at my notes but I know somewhere in here are different aftermarket (rebuilt) caliper part numbers. I used the NAPA rebuilt calipers and brake hardware with OEM stuff for everything else. Here’s my parts list:

    5th Gen Toyota 4Runner Front Brake Upgrade

    Parts:

    NAPA Eclipse Calipers (14 WA cast)
    $96.49 EA + $16.67 EA core

    L caliper (SE6830)
    R caliper (SE6829)

    NAPA Brake Hardware Kit (UP83106A)

    OEM Part Numbers:

    #04465-60320 - Front Brake Pad Set
    #04945-60090 - Front Pad Shim Kit
    #00475-1BF03 - OE Brake Fluid
    #43512-60191 - Brake Rotor x2
    #47314-60311 - Brake Tube #8
    #47317-60131 - Brake Tube #7
    #47782-60140 - Backing Plate
    #47781-60140 - Backing Plate

    And my only warnings about the upgrade would be about TRD Performance pads and bleeding. Don’t use the TRD pads unless you want to clean your wheels weekly (they dust like crazy) and deal with deposits left on the rotor from time to time that will cause a vibration. Ask me how I know...

    As for bleeding, I highly recommend installing speed bleeders in the front and rear and doing it old school style (pump, pump, pump, open bleeder, close bleeder, repeat until bubbles are gone). I fought with air in my lines for a few weeks until I installed speed bleeders and finally got it all sorted out.

    Only thing else I might add would be about rear brakes, especially on older vehicles. Make sure your shoes/hardware are in good shape and the drums are adjusted properly before you do this upgrade. If you don’t you’ll likely have a soft or low pedal feel and will be disappointed with the upgrade until you address the rear brakes.

    Last edited: Aug 14, 2019
    steveh_2007, tacomgee and MY50cal like this.
  9. Aug 14, 2019 at 9:09 AM
    #229
    Naveronski

    Naveronski Well-Known Member

    Joined:
    Sep 14, 2013
    Member:
    #112501
    Messages:
    7,487
    Gender:
    Male
    First Name:
    Why are you here if you don't drive a Tacoma?
    Fort Worth
    Vehicle:
    2014 MGM DCSB TRD:OR
    Glad to see you keeping it updated.

    nudavinci64 [OP] likes this.
  10. Oct 23, 2019 at 9:30 PM
    #230
    truckinducks

    truckinducks Member

    Joined:
    Apr 11, 2009
    Member:
    #15826
    Messages:
    13
    Gender:
    Male
    Long Beach
    Vehicle:
    TRD
    Going to do this upgrade soon, do I need wheel spacers to fit my OEM 17in rims for my 05 Tacoma/TRD Sport?

  11. Oct 23, 2019 at 10:23 PM
    #231
    nudavinci64

    nudavinci64 [OP] Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    6,656
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    I recall someone said it does not fit the OEM sport 17's. at least the Tacoma version. Assuming it would fit T4R sport so you may need spacers. I think is super close.

    truckinducks likes this.
  12. Oct 23, 2019 at 10:31 PM
    #232
    nudavinci64

    nudavinci64 [OP] Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    6,656
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    @truckinducks quoted member was going to do it with sport wheels and spacers. he may have some info. If you get some info ill add it to the 1st post. Most folks have been using aftermarket.

    truckinducks likes this.
  13. Oct 23, 2019 at 10:33 PM
    #233
    truckinducks

    truckinducks Member

    Joined:
    Apr 11, 2009
    Member:
    #15826
    Messages:
    13
    Gender:
    Male
    Long Beach
    Vehicle:
    TRD
    :cheers:

    nudavinci64 [OP] likes this.
  14. Oct 23, 2019 at 10:51 PM
    #234
    09TRDSport4x4

    09TRDSport4x4 OCD Approved!

    Joined:
    Oct 13, 2014
    Member:
    #140292
    Messages:
    1,055
    Gender:
    Male
    First Name:
    Nick
    Southwest Ohio
    Vehicle:
    2009 TRD Sport 4x4
    285/70/17 Nitto | SCS F5s | Elka 2.5 | Elka 2.0 | ICON AAL
    Yep, I can confirm this upgrade fits behind OEM TRD Sport wheels using 1” or larger spacers. Been running it for about five months now without issue.

    [​IMG]

  15. Oct 23, 2019 at 10:56 PM
    #235
    truckinducks

    truckinducks Member

    Joined:
    Apr 11, 2009
    Member:
    #15826
    Messages:
    13
    Gender:
    Male
    Long Beach
    Vehicle:
    TRD
    Thanks for the update feedback brotha :thumbsup:

  16. Oct 23, 2019 at 11:00 PM
    #236
    nudavinci64

    nudavinci64 [OP] Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    6,656
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    Nice, let me add this to post 1.

  17. Oct 23, 2019 at 11:14 PM
    #237
    nudavinci64

    nudavinci64 [OP] Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    6,656
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....

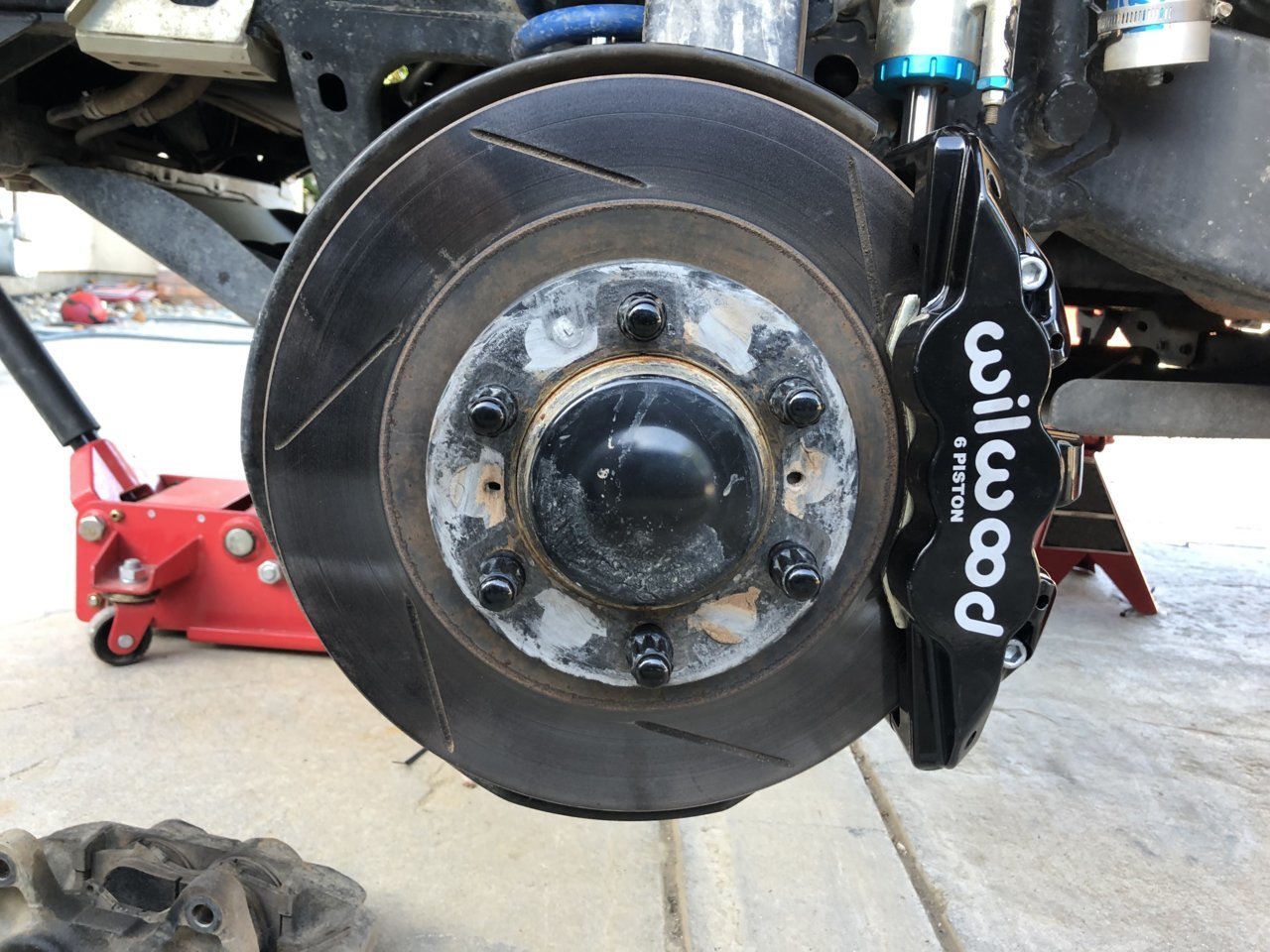

    Anyone looking for the next upgrade using the OEM sized TR4 rotors. Swapped out my calipers with the Wilwoods I posted earlier. A pair of TR4 calipers with good pads up for grabs. Recently replaced the seals on one and have a set of seals for the other (just need to find them). This is a kit rr-racing makes for TR4/GX models which as you know swaps over to the Tacoma. Myself and another FJ owner had a few issues mainly due to the adapter that comes with it. RR-Racing made the adapter but we purchased the Aero-DS model which adds an external dust shield for better off road dust protection. Wilwood stated the specs were the same for the DS and non DS model. RR was great and sent a new adapter after ordering and testing on some hubs with the DS model. Found out that the specs were wrong and fixed it up. That took a couple weeks but aside from that it was a breeze.

    Link to the kit:
    https://www.rr-racing.com/RR-Racing-Front-Big-Brake-Kit-for-Lexus-GX-4Runner-p/gx4fbk0002.htm

    select -DS if you want the external dust model. not required but recommended if your off pavement a lot.

    Link to my thread on it: https://www.tacomaworld.com/threads...dventures-and-bs.469415/page-12#post-21617686

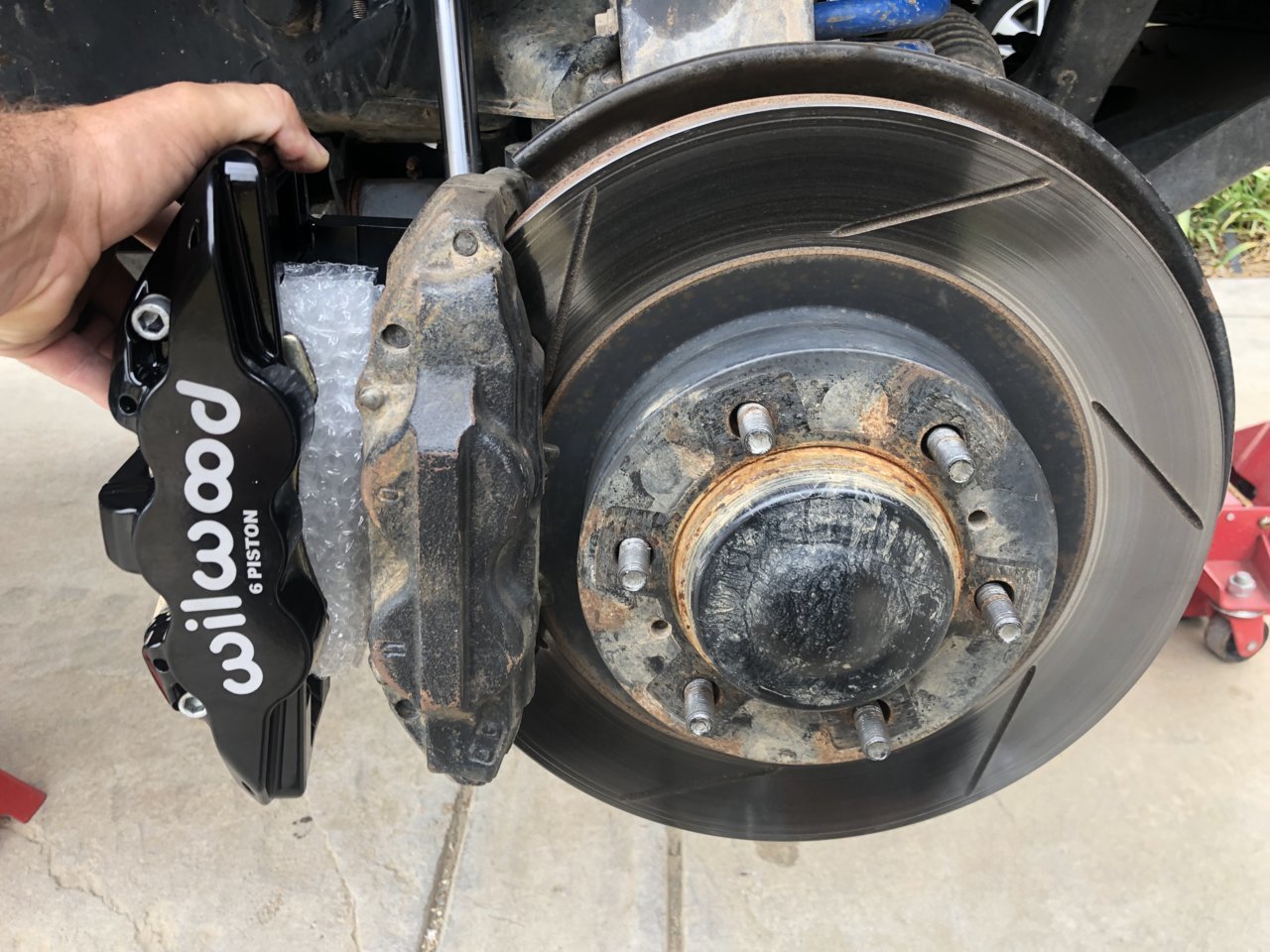

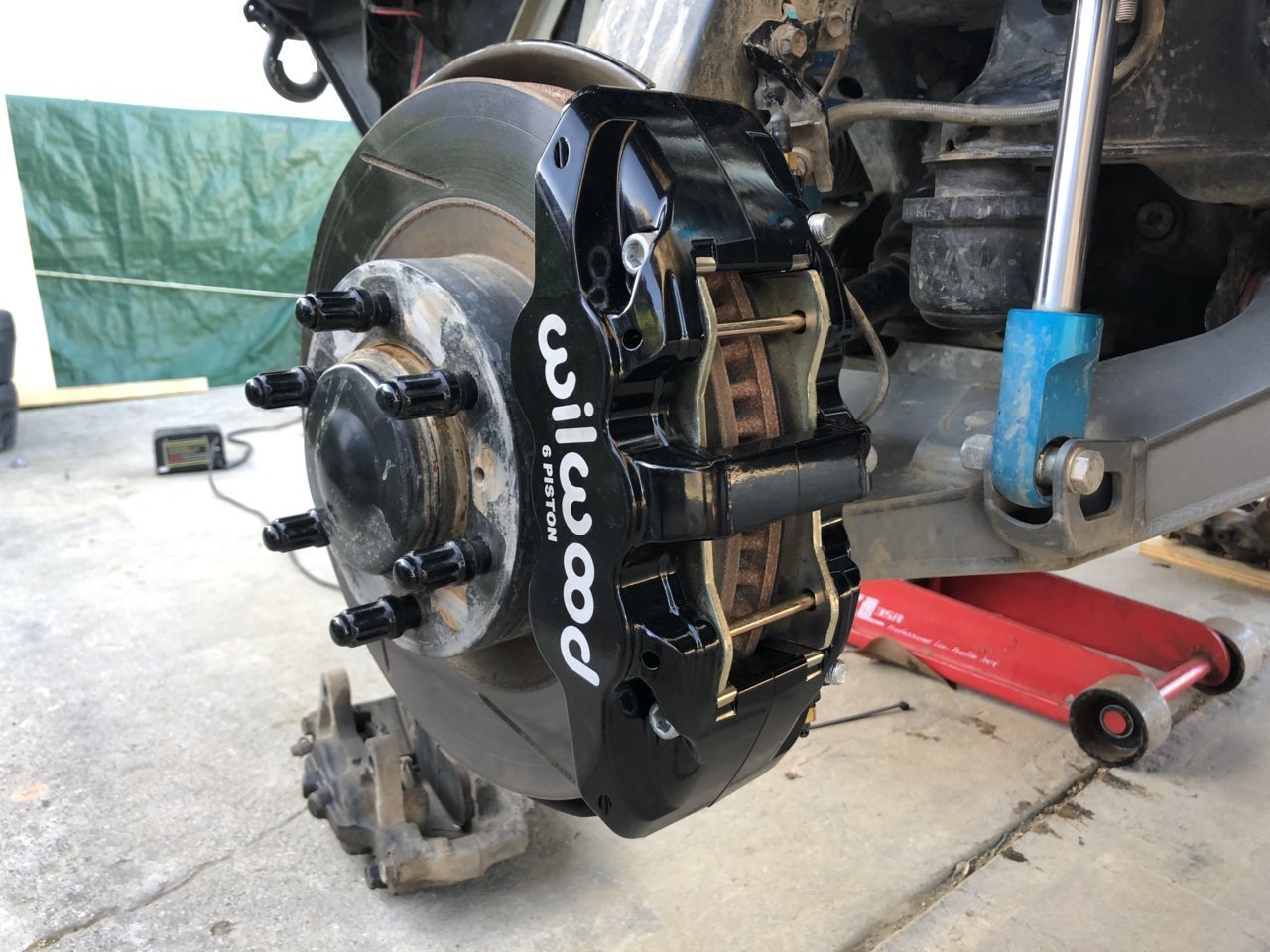

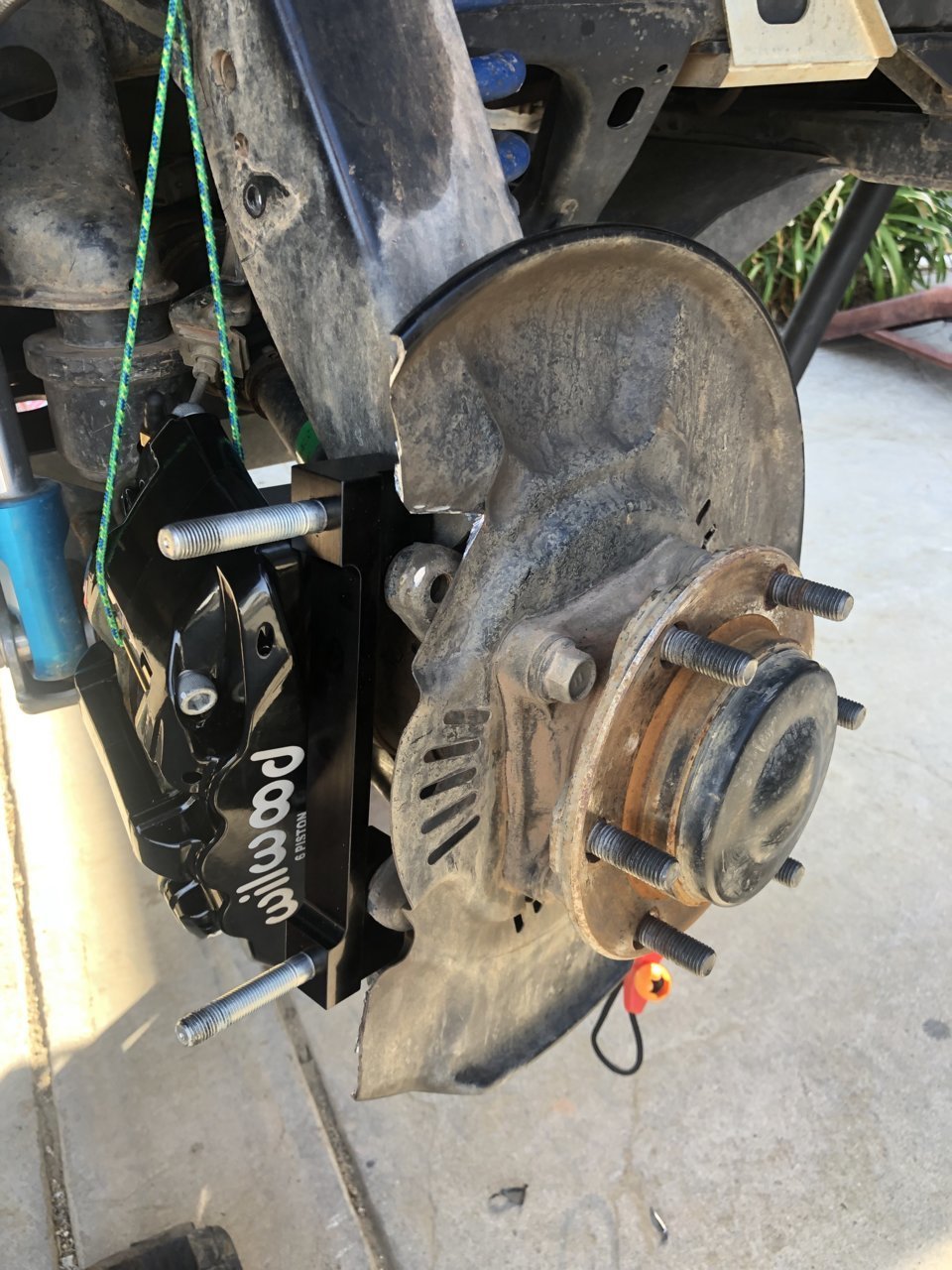

    A few pictures of the differences. Currently have the same rotors on that I posted in the 1st post. I have some new DBA on order but currently running the same rotors as the initial TR4 swap. 338mm vs Stoptechs 342mm or Wilwoods actual BBK kit which is around 340mm as well. Also retained the backing plate which they tell you to remove. Just needs a few cuts on the backing plate to clear the rotor. I ended up making a few relief cuts in the backing plate near the gussets spindles as well.

    Since 2 piece is a bit extreme for the tacoma this is a nice middle ground. If we run into any rotor issues on the trail a quick trip to Autozone or Toyota will pull some OEM to get us back home.

    20190820_153939739_iOS.jpg 20190822_160544757_iOS.jpg 20190911_154143588_iOS.jpg 20190911_154148320_iOS.jpg

    steveh_2007, MY50cal and truckinducks like this.
  18. Oct 30, 2019 at 1:13 PM
    #238
    AdamEnduro

    AdamEnduro Member

    Joined:
    Feb 2, 2016
    Member:
    #176906
    Messages:
    7
    Gender:
    Male
    First Name:
    Adam
    Vehicle:
    2005 Tacoma
    Did this upgrade recently for my 2005 Tacoma and I'm loving the results!! I paired it with a set of Goodridge stainless lines and couldn't be happier right now. Much more braking power and more consistent modulation. I wish I did this a long time ago...

    Thanks so much for posting all the info and part numbers, they were very handy!!!

    truckinducks likes this.
  19. Oct 30, 2019 at 4:36 PM
    #239
    rocklobster2008

    rocklobster2008 Well-Known Member

    Joined:
    Jun 28, 2017
    Member:
    #222583
    Messages:
    1,025
    Gender:
    Male
    First Name:
    Jayson
    North Richland Hills, TX
    Vehicle:
    2008 Red Tacoma TRD Off Road
    Raptor style grill, Fog anytime, full 400W bed power, HID headlights, LED fogs, RCI Skid, many more to come when funds allow...
    Looking at doing this upgrade. If I snag these calipers from you all I would need is the dust shields and rotors?

  20. Oct 30, 2019 at 9:56 PM
    #240
    nudavinci64

    nudavinci64 [OP] Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    6,656
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    Pretty much. I would suggest the new lines as well but not required. I have one other person interested in the calipers. if that falls through you would be next.
