    Mine, 2014 with 70k miles. Does anyone have a part# to just the connector replacement? Or link to a 3rd party connector?


    ETA: Plugged the connector back in and gave it a pretty good wiggle. Despite the charring & melting, the blower motor is working at this time. I know it's only a temp fix at best.

    Last edited: May 29, 2016
    ScottInOKC, May 28, 2016
    #22
  3. May 30, 2016 at 7:52 AM
    #23
    xxnikkixx85

    #23
    xxnikkixx85 [OP] Well-Known Member

    Joined:
    May 9, 2012
    Member:
    #78487
    Messages:
    203
    Gender:
    Female
    First Name:
    Nikki
    Langley,B.C (Canada)
    Vehicle:
    Tacoma SR5 4x4
    PIAA FOG LIGHTS,Tinted Rear windows,Dunlop Fierce Mud Terrians,Blacked out badges,Blacked out taillights
    best bet would be take that into the toyota dealer like i did and tell them u know that replacement connector. i would think it would be covered for you no?

    xxnikkixx85, May 30, 2016
    #23
  4. Jul 15, 2016 at 12:17 PM
    #24
    arvizu9618

    #24
    arvizu9618 Well-Known Member

    Joined:
    Aug 22, 2011
    Member:
    #62143
    Messages:
    93
    Gender:
    Male
    First Name:
    RT
    PHX AZ
    Vehicle:
    06 D-Cab SPORT SB
    Map/Dome Light on same time, Beep onLock, Anytime DTRL's, Fog Light on any time, Cockpit lights in footwells, night light in cup holder and rear of console, Radio ON w/ ignition off (off with timer), 3157 socket for rear turn signals (BRIGHTER), Reverse Light Mod, Tap light in console and engine bay, removed screen prior to MAP sensor, Blacked out lower valance, badges, center caps and door handles, Added door sill plates, JVC-KDHDR50 Head unit (HD Baby), Tinted exterior lights, Borla Exhaust.
    I can only speak for the 2006 model but I guess it would be the same for other years:

    Part number
    $13 90980-10916 6" 12ga Harness New
    90980-10916 Connector

    Part Number
    $10 82998-12380 90980-10916, 6"es 12 Gauge Wire Harness
    82998-12380 Wire and terminal

    Not sold as a kit, sold as each :(

    -RT

    arvizu9618, Jul 15, 2016
    #24
  5. Aug 3, 2016 at 12:48 PM
    #25
    ScottInOKC

    #25
    ScottInOKC Well-Known Member

    Joined:
    Dec 11, 2013
    Member:
    #118418
    Messages:
    46
    Gender:
    Male
    First Name:
    Scott
    Oklahoma City
    Thanks for the part numbers! The dealership wanted 1/2 hour of diagnostic time to determine what caused the actual melting before determining if it was a warranty item. I opted to just order the parts and see if it goes away. The original connector looked like the wiring was too short and had been pulled out of the harness. I'll update after I get the parts on Friday.

    ScottInOKC, Aug 3, 2016
    #25
  6. Aug 3, 2016 at 1:13 PM
    #26
    Samhunter1

    #26
    Samhunter1 Well-Known Member

    Joined:
    Nov 16, 2015
    Member:
    #169783
    Messages:
    50
    Gender:
    Male
    First Name:
    Mark
    Huntsville Al
    Vehicle:
    2014 TRD Sport
    TRD Pro Suspension
    This looks like the same issue that my TJ Wrangler had before. What happens on the jeep is that the blower motor as it ages wears, and starts drawing more and more current. The wire that is use in the Jeep is not sufficient to handle the increased current, and will melt, causing it to no longer work. On my jeep I did what is called "the relay mod" which will stop the problem from happening. You basically use a relay on each blower setting. The switch on to dash is now used to activate the relay which can handle much more current then the power and blower switch. I would think a similar fix could be added to the Tacoma and stop the problem.

    Samhunter1, Aug 3, 2016
    #26
  7. Aug 3, 2016 at 7:46 PM
    #27
    Jimmyh

    #27
    Jimmyh Well-Known Member

    Joined:
    May 16, 2012
    Member:
    #78991
    Messages:
    14,243
    Gender:
    Male
    SC
    Vehicle:
    2012 Prerunner SR5
    The actual problem is a loose fitting clip adding resistance to the current flow. This resistance causes heat ( a heater is just a conductor with some resistance ).

    Jimmyh, Aug 3, 2016
    #27
  8. Jul 5, 2017 at 5:43 AM
    #28
    adamsndvl81

    #28
    adamsndvl81 New Member

    Joined:
    Nov 16, 2011
    Member:
    #67140
    Messages:
    3
    Gender:
    Male
    First Name:
    Adam
    Temecula, California
    Vehicle:
    09 PreRunner SR5 shortbed
    just had the same issue on my 09 Tacoma you ever find the part number to that connector?

    adamsndvl81, Jul 5, 2017
    #28
  9. Jul 5, 2017 at 5:49 AM
    #29
    ScottInOKC

    #29
    ScottInOKC Well-Known Member

    Joined:
    Dec 11, 2013
    Member:
    #118418
    Messages:
    46
    Gender:
    Male
    First Name:
    Scott
    Oklahoma City
    ScottInOKC, Jul 5, 2017
    #29
  10. Jul 5, 2017 at 6:05 AM
    #30
    dapetik

    #30
    dapetik Well-Known Member

    Joined:
    Apr 3, 2008
    Member:
    #5724
    Messages:
    1,182
    Gender:
    Male
    First Name:
    David
    Barboursville, Va
    Vehicle:
    2015 TRD Sport
    Magic bedcover, sweet ass floormats, rocket boosters, warp drive
    I just cut off the plug and spliced in blade/spade type connectors. They fit and didn't seem to have any problem.

    dapetik, Jul 5, 2017
    #30
  11. Jul 5, 2017 at 6:11 AM
    #31
    ScottInOKC

    #31
    ScottInOKC Well-Known Member

    Joined:
    Dec 11, 2013
    Member:
    #118418
    Messages:
    46
    Gender:
    Male
    First Name:
    Scott
    Oklahoma City
    That's probably the best long term fix.

    ScottInOKC, Jul 5, 2017
    #31
  12. Jul 5, 2017 at 4:57 PM
    #32
    ScottInOKC

    #32
    ScottInOKC Well-Known Member

    Joined:
    Dec 11, 2013
    Member:
    #118418
    Messages:
    46
    Gender:
    Male
    First Name:
    Scott
    Oklahoma City

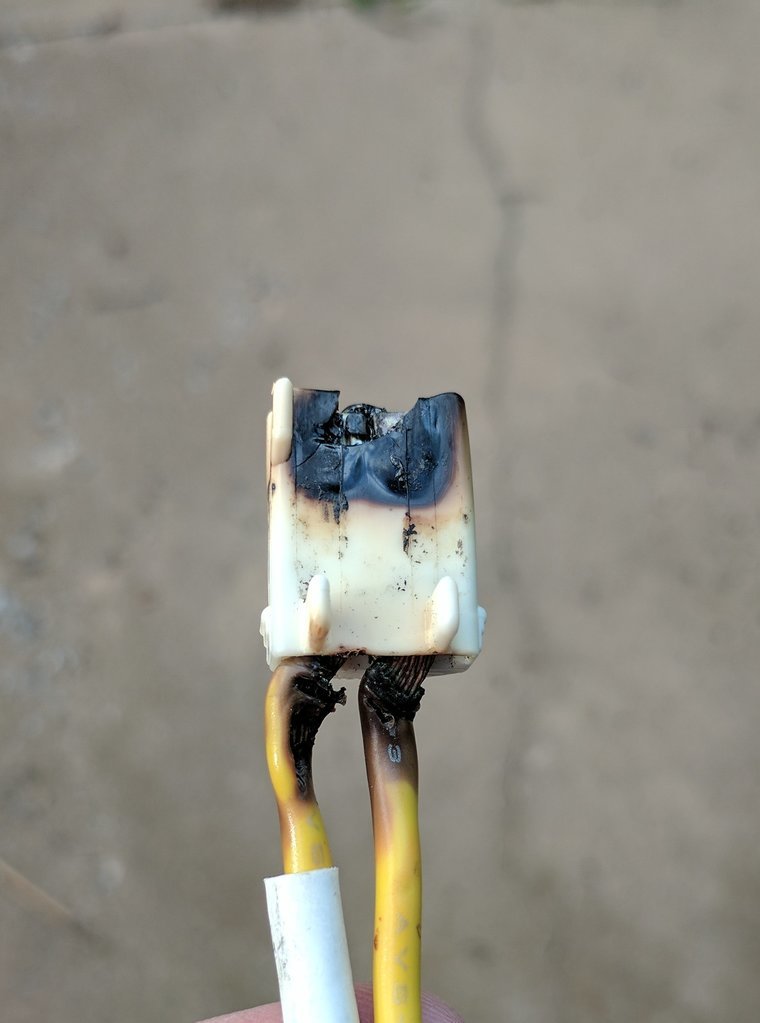

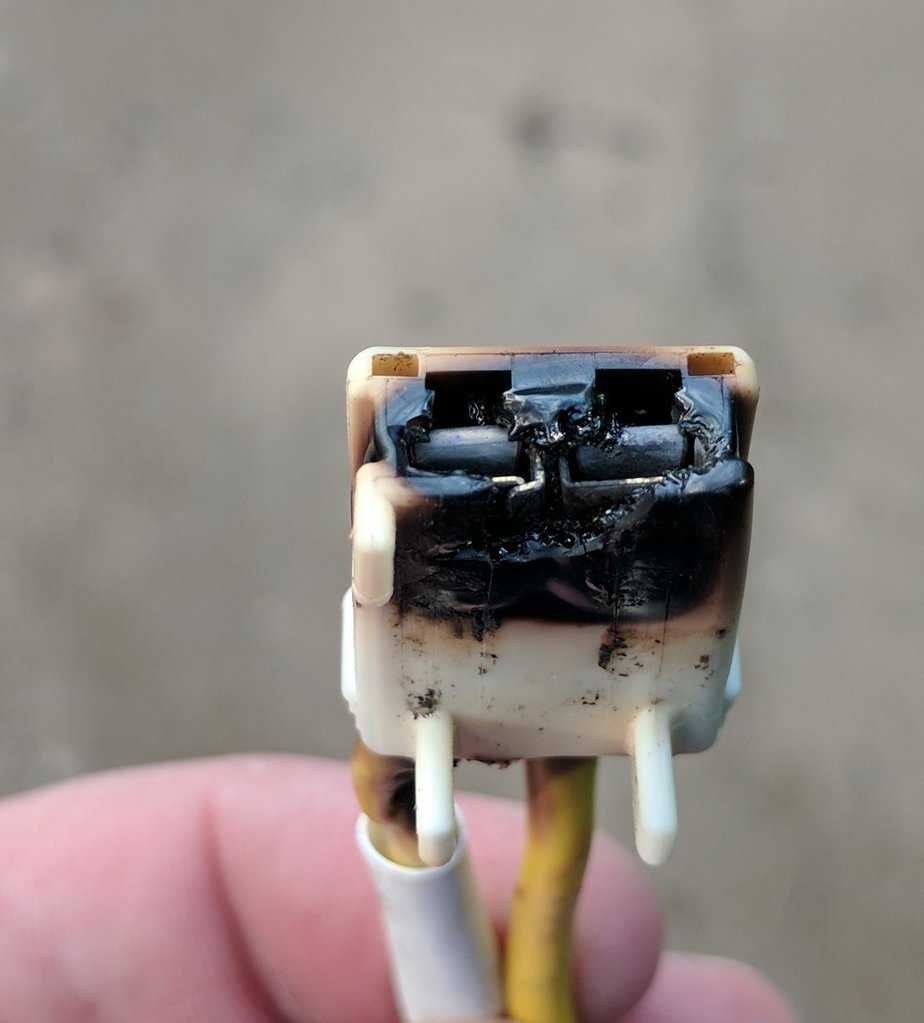

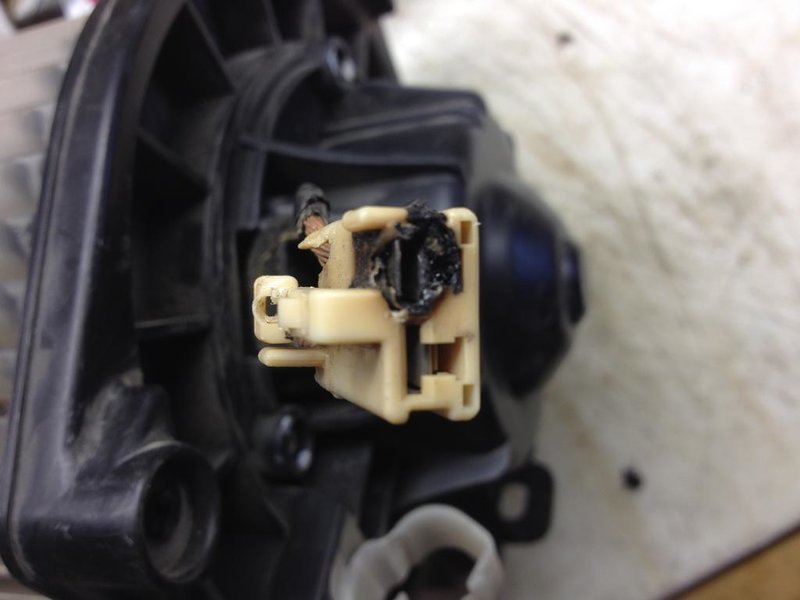

    So here's what my connector & wires looked like after only 6 months in the truck. I put a new connector & wires in today, I'll post an update when it melts the next time.


    ScottInOKC, Jul 5, 2017
    #32
    PzTank likes this.
  13. Aug 14, 2018 at 5:51 PM
    #33
    Gilligan67

    #33
    Gilligan67 Member

    Joined:
    Apr 5, 2016
    Member:
    #183385
    Messages:
    9
    Gender:
    Male
    Vehicle:
    2010 Tacoma

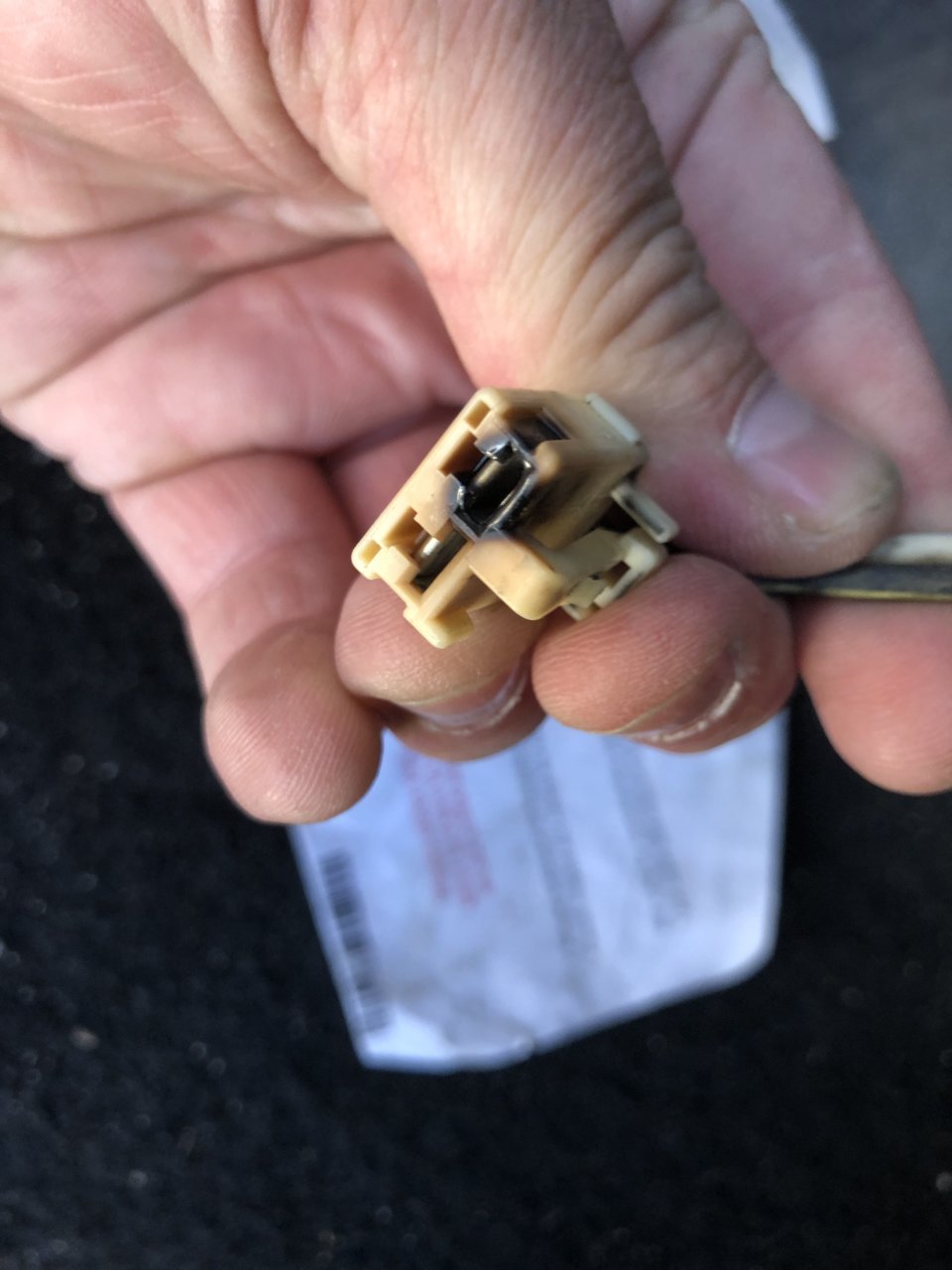

    My 2010 Tacoma is the situation where the fan works on high all the time and the other three speeds work on occasion.

    When I apply pressure to this connector the lower speeds work. There is some slight discoloration on the connector. My question is where do the four wires go if I purchase this connector?

    This site contains affiliate links for which the site may be compensated.
    Gilligan67, Aug 14, 2018
    #33
  14. Aug 14, 2018 at 6:05 PM
    #34
    hotrod53

    #34
    hotrod53 Well-Known Member

    Joined:
    Aug 22, 2013
    Member:
    #110971
    Messages:
    1,315
    Gender:
    Male
    First Name:
    Lynd
    Pittsburgh, PA
    Vehicle:
    ‘14 DCLB Sport, ‘18 TCH, ‘13 TCH
    Weathertech floor liners moded to hold OEM floor mats, weathertech vent visors, Toyota bed mat, LEER 100XL cap, hood gasket mod to stop whistling.
    If it’s not melted, you can get down in with a cheap harbor freight dental pic and bend the pins up. The loose pressure on the pin is what causes the failure as well as heat that causes the streak. If it’s too late, the new plug comes with wires already in the connector. Cut and splice 1 for 1 and you’re good to go.

    hotrod53, Aug 14, 2018
    #34
  15. Aug 15, 2018 at 4:51 AM
    #35
    T@co_Pr3runn3r

    #35
    T@co_Pr3runn3r XXXXXXXXXXXXXXXXXXX

    Joined:
    Jan 20, 2009
    Member:
    #12767
    Messages:
    14,634
    Gender:
    Male
    <----------------->
    Vehicle:
    08 RC Prerunner SR5

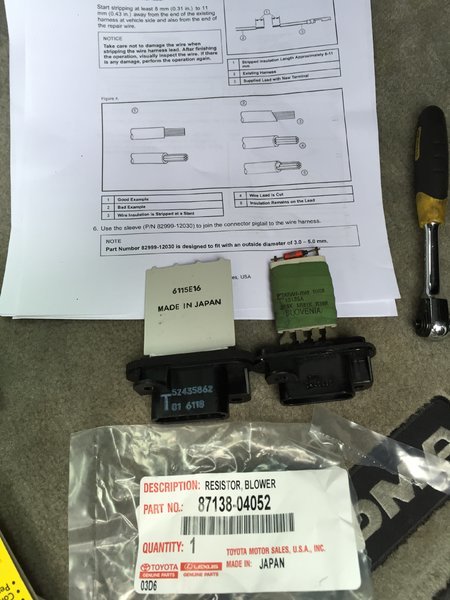

    Replace the resistor along with connector.........must be another thread about this. I went ahead and replaced the blower, resistor but IIRC, my connector was still good with only slight yellowing. My issue was the blower making noise and not from any trash in it - the bearings were getting sketchy. Be prepared for the slovenia resistor in there, lol...............new one is japanese
