Core Support is Tearing Itself Apart

Discussion in '2nd Gen. Tacomas (2005-2015)' started by desertjunkie760, Aug 19, 2018.

  1. Aug 19, 2018 at 11:37 AM
    #1
    desertjunkie760

    desertjunkie760 [OP] @DesertJunkie760 (IG)

    Joined:
    Apr 11, 2016
    Member:
    #183963
    Messages:
    7,612
    Gender:
    Male
    First Name:
    Shane
    Vehicle:
    2011 MGM DCSB TRD Sport 4x4
    Check My Sig.
    While doing a service on the truck today, I noticed some very concerning stress cracks on the core support. One of which has torn clean through!

    At this point, I am trying to look into my options to correct the issue. My initial thought was to stitch weld the support together. This is the easiest and likely the cheapest option, but also the most redneck way you could do it. If it was just cracks, I would probably consider it, but being the support is cracked fully through, I am leaning more towards wanting to replace the entire unit.

    After further investigation, it looks like one of the radiator support bushings is GONE! I feel like the support bushing came loose, fell out, and put additional stress on the radiator support itself. This is why the crack is so pronounced on one side, and not the other.

    Has anyone had experience with replacing a core support? It looks like there are some spot welds holding everything together but they do sell replacement support assemblies which makes me believe it can be done. Any advice is appreciated.

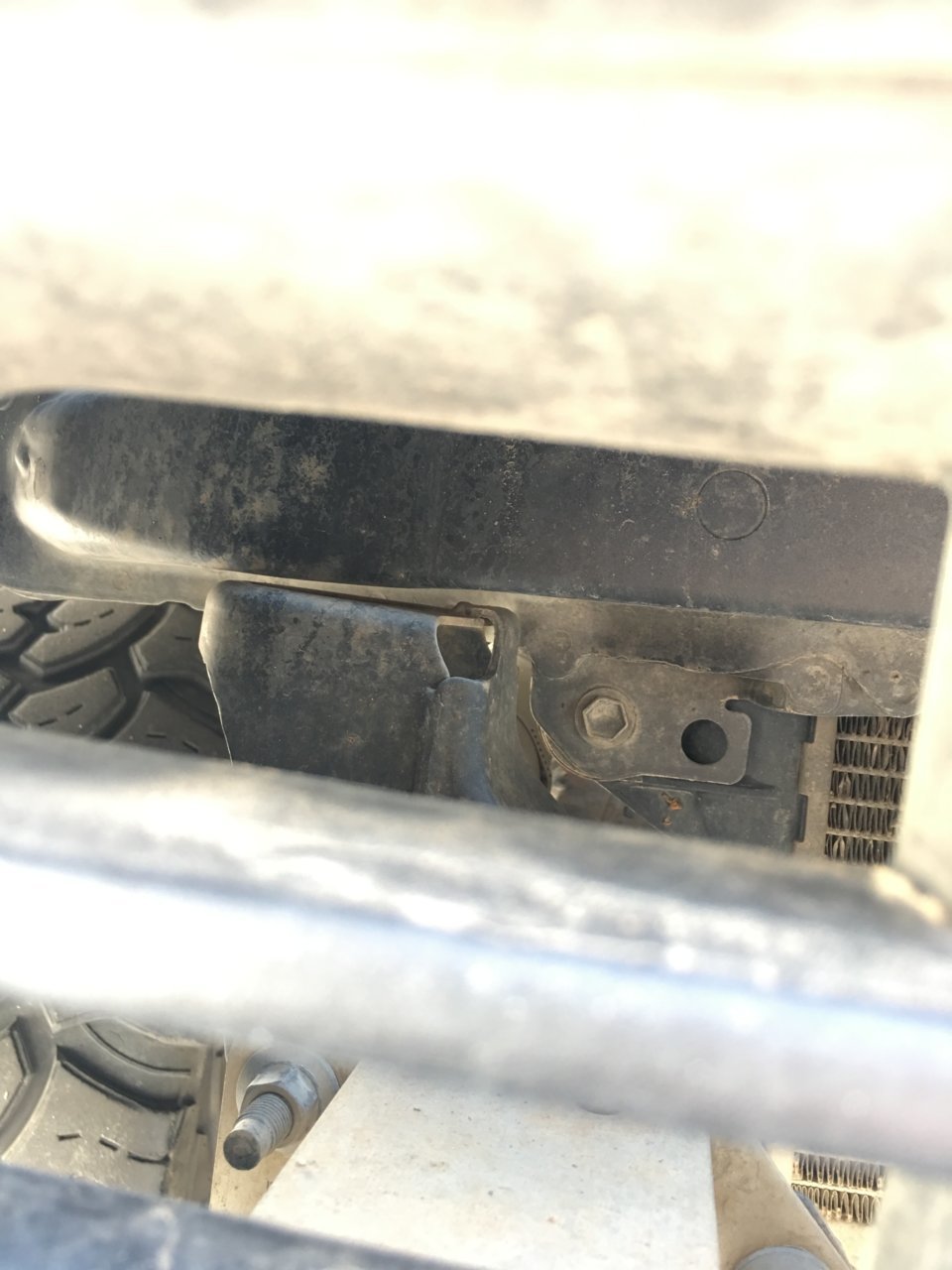

    Passenger side bushing is gone.

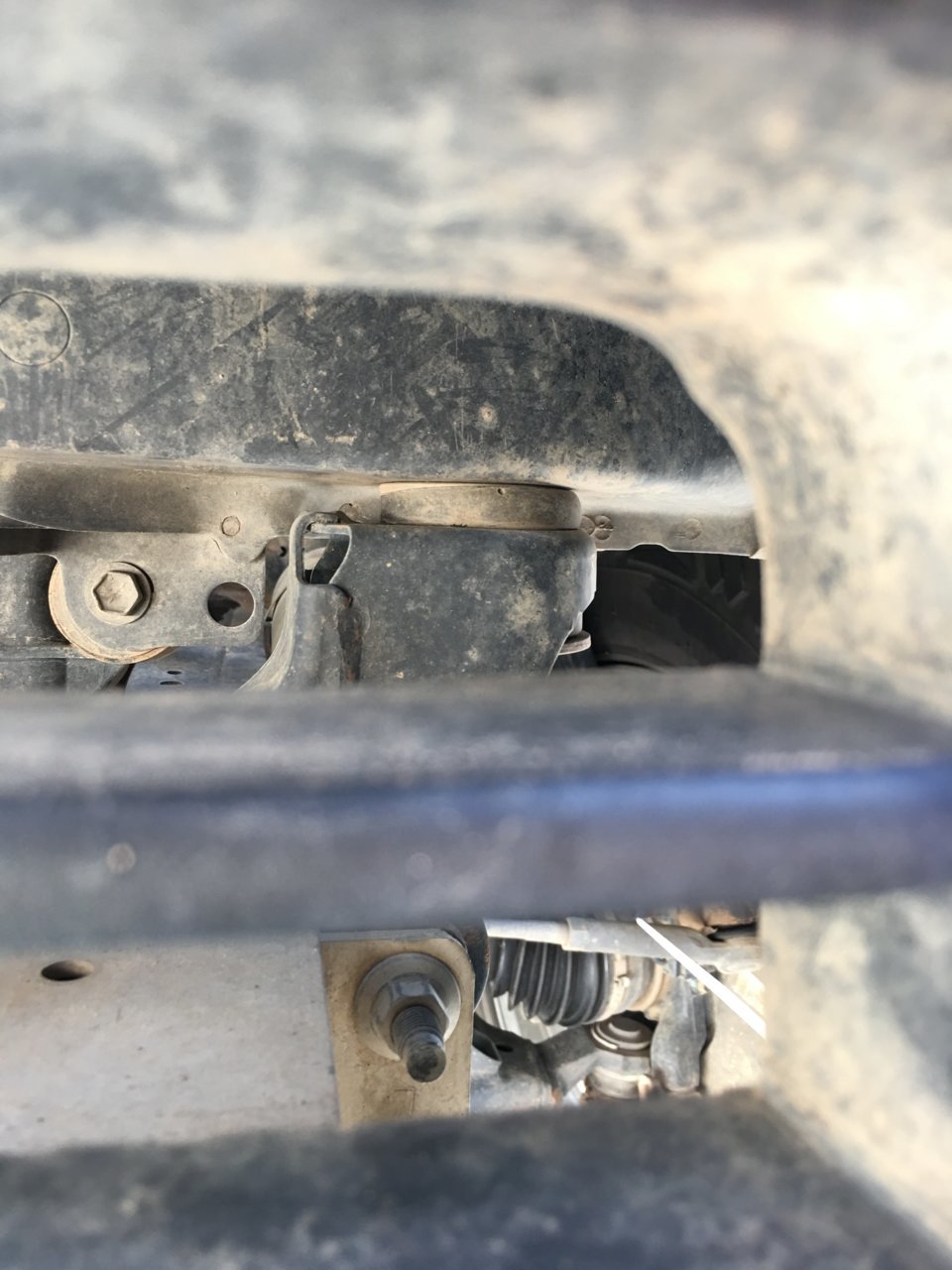

    Driver's side

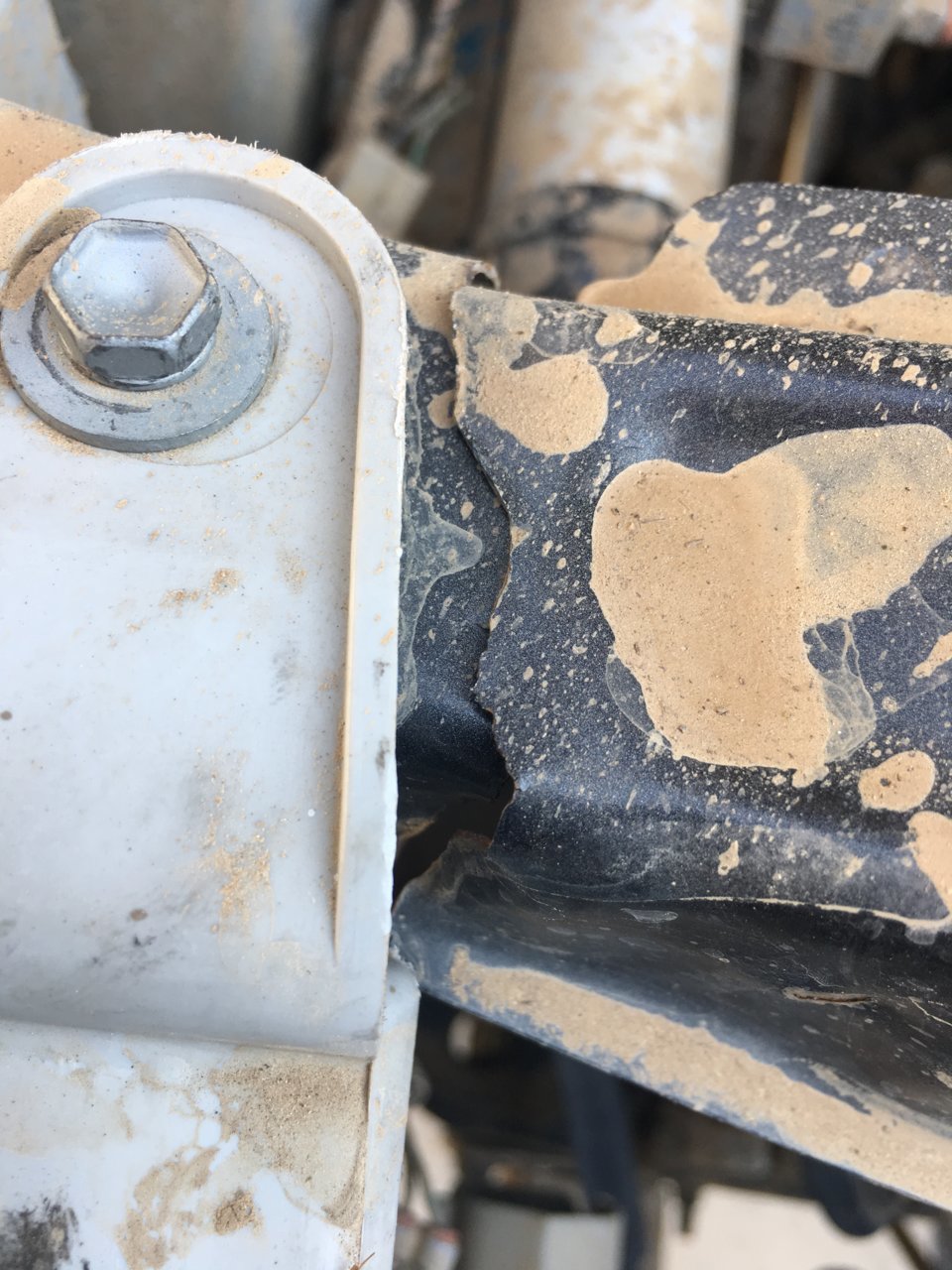

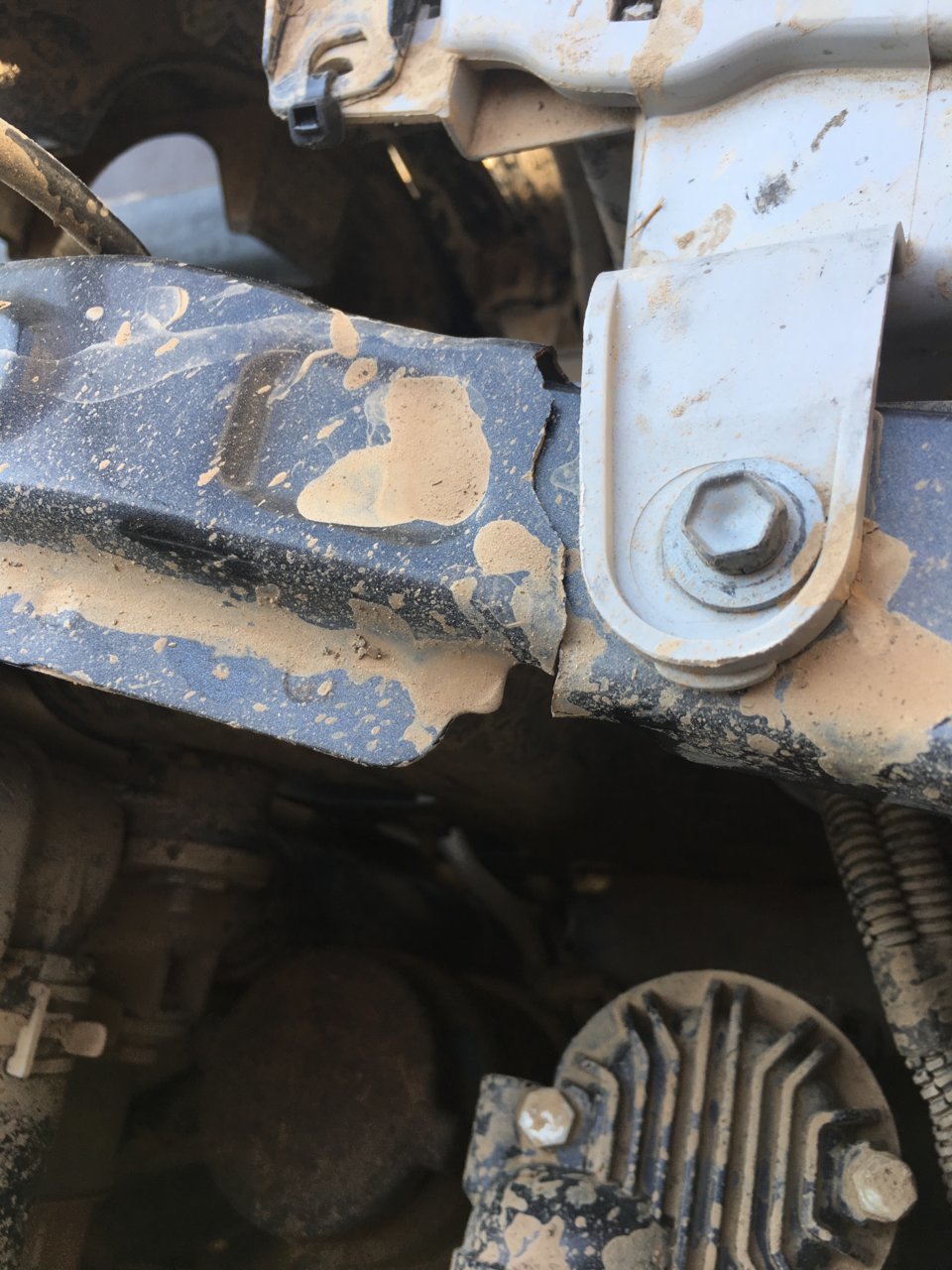

    Crack through the support.
    IMG_3823.jpg IMG_3824.jpg

    AR15xAR10 likes this.
  2. Aug 19, 2018 at 11:46 AM
    #2
    IwasDacapsterAz

    IwasDacapsterAz Well-Known Member

    Joined:
    Aug 8, 2018
    Member:
    #262094
    Messages:
    199
    Gender:
    Male
    First Name:
    Cap
    Vehicle:
    14 4w4 Taco Access
    Bamf and Bilstien
    What's up with the zip tye?

    TomTwo likes this.
  3. Aug 19, 2018 at 11:51 AM
    #3
    desertjunkie760

    desertjunkie760 [OP] @DesertJunkie760 (IG)

    Joined:
    Apr 11, 2016
    Member:
    #183963
    Messages:
    7,612
    Gender:
    Male
    First Name:
    Shane
    Vehicle:
    2011 MGM DCSB TRD Sport 4x4
    Check My Sig.
    That's what you noticed?

    Thats where the grill and headlight meet. There are four holes. Two are for bolts and the other two look to be those plastic snaps that always break so I replaced with some zip ties.

    Mully, ian408, colin1qk and 10 others like this.
  4. Aug 19, 2018 at 11:55 AM
    #4
    EDDO

    EDDO                         

    Joined:
    Mar 12, 2014
    Member:
    #125165
    Messages:
    3,930
    Gender:
    Male
    First Name:
    Eric
    San Jose, CA
    Vehicle:
    13 DC TRD OR MG
                                                                                        CBI Moab 2.0 front bumper CBI Trail Rider 2.0 rear bumper B.A.M.F. sliders Exhaust crossover relocate Icon 2.5 front and 2.0 rear Camburg balljoint UCAs Welded stock alignment tabs Dakar Leaf Springs and 14" x 650 lb. coils Wheeler's SuperBumps (front) Icon Hydro Bumps with U-bolt flip Relentless Fab tailgate plate Total Chaos Bed Stiffeners 265/75R16 BFG T/A KO2 on black TRD faux beadlocks PTR18-35090 Custom Double Cardan Driveshaft from South Bay Driveline 2.5" dia .134" wall front, 3.0" dia .125" wall rear. Spicer 1310 joints, Spicer CB
    Crom, Mully, lo2hi and 11 others like this.
  5. Aug 19, 2018 at 11:56 AM
    #5
    jbrandt

    jbrandt Made you look

    Joined:
    Feb 12, 2011
    Member:
    #51038
    Messages:
    15,741
    Gender:
    Male
    First Name:
    Justin
    Sacramento, CA
    Vehicle:
    '04 TRD Tacoma 4x4 DC
    Kings, J59's Total Chaos UCAs Custom skids Sticker mod
    Dude, my whole grill is held on with zip-ties... Ain't nothin wrong with zip-ties....

    Taco 422, MalinoisDad, robm7 and 16 others like this.
  6. Aug 19, 2018 at 11:57 AM
    #6
    desertjunkie760

    desertjunkie760 [OP] @DesertJunkie760 (IG)

    Joined:
    Apr 11, 2016
    Member:
    #183963
    Messages:
    7,612
    Gender:
    Male
    First Name:
    Shane
    Vehicle:
    2011 MGM DCSB TRD Sport 4x4
    Check My Sig.
    :rofl:

    So is mine. At least the none important parts.

    Taco 422, dk_crew, Mully and 2 others like this.
  7. Aug 19, 2018 at 11:58 AM
    #7
    desertjunkie760

    desertjunkie760 [OP] @DesertJunkie760 (IG)

    Joined:
    Apr 11, 2016
    Member:
    #183963
    Messages:
    7,612
    Gender:
    Male
    First Name:
    Shane
    Vehicle:
    2011 MGM DCSB TRD Sport 4x4
    Check My Sig.
    I had the Energy Bushings already in there. Looks like one just came loose. Did you replace the entire radiator support for the final fix?

  8. Aug 19, 2018 at 12:04 PM
    #8
    EDDO

    EDDO                         

    Joined:
    Mar 12, 2014
    Member:
    #125165
    Messages:
    3,930
    Gender:
    Male
    First Name:
    Eric
    San Jose, CA
    Vehicle:
    13 DC TRD OR MG
                                                                                        CBI Moab 2.0 front bumper CBI Trail Rider 2.0 rear bumper B.A.M.F. sliders Exhaust crossover relocate Icon 2.5 front and 2.0 rear Camburg balljoint UCAs Welded stock alignment tabs Dakar Leaf Springs and 14" x 650 lb. coils Wheeler's SuperBumps (front) Icon Hydro Bumps with U-bolt flip Relentless Fab tailgate plate Total Chaos Bed Stiffeners 265/75R16 BFG T/A KO2 on black TRD faux beadlocks PTR18-35090 Custom Double Cardan Driveshaft from South Bay Driveline 2.5" dia .134" wall front, 3.0" dia .125" wall rear. Spicer 1310 joints, Spicer CB

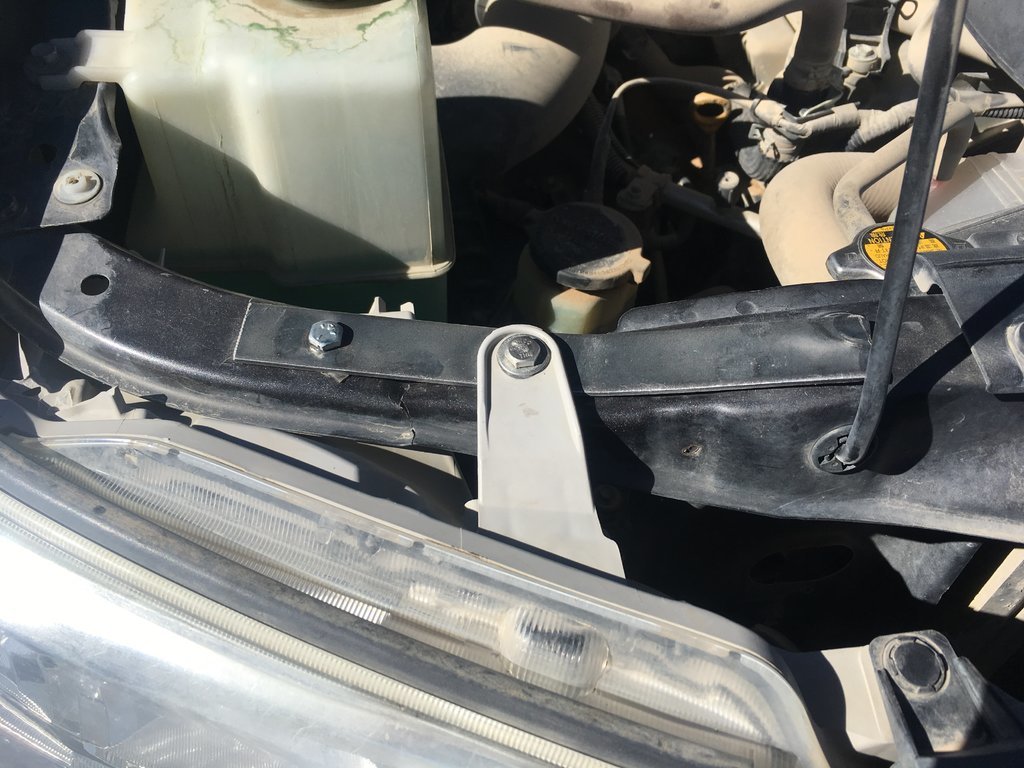

    Nope. Just cut the ends of the replacement off and used about a foot of each end of it so I wouldn't have to get involved with the spot welds across the top of the radiator. The hood prop hole was a bit of a pain, but other than that it lines up pretty well and nests on top of the broken one just fine.

  9. Aug 19, 2018 at 12:08 PM
    #9
    IwasDacapsterAz

    IwasDacapsterAz Well-Known Member

    Joined:
    Aug 8, 2018
    Member:
    #262094
    Messages:
    199
    Gender:
    Male
    First Name:
    Cap
    Vehicle:
    14 4w4 Taco Access
    Bamf and Bilstien
    My bad, thought you may have missed a bolt thus creating that mess....

  10. Aug 19, 2018 at 12:19 PM
    #10
    EDDO

    EDDO                         

    Joined:
    Mar 12, 2014
    Member:
    #125165
    Messages:
    3,930
    Gender:
    Male
    First Name:
    Eric
    San Jose, CA
    Vehicle:
    13 DC TRD OR MG
                                                                                        CBI Moab 2.0 front bumper CBI Trail Rider 2.0 rear bumper B.A.M.F. sliders Exhaust crossover relocate Icon 2.5 front and 2.0 rear Camburg balljoint UCAs Welded stock alignment tabs Dakar Leaf Springs and 14" x 650 lb. coils Wheeler's SuperBumps (front) Icon Hydro Bumps with U-bolt flip Relentless Fab tailgate plate Total Chaos Bed Stiffeners 265/75R16 BFG T/A KO2 on black TRD faux beadlocks PTR18-35090 Custom Double Cardan Driveshaft from South Bay Driveline 2.5" dia .134" wall front, 3.0" dia .125" wall rear. Spicer 1310 joints, Spicer CB
    Of course, we all know that this is the correct way to fix this problem. I aspire to having this done one day:

    [​IMG]

    Crom, Mully, lo2hi and 11 others like this.
  11. Aug 19, 2018 at 12:21 PM
    #11
    desertjunkie760

    desertjunkie760 [OP] @DesertJunkie760 (IG)

    Joined:
    Apr 11, 2016
    Member:
    #183963
    Messages:
    7,612
    Gender:
    Male
    First Name:
    Shane
    Vehicle:
    2011 MGM DCSB TRD Sport 4x4
    Check My Sig.
    Don't give me ideas!! :rofl:

    TnShooter, TRDSport10, TomTwo and 2 others like this.
  12. Aug 19, 2018 at 2:07 PM
    #12
    anthony250f

    anthony250f Well-Known Member

    Joined:
    Feb 18, 2012
    Member:
    #73066
    Messages:
    16,133
    Gender:
    Male
    First Name:
    Anthony
    San Diego, CA
    Vehicle:
    2008 dcsb trd offroad 4wd
    My buddies looks worse than this.

    He just runs it as is lol

  13. Aug 20, 2018 at 6:50 AM
    #13
    desertjunkie760

    desertjunkie760 [OP] @DesertJunkie760 (IG)

    Joined:
    Apr 11, 2016
    Member:
    #183963
    Messages:
    7,612
    Gender:
    Male
    First Name:
    Shane
    Vehicle:
    2011 MGM DCSB TRD Sport 4x4
    Check My Sig.
    Yeah, I’m not planning on running it this way. Going to get a new support bushing coming today and probably order an aftermarket core support.

    TomTwo and whatstcp like this.
  14. Aug 20, 2018 at 7:06 AM
    #14
    anthony250f

    anthony250f Well-Known Member

    Joined:
    Feb 18, 2012
    Member:
    #73066
    Messages:
    16,133
    Gender:
    Male
    First Name:
    Anthony
    San Diego, CA
    Vehicle:
    2008 dcsb trd offroad 4wd
    Good plan. I did the support bushings too.

  15. Aug 20, 2018 at 7:07 AM
    #15
    whatstcp

    whatstcp currently drunk so don't listen to me

    Joined:
    Aug 3, 2018
    Member:
    #261584
    Messages:
    9,278
    Gender:
    Male
    First Name:
    Ed
    Fontana, CA
    Vehicle:
    2006 Tacoma Regular Cab 2.7l 4x4
    King + Archive Relocation Wheeler's bumps +hydros
    Couldn't help myself 37348629.jpg

    rockauto has good prices. I'd debate whether regular vs economy line. Screenshot_2018-08-20-07-00-15-1.jpg
    Here's a discount code I have laying around in case you do decide to purchase it for 5% off: 8999726982361189 Thats enough for a Coke at least lol

    Mully, synaps3, Nate87 and 5 others like this.
  16. Aug 20, 2018 at 7:28 AM
    #16
    desertjunkie760

    desertjunkie760 [OP] @DesertJunkie760 (IG)

    Joined:
    Apr 11, 2016
    Member:
    #183963
    Messages:
    7,612
    Gender:
    Male
    First Name:
    Shane
    Vehicle:
    2011 MGM DCSB TRD Sport 4x4
    Check My Sig.
    OE is $412!?! :puke:

    12TRDTacoma likes this.
  17. Aug 20, 2018 at 10:32 AM
    #17
    lynlan1819

    lynlan1819 Well-Known Member

    Joined:
    Mar 14, 2016
    Member:
    #181268
    Messages:
    5,585
    Gender:
    Male
    First Name:
    Troy
    Las Vegas
    Vehicle:
    2017 Pro/2015 Tacoma
    Lifted
    Weld it up (not spot weld) and then weld on a a steel support brace.

  18. Aug 20, 2018 at 10:40 AM
    #18
    desertjunkie760

    desertjunkie760 [OP] @DesertJunkie760 (IG)

    Joined:
    Apr 11, 2016
    Member:
    #183963
    Messages:
    7,612
    Gender:
    Male
    First Name:
    Shane
    Vehicle:
    2011 MGM DCSB TRD Sport 4x4
    Check My Sig.
    The metal on our trucks is so thin that welding can be extremely difficult. You burn through way to easy. I’d have to weld to piece of filler plate. This will probably be the temporary fix until I have the time/fun’s to do it the right way.

    12TRDTacoma and EDDO like this.
  19. Aug 20, 2018 at 10:45 AM
    #19
    lynlan1819

    lynlan1819 Well-Known Member

    Joined:
    Mar 14, 2016
    Member:
    #181268
    Messages:
    5,585
    Gender:
    Male
    First Name:
    Troy
    Las Vegas
    Vehicle:
    2017 Pro/2015 Tacoma
    Lifted
    Done it hundreds of times on same thickness metal using a Mig Welder, easy

    Mully, ericvega, 3 Blade Rage and 2 others like this.
  20. Aug 20, 2018 at 3:33 PM
    #20
    casey2012

    casey2012 Well-Known Member

    Joined:
    Jun 11, 2018
    Member:
    #256088
    Messages:
    445
    Gender:
    Male
    First Name:
    mark
    Vehicle:
    yota
    none
    do you all know what causes that ?
