Custom Billet Shift Knob for Toyota Tacoma (2-1/4" diameter). ***Utilizes factory boot.***

Discussion in '3rd Gen Tacoma Parts Marketplace (2016+)' started by 7r41lbr34k3r, Feb 15, 2018.

  1. Apr 12, 2021 at 4:01 PM
    #3161
    7r41lbr34k3r

    7r41lbr34k3r [OP] Practitioner of the mechanical arts.

    Joined:
    Sep 6, 2016
    Member:
    #196549
    Messages:
    3,001
    Gender:
    Male
    First Name:
    Rick
    Upper Perkiomen Valley, PA
    Vehicle:
    '17 SR w/ Conv. Pkg 2TR-FE 5MT 4x4 MGM
    The pc that has TRD on it is the collar, you need to remove it to install.

    tonered and daveeasa like this.
  2. Apr 12, 2021 at 4:17 PM
    #3162
    daveeasa

    daveeasa Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    2,268
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT
    And pocketed shift patterns are the top engraving of R-6? But mine, being stainless, has that so it would have just been an extra cost/hassle with stainless vs aluminum?

    Ah, found it:
    The pocketed option is only available for shift patterns on aluminum, and costs no extra.

    If I understand that right, it's the difference between fully machining a trough (pocketed) vs an outline (engraved?). I'm sure I'm butchering that terminology but I think I see it in the photos now. It was rather hard to see without some serious scrutiny.

    So, really I just need anti-seize for the threads once I figure out if my core is Al or SS and then some sort of shim which can probably be anything roundish and non-binding-ish and a zip tie to hold the boot to the new collar. I think I got it now. A small set screw makes so much more sense than that twist-on thingy but I guess that saves them a little bit of installation time.

    Gosh, I feel like I'm just starting to learn about this magical unicorn thing.

    Thanks for helping me come up to speed, I thought I actually knew most of the details on this but apparently not.

    Last edited: Apr 12, 2021
    TeecoTaco likes this.
  3. Apr 12, 2021 at 4:41 PM
    #3163
    TeecoTaco

    TeecoTaco Liberty Biberty

    Joined:
    Feb 26, 2017
    Member:
    #211739
    Messages:
    8,652
    SW Ontario
    Vehicle:
    16 Taco DCSB TRD Sport 6MT
    Modified the level of gas in the tank
    Shims...don't forget shims for alignment

    daveeasa likes this.
  4. Apr 12, 2021 at 4:59 PM
    #3164
    daveeasa

    daveeasa Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    2,268
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT

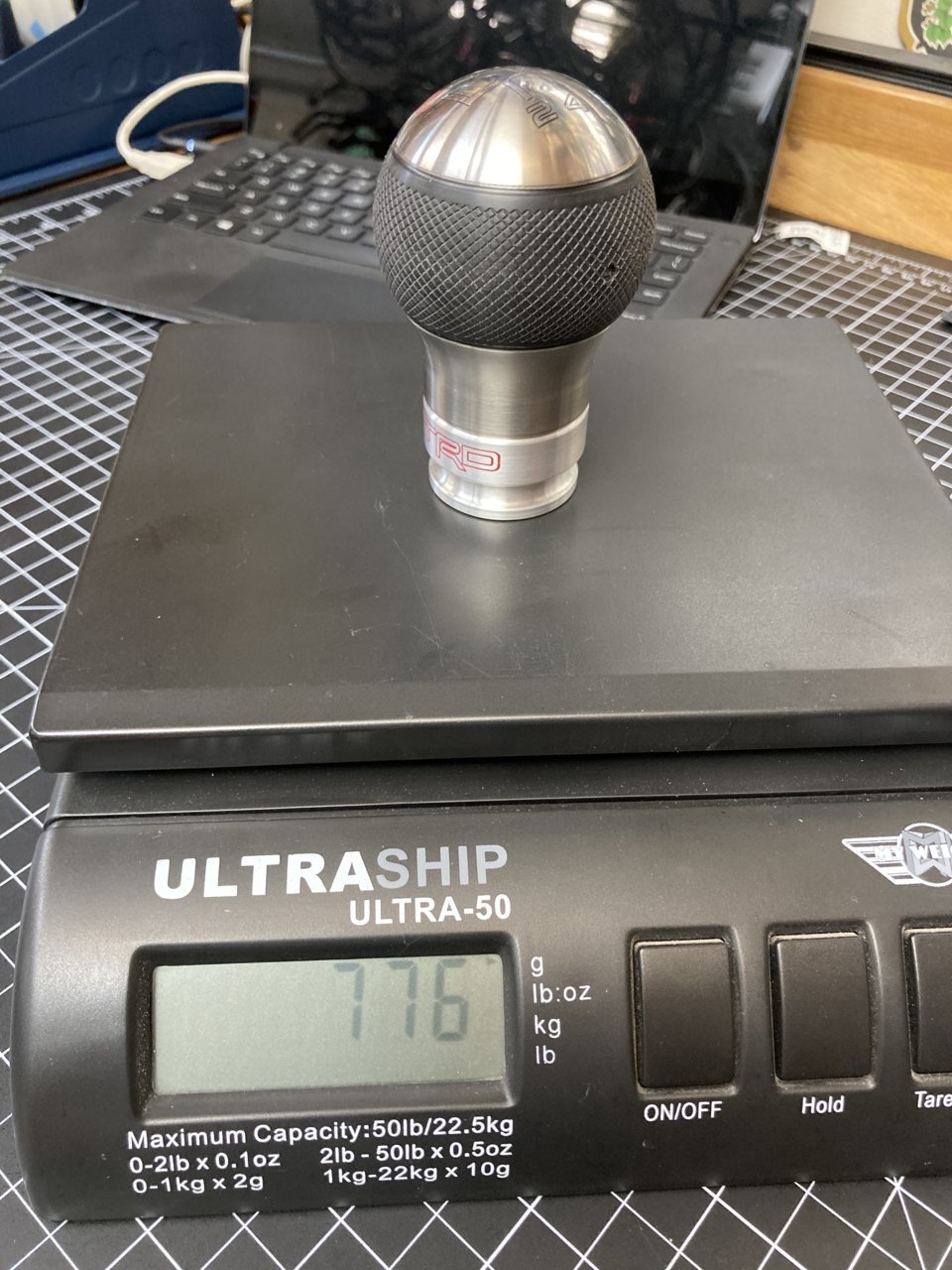

    So based on posted weights, I have stainless w brass core or something? Looks like solid stainless to me?


    4x4cajun and tonered like this.
  5. Apr 12, 2021 at 5:03 PM
    #3165
    7r41lbr34k3r

    7r41lbr34k3r [OP] Practitioner of the mechanical arts.

    Joined:
    Sep 6, 2016
    Member:
    #196549
    Messages:
    3,001
    Gender:
    Male
    First Name:
    Rick
    Upper Perkiomen Valley, PA
    Vehicle:
    '17 SR w/ Conv. Pkg 2TR-FE 5MT 4x4 MGM
    No core in that one, solid stainless with the ring.

  6. Apr 12, 2021 at 5:08 PM
    #3166
    daveeasa

    daveeasa Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    2,268
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT
  7. Apr 12, 2021 at 8:09 PM
    #3167
    DanMan611

    DanMan611 Well-Known Member

    Joined:
    Jan 25, 2021
    Member:
    #353939
    Messages:
    111
    Gender:
    Male
    First Name:
    Dan
    Pittsburgh
    Vehicle:
    2021 TRD OR 6MT 4X4
    Check this out: https://www.tacomaworld.com/threads...es-factory-boot.534205/page-121#post-22912490

    The shim kit that Rick has mentioned is like $50 on Amazon - and you'd only need about 1% of the material. There is another plastic shim stock set I found on there for quite a bit cheaper: https://www.amazon.com/dp/B01MTZZPFG/ref=cm_sw_r_cp_apa_glc_fabc_S097GVEZ77YV87XYD3GY. Even that is way more than you'll actually need!

    Just whatever you do... don't try to force (overtorque) the knob into alignment. It may or may not have been done before with horrendous results. :facepalm:

  8. Apr 12, 2021 at 8:36 PM
    #3168
    Ooh-it's all squishy!

    Ooh-it's all squishy! Occasional numbness behind the eyes

    Joined:
    Sep 28, 2020
    Member:
    #342244
    Messages:
    34
    Gender:
    Male
    First Name:
    Rod
    OK
    Vehicle:
    2020 Black TRD Pro MT
    vF Tune, debadge, tonneau, hood struts, some ME-SO goodies, JL-Audio
    Parts. It's full of parts. :)

    Looking good, lots of progress. There appears to be some Ti hiding over in the back :D

    tonered and DanMan611 like this.
  9. Apr 13, 2021 at 2:25 AM
    #3169
    7r41lbr34k3r

    7r41lbr34k3r [OP] Practitioner of the mechanical arts.

    Joined:
    Sep 6, 2016
    Member:
    #196549
    Messages:
    3,001
    Gender:
    Male
    First Name:
    Rick
    Upper Perkiomen Valley, PA
    Vehicle:
    '17 SR w/ Conv. Pkg 2TR-FE 5MT 4x4 MGM
    Yep, I am drilling those out right now. This is my least favorite part of all these steps. Can't decide if I will stop at after 4 of them, or just get all 7 over with now to save future-me some pain.

  10. Apr 13, 2021 at 2:34 AM
    #3170
    7r41lbr34k3r

    7r41lbr34k3r [OP] Practitioner of the mechanical arts.

    Joined:
    Sep 6, 2016
    Member:
    #196549
    Messages:
    3,001
    Gender:
    Male
    First Name:
    Rick
    Upper Perkiomen Valley, PA
    Vehicle:
    '17 SR w/ Conv. Pkg 2TR-FE 5MT 4x4 MGM
    Yes, basically anything will do ... even paper if you don't mind a little trial and error. Standard paper has .004 thickness, but compresses a bit more than the plastic.

    If I were feeling MacGyver'y about it I'd probably find a length of unused fuel line in the garage and cut off a little hunk of that to drop down in there. This isn't something I could put on the install instructions with a straight face, hence my overly complicated (but cleaner) shim method.

    daveeasa likes this.
  11. Apr 13, 2021 at 4:29 AM
    #3171
    daveeasa

    daveeasa Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    2,268
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT
    I was contemplating some plastic shelf liner since we have some leftover and I don’t have any spare fuel line. I do have a lot of poly RO tubing though which might work if I slice it properly.

    So the shim is sort of the test, the write of passage from boy to man? I like that.

    On the collar, Al vs poly, that’s all personal preference there too? No option for Ti or Stainless collar? Because that would just be utterly ridiculous?

    tonered likes this.
  12. Apr 13, 2021 at 4:43 AM
    #3172
    7r41lbr34k3r

    7r41lbr34k3r [OP] Practitioner of the mechanical arts.

    Joined:
    Sep 6, 2016
    Member:
    #196549
    Messages:
    3,001
    Gender:
    Male
    First Name:
    Rick
    Upper Perkiomen Valley, PA
    Vehicle:
    '17 SR w/ Conv. Pkg 2TR-FE 5MT 4x4 MGM
    Nobody ever asked for a Ti collar. It can be done, but being stupidly expensive already the free collar option always looks best with Ti. Stainless has always been available, but it adds another 65g of weight . Usually, with stainless knobs, the specs are geared toward lightening the final weight (because they start at 900g). Most go with the black copolymer/delrin, outside of that is a personal preference. It happens more often than it should, but some do not familiarize themselves with the anatomy/terminology of the knob parts prior to order and simply spec them incorrectly and get surprised when it shows up.

    Last edited: Apr 13, 2021
    tonered and daveeasa like this.
  13. Apr 13, 2021 at 5:31 AM
    #3173
    7r41lbr34k3r

    7r41lbr34k3r [OP] Practitioner of the mechanical arts.

    Joined:
    Sep 6, 2016
    Member:
    #196549
    Messages:
    3,001
    Gender:
    Male
    First Name:
    Rick
    Upper Perkiomen Valley, PA
    Vehicle:
    '17 SR w/ Conv. Pkg 2TR-FE 5MT 4x4 MGM
    Answering this from yesterday.

    The machine I use for engraving has limited RPM, which does not matter for free machining materials like aluminum. In SS, you really need to get the RPM's up, but to compensate I just have to go very slow with the feed. In short, it takes way too long and breaks too many tools. I pocketed only two SS knobs in the past, and they ate up about $80 worth of tools before I found my sweet spot on the feed rate and smoothing settings. No more tool breakage, but the time is far too long (which translates to $$$ that is beyond reason) for it to be worth offering.

    When I upgrade this machine, I have eyes on something with 4x the RPM and pocketing will be offered in Stainless and Ti at some point.

    Why I do not offer pocketing in delrin/copolymer. This is purely a tooling issue. I use an all-arounder 60 degree conical D-bit cutter, which works okay for most engravings, but on delrin, overlapping toolpaths will leave fine hairs that are a pain in the ass to remove. They can be frozen off with a CO2 blaster, but I'd rather just wait for the higher RPM machine upgrade so I can switch to a 5 degree tapered ball-end mill.

    Last edited: Apr 13, 2021
  14. Apr 13, 2021 at 7:16 PM
    #3174
    TPMO

    TPMO Well-Known Member

    Joined:
    Jan 5, 2017
    Member:
    #206631
    Messages:
    142
    Gender:
    Male
    Vehicle:
    2017 Tacoma SR Utility 4x4 MT
    I feel puppy dog excited when I see new activity on this thread. But, alas, was not a popular season for aluminum. Still I wait in the shadows envying these rare finds. What a fun ride! Awaiting your install pictures David. Keep the dream alive

  15. Apr 13, 2021 at 7:26 PM
    #3175
    lapoltba

    lapoltba Full Bridge Rectifier

    Joined:
    Aug 28, 2014
    Member:
    #137089
    Messages:
    3,249
    Gender:
    Male
    CT - 06076
    Vehicle:
    '17 Sport, ACLB, V6,MT, 04B14 OV-Tuned
    Fuck. I didn't even think to ask for a Ti collar. I need this now. If only to one-up @TeecoTaco. PM me if you have availability to make one (pretty please). :spy:

    Old credit cards or store discount cards will get you about 0.020" to 0.030" and squish pretty easy. They're all plastic or laminated paper and not all that different than shim packs, just not as uniform. From doing mine, I feel like if you're off by 90-270 degrees on where it stops, you can still safely crank it around to where you want it.

    TeecoTaco, daveeasa and tonered like this.
  16. Apr 13, 2021 at 7:31 PM
    #3176
    tonered

    tonered tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    23,588
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    I can just here TOT saying "feeds and speeds, gotta check the feeds and speeds." Kinda like Joe Miller saying "door and corners, gotta check the doors and corners."



    We all need Ti collars. :D

    7r41lbr34k3r [OP] likes this.
  17. Apr 13, 2021 at 7:33 PM
    #3177
    daveeasa

    daveeasa Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    2,268
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT
    I looked into anodizing the collar but was quoted $125 minimum from one shop. Not sure I want to try a second.

    Wait, f, Brian gets a Ti collar. No way, the line starts behind my ass :)

    Actually, gonna try to see if my buddy with a lathe can make me a Koa one.

    907rx7 and tonered like this.
  18. Apr 13, 2021 at 7:35 PM
    #3178
    lapoltba

    lapoltba Full Bridge Rectifier

    Joined:
    Aug 28, 2014
    Member:
    #137089
    Messages:
    3,249
    Gender:
    Male
    CT - 06076
    Vehicle:
    '17 Sport, ACLB, V6,MT, 04B14 OV-Tuned
    I feel like the book on speeds and feeds are good to mention, but more important are the *reasons* they matter. There is a reason that tooling manufacturers give a very wide range of numbers for suggested speeds and feeds. It is very dependent on conditions. There is zero substitute for the experience and intuition of an experienced toolmaker/machinist using his/her ears, touch, and visuals to optimize an operation.

    "Straight, Plumb, and True" got that reference?

    tonered likes this.
  19. Apr 13, 2021 at 7:36 PM
    #3179
    lapoltba

    lapoltba Full Bridge Rectifier

    Joined:
    Aug 28, 2014
    Member:
    #137089
    Messages:
    3,249
    Gender:
    Male
    CT - 06076
    Vehicle:
    '17 Sport, ACLB, V6,MT, 04B14 OV-Tuned
    Lowly stainless knobs don't deserve Ti collars. :p

  20. Apr 13, 2021 at 7:40 PM
    #3180
    tonered

    tonered tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    23,588
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    Oh yeah. @7r41lbr34k3r chatted about that on some of the part ideas and his current tooling.


    I got nothing for that reference and ol' google let me down.
