Custom Dual Battery Gauges and Winch controller

Discussion in 'Audio & Video' started by Dr. Sleep, Feb 26, 2010.

  1. Feb 26, 2010 at 3:31 PM
    #1
    Dr. Sleep

    Dr. Sleep [OP] Well-Known Member

    Joined:
    May 8, 2009
    Member:
    #16977
    Messages:
    301
    Gender:
    Male
    First Name:
    Shane
    Colorado
    Vehicle:
    07 DoubleCab SR5 4X4
    I had a few guys ask me for some more details regarding how and why I made my custom battery gauges and winch controller. So, I decided to start this thread to post the details. The end result is below:

    [​IMG]

  2. Feb 26, 2010 at 3:40 PM
    #2
    ktmrider

    ktmrider Senior Member

    Joined:
    Jul 20, 2009
    Member:
    #19933
    Messages:
    4,969
    Gender:
    Male
    Vehicle:
    07 DCLB 4x4 Sport S/C
    Junk
    so hows it done? :)

  3. Feb 26, 2010 at 3:44 PM
    #3
    07trd4x4

    07trd4x4 Well-Known Member

    Joined:
    Jun 7, 2009
    Member:
    #18143
    Messages:
    13,573
    Gender:
    Male
    First Name:
    Greg
    Sacramento CA
    Vehicle:
    LX470
    Wow. Cool

  4. Feb 26, 2010 at 3:51 PM
    #4
    Dr. Sleep

    Dr. Sleep [OP] Well-Known Member

    Joined:
    May 8, 2009
    Member:
    #16977
    Messages:
    301
    Gender:
    Male
    First Name:
    Shane
    Colorado
    Vehicle:
    07 DoubleCab SR5 4X4
    The idea started because I was installing dual batteries with a battery isolater so that I could run my audio amps, off-road lights, etc. off of an auxillary battery without worrying about those loads ever draining the main starting battery.

    I noticed that the Taco doesn't even have a voltmeter for the main starting battery. So, I figured, I'd create two meters (one for each battery) with just enough room for my winch controller in the middle.

    The voltmeters I found here: http://www.autometer.com/cat_gaugedetail.aspx?ref=search&gid=3736

    The winch controller I got here:
    http://www.12voltguy.com/web/

    In order to wire the voltmeters such that the auxillary meter reflected the voltage of itself (and not the main battery), but also such that both meters only functioned when the ignition key was turned to "on", I had to use a Bosch relay. This allowed me to send a signal from a switched 12-volt source to the "MAIN" battery voltmeter, and then send that same switched 12-volt signal to the Bosch relay, which would "activate" the signal from the "AUX" battery. To learn about Bosch relays, look here:
    http://www.bcae1.com/relays.htm

    I got my relays from here (note: Bosch has been replaced by Tyco as the main supplier):
    http://www.parts-express.com/pe/showdetl.cfm?partnumber=330-070&source=googleps

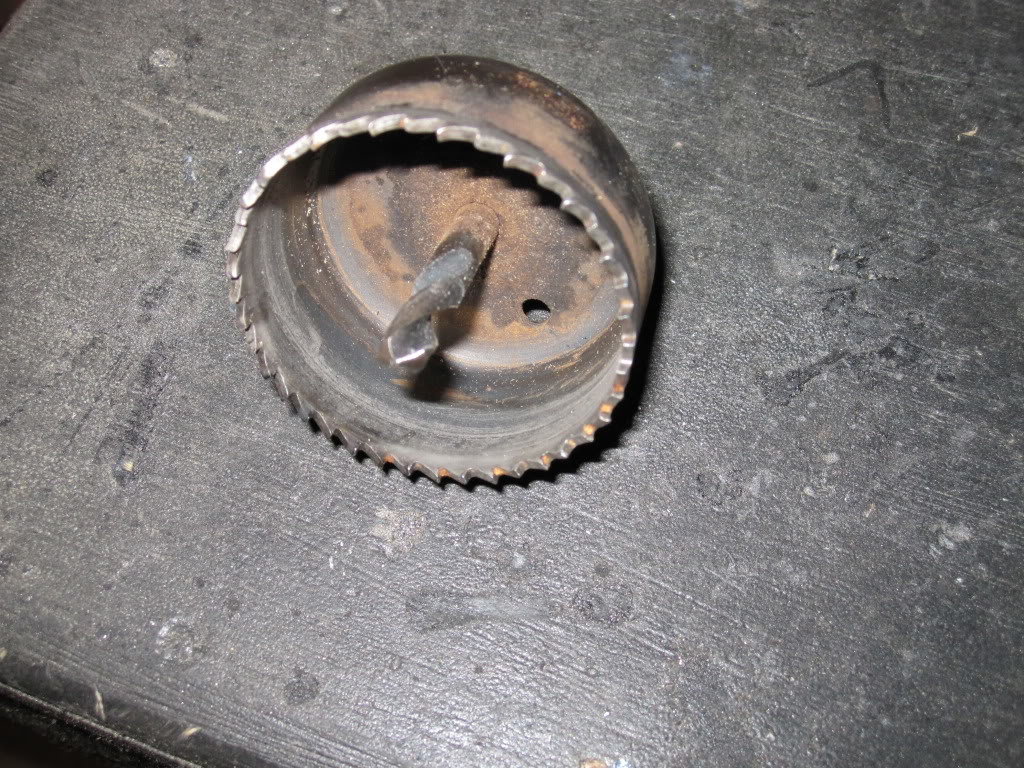

    I used MDF to make the panel and a 2 1/8" diameter hole-cutting drill bit to cut the holes for the meters. It is the same hole-cutting bit I've used to cut holes for door knobs (available at Lowes and Home Depot). See here:
    [​IMG]

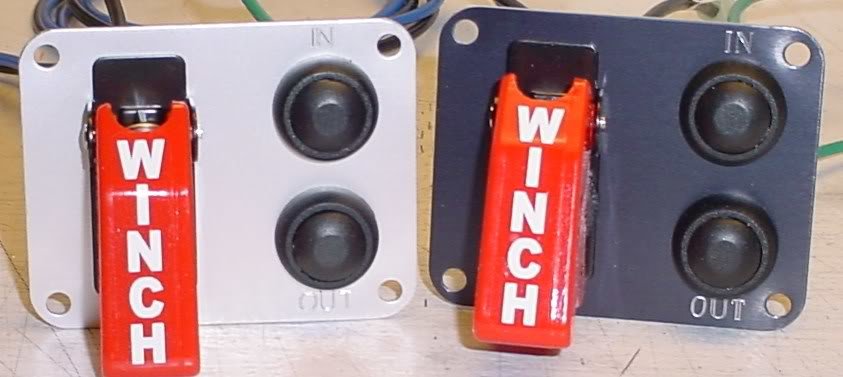

    The winch controller looks like this:

    [​IMG]

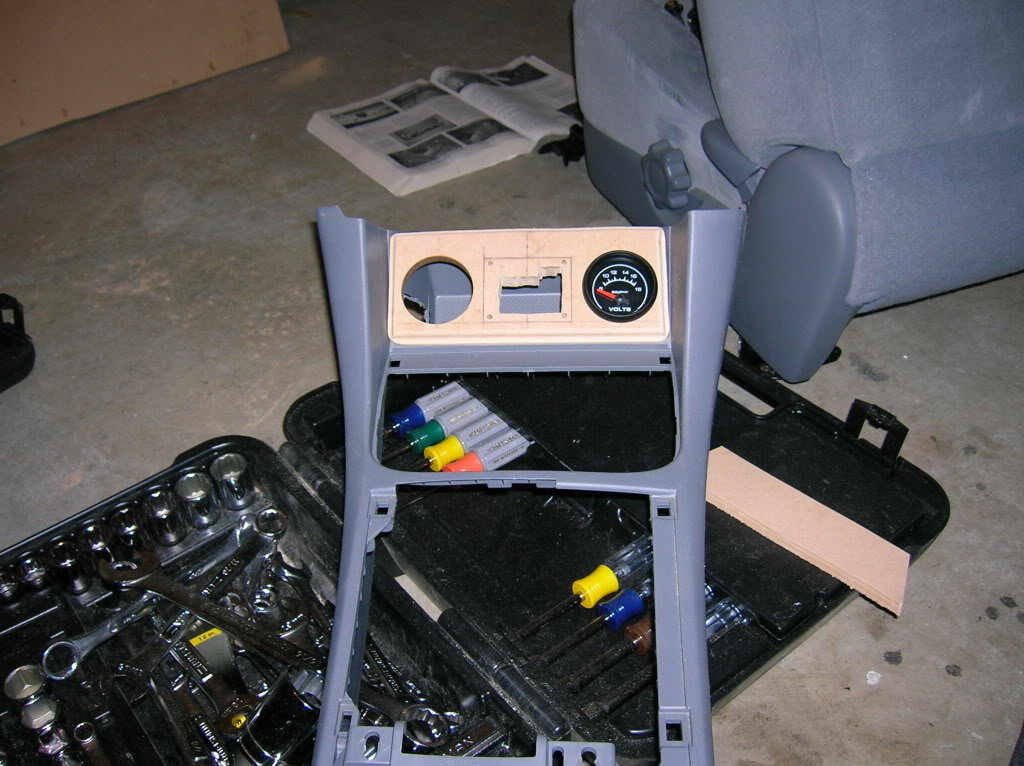

    The MDF panel looks like this (when in construction):




    [​IMG]

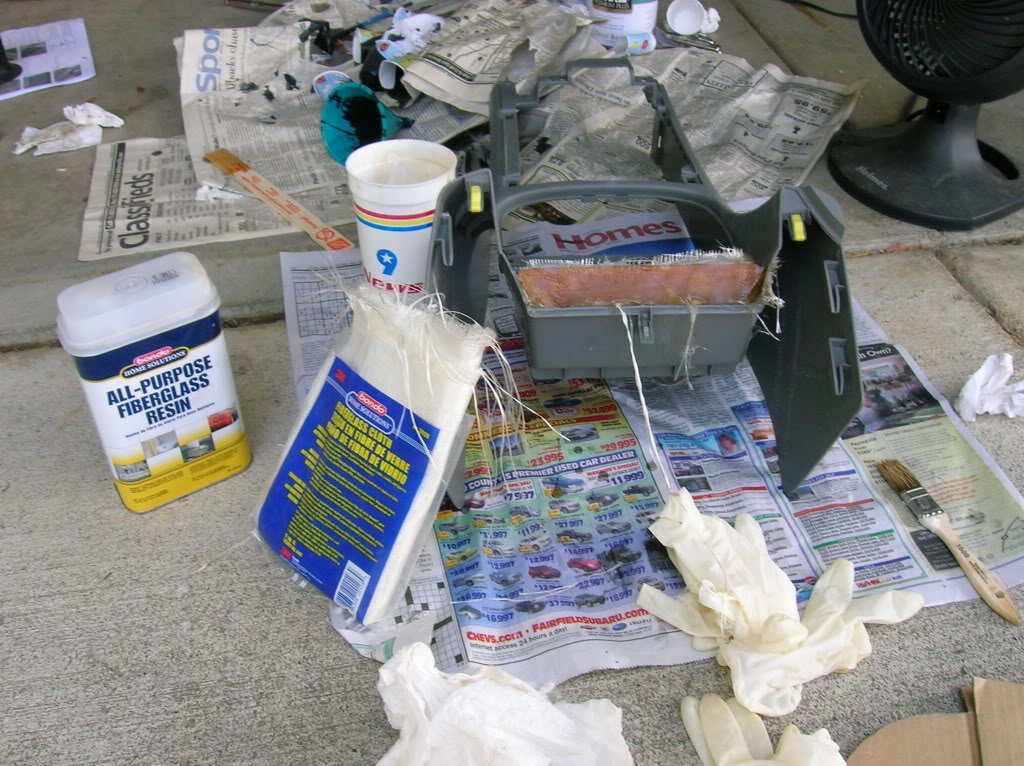

    To secure the panel to the factory console, I used fiberglass, fiberglass resin, and epoxy.



    [​IMG]

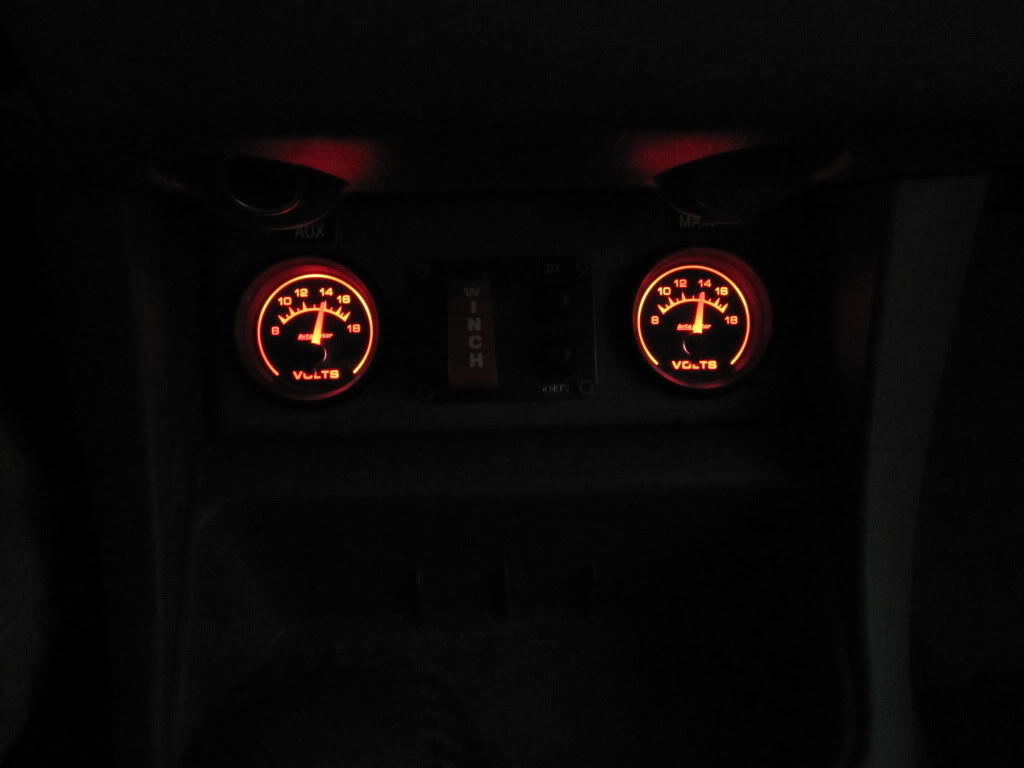

    A shot of the gauges lit up:

    [​IMG]

  5. Feb 26, 2010 at 4:27 PM
    #5
    ItalynStylion

    ItalynStylion Sounds Gooooood

    Joined:
    Jun 15, 2009
    Member:
    #18467
    Messages:
    4,866
    Gender:
    Male
    First Name:
    Steven
    DFW, Tx.
    Vehicle:
    09 Double Cab TRD Sport 4x4
    I think I have the same hole saw...thing starts to smoke midway through a piece of 3/4" MDF

  6. Feb 26, 2010 at 4:46 PM
    #6
    Dr. Sleep

    Dr. Sleep [OP] Well-Known Member

    Joined:
    May 8, 2009
    Member:
    #16977
    Messages:
    301
    Gender:
    Male
    First Name:
    Shane
    Colorado
    Vehicle:
    07 DoubleCab SR5 4X4
    yup . . . the smoke comes, but it can be minimized if I spray the thing with WD-40 first. Well, maybe more smoke but less heat and cleaner cut.

  7. Feb 26, 2010 at 8:01 PM
    #7
    ItalynStylion

    ItalynStylion Sounds Gooooood

    Joined:
    Jun 15, 2009
    Member:
    #18467
    Messages:
    4,866
    Gender:
    Male
    First Name:
    Steven
    DFW, Tx.
    Vehicle:
    09 Double Cab TRD Sport 4x4
    I'll keep that in mind. I'll give it a shot next time.

  8. Nov 10, 2012 at 2:43 PM
    #8
    Darth Tater

    Darth Tater If I can't get you out, neither can anyone else.

    Joined:
    Jun 14, 2011
    Member:
    #58273
    Messages:
    200
    Gender:
    Male
    First Name:
    Marlin
    Las Vegas, Nevada!!
    Vehicle:
    06 4X4 Taco, ARB, DBL Cab
    ARB,WARN 8K (F&R), 3" lift, Snugtop, tube steps, factory roof rack, Dick Cepeks,
    How/where did you mount the second battery??? I am trying to figure out where to put a second Optima Yellow Top.

  9. Nov 13, 2012 at 6:58 AM
    #9
    Dr. Sleep

    Dr. Sleep [OP] Well-Known Member

    Joined:
    May 8, 2009
    Member:
    #16977
    Messages:
    301
    Gender:
    Male
    First Name:
    Shane
    Colorado
    Vehicle:
    07 DoubleCab SR5 4X4
  10. Nov 13, 2012 at 8:48 AM
    #10
    acdronin

    acdronin Well-Known Member

    Joined:
    Dec 2, 2010
    Member:
    #47036
    Messages:
    19,664
    Gender:
    Male
    .
    Outstanding mod! Plan on doing this in the future, good work! :)

  11. Mar 21, 2014 at 2:09 PM
    #11
    ETAV8R

    ETAV8R 4th MAW

    Joined:
    Feb 20, 2008
    Member:
    #4832
    Messages:
    1,569
    Gender:
    Male
    Republik of Kalifornia
    Vehicle:
    MGM 09 AC 4WD V6 TRD-OR w/ 2013 FWC Finch
    Grillcraft, Demello Sliders, Bilstein front and rear with OME coils and springs, Wheelers Bumpstops front and rear
    Well done!

  12. Nov 18, 2014 at 7:09 PM
    #12
    YBLegal

    YBLegal Well-Known Member

    Joined:
    Jul 27, 2014
    Member:
    #134787
    Messages:
    240
    Gender:
    Male
    That is nice! i will be doing this shortly.
