Custom roof rack

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Herculean, Aug 8, 2010.

  1. Aug 8, 2010 at 8:54 PM
    #1
    Herculean

    Herculean [OP] Active Member

    Joined:
    Sep 15, 2009
    Member:
    #22795
    Messages:
    44
    Gender:
    Male
    First Name:
    Brandon
    Vehicle:
    SoCal
    A/R Chambers, BFG KM2's, Donahoes, Fox 2.0, Sliders, flowmaster, some little stuff.
    I posted this over on TN but haven't gotten much feedback. Thought I'd put it up here as well.

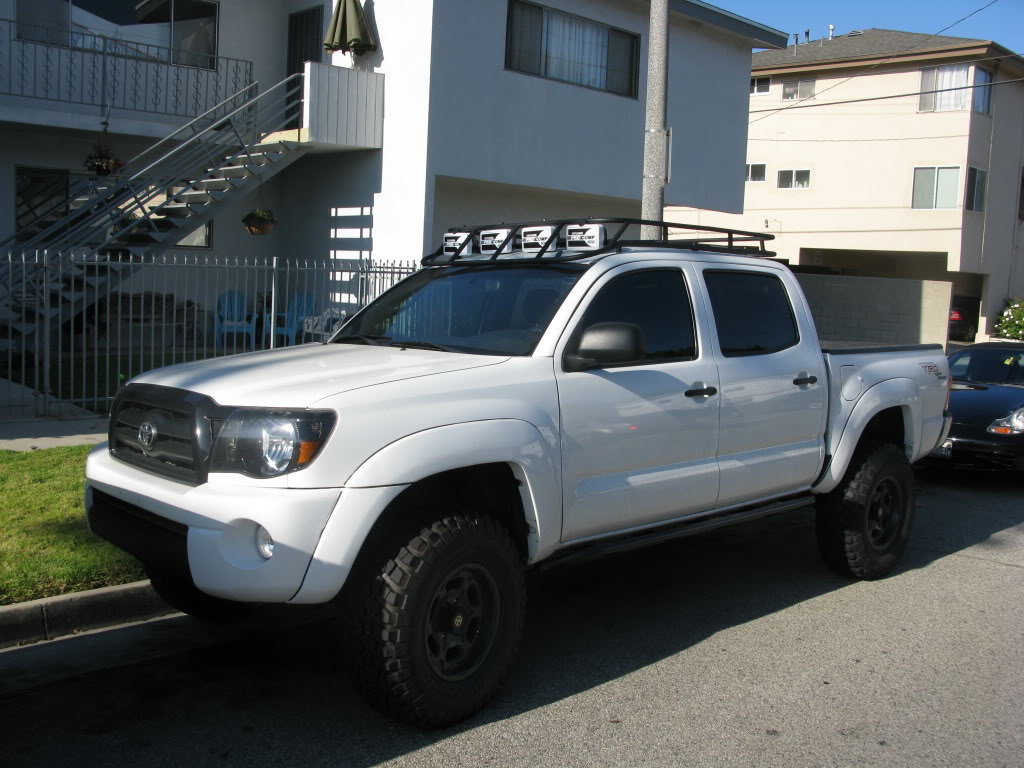

    I've been "working" on this rack for quite a while, meaning it sat in the garage half finished, but I finally got around to wiring and painting it. I think it turned out pretty good... though if I did it again, I'd shorten the dip in the front for looks.

    [​IMG]

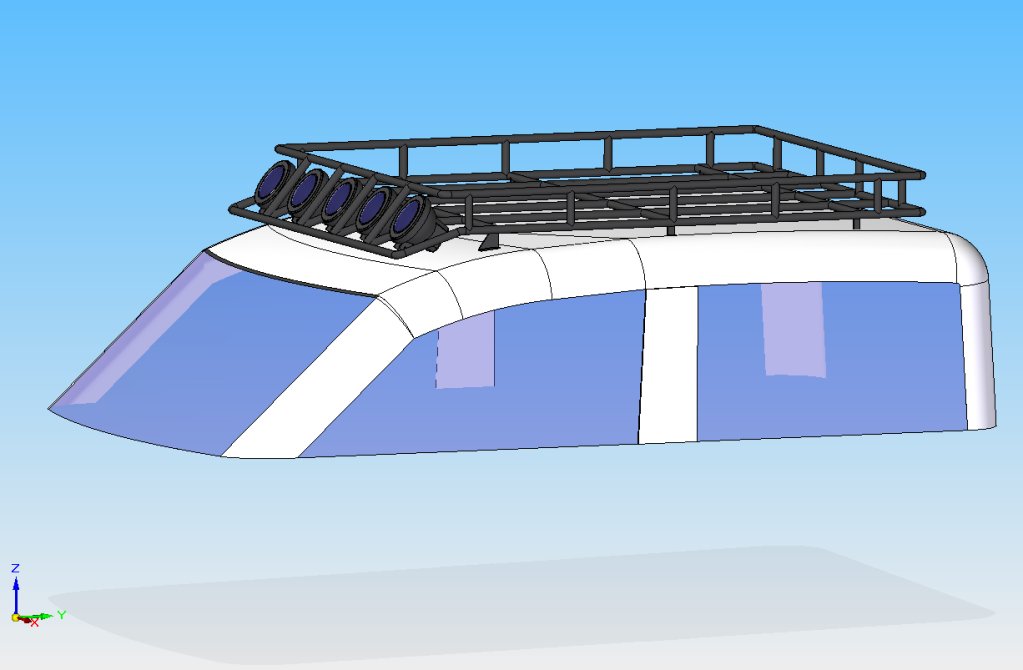

    Here is the initial concept:

    [​IMG]

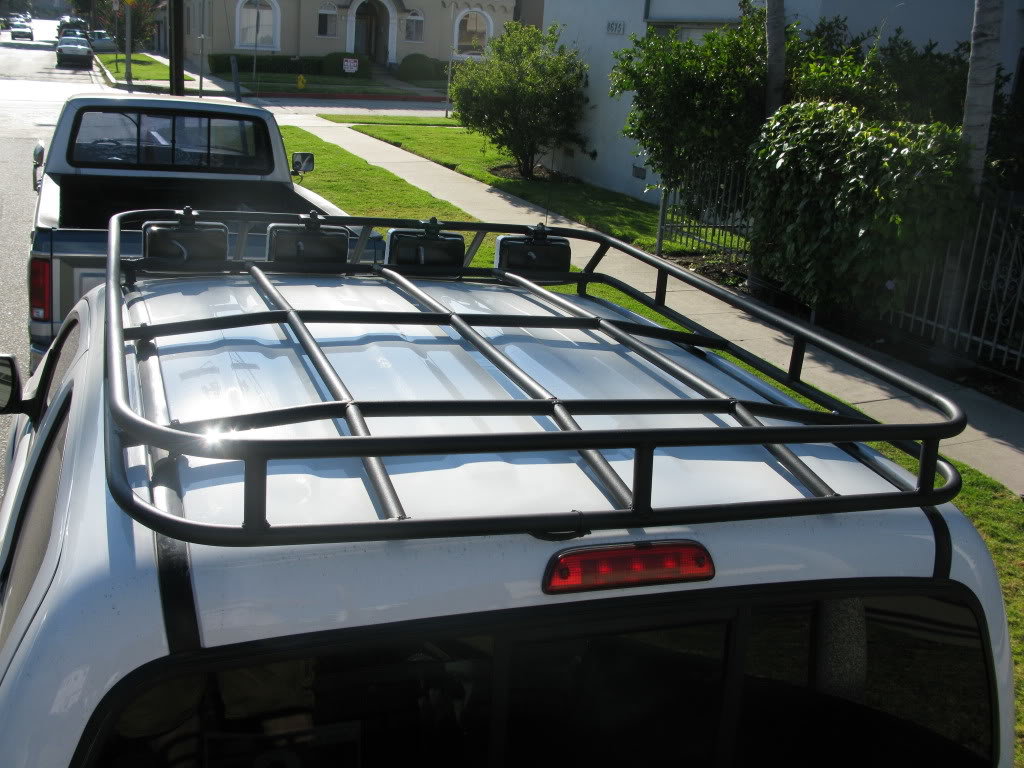

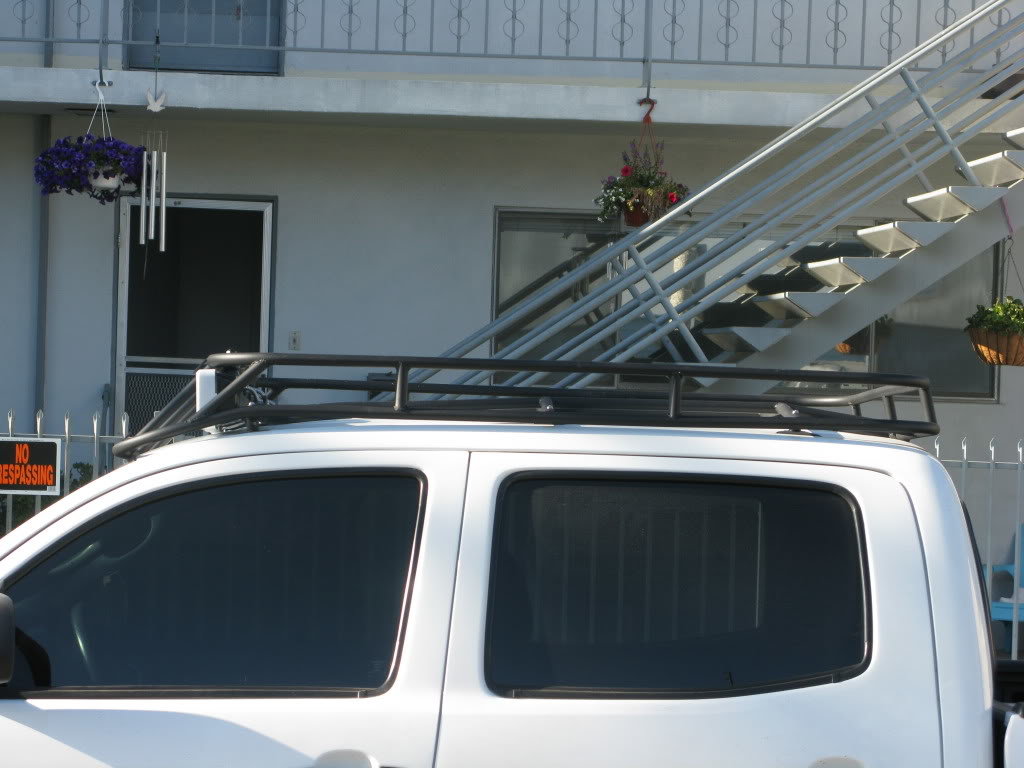

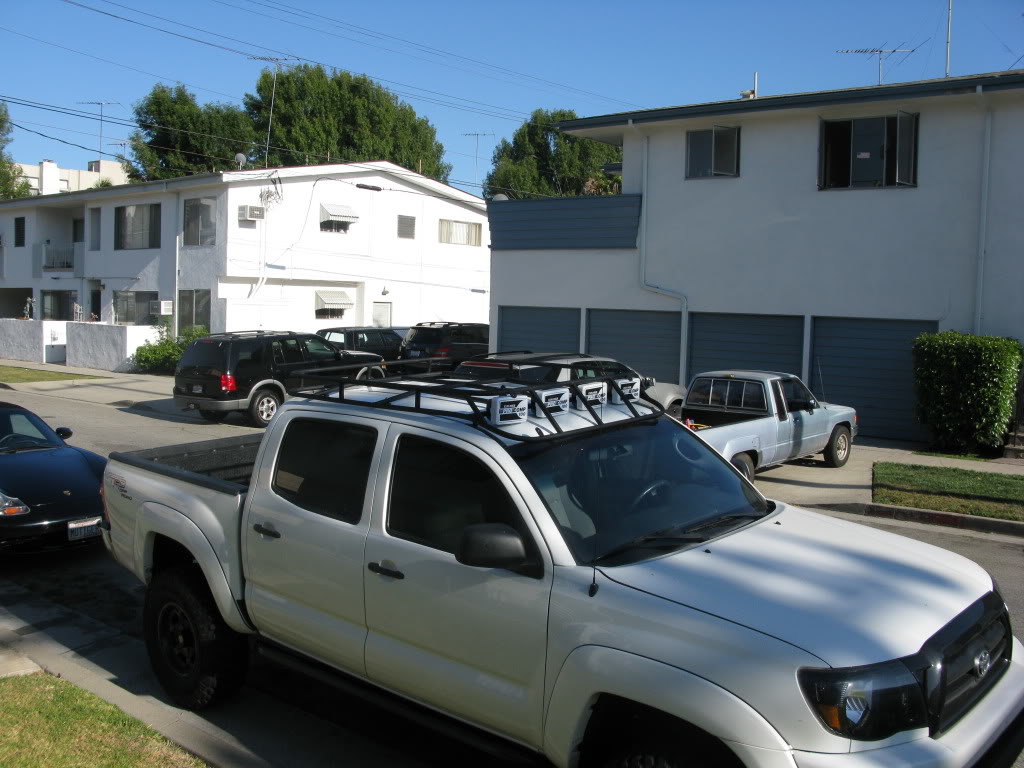

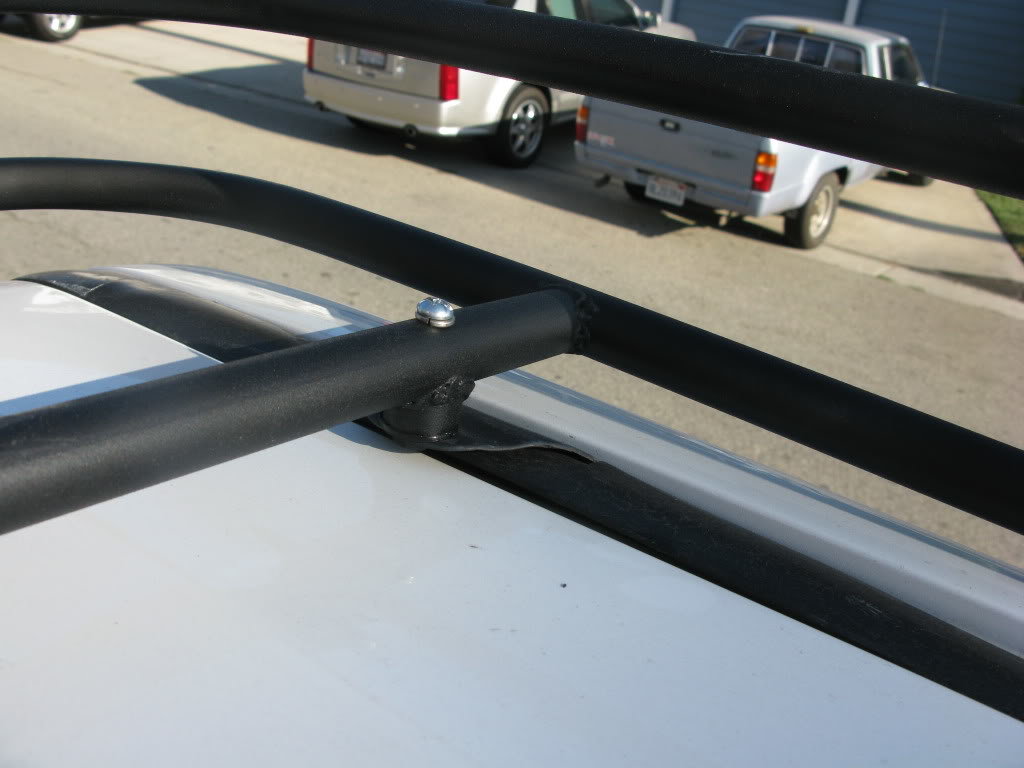

    And a couple more angles...

    [​IMG]


    [​IMG]


    [​IMG]


    [​IMG]

    I put the tabs on the front for a plexiglass air dam. I'm hoping I can use a heat gun and wrap it around the sides a little but I'm not there yet. Let me know what you think.
