Custom Tube Bumper build 1999 Tacoma

Discussion in '1st Gen. Tacomas (1995-2004)' started by ElTacoma, Sep 7, 2014.

  1. Sep 7, 2014 at 7:13 PM
    #1
    ElTacoma

    ElTacoma [OP] Well-Known Member

    Joined:
    Jan 27, 2014
    Member:
    #121665
    Messages:
    179
    Gender:
    Male
    San Luis Obispo
    2011 tacoma wheels, spidertrax 1.5" lug-centric spacers, magnaflow exhaust, magnaflow cat
    Hi TW,

    I thought some people on here might appreciate it if I posted some pics of the tube bumper I built for my Tacoma. I like building things for FREE so I got some steel from a buddy of mine and went to town in the shop. He had some 2x2 square tubing and I since I haven't really seen anyone build a taco bumper out of square tubing, I decide I'd give it a shot.

    I am fairly proficient in SolidWorks, but I was able to design and build the bumper in about a day without it. I'd like to note that there are a few things I would like to add to the bumper, so consider it not done yet.

    Things I'd like to add:
    -3/8" plate pad eyes for attaching cables/shackles/etc.
    -Hoop bar sticking up from front (lol I have no idea what those are called but maybe you know what I'm talking about)
    -a couple of stiffener bars for looks
    -winch mount on top of frame mount

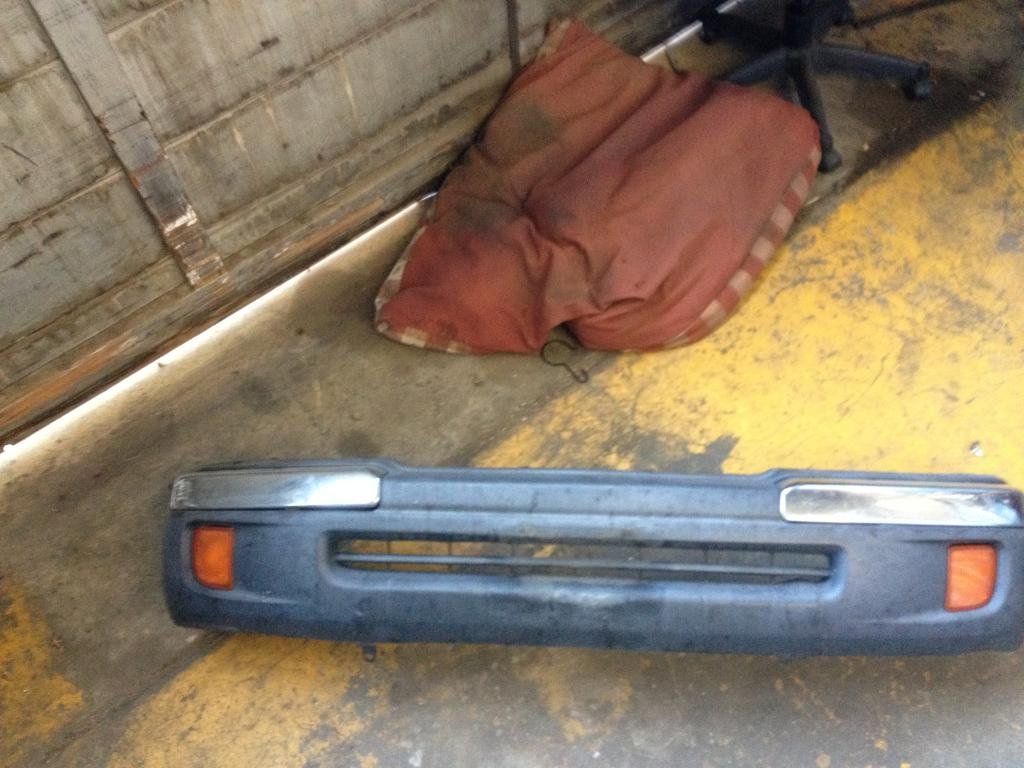

    The first thing I did was remove the tired old plastic bumper:
    5AB9F608-AEBB-45EF-94F5-E910A8D56595_zps_6d793a4b7b2a303eb2cfa6105daf1e126477da87.jpg

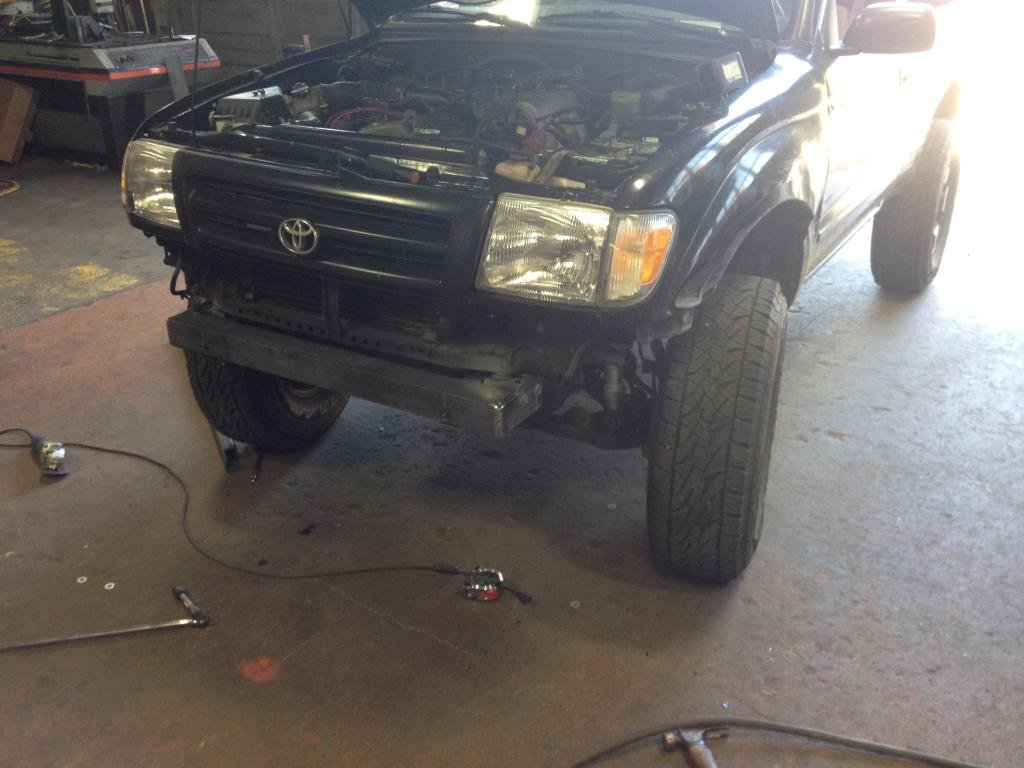

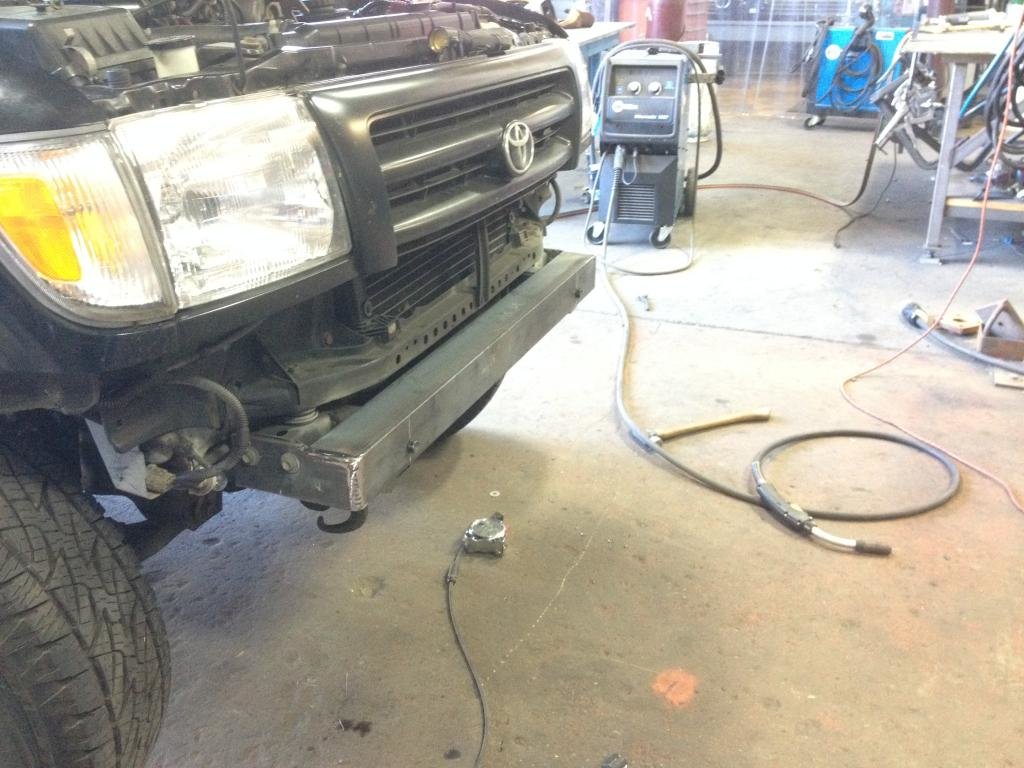

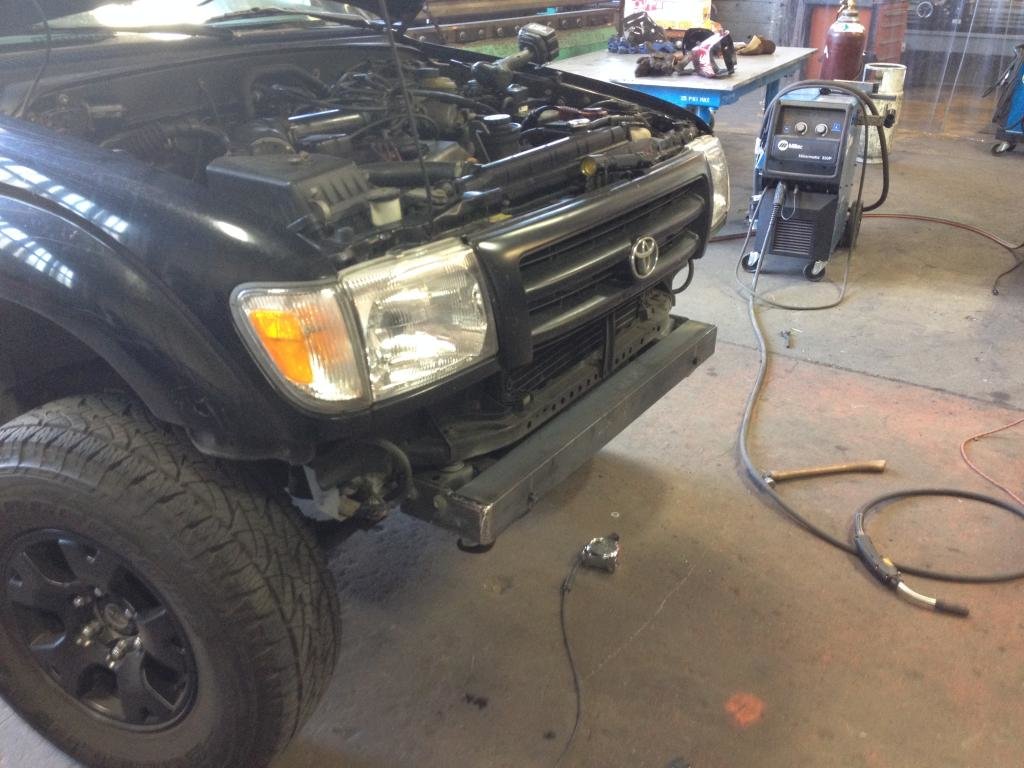

    then I measured the frame mount, and made a platform to build my bumper off of. I used 3x3 angle iron and punched holes for the bumper mounts. I also added some side plates using 3/8" plate, and punched holes for the bumper mounts. this took a little while to think about and I didn't decide to take pics until I finished. but heres the finished product:

    2C6FF5C6-3893-4E09-8A81-4EB4A244FF9F_zps_b50e69c09ce66f41f44034c4f6e39d93020a4d44.jpg
    0C7C2FD6-8ACA-4699-935B-4DA870D7C937_zps_88e973947ee15ac039c483bfbbf6799f5a540e9b.jpg
    D20D4B98-2B68-4968-BA95-00D54633B81C_zps_6aca634b27910835619f0409501abb442f1b857d.jpg

    Next, I decided to make the main tube bumper, which I wanted to go with a really low profile look. I don't really like the look of the bumpers that stick way out, but that is my own personal taste. The first step in this process was making a template out of cardboard:

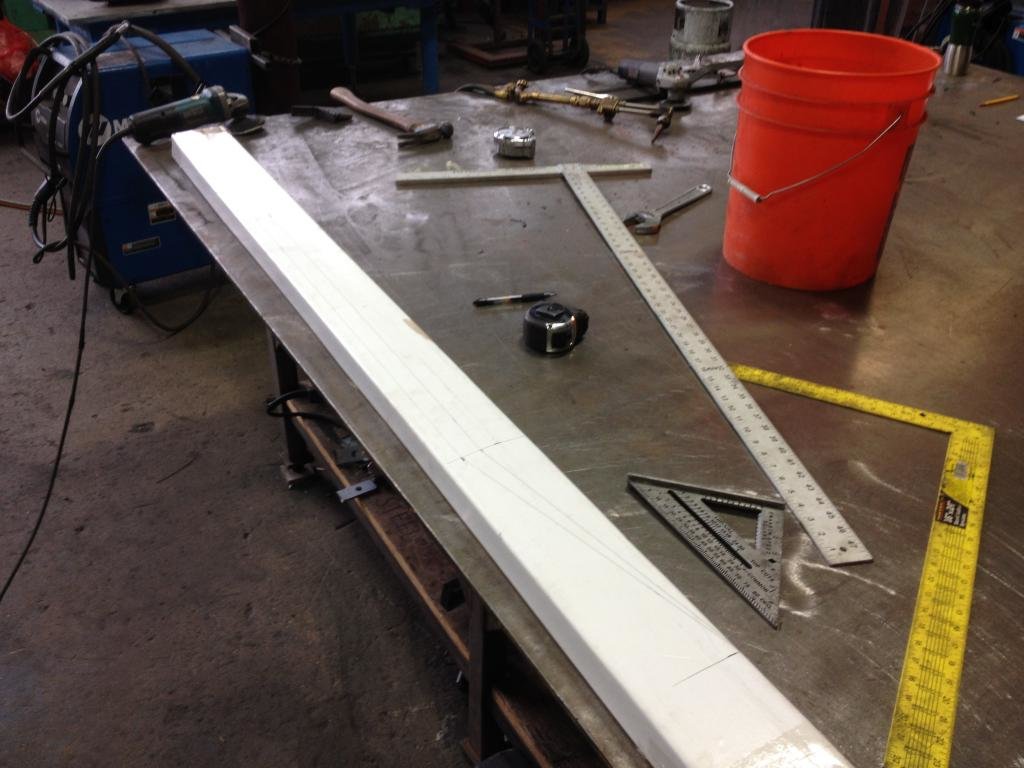

    B0AE7C22-ADC2-4E3E-B5E6-FB4EBCDF1C7B_zps_a5ed833579825e48226fe3fe194299147c2b484d.jpg

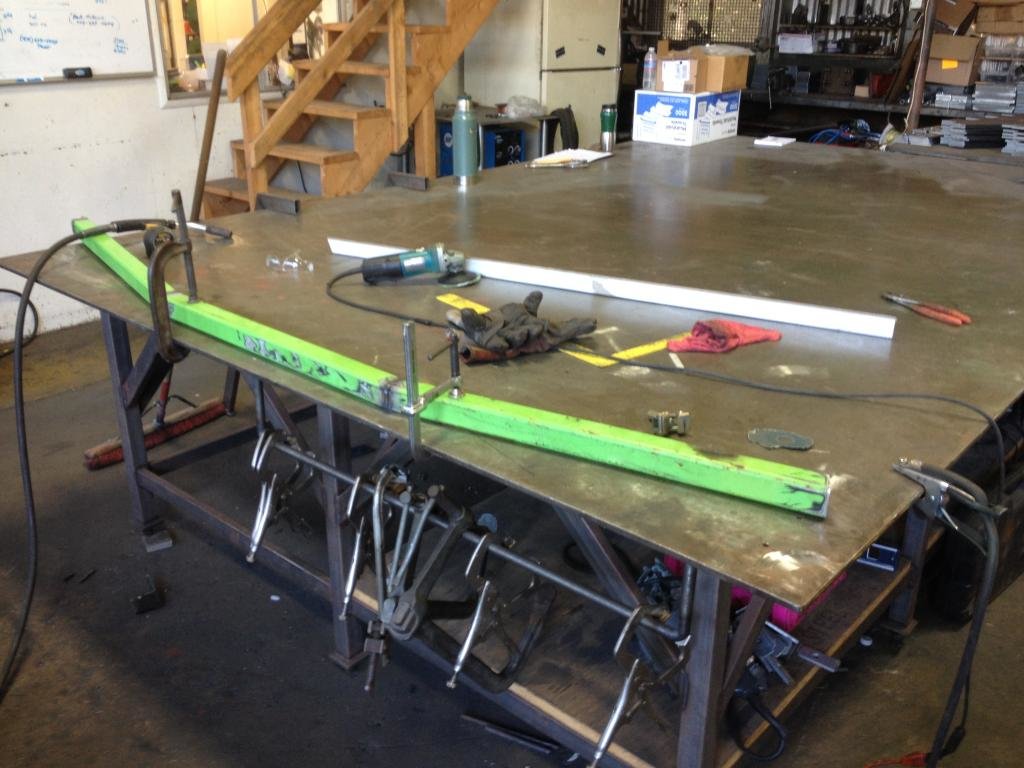

    once I was satisfied with the shape, I transferred my measurements to the table, where I could fab up the bumper:

    D4BAD68A-73BA-4E14-9E57-2A4CE24657DF_zps_49ebe6c997956c60c8258119501813590c6cb504.jpg

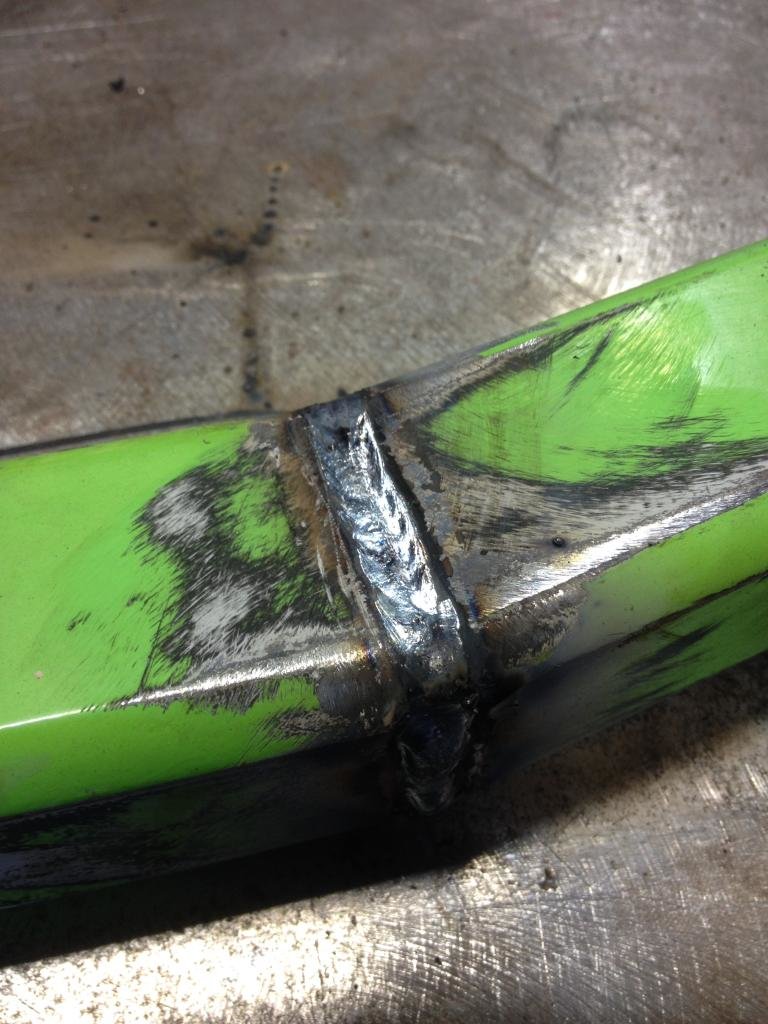

    89CFA00C-E2C2-4691-AABF-4E4BB0CBE49F_zps_e75ef3862ed9fbde5f4965608ef8ef012a6d7527.jpg

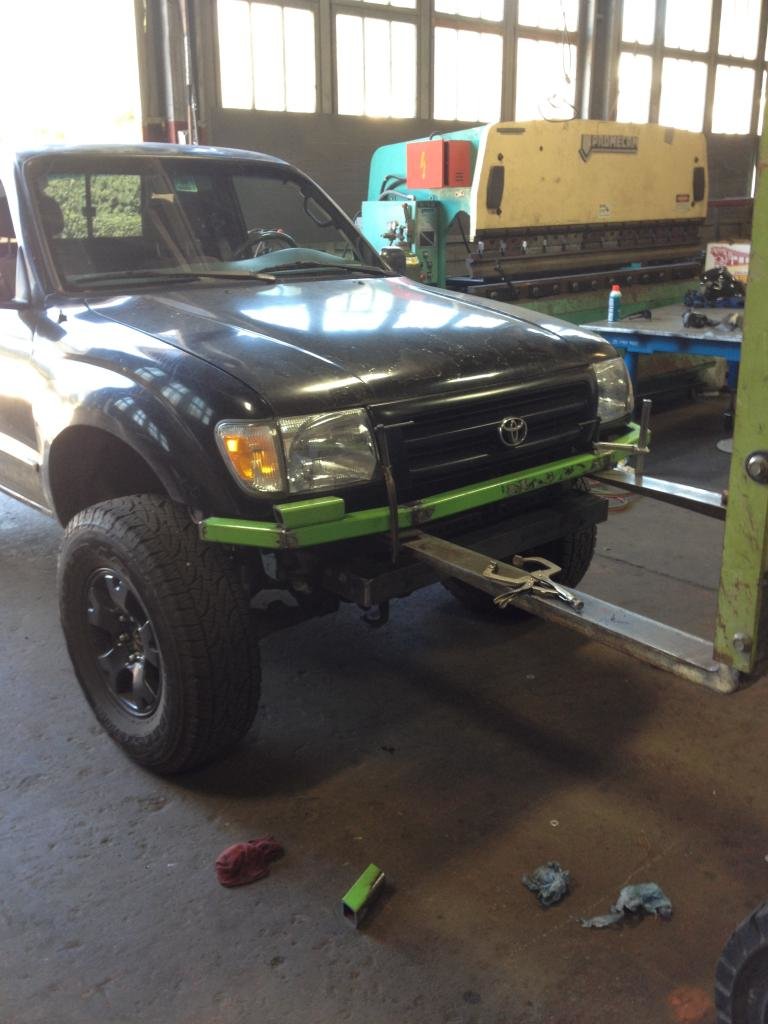

    I used a forklift to hold the bumper up to my truck and check it for fitment, as my buddy decided to take a break. Cheap labor I tell you!!! :turtleride:

    C2F86F69-AAA4-4BBD-ADE2-7CA19F903028_zps_518f6cc52d697c1582f7637c9df20e630f3500a2.jpg

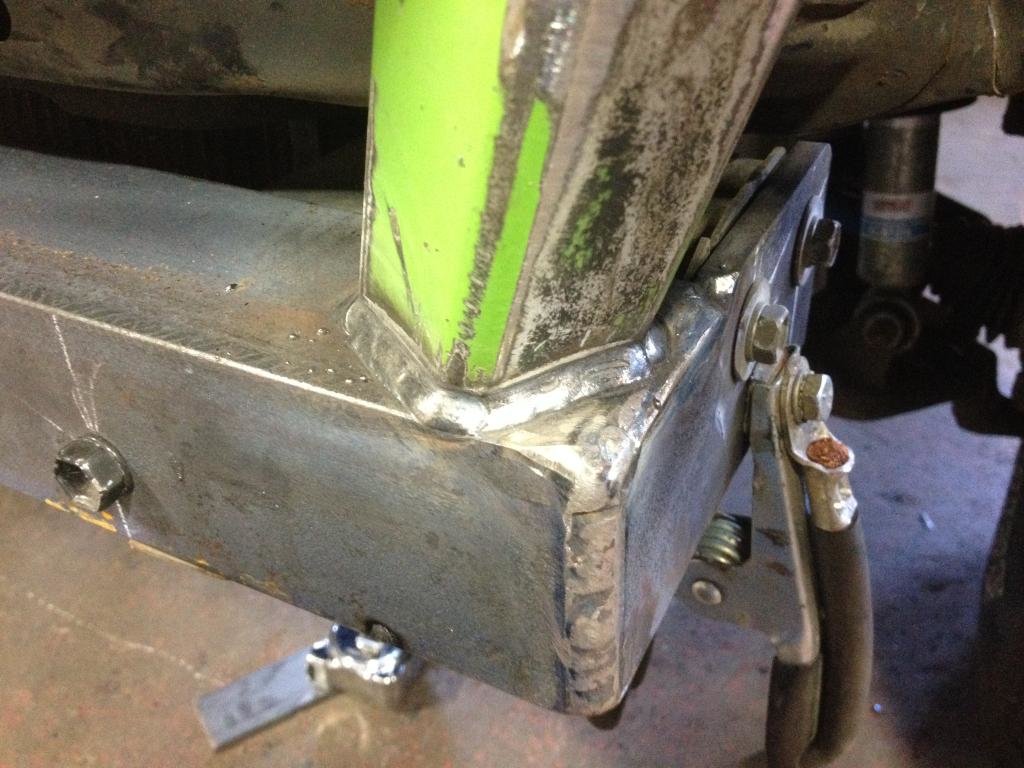

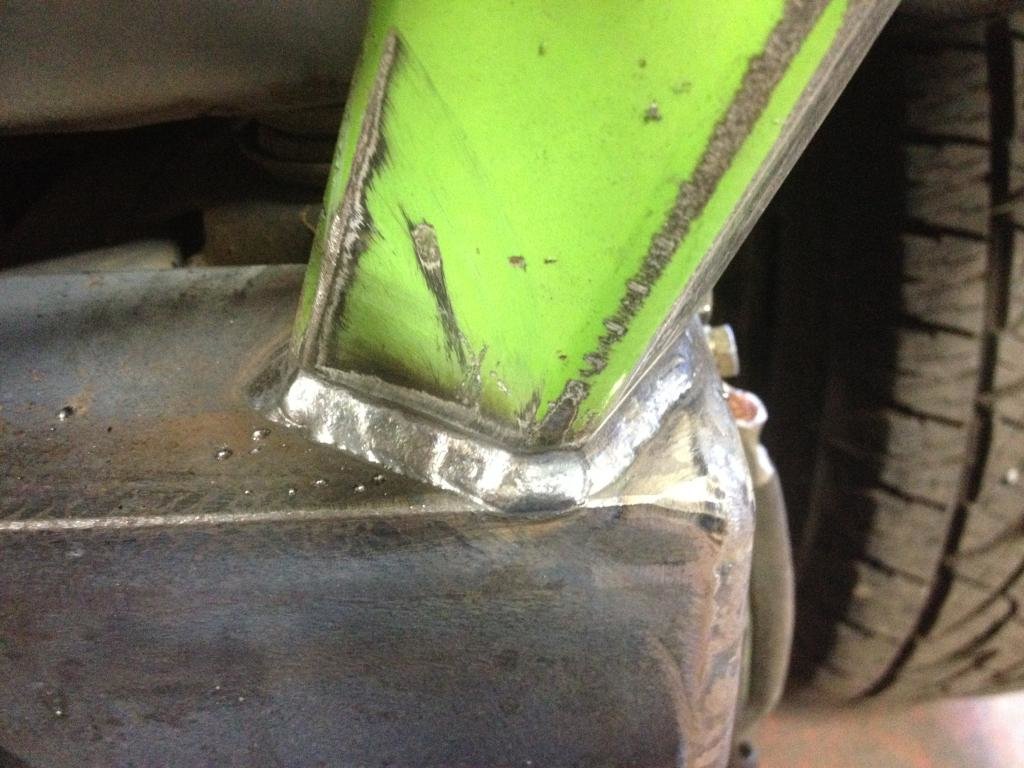

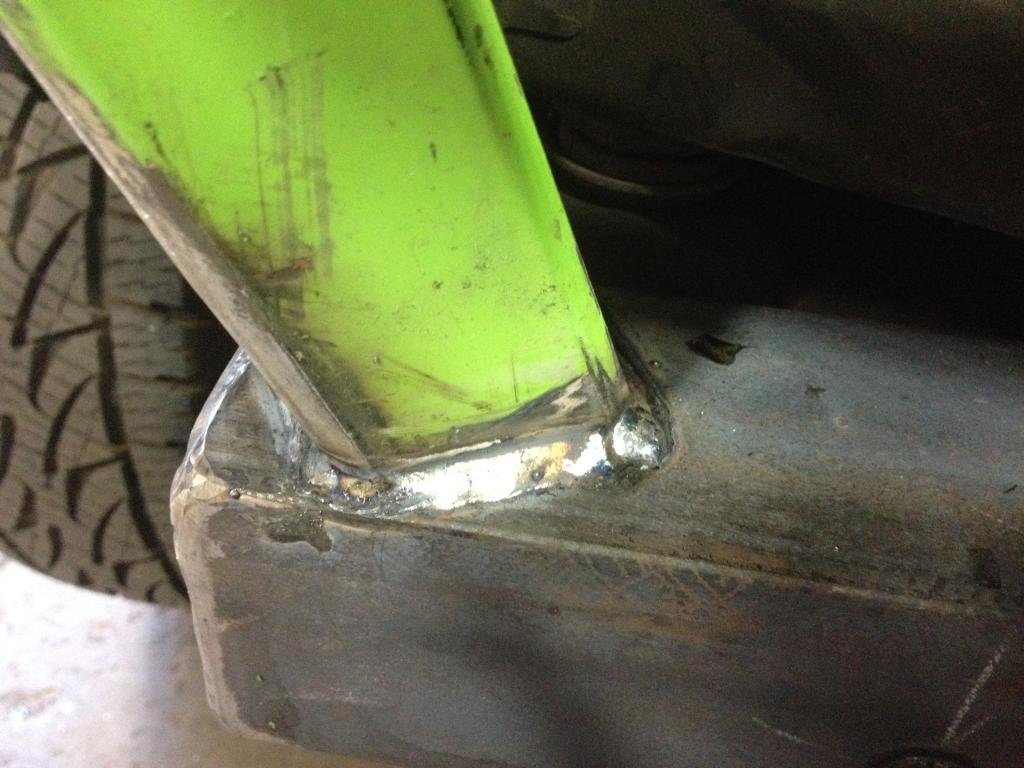

    Once I had the shape correct, I held it in place with the forklift and welded my support tubes underneath the main bumper. I plan on welding more for a cool look, but it is really sturdy as it sits. 1/4" wall tubing and all welded with dual shield:cool:

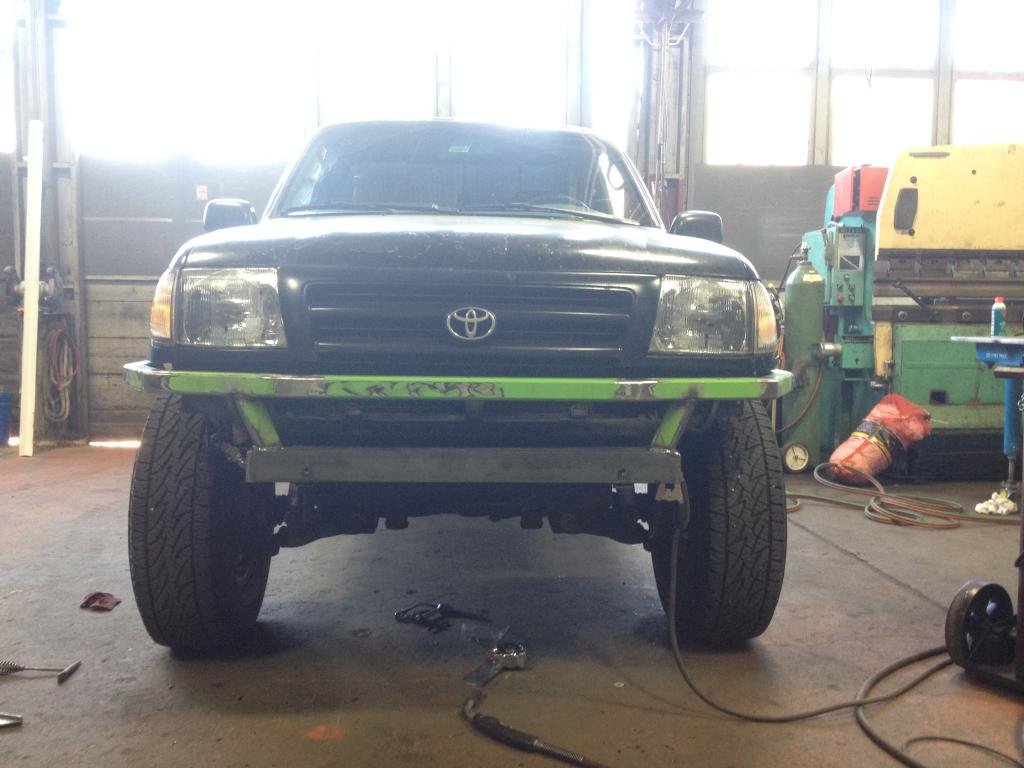

    CC1FC91A-78BB-4F2A-8289-77FDB405CADE_zps_260a73741d9b0202dc38fcf8653e74055c5a2203.jpg

    2DB164AE-2F75-4989-BCBE-01B1F3298B3B_zps_b8bf781e5d1a136f2a3df9b4b3ddfe5348653b1a.jpg

    0D88637E-6D6A-4C01-BB68-EAC61BFABDE7_zps_1645a7c0591f77bcc5d8f0b4ad0da76304cdc710.jpg

    7917958B-D892-4C07-B090-A39C15A46813_zps_8426db667e208fcd42cf7168cefd77b680612e38.jpg

    8AD403D3-7C3B-4198-A16D-67A98243AAAC_zps_6e57f9ea331db0ba7da737fc6d6dc0c88611530c.jpg

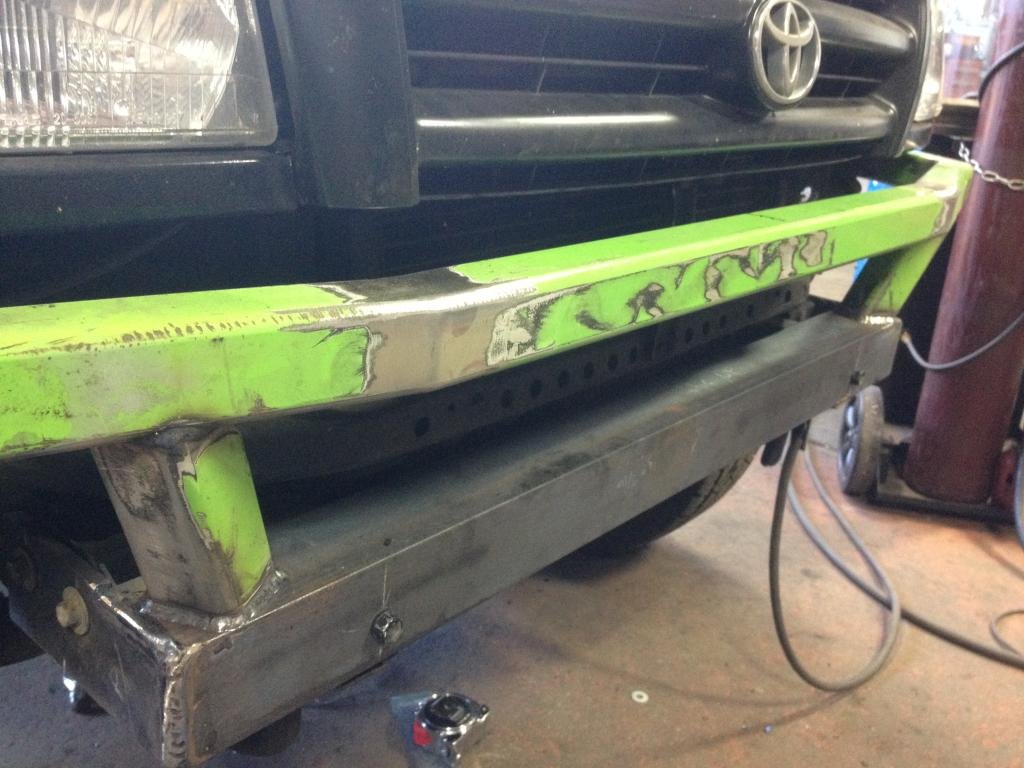

    CBCA6F3F-8984-4063-BAE6-2A6E9AA9EE23_zps_1201554275083ca79274aa585742cfca7cc7781e.jpg

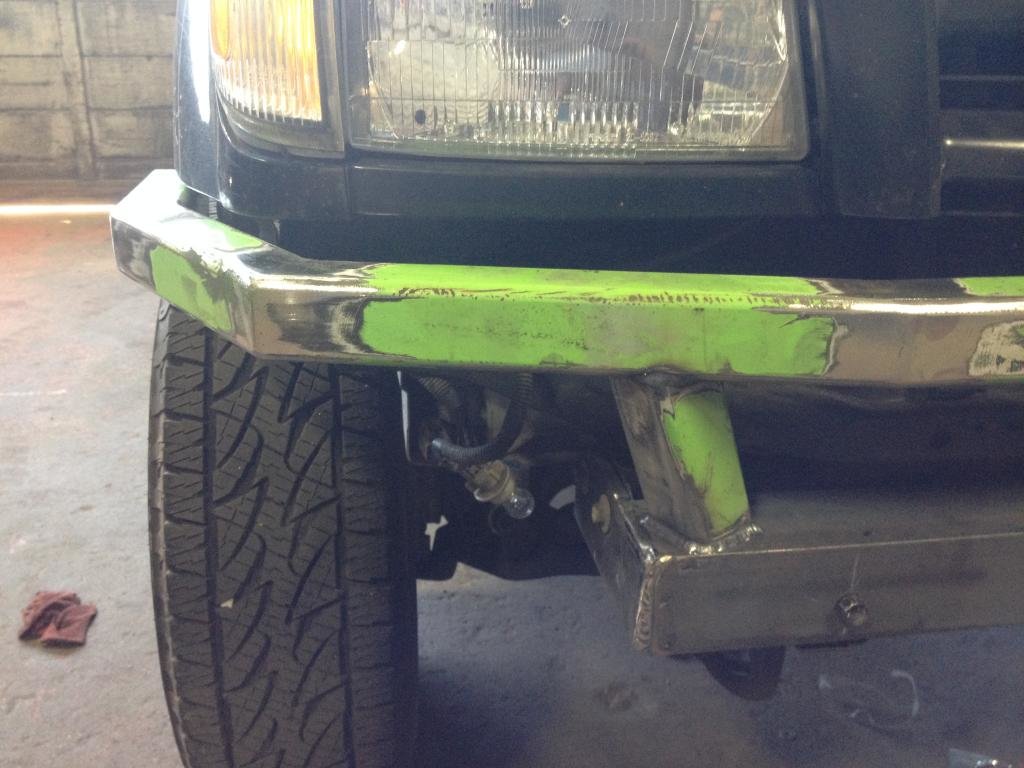

    CBA0039C-85F7-48E8-91F4-8F59A86A524A_zps_0c63d93dc44faf8571f02e9e3216b04d74edc5cb.jpg

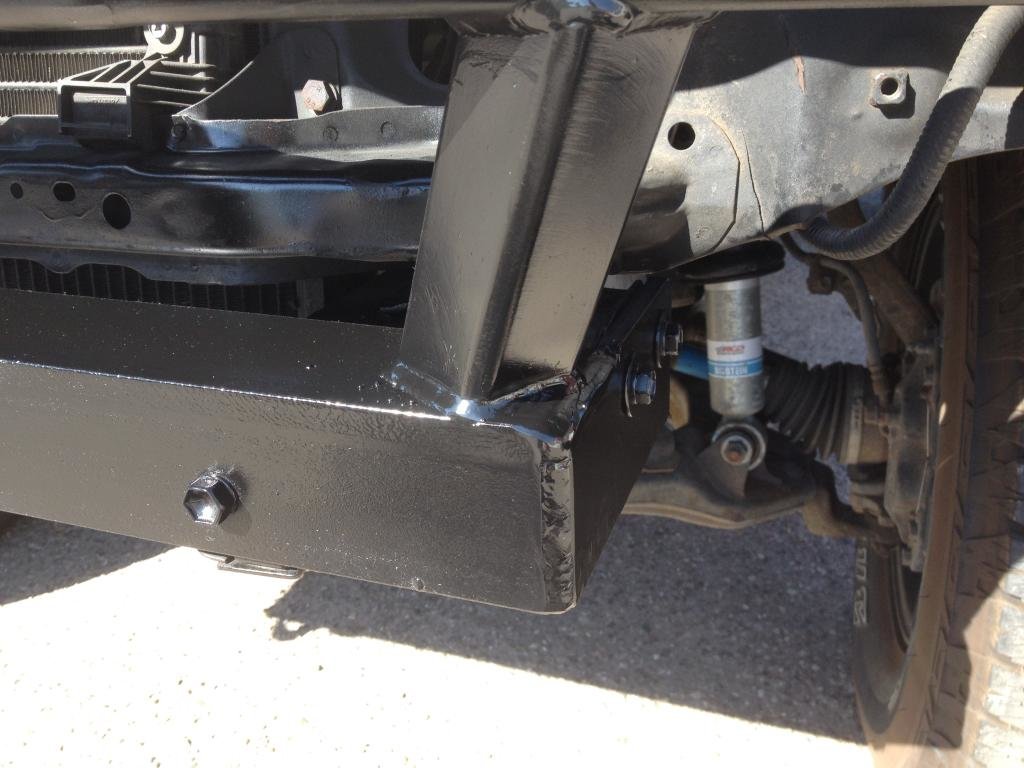

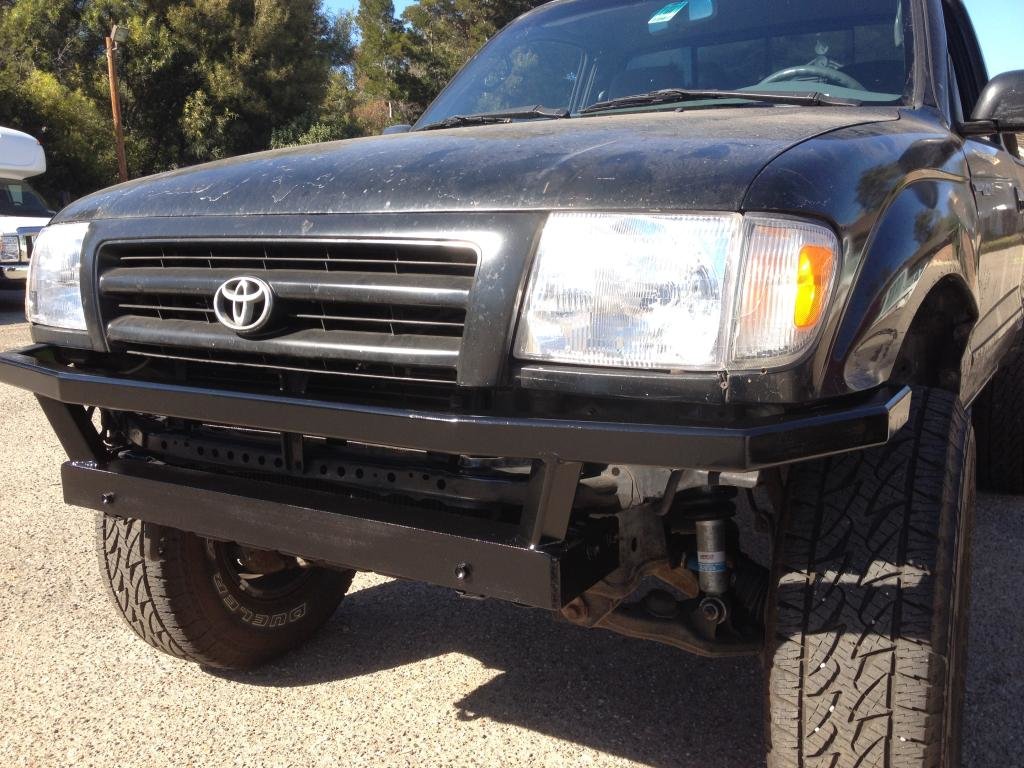

    I got all the steel off of my friend who bought a lime green flatbed for his power stroke and cut the rack off. Although power stroke guys may like lime green, I couldn't look at the eye sore for another minute and sprayed it:

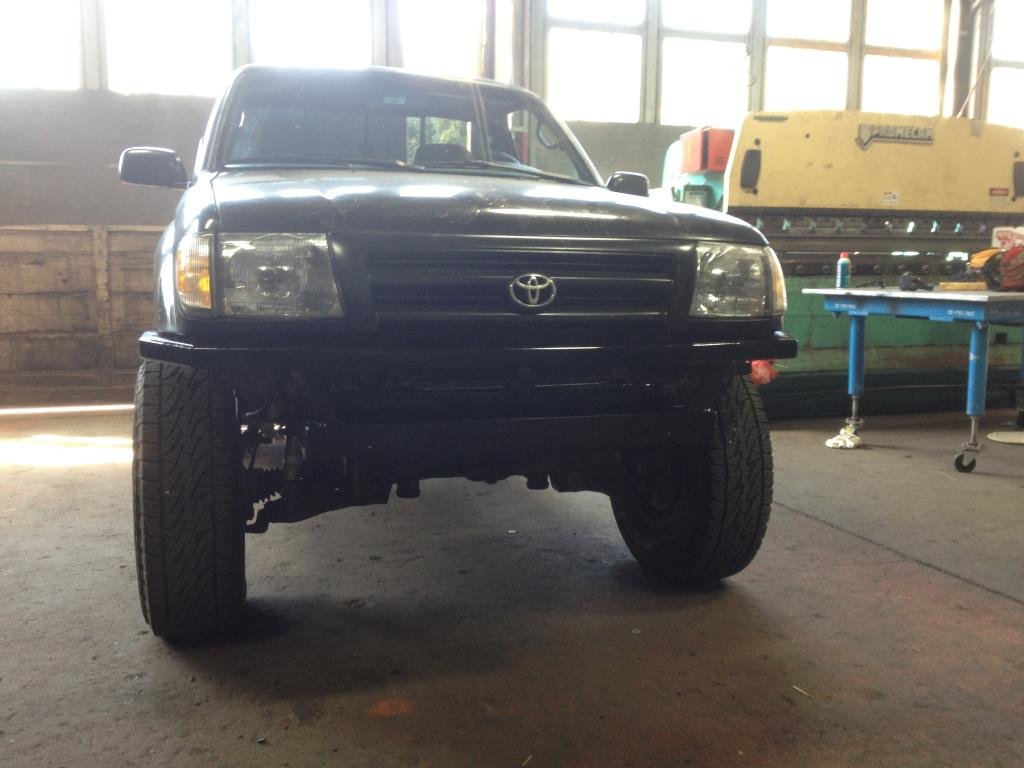

    2577B2AF-CB0A-4FEC-9DF4-706A4028E1C8_zps_73bde156d66294426865cee5cf4adbc2c501ef53.jpg

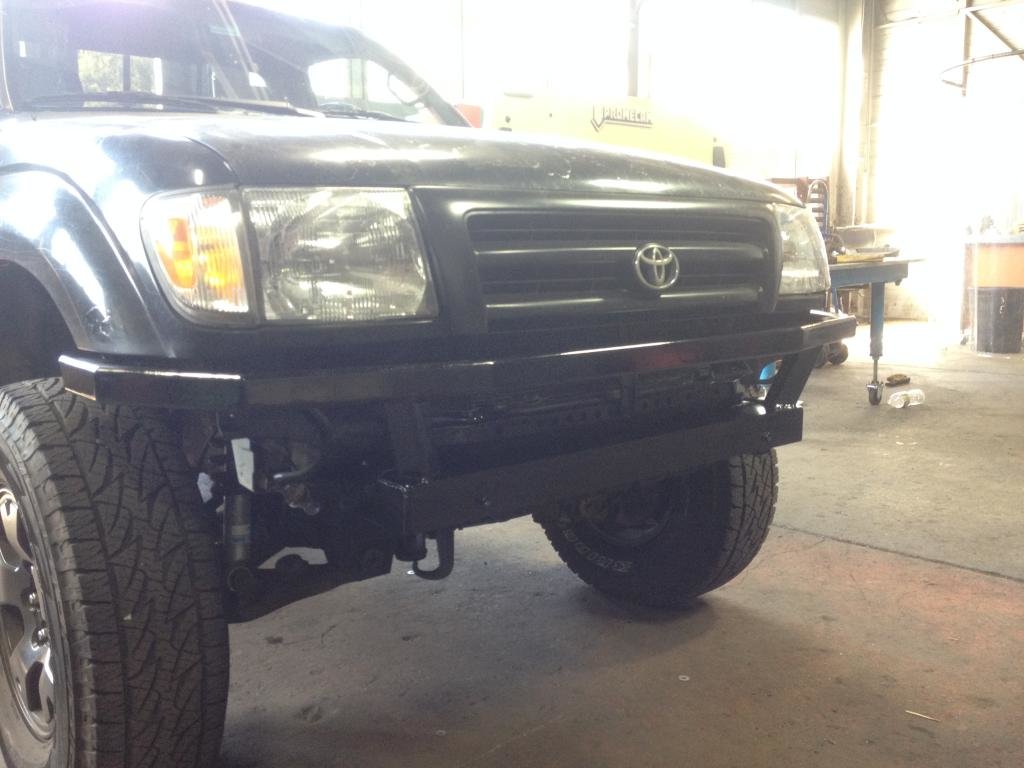

    3612268C-D0C2-48B5-8858-65EC7AD8C588_zps_b3413e6289ee7e9f95d288321ef19261abbddf85.jpg

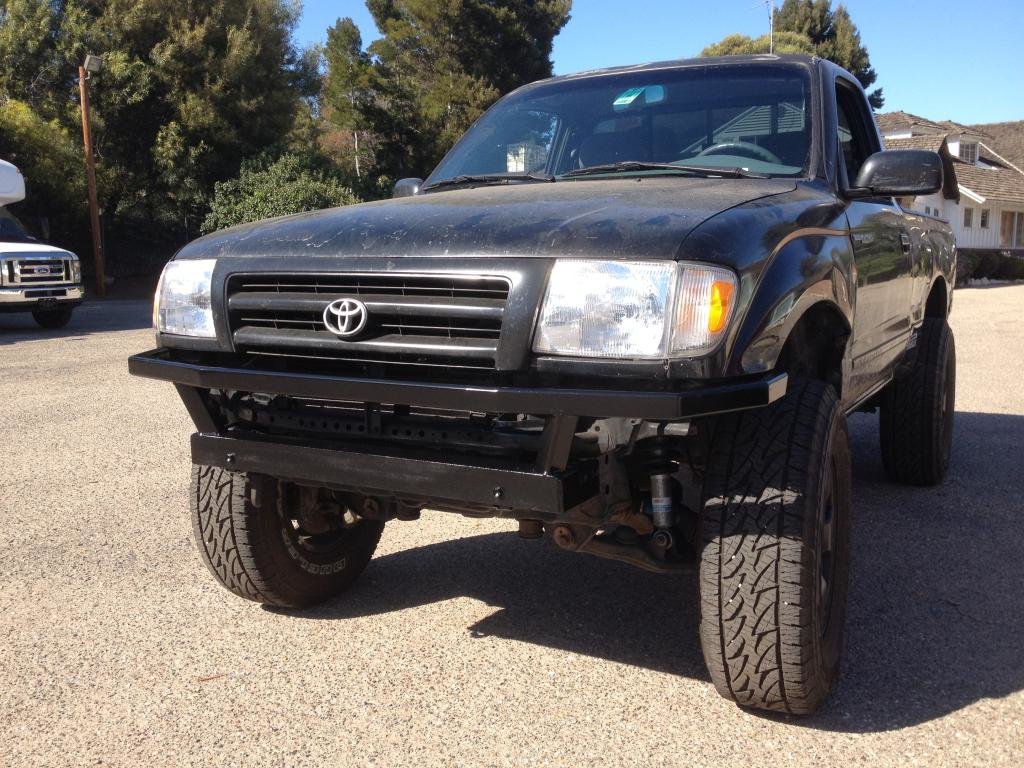

    E1870768-D2A5-4C59-A220-A4438A2F7312_zps_d0d24936245df9d3178f56f8242335c128f3c85f.jpg

    859AA36A-9BA7-4BC8-AB29-48B482EA2565_zps_0bfe01f87795368a5b52c6914c82657150dd30d3.jpg

    8E4CECE4-9A47-456D-A0B5-536780EA7A63_zps_246aff9509b8f4a2978277d00ff9ac5e06145384.jpg

    truck is really dirty, time for a wash :)

    Last edited: Dec 28, 2015
  2. Sep 9, 2014 at 1:12 PM
    #2
    Scalded_Dawg

    Scalded_Dawg Not as new as my post count would appear

    Joined:
    May 2, 2010
    Member:
    #36397
    Messages:
    1,646
    Gender:
    Male
    First Name:
    Brent
    Yorktown, VA
    Vehicle:
    Stripped Steel and Sex Appeal
    Tacoma daily and 4Runner to play
    Looks good man! Nice welds too :drool:
    Keep the thread and use it as bumper build thread; keep adding to it as you finish your list of add ons.

  3. Sep 9, 2014 at 1:40 PM
    #3
    vern650

    vern650 Well-Known Member

    Joined:
    Sep 2, 2013
    Member:
    #111738
    Messages:
    650
    Gender:
    Male
    First Name:
    brandon
    hyrum, ut
    Vehicle:
    '97 4x4 taco xtra cab 3rz/5spd
    HBS leveling kit, 31x10.50 mudders, header/imco exhaust, rear billies, LR ucas, home brewed onboard air, cb radio
    this is just my opinion, but I'd at least add a tube on each side from the end of the part that attaches to the frame angled up to the bottom of the top part about where the corner light is. Does that make sense? Think it would give it a more "complete" look. Looks like a good foundation for a pretty sturdy bumper though. If you already planned on putting tubes there then disregard this comment and keep up the good work

    Fenwick1993 likes this.
  4. Sep 9, 2014 at 1:44 PM
    #4
    muddog67

    muddog67 Well-Known Member

    Joined:
    May 10, 2014
    Member:
    #129529
    Messages:
    2,255
    Gender:
    Male
    Looking good , looks more tough

  5. Dec 28, 2015 at 11:24 AM
    #5
    ElTacoma

    ElTacoma [OP] Well-Known Member

    Joined:
    Jan 27, 2014
    Member:
    #121665
    Messages:
    179
    Gender:
    Male
    San Luis Obispo
    2011 tacoma wheels, spidertrax 1.5" lug-centric spacers, magnaflow exhaust, magnaflow cat
    just wondering, would anyone be interested in this, or similar to this bumper as a weld it yourself kit? I think I could sell this as a kit for fairly cheap, and the way it goes together is simple. Maybe throw in a couple shackle mounts, and add holes to the shelf for a winch or something??

    jre32 and JPinFL like this.
  6. Apr 24, 2016 at 7:18 PM
    #6
    bsb120

    bsb120 Well-Known Member

    Joined:
    Sep 29, 2012
    Member:
    #87976
    Messages:
    230
    Gender:
    Male
    First Name:
    Bradley
    Easley, South Carolina
    Vehicle:
    2000 Tacoma PreRunner SR5
    painted grill and emblem, led taillights and taglight, BrushGuard, spyder auto projectors, ooga horn, 2 Memphis 12" sub w/ 500watt amp,pheonix gold 6.5s, ans tweeters custom fit in doors
    eltacoma sorry to dig up a dead thread but is it still possible to get one of these "kits" from you and What are you talking cheap?

    robertlhuffman049 likes this.
  7. Apr 24, 2016 at 9:47 PM
    #7
    robertlhuffman049

    robertlhuffman049 Well-Known Member

    Joined:
    May 25, 2013
    Member:
    #104861
    Messages:
    118
    Gender:
    Male
    First Name:
    robert
    norfolk va
    Vehicle:
    02 sr5 tundra front bilsteins
    Front tundra bilstien 5100s
    /\ what he said.

  8. Dec 28, 2016 at 4:35 PM
    #8
    ElTacoma

    ElTacoma [OP] Well-Known Member

    Joined:
    Jan 27, 2014
    Member:
    #121665
    Messages:
    179
    Gender:
    Male
    San Luis Obispo
    2011 tacoma wheels, spidertrax 1.5" lug-centric spacers, magnaflow exhaust, magnaflow cat
    would you want just the pieces cut and weld yourself? that is what I was thinking. sorry I just saw this post

  9. Jan 28, 2020 at 8:46 PM
    #9
    Jdawson99

    Jdawson99 New Member

    Joined:
    Jan 28, 2020
    Member:
    #317570
    Messages:
    3
    Gender:
    Male
    Hey man what were the angles you used for the bumper mainly just up top

  10. Jan 28, 2020 at 9:08 PM
    #10
    jbrandt

    jbrandt Made you look

    Joined:
    Feb 12, 2011
    Member:
    #51038
    Messages:
    16,481
    Gender:
    Male
    First Name:
    Justin
    El Dorado, CA (NOT El Dorado Hills)
    Vehicle:
    '04 TRD Tacoma 4x4 DC
    Kings, J59's Total Chaos UCAs Custom skids Sticker mod
    Omg necro post! OP hasnt been around since 2018...

    I’m betting he didn't measure the angles and just followed the body lines.
