Discussion in '3rd Gen Tacoma Parts Marketplace (2016+)' started by daveeasa, May 25, 2021.

  1. May 25, 2021 at 3:55 PM
    #1
    daveeasa

    daveeasa [OP] Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    2,280
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT
    I'm using this thread mostly for my own organization and sanity. Also as a means to communicate with those of you who have work in my queue all at once (subscribe to this thread if you like) vs managing a bunch of DM's where I can easily miss one or two.

    As time permits I will take on new work. At this point in time I am not accepting new requests. I'd like to keep the active project list under 5 which is where it is right now. I have 2-3h max per night to spend on this.

    List of projects in the hopper (note the terminology, there is no guarantee on timeline or completion order for any of this work though I promise to do my best and always respond to inquiries).

    Active:
    • DRL light bar / light pod custom harness for custom switch with DRL tap (LED or Halogen) and deutsch output (round or triangle). For @ljh824 and possibly @Zumozuzu7 and/or @stay_tuned .
      • Status: 95% complete, waiting on final mini SPDT relay.
    • Switch-Pros trigger feeds and grille light tap for @ktbell444 .
      • Status: On hold until details on v5 switchbacks are confirmed since @ktbell444 has non-MESO puddle pods.
    • H9 T harness for @a2lowvw
      • Status: waiting for final design, ball in my court to draw something up for peer review
    • Custom Bed Light T harness for @crashnburn80 ? Sure would be cool to make a contribution to the supercharged Gladiator
      • Status: Pending receipt of the MOPAR harness so I can attempt to identify the connector style
    • 2nd Gen DIR for @tkimbar2611
    • Custom crimped connectors for Pioneer head unit for @JJD92.
    • Cargo Light illumination T and male auto headlight harnesses for @RyanDCLB

    • Speaker injection for @corgidaddy to inject aftermarket amplifier speaker signal into the OEM door speaker harness for a JBL system.
    • 2019 style surface mount OEM bed light to 2020+ OEM bed light adapter harness for @Khoadattran


    I'll keep this first post up to date on current stuff and as I finish things I'll add a post describing it with some photos.

    Pricing we can hopefully figure out once ready to ship, I'm just doing this for fun and the satisfaction of solving a problem and helping people out. I think I'd like to do this as a minimum cost for parts and shipping and an optional tip for labor which could be sent upon receipt.

    Count on several pages of DM's to work through the details and at least a few weeks of lead time before anything is ready to ship.

    Last edited: Jun 10, 2021
  2. May 25, 2021 at 4:00 PM
    #2
    Ruminator

    Ruminator Chairman of the Bored

    Joined:
    Feb 13, 2018
    Member:
    #244300
    Messages:
    1,846
    Gender:
    Male
    First Name:
    Mark
    Northern Illinois, USA
    Vehicle:
    2017 Red TRD-Sport, ACLB, MT!!!
    Lots of good stuff.
    Bless you. You are doing the lord's work. Via con dios, amigo. :thumbsup:

    Tacospike and AbnMP13 like this.
  3. May 25, 2021 at 8:08 PM
    #3
    ljh824

    ljh824 Regular Guy

    Joined:
    May 8, 2012
    Member:
    #78409
    Messages:
    476
    Gender:
    Male
    First Name:
    Lou
    Kabul, Afghanistan / Oviedo, Florida
    Vehicle:
    -21 AG Sport 4x4 DC
    Dave, apologies. Had to go out of town at the last minute. Wife dropped the box off today to ship. I was able to identify which relay belongs to the LED and the DRL. I marked them appropriately with a silver sharpie. Really can’t thank you enough for figuring this out. I’m in the field training so I’ll be on and off the net for the next few days. Standing by for whatever else you need on this end. Lou

    Last edited: May 25, 2021
  4. May 25, 2021 at 8:13 PM
    #4
    stay_tuned

    stay_tuned Well-Known Member

    Joined:
    Dec 30, 2020
    Member:
    #351077
    Messages:
    198
    Gender:
    Male
    First Name:
    Bryan
    DMV
    Vehicle:
    2021 Tacoma OffRoad DCSB 6SPD BRM
    following for DD SSC2 similar to the rough country idea :bowdown:

  5. May 25, 2021 at 8:33 PM
    #5
    RadioTaco

    RadioTaco Well-Known Member

    Joined:
    Feb 21, 2020
    Member:
    #319945
    Messages:
    117
    SoCal
    Vehicle:
    2019 MGM TRD OR DCSB
    Stock Suspension nothing fancy. CB and HAM Radio Mods.
    I’m interested in the SwitchPros trigger feeds. Just longer wires?

  6. May 25, 2021 at 8:37 PM
    #6
    daveeasa

    daveeasa [OP] Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    2,280
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT
    I don't think @ktbell444 has completely decided yet but the idea as I see it for them is

    1. DRL, Parking Light, High Beam and Ground tap (he has LED headlights but this could be done for halogen just the same)
    2. Output for grille lights feeding 2 pin amp female with included solderless butt connectors and heat shrink to feed rapture lights (same as my OEM LED headlight conversion)
    3. Either one of the below to feed the Switch-Pros white and pink wires via solderless butt connectors
      1. Three pin amp with high beam, parking light and DRL
      2. Two pin amp with high beam and parking light
    Unfortunately I have no help for an ignition tap right now, nothing that I know if is plug and play for the light blue wire :(

    JaCado likes this.
  7. May 25, 2021 at 8:42 PM
    #7
    ktbell444

    ktbell444 As lost as a lieutenant during land nav

    Joined:
    Aug 8, 2017
    Member:
    #226306
    Messages:
    1,292
    Gender:
    Male
    First Name:
    Karl
    GA / FL
    Vehicle:
    2020 Tacoma TRD Pro - Army Green
    Waiting to hear back from the other person still.
    I did send the message though.

    Ignition would be nice. If I can find a way to remove the fuse box in the engine compartment, I could give that tap a try that you mentioned to me in our conversation.

    daveeasa [OP] likes this.
  8. May 25, 2021 at 9:56 PM
    #8
    Zumozuzu7

    Zumozuzu7 Member

    Joined:
    May 20, 2021
    Member:
    #366300
    Messages:
    24
    Gender:
    Male
    Vehicle:
    2021 Black Tacoma Sport
    @daveeasa Let me know if you need anything else from me! Thanks again cause after looking though Google there wasn’t much hope. First time reaching out on a forum but def won’t be my last. Thanks Dave!!!

  9. May 25, 2021 at 10:05 PM
    #9
    daveeasa

    daveeasa [OP] Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    2,280
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT
    So, are you all set with the info or did you want to get in on the DRL harness I'm intending to build?

  10. May 25, 2021 at 10:13 PM
    #10
    Zumozuzu7

    Zumozuzu7 Member

    Joined:
    May 20, 2021
    Member:
    #366300
    Messages:
    24
    Gender:
    Male
    Vehicle:
    2021 Black Tacoma Sport
    DRL harness for sure!!

    daveeasa [OP] likes this.
  11. May 26, 2021 at 4:03 AM
    #11
    Toolndie7

    Toolndie7 Member

    Joined:
    Mar 29, 2021
    Member:
    #360924
    Messages:
    11
    Gender:
    Male
    Vehicle:
    2019 Sport DCSB Cavalry Blue
    Thanks @daveeasa But I think I am all set with my current configuration. I just need to sort out the backlighting on my switch and I will be happy.

    daveeasa [OP] likes this.
  12. May 26, 2021 at 9:45 AM
    #12
    JJD92

    JJD92 Well-Known Member

    Joined:
    Apr 13, 2020
    Member:
    #324631
    Messages:
    135
    Gender:
    Male
    First Name:
    JORGE
    Springfield, MA
    Vehicle:
    2020 TRD OR DCSB
    Following for updates.

  13. May 27, 2021 at 3:36 AM
    #13
    KA19Taco

    KA19Taco Well-Known Member

    Joined:
    Mar 25, 2021
    Member:
    #360572
    Messages:
    69
    Gender:
    Male
    Vehicle:
    2019 TRD OFFROAD
    Readylift 3/2 Icon Wheels LED Headlights
    Sub’d

  14. May 29, 2021 at 10:48 PM
    #14
    daveeasa

    daveeasa [OP] Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    2,280
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT
    Shipped out this weekend:

    2nd Gen DIR prototype
    Grille light harness

    I have received all of the parts I had been waiting on and even received my bulk relay connector order which I placed several months ago. So now it’s time to get to work.

    However, I am helping my brother in law haul 9 horses to Seattle, returning late Wednesday evening. So the next few days will see no action.

    ktbell444 and RyanDCLB like this.
  15. May 29, 2021 at 11:17 PM
    #15
    Hogbaseball06

    Hogbaseball06 Well-Known Member

    Joined:
    Apr 26, 2021
    Member:
    #363955
    Messages:
    96
    Gender:
    Male
    Vehicle:
    2021 Cement Trail Ed.
    following.

  16. May 29, 2021 at 11:57 PM
    #16
    6MT

    6MT Well-Known Member

    Joined:
    Sep 10, 2020
    Member:
    #340348
    Messages:
    95
    Gender:
    Male
    First Name:
    Greg
    Vehicle:
    2020 TRD OR DCSB 6MT
    Sub'd for pre-made kicker key harness

  17. May 30, 2021 at 12:01 AM
    #17
    Puppypunter

    Puppypunter Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    1,336
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    Damn, I am way behind. :D

    For anyone reading this, Dave does great work! Glad to see this taking off! Now, lets get him a challenge.... :rofl:

    ktbell444 likes this.
  18. May 30, 2021 at 7:02 AM
    #18
    daveeasa

    daveeasa [OP] Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    2,280
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT
    @Puppypunter , would you perhaps delight in the analysis for this one? I think someone else asked for this as well and we were unsure on some things? Was it discussion in the idea hole? I can’t remember if we settled on a design.

    In general I think the idea is, we hash out the design in the idea hole and when we know what it is we need to build then I track status here. Mostly because I much prefer to build something which has gone through peer review than any hair brained off-the-cuff guesses. Discussion will be more productive in Johnny’s thread.

  19. May 30, 2021 at 7:22 AM
    #19
    Puppypunter

    Puppypunter Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    1,336
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    Always happy to help :) I’ll meet you over in the hole....

  20. Jun 3, 2021 at 12:05 AM
    #20
    daveeasa

    daveeasa [OP] Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    2,280
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT

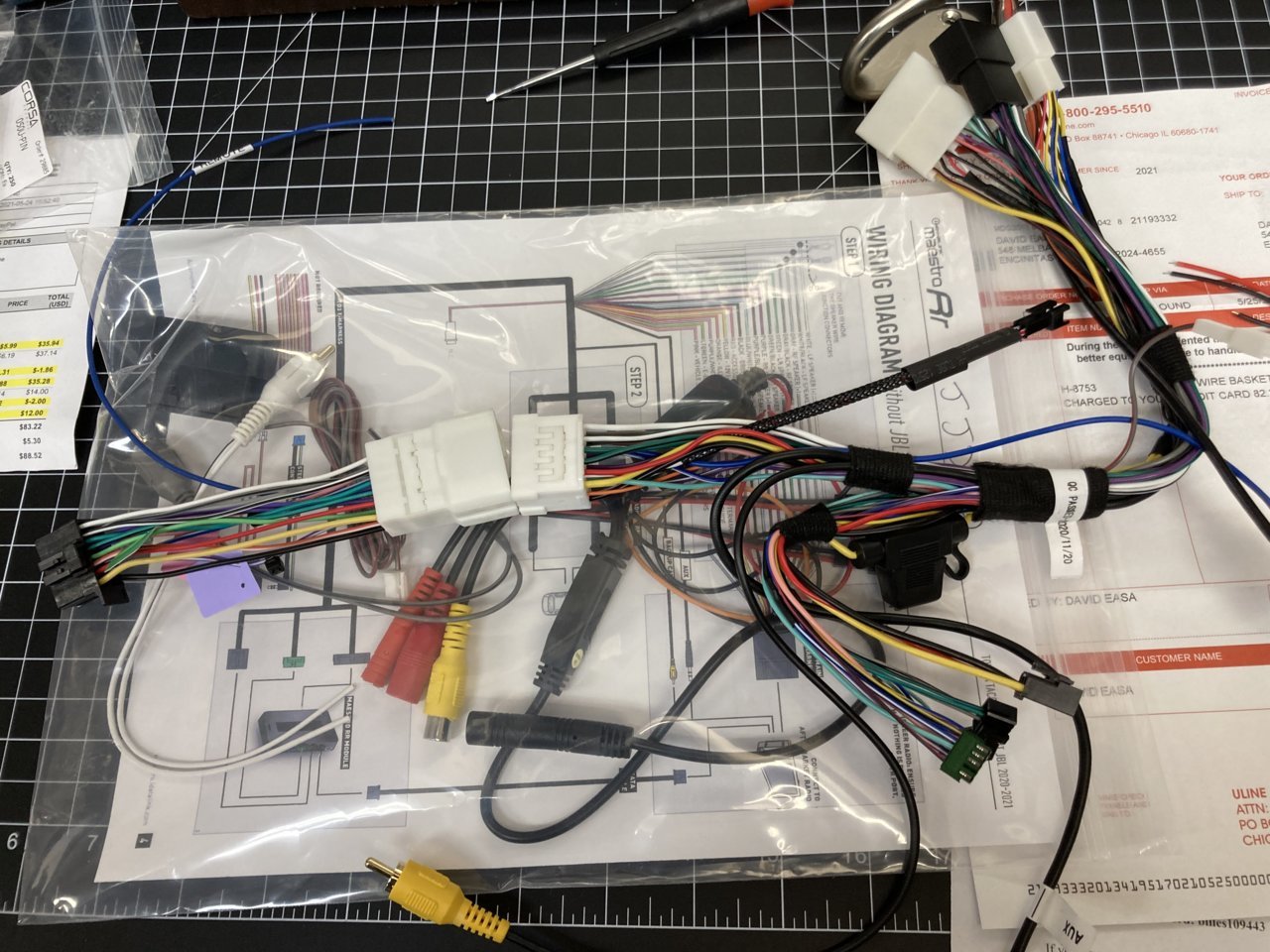

    Got @JJD92 ’s harness ready to go. In retrospect I probably ought to have arranged the pin outs slightly differently to put the 3 extra leads for power, ground and remote turn all together.
