CV Axle oil seal LH vs RH?

Discussion in '2nd Gen. Tacomas (2005-2015)' started by swiftjames, Jan 29, 2023.

  1. Jan 29, 2023 at 6:38 PM
    #1
    swiftjames

    swiftjames [OP] Member

    Joined:
    May 30, 2022
    Member:
    #398357
    Messages:
    5
    Hey all--

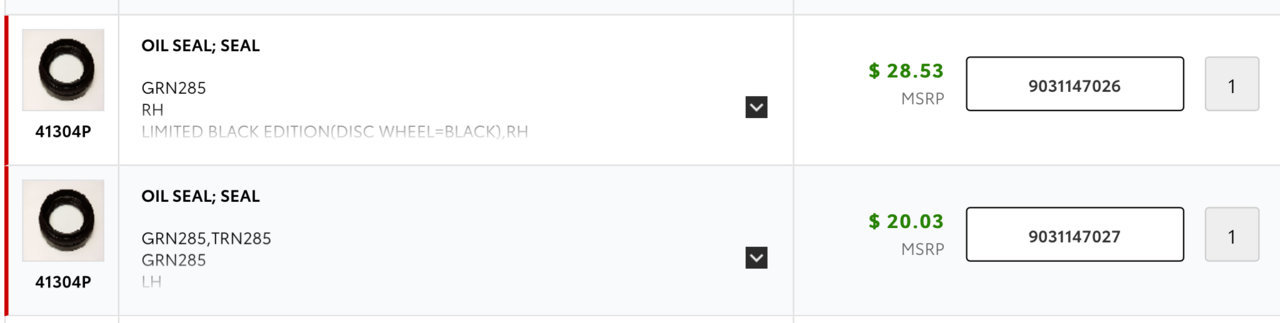

    I spent the weekend pulling my CV axles and rebooting them. I bought two oil seals part#9031147026 (41304P in diagram). When I pulled the passenger side though, the seal is completely different. From a previous thread (https://www.tacomaworld.com/threads/cv-axle-seal.427102/page-2) this part looks to be #90311-47013. But when I put that part number in the toyota parts site, it comes up as non compatible with my 2015 Tacoma 4.0L M/T 4WD EXTRA CAB. Is the parts diagram wrong? I bought my truck used--does this mean someone swapped out the housing that the passenger side CV axle goes into?
    Thanks!
    [​IMG]

  2. Jan 29, 2023 at 7:23 PM
    #2
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    18,161
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    Here is what I get for a 2015.
    No idea why the #s are different for 2015.


  3. Jan 29, 2023 at 7:46 PM
    #3
    mk5

    mk5 Probably wrong about this

    Joined:
    Mar 15, 2018
    Member:
    #247373
    Messages:
    1,305
    Gender:
    Male
    SoCal
    Vehicle:
    '05 access cab 4x4
  4. Jan 29, 2023 at 8:23 PM
    #4
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    18,161
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    @Jeff Lange

    Anyway you can verify what one fits the 2015 models?

  5. Jan 29, 2023 at 8:26 PM
    #5
    Kwikvette

    Kwikvette Chief Executive Officer at Kwik Fab

    Joined:
    Feb 27, 2019
    Member:
    #284735
    Messages:
    71,135
    Gender:
    Male
    Stock
    Interesting

    Those are the part numbers in my sig for a 1st Gen Taco/3rd Gen 4R

    Didn't realize they were the same for a 2nd Gen Taco

  6. Jan 29, 2023 at 8:55 PM
    #6
    6 gearT444E

    6 gearT444E Certified Electron Pusher

    Joined:
    Feb 3, 2018
    Member:
    #243372
    Messages:
    7,566
    Deep South
    Herculiner Hootus
    One pops into the side shaft of the differential and the other goes into an ADD tube, they are different parts. The part #s for a 2015 will be the same for an 05

  7. Jan 29, 2023 at 9:06 PM
    #7
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    18,161
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    Thanks.
    I looked the parts up on Toyota and sure enough, as OP said, they only list the 2005-2014.
    They must have forgotten to add 2015.

  8. Jan 30, 2023 at 4:29 PM
    #8
    Jeff Lange

    Jeff Lange Well-Known Member

    Joined:
    May 19, 2015
    Member:
    #155616
    Messages:
    2,235
    Calgary, Canada
    Vehicle:
    '86 AE86, '05 NCP13, '11 GSE21
    The actual answer lies in which plant produced the differential itself, as there were different part numbers depending on the supplier. Frequently in cases like that one will be chosen as the prime after-sales supplier and the other will be replaced in the parts supply system. That sometimes happens right away, sometimes happens later while the vehicle is still in production, sometimes after production ends, and sometimes it never does.

    The answer is that they're all interchangeable, but here are the actual part numbers and what is supplied by Toyota in North America:

    90311-47010 - RH for 1995-2004 (Replaced by 90311-47013)
    90311-47011 - LH for 1995-2004 (Replaced by 90311-47027)
    90311-47012 - LH for all 2005-2010 and early 2011, and some 2011-2013 trucks from April 2011 production (Replaced by 90311-47027)
    90311-47013 - RH for all 2005-2010 and early 2011, and some 2011-2013 trucks from April 2011 production
    90311-47020 - LH for some 2011-2013 trucks from April 2011 production (Replaced by 90311-47027)
    90311-47021 - RH for some 2011-2013 trucks from April 2011 production (Replaced by 90311-47026)
    90311-47026 - RH for all 2014-2023
    90311-47027 - LH for all 2014-2023

    So to answer your question, 90311-47026 and 90311-47027 are the correct seals for your 2015 Tacoma, and will fit any Tacoma from 1995-2023.

    Jeff

  9. Jan 30, 2023 at 4:45 PM
    #9
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    18,161
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    Now that is a detailed parts list. :eek:

    Thank you sir.

  10. Jan 30, 2023 at 5:16 PM
    #10
    swiftjames

    swiftjames [OP] Member

    Joined:
    May 30, 2022
    Member:
    #398357
    Messages:
    5
    TnShooter likes this.
  11. Jan 30, 2023 at 6:24 PM
    #11
    6 gearT444E

    6 gearT444E Certified Electron Pusher

    Joined:
    Feb 3, 2018
    Member:
    #243372
    Messages:
    7,566
    Deep South
    Herculiner Hootus
    the snap rings hold the half shaft in the add tube. They aren’t outside the oil seal but that’s just how they drew them.

  12. Jan 31, 2023 at 9:09 PM
    #12
    swiftjames

    swiftjames [OP] Member

    Joined:
    May 30, 2022
    Member:
    #398357
    Messages:
    5
    TnShooter and 6 gearT444E like this.
  13. Feb 1, 2023 at 4:46 AM
    #13
    FishaRnekEd

    FishaRnekEd Well-Known Member

    Joined:
    Dec 11, 2013
    Member:
    #118381
    Messages:
    1,431
    Gender:
    Male
    New Orleans, LA
    Vehicle:
    2005 4.0 6spd 4x4 Dbl Cb short bed
    Sub'd to recall part number list.

    Thanks

  14. May 22, 2024 at 9:24 AM
    #14
    sikTacos

    sikTacos Well-Known Member

    Joined:
    Feb 16, 2017
    Member:
    #210743
    Messages:
    303
    Gender:
    Male
    First Name:
    Eric
    SoCal
    Vehicle:
    2Gen Tacoma (DC/LB/4X4)
  15. May 22, 2024 at 9:41 AM
    #15
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    18,161
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    sikTacos[QUOTED] likes this.
  16. May 22, 2024 at 3:31 PM
    #16
    fatfurious2

    fatfurious2 IG: great_white_taco

    Joined:
    Jun 28, 2014
    Member:
    #132884
    Messages:
    48,719
    Gender:
    Male
    First Name:
    David
    Ashburn, VA
    Vehicle:
    2010 TRD OR Access Cab

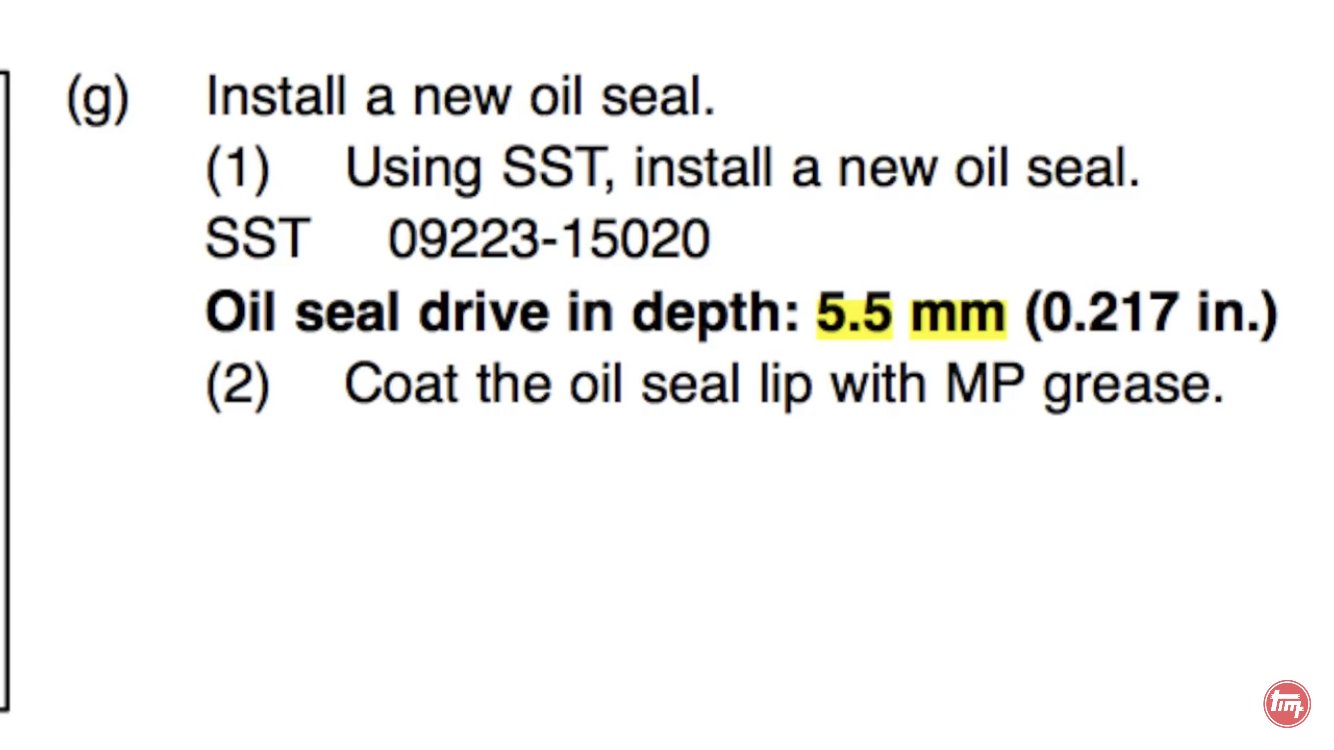

    Remember the driver's side will stop at a lip in the diff. It will be difficult to drive the seal in too far.

    Passenger side you will need to measure it. 5.5mm all the way around. That is why people recommend buying 2, in case you mess up and go too far. It will leak.


    deanosaurus likes this.
