CV Axle Seal Install Issue - Thoughts?

Discussion in 'Technical Chat' started by sventi, Aug 23, 2019.

  1. Aug 23, 2019 at 6:57 AM
    #1
    sventi

    sventi [OP] Member

    Joined:
    Apr 15, 2018
    Member:
    #250617
    Messages:
    18
    Gender:
    Male
    NH
    Vehicle:
    2010 Tacoma AC 4x4
    RTT
    This week I replaced the factory needle bearing on the front of my truck with the @ECGS bushing. Everything went rather smoothly considering this is the first time I've ever even pulled a CV axle.

    My trouble started when I tried getting a new OEM seal back into the differential. I was using a 2" PVC fitting with a bushing and seal driver set to drive the new seal in. The first seal required a good amount of force with a hammer to even start going in. Just as I thought I was at the last hit one side of the new seal became deformed as if it was never sliding into the seat correctly. I didn't feel that was going to work so pulled it back out. The seat for the seal has some slight corrosion so I knocked that down some with a minor abrasive before a second attempt with a second new seal.

    The second attempt was going smoothly until just at the end when a larger section at the top of the new seal became deformed as the first seal had. At this point, it was installed so I've left it in, reassembled the truck, and topped off differential fluid.

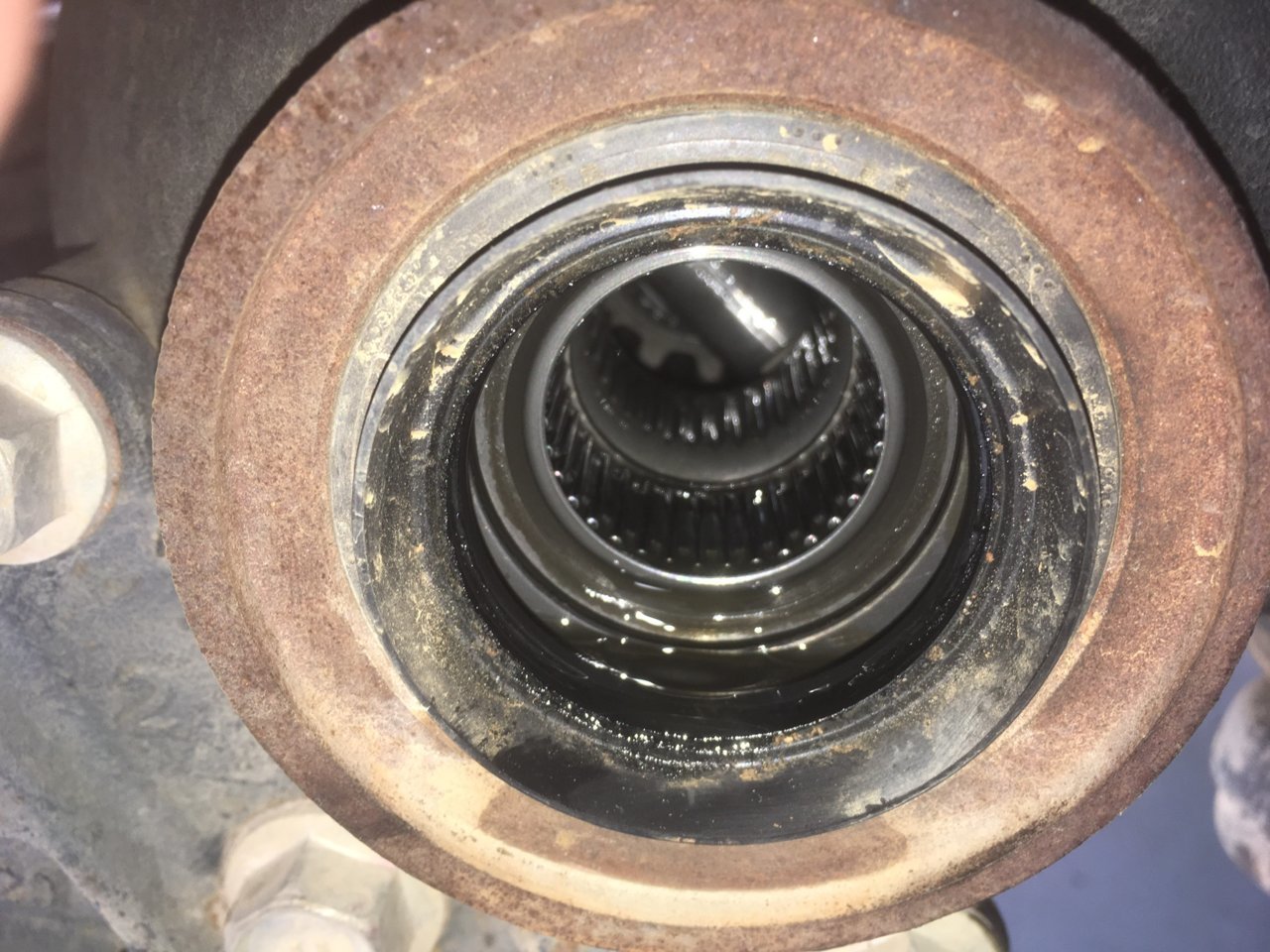

    This is how the seal looks. It held for the drive to work this morning and everything feels normal. Should I take the truck in and have my shop attempt getting another new seal in and seated correctly or drive it as is until any leaks occur?


  2. Aug 23, 2019 at 7:40 PM
    #2
    6 gearT444E

    6 gearT444E CEO & CFO @BPF

    Joined:
    Feb 3, 2018
    Member:
    #243372
    Messages:
    1,482
    Deep South
    Herculiner Hootus
    If it ain't leaking I'd leave it alone. That doesn't look good to me though, you sure you ordered the correct seal? The driver and passenger side have different part numbers

  3. Aug 23, 2019 at 7:43 PM
    #3
    anthony250f

    anthony250f Well-Known Member

    Joined:
    Feb 18, 2012
    Member:
    #73066
    Messages:
    15,932
    Gender:
    Male
    First Name:
    Anthony
    San Diego, CA
    Vehicle:
    2008 dcsb trd offroad 4wd
    I don’t even see how that is a possibility

    sventi [OP] likes this.
  4. Aug 24, 2019 at 6:21 AM
    #4
    JJ04TACO

    JJ04TACO Well-Known Member

    Joined:
    Oct 12, 2013
    Member:
    #114311
    Messages:
    1,008
    Gender:
    Male
    First Name:
    Jim
    Dallas
    Vehicle:
    04 White DC/TRD
    Fox 2.5 RR front, 2.0 RR rear from AccuTune Offroad, OME Dakar Leafs, Camburg Uniball UCA's, CBI Offroad Bolt on Sliders w/kickout, Scangauge II Uniden Bearcat 880 w/ 3' Firestick on CBI antenna mount B&M Trans Cooler
    That just flat sucks. I hate it when you pull it all apart and it goes sideways.

    It will likely leak, and it needs to be done correctly. Just my two cents.

    Sorry man.

  5. Aug 24, 2019 at 6:30 AM
    #5
    1rooster

    1rooster TACOMA31750

    Joined:
    Jun 14, 2010
    Member:
    #38925
    Messages:
    976
    Gender:
    Male
    Georgia
    Vehicle:
    2007 Tundra crewmax
    5100's ALL WAY AROUND, 885X COILS, DRIVER SIDE LEAN SPACER, ICON PROGRESSIVE AAL W/O OVERLOAD, 265/75/16 KENDA KLEVER M/T. 1 1/4 SPIDERTRAC WHEEL SPACERS, GEN 1 TRD COLD AIR INTAKE, STOCK MUFFLER WITH CHOPPED TURNDOWN, 5% TINT OVER FACTORY, DEBADGED, TOYOTA RUBBER BED MAT, WEATHERTECH MATS,UWS TOOLBOX, UNDERCOVER SE, LOCKER MOD, REAR BUMPER, PIONEER DOUBLE DIN WITH PARKING BREAK OVER RIDE, CUSTOM OIL CATCH CAN, FULL LED INTERIOR, ARB BUMPER REPLACEMENT. COVERKING SEAT COVERS. MORIMOTO H1 MINI COVERSION WITH MINI GATLIN GUN SHROUDS AND 5000K MORIMOTO BULBS. TRAILER PLUG RELOCTED TO BUMPER. 20 INCH LED LIGHTBAR MOUNTED BEHIND CUSTOM PAINTED GRILL. STUBBY ATNENNA
    I just replaced my seals last week and recall them going in pretty smooth. I also used a pvc fitting to install. What brand of seals did you use?

  6. Aug 25, 2019 at 4:56 PM
    #6
    sventi

    sventi [OP] Member

    Joined:
    Apr 15, 2018
    Member:
    #250617
    Messages:
    18
    Gender:
    Male
    NH
    Vehicle:
    2010 Tacoma AC 4x4
    RTT
    I'm pretty sure that was the correct seal (# 90311-47027). Can you confirm that?

    It is a huge pain. The truck did hold up fine for my camping trip this weekend however with no leaking. I had a piece of cardboard under that area every time we were parked.

    They are OEM seals from the local dealer.

    What are everyone's thoughts on how to best clean the seal seat if I end up taking it apart again to install another new one? Also whats the best type of assembly lubrication to use?

  7. Aug 26, 2019 at 6:19 PM
    #7
    6 gearT444E

    6 gearT444E CEO & CFO @BPF

    Joined:
    Feb 3, 2018
    Member:
    #243372
    Messages:
    1,482
    Deep South
    Herculiner Hootus
    Looks like you have the right P/N, 90311-47027 replaces 90311-47012 which is the drivers side. 90311-47012 is the passenger side

  8. Aug 27, 2019 at 5:35 AM
    #8
    Blue Truck

    Blue Truck Well-Known Member

    Joined:
    Jan 28, 2019
    Member:
    #280939
    Messages:
    95
    Gender:
    Male
    In the few I have done I have not had much trouble with the drivers side but I have had to do passenger side twice because of what you describe here.

  9. Nov 2, 2019 at 11:09 AM
    #9
    Blondie583

    Blondie583 Well-Known Member

    Joined:
    Sep 29, 2019
    Member:
    #306614
    Messages:
    105
    Gender:
    Male
    First Name:
    Dave
    New York
    Vehicle:
    2010 reg cab tacoma
    3" front, 2" rear plus helper springs. Plow frame. New frame from toyota. New wheel bearings, upper ball joints, universal joints, headlights. rattle can paint job on the grill, tail gate and rims.
    Can anyone help straighten me out on the front axle seals? I looked these up at auto zone and found the seal mentioned here for the drivers side but I dont see anything similar for the passengers side. They list inner and outer cv axle seals that all look similar. There metal banded with rubber and a spring on the inside of the band. The outers I've got. They came with the new wheel bearings I replaced but I'm not understanding how the inners work. Are there two seals on each side of the diff? One all rubber and one with the steal band? Are they different drivers side to passengers side? I'd hate to tear my truck apart and find I dont have the right thing to complete the job.

  10. Nov 2, 2019 at 3:37 PM
    #10
    6 gearT444E

    6 gearT444E CEO & CFO @BPF

    Joined:
    Feb 3, 2018
    Member:
    #243372
    Messages:
    1,482
    Deep South
    Herculiner Hootus
    The outer seals are the same for both side. There is also a dust shield on the cv on both the inner and outer cv axle. So in total there are 4 “seals” for the front end. The only ones that are side specific are the driver and passenger differential seals aka the inner seals.

  11. Nov 2, 2019 at 3:55 PM
    #11
    1rooster

    1rooster TACOMA31750

    Joined:
    Jun 14, 2010
    Member:
    #38925
    Messages:
    976
    Gender:
    Male
    Georgia
    Vehicle:
    2007 Tundra crewmax
    5100's ALL WAY AROUND, 885X COILS, DRIVER SIDE LEAN SPACER, ICON PROGRESSIVE AAL W/O OVERLOAD, 265/75/16 KENDA KLEVER M/T. 1 1/4 SPIDERTRAC WHEEL SPACERS, GEN 1 TRD COLD AIR INTAKE, STOCK MUFFLER WITH CHOPPED TURNDOWN, 5% TINT OVER FACTORY, DEBADGED, TOYOTA RUBBER BED MAT, WEATHERTECH MATS,UWS TOOLBOX, UNDERCOVER SE, LOCKER MOD, REAR BUMPER, PIONEER DOUBLE DIN WITH PARKING BREAK OVER RIDE, CUSTOM OIL CATCH CAN, FULL LED INTERIOR, ARB BUMPER REPLACEMENT. COVERKING SEAT COVERS. MORIMOTO H1 MINI COVERSION WITH MINI GATLIN GUN SHROUDS AND 5000K MORIMOTO BULBS. TRAILER PLUG RELOCTED TO BUMPER. 20 INCH LED LIGHTBAR MOUNTED BEHIND CUSTOM PAINTED GRILL. STUBBY ATNENNA
    Yeah the inner seals are different. One is all rubber and the other has a metal outside.

  12. Nov 2, 2019 at 4:00 PM
    #12
    1rooster

    1rooster TACOMA31750

    Joined:
    Jun 14, 2010
    Member:
    #38925
    Messages:
    976
    Gender:
    Male
    Georgia
    Vehicle:
    2007 Tundra crewmax
    5100's ALL WAY AROUND, 885X COILS, DRIVER SIDE LEAN SPACER, ICON PROGRESSIVE AAL W/O OVERLOAD, 265/75/16 KENDA KLEVER M/T. 1 1/4 SPIDERTRAC WHEEL SPACERS, GEN 1 TRD COLD AIR INTAKE, STOCK MUFFLER WITH CHOPPED TURNDOWN, 5% TINT OVER FACTORY, DEBADGED, TOYOTA RUBBER BED MAT, WEATHERTECH MATS,UWS TOOLBOX, UNDERCOVER SE, LOCKER MOD, REAR BUMPER, PIONEER DOUBLE DIN WITH PARKING BREAK OVER RIDE, CUSTOM OIL CATCH CAN, FULL LED INTERIOR, ARB BUMPER REPLACEMENT. COVERKING SEAT COVERS. MORIMOTO H1 MINI COVERSION WITH MINI GATLIN GUN SHROUDS AND 5000K MORIMOTO BULBS. TRAILER PLUG RELOCTED TO BUMPER. 20 INCH LED LIGHTBAR MOUNTED BEHIND CUSTOM PAINTED GRILL. STUBBY ATNENNA
    I just rebuilt the front end of this fj just a few days ago with all new cv’s and seals and a new ome lift. The driver side has the smaller seal and the passenger side has the larger metal one.710A9990-CAD7-451A-98CA-262CB2A651C6.jpg

  13. Nov 2, 2019 at 4:00 PM
    #13
    1rooster

    1rooster TACOMA31750

    Joined:
    Jun 14, 2010
    Member:
    #38925
    Messages:
    976
    Gender:
    Male
    Georgia
    Vehicle:
    2007 Tundra crewmax
    5100's ALL WAY AROUND, 885X COILS, DRIVER SIDE LEAN SPACER, ICON PROGRESSIVE AAL W/O OVERLOAD, 265/75/16 KENDA KLEVER M/T. 1 1/4 SPIDERTRAC WHEEL SPACERS, GEN 1 TRD COLD AIR INTAKE, STOCK MUFFLER WITH CHOPPED TURNDOWN, 5% TINT OVER FACTORY, DEBADGED, TOYOTA RUBBER BED MAT, WEATHERTECH MATS,UWS TOOLBOX, UNDERCOVER SE, LOCKER MOD, REAR BUMPER, PIONEER DOUBLE DIN WITH PARKING BREAK OVER RIDE, CUSTOM OIL CATCH CAN, FULL LED INTERIOR, ARB BUMPER REPLACEMENT. COVERKING SEAT COVERS. MORIMOTO H1 MINI COVERSION WITH MINI GATLIN GUN SHROUDS AND 5000K MORIMOTO BULBS. TRAILER PLUG RELOCTED TO BUMPER. 20 INCH LED LIGHTBAR MOUNTED BEHIND CUSTOM PAINTED GRILL. STUBBY ATNENNA
  14. Nov 2, 2019 at 4:02 PM
    #14
    Robb2000taco

    Robb2000taco New Member

    Joined:
    Nov 1, 2019
    Member:
    #309644
    Messages:
    3
    Gender:
    Male
    First Name:
    Robb
    Vehicle:
    2000 tacoma 4x4 3.4
    stock
    I just did this on my 2000 taco , I replaced both axles and put new seals in the drivers side seal went in great no problems no leaks , the passenger side seal was a pain in the a@@ the 1st seal , I put in leaked like crazy I bought two new seals from Napa and double sealed there was plenty of room for 2 seals so far so good that was like 6 months ago I have the ADD front end .

  15. Nov 2, 2019 at 4:21 PM
    #15
    Blondie583

    Blondie583 Well-Known Member

    Joined:
    Sep 29, 2019
    Member:
    #306614
    Messages:
    105
    Gender:
    Male
    First Name:
    Dave
    New York
    Vehicle:
    2010 reg cab tacoma
    3" front, 2" rear plus helper springs. Plow frame. New frame from toyota. New wheel bearings, upper ball joints, universal joints, headlights. rattle can paint job on the grill, tail gate and rims.
    Ok, thanks folks.

  16. Nov 2, 2019 at 8:37 PM
    #16
    stefanlg55

    stefanlg55 Toyota Master Technician

    Joined:
    Jan 27, 2018
    Member:
    #242605
    Messages:
    194
    Gender:
    Male
    Vehicle:
    2008 Tacoma TRD OffRoad
    The outside rubber coating on the seal peeled off and rolled over on itself. You need to use come emery cloth to clean up the rust ridge where the seal goes and install a new gasket if its not already leaking yet.

    sventi [OP] likes this.
  17. Nov 21, 2019 at 9:45 AM
    #17
    sventi

    sventi [OP] Member

    Joined:
    Apr 15, 2018
    Member:
    #250617
    Messages:
    18
    Gender:
    Male
    NH
    Vehicle:
    2010 Tacoma AC 4x4
    RTT

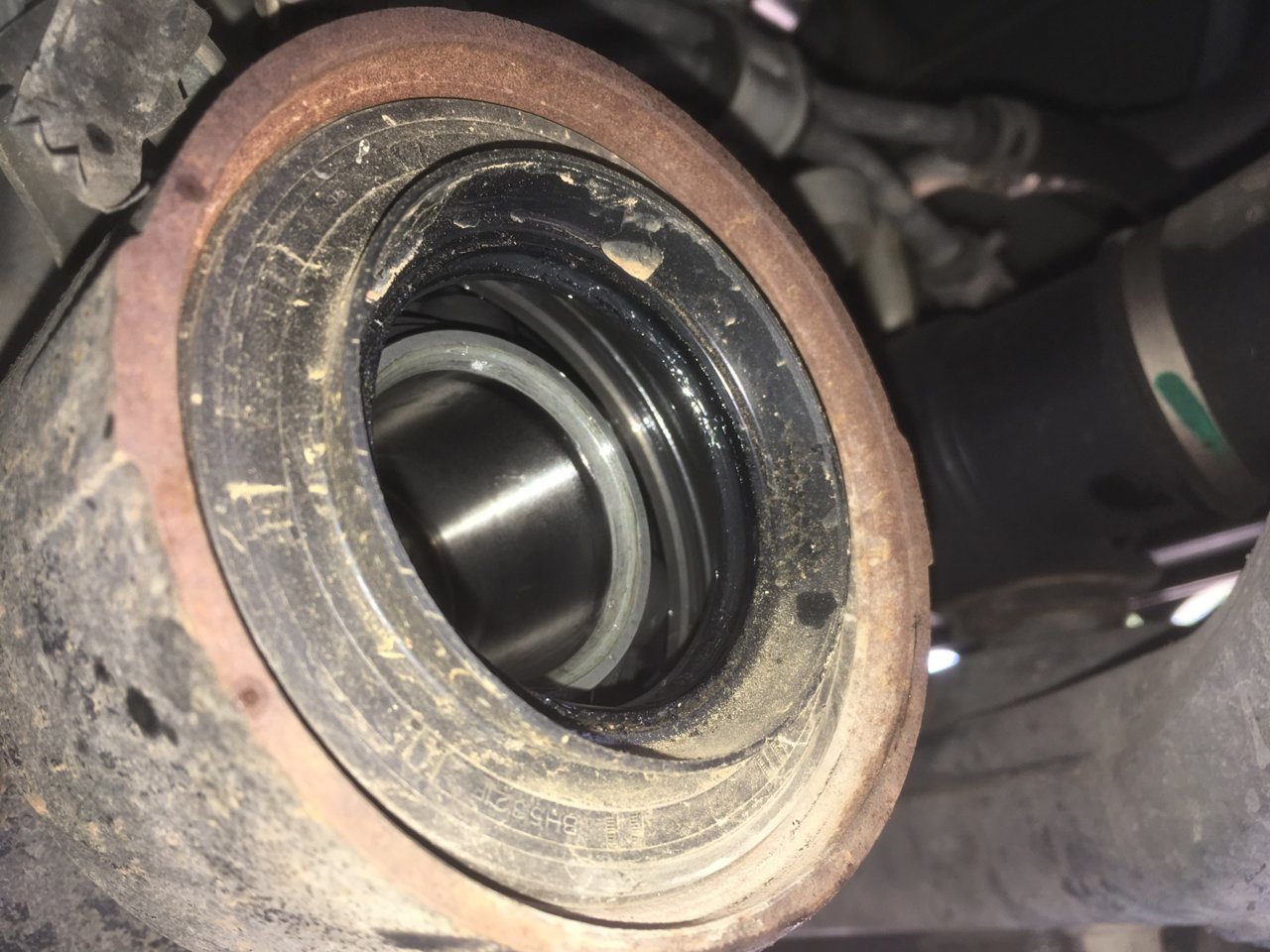

    The seal has been holding up as shown in the picture without leaking. I plan on checking the fluid level this weekend. If everything looks alright I might just run this seal until it becomes a problem...or warmer weather comes around again.

  18. Nov 21, 2019 at 9:55 AM
    #18
    1rooster

    1rooster TACOMA31750

    Joined:
    Jun 14, 2010
    Member:
    #38925
    Messages:
    976
    Gender:
    Male
    Georgia
    Vehicle:
    2007 Tundra crewmax
    5100's ALL WAY AROUND, 885X COILS, DRIVER SIDE LEAN SPACER, ICON PROGRESSIVE AAL W/O OVERLOAD, 265/75/16 KENDA KLEVER M/T. 1 1/4 SPIDERTRAC WHEEL SPACERS, GEN 1 TRD COLD AIR INTAKE, STOCK MUFFLER WITH CHOPPED TURNDOWN, 5% TINT OVER FACTORY, DEBADGED, TOYOTA RUBBER BED MAT, WEATHERTECH MATS,UWS TOOLBOX, UNDERCOVER SE, LOCKER MOD, REAR BUMPER, PIONEER DOUBLE DIN WITH PARKING BREAK OVER RIDE, CUSTOM OIL CATCH CAN, FULL LED INTERIOR, ARB BUMPER REPLACEMENT. COVERKING SEAT COVERS. MORIMOTO H1 MINI COVERSION WITH MINI GATLIN GUN SHROUDS AND 5000K MORIMOTO BULBS. TRAILER PLUG RELOCTED TO BUMPER. 20 INCH LED LIGHTBAR MOUNTED BEHIND CUSTOM PAINTED GRILL. STUBBY ATNENNA
    so you put two seals on one side??
    Like beat one in all the way and them beat another one in ?

  19. Nov 21, 2019 at 9:55 AM
    #19
    1rooster

    1rooster TACOMA31750

    Joined:
    Jun 14, 2010
    Member:
    #38925
    Messages:
    976
    Gender:
    Male
    Georgia
    Vehicle:
    2007 Tundra crewmax
    5100's ALL WAY AROUND, 885X COILS, DRIVER SIDE LEAN SPACER, ICON PROGRESSIVE AAL W/O OVERLOAD, 265/75/16 KENDA KLEVER M/T. 1 1/4 SPIDERTRAC WHEEL SPACERS, GEN 1 TRD COLD AIR INTAKE, STOCK MUFFLER WITH CHOPPED TURNDOWN, 5% TINT OVER FACTORY, DEBADGED, TOYOTA RUBBER BED MAT, WEATHERTECH MATS,UWS TOOLBOX, UNDERCOVER SE, LOCKER MOD, REAR BUMPER, PIONEER DOUBLE DIN WITH PARKING BREAK OVER RIDE, CUSTOM OIL CATCH CAN, FULL LED INTERIOR, ARB BUMPER REPLACEMENT. COVERKING SEAT COVERS. MORIMOTO H1 MINI COVERSION WITH MINI GATLIN GUN SHROUDS AND 5000K MORIMOTO BULBS. TRAILER PLUG RELOCTED TO BUMPER. 20 INCH LED LIGHTBAR MOUNTED BEHIND CUSTOM PAINTED GRILL. STUBBY ATNENNA
    That is good to hear! Maybe it was only cosmetic then

    sventi [OP] likes this.
