CV axle trouble

Discussion in '1st Gen. Tacomas (1995-2004)' started by 2000Taco4cly, Apr 24, 2020.

  1. Apr 24, 2020 at 11:30 AM
    #1
    2000Taco4cly

    2000Taco4cly [OP] Member

    Joined:
    Apr 24, 2020
    Member:
    #325698
    Messages:
    22
    Gender:
    Male

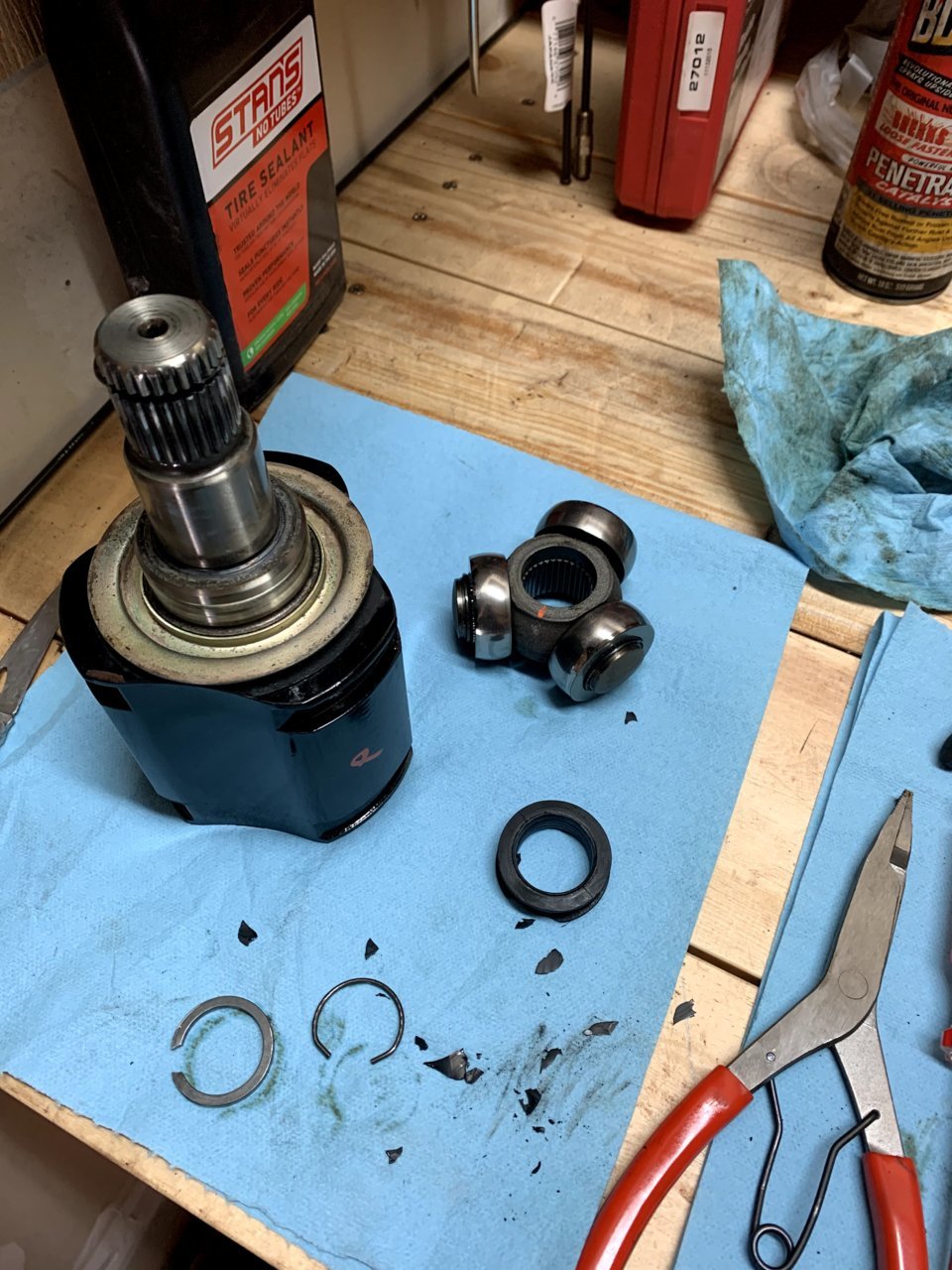

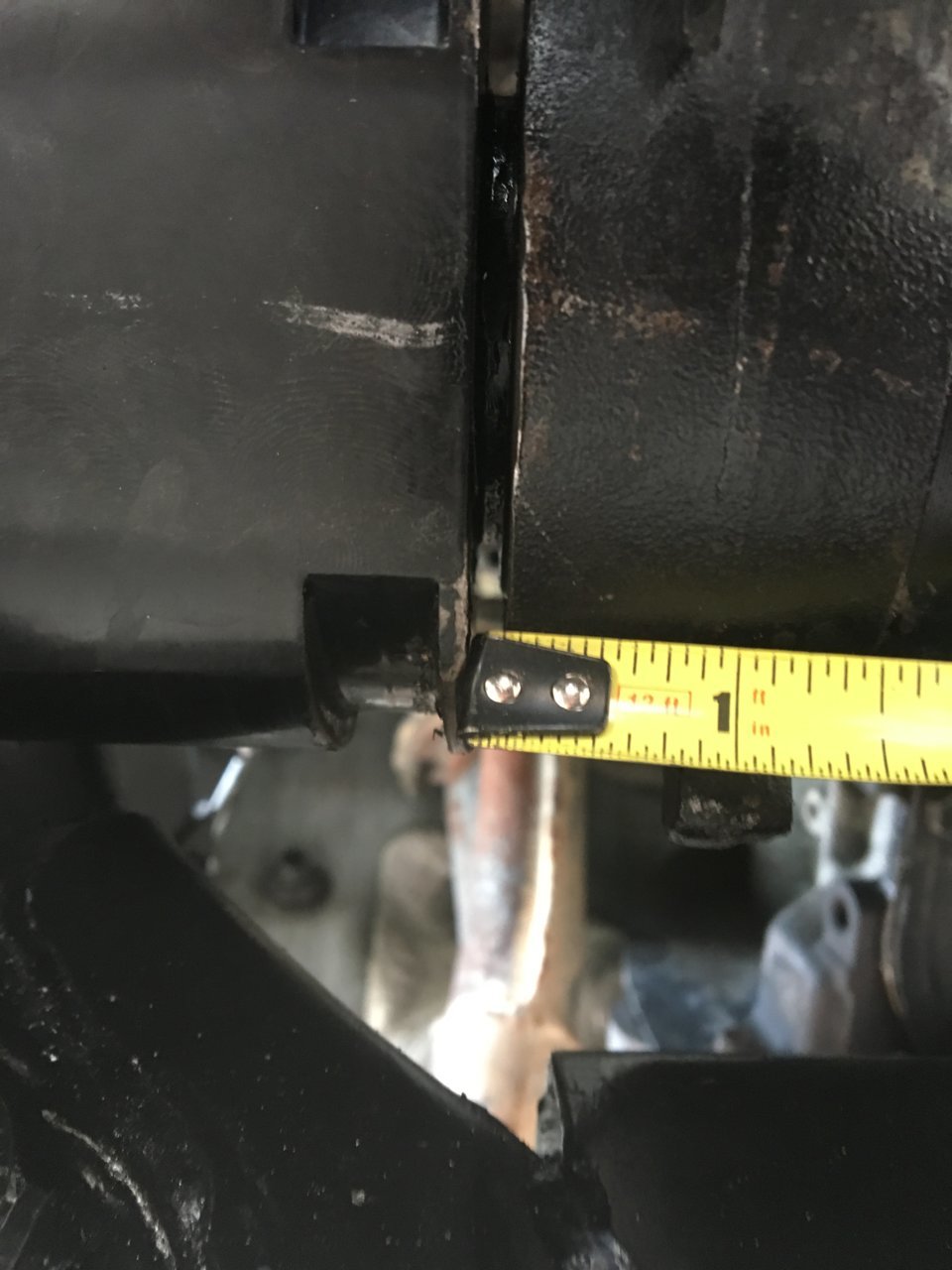

    Can anyone confirm if my CV axles are in all the way from the pictures? The driver side has a larger gap between the CV axle and the differential. I’ve research many other installation recommendations and have tried them all. I’ve been working on this multiple days adjusting and turning the CV between attempts to set it in deeper with no successes. The CV axles were rebuild with factory boots and OEM axles. New C-clip and dust shield. I believe the seals have been weeping. The passenger side came out once while driving and I believe it’s in all the way now. I’m about to test drive now. Manual hubs. The larger gap is on the driver side. The dust shield has play between shaft and differential. Any advice appreciated!

    063BCD2E-2E49-4062-9D36-4952D6AB5787.jpg 12D869DF-304D-4BF9-9A7D-2207F3426161.jpg

  2. Apr 24, 2020 at 11:32 AM
    #2
    anthony250f

    anthony250f Well-Known Member

    Joined:
    Feb 18, 2012
    Member:
    #73066
    Messages:
    16,087
    Gender:
    Male
    First Name:
    Anthony
    San Diego, CA
    Vehicle:
    2008 dcsb trd offroad 4wd
    Use a large flat head screw driver and tap it in from those notches. You will be able to feel if it’s in or not

    Wyoming09 likes this.
  3. Apr 24, 2020 at 12:03 PM
    #3
    Black DOG Lila

    Black DOG Lila Well-Known Member

    Joined:
    Jun 14, 2019
    Member:
    #296344
    Messages:
    6,160
    Virginia
    Vehicle:
    2003 Tacoma SR5 2.7 5 speed 4WD
    Stock. EZ pass.Dump pass.Inspection sticker.Convict printed lic.plates.FG cap.
    Welcome aboard new member

  4. Apr 24, 2020 at 1:09 PM
    #4
    2000Taco4cly

    2000Taco4cly [OP] Member

    Joined:
    Apr 24, 2020
    Member:
    #325698
    Messages:
    22
    Gender:
    Male
    Thanks! Yes I was using a 3’ prybar and a 1.5 lb hammer rotating it between attempts. It felt solid but it looks to far out.

  5. Apr 24, 2020 at 1:49 PM
    #5
    Wulf

    Wulf a̴̜̯̜̥̱̓̅͐̉ŝ̵̡̛̻̠̫̗͇̮̃̌̓̍͆̒̿͐̽̀̕͝͠s̵̡̳͒͌̎̄̓̉͛́͘ͅ

    Joined:
    Jan 30, 2015
    Member:
    #147523
    Messages:
    33,773
    First Name:
    Jake
    24400 E Smoky Hill Rd, Aurora, CO 80016
    Vehicle:
    96 Tacoma WIP
    yes
    I hold the cv straight and use a deadblow hammer on the outside end.

    If it doesn't slide out with a little tugging I'd assume it's seated

    Last edited: Apr 24, 2020
  6. Apr 24, 2020 at 3:06 PM
    #6
    Tacoscar-the-grouch

    Tacoscar-the-grouch Well-Known Member

    Joined:
    Mar 22, 2019
    Member:
    #287551
    Messages:
    296
    Gender:
    Male
    First Name:
    Josh
    North Idaho
    Vehicle:
    2001 Reg. Cab Tacoma
    OME kit 4.56's 235/85/16
    First pic looks good. Other side looks too far out. I just did this. Didn’t need to hit it with anything.

    it was a bit frustrating to line up. Some have reported it is easier with the opening of the c clip pointed down.

    looks like you were reefing in those notches/ears pretty good since they are bent a bit. Shouldn’t need that much force.

    once the clip seats you shouldn’t be able to pull the axle out. Have you checked this?

  7. Apr 24, 2020 at 3:08 PM
    #7
    Tacoscar-the-grouch

    Tacoscar-the-grouch Well-Known Member

    Joined:
    Mar 22, 2019
    Member:
    #287551
    Messages:
    296
    Gender:
    Male
    First Name:
    Josh
    North Idaho
    Vehicle:
    2001 Reg. Cab Tacoma
    OME kit 4.56's 235/85/16
    The dust seal on your drivers side CV looks different too. Are these aftermarket axles or did you change seals?

    Wulf likes this.
  8. Apr 24, 2020 at 4:09 PM
    #8
    2000Taco4cly

    2000Taco4cly [OP] Member

    Joined:
    Apr 24, 2020
    Member:
    #325698
    Messages:
    22
    Gender:
    Male
    They are oem axles with new boots as well as the new oem dust shields. I had the opening oriented down in the c clip. The axle has play bet is not pulling out. So it seems seated by feel but I do not remember that much of a gap between the differential and the CV along with a leak. I may try to lock in the hubs tomorrow and take it nice and easy see how it goes.
    Can someone see if there is a larger gap on the driver side on their truck?

  9. Apr 24, 2020 at 4:11 PM
    #9
    eon_blue

    eon_blue Straight Outta 4WP

    Joined:
    Mar 4, 2016
    Member:
    #180213
    Messages:
    46,045
    Gender:
    Male
    First Name:
    Ryan
    Monrovia, CA
    Vehicle:
    Supercharged 2004 3.4l TRD 4x4 Tacoma XtraCab w/5 speed
    If you thread the axle nut on the end, you can hammer the axle into the the diff and it goes in easily. Trying to get it all the way in by hand is difficult.

    Make sure you keep the axle nut on the end though, or you'll mess up the threads

  10. Apr 24, 2020 at 4:13 PM
    #10
    Wulf

    Wulf a̴̜̯̜̥̱̓̅͐̉ŝ̵̡̛̻̠̫̗͇̮̃̌̓̍͆̒̿͐̽̀̕͝͠s̵̡̳͒͌̎̄̓̉͛́͘ͅ

    Joined:
    Jan 30, 2015
    Member:
    #147523
    Messages:
    33,773
    First Name:
    Jake
    24400 E Smoky Hill Rd, Aurora, CO 80016
    Vehicle:
    96 Tacoma WIP
    yes
    Manual hub CV, no external threads to mess up. Can mess up the splines though so I use a dead blow or brass hammer

    eon_blue likes this.
  11. Apr 24, 2020 at 4:15 PM
    #11
    Tacoscar-the-grouch

    Tacoscar-the-grouch Well-Known Member

    Joined:
    Mar 22, 2019
    Member:
    #287551
    Messages:
    296
    Gender:
    Male
    First Name:
    Josh
    North Idaho
    Vehicle:
    2001 Reg. Cab Tacoma
    OME kit 4.56's 235/85/16

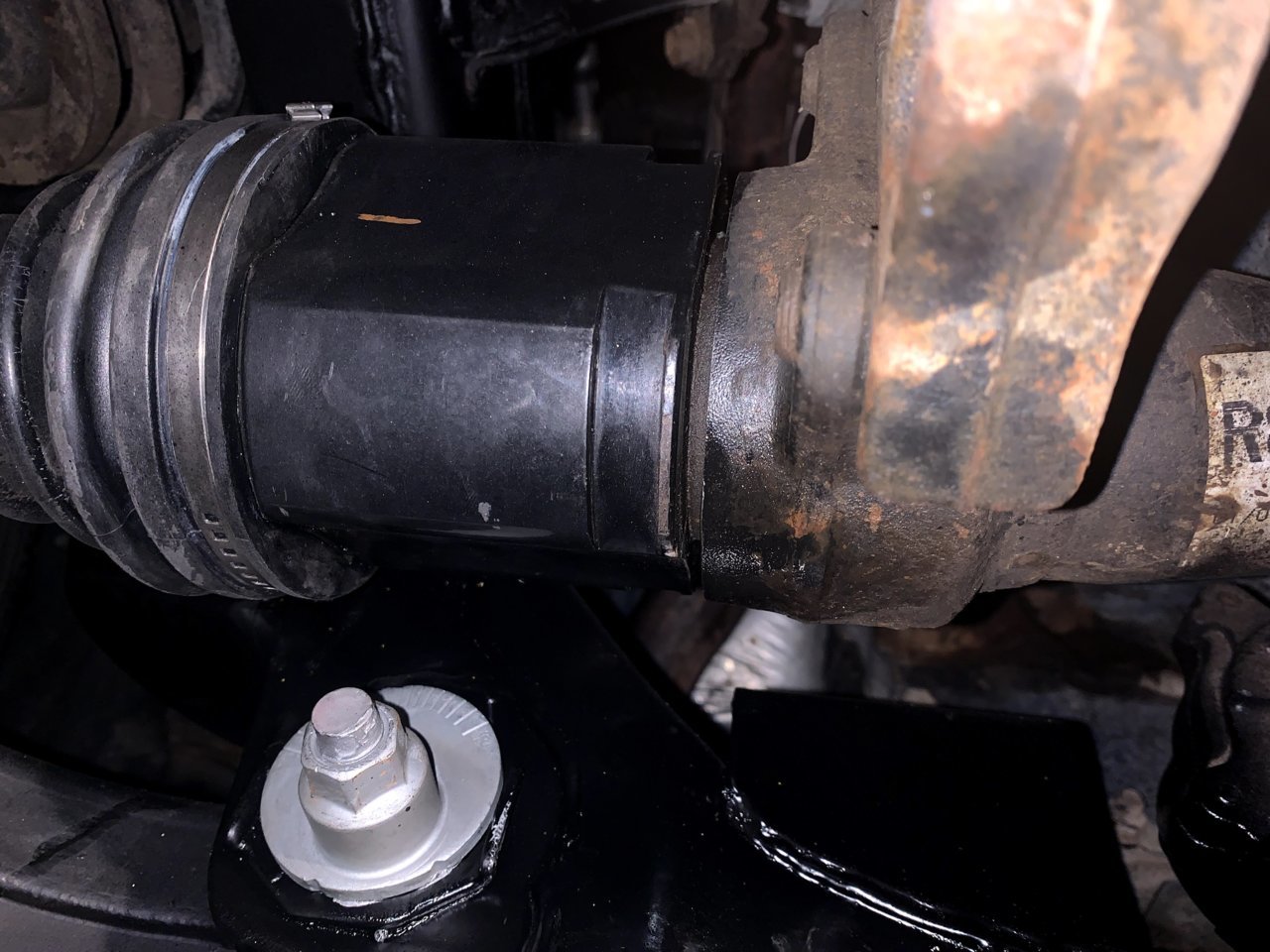

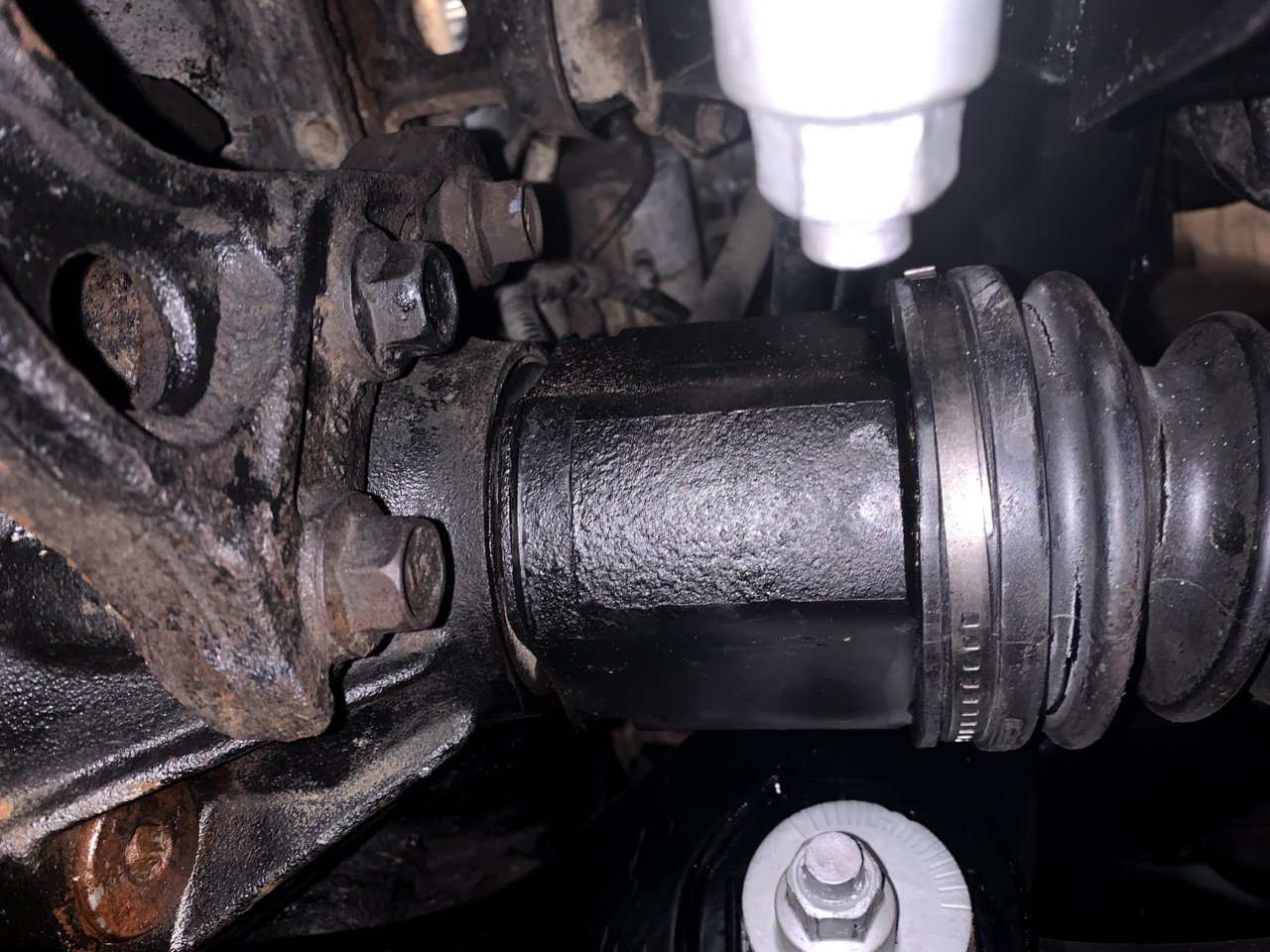

    Mine are dead even. I have ADD but I can't imagine that makes a difference on this topic.

    IMG_1203 - Copy.jpg
    IMG_1202 - Copy.jpg

  12. Apr 24, 2020 at 4:18 PM
    #12
    Tacoscar-the-grouch

    Tacoscar-the-grouch Well-Known Member

    Joined:
    Mar 22, 2019
    Member:
    #287551
    Messages:
    296
    Gender:
    Male
    First Name:
    Josh
    North Idaho
    Vehicle:
    2001 Reg. Cab Tacoma
    OME kit 4.56's 235/85/16
    Are you saying there is a leak right now? If so, I bet it's because the axle seal is not seated on the CV shaft properly, since it's not pushed in all the way.

    Sorry if I misunderstood this comment.

  13. Apr 24, 2020 at 4:20 PM
    #13
    2000Taco4cly

    2000Taco4cly [OP] Member

    Joined:
    Apr 24, 2020
    Member:
    #325698
    Messages:
    22
    Gender:
    Male
    I tried using a block of wood and a hammer on the end of the axle shaft. Looking at Tacoscar-the-grouch’s pictures it looks like mine are not all the way seated.

  14. Apr 24, 2020 at 4:33 PM
    #14
    Tacoscar-the-grouch

    Tacoscar-the-grouch Well-Known Member

    Joined:
    Mar 22, 2019
    Member:
    #287551
    Messages:
    296
    Gender:
    Male
    First Name:
    Josh
    North Idaho
    Vehicle:
    2001 Reg. Cab Tacoma
    OME kit 4.56's 235/85/16

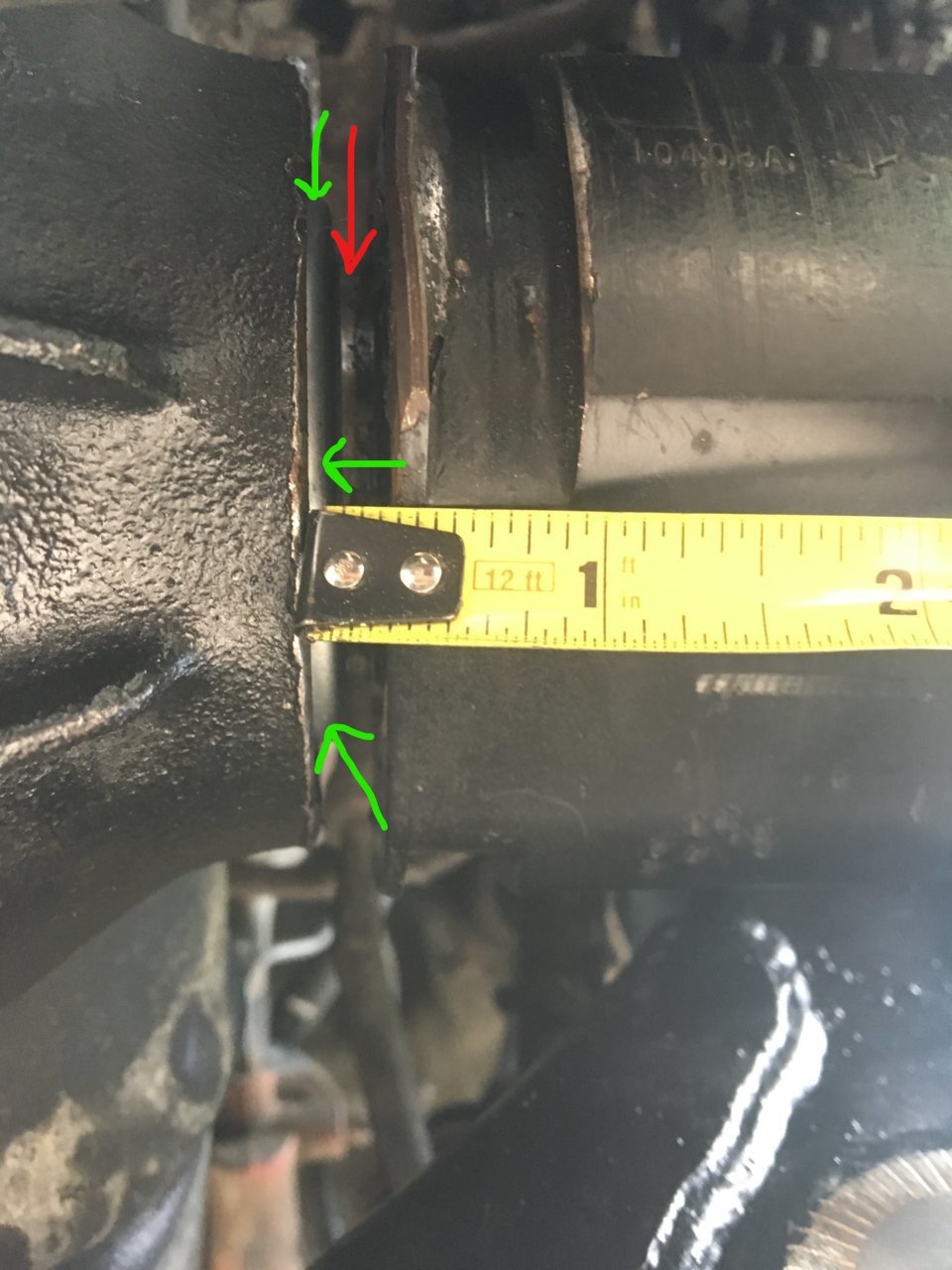

    From your pic, the red arrow looks to me like the journal (right word?) that the axle seal should seat on.

    The green arrows point to, what I assume, is some sort of dust cap or seal on your CV. It looks very different than the one I had on mine.

    If that green arrow is pointing to the axle seal on the differential then you need to drive it in further.

    I can't tell from the photo exactly what is what. Might help if you can pull the axle out and take some pic of the tulip and diff.


    cruiserguy likes this.
  15. Apr 24, 2020 at 4:33 PM
    #15
    Wulf

    Wulf a̴̜̯̜̥̱̓̅͐̉ŝ̵̡̛̻̠̫̗͇̮̃̌̓̍͆̒̿͐̽̀̕͝͠s̵̡̳͒͌̎̄̓̉͛́͘ͅ

    Joined:
    Jan 30, 2015
    Member:
    #147523
    Messages:
    33,773
    First Name:
    Jake
    24400 E Smoky Hill Rd, Aurora, CO 80016
    Vehicle:
    96 Tacoma WIP
    yes
    I'd pull it out and start from scratch

    Tacoscar-the-grouch likes this.
  16. Apr 24, 2020 at 4:35 PM
    #16
    Tacoscar-the-grouch

    Tacoscar-the-grouch Well-Known Member

    Joined:
    Mar 22, 2019
    Member:
    #287551
    Messages:
    296
    Gender:
    Male
    First Name:
    Josh
    North Idaho
    Vehicle:
    2001 Reg. Cab Tacoma
    OME kit 4.56's 235/85/16
    Seconded

  17. Apr 24, 2020 at 4:40 PM
    #17
    Wulf

    Wulf a̴̜̯̜̥̱̓̅͐̉ŝ̵̡̛̻̠̫̗͇̮̃̌̓̍͆̒̿͐̽̀̕͝͠s̵̡̳͒͌̎̄̓̉͛́͘ͅ

    Joined:
    Jan 30, 2015
    Member:
    #147523
    Messages:
    33,773
    First Name:
    Jake
    24400 E Smoky Hill Rd, Aurora, CO 80016
    Vehicle:
    96 Tacoma WIP
    yes
    Put a little grease or gear oil on the splines too.

  18. Apr 25, 2020 at 7:16 AM
    #18
    2000Taco4cly

    2000Taco4cly [OP] Member

    Joined:
    Apr 24, 2020
    Member:
    #325698
    Messages:
    22
    Gender:
    Male
    That is the dust shield. It is the same part as in your picture. I was hoping I wouldn’t have to start from scratch sounds like it. I did grease to splines. I am starting to wont if it’s something in my differential causing the trouble. It has been regraded with auto locker.

  19. Apr 25, 2020 at 7:27 AM
    #19
    anthony250f

    anthony250f Well-Known Member

    Joined:
    Feb 18, 2012
    Member:
    #73066
    Messages:
    16,087
    Gender:
    Male
    First Name:
    Anthony
    San Diego, CA
    Vehicle:
    2008 dcsb trd offroad 4wd
    Line up the splines, get it started, have someone hold the cv axle straight while you hit the end with a dead blow. It will slide in till you hear a more “solid” sound.

    Wulf likes this.
  20. Apr 28, 2020 at 5:04 AM
    #20
    Constant K

    Constant K Well-Known Member

    Joined:
    Mar 24, 2018
    Member:
    #248277
    Messages:
    60
    Gender:
    Male
    First Name:
    Kyle
    Vehicle:
    2003 Tacoma TRD
    How did this work out for you, OP? My driver side CV has the same gap as yours and it just now started to leak a little bit of oil.
