Dakota Digital install

Discussion in '2nd Gen. Tacomas (2005-2015)' started by finecamaro69, Nov 2, 2009.

  1. Nov 2, 2009 at 10:39 AM
    #1
    finecamaro69

    finecamaro69 [OP] Member

    Joined:
    Jul 1, 2009
    Member:
    #19158
    Messages:
    64
    Gender:
    Male
    First Name:
    Chris
    Charlotte, NC
    Vehicle:
    06 TRD sport 4WD
    2" spacer Suspension lift, Dakar Leafs
    Ok since I could only find one write up on this and it was for an automatic I thought that I would help anyone else out there that was planning on installing one of these in a manual. When I bought my truck the speedometer was about 15-20 mph off at higher speeds (I was going 55 speedo said 70). So I picked up the Dakota on ebay for $75 and free shipping. My truck is a 2006 Access cab TRD sport V6 w/ manual transmission.

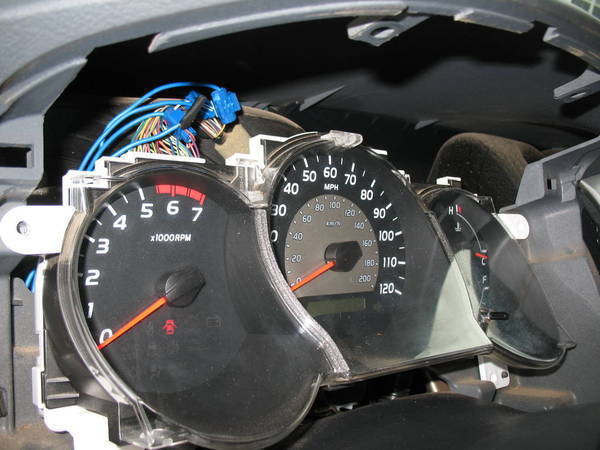

    First step find the speed sensor wire. I actually tied into the speed sensor wire going directly into the guages so I wouldn't mess up ABS or anything.

    [​IMG]

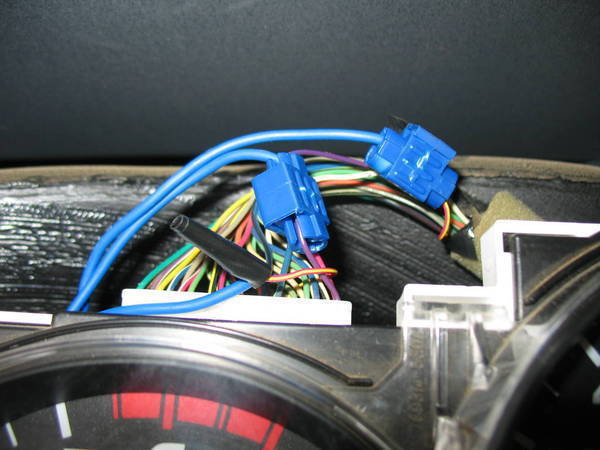

    I tapped into the red wire w/ a yellow stripefor the speed info.
    [​IMG]
    The side of the wire going into the plug is the output from the module and the the other end is the input.
    I used the purple wire in the same location for ACC power. That way its the same power as the gauges anyway.

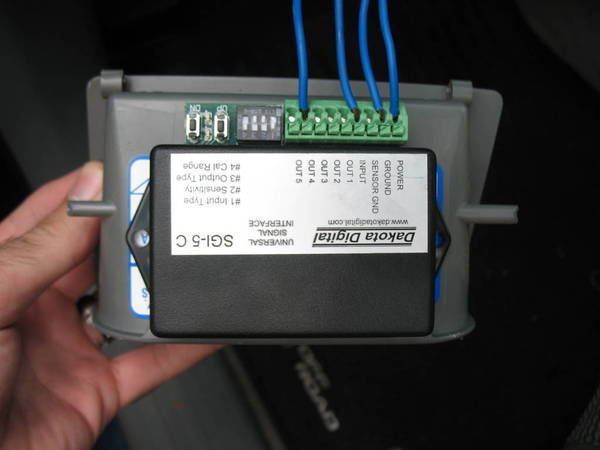

    This is the module, I connected the output wire to the out 4 slot. Also switches 1 and 4 are in the on position.
    [​IMG]

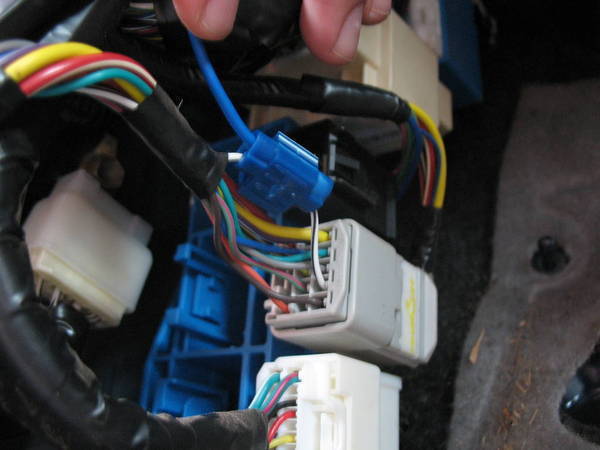

    For a ground I just tapped into one of the ground wires (white w/ Black stripe) at the kick panel on the drivers side.
    [​IMG]

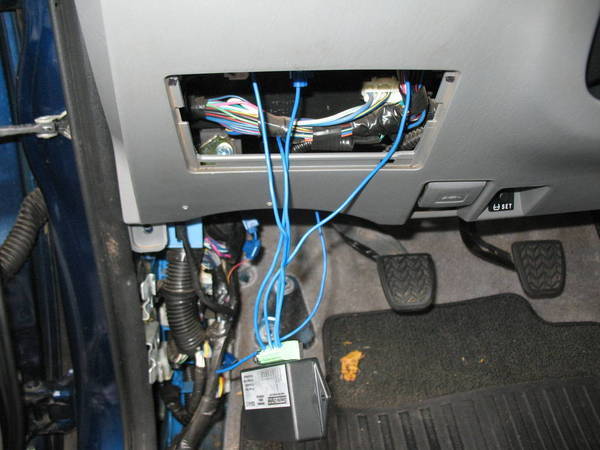

    I just installed it on the back of the change drawer with double sided tape for easy access to calibrate it.
    [​IMG]

    As for calibration just look at the instructions that come with it. I found it easiest to use the calibrate in park method. Hope this helps for someone. Let me know of any questions there still are.
