Dakota Universal Speedo Corrector: An easy alternative to the HyperTech

Discussion in '2nd Gen. Tacomas (2005-2015)' started by EatSleepTacos, Aug 1, 2019.

  1. Aug 1, 2019 at 12:54 PM
    #1
    EatSleepTacos

    EatSleepTacos [OP] Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    51,672
    Gender:
    Male
    First Name:
    Randy
    Hampton Roads, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT
    EDIT: The SGI-100BT is the new replacement for the SGI-5E. It will work just like I illustrated, with the added functionality of Bluetooth.

    First off I can't take credit for this, that goes to @buyobuyo. I'm merely making this thread to try and get this product more visibility. Until I texted him, I thought the hypertech was the only solution to correcting the speedometer. I tried a hypertech, and it didn't work. Plugged it in, went for a drive, and speed read 0. My theory is it was something to do with manual transmission vs auto transmission since they read speed from different places. Manual is t-case output (transmission on 2wd) and autos is ABS sensors.

    The Dakota Digital SGI-5E is a universal speedometer (and subsequently odometer) correcter. If you try and read through the manual, it's confusing AF and intimidating, so I would like to make it easy for you.

    The down and dirty is all you're doing is intercepting the speed wire, and sending both halves into the unit. You're also providing the unit with power and a ground. That's it. 4 wires.

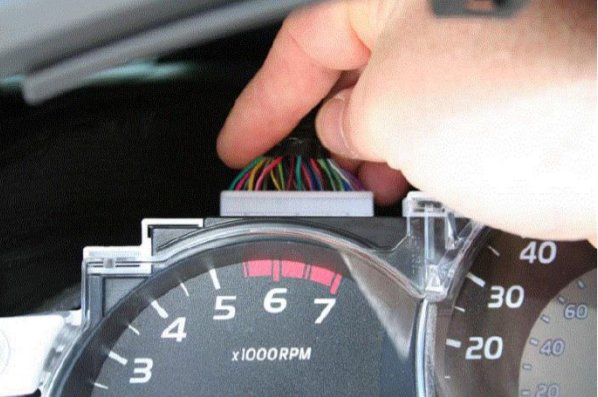

    Here's how you take your dash apart.

    http://hypertech.com/ProductManuals/inlinespeedo/730107_VSS_Instlltn_Prcdr.pdf

    First off, supplies. Here is everything I bought to make this happen.

    https://www.amazon.com/gp/product/B016DVDBZ0/ref=ppx_yo_dt_b_asin_title_o07_s00?ie=UTF8&psc=1

    https://www.amazon.com/gp/product/B07G844GCY/ref=ppx_yo_dt_b_asin_title_o06_s00?ie=UTF8&psc=1

    https://www.amazon.com/gp/product/B001MPW54G/ref=ppx_yo_dt_b_asin_title_o06_s00?ie=UTF8&psc=1

    https://www.amazon.com/gp/product/B00HT9XJLW/ref=ppx_yo_dt_b_asin_title_o05_s00?ie=UTF8&psc=1





    First step, locate the speed wire. On my 2005 SR5 it's the red and yellow wire (pin 6). On jeremy's truck, and one other write up I found, it's the same wire. That's the hardest part of all of this is figuring out the wire. Once you verify that, it's easy.

    Cut the wire in half. The side that is coming from the connector, goes into OUT2. The other side SIGNAL IN.

    Then you just need power and ground. I used the wire taps to tap into the black/white wire for ground.

    For switched power, I stole from the light green wire that goes to the dash dimmer. Can be pulled from any switched power source.



    I know at first glance this may look intimidating. But read it a couple times, and it's not bad at all.

    For calibration, just follow the instructions. For the one setting, you want High->High (this will make sense later)


    upload_2019-8-1_15-51-52.jpg upload_2019-8-1_15-57-29.jpg

    [​IMG]

    [​IMG]
    [​IMG]
    [​IMG]

    Last edited: Apr 6, 2020
  2. Aug 1, 2019 at 5:53 PM
    #2
    buyobuyo

    buyobuyo Read The Fucking Manual

    Joined:
    Jan 24, 2008
    Member:
    #4417
    Messages:
    5,813
    Gender:
    Male
    First Name:
    Jeremy
    Camden, AR
    Vehicle:
    08 PreRunner SR5, I4, Manual, Silver
    A thing or two...
    Nice write up, Randy. :thumbsup:

    Here's the link to my install in my build thread. https://www.tacomaworld.com/threads/buyobuyos-build-thread.511891/page-15#post-20240110

    We connected into all the same wires, but after looking at the wiring diagram again, you can pull switched power from the same connector as ground and the speed signal. It's the violet wire (pin 21).


    #randyfab now offering electrical. :rofl:

  3. Aug 1, 2019 at 6:00 PM
    #3
    EatSleepTacos

    EatSleepTacos [OP] Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    51,672
    Gender:
    Male
    First Name:
    Randy
    Hampton Roads, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT
    I was a little nervous because my speed wire was faded and old and didn’t look red and yellow, but more brown and white. I said fuck it though since it was pin 6 and close enough. Glad it worked out for me.

    buyobuyo likes this.
  4. Aug 5, 2019 at 3:59 PM
    #4
    EatSleepTacos

    EatSleepTacos [OP] Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    51,672
    Gender:
    Male
    First Name:
    Randy
    Hampton Roads, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT
    Bump for visibility so it doesn't get buried

  5. Aug 5, 2019 at 7:23 PM
    #5
    mikalcarbine

    mikalcarbine Well-Known Member

    Joined:
    May 5, 2017
    Member:
    #218236
    Messages:
    401
    Gender:
    Male
    First Name:
    Mike
    Phoenix, AZ
    Vehicle:
    2015 AC TRD OR
    Does this only change the speedometer speed and not the odometer?

  6. Aug 6, 2019 at 1:35 AM
    #6
    EatSleepTacos

    EatSleepTacos [OP] Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    51,672
    Gender:
    Male
    First Name:
    Randy
    Hampton Roads, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT
    It corrects both

    Canyon lands and mikalcarbine like this.
  7. Aug 6, 2019 at 3:37 AM
    #7
    buyobuyo

    buyobuyo Read The Fucking Manual

    Joined:
    Jan 24, 2008
    Member:
    #4417
    Messages:
    5,813
    Gender:
    Male
    First Name:
    Jeremy
    Camden, AR
    Vehicle:
    08 PreRunner SR5, I4, Manual, Silver
    A thing or two...
    The speedometer and odometer are generated from the same signal, so fixing one fixes the other.


    Another positive not listed in the OP is that the Dakota Digital unit is half the price of the Hypertech.

  8. Aug 6, 2019 at 4:19 AM
    #8
    kidthatsirish

    kidthatsirish Well-Known Member

    Joined:
    Jan 29, 2008
    Member:
    #4485
    Messages:
    619
    Vehicle:
    06 Tacoma access cab base 2.7L 4x4 5speed manual
    Awesome CB setup, TRD leaf springs, matching camper shell...more to come some day.
    I am assuming this is done for correcting the vehicle after a lift with bigger tires

  9. Aug 6, 2019 at 6:49 AM
    #9
    Steve_P

    Steve_P Well-Known Member

    Joined:
    Sep 16, 2009
    Member:
    #22854
    Messages:
    513
    Gender:
    Male
    TN
    Vehicle:
    09 Tacoma SR5 4WD 4cyl
    My odometer read 4-5% high from the factory, with OE tires. The speedo also reads high

  10. Aug 6, 2019 at 8:29 AM
    #10
    kidsmoke

    kidsmoke Well-Known Member

    Joined:
    Mar 14, 2015
    Member:
    #150859
    Messages:
    920
    Gender:
    Male
    Flyover Country
    Vehicle:
    '13 BR AC SR5 4x4 AT
    This is awesome, thanks to you guys for doing the legwork and sharing it this way. I'll be all over this.

    Can't believe what a difference bumping from 245/65/16 (stock on a SR5 4x4) to 265/70/16 (stock on a Baja) made in my guage output. when I lift and go even bigger, this will be in place and ready to go.

    :cheers:

    EatSleepTacos [OP] likes this.
  11. Aug 6, 2019 at 8:46 AM
    #11
    EatSleepTacos

    EatSleepTacos [OP] Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    51,672
    Gender:
    Male
    First Name:
    Randy
    Hampton Roads, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT
    That, and also a regear (this only affects manual transmissions). Manual transmissions read speed from the driveshaft. After a regear, the driveshaft spins much faster

  12. Aug 6, 2019 at 9:32 AM
    #12
    kidthatsirish

    kidthatsirish Well-Known Member

    Joined:
    Jan 29, 2008
    Member:
    #4485
    Messages:
    619
    Vehicle:
    06 Tacoma access cab base 2.7L 4x4 5speed manual
    Awesome CB setup, TRD leaf springs, matching camper shell...more to come some day.
    So you indicate you are driving faster than you actually are?

    About how much does a typical regear throw you off? I know that would depend on what new ratio, but I am constantly told I am indicating about 5mph faster than I am actually going, mine is manual and I did buy it slightly used, so I wonder.....

    Last edited: Aug 6, 2019
  13. Aug 6, 2019 at 11:27 AM
    #13
    EatSleepTacos

    EatSleepTacos [OP] Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    51,672
    Gender:
    Male
    First Name:
    Randy
    Hampton Roads, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT
    Mine was wayyyyy off. I went from 3.73 to 4.88 and have 34” tires. I would be actually driving 65 mph but my speedo would read 80 mph.

    Bocsy44 likes this.
  14. Aug 13, 2019 at 5:49 AM
    #14
    mooddog280Z

    mooddog280Z Active Member

    Joined:
    Jul 13, 2014
    Member:
    #133831
    Messages:
    26
    Gender:
    Male
    Southeast Kansas
    Vehicle:
    08 DC TRD Sport 6 Speed
    Dipped Badges
    Y'all are saints. I have been wanting to correct the speedo for a while but figured id live with it for the price of a hypertech lol. This is way more reasonable and a guy with a 6MT already verified it, I say again y'all are saint.

    EatSleepTacos [OP] likes this.
  15. Aug 13, 2019 at 6:28 AM
    #15
    EatSleepTacos

    EatSleepTacos [OP] Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    51,672
    Gender:
    Male
    First Name:
    Randy
    Hampton Roads, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT
    You’re welcome! The exact reason I made this thread.

  16. Aug 21, 2019 at 2:20 PM
    #16
    mooddog280Z

    mooddog280Z Active Member

    Joined:
    Jul 13, 2014
    Member:
    #133831
    Messages:
    26
    Gender:
    Male
    Southeast Kansas
    Vehicle:
    08 DC TRD Sport 6 Speed
    Dipped Badges
    Got mine installed today and roughly calibrated. Not sure if phone gps speed app is right or not lol. We will see how it does, i had one weird thing that happened, while decelerating it had a weird jump up of like 15mph then right back down. Anyone else have that issue?

  17. Aug 21, 2019 at 2:28 PM
    #17
    TegoTaco

    TegoTaco Well-Known Member

    Joined:
    Sep 29, 2016
    Member:
    #198555
    Messages:
    4,085
    Gender:
    Male
    Ontario, Canada
    Vehicle:
    2013 Super White Tacoma DCLB TRD SPORT
    What about autos?

  18. Aug 21, 2019 at 2:35 PM
    #18
    EatSleepTacos

    EatSleepTacos [OP] Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    51,672
    Gender:
    Male
    First Name:
    Randy
    Hampton Roads, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT
    I can’t say I’ve seen that happen yet.

    I don’t see why it wouldn’t work. All you have to do is make sure you’re intercepting the speed sensor wire.

  19. Aug 21, 2019 at 6:14 PM
    #19
    buyobuyo

    buyobuyo Read The Fucking Manual

    Joined:
    Jan 24, 2008
    Member:
    #4417
    Messages:
    5,813
    Gender:
    Male
    First Name:
    Jeremy
    Camden, AR
    Vehicle:
    08 PreRunner SR5, I4, Manual, Silver
    A thing or two...
    I've seen mine jump randomly. Usually it's around 45-55 mph. It will dip 5-ish mph for a second and then jump back to where it should be. I've only noticed it while accelerating or cruising. It happens randomly, so I'm not too worried about it.

  20. Sep 7, 2019 at 5:47 AM
    #20
    Justanotherhemi

    Justanotherhemi Cpt Miguel Schwemmer’s unofficial 1st mate

    Joined:
    Dec 7, 2016
    Member:
    #204297
    Messages:
    14,105
    Gender:
    Male
    First Name:
    Aluminum Foil but my friends call me Tin
    South Tejas by Mexico
    Vehicle:
    2012 Black Tacoma DCLB*Rest Easy Good Girl R.I.P you will be missed*
    Bump. Op you should have removed the dash bulb for the TPM while you were in there

    EatSleepTacos [OP] likes this.
