Dash 3.5 Speaker/Key/Sub Install

Discussion in 'Audio & Video' started by TacoWdrd, Apr 13, 2020.

  1. Apr 13, 2020 at 4:48 PM
    #1
    TacoWdrd

    TacoWdrd [OP] Well-Known Member

    Joined:
    Nov 8, 2019
    Member:
    #310185
    Messages:
    395
    Gender:
    Male
    First Name:
    Shane
    Ohio
    Vehicle:
    2019 MGM TRD OR
    Well pulled the trigger so no turning back now.... Figure I would post early and update as I go.

    Feel free to chime in. :thumbsup:

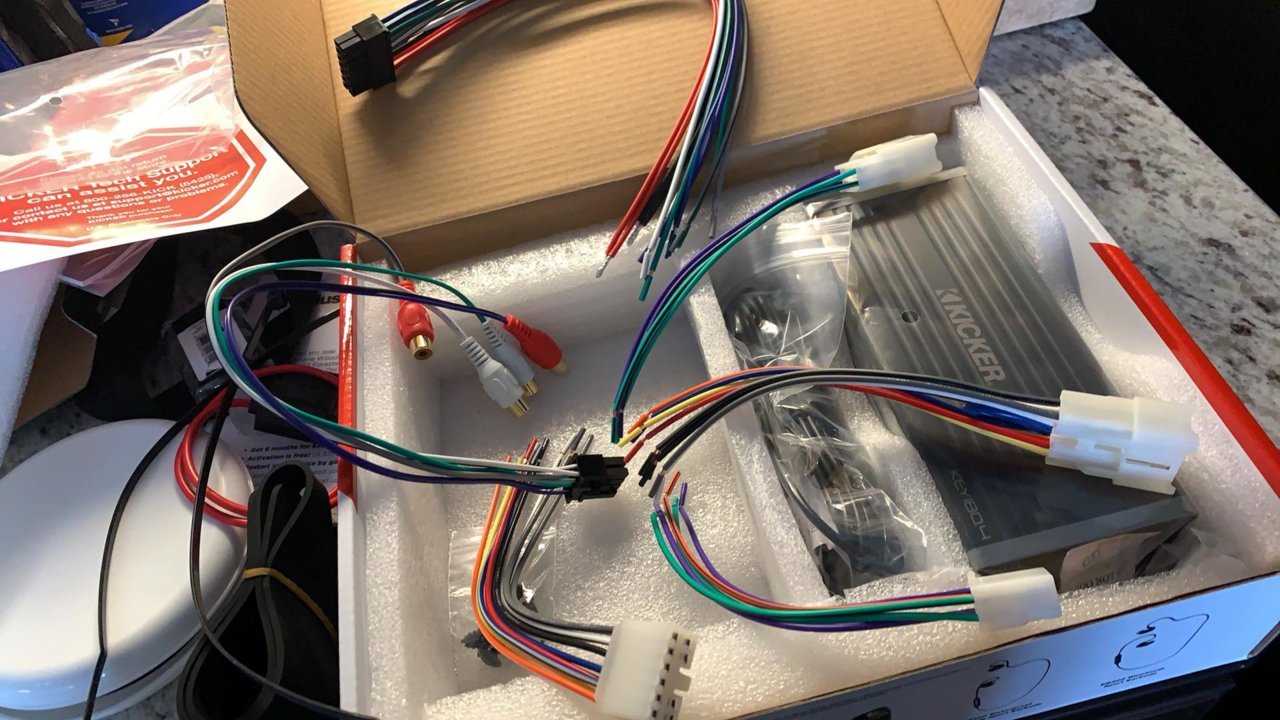

    Harness is in prep for the Kicker Key install but first I want the 3.5s running in parallel with the doors.

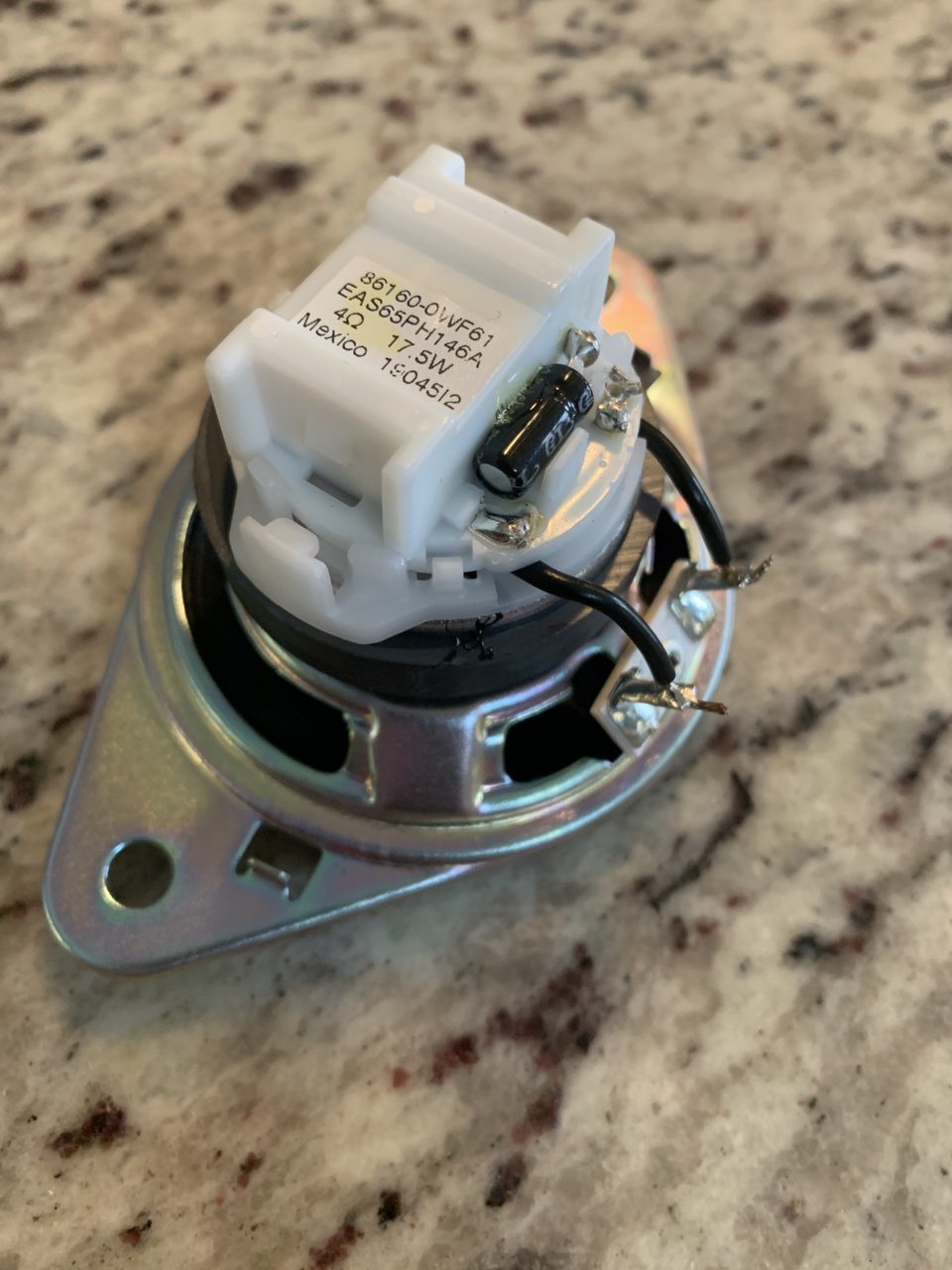

    I'm also attempting to salvage the stock connector by de-soldering and bypassing the stock capacitor and installing my own. Trying to figure out if I leave it and how it adds to the capacitor that is installed on the other speaker already. Also how it impacts the frequency cut off :notsure:
    Connector is just pressed on so bend the tabs and pop it off.
    One hole lines up but the other side keeps bumping and only have a millimeter or two before it's flush. :annoyed:
    Decisions o_O Just staring at it for now... It would totally work mounted from the bottom up but I would have to remove the upper dash. Kinda want to do it but really don't want to do it. I'll just keep staring at it for now and mess with the passenger side.

    oostroma likes this.
  2. Apr 13, 2020 at 4:59 PM
    #2
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    2,867
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    Definitely want to take the Factory capacitor off. Not sure what the crossover is on it, but it’s almost certainly higher than what those JBL’s are capable of.

    oostroma and TacoWdrd [OP] like this.
  3. Apr 13, 2020 at 7:57 PM
    #3
    pseudonym

    pseudonym Well-Known Member

    Joined:
    Jan 30, 2019
    Member:
    #281289
    Messages:
    97
    Gender:
    Male
    Livermore, Ca.
    Vehicle:
    2018 SR5 AC 4x4 V6, 1997 FZJ80
    2.2uF, so about 18kHz.

    The high cutoff frequency works because the slope of the crossover counteracts the natural rolloff of the tweeter, flattening the response (at the cost of efficiency).

    Yeah, don't use it.

    TacoWdrd [OP] likes this.
  4. Apr 14, 2020 at 9:02 AM
    #4
    TacoWdrd

    TacoWdrd [OP] Well-Known Member

    Joined:
    Nov 8, 2019
    Member:
    #310185
    Messages:
    395
    Gender:
    Male
    First Name:
    Shane
    Ohio
    Vehicle:
    2019 MGM TRD OR

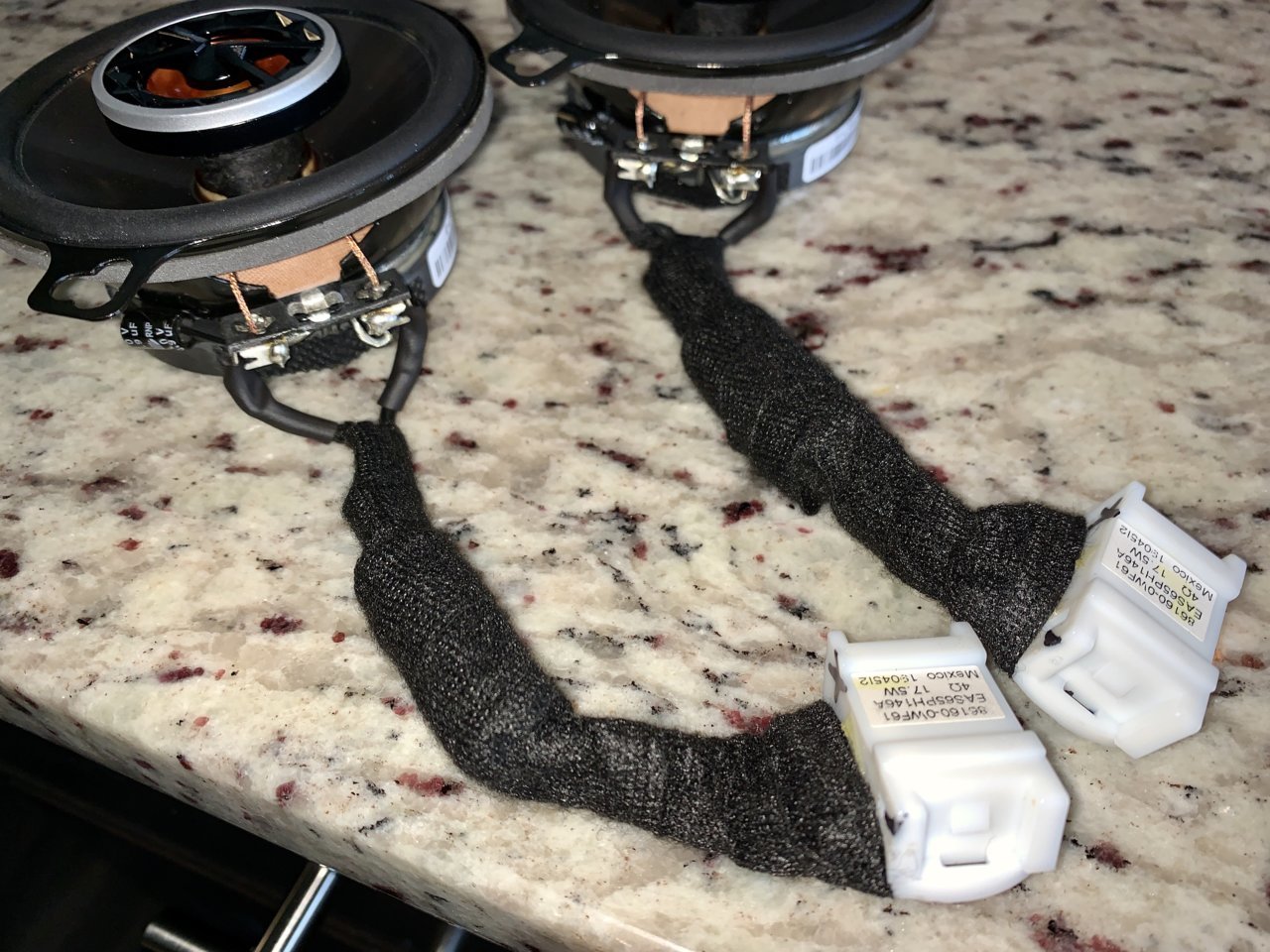

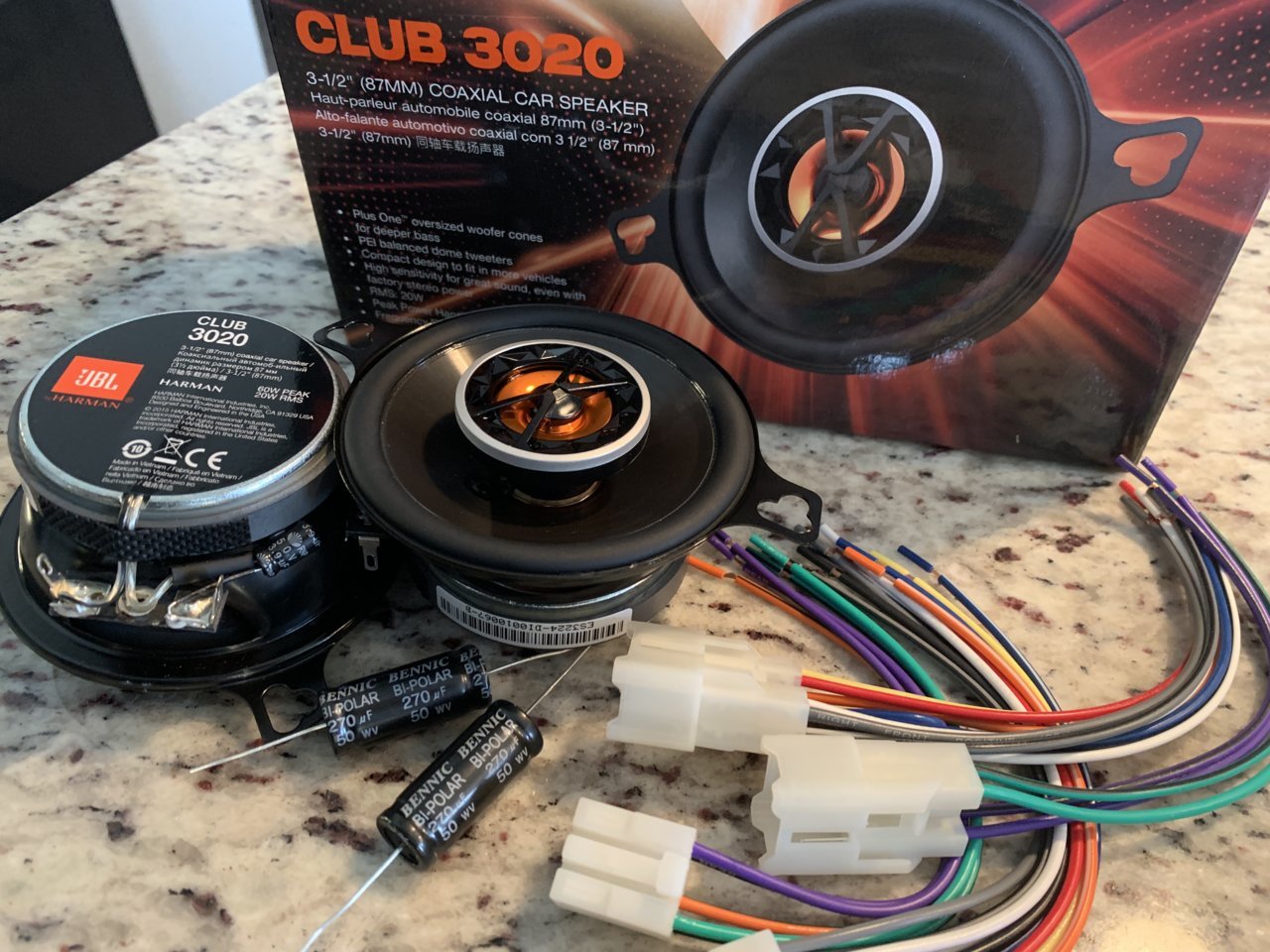

    I wanted to do a quick test before I built the harness and put the inline capacitor that came with the speakers.

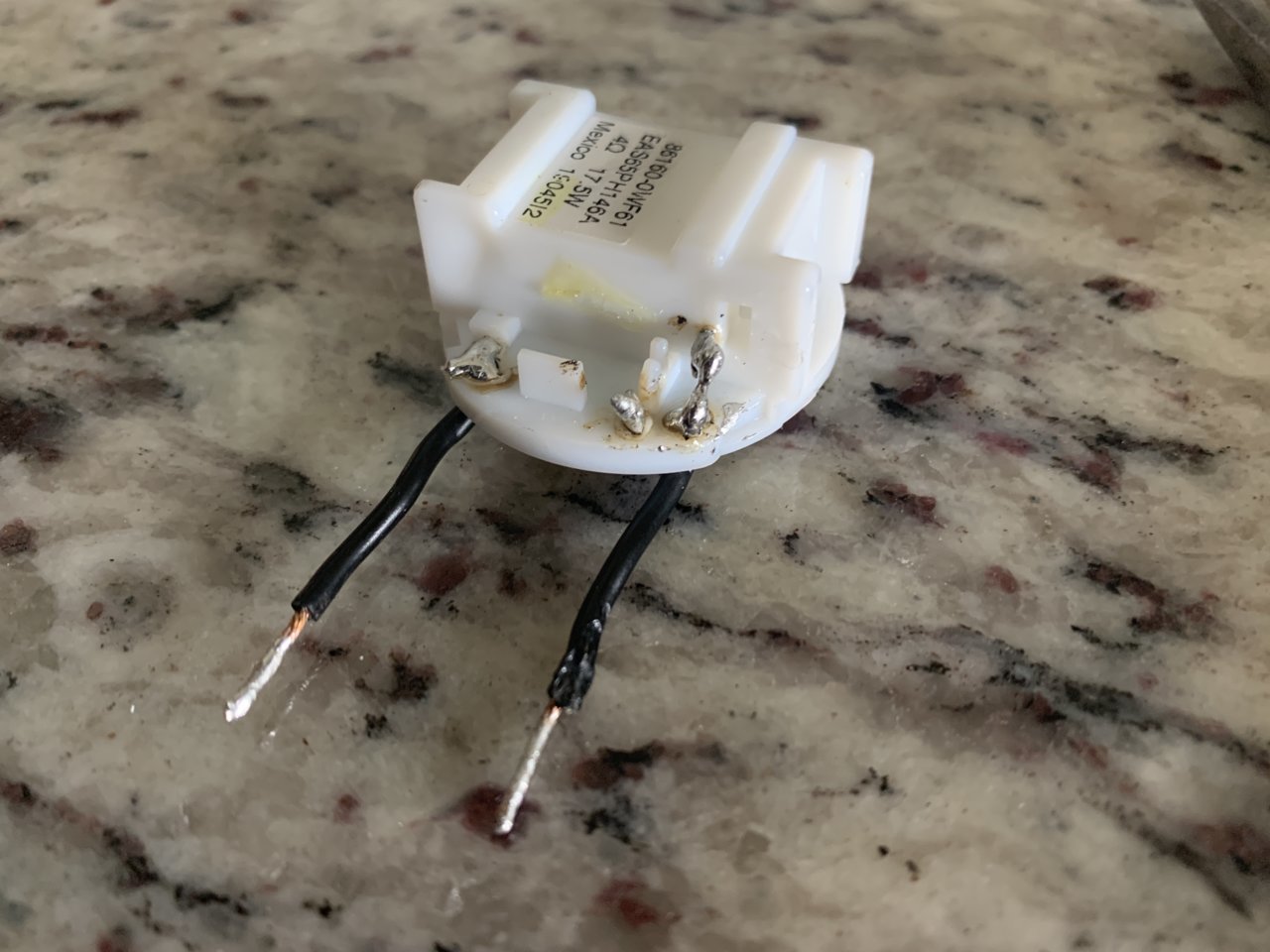

    Removed the cap and extended the connection.
    Phase tested it and all is good on polarity.

    Last edited: Apr 14, 2020
    mjc251 likes this.
  5. Apr 14, 2020 at 4:43 PM
    #5
    TacoWdrd

    TacoWdrd [OP] Well-Known Member

    Joined:
    Nov 8, 2019
    Member:
    #310185
    Messages:
    395
    Gender:
    Male
    First Name:
    Shane
    Ohio
    Vehicle:
    2019 MGM TRD OR

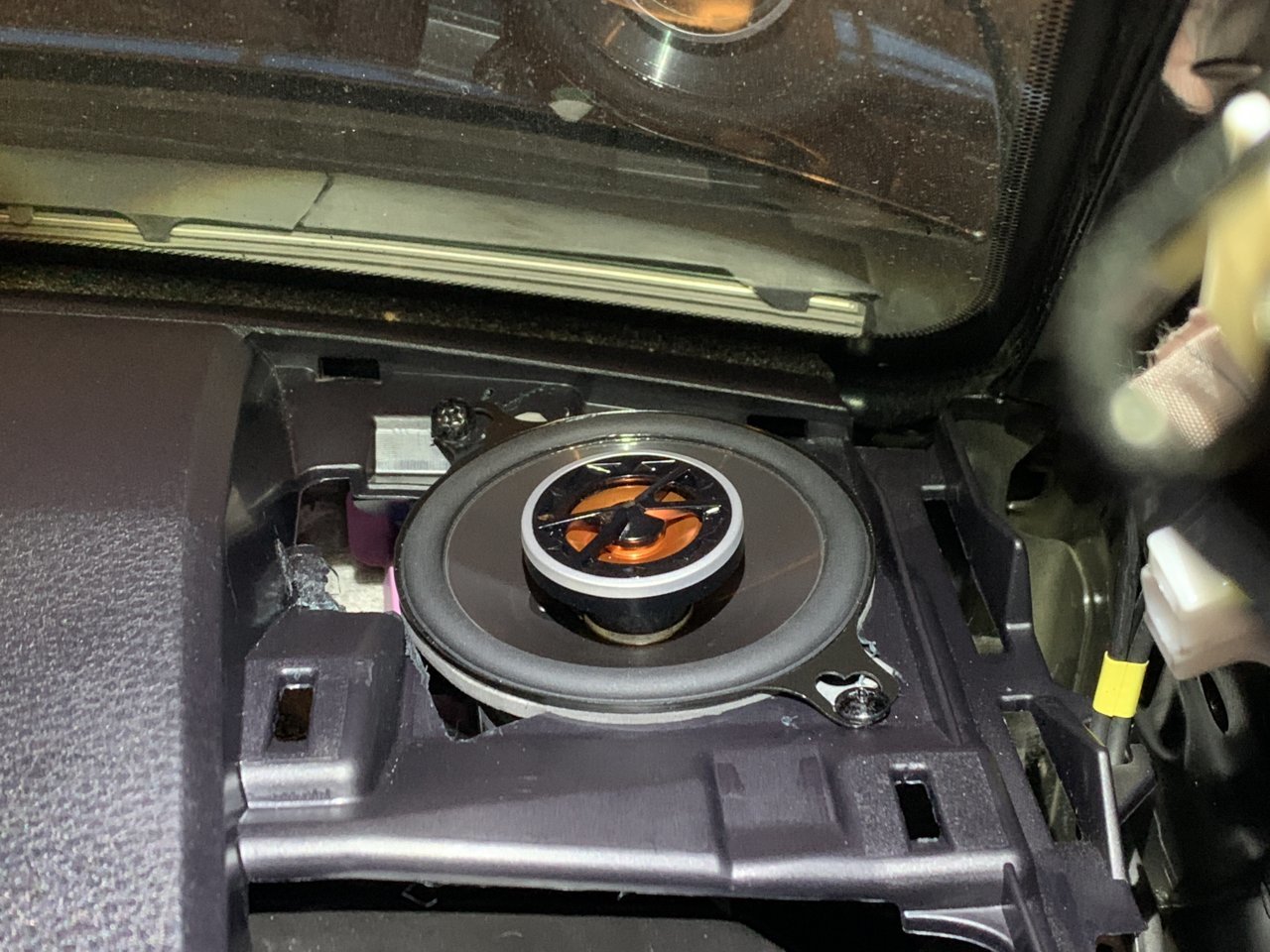

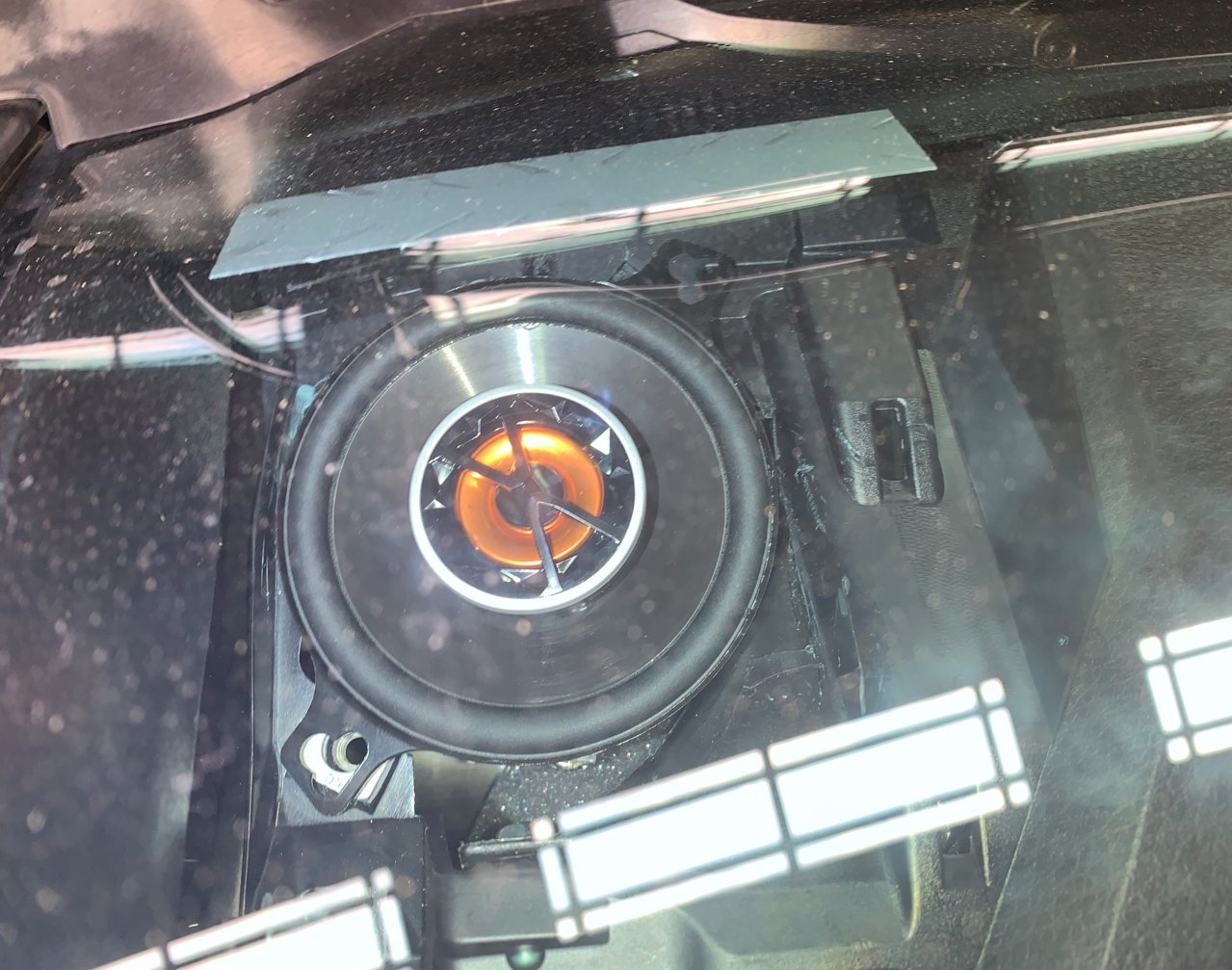

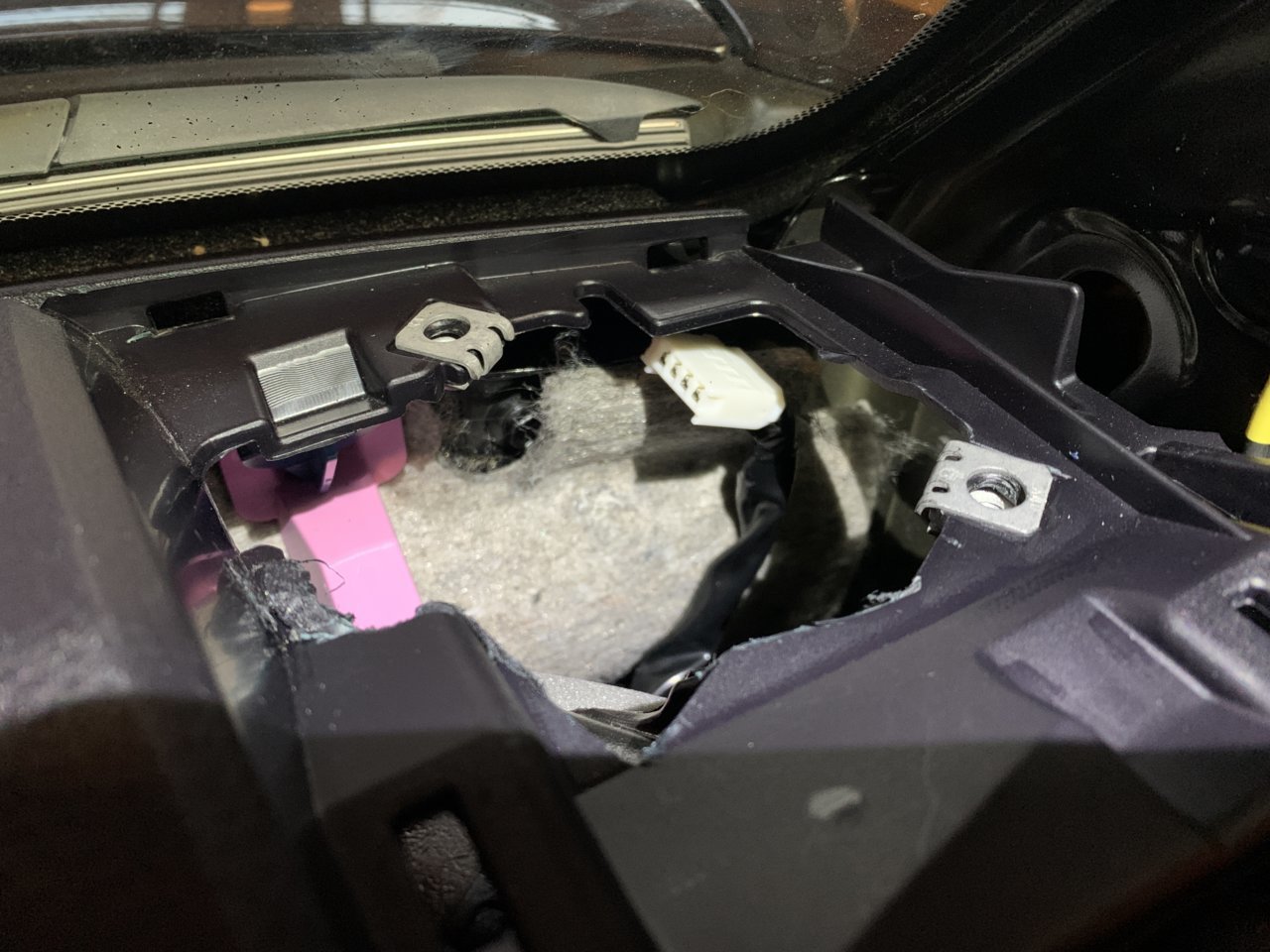

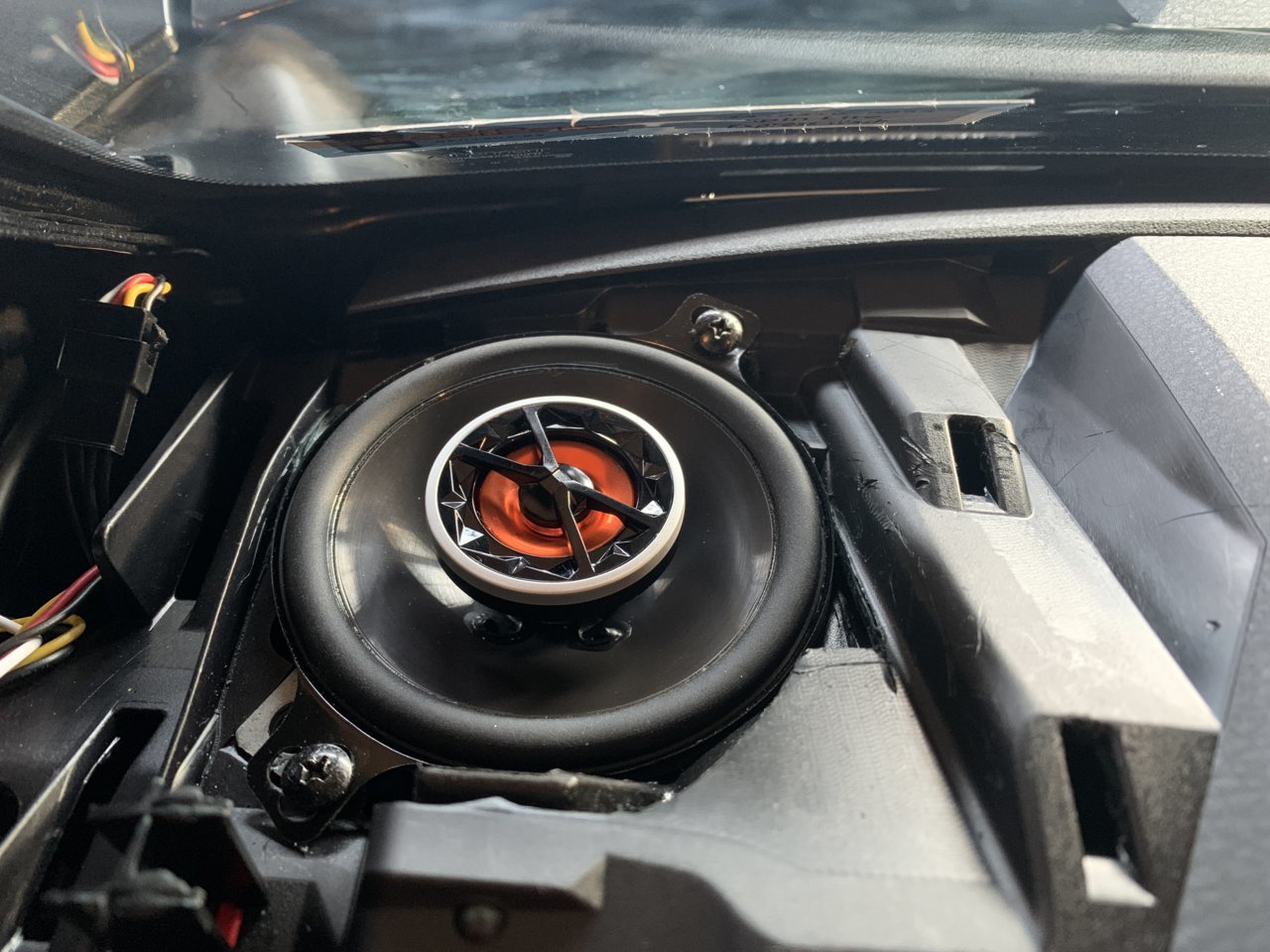

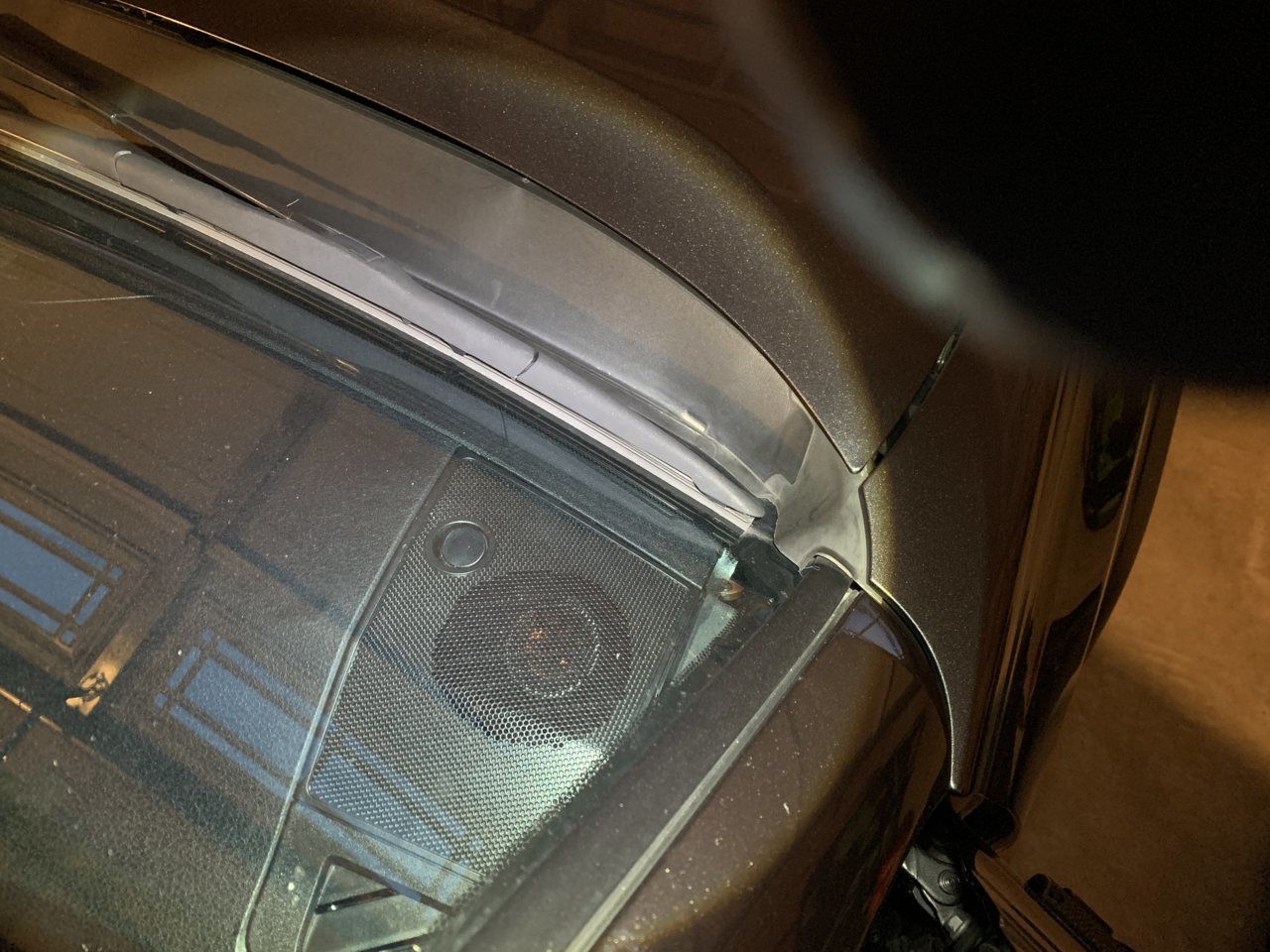

    Got the speakers all mocked up and the harness built with the capacitor in line, soldered, heat shrunk, and tesa taped. Did the final cuts and as expected I couldn't use the factory mounts. Cut and shaved the top plate so it cleared the speaker.... On to the passenger side :cheers:

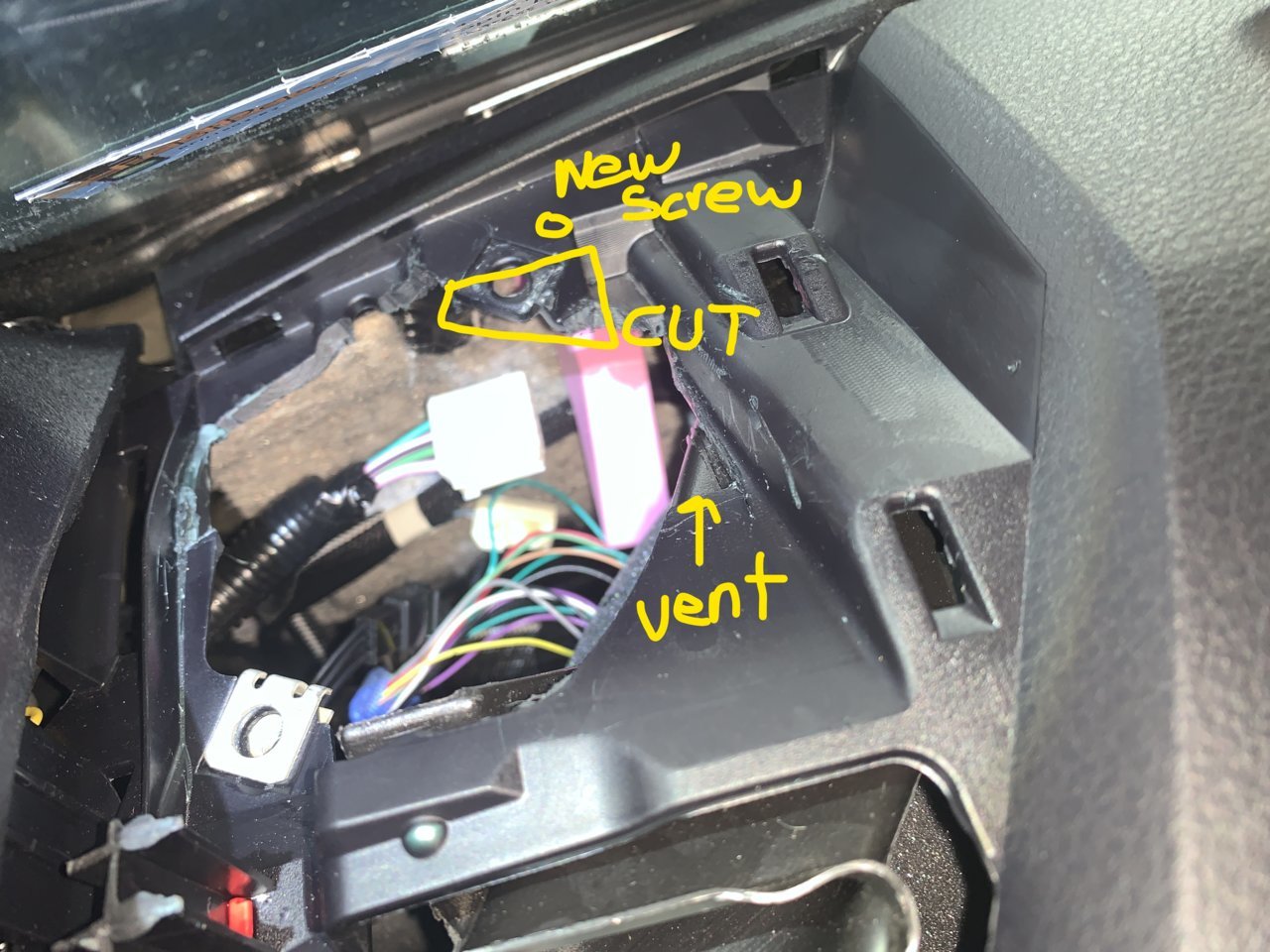

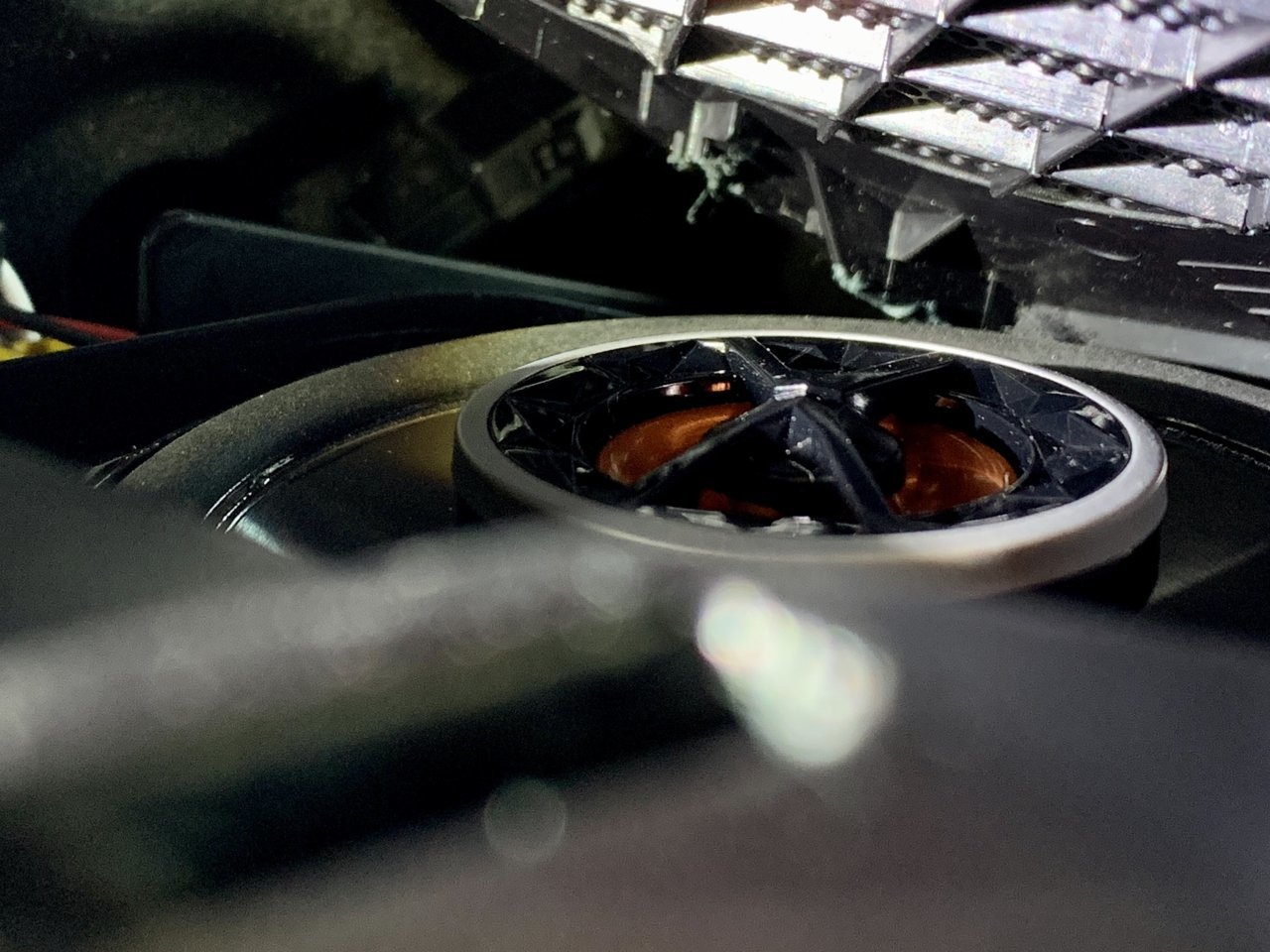

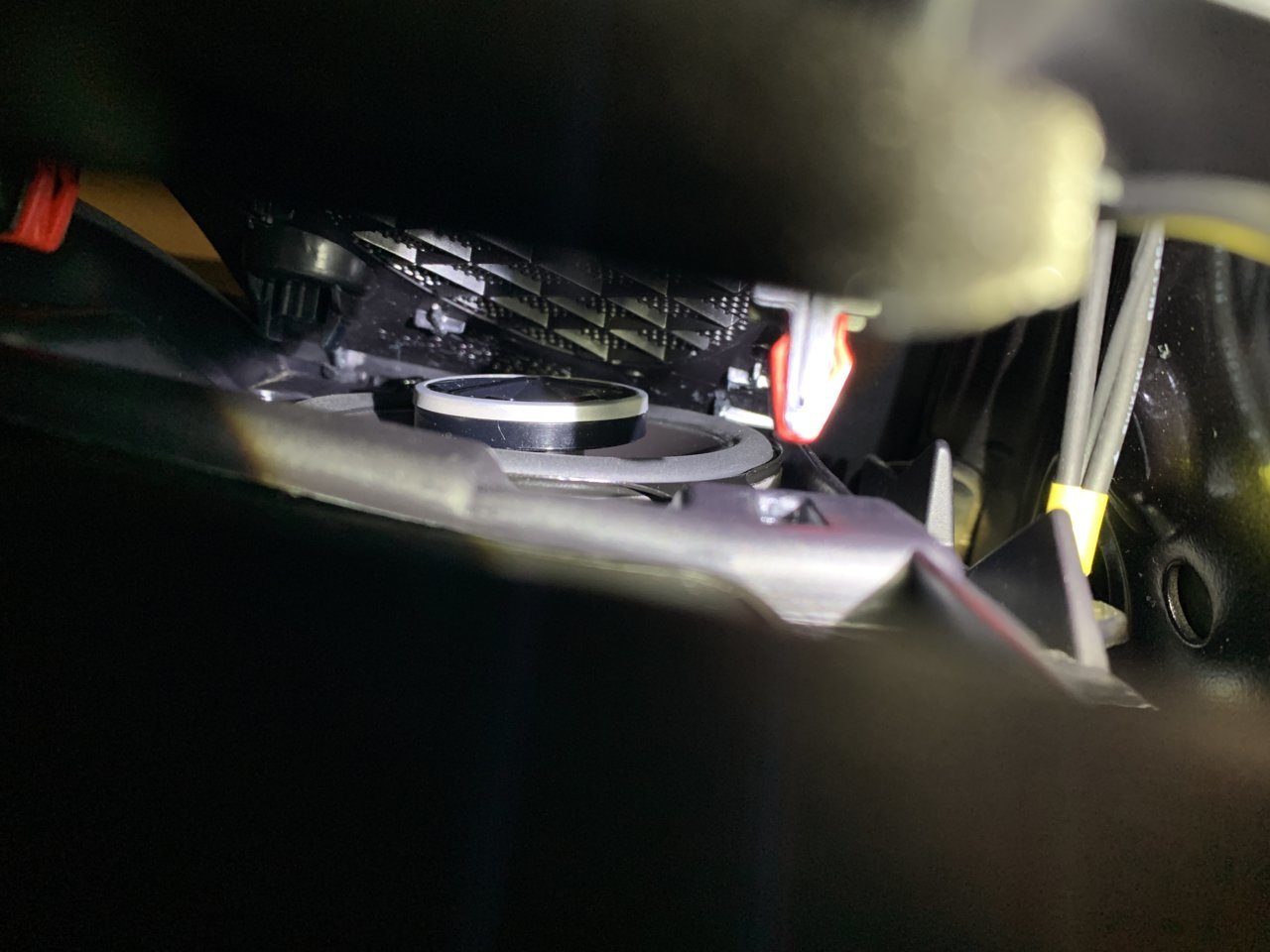

    I did use the foam on the bottom of the mid and it's on a very slight angle in line with the dash resting on the vent where that notch is cut out. Very snug and no play.


  6. Apr 14, 2020 at 6:04 PM
    #6
    TacoWdrd

    TacoWdrd [OP] Well-Known Member

    Joined:
    Nov 8, 2019
    Member:
    #310185
    Messages:
    395
    Gender:
    Male
    First Name:
    Shane
    Ohio
    Vehicle:
    2019 MGM TRD OR
  7. Apr 28, 2020 at 1:16 PM
    #7
    DartFrog

    DartFrog Well-Known Member

    Joined:
    Nov 16, 2018
    Member:
    #272863
    Messages:
    200
    Gender:
    Male
    First Name:
    Jeff
    Chandler AZ
    Vehicle:
    2018 Barcelona Red TRD Off Road
    nice job. where are you planning on placing the Kicker Key? I put mine in my dash, but am thinking of moving it under the passenger seat.

  8. Apr 28, 2020 at 1:29 PM
    #8
    TacoWdrd

    TacoWdrd [OP] Well-Known Member

    Joined:
    Nov 8, 2019
    Member:
    #310185
    Messages:
    395
    Gender:
    Male
    First Name:
    Shane
    Ohio
    Vehicle:
    2019 MGM TRD OR

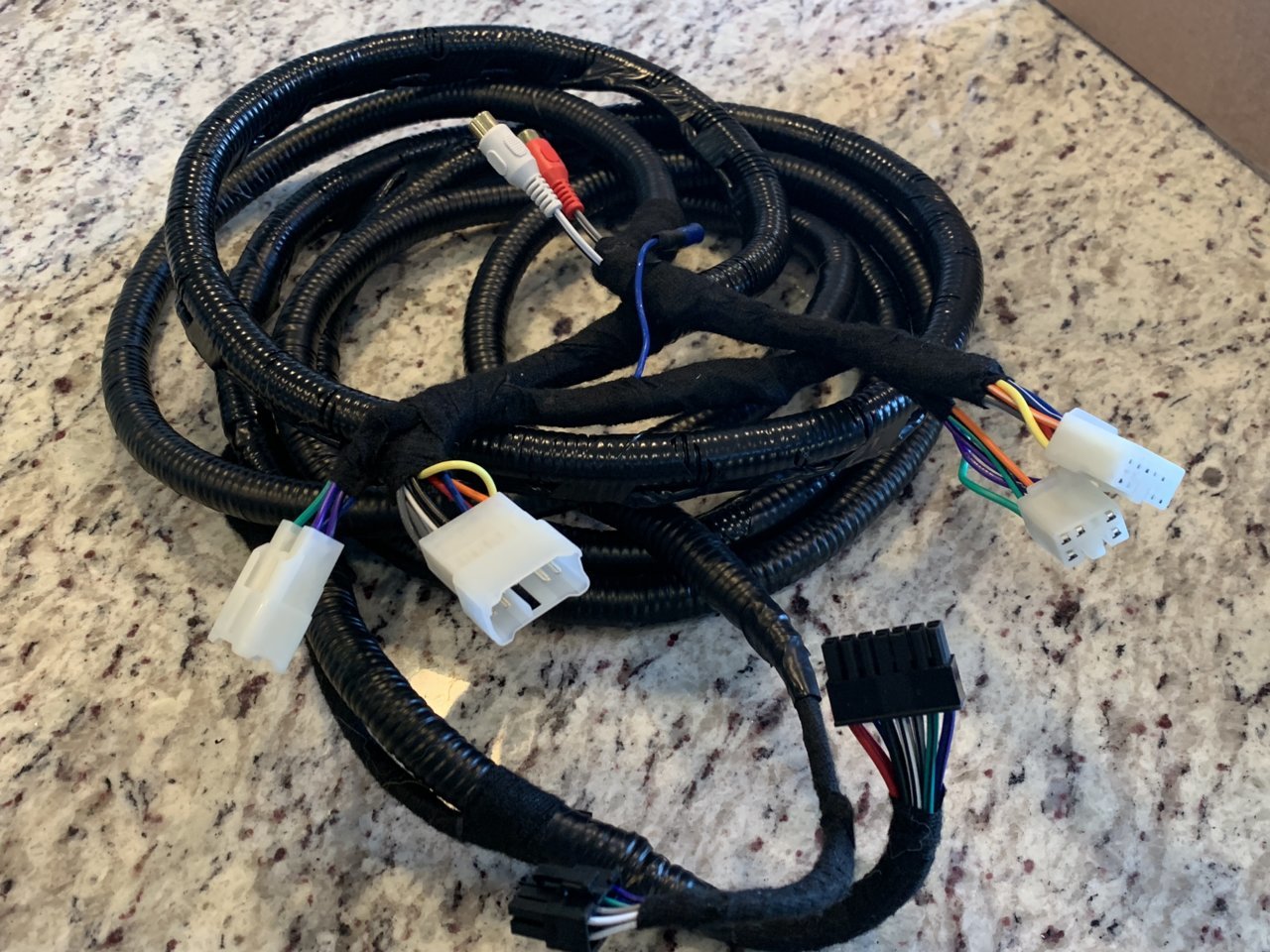

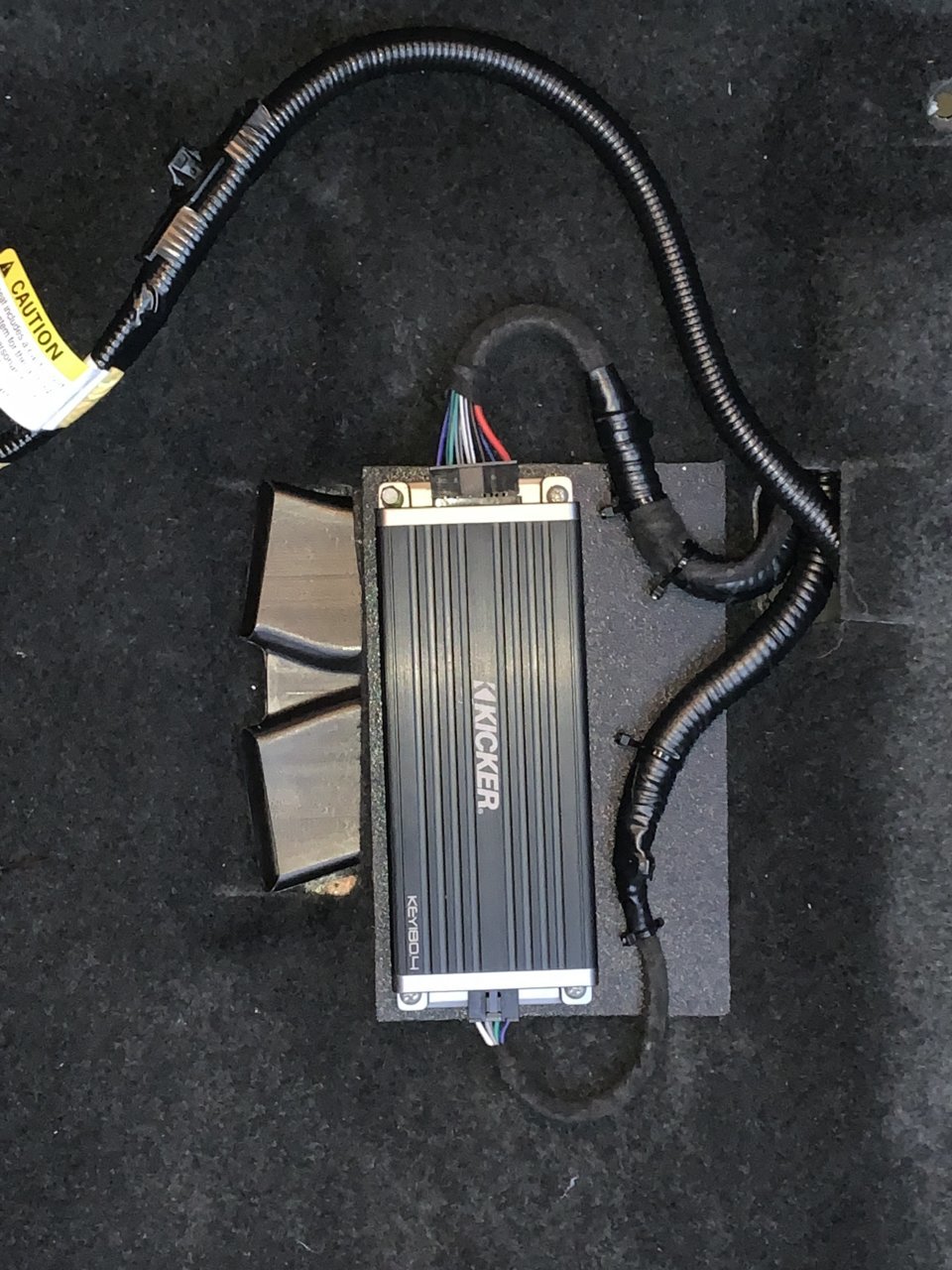

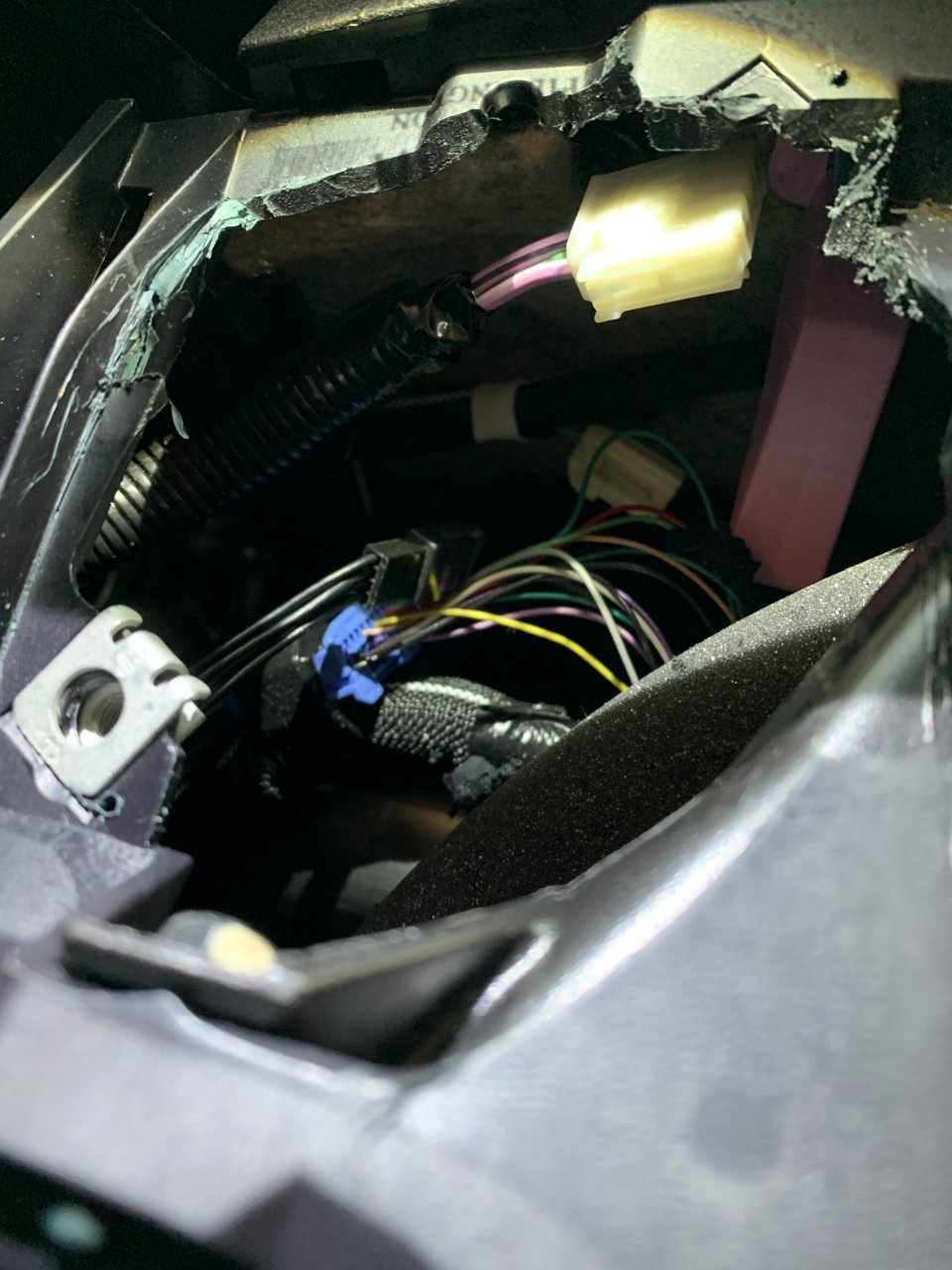

    Built a 7'ish foot harness ran it down the center console area and put it under the seat on an abs board.

    DartFrog likes this.
  9. Apr 28, 2020 at 1:37 PM
    #9
    DartFrog

    DartFrog Well-Known Member

    Joined:
    Nov 16, 2018
    Member:
    #272863
    Messages:
    200
    Gender:
    Male
    First Name:
    Jeff
    Chandler AZ
    Vehicle:
    2018 Barcelona Red TRD Off Road
    Very nice! I wish I had done that instead. I'm not sure if I want to pull everything and make a new harness.

    Last edited: Apr 28, 2020
  10. Jul 15, 2020 at 6:40 AM
    #10
    TacoWdrd

    TacoWdrd [OP] Well-Known Member

    Joined:
    Nov 8, 2019
    Member:
    #310185
    Messages:
    395
    Gender:
    Male
    First Name:
    Shane
    Ohio
    Vehicle:
    2019 MGM TRD OR
  11. Jul 15, 2020 at 6:46 AM
    #11
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    2,867
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    Just go
    Just go ahead and return that wiring kit and get an OFC kit. Aluminum will give you problems with corrosion after a while. You can go 8awg on the OFC kit

  12. Jul 15, 2020 at 6:52 AM
    #12
    TacoWdrd

    TacoWdrd [OP] Well-Known Member

    Joined:
    Nov 8, 2019
    Member:
    #310185
    Messages:
    395
    Gender:
    Male
    First Name:
    Shane
    Ohio
    Vehicle:
    2019 MGM TRD OR
    Last edited: Jul 15, 2020
  13. Jul 16, 2020 at 11:32 AM
    #13
    TacoWdrd

    TacoWdrd [OP] Well-Known Member

    Joined:
    Nov 8, 2019
    Member:
    #310185
    Messages:
    395
    Gender:
    Male
    First Name:
    Shane
    Ohio
    Vehicle:
    2019 MGM TRD OR

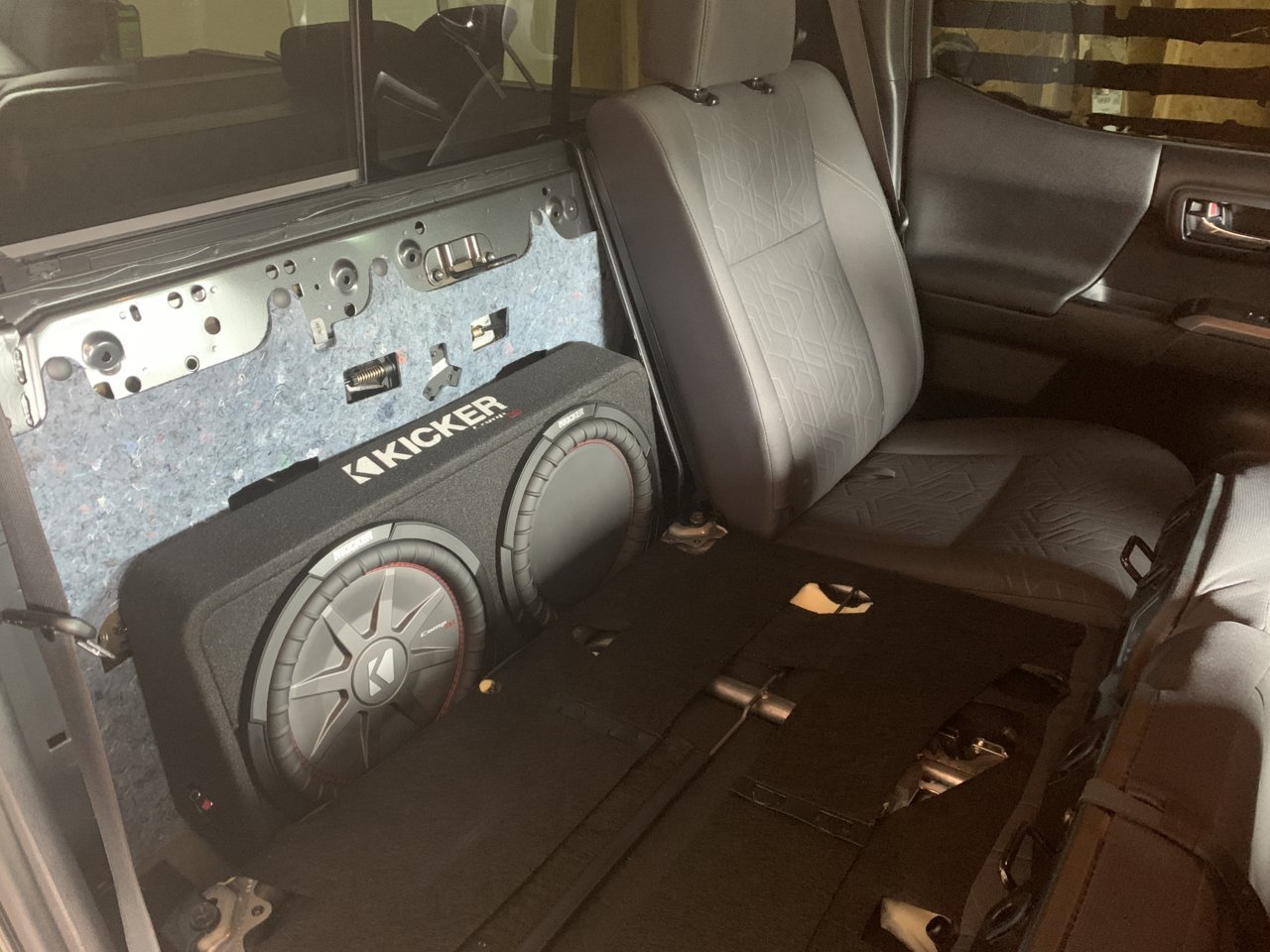

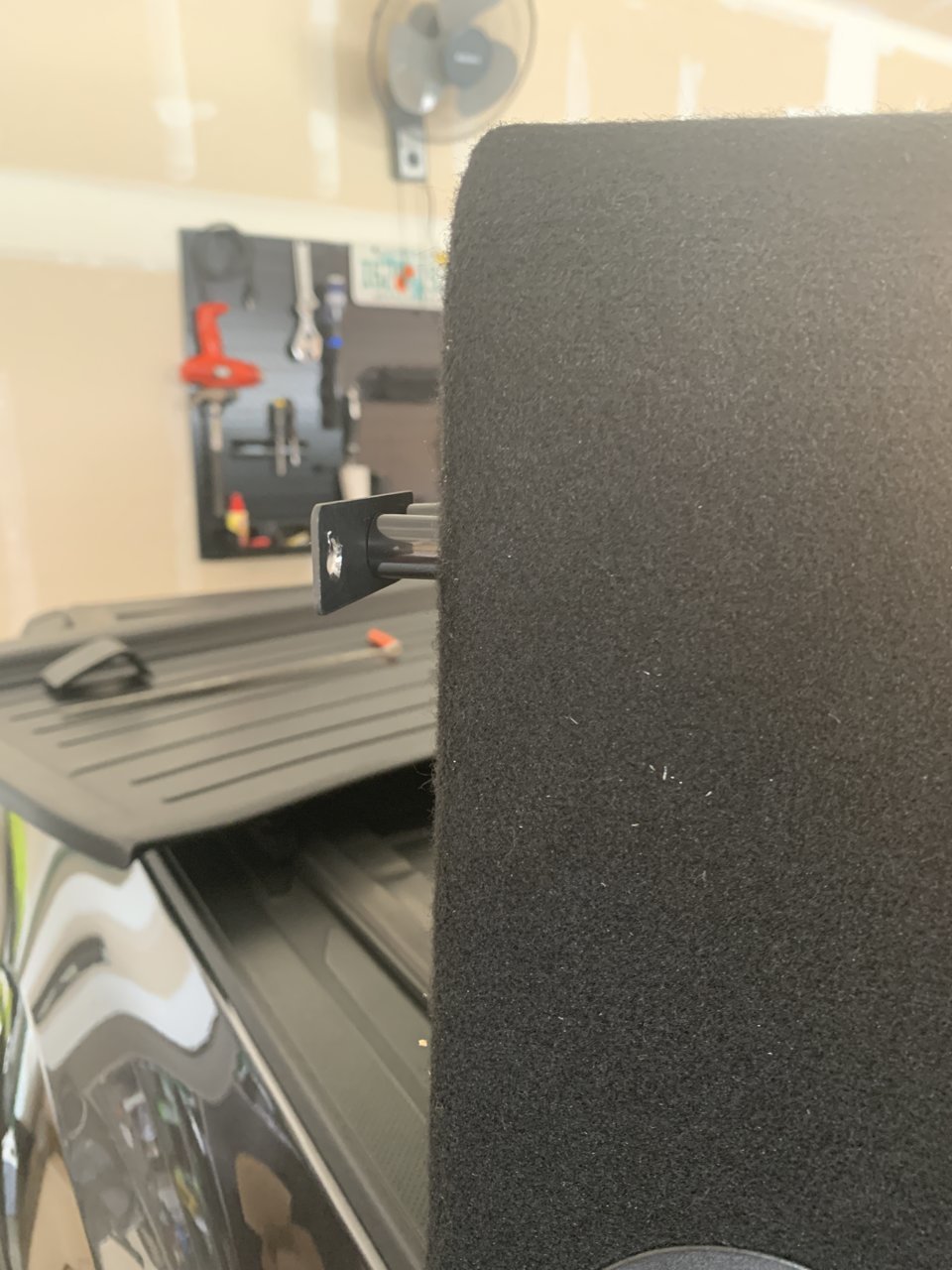

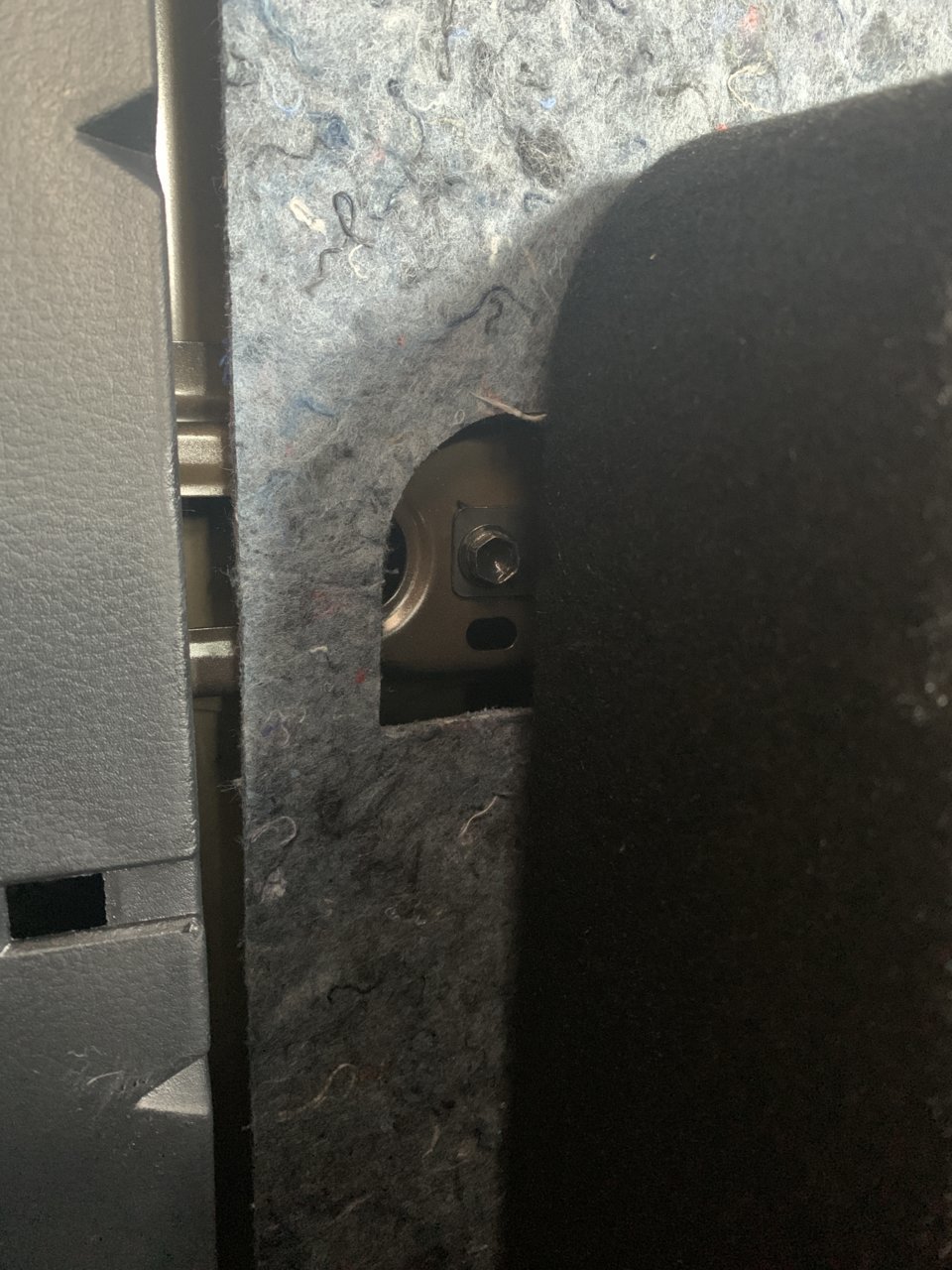

    First piece of the puzzle showed up. Made a stand off and used the factory bolt and bolt hole location to keep the box in place.
    7DDAEF5B-F18F-431C-B3E8-F9D6C65A07C4.jpg D4A893BA-8D51-4E7A-AC2A-57AF41E6B97E.jpg 0F026A1A-00E6-4EE0-AFCC-984FB29D8357.jpg

    destin_meeks likes this.
  14. Jul 16, 2020 at 4:20 PM
    #14
    TacoWdrd

    TacoWdrd [OP] Well-Known Member

    Joined:
    Nov 8, 2019
    Member:
    #310185
    Messages:
    395
    Gender:
    Male
    First Name:
    Shane
    Ohio
    Vehicle:
    2019 MGM TRD OR

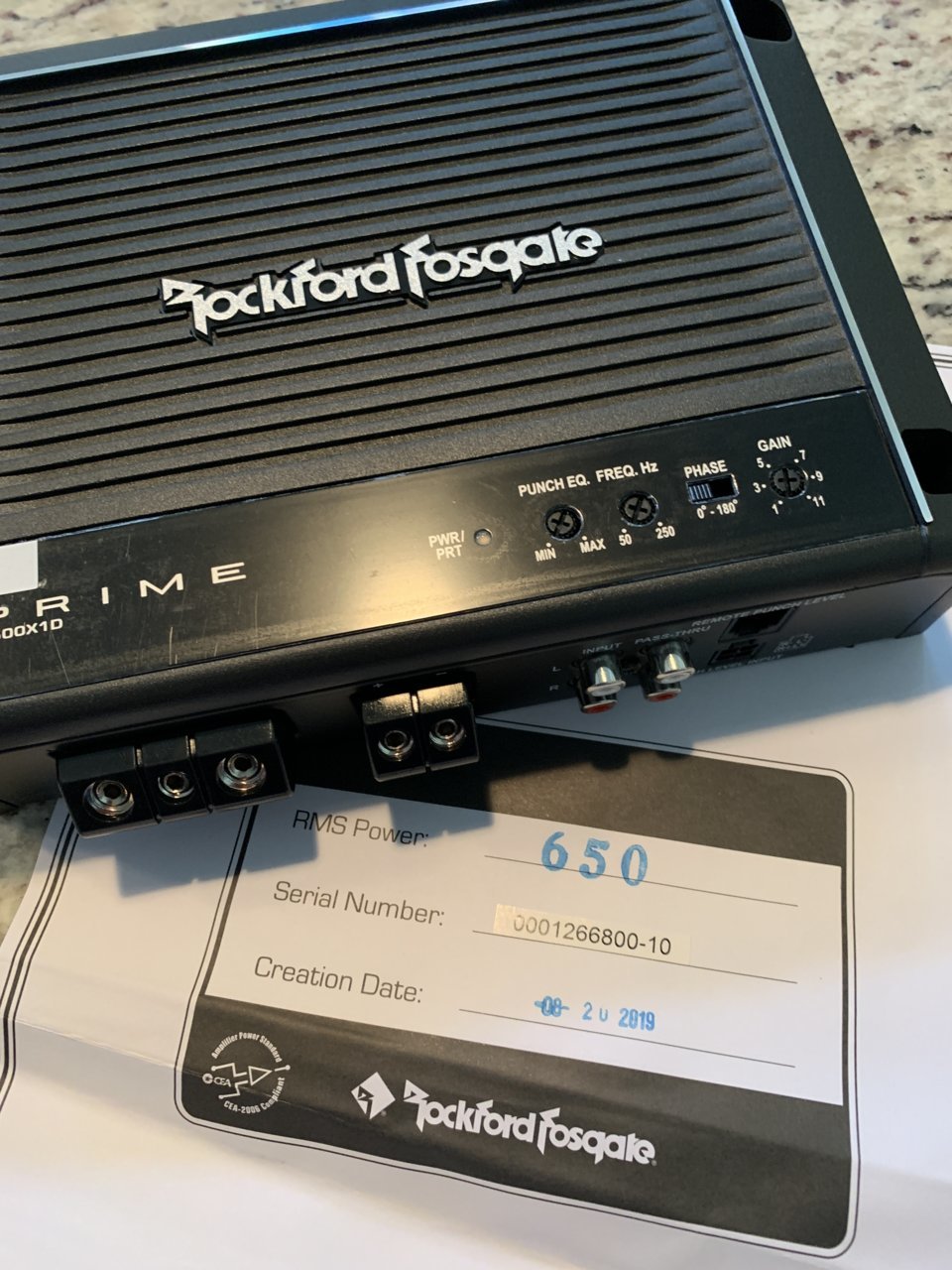

    Birth sheet is legit :thumbsup:

    destin_meeks likes this.
  15. Jul 17, 2020 at 7:46 AM
    #15
    TacoWdrd

    TacoWdrd [OP] Well-Known Member

    Joined:
    Nov 8, 2019
    Member:
    #310185
    Messages:
    395
    Gender:
    Male
    First Name:
    Shane
    Ohio
    Vehicle:
    2019 MGM TRD OR

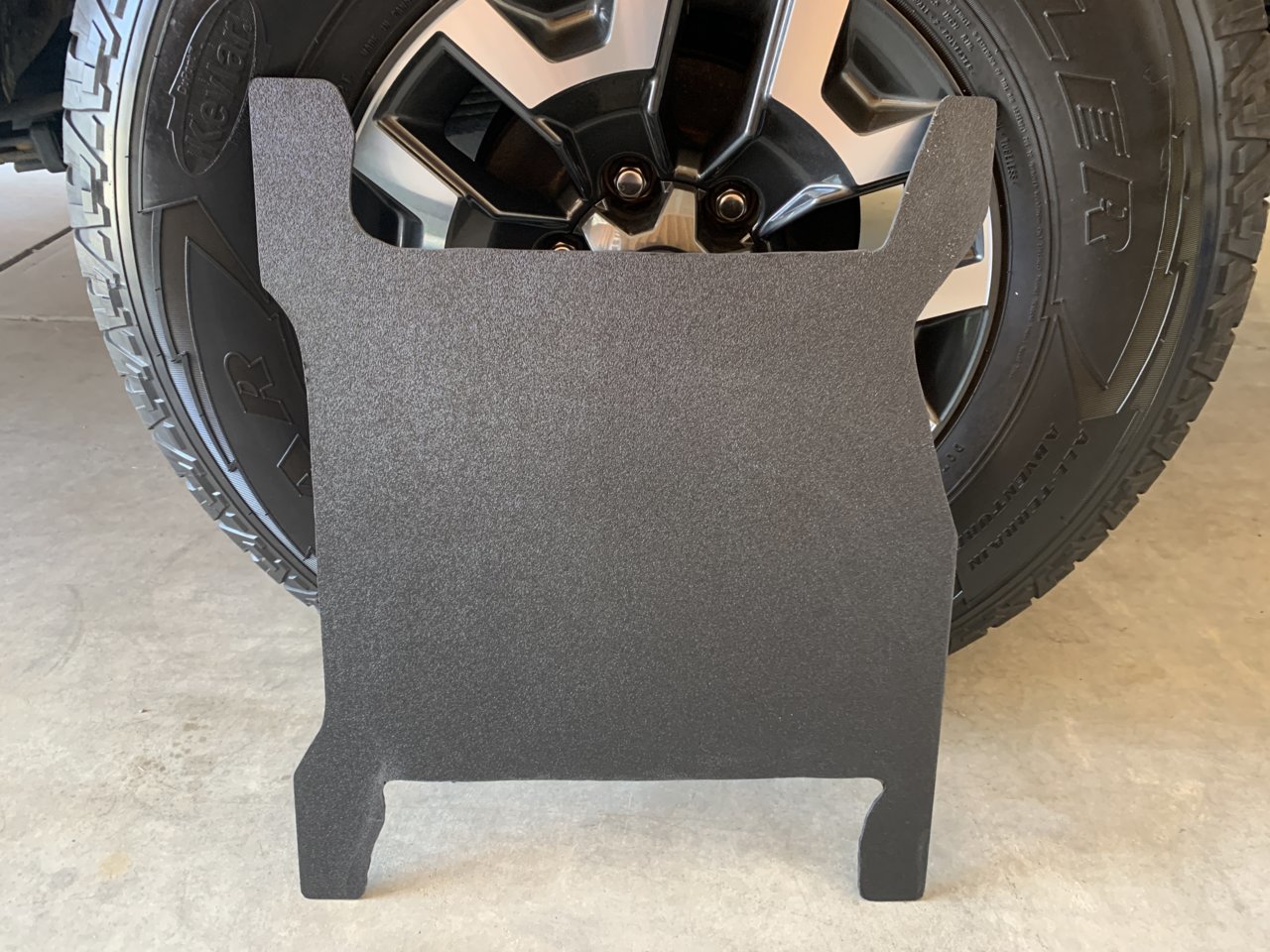

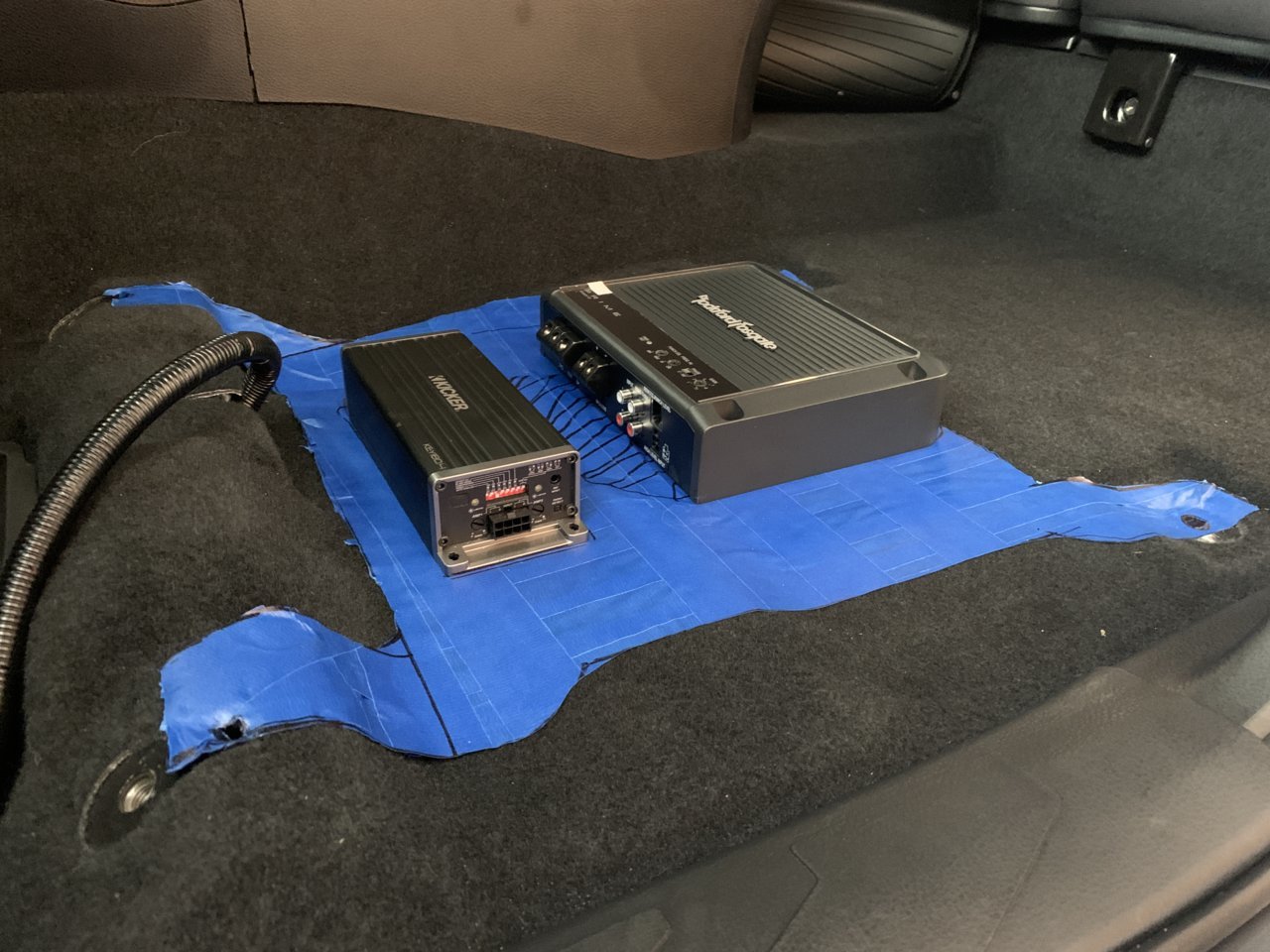

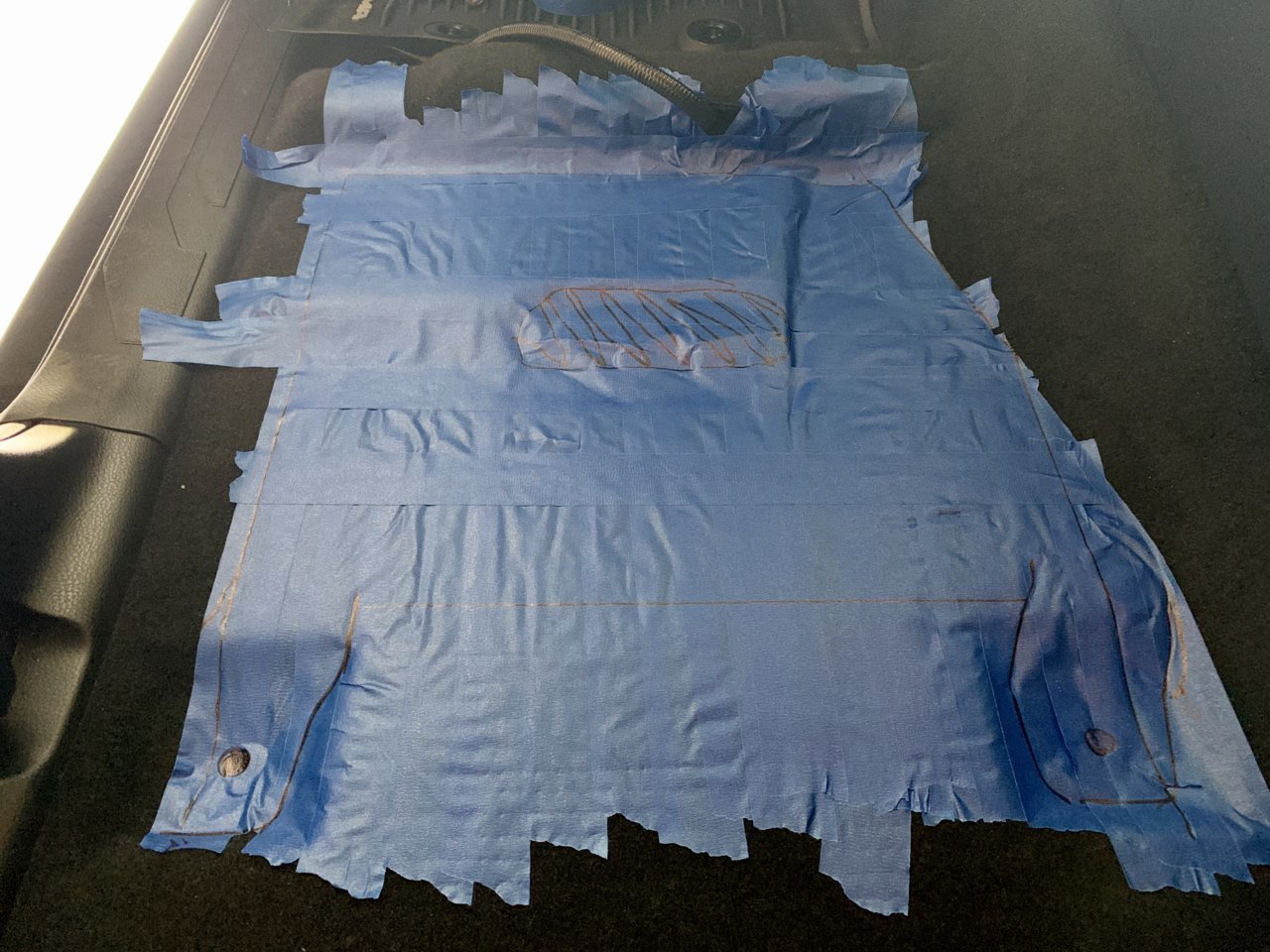

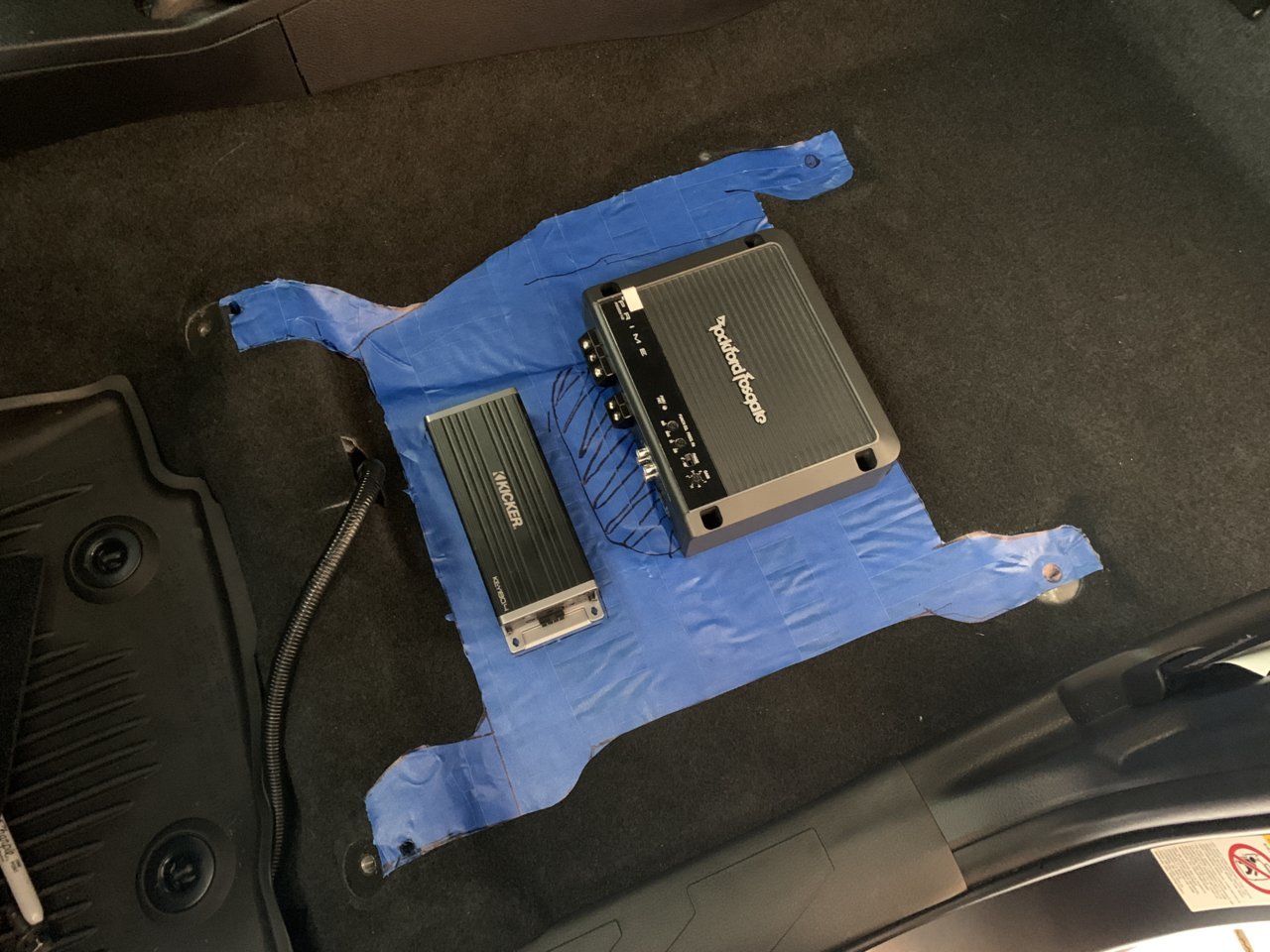

    1AEE2328-F547-4B05-B086-B81CDE986171.jpg 0B32A2E0-2B2D-4752-B232-0D294B0055DC.jpg 4D3AAD86-6367-4004-9CF2-A6EA32365518.jpg 62D663D5-ACD9-4D79-A0B6-C883034FCEC0.jpg Laid down some tape and drew out the lines of the rack to transfer onto an ABS board.

    mjc251 likes this.
  16. Jul 17, 2020 at 1:49 PM
    #16
    TacoWdrd

    TacoWdrd [OP] Well-Known Member

    Joined:
    Nov 8, 2019
    Member:
    #310185
    Messages:
    395
    Gender:
    Male
    First Name:
    Shane
    Ohio
    Vehicle:
    2019 MGM TRD OR
    Nothing fancy here... just a reciprocating saw, Dremel, and some sand paper.
    Now I just gotta figure out where to heat and bend it.

  17. Jul 17, 2020 at 3:20 PM
    #17
    TacoWdrd

    TacoWdrd [OP] Well-Known Member

    Joined:
    Nov 8, 2019
    Member:
    #310185
    Messages:
    395
    Gender:
    Male
    First Name:
    Shane
    Ohio
    Vehicle:
    2019 MGM TRD OR

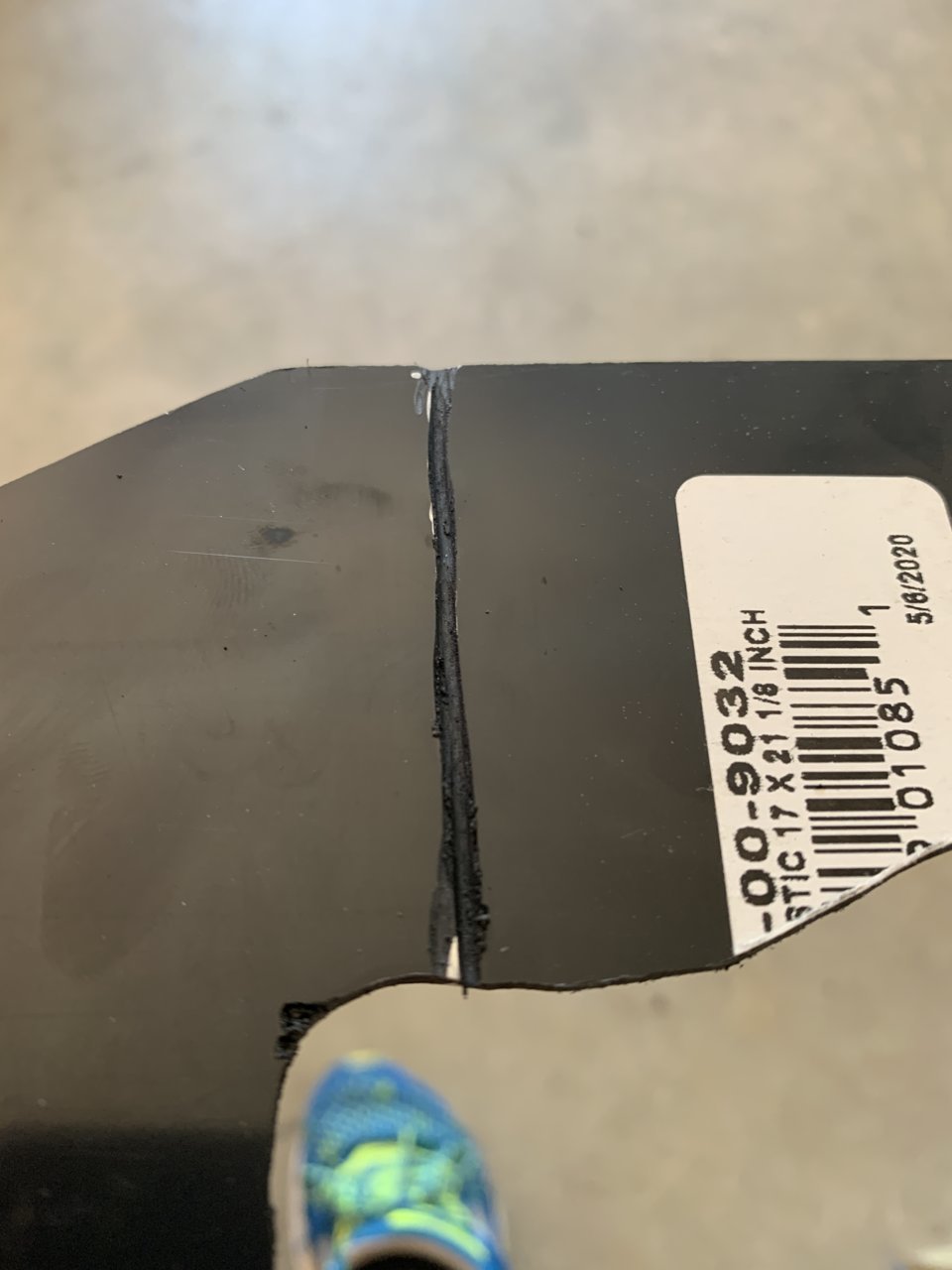

    I use a butane torch to heat and bend the ABS... pro tip score a line where you want the bend and it will be perfect not melty. 10A8074E-072C-45C8-88FA-D680100B21F0.jpg 4F2CF15A-3DF4-4F36-8813-F4309EDB4BD4.jpg

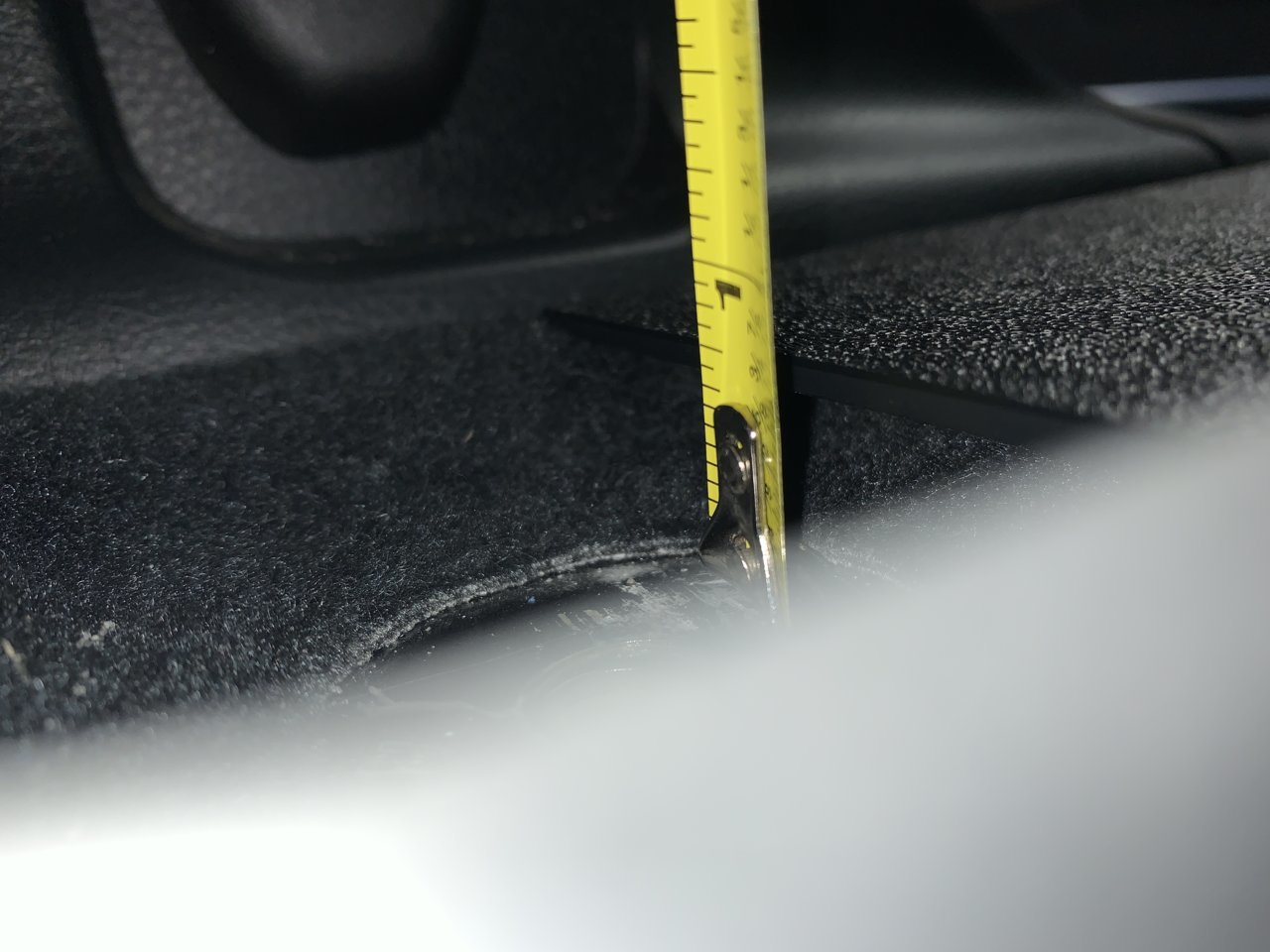

    To get the height I just measured the depth and used that to measure down from my first bend. It gets you in the ball park.

  18. Jul 17, 2020 at 3:24 PM
    #18
    TacoWdrd

    TacoWdrd [OP] Well-Known Member

    Joined:
    Nov 8, 2019
    Member:
    #310185
    Messages:
    395
    Gender:
    Male
    First Name:
    Shane
    Ohio
    Vehicle:
    2019 MGM TRD OR

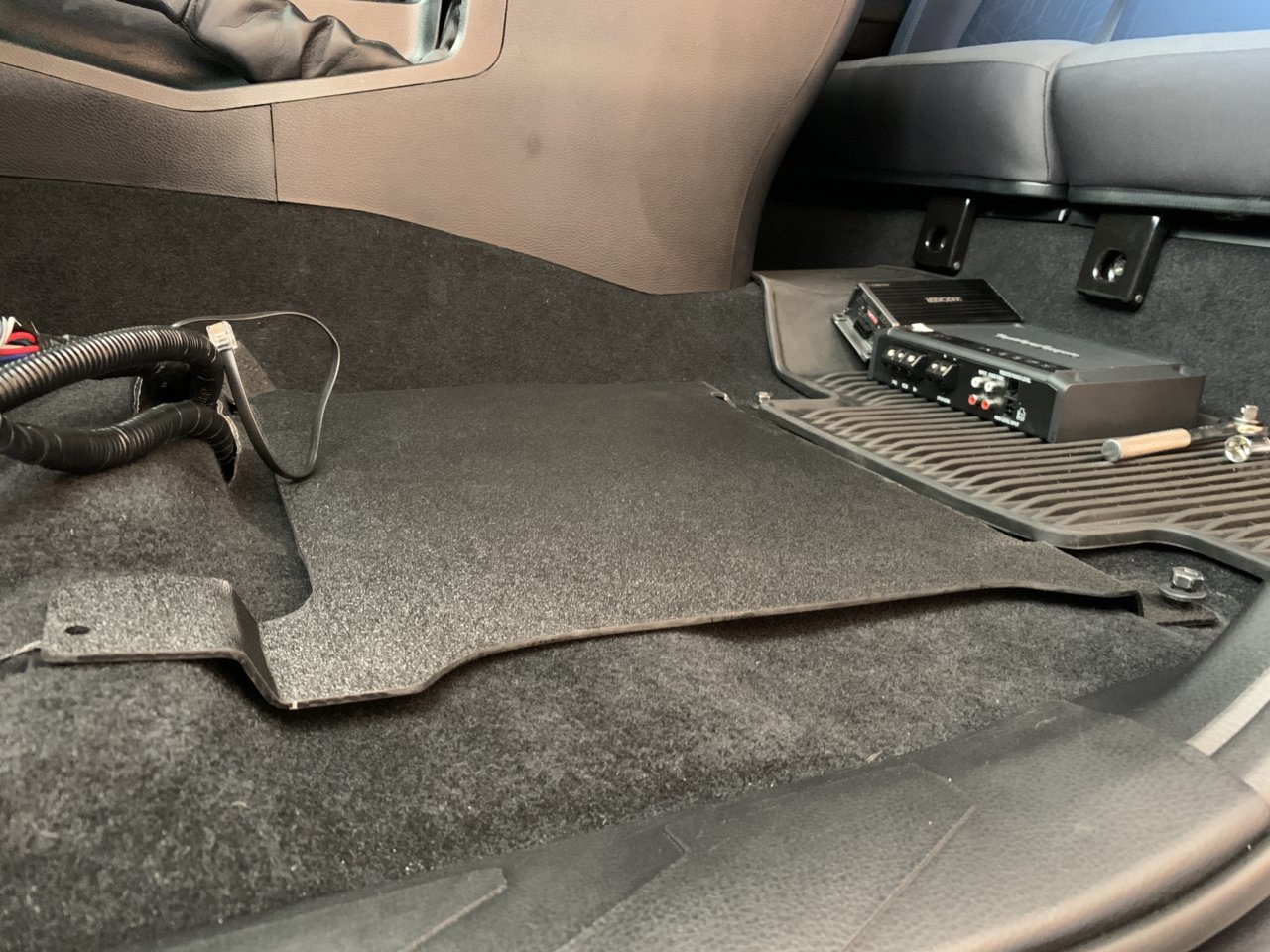

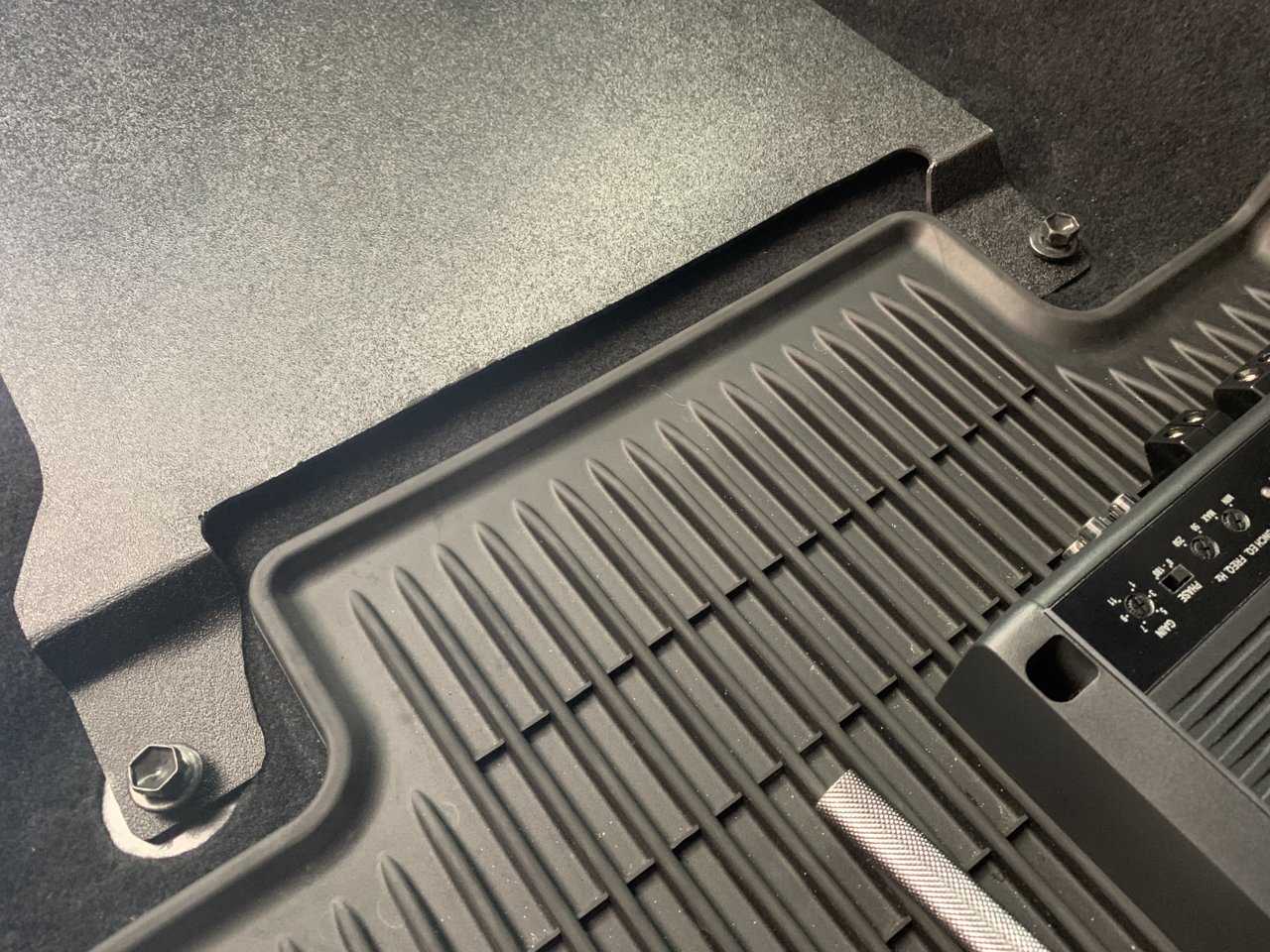

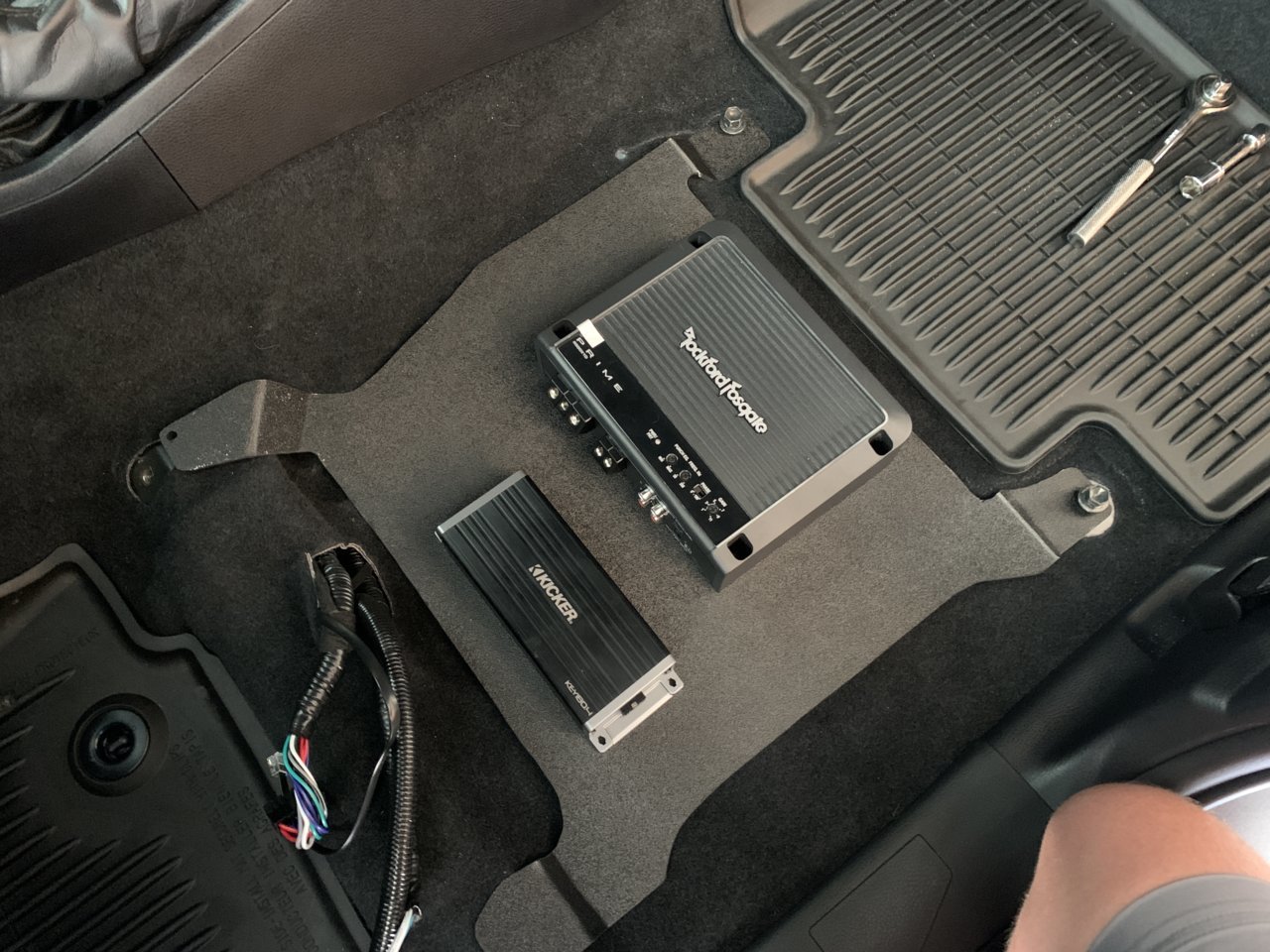

    Finished all the bends and drilled the mounting holes. The rack is a little more real estate than I need but whatever it’s under the seat. Just waiting on an amp kit :playball:
    EEE05AEF-DB0D-434F-85C4-BE54480A42DD.jpg 7D30094A-083F-482C-AD51-BD1DC6F3C802.jpg 713A2BE9-C923-4899-B693-623EF7B1906B.jpg DD174592-4FDF-4705-809C-2ADB2CC2949E.jpg

  19. Jul 17, 2020 at 4:20 PM
    #19
    Ruminator

    Ruminator Chairman of the Bored.

    Joined:
    Feb 13, 2018
    Member:
    #244300
    Messages:
    1,836
    Gender:
    Male
    First Name:
    Mark
    Northern Illinois, USA
    Vehicle:
    2017 Red TRD-Sport, ACLB, MT!!!
    So your rack doesn't use the front seat bolts?

    Every one of these under seat installations I've seen uses the driver's side. I haven't looked at it yet. Is it easier than the passenger side to run the cables?

  20. Jul 17, 2020 at 5:10 PM
    #20
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    2,867
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    Bro that looks dope! Good job! I love seeing people take the time and steps to have an awesome install! It doesn’t have to be anything fancy, and that whole process cost you what? $15 for the ABS sheet, and an hour or two of your day?
