Dashcam Hardwire Install

Discussion in '3rd Gen. Tacomas (2016+)' started by anonymouscuban, Dec 31, 2017.

  1. Dec 31, 2017 at 12:25 PM
    #1
    anonymouscuban

    anonymouscuban [OP] Well-Known Member

    Joined:
    Dec 20, 2017
    Member:
    #238999
    Messages:
    248
    Gender:
    Male
    First Name:
    Alex
    Porter Ranch
    Vehicle:
    2017 MGM Off Road Double Cab Shortbox
    Just got done hardwiring a dashcam in my 5 day old DCSBOR Taco. I did this in my last car but doing it in the Taco was a breeze. The A-pillar comes off super easier. My last car had several clips that have to be replaced.

    I already had the dash-cam that I bought a few years ago. Works great so I didn't bother getting a new one. The original mount was the suction cup type. I was easily able to retrofit the dashcam mount to use the goPro mount that came with my Taco.

    Finished Install

    Wire all tucked into headliner running down the A-pillar to the fuse box. Very clean. The cam powers on automagically when I power the accessories in the Taco.

    [​IMG]

    Misc Supplies/Tools

    Aside from the camera and wire kit, I used zip ties, a 10mm socket and a plastic car trim pry tool. A flat head screw driver with some tape on will work just as well.

    Camera

    I used my old dashcam. I bought it in 2015 as a lightning deal on Amazon for about $60. It's worked well since. Don't think they sell this version any longer.

    https://www.amazon.com/gp/product/B00W36ERK8/ref=oh_aui_detailpage_o00_s00?ie=UTF8&psc=1

    [​IMG]

    Hardwire Kit

    I used a hardwire kit by Auto-Vox. Ordered from Amazon. I like this one because it already comes with the fuse-tap, all packaged nicely together. This is for a Mini-USB connector. They sell it in 3 different fuse types. The taco uses low-profile mini fuse type.

    https://www.amazon.com/gp/product/B073P8ZVZT/ref=oh_aui_detailpage_o00_s00?ie=UTF8&psc=1

    [​IMG]

    Run Wire to the goPro Mount

    I removed the driver side A-pillar by popping off the bolt cover with a plastic car-trim tool. Then unscrewed the 10mm nut. The A-pillar then pops right out.

    [​IMG]

    I then pulled the Auto-Vox cable up from the driver footwell up to the through the A-pillar, up along the windshield to the mount. Tucked it under the headliner along the windshield to the goPro mount. I zipped tied the cabe to the other wire harness running through A-pllar.

    [​IMG]

    Tapping Into Power

    Next, I removed the 30A fuse used by the wiper fluid. Inserted the fuse tap and then placed the 30A fuse I removed into the tap. I attached the ground wire to the bolt/nut of the fuse box.

    I took up the wire slack and zip-tied the convertor and the extra wire behind the fuse box.

    NOTE - the fuse box cover will not fit back on with the fuse-tap installed. No biggie. I put mine the glovebox for safe keeping.

    NOTE 2 - Using the wiper fluid fuse only send power to the camera when you have the car on or on accessory mode. Alternatively, you can tap into a different fuse that has constant power if you want your dashcam to have power 24/7. Reference the fuse box cover to decide which fuse will work best.


    [​IMG]

    Finishing Up

    I then replaced the A-pillar cover back on and cleaned up. Process took me 35 minutes from soup to nuts. And about 10 minutes of that was looking for my needle nosed pliers to remove the damn fuse. Well worth it to not have wires hanging all over the place.

    [​IMG]

  2. Dec 31, 2017 at 12:37 PM
    #2
    Aqua1047

    Aqua1047 Member

    Joined:
    Oct 21, 2017
    Member:
    #233650
    Messages:
    14
    Gender:
    Male
    First Name:
    Marvin
    Vehicle:
    17 Tacoma access cab trd sport 4x4
    Air lift
    Nice job op

    anonymouscuban [OP] likes this.
  3. Dec 31, 2017 at 12:40 PM
    #3
    nothrill87

    nothrill87 Well-Known Member

    Joined:
    Jan 22, 2017
    Member:
    #208270
    Messages:
    70
    Gender:
    Male
    Sierra Vista, AZ
    Vehicle:
    2016 DCSB TRD OR
    OEM door sill protectors Husky Xact fit floor liners Tailgate letters Mobtown Sliders Y-pipe reroute RCI 90% Aluminum Armor Custom modular bedrack with mounted Hilift and removeable fishing pole holder rack RokBlokz oversize mudflaps (for future lift and tire upgrade) Xpel tailgate and doorhandle cup protection film ARB rear diff breather valve relocation ARB Twin Compressor in bedbox Coming soon: ARB Safari Snorkel, bed box ARB dual air compressor and mount
    Did the armature for your old dashcam just match the gopro mount or did you have to find parts?

  4. Dec 31, 2017 at 12:44 PM
    #4
    17tacotrdor

    17tacotrdor Well-Known Member

    Joined:
    Feb 3, 2017
    Member:
    #209522
    Messages:
    168
    Gender:
    Male
    First Name:
    Matt
    Vehicle:
    2017 trdor 4x4
    Looks great. Love that it’s hidden and not coming down the front window

    anonymouscuban [OP] likes this.
  5. Dec 31, 2017 at 12:45 PM
    #5
    anonymouscuban

    anonymouscuban [OP] Well-Known Member

    Joined:
    Dec 20, 2017
    Member:
    #238999
    Messages:
    248
    Gender:
    Male
    First Name:
    Alex
    Porter Ranch
    Vehicle:
    2017 MGM Off Road Double Cab Shortbox
    It mounted to it but not exactly how it did in the suction cup mount. I just had to get a longer screw. Check the pics below to see how its mounted slightly different.

    See in this pic how it's mounted:

    [​IMG]

    Then how I mounted it to the goPro:
    [​IMG]

    TomTwo, 9TRDTCO and nothrill87 like this.
  6. Jan 1, 2018 at 2:41 PM
    #6
    n6vmo

    n6vmo Well-Known Member

    Joined:
    Jan 1, 2018
    Member:
    #239972
    Messages:
    527
    Gender:
    Male
    Vehicle:
    2018 DCLB OR AT Super "Priviledged"
    Bilstein 6112, ICON UCAs, 5160, AAL, 265/75/16 Falken Wildpeaks
    Nice job!

    I just picked up a 2018 TRD Offroad on Saturday, after trading in my 1998 Tacoma 4x4. The old truck has a dash camera and now I feel naked and vulnerable without one in this new vehicle.
    Thanks for the install instructions and links.

  7. Jan 1, 2018 at 7:41 PM
    #7
    joeslide

    joeslide Active Member

    Joined:
    Dec 5, 2017
    Member:
    #237682
    Messages:
    29
    Gender:
    Male
    Vehicle:
    2017 Toyota TRD Off Road
    Nice. How did you get under the headliner? Did you have to remove the pillar plastic to gain access so you could run your wire?

    Thanks,
    joeslide

  8. Jan 1, 2018 at 7:57 PM
    #8
    anonymouscuban

    anonymouscuban [OP] Well-Known Member

    Joined:
    Dec 20, 2017
    Member:
    #238999
    Messages:
    248
    Gender:
    Male
    First Name:
    Alex
    Porter Ranch
    Vehicle:
    2017 MGM Off Road Double Cab Shortbox
    I removed the plastic trim piece on the driver side pillar to run the wire from the fuse box under steering column up to the headliner. The headliner, I used a trim pry tool to slightly pry it down enough to tuck the wire in. Do this a section at a time.

    JGO likes this.
  9. Jan 1, 2018 at 8:02 PM
    #9
    Mtn Mike

    Mtn Mike Well-Known Member

    Joined:
    Oct 29, 2017
    Member:
    #234494
    Messages:
    613
    Gender:
    Male
    First Name:
    Mike
    Spokane, WA
    Vehicle:
    2017 TRD OR AC
    Thanks for the instructions! I did mine this afternoon. One more tip; it helped to use a stiff, thick wire as a leader to fish the smaller-gauge power lead down from the dash.

  10. Jan 1, 2018 at 8:05 PM
    #10
    anonymouscuban

    anonymouscuban [OP] Well-Known Member

    Joined:
    Dec 20, 2017
    Member:
    #238999
    Messages:
    248
    Gender:
    Male
    First Name:
    Alex
    Porter Ranch
    Vehicle:
    2017 MGM Off Road Double Cab Shortbox

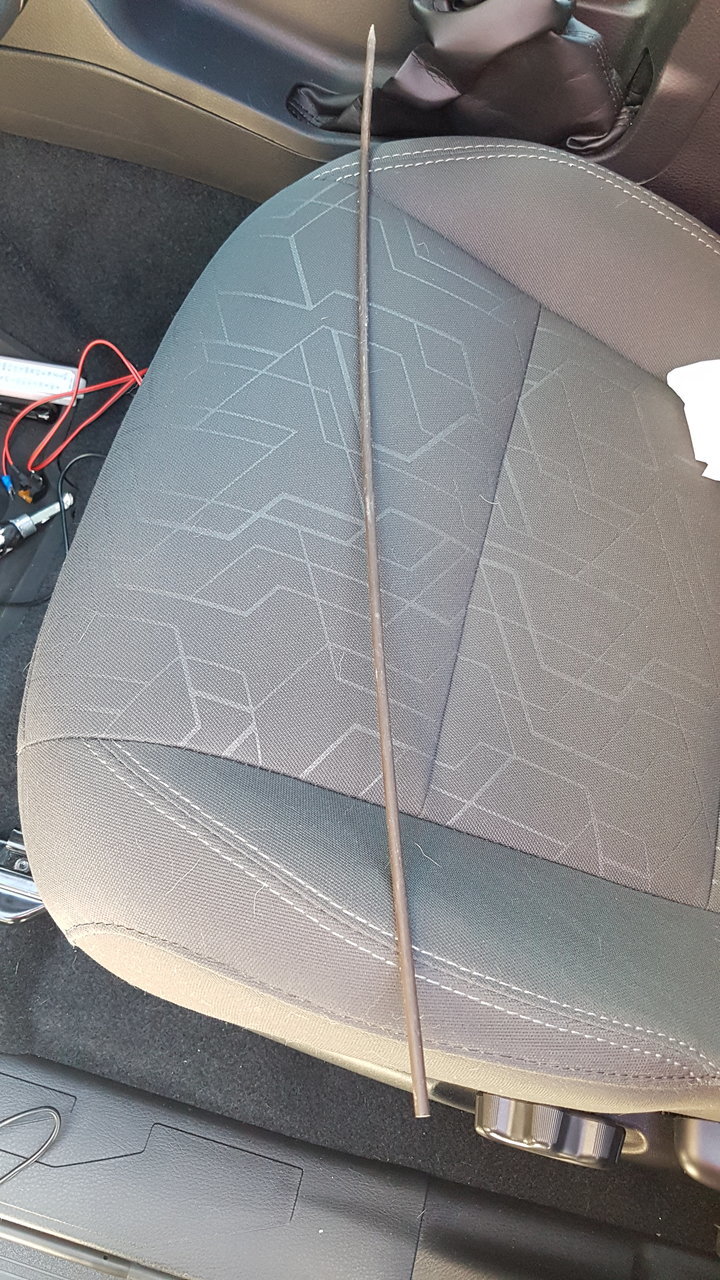

    Cool beans. Ah yes. I used a small wood stake from my wife's orchids. Lol


    Mtn Mike likes this.
  11. Jan 2, 2018 at 1:15 AM
    #11
    poopshute

    poopshute Well-Known Member

    Joined:
    Jul 7, 2009
    Member:
    #19385
    Messages:
    476
    Gender:
    Male
    Colorado
    Vehicle:
    2017 Tacoma TRD Pro Storm Trooper
    Last edited: Jan 2, 2018
    JGO, Gator352 and Isosceles like this.
  12. Jan 2, 2018 at 1:20 AM
    #12
    anonymouscuban

    anonymouscuban [OP] Well-Known Member

    Joined:
    Dec 20, 2017
    Member:
    #238999
    Messages:
    248
    Gender:
    Male
    First Name:
    Alex
    Porter Ranch
    Vehicle:
    2017 MGM Off Road Double Cab Shortbox
    I saw this thread. Definitely I viable option but I didn't want to splice into any of the existing wires.

    JonnyG78 and poopshute like this.
  13. Jan 2, 2018 at 10:40 AM
    #13
    joeslide

    joeslide Active Member

    Joined:
    Dec 5, 2017
    Member:
    #237682
    Messages:
    29
    Gender:
    Male
    Vehicle:
    2017 Toyota TRD Off Road
    Sorry for the additional questions. How is the headliner attached to the roof? Velco? Fasteners?

    Thanks again,
    joeslide

  14. Jan 2, 2018 at 11:08 AM
    #14
    anonymouscuban

    anonymouscuban [OP] Well-Known Member

    Joined:
    Dec 20, 2017
    Member:
    #238999
    Messages:
    248
    Gender:
    Male
    First Name:
    Alex
    Porter Ranch
    Vehicle:
    2017 MGM Off Road Double Cab Shortbox
    No worries on the questions. I'm happy I can contribute to others. This forum has helped me quite a bit.

    I am not truly sure how the headliner is attached. I didn't have to remove the headliner for this install. You can pry it slightly open enough, at the edge along the windshield, to tuck the wire into it. I used one of these to do that. Very handy to have a set of these car trim tool sets for removing trim pieces for stuff like this. $6 on Amazon.

    Use the tool to create a gap, tuck the wire in. Do a small section at a time.

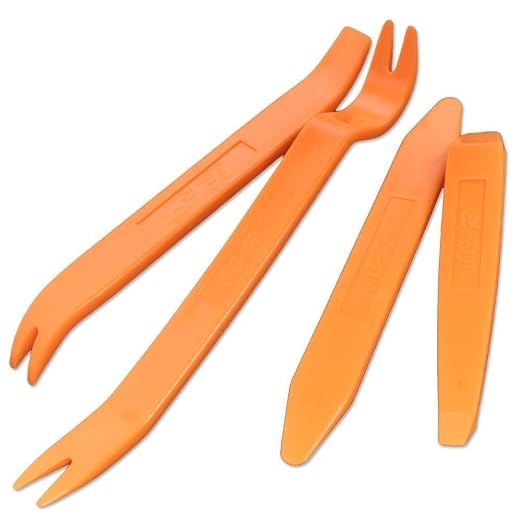

    https://www.amazon.com/KINGLAKE-Pan...&qid=1514919875&sr=1-4&keywords=car+trim+tool

    [​IMG]

    JGO likes this.
  15. Jan 2, 2018 at 11:14 AM
    #15
    Garyji

    Garyji Well-Known Member

    Joined:
    Oct 31, 2015
    Member:
    #168245
    Messages:
    1,795
    Gender:
    Male
    First Name:
    Gary
    Western North Carolina
    Vehicle:
    2016 BR SR5 DCSB V6 4WD. TRD Pro 17's, BFG KO2's
    Nice job!

    G.

  16. Jan 2, 2018 at 12:03 PM
    #16
    over60

    over60 Over70 & still a "Grumpy Old Guy"

    Joined:
    Oct 20, 2010
    Member:
    #44995
    Messages:
    4,658
    Gender:
    Male
    First Name:
    John
    Muskoka, Ontario
    Vehicle:
    2016 Inferno (Punkin) TRD 4X4 Sport DCLB w/upgrade & tech pkg..!!
    Toyota running boards/Solid Fold 2.0/custom stickers/Anti-Dark LED light under hood/Derped grill/Scoop, etc.
    Easy to tuck in the power under the headliner, like Akex said....then just tuck wire under A pillar plastic across the top, then go under the door weatherstrip all the way to the floor.....remove bottom plastic across door and the kickpanel... very easy....

    If you go for the power from the overhead console, (switched) you will likely not have power ON with key OFF..... this is needed for Parking Mode..!

  17. Jan 6, 2018 at 4:43 PM
    #17
    n6vmo

    n6vmo Well-Known Member

    Joined:
    Jan 1, 2018
    Member:
    #239972
    Messages:
    527
    Gender:
    Male
    Vehicle:
    2018 DCLB OR AT Super "Priviledged"
    Bilstein 6112, ICON UCAs, 5160, AAL, 265/75/16 Falken Wildpeaks
    I just installed my A118-C dash camera in my '18 DCLB using the OP's method, it worked out great.

    My '98 SR5 had the A118-C installed for quite some time. When I traded the SR5 in for the '18, I removed the camera with the idea to install it in the new truck.
    Let me tell you, driving around without a dash cam, after having one for so long is a bit concerning.

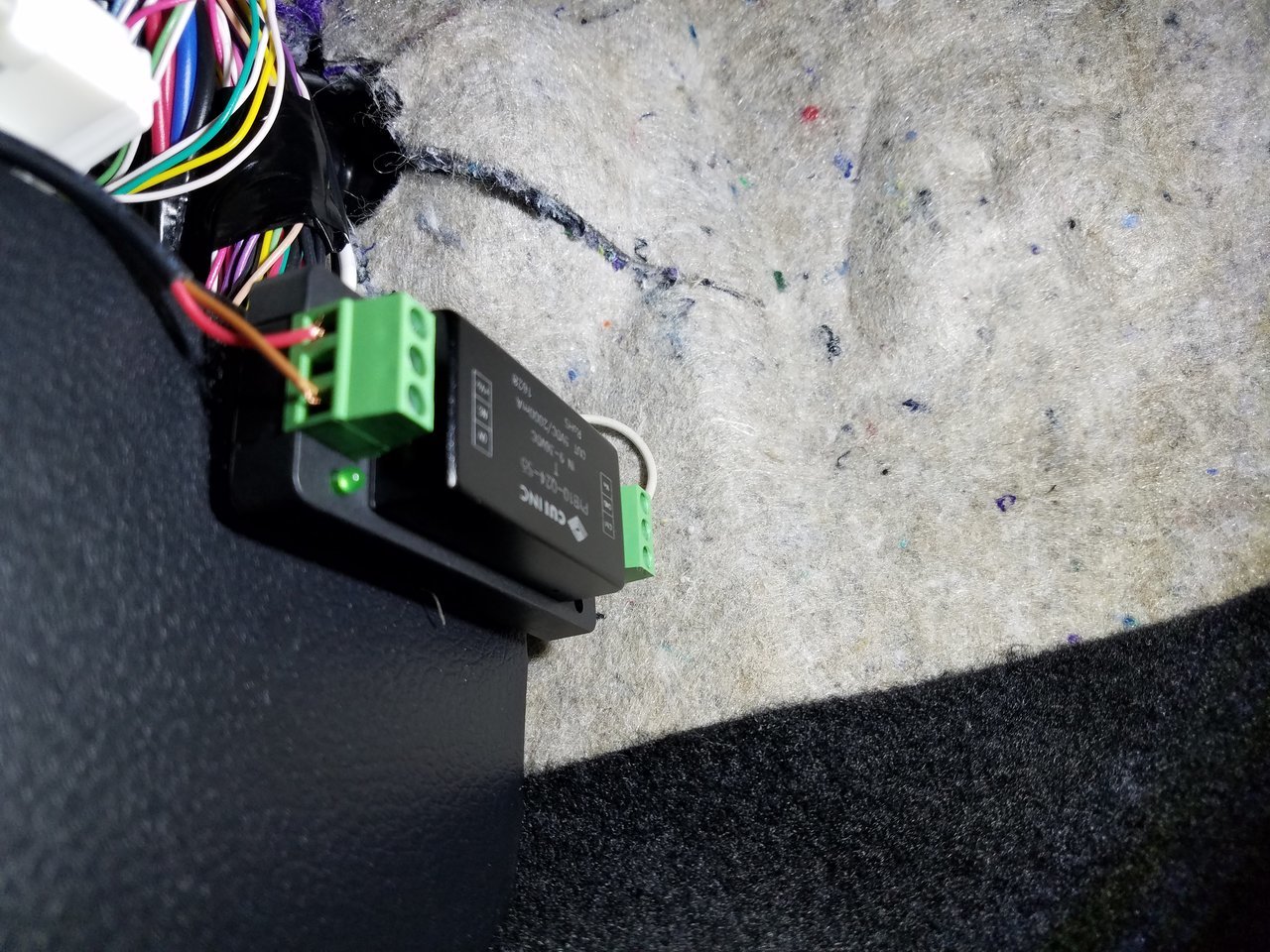

    Not wanting to wait on Amazon for the OP's fuse tap kit, I scrounged around my extensive electronics collection and found a DC/DC converter.
    The CUI PYB10-Q24-S5 takes in 9 - 36 VDC and can output 5 VDC at 2amps.

    A quick trip to O'Reilly's auto parts store for the rest.

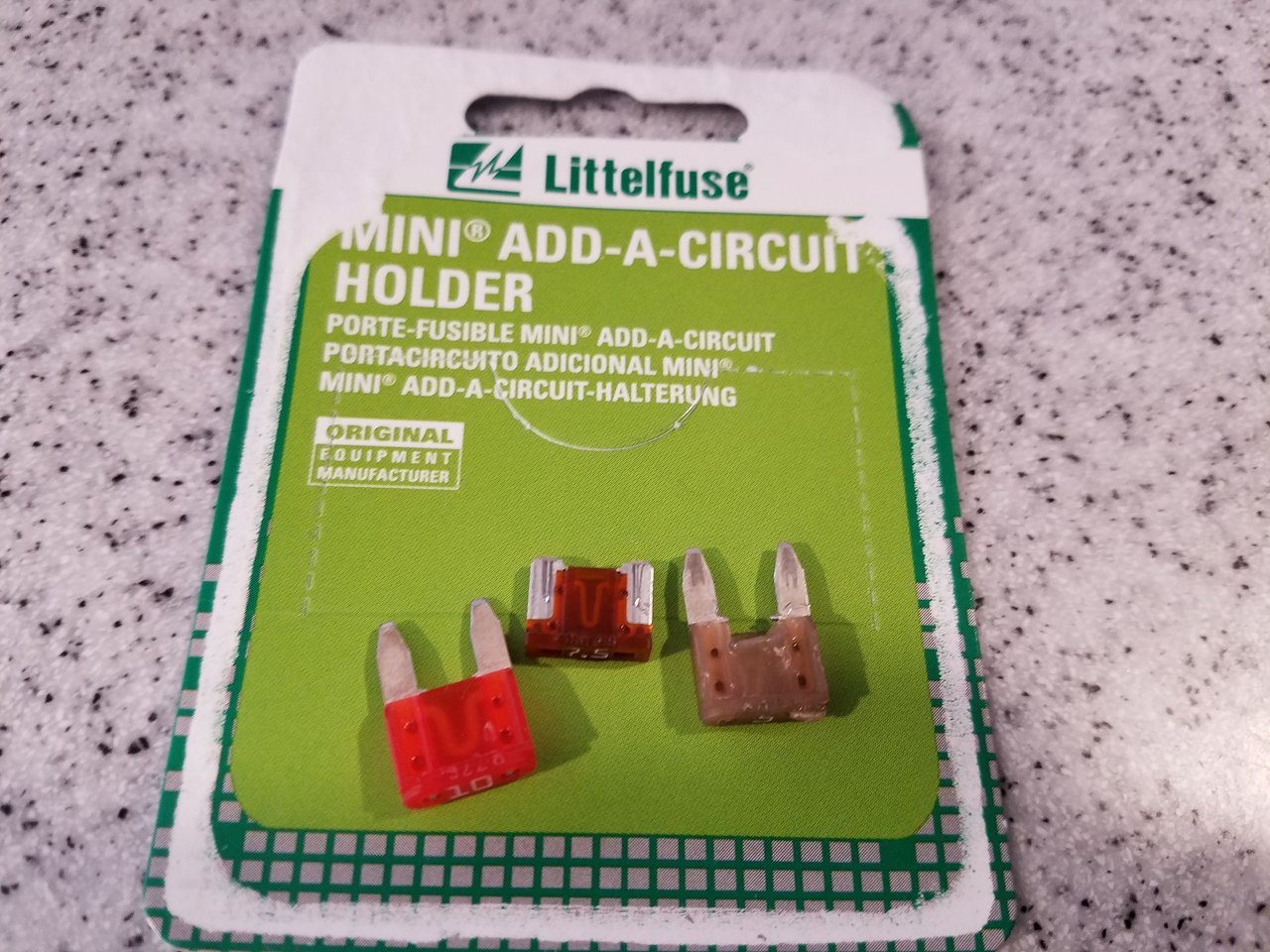

    All they had was the Littelfuse 'Add a Circuit' kit, it came with 4 fuses. Unfortunately, it did not use the Tacoma low-profile mini fuse type, so this limited me to choosing a circuit that matched the supplied fuse selection in the kit. I could not use the 30amp circuit the OP used because the Littelfuse kit did not have a 30 amp fuse.

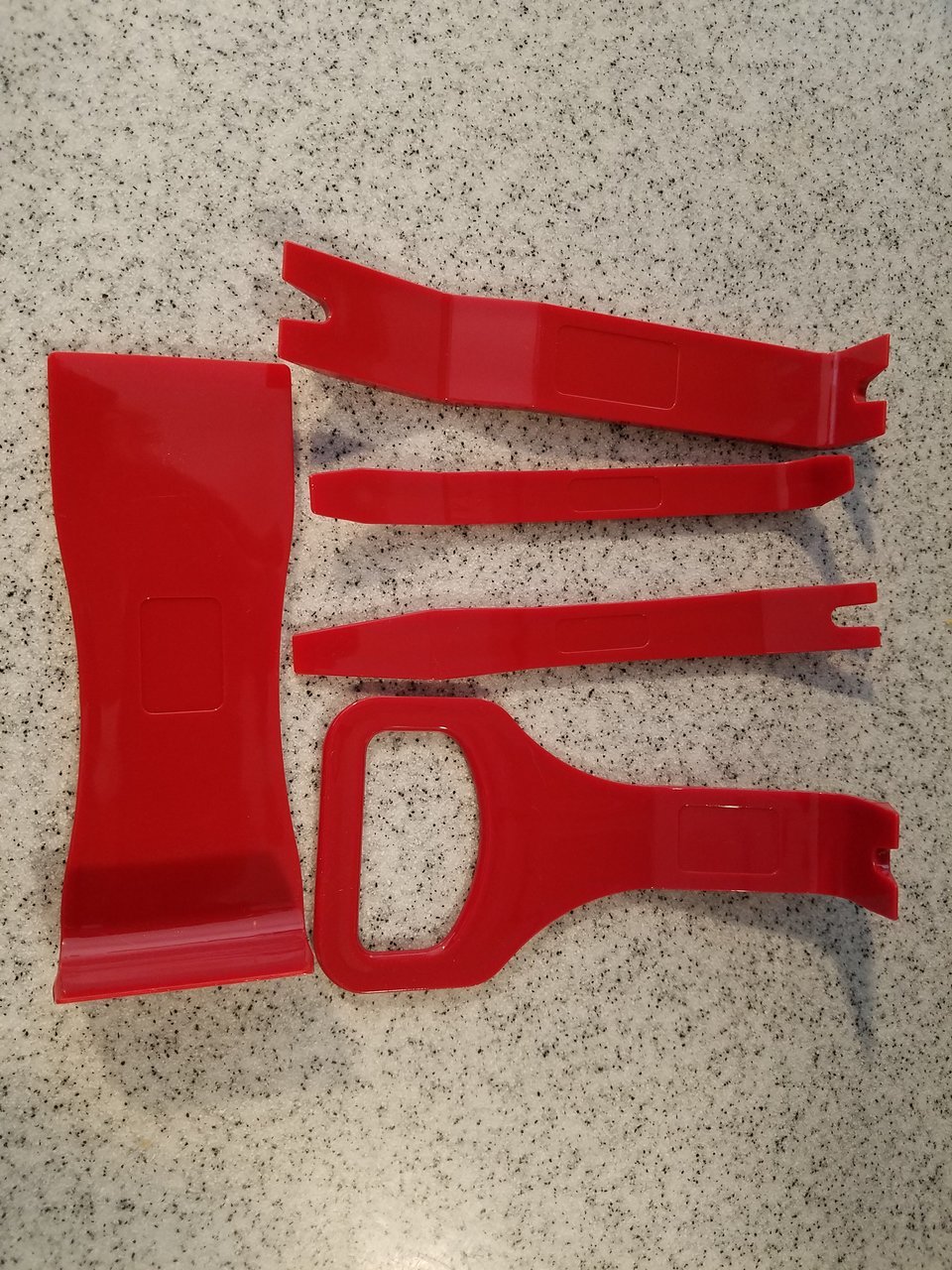

    I also picked up a trim removal tool kit. The wide tool really helped push the camera's power cable under the headliner.

    Thanks anonymouscuban for your tutorial.



    Attached Files:

    anonymouscuban [OP] likes this.
  18. Feb 1, 2018 at 7:36 AM
    #18
    trdordcsb

    trdordcsb Well-Known Member

    Joined:
    Jan 18, 2018
    Member:
    #241640
    Messages:
    61
    Gender:
    Male
    Vehicle:
    2018 Silver Tacoma TRD OR 4x4
    thanks for the detailed instructions!

  19. Feb 1, 2018 at 9:09 AM
    #19
    anonymouscuban

    anonymouscuban [OP] Well-Known Member

    Joined:
    Dec 20, 2017
    Member:
    #238999
    Messages:
    248
    Gender:
    Male
    First Name:
    Alex
    Porter Ranch
    Vehicle:
    2017 MGM Off Road Double Cab Shortbox
    Cool. Hope it helped. So much great info on this forum. Glad I can give back a little.

  20. Mar 19, 2018 at 8:30 PM
    #20
    hrivera007

    hrivera007 Well-Known Member

    Joined:
    Apr 22, 2010
    Member:
    #35813
    Messages:
    150
    Gender:
    Male
    Vehicle:
    2017 Off Road Auto
    Great write up. Just got a Garmin 45 and the installation kit from the Dashcam store. Will try tomorrow.

    Tullie D likes this.
