DIALS/ BUTTONS/LIGHTS for 4WD/TRACTION CONTROLS

Discussion in '2nd Gen. Tacomas (2005-2015)' started by David K, Jan 26, 2011.

  1. Jan 26, 2011 at 3:47 PM
    #1
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,955
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags
    Recently some have posted that the truck was 'stuck' in '4WD' because the light was on or blinking... only to later learn it was just the differential lock switch pushed in! That light is below the 4WD light...

    The lights are different... So, I just took some photos so we all can see. Let's go through the levels of traction activation and see what it all looks like:

    [​IMG]

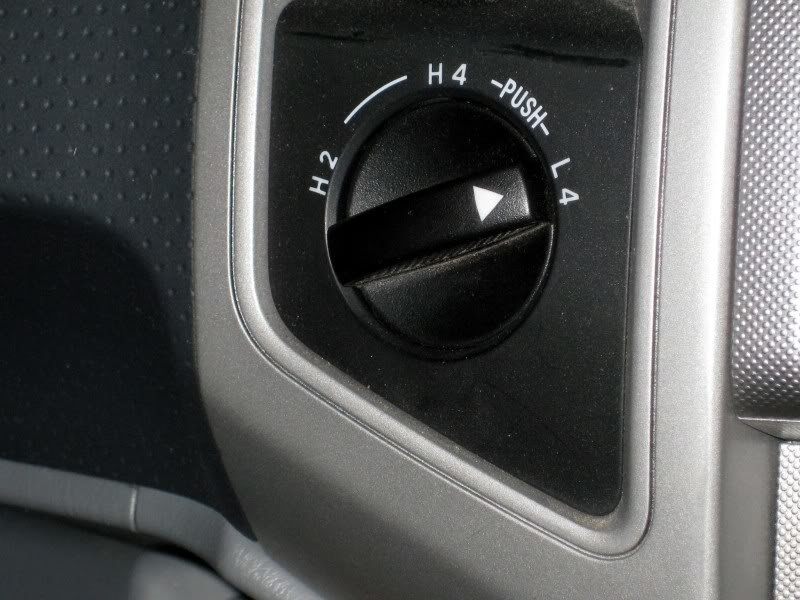

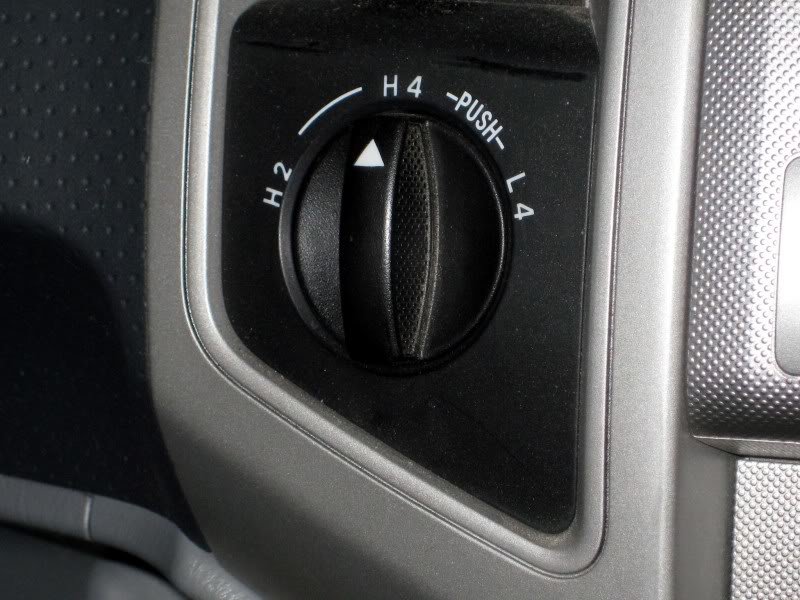

    Normal dial position for paved roads or where traction assistance of 4WD (four wheel drive) is not needed.

    [​IMG]

    The lower switch, next to mirror controls (car with skid lines below) is the VSC OFF switch. This also activates AUTO LSD when in 2WD with a quick push. Auto LSD is traction control without the engine output regulated.

    [​IMG]

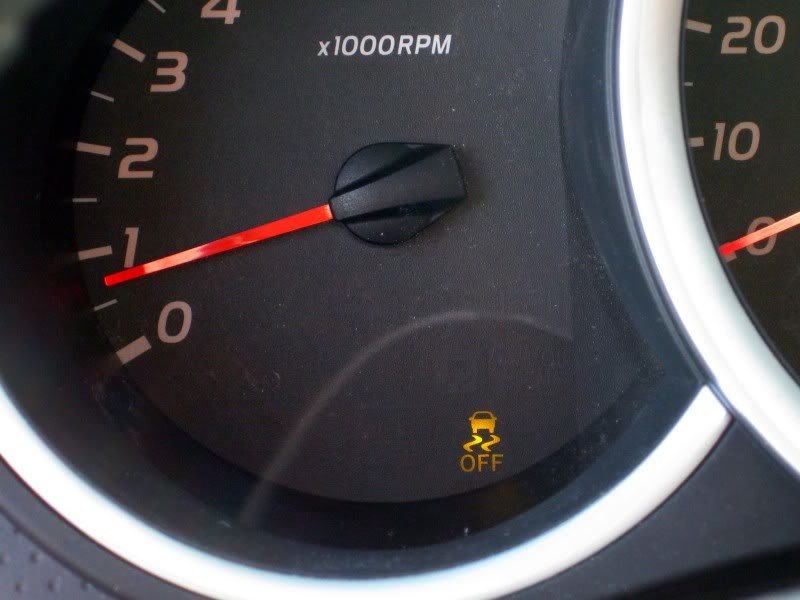

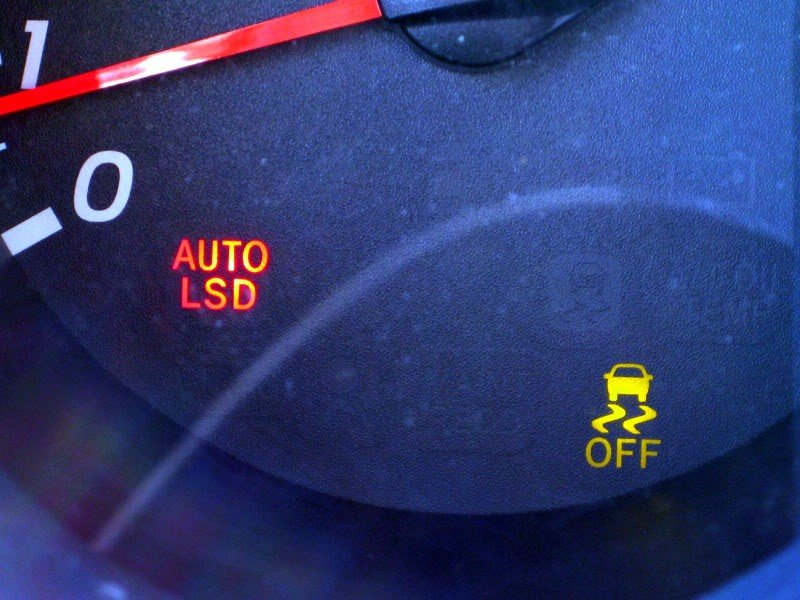

    This is what comes on with AUTO LSD active. The VSC OFF light goes out above 30 mph.

    [​IMG]

    If you stop the truck and hold down the VSC OFF switch for 3+ seconds, VSC and TRAC both turn off for open differential(s) in H2 or H4.

    [​IMG]

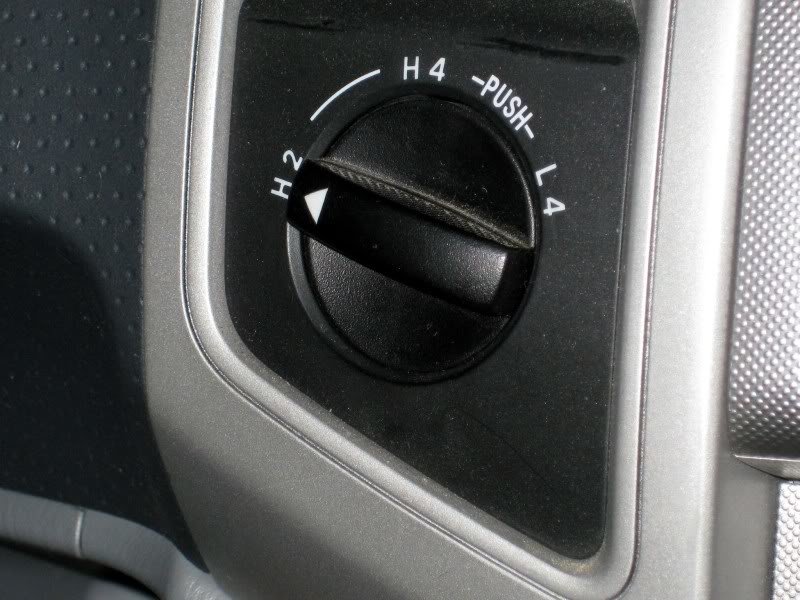

    Go into H4 (4WD High Range) from 0-60 mph if you need more traction because of poor conditions or off highway needs.

    [​IMG]

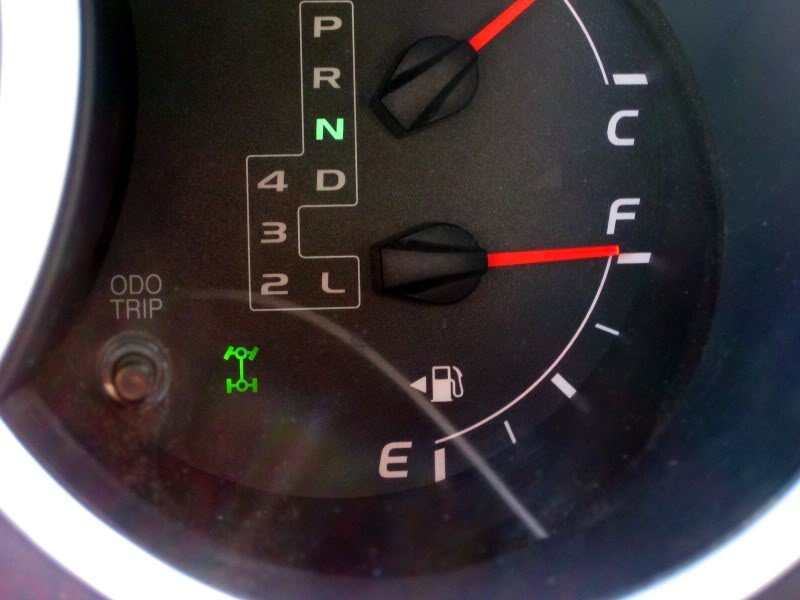

    This is the 4WD High Range indicator light... two differentials and 4 tires. TRAC in H4 has no engine regulation, the same as AUTO LSD in H2.

    [​IMG]

    For more torque to power through deep snow or mud or to climb up or down steep grades, stop truck, put tranny into N (Neutral, not Park), and rotate dial to L4.

    [​IMG]

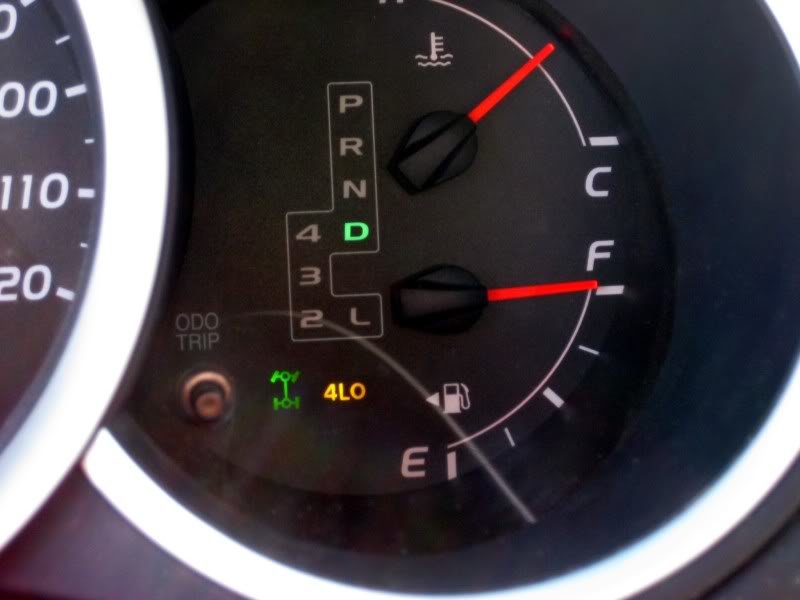

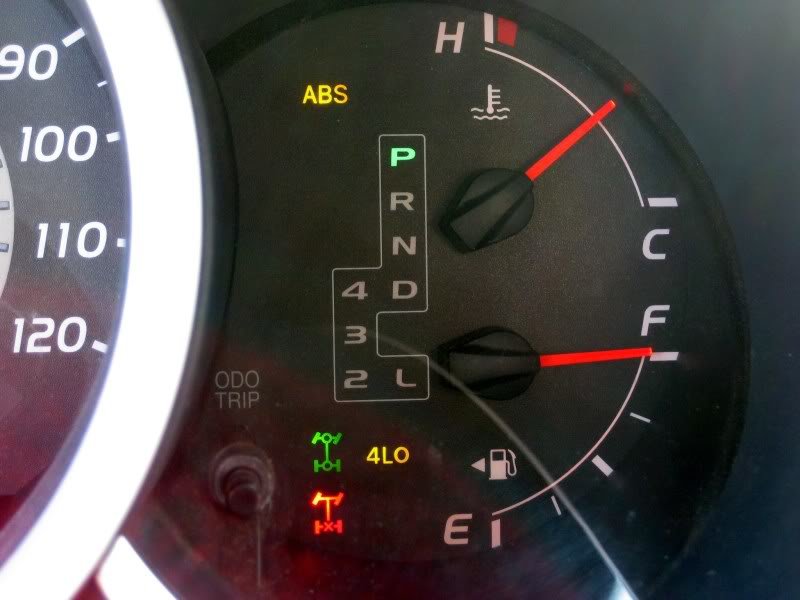

    Low Range 4WD indicator light. VSC goes off in L4 and both differentails are open.

    [​IMG]

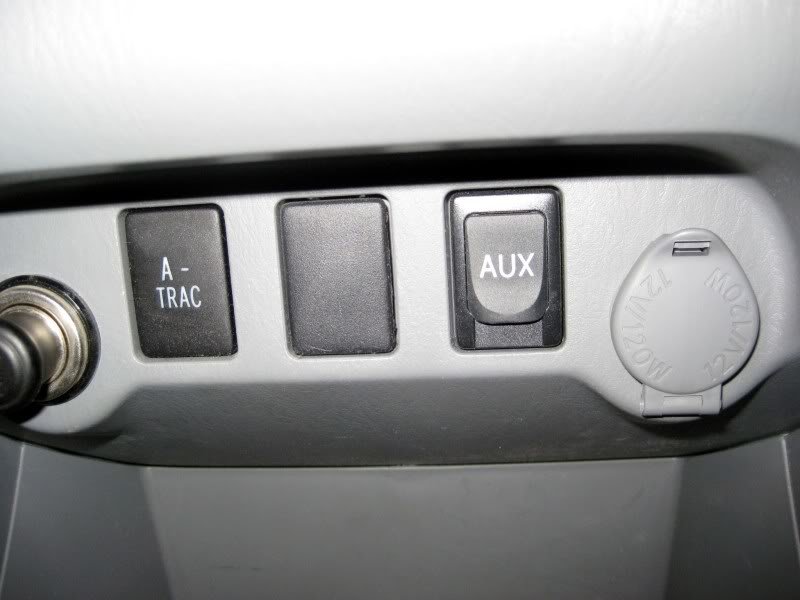

    If your 4WD Tacoma is an '09 + Off Road TRD, you have 'Active Traction Control' (A-TRAC) that provides the 'brake-locking' of any non-traction (spinning) tires front or rear for tractor like crawling/ climbing. Gives traction control while in low range. Push this switch just once when in L4 and A-TRAC will activate when-ever needed to keep moving while in L4.

    [​IMG]

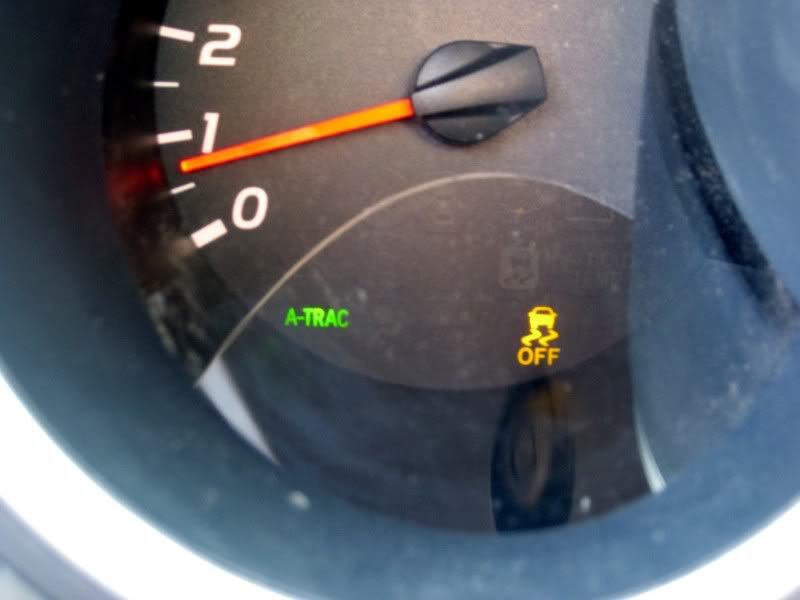

    A-TRAC activated light.

    REAR LOCKER:

    [​IMG]

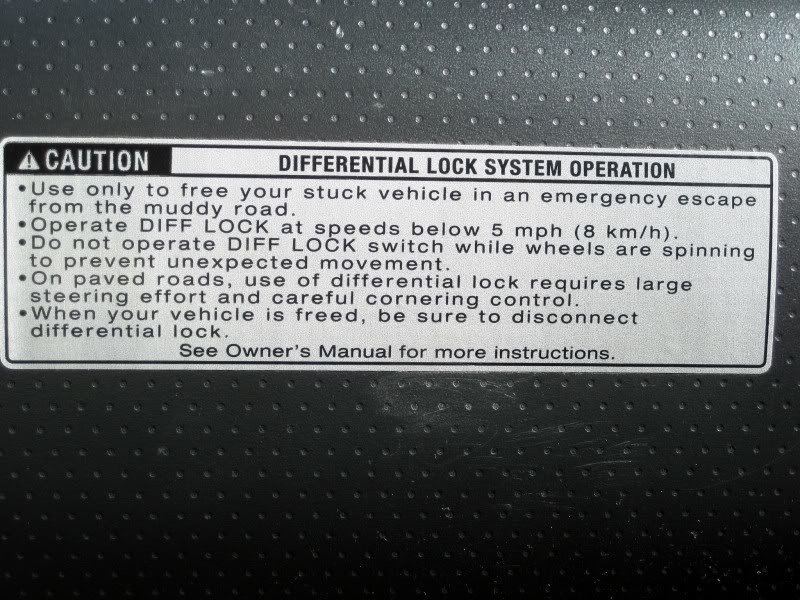

    As Toyota states, use only as a last resort and turn off when out of trouble.

    [​IMG]

    While in L4 (for 4WD Tacomas), press the RR DIFF LOCK switch. (I engaged it twice today while stopped)

    [​IMG]

    The Rear Differential Lock indicator is the x'ed rear differential image. If it doesn't engage, or if it is pressed while in H4 or H2 (for 4WD Tacomas) it will BLINK! Remember, when locked there is no differential action to allow the tires to rotate at different speeds, as needed when turning.

  2. Jan 26, 2011 at 6:45 PM
    #2
    chaotichoax

    chaotichoax Well-Known Member

    Joined:
    Dec 20, 2010
    Member:
    #47996
    Messages:
    190
    Gender:
    Male
    First Name:
    Jeff
    Howell, NJ
    Vehicle:
    '11 MGM DC/SB TRD Sport
    could use a better thread title but this is sticky worth...very informative

  3. Jan 26, 2011 at 7:21 PM
    #3
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,955
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags
    Really? I thought that said exactly what I was posting about! It is more about the dials, buttons and lights than actually using them..I have already posted plenty on using them... click the link in my sig.

    But, thanks for the comment!

  4. Jan 26, 2011 at 7:47 PM
    #4
    HuntnTruk

    HuntnTruk Tacohead

    Joined:
    Mar 27, 2010
    Member:
    #34062
    Messages:
    664
    Gender:
    Male
    First Name:
    Kevin
    New York-not the City
    Vehicle:
    Indigo SR5 4x4
    So once in L4 and you activate Atrac does it always default to on when you put it in L4? I guess I want to know what it defaults to when switching from H2 to H4 to L4. Thank you atrac master

  5. Jan 26, 2011 at 8:01 PM
    #5
    Series1000

    Series1000 Gots a Taco!

    Joined:
    Nov 21, 2009
    Member:
    #26287
    Messages:
    305
    Gender:
    Male
    Vancouver Canada
    Vehicle:
    2007 Access Cab 4X4 4.0L
    3" Redi-lift (spacer lift) up front
    I wish I had more dials-buttons and lights :(

  6. Jan 26, 2011 at 10:58 PM
    #6
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,955
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags
    Yes Grasshopper...

    Push the A-TRAC button once while engaged in L4... and for the rest of your truck's natural life it will be in A-TRAC each time you go into L4 (unless you push the button again)...

    :D

  7. Jan 26, 2011 at 11:03 PM
    #7
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,955
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags
    If that were true, then a lot of folks posting on TW have never seen it. I did this thread because of the post were someone thought their 4WD light was blinking... and it was the Rear Diff. Locker light! They asked here the day before they were going to go to the dealer.

    You can press that RR DIFF LOCKER button anytime and the light for it will start blinking. The 4WD light has 2 differentials on it and the RR DIFF LOCKER light has an X where the rear differential goes, and no front differential showing... See above photos.

  8. Jan 26, 2011 at 11:20 PM
    #8
    4WD

    4WD cRaZy oLdmAn

    Joined:
    Jul 2, 2009
    Member:
    #19185
    Messages:
    23,950
    Gender:
    Male
    First Name:
    Doug
    Lakeside, Ca / Gardnerville, Nevada
    Vehicle:
    No Truck..well, maybe
    Grey wire MOD, deck plate, diff breather MOD, 2nd gen. OME 883# on Tundra 5100's, OMD custom 3" leafsprings, rear shock relocation, Ivan Stewart TRD rims w/285/75/16's, '02 bumper MOD, Famous Fabrications sliders , LED interior/exterior lights, bed bar, Custom tube bumper, Old school KC day lighters,Red Ring 8" HID flood, Kenwood vhf 2M.. umm some other shit I'm forgetting right now
    Good informative thread as usual David !! I still need to PM ya about a job prospect we talked about earlier, their situation may be changing soon (which would be good for you buddy ) I'll keep you posted....;)

  9. Jan 26, 2011 at 11:24 PM
    #9
    A7XTaco

    A7XTaco Member

    Joined:
    Sep 20, 2010
    Member:
    #43543
    Messages:
    1,069
    Gender:
    Male
    First Name:
    Bryan
    Austin, TX
    Vehicle:
    You don't want to know...
    What does RSCA mean?

    Also, what exactly does down hill assist actually do?

  10. Jan 26, 2011 at 11:24 PM
    #10
    OZ-T

    OZ-T Quite an experience to live in fear , isn't it ?

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    38,701
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    Pictures are worth 1000 words , nice thread David

  11. Jan 27, 2011 at 8:51 AM
    #11
    PreRunnerSeth

    PreRunnerSeth Well-Known Member

    Joined:
    Aug 12, 2009
    Member:
    #21110
    Messages:
    4,274
    Gender:
    Male
    Apex, NC
    Vehicle:
    15 Black DC OR Prerunner
    RSCA Turns off the side curtain airbags for off roading situations.

    Downhill assist, the truck automatically controls braking and other systems to control downhill speed.

  12. Jan 27, 2011 at 10:32 AM
    #12
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,955
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags
    Wow, thank you amigo... A cold Pacifico is waiting for you here! I need work... rent is almost due!!! Love the sunny, dry weather!

  13. Jan 27, 2011 at 10:37 AM
    #13
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,955
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags

    Exactly!

    Downhill assist only works in L4 and it is a crawl feature that on super steep, rocky down grades... won't let the brakes lock a tire and cause a skid (which could get you sideways leading to a roll over)... You don't need to touch the brakes at all... It will give you a controlled speed of 2-3 mph and just go with it as you go down. Real fun!!

  14. Jan 27, 2011 at 3:52 PM
    #14
    A7XTaco

    A7XTaco Member

    Joined:
    Sep 20, 2010
    Member:
    #43543
    Messages:
    1,069
    Gender:
    Male
    First Name:
    Bryan
    Austin, TX
    Vehicle:
    You don't want to know...

    Thanks David,

    So I'm guessing the main function of downhill assist is it hits the brakes on each wheel individually to keep the truck going the direction the wheels are pointed? It also limits the top speed of the truck by applying the brakes?

    The only thing I can find on here is everyone saying its noisy and they feel like they have some loss of control over the truck. The only vehicles I'm personally familiar with that have a traction control system similar to that are BMWs, and they do a excellent job of it.

    So I'm also guessing the side airbags are triggered by the angle the truck is leaning. Does any one know at what angle they will fire if the RSCA is not disabled? Am I correct on this?


    Bryan

  15. Jan 27, 2011 at 4:13 PM
    #15
    boxxed

    boxxed Well-Known Member

    Joined:
    Jan 1, 2009
    Member:
    #12093
    Messages:
    335
    Gender:
    Male
    Denver, CO
    Vehicle:
    Off Road
    Leer Cap Kenwood DNX 9140 Boyo back up cam HD Raido Sirius Weather Tech Mats Memphis Audio, Valentine One radar,Tinted windows,Wet Okole's, Bed mat.

    Please clarify.. So the only way the rr diff loc will work is if you are in L4? My rr diff lock button has been accidently hit and was flashing, while in H2. I am thinking it was never really engaged.

    thanks again for the info.

  16. Jan 27, 2011 at 4:41 PM
    #16
    OZ-T

    OZ-T Quite an experience to live in fear , isn't it ?

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    38,701
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    What is the advantage over 4L in low gear or 2nd ?

  17. Jan 27, 2011 at 4:49 PM
    #17
    Crazyfrog

    Crazyfrog Well-Known Member

    Joined:
    Nov 17, 2010
    Member:
    #46336
    Messages:
    157
    Gender:
    Male
    First Name:
    Keith
    Monroe Ohio
    Vehicle:
    2010 TRD 4X4 DC
    OME 885's, Bilstien 5100, 2"AAL, Weathertechs, AVS visors, Access bed cover
    Thanks for the post! I vote sticky on this one. Very helpful info.

  18. Jan 27, 2011 at 5:39 PM
    #18
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,955
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags
    It makes a ticking sound... not loud... it is amazing... yes, the truck will descend a steep bad road safely and it won't panic like a driver could... It just creeps you down the grade and you just steer. It works great and does exactly what it advertises... Some people also think the sky is falling or the globe is warming, too!

  19. Jan 27, 2011 at 5:43 PM
    #19
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,955
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags
    Yes, if you have a 4WD Tacoma the rear locker only engages when you are in LOW RANGE (L4).

    The Off Road TRD PreRunners don't have 4WD, so their rear locker works in 2WD.

    Yes, it flashes to tell you "Sorry Charley, try again"... Don't worry about it doing anything while flashing.

  20. Jan 27, 2011 at 5:48 PM
    #20
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,955
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags

    I think it is an advatage because your speed could increase as you descend and would then have to step on the brakes... which could start you sliding.

    The downhill asist is like ABS on steroids... doesn't matter what gear you are in while in L4... it is pulsing the various brakes to slow the downhill speed without sliding or going any faster.

    You just need to try it... it is a kick to be driving down a cliff like grade and not touch the brake pedal... takes some getting used to!
