Diary of a Madman..... OZ-T's build and pics

Discussion in '2nd Gen. Builds' started by OZ-T, Apr 27, 2011.

  1. Apr 27, 2011 at 9:04 PM
    #1
    OZ-T

    OZ-T [OP] All of those moments....will be lost.....in time

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    23,093
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    This is by no means a serious build up thread , I just wanted to try to keep all my truck related pics in one spot

    I will edit the OP as I get organized .


    Current Spec :

    2009 DCLB TRD Sport 4x4 with tow package
    OME 885x coils , no spacer
    OME 90000 front shocks
    OME N182 rear shocks
    OME Dakar rear leafs
    OME CB drop
    Wheeler's SuperBumps , front and rear
    Toytec 3* axle shims
    275/70/17 Hankook Dynapro ATm's
    2" stainless N-Fabs
    Leer RCC Commercial canopy with DeWalt ProRac
    Aluminum headache rack
    Weathertech digifit floor liners
    Weathertech in-channel window vents
    OEM bed mat
    HomerTaco M1 1 1/2" Satoshi
    Grey Anodized Devill Horns by Andres
    Sleeper style eyelids by Toyota Man
    USA Spec PA15-Toy
    ImMrYo rear view mirror relocation bracket
    Relocated my horns

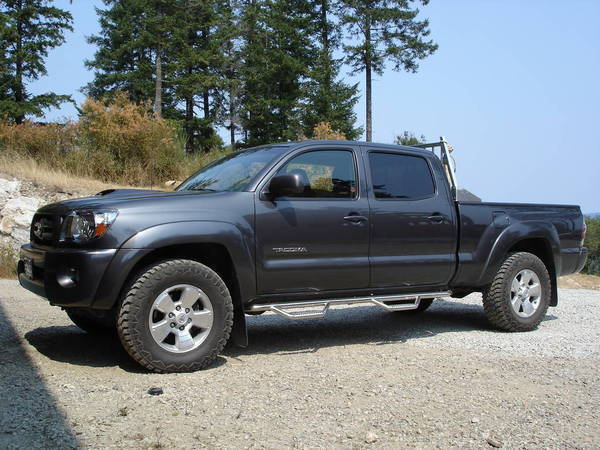

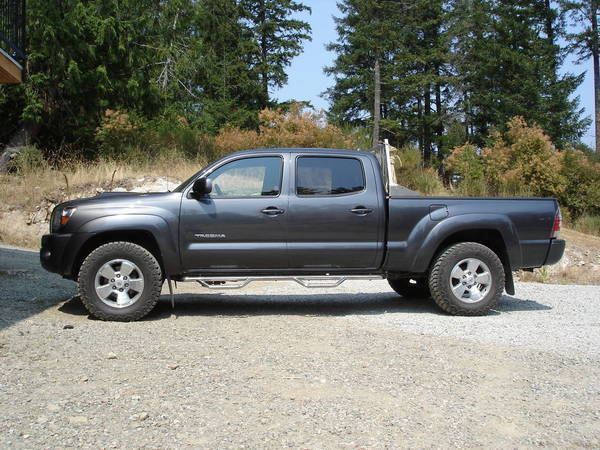

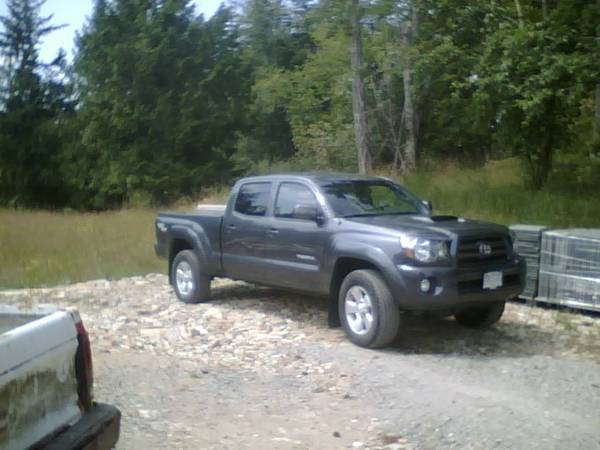

    Stock

    [​IMG]

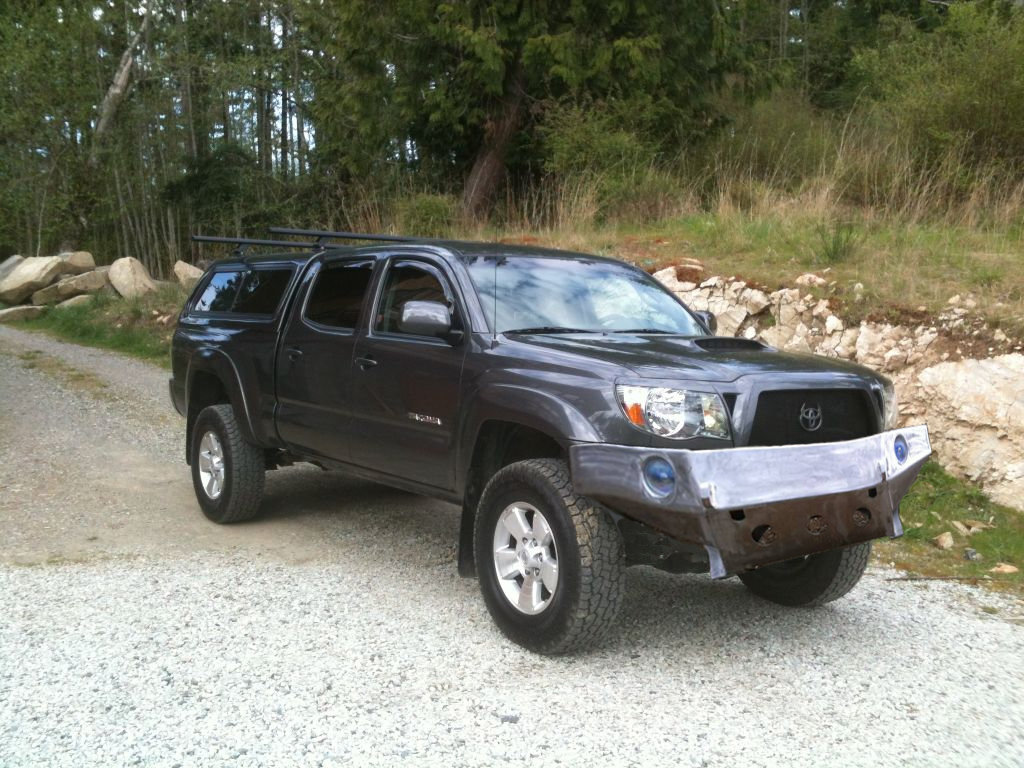

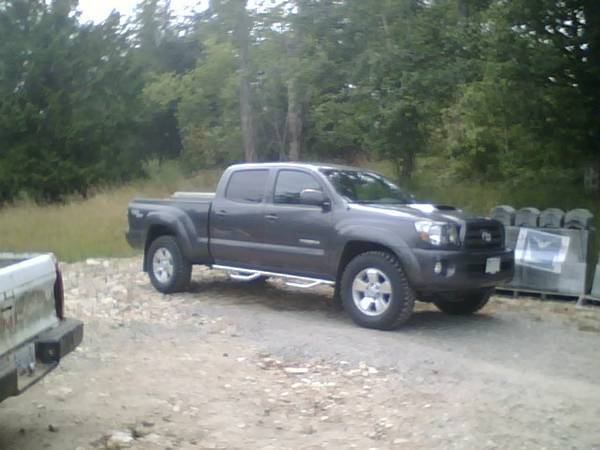

    Add 265/70/17 Hankook Dynapro MT's and 2" stainless N-Fabs

    [​IMG]



    [​IMG]


    Add the aluminum headache rack

    [​IMG]


    Remove the TRD Sport bedside decals


    [​IMG]

    [​IMG]


    Add the Weathertech In-channels

    [​IMG]


    Repping TW in BC

    [​IMG]

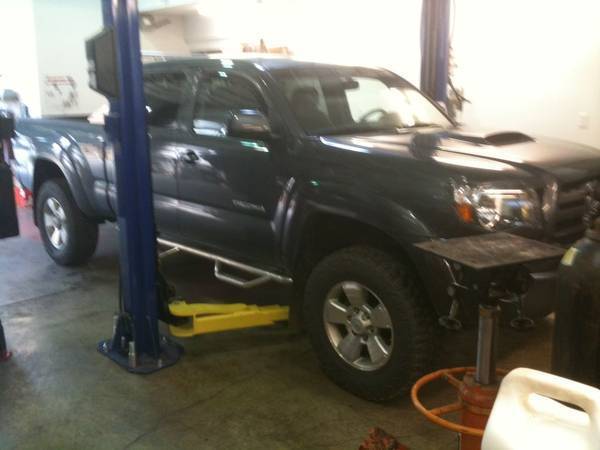

    In the shop to get the lift put on

    [​IMG]

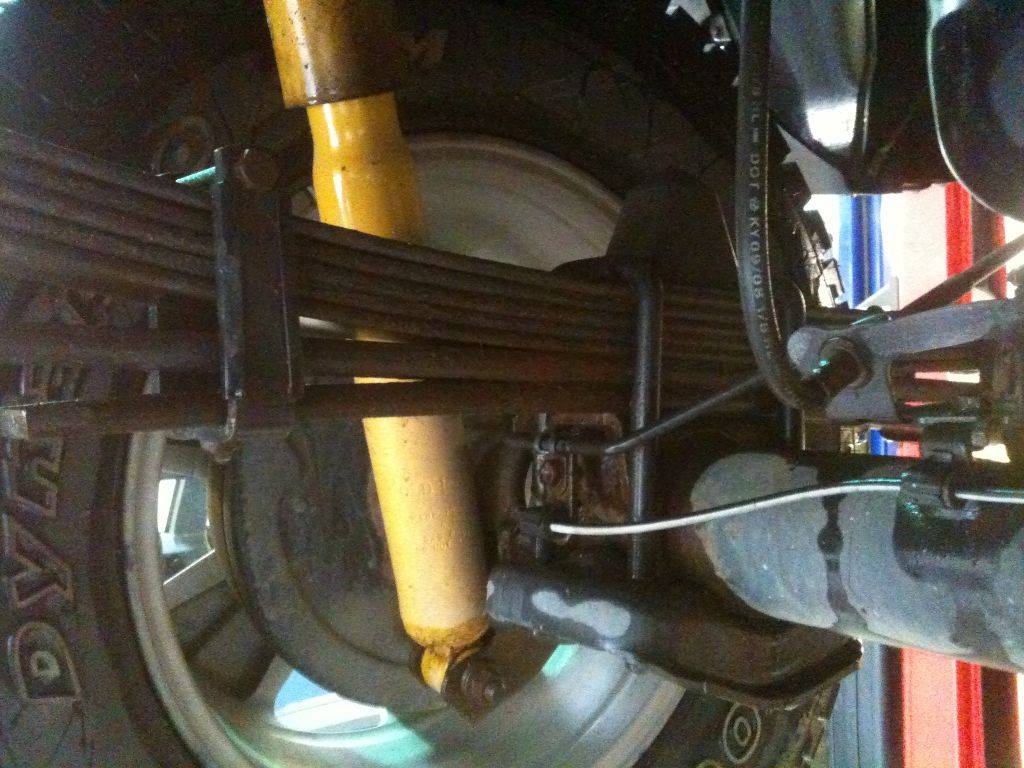

    Goodbye Toyota 4 leaf pack , hello OME Dakars

    [​IMG]

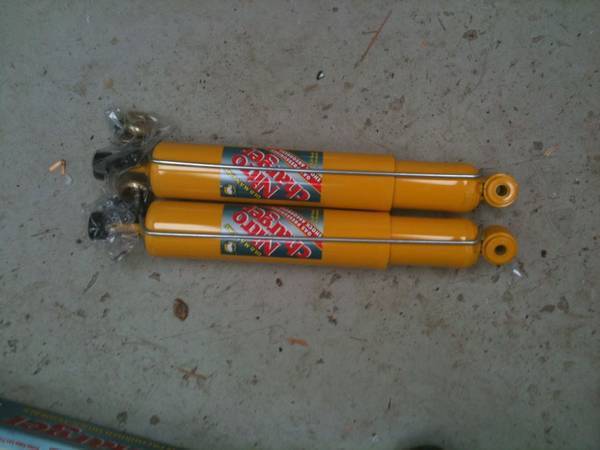

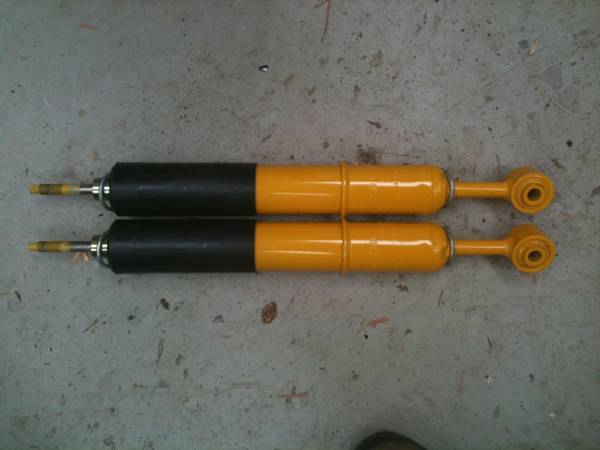

    OME 90000 Sport fronts

    [​IMG]


    OME N182 rears

    [​IMG]

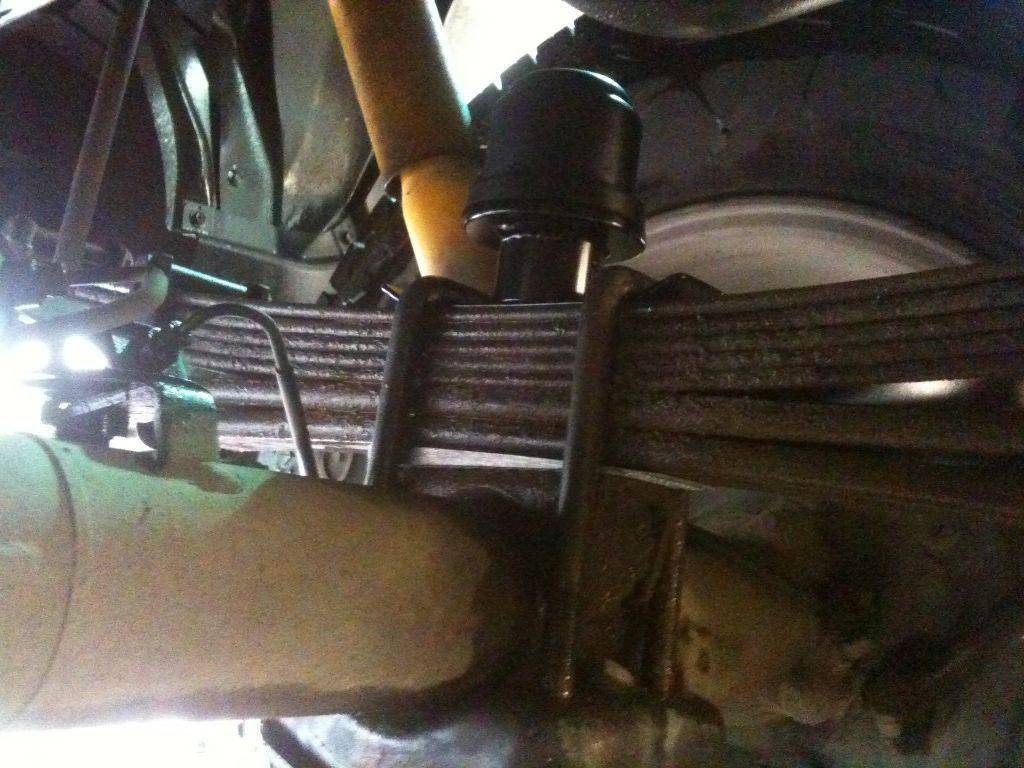

    We added a centre pin collar extension to the Dakars in case I needed to add axle shims later

    Thanks to TW member PSU taco85 for this trick , you can find his thread on it here

    http://www.tacomaworld.com/forum/suspension/144224-dakar-installation-axle-shims.html

    [​IMG]

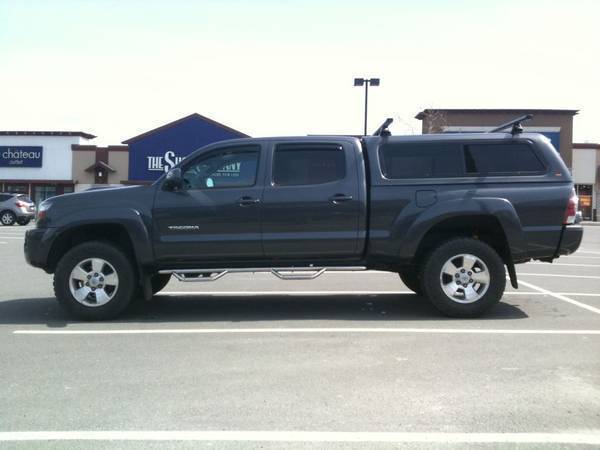

    With the 885's no spacer , 90000's , N182's and Dakars

    Up 2 3/4" front and back ( settled to 2 1/2" front and 2 3/4" back )

    Centre of hub to fender measurements are 22 1/2" front and 24 1/2" rear

    [​IMG]

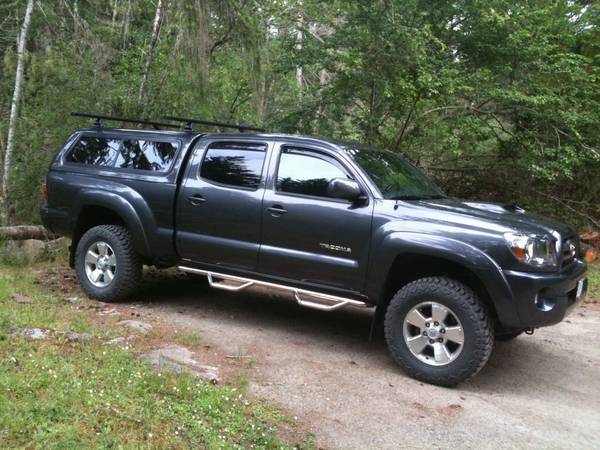

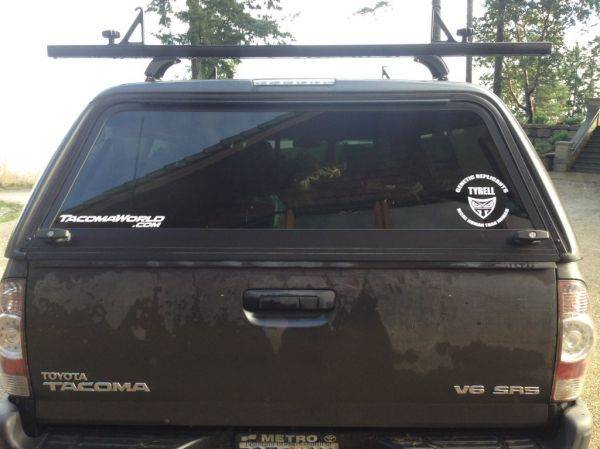

    Added Leer RCC commercial canopy with DeWalt ProRac System

    The roof rack can carry 400 lbs

    [​IMG]


    [​IMG]


    [​IMG]



    [​IMG]

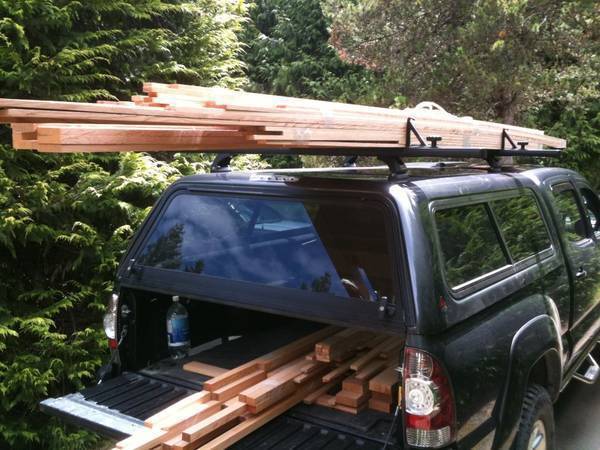

    Loaded with 16' finishing material

    [​IMG]


    Just added the grey anodized Devil Horns by Andres , thank you sir

    [​IMG]

    [​IMG]


    Trying out the no Nfab look for a bit

    [​IMG]





    [​IMG]

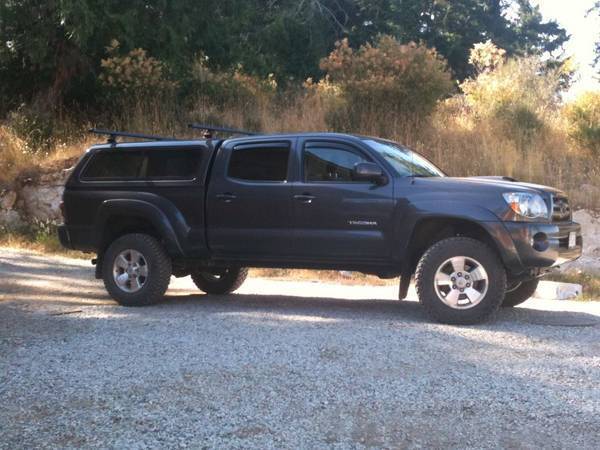

    275/70/17 Hankook ATm's , Homertaco 1 1/2" reduced depth satoshi , Sleeper style eylids by Toyota Man , Mag Grey Devils Horns by Andres

    [​IMG]

    [​IMG]

    Added a Ghost Graphix decal ,

    Thanks Ray !


    [​IMG]



    [​IMG]

    [​IMG]

    That's where I am for right now

    Last edited: Feb 10, 2015
  2. Apr 27, 2011 at 9:13 PM
    #2
    IluvTEA

    IluvTEA Well-Known Member

    Joined:
    Jan 31, 2010
    Member:
    #30430
    Messages:
    1,137
    Gender:
    Male
    South Dakota
    Vehicle:
    '10 DC LB 4x4 SR5 Super White
    Cooper ST 265/75/16 on Flat Black TRD OR wheels, window tint, blacked-out badges, front mudflap trim, BHLM, Base Black Rear Bumper Swap, Color-matched grille, Custom Relentless Fab plate bumper powdercoated flat wrinkle black and "TACOMA" backlit with Drunknsloth LEDs, Camburg 2.5" coilovers, LR UCAs, Power sliding rear window, Back-up camera anytime, FX-R projectors/Morimoto 3Five Ballasts/D2S bulbs 5000K, Black WeatherTechs, heated TRD seats with Roadwire Graphite Leather, OEM Roof Rack, front mud flap delete, Black Level 8 Guardians, TreadWright 285/75/16 with KG ...
    Looks good man, you need to get your bumper installed! It totally changed the look of my truck!

  3. Apr 27, 2011 at 9:13 PM
    #3
    OZ-T

    OZ-T [OP] All of those moments....will be lost.....in time

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    23,093
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    I'm moving some of this stuff forward of the tampon-a-thon that are the pages that follow

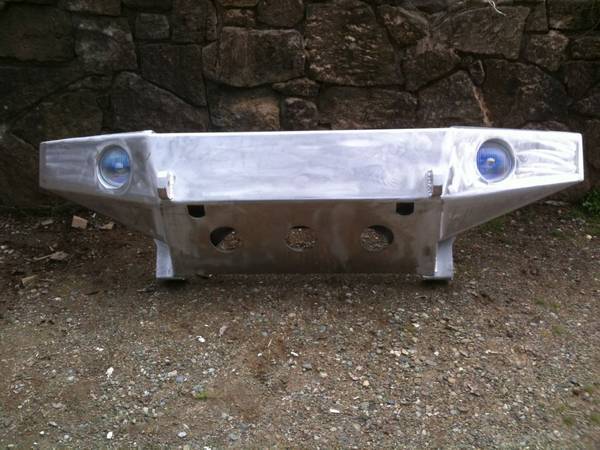

    When I got my aluminum bumper from Eric @ Relentless Fabrications , he needed to substitute a 5" ID tube for the foglights for the standard 4" tube used on the steel bumpers .

    This gave me the option of using the 5" PIAA 540 series Plasma Ion foglights rather than the 4" PIAA 510's .

    My lights finally arrived , and when they did , I found that they were slightly too big to fit in the tube , so I decided to use a router to make a bit of clearance room so that the lights wouldn't be in contact with the bumper . I managed to get some time to do this today .


    [​IMG]


    Covers removed

    [​IMG]

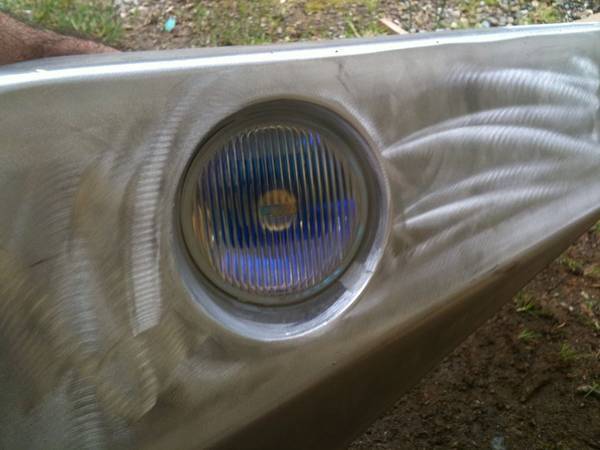

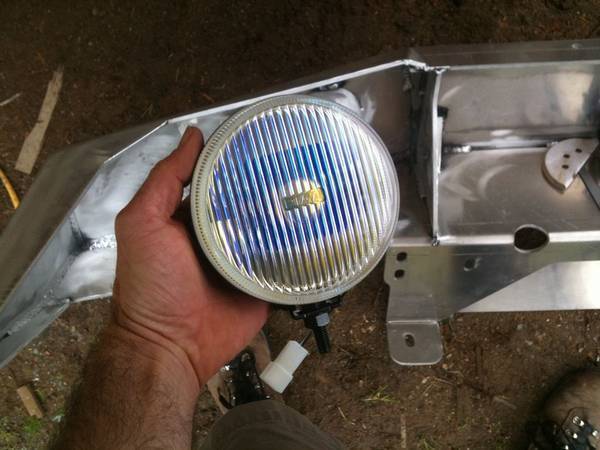

    They just don't quite fit

    [​IMG]


    Scalpel

    [​IMG]

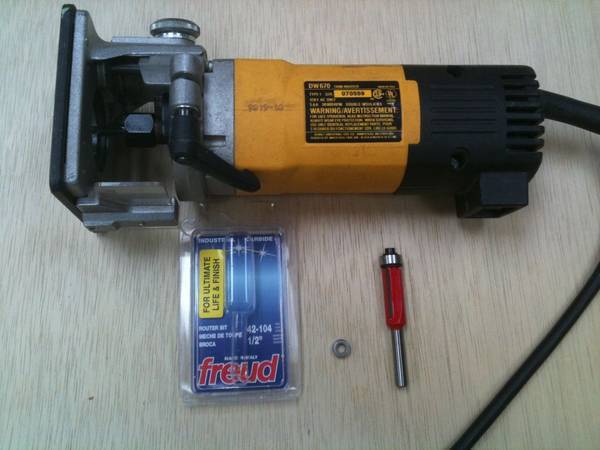

    The full tube posed some problems for the router base to ride on because the light mounting tab
    was a bit higher than the edge of the tube


    [​IMG]


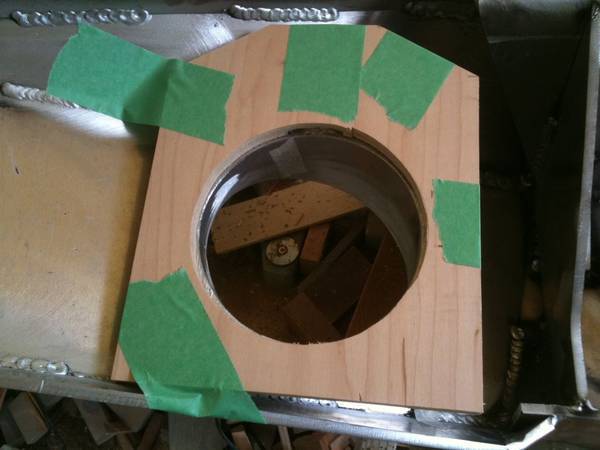

    I rigged up a temporary base that was notched over the tab to give a flat surface for the router


    [​IMG]

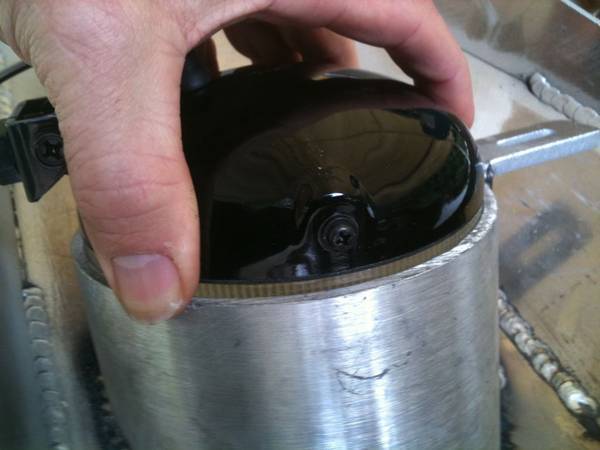

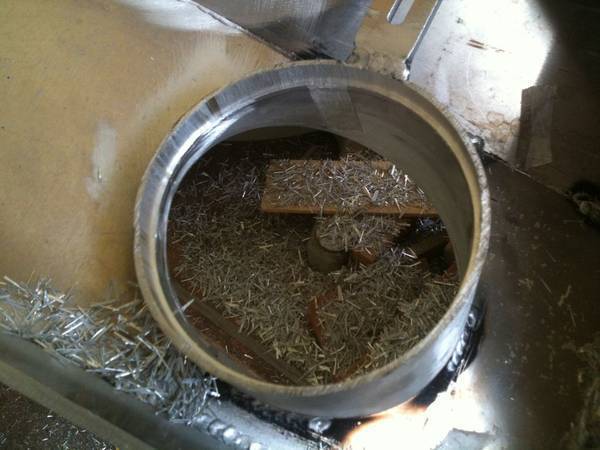

    I changed the top bearing to get the bit to remove 1/8" of material

    [​IMG]


    I sanded the rough edges with some 120 and then 240 grit

    It now fits down to the lens side screws and has almost a 1/16" of clearance all the way around


    [​IMG]

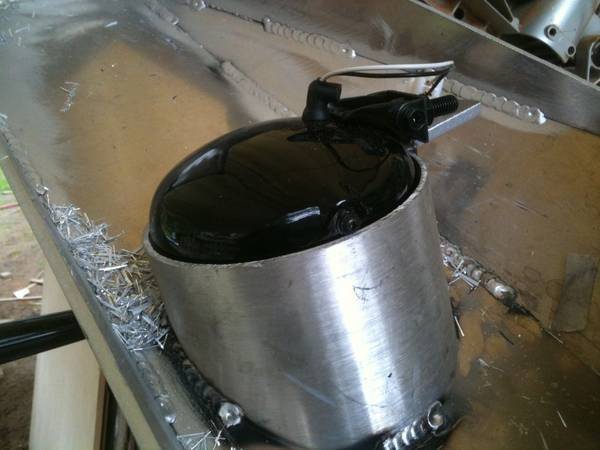

    Test fit

    [​IMG]


    Test fit , pat myself on the back


    [​IMG]

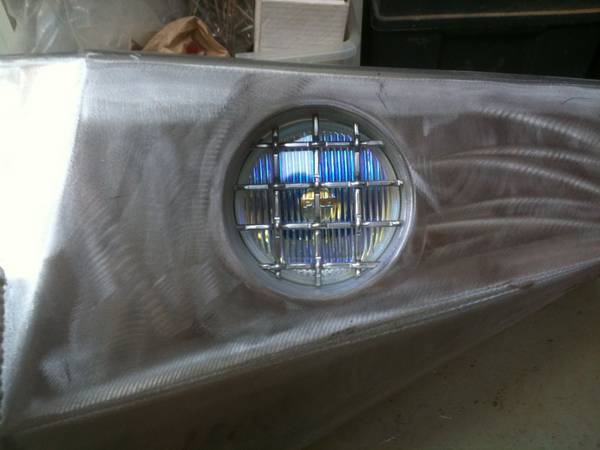

    So , because I had to remove the PIAA cages from the 540's , I thought I would try this out

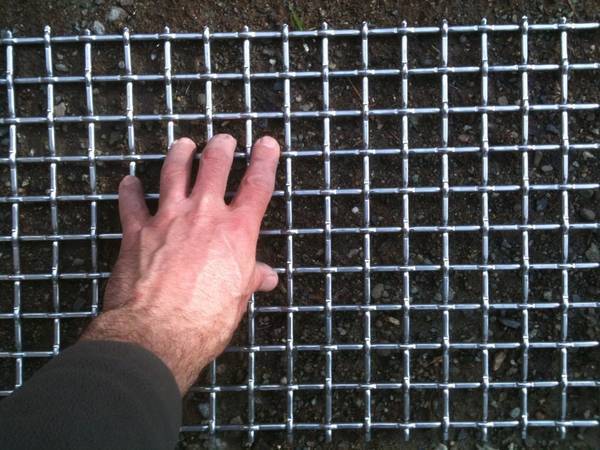

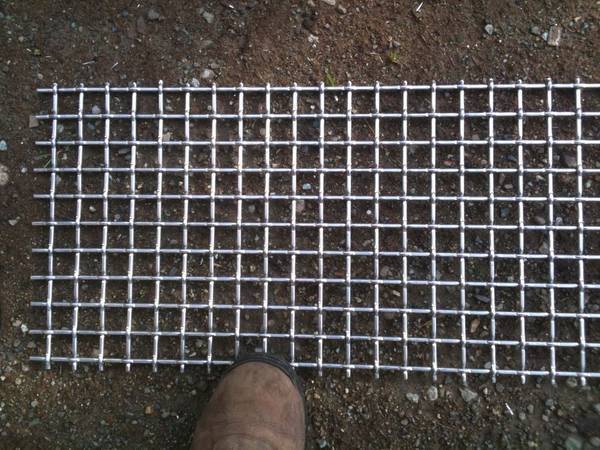

    1"x1" aluminum grate

    [​IMG]


    [​IMG]


    Cut out and test fit

    [​IMG]


    Cut out and test fit with light

    [​IMG]


    [​IMG]

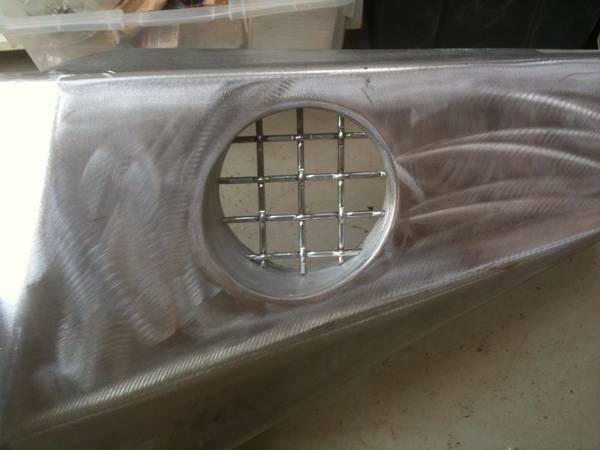

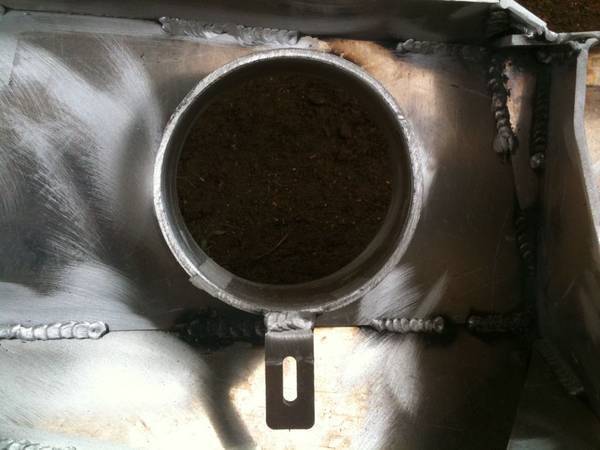

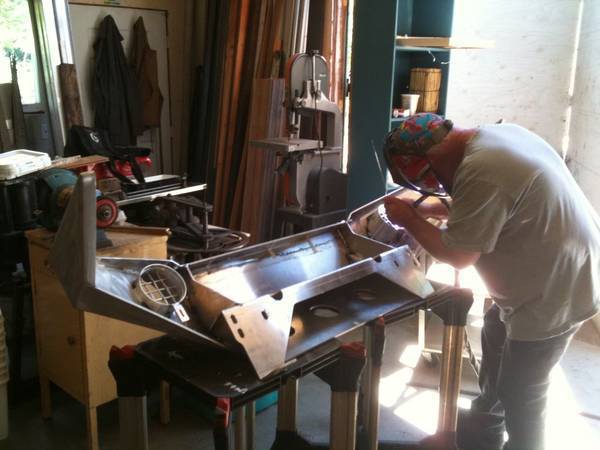

    Got my foglight grate welded into the bumper by my fabricator friend

    [​IMG]


    Added Wheeler's SuperBumps , front and rear

    Installed front and rear Wheeler's SuperBumps


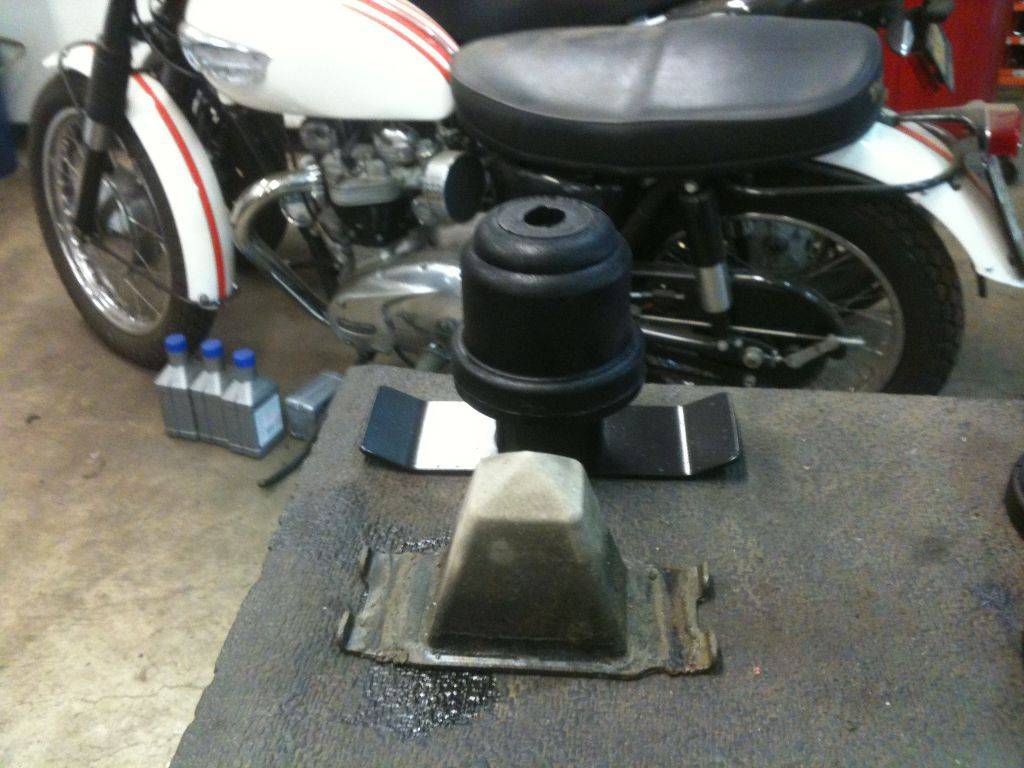

    OEM vs Wheeler's rear

    [​IMG]

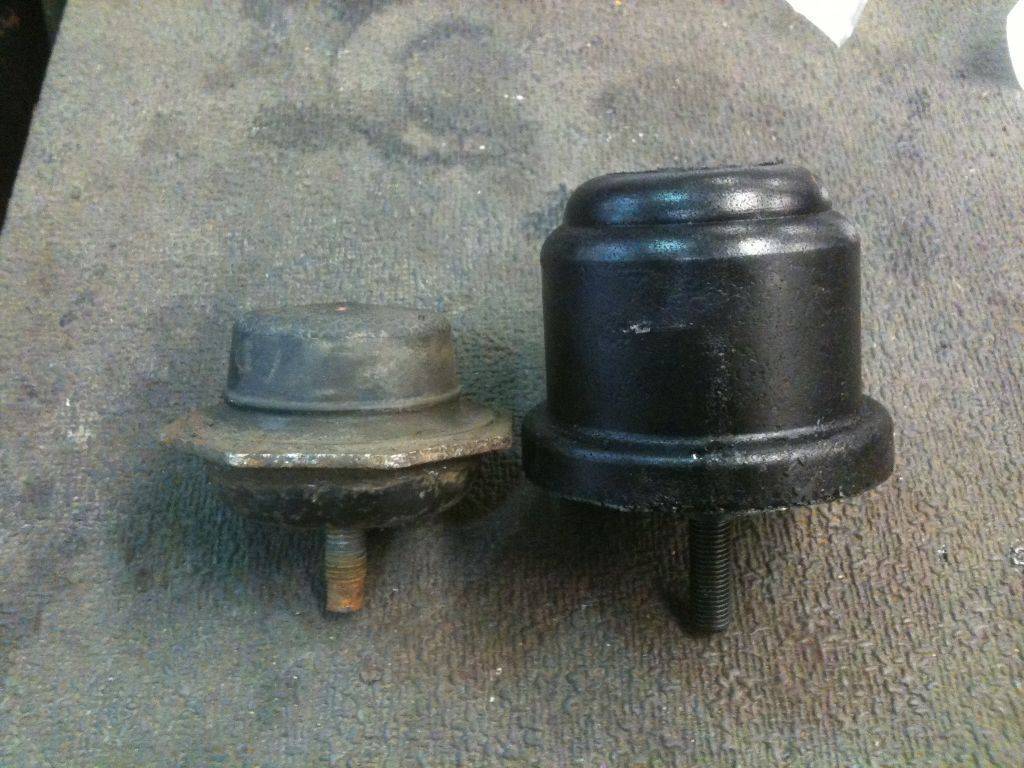

    OEM vs Wheeler's front

    [​IMG]

    OEM

    [​IMG]

    Wheeler's

    [​IMG]

    Wheeler's front

    [​IMG]

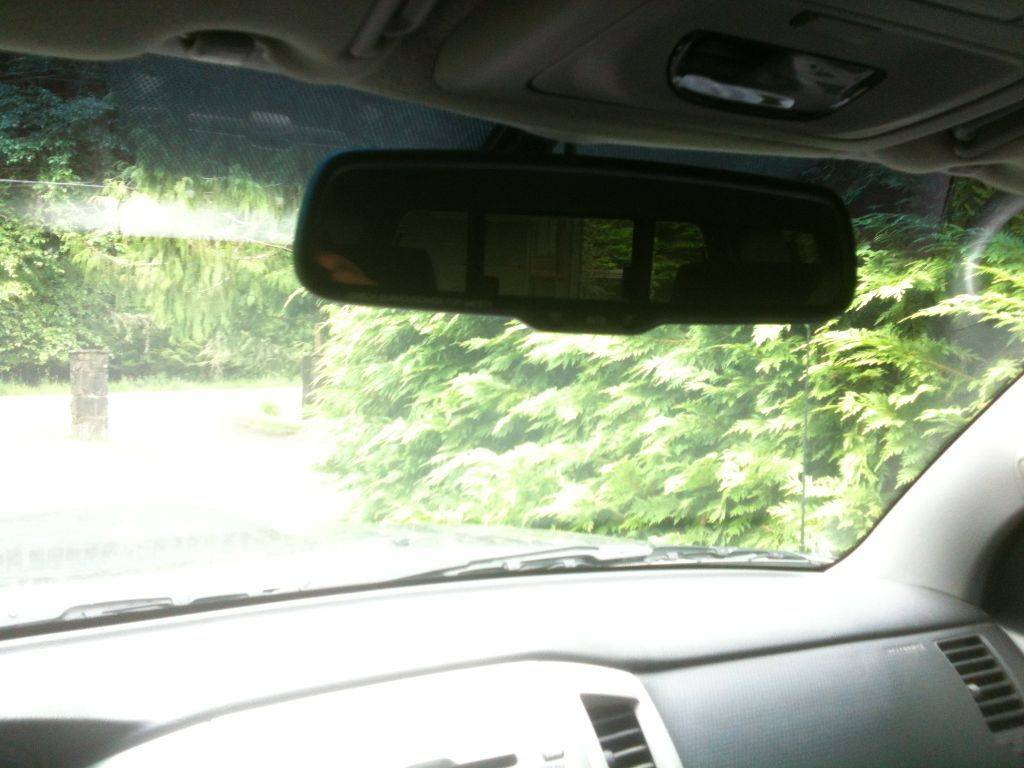

    Added the ImMrYo rear view mirror relocation bracket

    Easy install , far better visibility , I highly recommend this mod

    [​IMG]

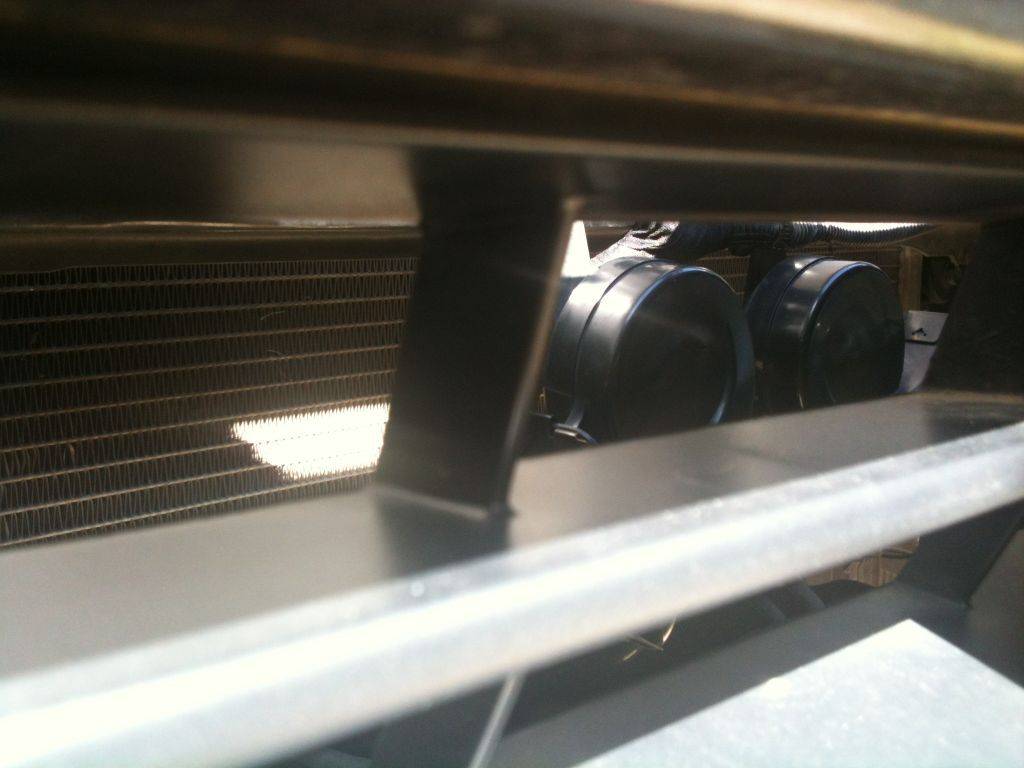

    Relocated my horns , but it got too windy to paint the radiator today

    [​IMG]

    [​IMG]

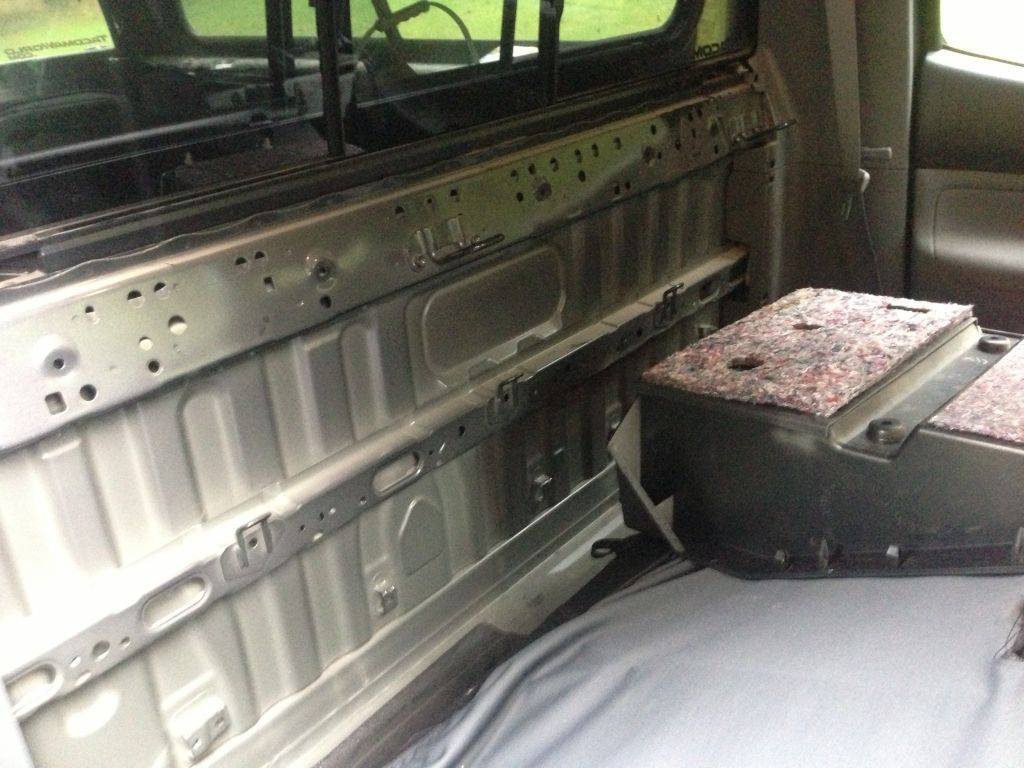

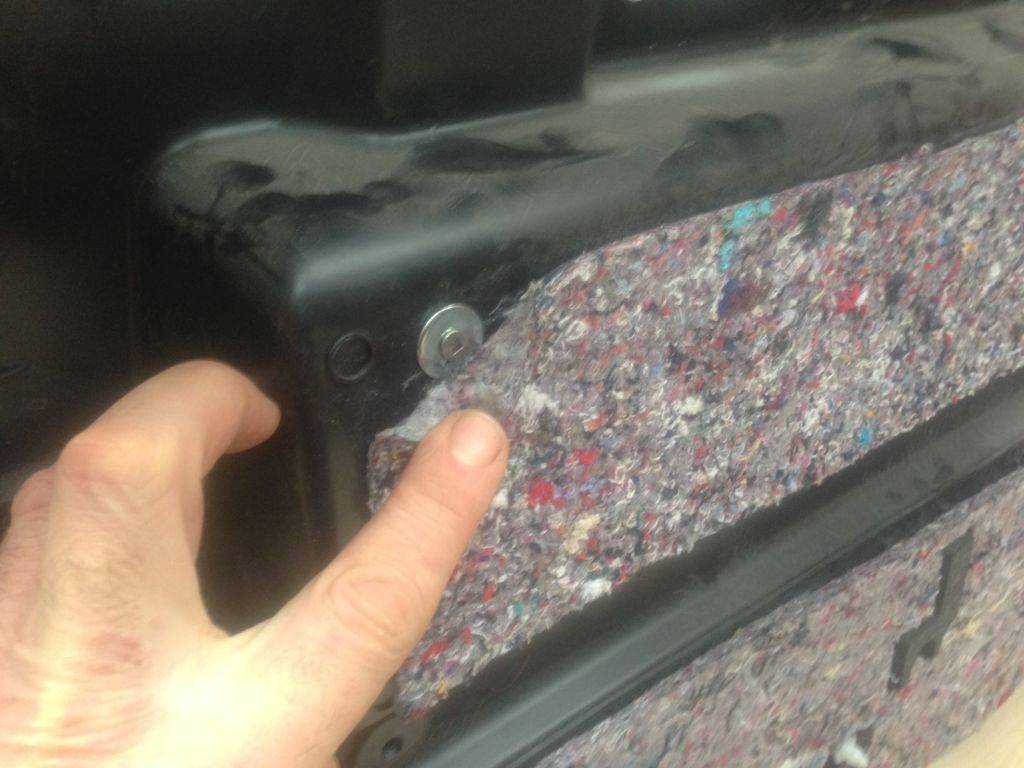

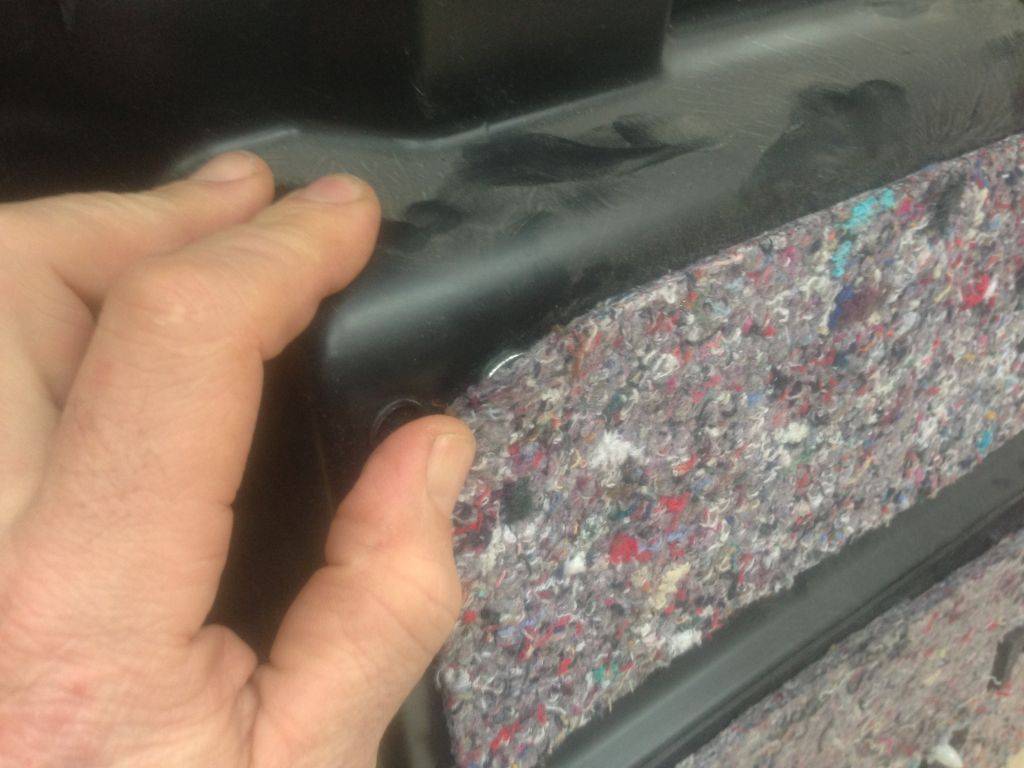

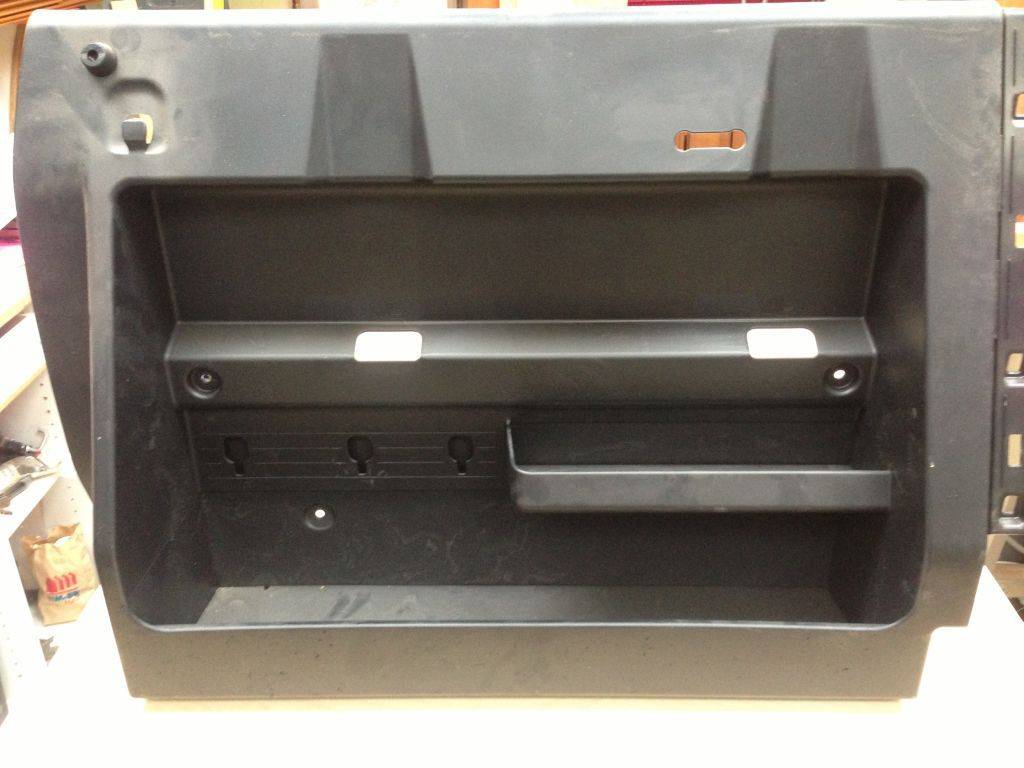

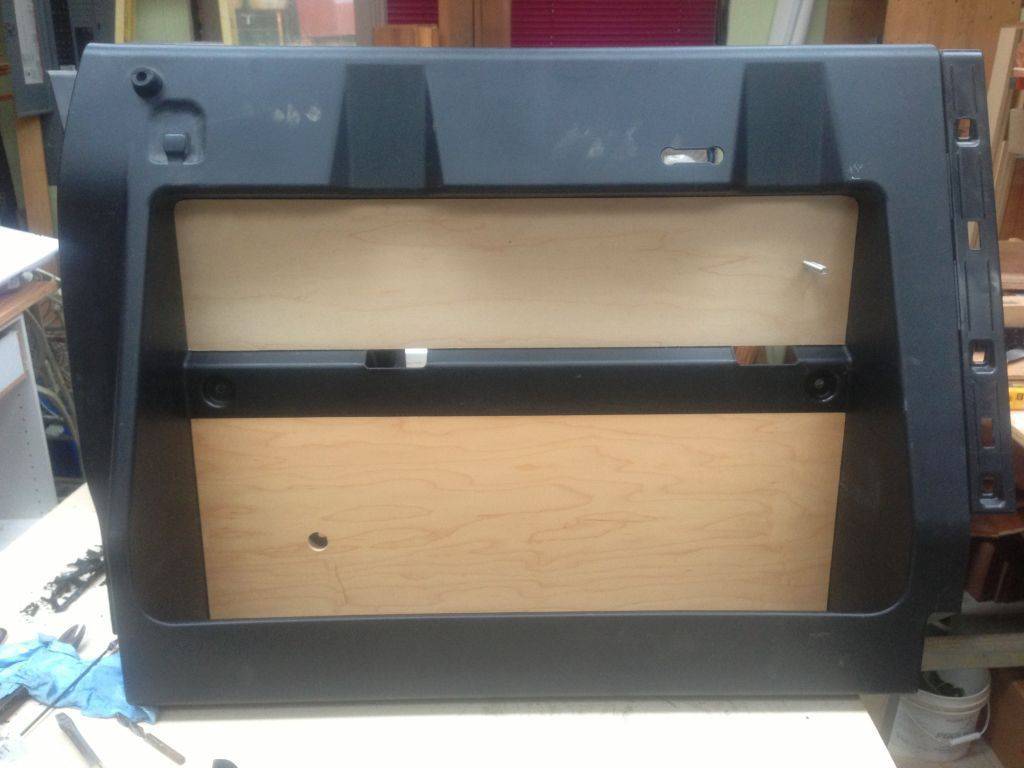

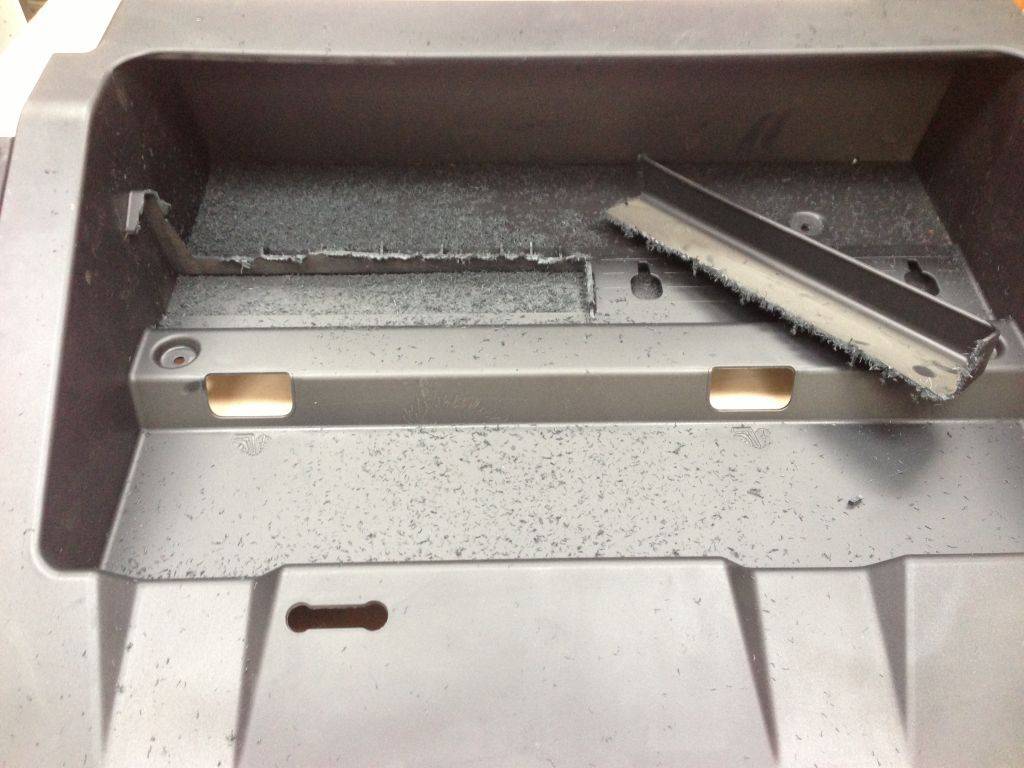

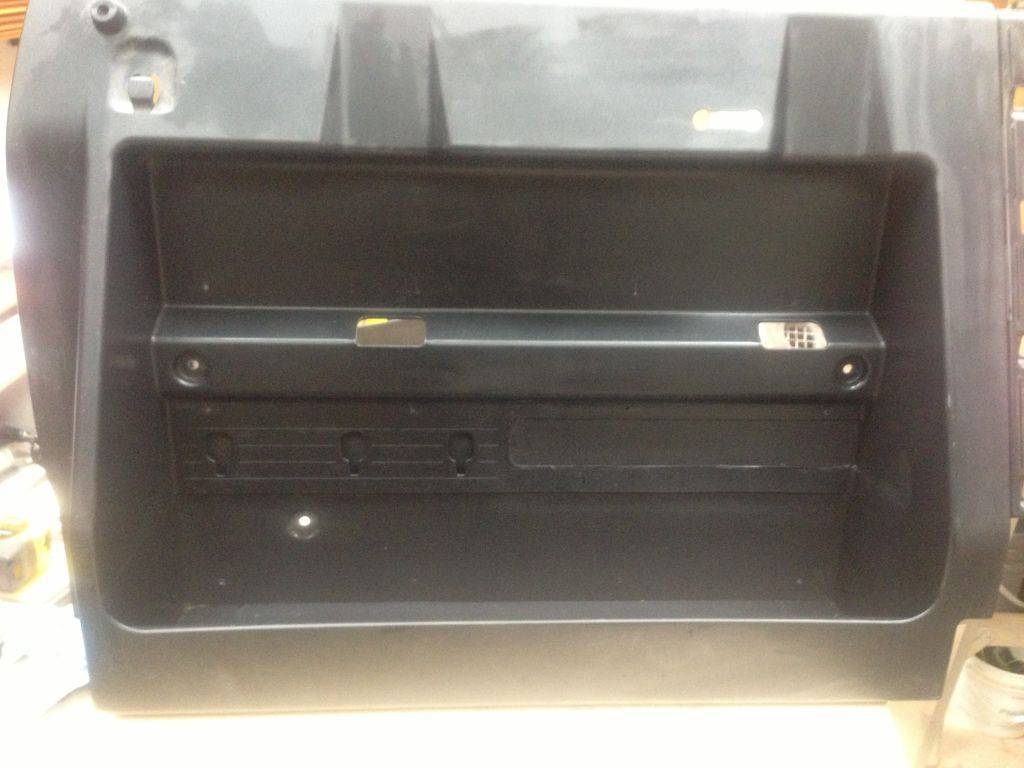

    Yanked out the plastic inserts behind the rear seats in order to remove the cast in shelf so that I can fit a tool box back there

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]



    Update on my rear seat cubby storage solution

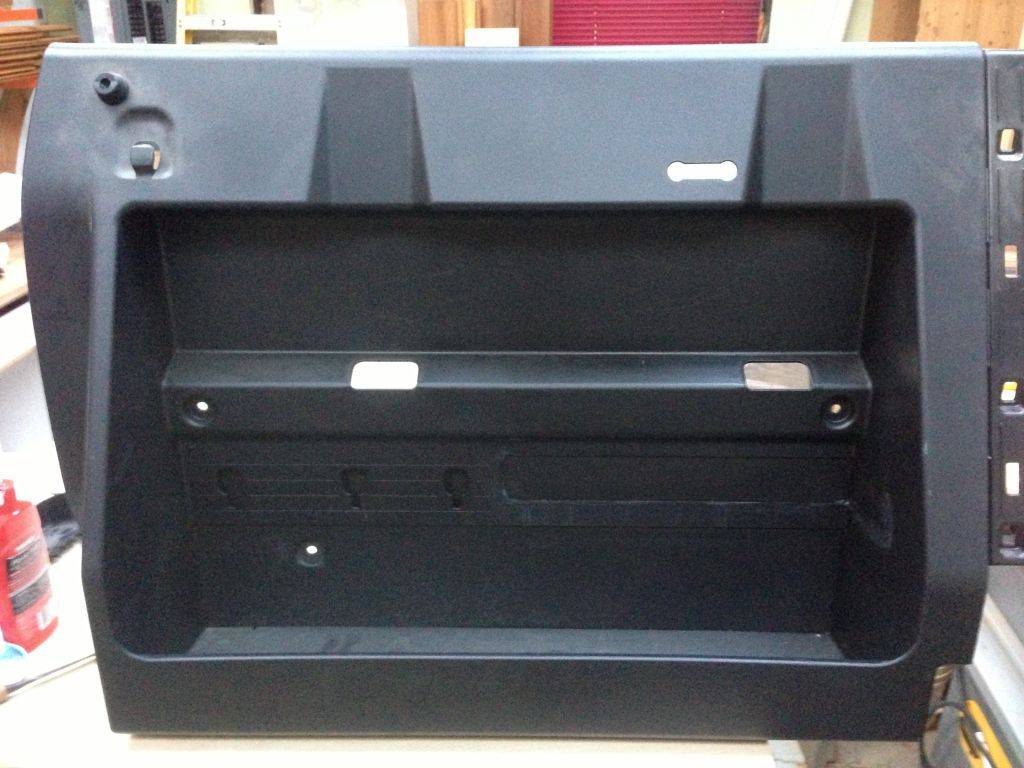

    Started with this

    [​IMG]

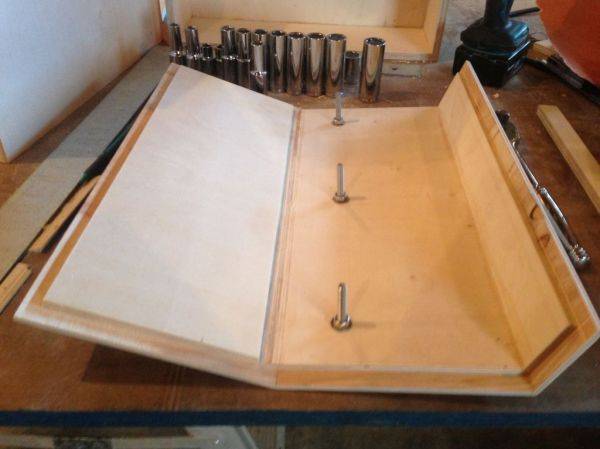

    Milled the upper piece , added a 5/16" stainless through bolt to register the axe handle

    [​IMG]

    Milled the lower piece , it needed to be rabbetted to span over the shelf support remnants

    [​IMG]

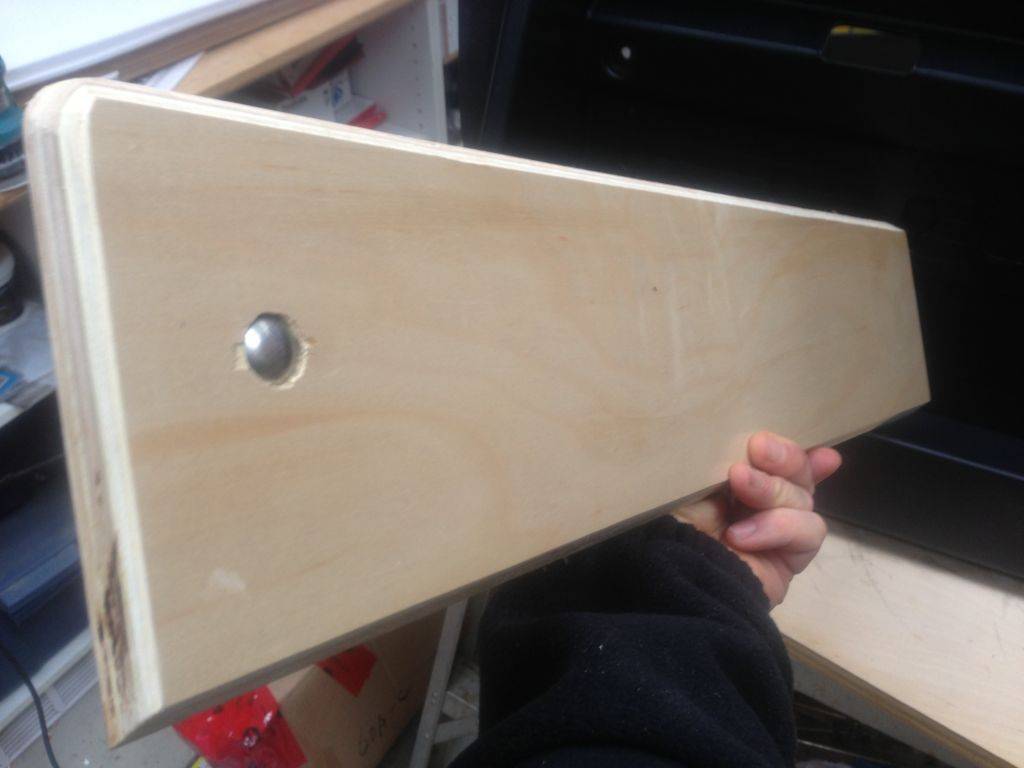

    I fixed these pieces through the back of the cubby inserts with #8 x 3/4" screws and fender washers

    [​IMG]

    I put the screws where I could cover them back up with the backing insulation so that they wouldn't rattle against the mounting surfaces

    [​IMG]

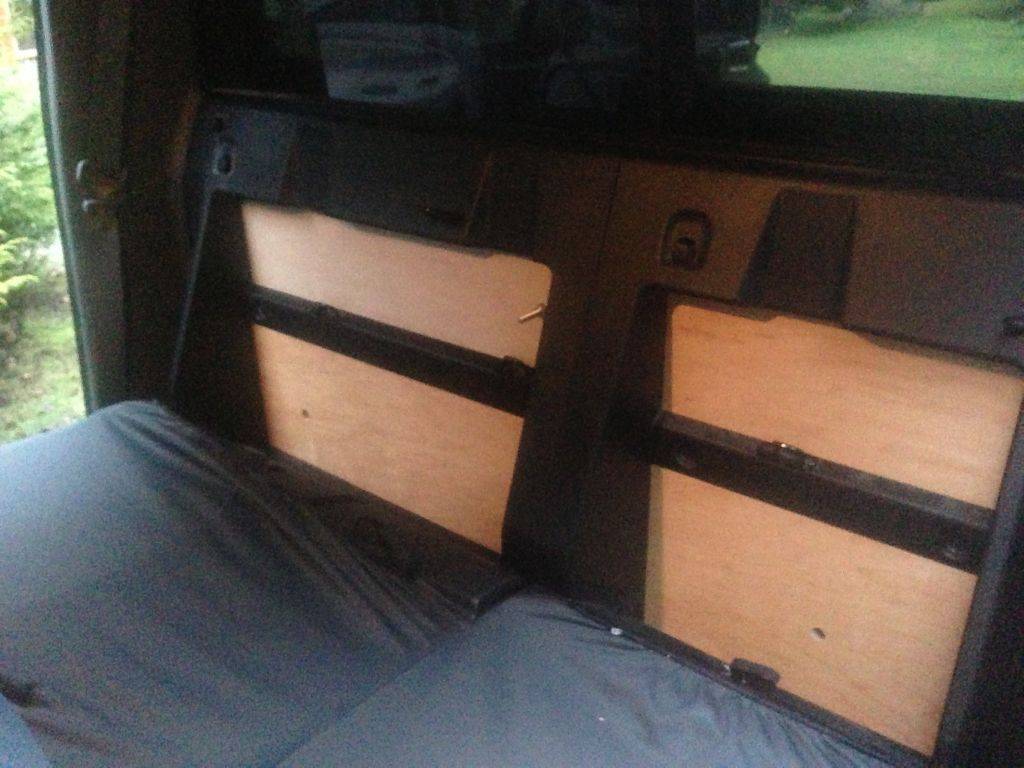

    That left me with this

    [​IMG]

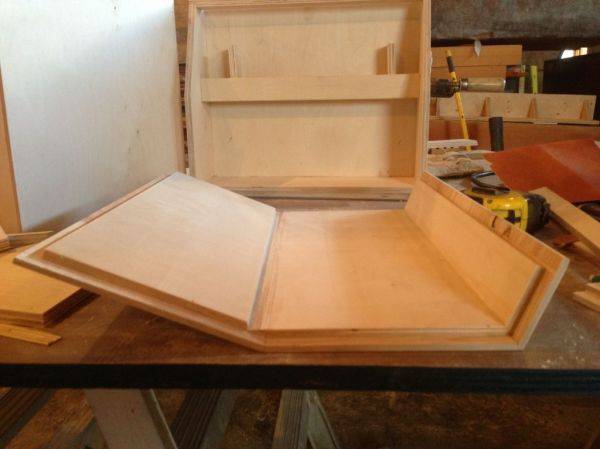

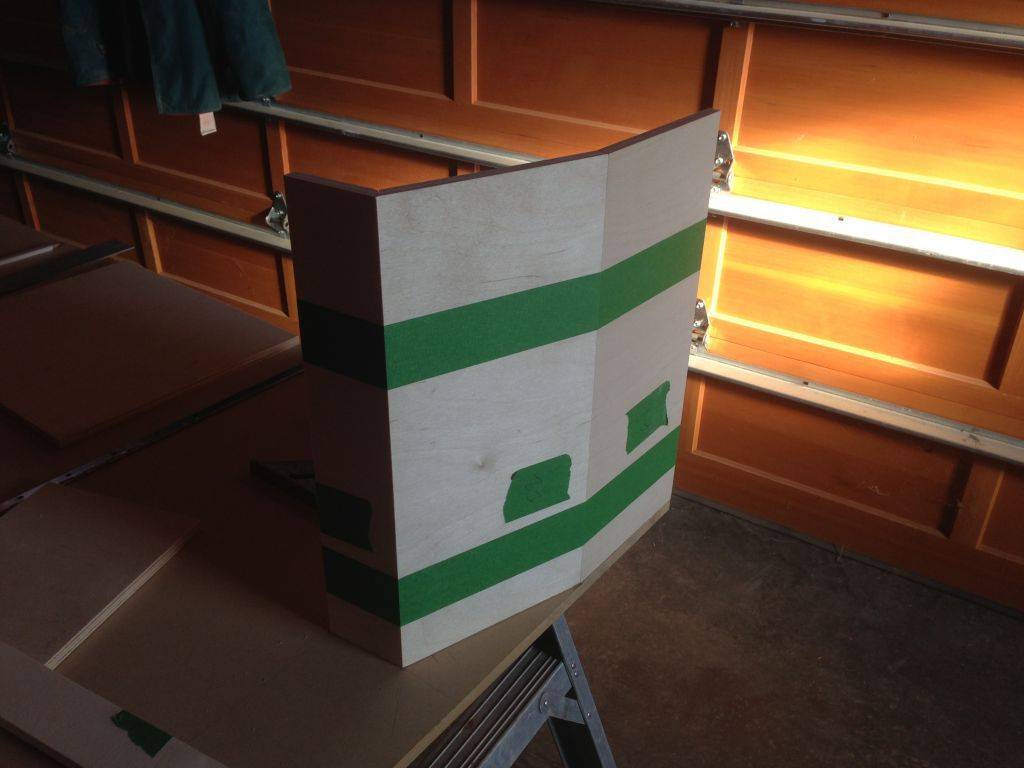

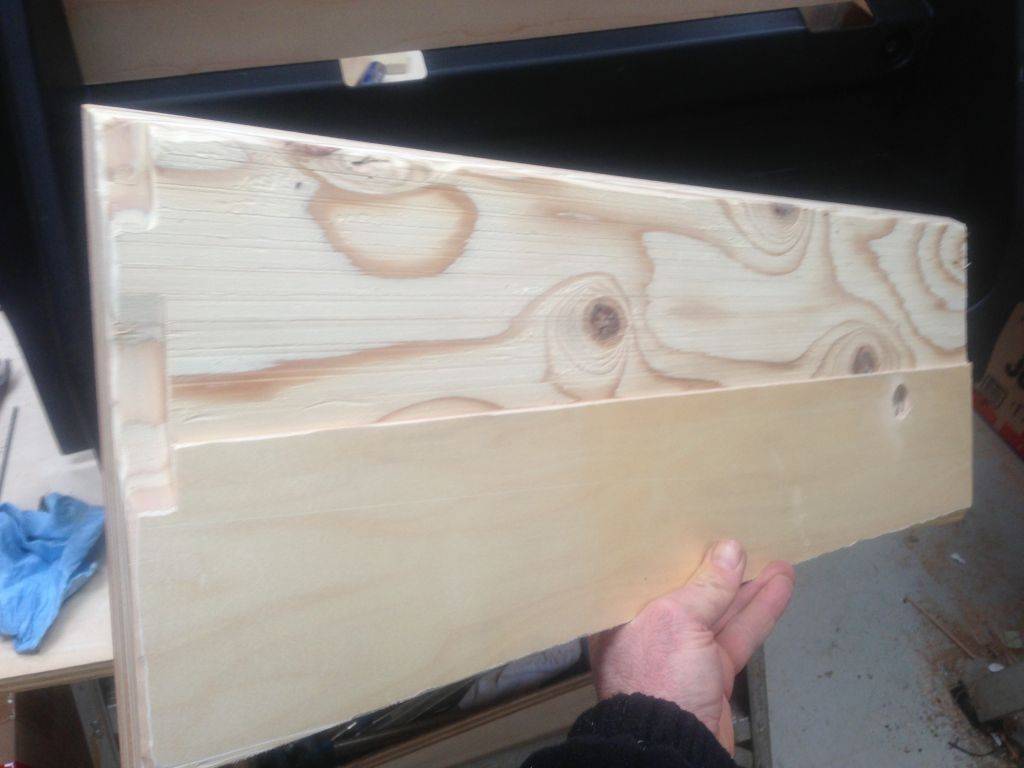

    I built a toolbox that would fit the countour of the storage area under the axe

    Lid :

    [​IMG]

    Case :

    [​IMG]

    Tool box :

    [​IMG]

    [​IMG]

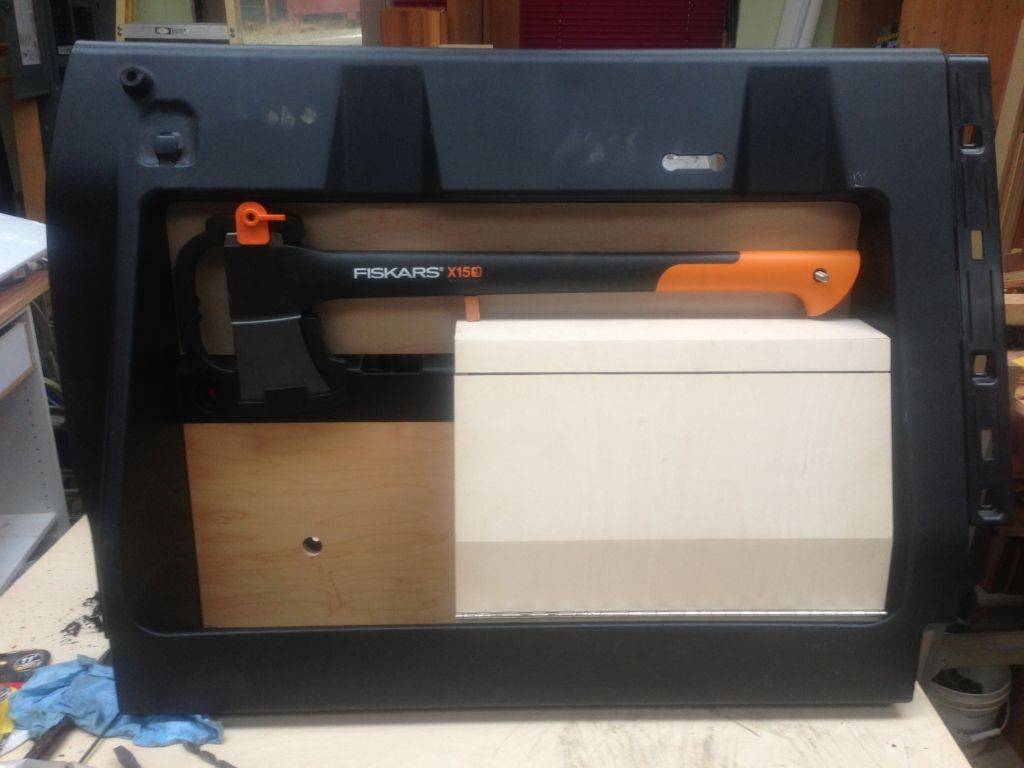

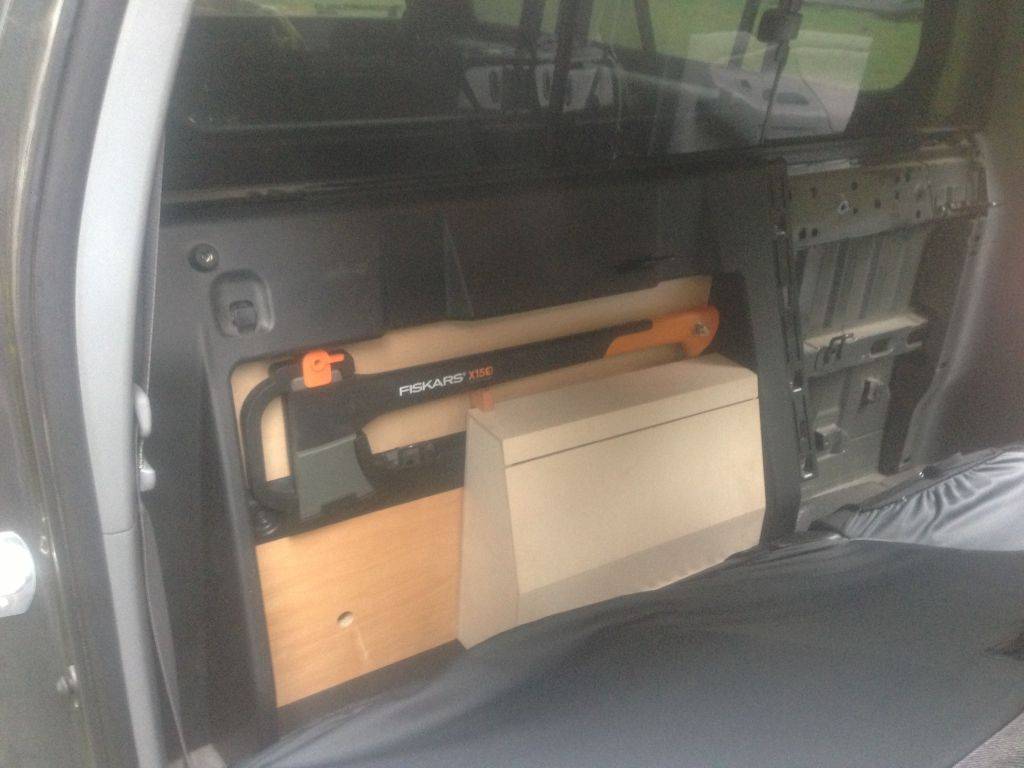

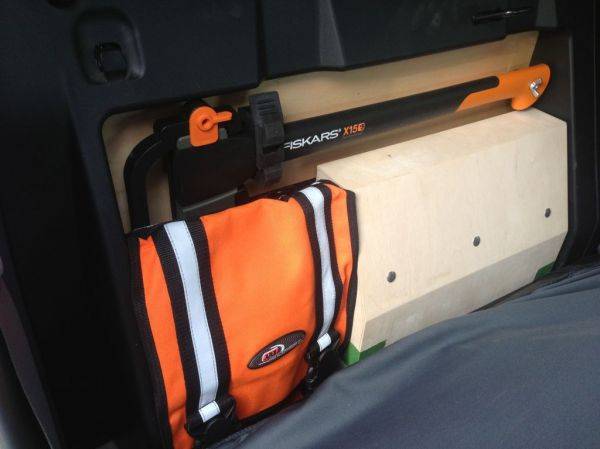

    Axe and tool box locations :

    Still waiting on Quickfists for the final axe mounts and an ARB Compact Recovery bag that fits to the left of the tool box

    [​IMG]

    Test fit

    [​IMG]

    All back together

    [​IMG]

    Got my Quickfists

    [​IMG]

    Added one Quickfist to my axe set up

    [​IMG]


    Got my ARB Compact recovery bag , fits pretty good

    There is an ARB 17500lb snatch strap inside

    [​IMG]

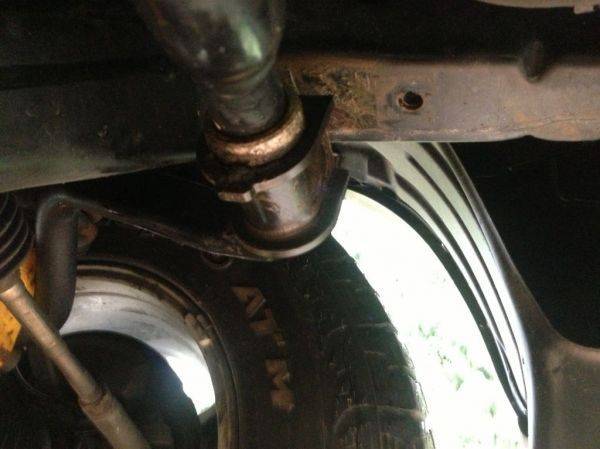

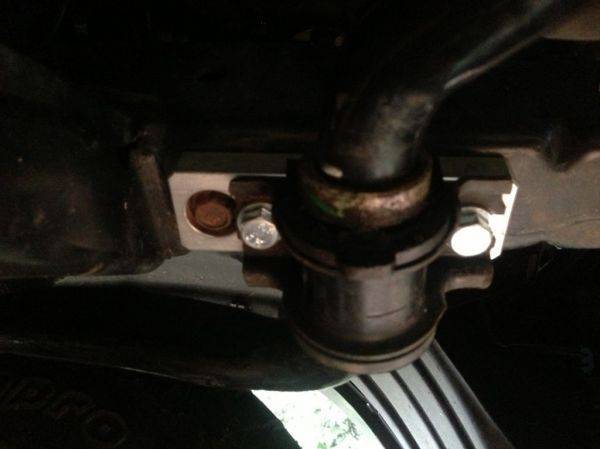

    Installed my sway bar relocates

    [​IMG]

    [​IMG]

    Added a Stant locking gas cap

    [​IMG]

    Last edited: Mar 13, 2013
  4. Apr 27, 2011 at 9:35 PM
    #4
    OZ-T

    OZ-T [OP] All of those moments....will be lost.....in time

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    23,093
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    Thanks

    Thanks Boog


    Continued

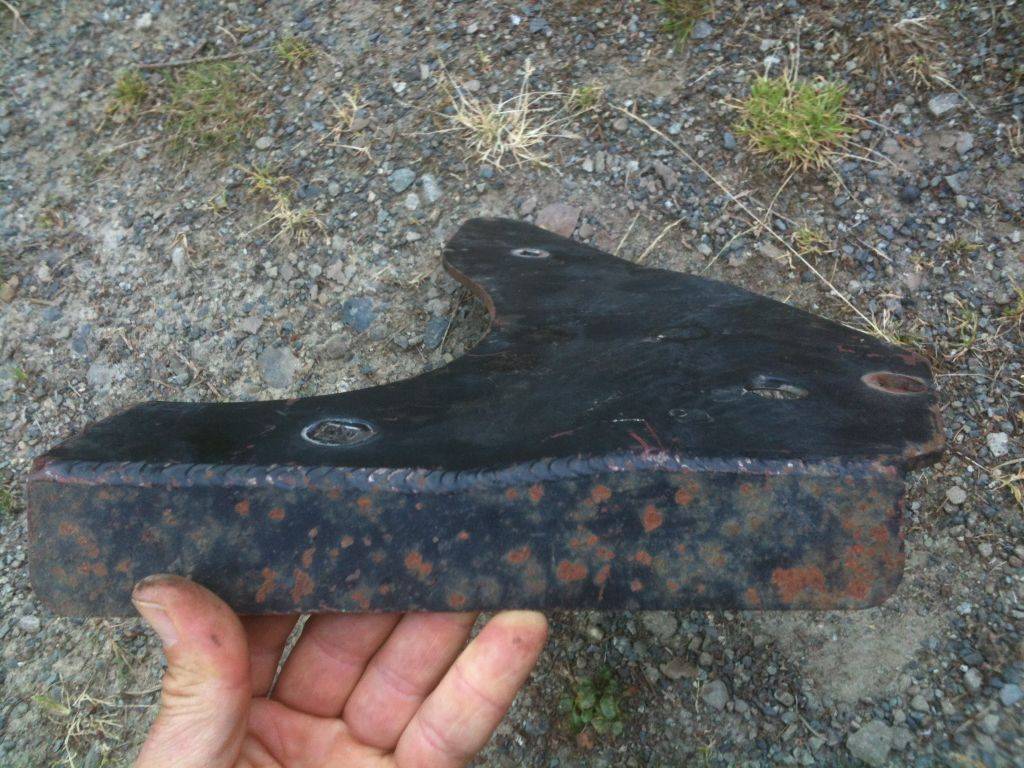

    Received the LCAs and skids I bought from TW member thekernel114

    [​IMG]

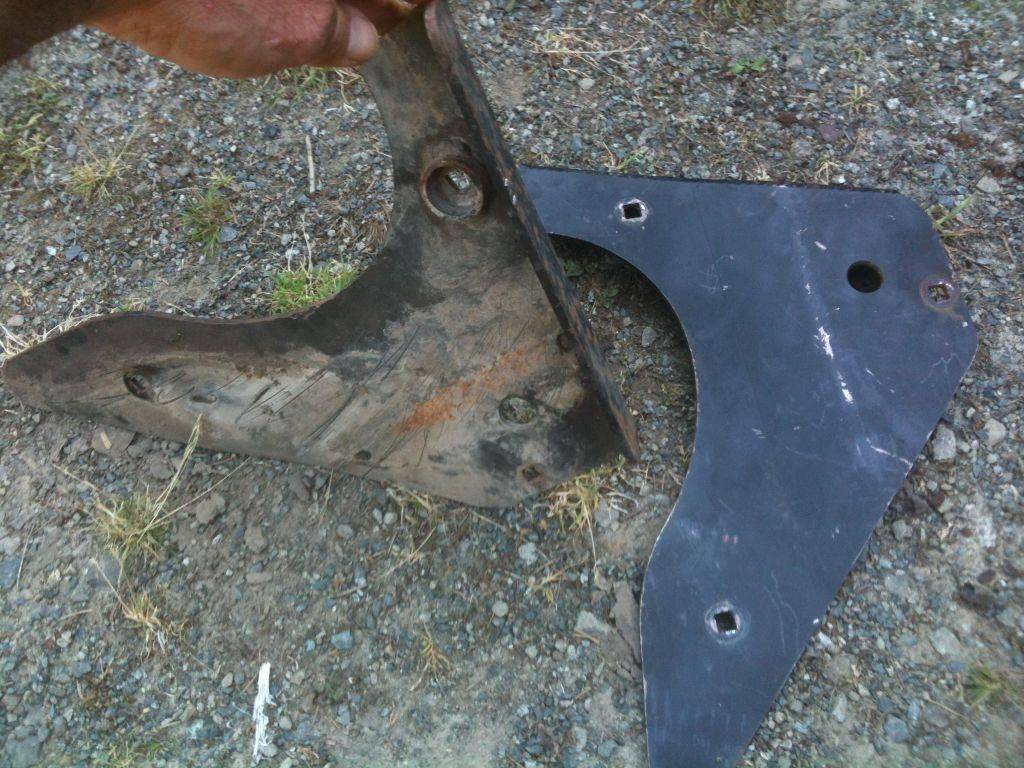

    Pulled the skids off , TC skids according to Boyd

    [​IMG]

    [​IMG]

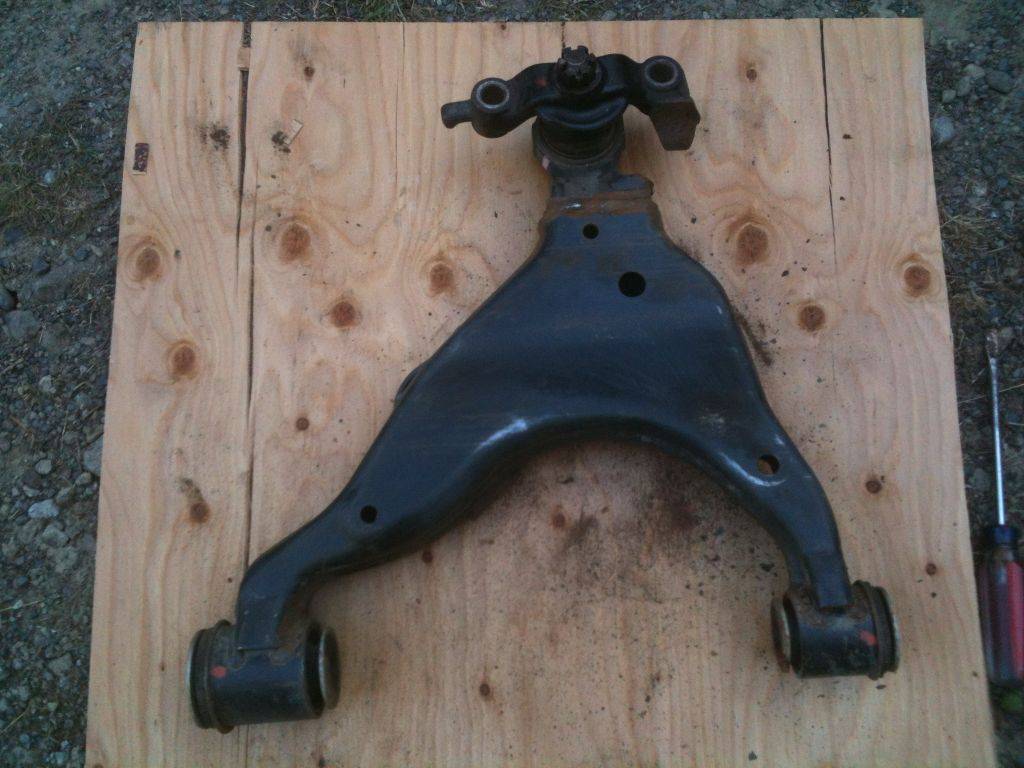

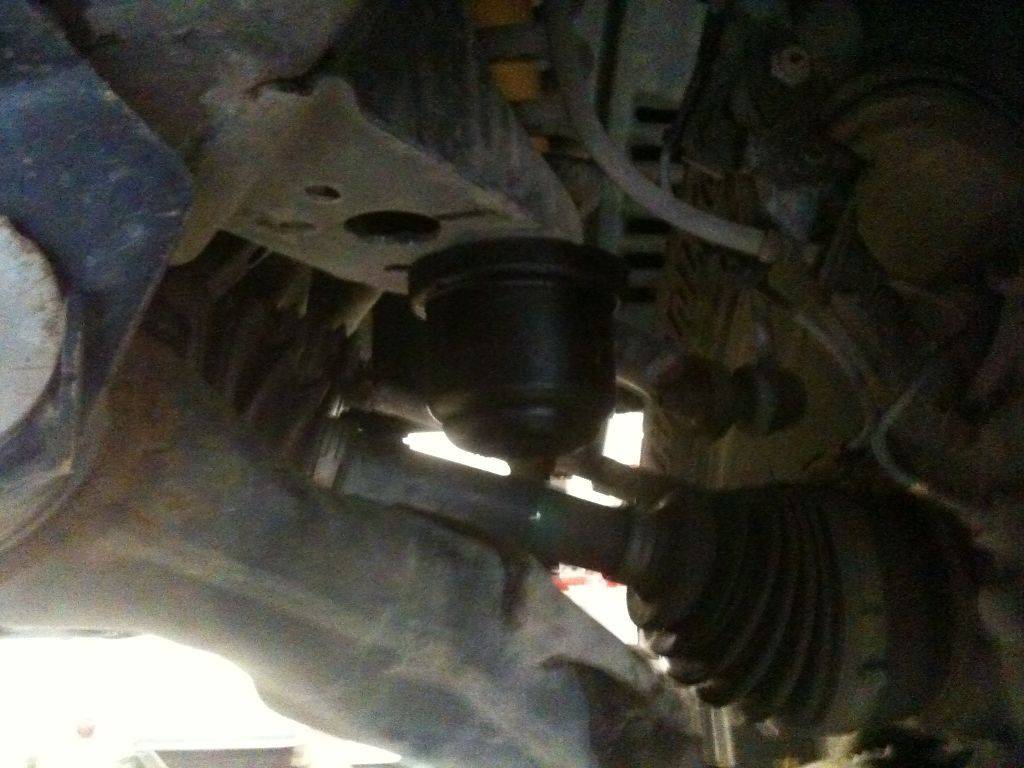

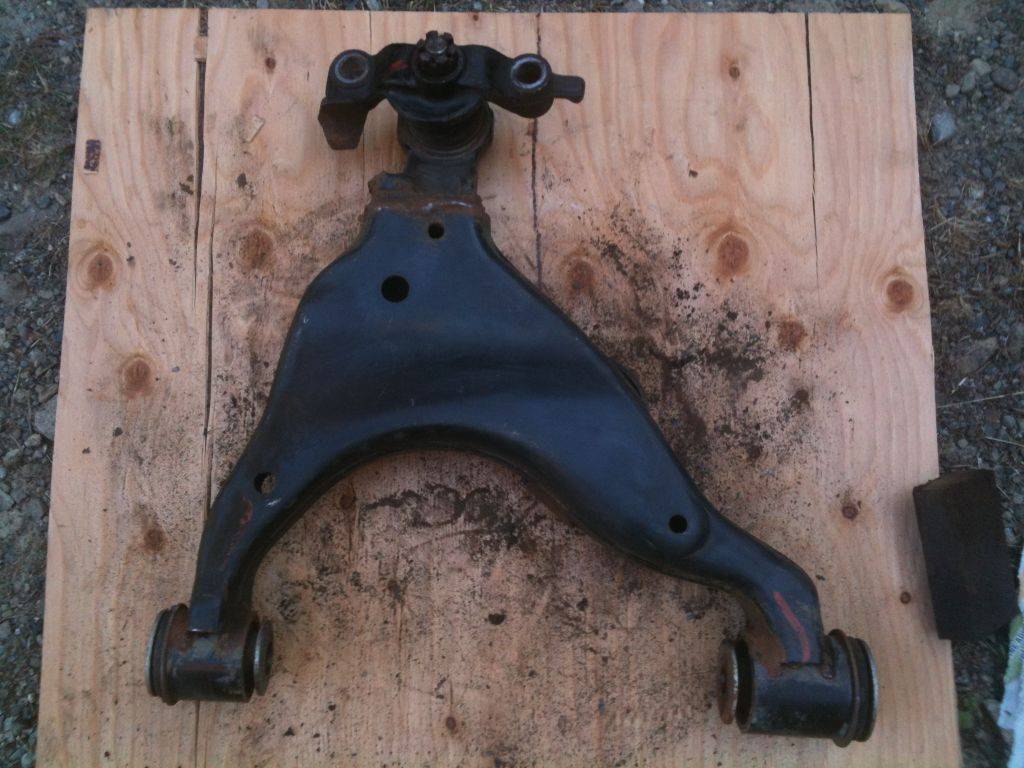

    Did a preliminary clean up and inspection on the LCAs , they look to be in great shape

    [​IMG]

    [​IMG]

  5. Apr 27, 2011 at 9:37 PM
    #5
    OZ-T

    OZ-T [OP] All of those moments....will be lost.....in time

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    23,093
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi

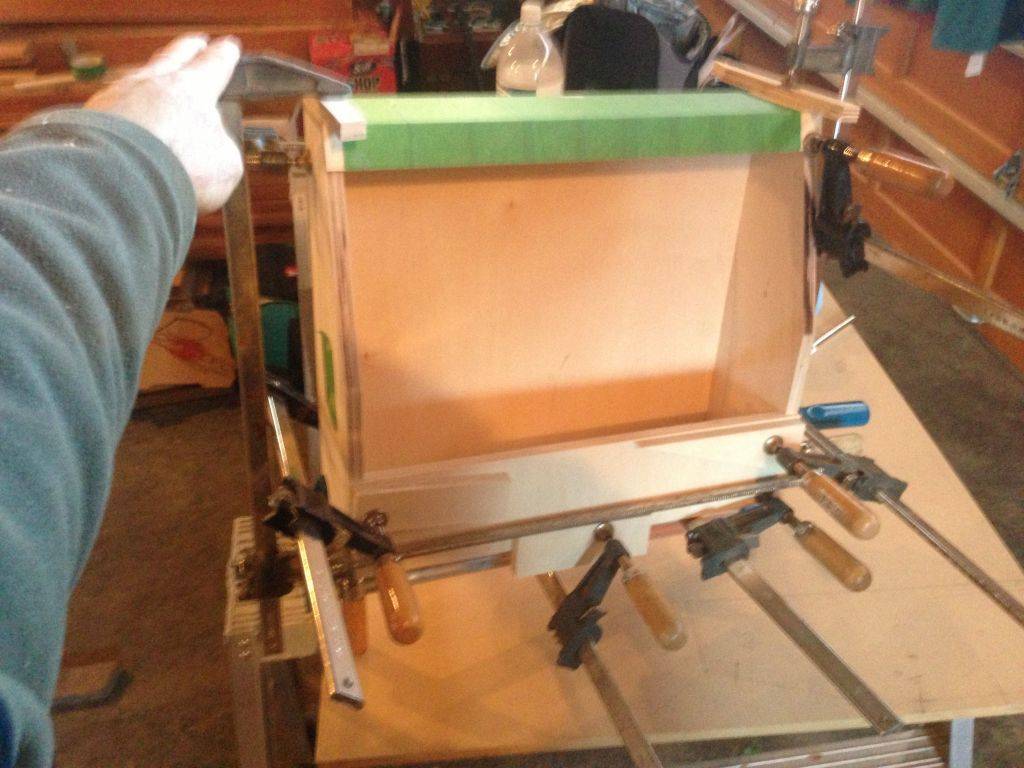

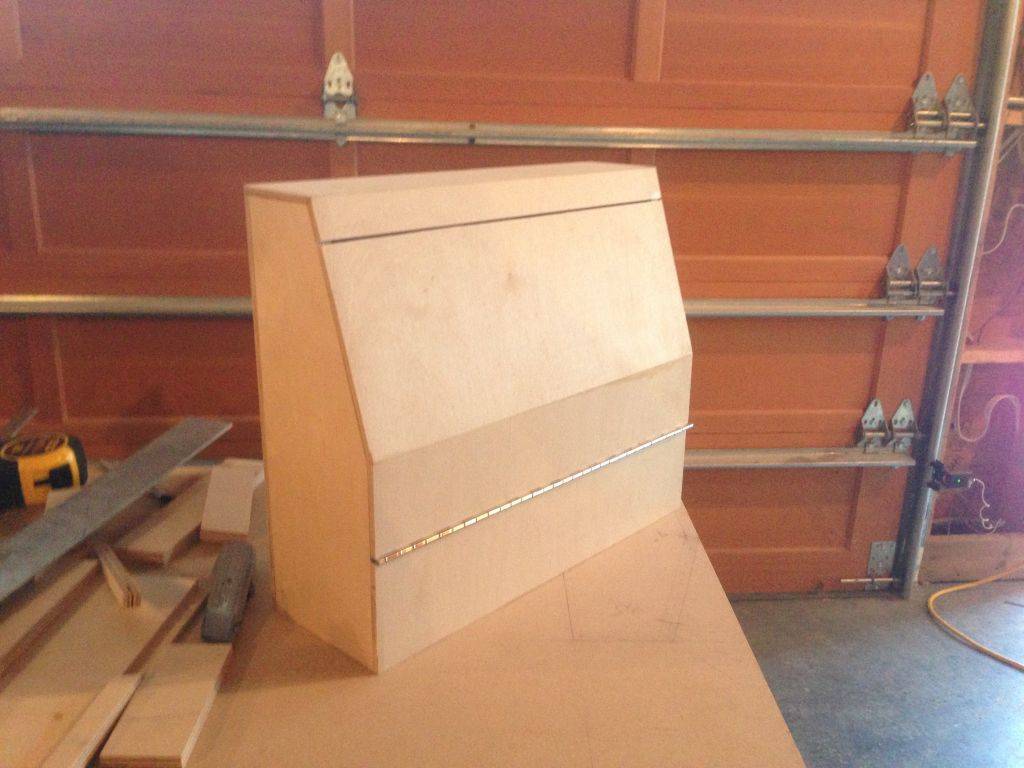

    Decided to go ahead and build a new box with the revisions I wanted

    3/4" wider , 1/4" shorter , 3/4" narrower at the top , move the hinge location up 1" and add a shelf to hold oddball sockets ( 32mm , 35mm ) extentions and other assorted tools

    Got the case built , and the lid built today , after the glue has set up , I'll cut the opening portion of the lid out and mount the hinge

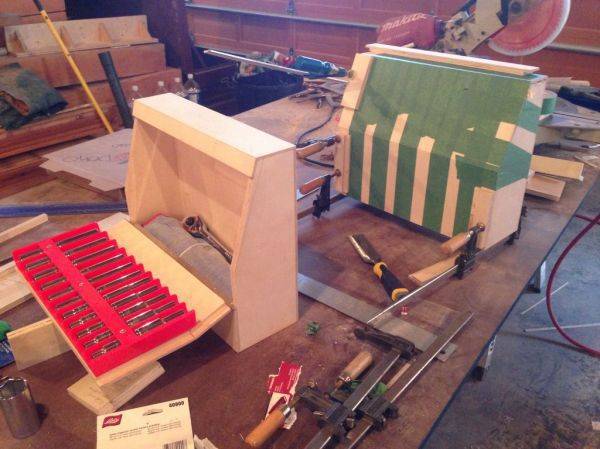

    Old prototype box on the left , new box on the right

    [​IMG]

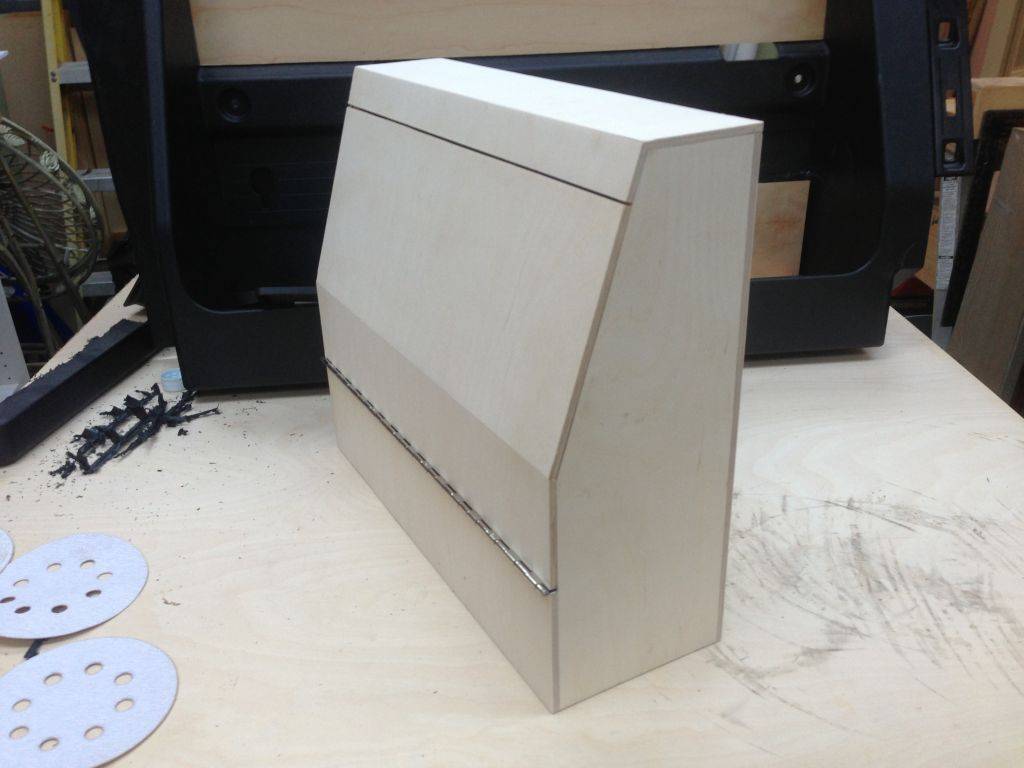

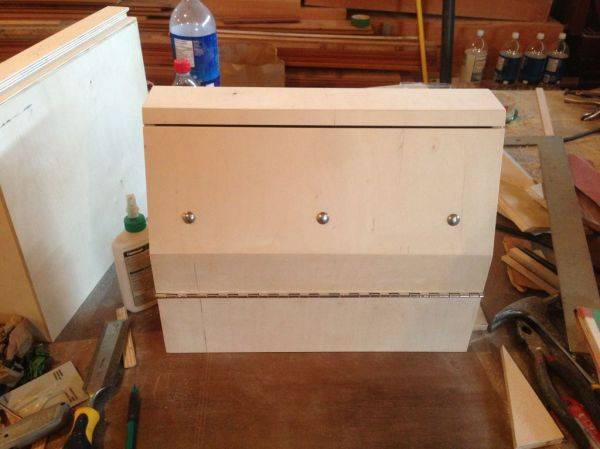

    Finished Version 2 of my tool box

    The lid was rabbeted to accept the socket tray

    [​IMG]

    [​IMG]

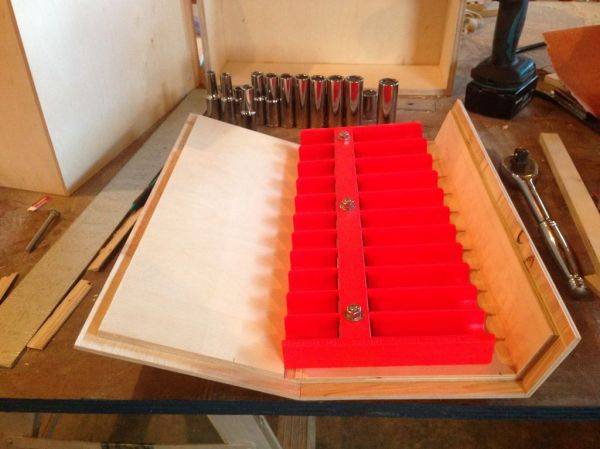

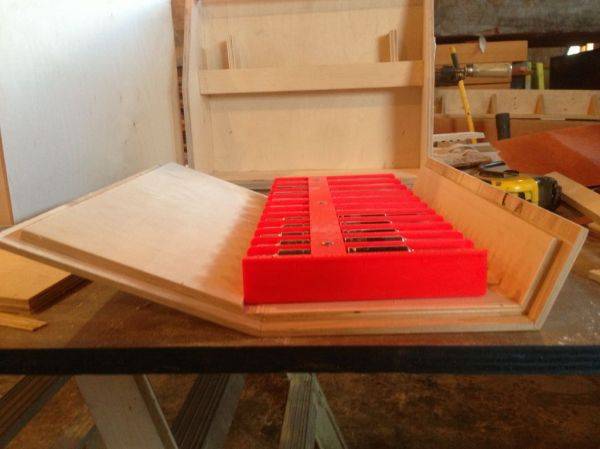

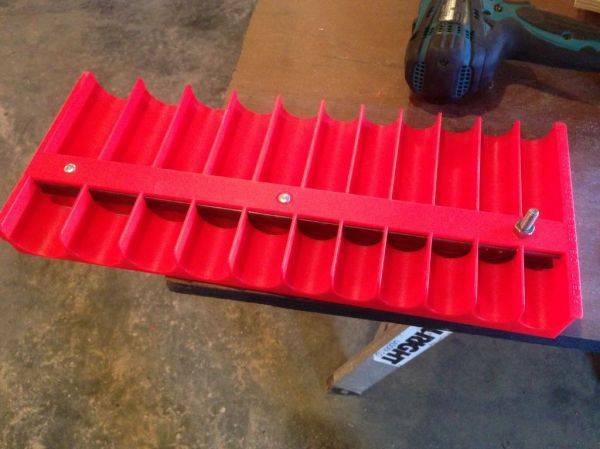

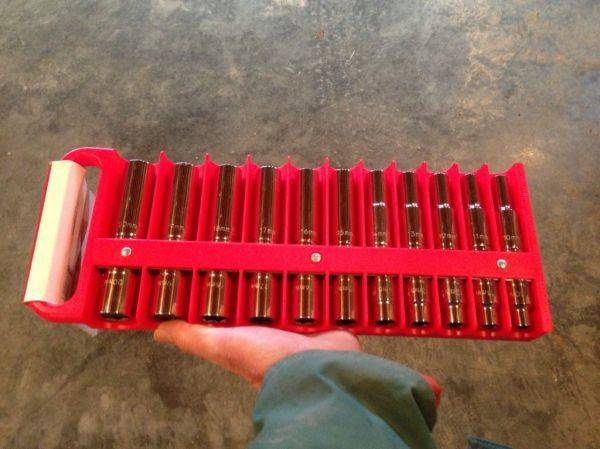

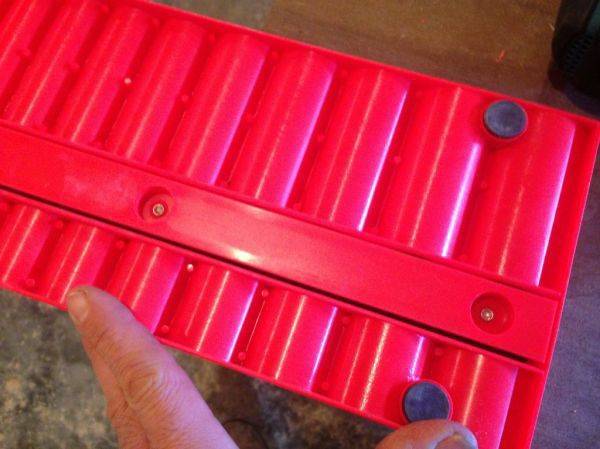

    I use this Lisle 1/2" drive magnetic socket tray

    [​IMG]

    Cut off the handle , removed the through rivets and drilled it out to accept 1/4" hardware

    [​IMG]

    [​IMG]

    Used the tray as a pattern and drilled through the lid front , and attached 1/4"x 2" SS carriage bolts

    [​IMG]

    Mounted the socket tray

    [​IMG]

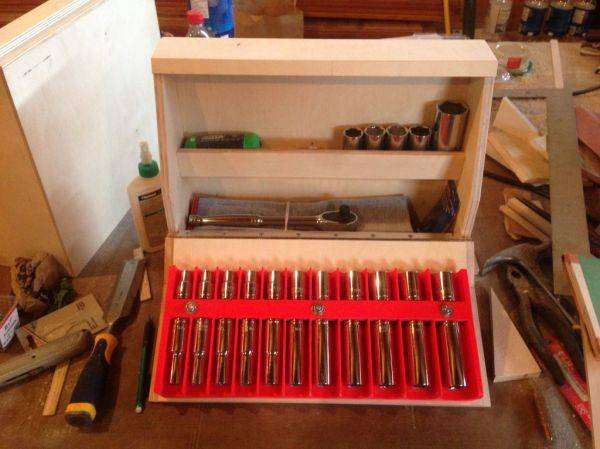

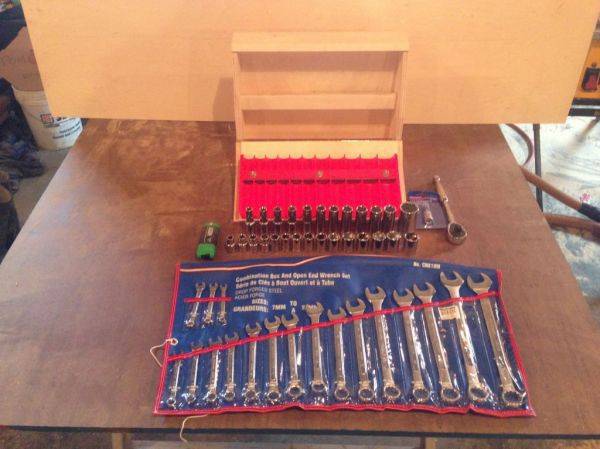

    Loaded it up with these tools
