Dirt Designs 05+ Taco 4WD RACE kit

Discussion in 'Long Travel Suspension' started by dirt designs, Jun 28, 2013.

  1. Jul 2, 2013 at 9:09 PM
    #21
    dirt designs

    dirt designs [OP] Well-Known Member

    Joined:
    Jan 9, 2013
    Member:
    #94822
    Messages:
    117
    Gender:
    Male
    First Name:
    Steve
    slo
    Vehicle:
    01 Tacoma race truck
    Only factory parts left is cab and frame rails
    Thanks everyone. It should work out well

    The spindles do not add any to the overall width like a 2wd lift spindle. So its a total 3.5" per side.

    The tabs? Or the uniballs? The uniballs are high strength 1in. Same as most kits out, even on some TTs. And Ive had similar tab layouts that ive built on other vehicles with other kits. Itll be all bueno

    Price will be around $4-4500 for upper arms, lower arms, spindles, heimed steering, and all necessary parts (minus shocks and glass)

  2. Jul 3, 2013 at 9:57 PM
    #22
    dirt designs

    dirt designs [OP] Well-Known Member

    Joined:
    Jan 9, 2013
    Member:
    #94822
    Messages:
    117
    Gender:
    Male
    First Name:
    Steve
    slo
    Vehicle:
    01 Tacoma race truck
    Only factory parts left is cab and frame rails

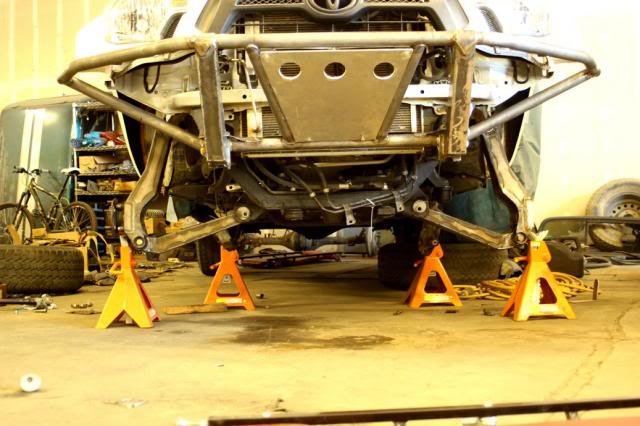

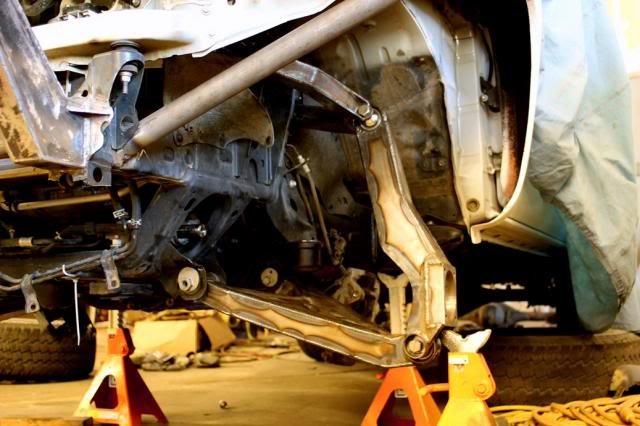

    Not as many pics as i hoped, but I will hopefully have shocks and steering clevis' friday


    Kit cycles 14.5 from inner fender to cv bind (will be bumped and strapped right around 14). The shock will be setup to cycle the suspenison up past the inner fender by 2-2.5in so if joel ever decides to remove them, he can run around 16" of travel
    [​IMG]


    There will be some sheetmetal massaging to fit a 35in tire at full bump and crank. We should be able to just roll over the weld seam and that should be the clearance we need.
    [​IMG]

  3. Jul 3, 2013 at 10:03 PM
    #23
    SoCalTacos

    SoCalTacos Penis Bird

    Joined:
    Nov 5, 2011
    Member:
    #66543
    Messages:
    3,095
    Gender:
    Male
    socal
    Vehicle:
    2012 TRD Sport 4x4 DC LB Black
    King remote resi coilovers, King rear resis, camburg 1.25" uca, deaver j66 pack, Method race wheels, bfg at ko 285/70/17, Retrofitted headlights FXR IV, debadged, tinted tails, JL audio stealthbox, focal v30, focal pc165, arc audio amp, 7" Kenwood hu, undercarriage led lighting, kibbetech custom bumper with 20" led light bar, RI duallies (6), dtlt's, urd intake, maf cal, urd y-pipe, roto pax gas tank and tacoma bed mount, pelfreybuilt bed bar.
    Badass...is your first gen linked?
    Looking forward to the test run videos. Way to put worth the effort and design that 4wd spindle.

  4. Jul 3, 2013 at 10:50 PM
    #24
    Monster Coma

    Monster Coma Well-Known Member

    Joined:
    Jun 15, 2012
    Member:
    #80740
    Messages:
    25,533
    Gender:
    Male
    First Name:
    Corey
    Pittsburgh, PA/Houston, TX
    Sponsored by Mom and Dad
    Hmm I like.. Need to start saving :D

  5. Jul 5, 2013 at 10:55 PM
    #25
    BigRedToy

    BigRedToy ¯\_(ツ)_/¯

    Joined:
    Apr 12, 2009
    Member:
    #15885
    Messages:
    2,044
    Gender:
    Male
    First Name:
    John
    Colorado
    Vehicle:
    07 Regular Cab SR5 4x4
    This looks nice.

  6. Jul 6, 2013 at 12:11 PM
    #26
    precoma

    precoma Well-Known Member

    Joined:
    Jun 23, 2011
    Member:
    #58730
    Messages:
    5,393
    Gender:
    Male
    First Name:
    corey
    Crestline, CA
    Vehicle:
    2009 4x4 trd sport
    Total chaos UCA's, icon coils, deaver long travel leaf pack with icon resi's, k and n intake
    Subbd

  7. Jul 6, 2013 at 2:12 PM
    #27
    cummins6speed

    cummins6speed Well-Known Member

    Joined:
    Jan 9, 2009
    Member:
    #12426
    Messages:
    1,818
    Gender:
    Male
    Vehicle:
    '05 4Runner Limited Edition
    Custom extended travel 2.5" King RR coilovers, 1.25" Camburg uniball uppers, homebuilt tube bumper
    I'm diggin the fact that there isn't too much camber change

  8. Jul 6, 2013 at 3:01 PM
    #28
    6spd

    6spd Well-Known Member

    Joined:
    Feb 4, 2012
    Member:
    #72162
    Messages:
    858
    Gender:
    Male
    san diego
    Vehicle:
    2012 4x4
    option for heimed uppers?

  9. Jul 6, 2013 at 10:40 PM
    #29
    dirt designs

    dirt designs [OP] Well-Known Member

    Joined:
    Jan 9, 2013
    Member:
    #94822
    Messages:
    117
    Gender:
    Male
    First Name:
    Steve
    slo
    Vehicle:
    01 Tacoma race truck
    Only factory parts left is cab and frame rails
    yessir and thank you

    [​IMG]


    Definitely should be

  10. Jul 8, 2013 at 1:23 AM
    #30
    Sky

    Sky Taco Member

    Joined:
    Jun 21, 2009
    Member:
    #18712
    Messages:
    821
    Gender:
    Male
    First Name:
    Brandon
    Redlands/Yucaipa
    Vehicle:
    05 V6 4x4 TRD Off-Road
    First of I painted my truck Satin flat black, it has a Volat Cold air Intake, 5100s up front and J66's as well as billy 5150s in the rear, 285/ 75/16 Falcon wild peak A/T, Axis regulators painted satin black, with a gold rings! brush bar with 4 LightForce 170 strikers, Custom rear Bumper, Straight Pipe. HID 6000k Hi/Low, and HID 6000k fog lights, Tinted rear tail lights! Flat Black Interior! 2 12" subs with custom box made by me and a 1300 watt amp!
    subbed

  11. Jul 8, 2013 at 7:21 PM
    #31
    dirt designs

    dirt designs [OP] Well-Known Member

    Joined:
    Jan 9, 2013
    Member:
    #94822
    Messages:
    117
    Gender:
    Male
    First Name:
    Steve
    slo
    Vehicle:
    01 Tacoma race truck
    Only factory parts left is cab and frame rails
    Sure.

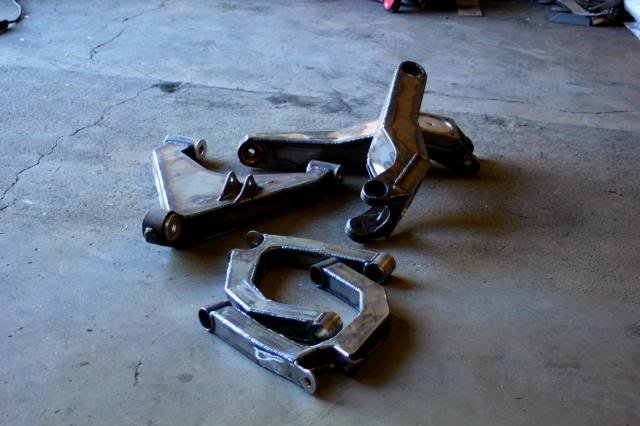

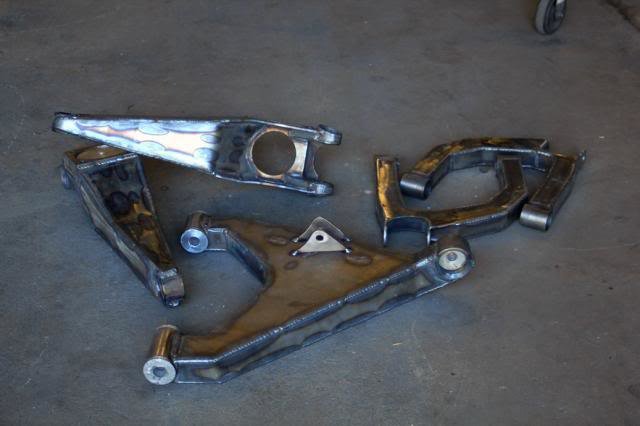

    Ive been welding up parts so its getting closer to better pics. Both uprights, ucas, and one lca are done. Tomorrow im going to be setting up the steering and shocks

    [​IMG]

    [​IMG]

  12. Jul 8, 2013 at 7:47 PM
    #32
    SoCalTacos

    SoCalTacos Penis Bird

    Joined:
    Nov 5, 2011
    Member:
    #66543
    Messages:
    3,095
    Gender:
    Male
    socal
    Vehicle:
    2012 TRD Sport 4x4 DC LB Black
    King remote resi coilovers, King rear resis, camburg 1.25" uca, deaver j66 pack, Method race wheels, bfg at ko 285/70/17, Retrofitted headlights FXR IV, debadged, tinted tails, JL audio stealthbox, focal v30, focal pc165, arc audio amp, 7" Kenwood hu, undercarriage led lighting, kibbetech custom bumper with 20" led light bar, RI duallies (6), dtlt's, urd intake, maf cal, urd y-pipe, roto pax gas tank and tacoma bed mount, pelfreybuilt bed bar.
    Do those spindles add any sort of lift? Is that even possible with 4wd spindles?

  13. Jul 8, 2013 at 7:53 PM
    #33
    headhunter247

    headhunter247 Well-Known Member

    Joined:
    Oct 16, 2008
    Member:
    #10013
    Messages:
    1,394
    Gender:
    Male
    St. Louis, MO area
    Vehicle:
    13 Taco Double Cab TRD
    Bilstein 5100's all around, front set at 2.5", Toytec AAL, 265/75/16 Duratracs, Pro Comp 5001, Weathertech's, AVS In Channel Visors, Nokya Hyper Yellow fogs, CB Set up, Color matched grill surround, ATC Camper Shell with Yakima Racks, SOS Concepts Regular Rear Bumper.
  14. Jul 8, 2013 at 8:09 PM
    #34
    6spd

    6spd Well-Known Member

    Joined:
    Feb 4, 2012
    Member:
    #72162
    Messages:
    858
    Gender:
    Male
    san diego
    Vehicle:
    2012 4x4
    looking thick, solid, tight. I wouldnt even want anymore lift with an LT kit. 2nd aftermarket 4x4 beefy spindle(to solo motosports) available.

  15. Jul 8, 2013 at 8:30 PM
    #35
    cummins6speed

    cummins6speed Well-Known Member

    Joined:
    Jan 9, 2009
    Member:
    #12426
    Messages:
    1,818
    Gender:
    Male
    Vehicle:
    '05 4Runner Limited Edition
    Custom extended travel 2.5" King RR coilovers, 1.25" Camburg uniball uppers, homebuilt tube bumper
    Not possible with 4wd

  16. Jul 8, 2013 at 8:32 PM
    #36
    anthony250f

    anthony250f Well-Known Member

    Joined:
    Feb 18, 2012
    Member:
    #73066
    Messages:
    9,603
    Gender:
    Male
    First Name:
    Anthony
    San Diego, CA
    Vehicle:
    97 5 speed 4x4 v6
    lt
    hahahahaha

  17. Jul 8, 2013 at 10:40 PM
    #37
    dirt designs

    dirt designs [OP] Well-Known Member

    Joined:
    Jan 9, 2013
    Member:
    #94822
    Messages:
    117
    Gender:
    Male
    First Name:
    Steve
    slo
    Vehicle:
    01 Tacoma race truck
    Only factory parts left is cab and frame rails
    Yep you are correct. This is the first spindle that uses stock hubs, brakes, speed sensors, and cv joints.

  18. Jul 9, 2013 at 9:08 PM
    #38
    dirt designs

    dirt designs [OP] Well-Known Member

    Joined:
    Jan 9, 2013
    Member:
    #94822
    Messages:
    117
    Gender:
    Male
    First Name:
    Steve
    slo
    Vehicle:
    01 Tacoma race truck
    Only factory parts left is cab and frame rails

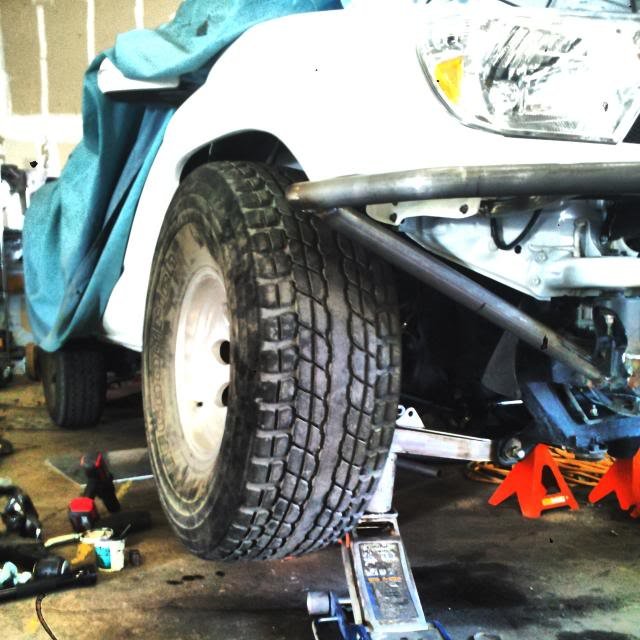

    pass side

    [​IMG]

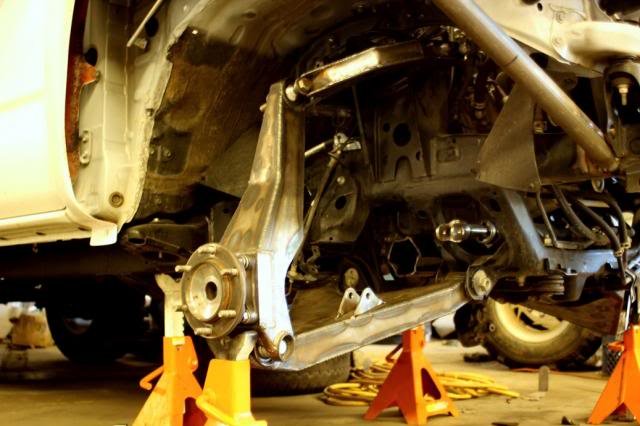

    driver side

    [​IMG]

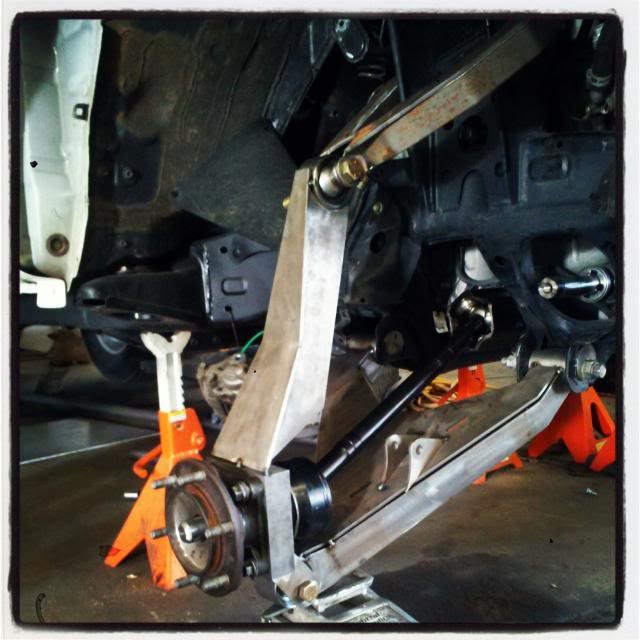

    needs some steering

    [​IMG]

  19. Jul 9, 2013 at 9:21 PM
    #39
    6spd

    6spd Well-Known Member

    Joined:
    Feb 4, 2012
    Member:
    #72162
    Messages:
    858
    Gender:
    Male
    san diego
    Vehicle:
    2012 4x4
    good selling point. :cool:

    would def be interested once the money falls from the sky :eek:

  20. Jul 9, 2013 at 9:43 PM
    #40
    HomerTaco

    HomerTaco Grill Sergeant Vendor

    Joined:
    Mar 28, 2010
    Member:
    #34129
    Messages:
    31,391
    Gender:
    Male
    First Name:
    Craig
    Bucks County Pa.
    Vehicle:
    four sticks, dual cases, zero fucks...
    Core-Hurst short throw shifter & T-handle / Carbon Fiber Interior / custom console light / De-badged / leather interior / Heated Front seats / Red Line Hood Struts / Painted speaker grills /one-off TRD Satoshi Grill with 12-15 front-end swap/ Pioneer AVIC-X920BT HU / Scangauge II / Black LED Tails / Dash Mount for iPad mini / Safari Snorkel / Auto-pilot mode / Leer 100XQ Cap / 4x Innovations sliders / Rear Diff Breather Mod / front windows tinted to 35% / Brute Force Fab Hybrid Front Bumper / BAMF Rear Diff Skid / Budbuilt Skids / CBI Trail Master 2.0 rear hybrid bumper / Fox rr coils/ TC UCA's/ TC spindle gussets/ TC Cam Tab gussets / Dakar leafs / Defined Engineering shackles / All pro U bolt flip / Timbren Rear Bumpstops / BAMF LCA skids / Exhaust re-route / Fog Light anytime Mod / LowRange Off Road extended rear brake lines / ATO Shackle Flip / sectioned Bushwhacker flares / re-geared to 4.56 / ARB Front & Rear Locking Diff / ARB CKMA12 compressor / PrInSu full rack system / 1" body lift / Inchworm 4.7 crawlbox / twin stick FJ t-case / Davez off-road triple-stick kit/
    this is some pretty impressive stuff. :popcorn:
