Discussion in 'Long Travel Suspension' started by dirt designs, Jun 28, 2013.

  1. Jul 9, 2013 at 9:43 PM
    #41
    HomerTaco

    HomerTaco That "grill guy" Vendor

    Joined:
    Mar 28, 2010
    Member:
    #34129
    Messages:
    27,459
    Gender:
    Male
    First Name:
    Craig
    Bucks County Pa.
    Vehicle:
    07' DCSB cut to pieces...
    Core-Hurst short throw shifter & T-handle / Carbon Fiber Interior / custom console light / De-badged / leather interior / Heated Front seats / Red Line Hood Struts / Painted speaker grills /one-off TRD Satoshi Grill/ Pioneer AVIC-X920BT HU / Scangauge II / Black LED Tails / Dash Mount for iPad / Safari Snorkel / Illuminated 4x4 switch / Leer 100XQ Cap / 4x Innovations sliders / Rear Diff Breather Mod / front windows tinted to 35% / Brute Force Fab Hybrid Front Bumper / BAMF Rear Diff Skid / Budbuilt Skids / CBI Trail Master 2.0 rear hybrid bumper / Fox rr coils/ TC UCA's/ TC spindle gussets/ TC Cam Tab gussets / Dakar leafs / Defined Engineering shackles / All pro U bolt flip / Timbren Rear Bumpstops / BAMF LCA skids / Exhaust Dump / Fog Light anytime Mod / LowRange Off Road extended rear brake lines / ATO Shackle Flip / sectioned Bushwhacker flares / re-geared to 4.56 / ARB Front & Rear Locking Diff / ARB CKMA12 compressor / PrInSu full rack system / 1" body lift
    this is some pretty impressive stuff. :popcorn:

  2. Jul 9, 2013 at 10:50 PM
    #42
    anthony250f

    anthony250f Well-Known Member

    Joined:
    Feb 18, 2012
    Member:
    #73066
    Messages:
    7,464
    Gender:
    Male
    First Name:
    Anthony
    goleta/santa barbara, ca
    Vehicle:
    97 5 speed 4x4 v6
    lt
    is the skid going to go further in ??

  3. Jul 9, 2013 at 11:10 PM
    #43
    Monster Coma

    Monster Coma Well-Known Member

    Joined:
    Jun 15, 2012
    Member:
    #80740
    Messages:
    23,827
    Gender:
    Male
    First Name:
    Corey
    Pittsburgh, PA/Houston, TX
    Vehicle:
    2014 WRB WRX
    It's a wagon
    wow. very interested to see this in action :popcorn:

  4. Jul 10, 2013 at 7:07 AM
    #44
    username

    username Fluffer

    Joined:
    Oct 15, 2010
    Member:
    #44704
    Messages:
    4,516
    Pendleton, Or
    Vehicle:
    05 Taco with some crap welded to it
    mostly stock
    It's possible to fit 37's (on my TC kit that is dimensionally similar to yours) if you remove the inner fenders. Glassworks fenders require a little trimming, and the firewall needs a little massaging to fit at full stuff lock to lock, as well as the cab mount. Gentleman, 4wd LT is where it's at. Most of you know the legendary feats of my truck...the secret is 4wd... It really opens up a lot of possibilities. You can use your truck for more than just barstow bashing. Dunes. Snow. Mud. Rocks. Trails. Eats it all up, without beating you up. It looks like this kit will be rock solid, it addresses all of the weakness of the TC kit and then some. Out. Fuckin. Standing.

    [​IMG]

    Last edited: Jul 10, 2013
  5. Jul 10, 2013 at 10:45 PM
    #45
    jjhitchen

    jjhitchen Relentless

    Joined:
    Sep 4, 2012
    Member:
    #86272
    Messages:
    847
    Gender:
    Male
    First Name:
    Joel
    Arroyo Grande, CA
    Vehicle:
    2012 4x4 Sport
    All stock
    yes, the aluminum skid plate is gonna get fixed when i get her back. Its temporary for now

  6. Jul 11, 2013 at 9:20 AM
    #46
    anthony250f

    anthony250f Well-Known Member

    Joined:
    Feb 18, 2012
    Member:
    #73066
    Messages:
    7,464
    Gender:
    Male
    First Name:
    Anthony
    goleta/santa barbara, ca
    Vehicle:
    97 5 speed 4x4 v6
    lt
    gusset those alignment cams while you are down there!

  7. Jul 11, 2013 at 9:32 AM
    #47
    BamaToy1997

    BamaToy1997 ASE Master Tech Vendor

    Joined:
    Jan 31, 2012
    Member:
    #71846
    Messages:
    9,460
    Gender:
    Male
    First Name:
    Bill
    Navarre, FL
    Vehicle:
    1997 Tacoma 4X4 AKA "Blue Beast"
    Multi-point tow hooks, new bored 2.7L engine, custom paint. 3 inch adjustable Fabtech front coils, 2.5 inch rear AAL. Front Aussie locker. LED bed lights. Full LED conversion interior and exterior. Relentless Fabrication front and rear bumpers. 4X4innovation sliders. BAMF bed rack. CVT rooftop tent.
    First off this is some impressive design and fabrication work. I am curious what type and thickness of metal you are using, as well as what the impact testing will reveal. Looks beefy and the use of factory hubs and other factory parts make it a sure winner for a lot of people I bet. I am assuming this is the first fabricated set from this design, but have you done, or do you plan to do tensile strength testing and shear testing at the joints and such? I ask because I am curious.

  8. Jul 11, 2013 at 10:01 AM
    #48
    Btnewman

    Btnewman Benjamin Newman

    Joined:
    Apr 15, 2011
    Member:
    #54950
    Messages:
    2,080
    Gender:
    Male
    First Name:
    Benjamin
    Grand Junction co
    Vehicle:
    07 sport, ARB rear locker, leveling kit
    ARB rear locker Leveling Kit Custom Rear Bumper Tires and Rims Air tank fully plumbed into truck
    Subscribed

  9. Jul 11, 2013 at 12:04 PM
    #49
    jjhitchen

    jjhitchen Relentless

    Joined:
    Sep 4, 2012
    Member:
    #86272
    Messages:
    847
    Gender:
    Male
    First Name:
    Joel
    Arroyo Grande, CA
    Vehicle:
    2012 4x4 Sport
    All stock
    way ahead of you brotha
    [​IMG]

  10. Jul 11, 2013 at 11:19 PM
    #50
    dirt designs

    dirt designs [OP] Well-Known Member

    Joined:
    Jan 9, 2013
    Member:
    #94822
    Messages:
    102
    Gender:
    Male
    First Name:
    Steve
    slo
    Vehicle:
    01 Tacoma race truck
    Only factory parts left is cab and frame rails
    Thank you. And this kit does require a little trimming on the cab mount and some smashing in of the firewall to fit 35 :(. Because of this joel will be running some 34s so we dont have to hammer on the firewall ..... for now muhahah. The tire is def centered in the wheel well because it rubs the firewall and the front of the inner fender well at full bump lock to lock.

    There will be an option for those that dont care about factory sheetmetal. I can push the tire forward 1-2" on request. I do this standard on ALL my past race kits that arent bolt on. With the push forward, you will have none or very minimal mod to the firewall to fit 37 tires. You just need the inner fender out to clear the front of the tire. Pushing the kit forward wont hurt the geometry during travel and it increases approach angle a little.


    Added up there is the equivalent of a 5/8 thick steel plate holding the lower uniball. I have similar mounts (and some actually thinner) on a few other trucks that race and/or run very hard in the desert. They havent had any issues.

    I always run some preliminary numbers on the kits i build and the stress in the lower joint was around 27ksi. The numbers i used are way beyond the normal loads. They are more up around the ....... you need new wheels, hubs, maybe a new frame kind of loads.

    Yep getting welded on tomorrow before the kit gets installed.


    All thats left is welding on some shock tabs and paint!!

    [​IMG]

  11. Jul 12, 2013 at 5:24 AM
    #51
    BamaToy1997

    BamaToy1997 ASE Master Tech Vendor

    Joined:
    Jan 31, 2012
    Member:
    #71846
    Messages:
    9,460
    Gender:
    Male
    First Name:
    Bill
    Navarre, FL
    Vehicle:
    1997 Tacoma 4X4 AKA "Blue Beast"
    Multi-point tow hooks, new bored 2.7L engine, custom paint. 3 inch adjustable Fabtech front coils, 2.5 inch rear AAL. Front Aussie locker. LED bed lights. Full LED conversion interior and exterior. Relentless Fabrication front and rear bumpers. 4X4innovation sliders. BAMF bed rack. CVT rooftop tent.
    Good to know! I was curious since I haven't read your other work which seems pretty bad ass.

  12. Jul 12, 2013 at 5:40 AM
    #52
    bulhas

    bulhas the habs fan

    Joined:
    Dec 17, 2010
    Member:
    #47857
    Messages:
    4,829
    Gender:
    Male
    First Name:
    Joe
    Edmonton, Alberta
    Vehicle:
    1997 Rexus
    i make things cook Marshmallows
    When are we looking at possible release dates :p

  13. Jul 12, 2013 at 7:40 AM
    #53
    dirt designs

    dirt designs [OP] Well-Known Member

    Joined:
    Jan 9, 2013
    Member:
    #94822
    Messages:
    102
    Gender:
    Male
    First Name:
    Steve
    slo
    Vehicle:
    01 Tacoma race truck
    Only factory parts left is cab and frame rails
    Heres some pics of some other trucks

    https://www.facebook.com/pages/DIRT-Designs/165344593741?sk=photos_albums

    Im thinking after the pismo huckfest (end of aug/beg of sept). We have a few trucks coming in to get built/new parts put on so they can go out to huckfest. The jigs are all built, so im just trying to clear up the schedule some.

  14. Jul 12, 2013 at 7:45 AM
    #54
    bulhas

    bulhas the habs fan

    Joined:
    Dec 17, 2010
    Member:
    #47857
    Messages:
    4,829
    Gender:
    Male
    First Name:
    Joe
    Edmonton, Alberta
    Vehicle:
    1997 Rexus
    i make things cook Marshmallows
    sounds good, this may be a good option for me new front to go with my rear set-up :spy:

    now if only I could figure out how to get a dynatrac front cv housing to work on our trucks :p

  15. Jul 12, 2013 at 8:56 AM
    #55
    blackhawke88

    blackhawke88 wo ai ni bao bei ^_^

    Joined:
    Jan 11, 2009
    Member:
    #12478
    Messages:
    16,873
    Gender:
    Male
    SGV, CA
    Vehicle:
    07 TRD Offroad
    Looks sick! Gonna have bump steer? I know it's a common problem with a lot of companies out there to maintain that camber through out the whole range of travel especially when pulling those numbers with stock mounting locations.

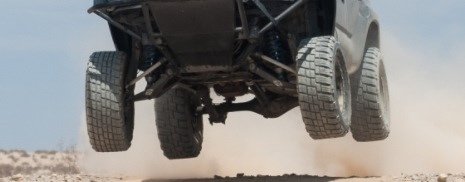

    [​IMG]

    Last edited: Jul 12, 2013
  16. Jul 12, 2013 at 9:22 AM
    #56
    Btnewman

    Btnewman Benjamin Newman

    Joined:
    Apr 15, 2011
    Member:
    #54950
    Messages:
    2,080
    Gender:
    Male
    First Name:
    Benjamin
    Grand Junction co
    Vehicle:
    07 sport, ARB rear locker, leveling kit
    ARB rear locker Leveling Kit Custom Rear Bumper Tires and Rims Air tank fully plumbed into truck
    Chop chop grind grind weld weld. :cool::D

  17. Jul 12, 2013 at 3:51 PM
    #57
    lembowski

    lembowski Rompin Around

    Joined:
    Jul 29, 2009
    Member:
    #20347
    Messages:
    7,032
    Gender:
    Male
    Rolando
    Vehicle:
    09 LT, Caged, 4WD
    OP said in the 1st post:

    There is very minimum bumpsteer

  18. Jul 12, 2013 at 11:00 PM
    #58
    dirt designs

    dirt designs [OP] Well-Known Member

    Joined:
    Jan 9, 2013
    Member:
    #94822
    Messages:
    102
    Gender:
    Male
    First Name:
    Steve
    slo
    Vehicle:
    01 Tacoma race truck
    Only factory parts left is cab and frame rails
    Yep almost no noticeable bumpsteer. Even blangs truck shouldnt have any bumpsteer. His issue currently is his lower arms blew through the cam tabs maybe a month or 2 ago.....and i dont think they are fixed. He just mobs on them lol. Whats even funnier is that he had the tc gusset kit in his truck when i built the engine crossover tube. Pics below of this kits bumpsteer...and both kits use the same frame CAD file

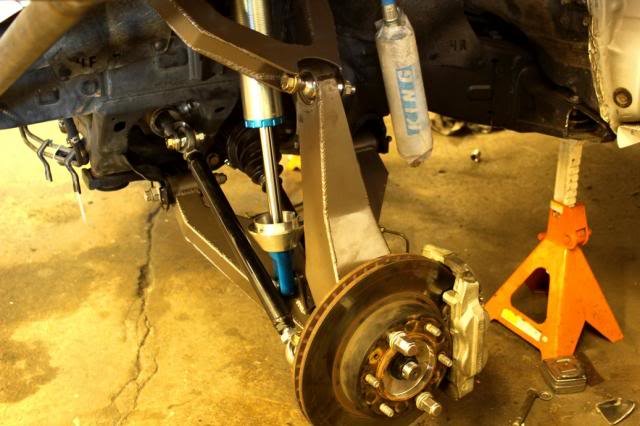

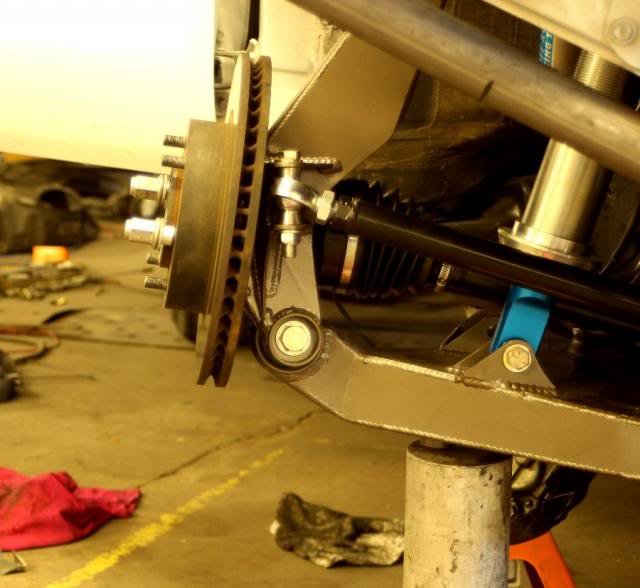

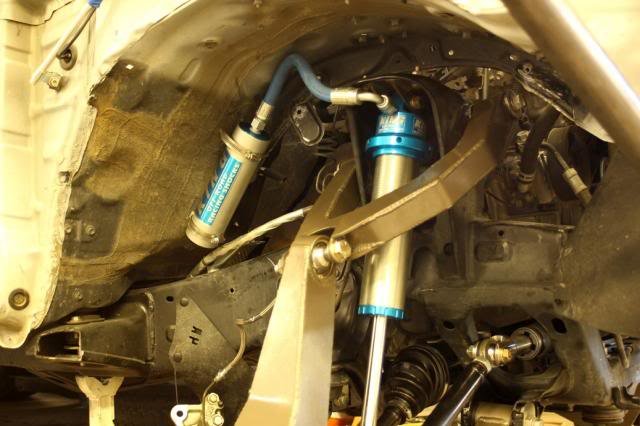

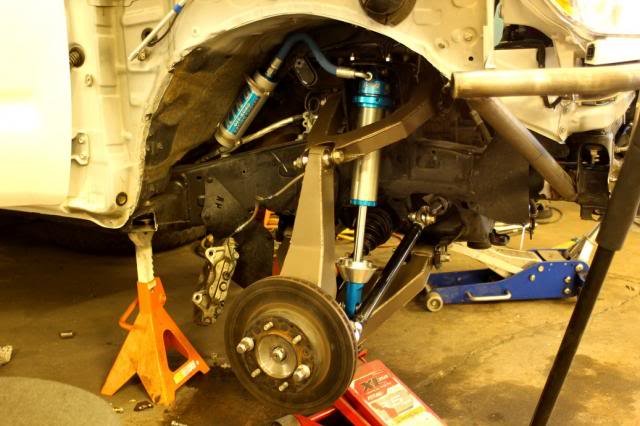

    Joels truck was VERY close to getting out today.

    [​IMG]

    [​IMG]

    [​IMG]

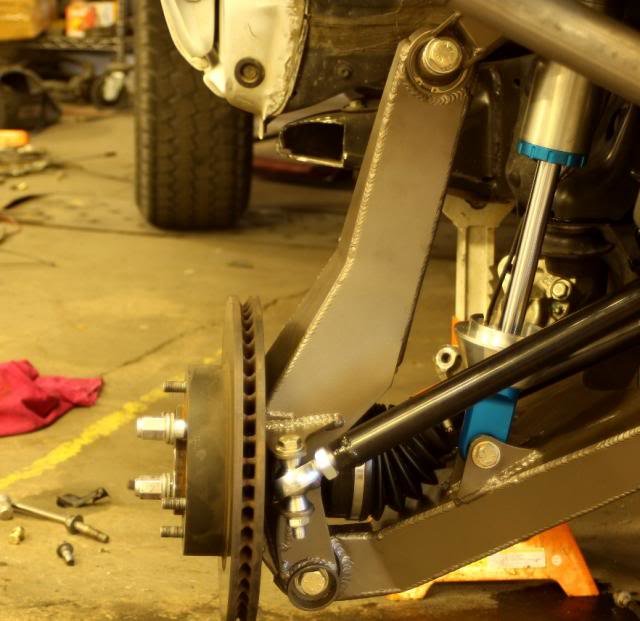

    Stainless rack clevis adapter. And you can see the welds on the tc lca tab gussets.

    [​IMG]

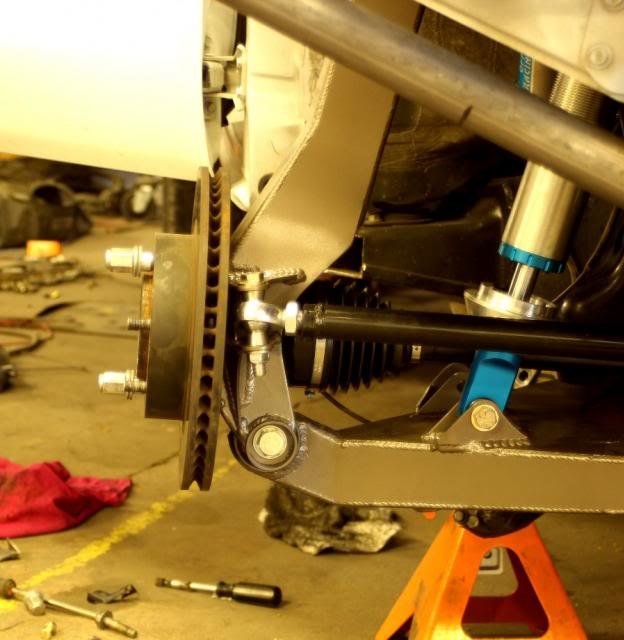

    All the double sheared joint goodness!!

    [​IMG]

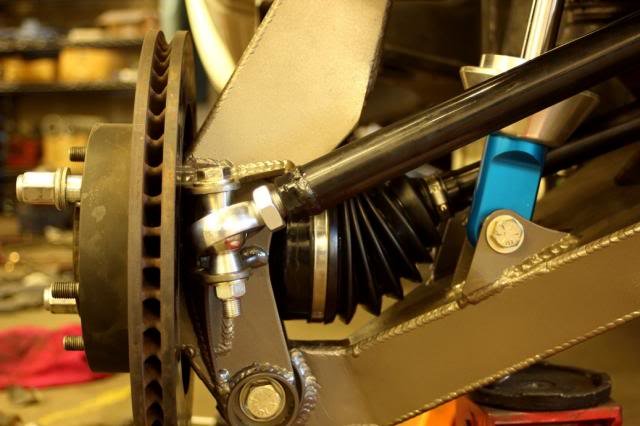

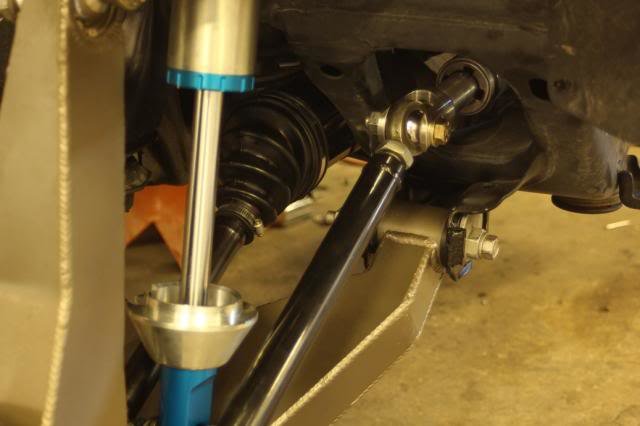

    And the bumpsteer. You may also notice the tube nub on the bottom of the lower arm. I HATE kits that are completely flush on the bottom arm and angled even at ride height. It makes for a dangerous situation when you have to jack up the truck in an awkward position and the truck starts to slide on the jack. Of course.....DONT use an aluminum slug like i have if you are actually jacking up the weight of the truck. The tube nub needs a jack with a lip to catch it.

    [​IMG]

    [​IMG]

    [​IMG]

  19. Jul 12, 2013 at 11:12 PM
    #59
    BMOC

    BMOC Well-Known Member

    Joined:
    Dec 18, 2010
    Member:
    #47873
    Messages:
    4,033
    Gender:
    Male
    First Name:
    Paden
    Phoenix, AZ
    oh

  20. Jul 12, 2013 at 11:42 PM
    #60
    jjhitchen

    jjhitchen Relentless

    Joined:
    Sep 4, 2012
    Member:
    #86272
    Messages:
    847
    Gender:
    Male
    First Name:
    Joel
    Arroyo Grande, CA
    Vehicle:
    2012 4x4 Sport
    All stock
