Disable that damn door buzzer!

Discussion in '1st Gen. Tacomas (1995-2004)' started by rendog, Oct 2, 2009.

  1. Oct 19, 2015 at 10:01 AM
    #41
    veg hed

    veg hed Well-Known Member

    Joined:
    Mar 14, 2010
    Member:
    #33217
    Messages:
    326
    Gender:
    Male
    Utah
    Vehicle:
    04 Toyota TRD SR5 V6 Access Cab
    Bilstein 5100s, Toytec 620 springs, OME Dakar Leafs, ARB Bumper, Warn 8000 Winch, Grey Wire Mod.
    I appreciate the response. I guess this is what I have been trying to get clarification on.

    I really don't care about buzzers so I'll probably just cut it off the fuse panel.

  2. Oct 19, 2015 at 10:04 AM
    #42
    bry838

    bry838 Well-Known Member

    Joined:
    Sep 3, 2014
    Member:
    #137527
    Messages:
    2,403
    Gender:
    Male
    oregon
    Vehicle:
    '00 tacoma 2.7 4x4 reg cab 5speed x's 2. '01 T4R 3.4 5 speed
    That is a handy feature....

  3. Oct 19, 2015 at 2:46 PM
    #43
    keakar

    keakar Well-Known Member

    Joined:
    Oct 2, 2014
    Member:
    #139537
    Messages:
    5,259
    Gender:
    Male
    First Name:
    karl
    louisiana
    Vehicle:
    2006 4runner sport 4.7L V8 (white)
    used to have - 99 2.4L I4 5 lug & 04 prerunner v6
    whatever but I still don't understand why you prefer to permanently destroy the buzzer when you can simply unplug it and after you destroy the circuit board, if you ever try to sell it, not having a buzzer could scare off any buyers.

    I know I would RUN AWAY from any truck I was looking at and saw someone was breaking things off of circuit boards that could have simply been unplugged instead, just saying

  4. Oct 19, 2017 at 3:30 PM
    #44
    rngr

    rngr Aix sponsa

    Joined:
    Jan 13, 2015
    Member:
    #146258
    Messages:
    9,239
    Gender:
    Male
    First Name:
    Carter
    Carthage, Tennessee
    Vehicle:
    01 SR5 4x4 2.7L
    Old thread, but it just made my day. Bump for everyone who hasn't seen this.

  5. Oct 19, 2017 at 7:39 PM
    #45
    Sicyota04

    Sicyota04 Slowly but surely.

    Joined:
    Jan 9, 2015
    Member:
    #145940
    Messages:
    3,104
    Gender:
    Male
    First Name:
    Morgan
    California
    Vehicle:
    04 DC 4x4
    I want to know how or what to disconnect whatever needs to be disconnected so that every morning when I unlock my doors with my OEM Key FOB, I don't have to listen to those stupid beeps for unlocking & locking the doors! So annoying!!! Any link?

  6. Oct 20, 2017 at 7:07 AM
    #46
    Jerry311SD

    Jerry311SD Well-Known Member

    Joined:
    Jul 20, 2016
    Member:
    #192481
    Messages:
    859
    Gender:
    Male
    First Name:
    Jerry
    Ramona Ca SAN DIEGO
    Vehicle:
    2005 Tundra
    T
    Lol
    I just shoved a screwdriver in to the dam buzzer speaker till it shut up. Lol

    Sicyota04 likes this.
  7. Oct 21, 2017 at 2:51 PM
    #47
    Double Deuce

    Double Deuce Well-Known Member

    Joined:
    Dec 1, 2016
    Member:
    #203789
    Messages:
    183
    Gender:
    Male
    First Name:
    JJ
    Sioux Falls South Dakota
    Vehicle:
    Double Cab 02 TRD
    Subbed for a future date. This is a must do!

  8. Oct 21, 2017 at 3:46 PM
    #48
    rngr

    rngr Aix sponsa

    Joined:
    Jan 13, 2015
    Member:
    #146258
    Messages:
    9,239
    Gender:
    Male
    First Name:
    Carter
    Carthage, Tennessee
    Vehicle:
    01 SR5 4x4 2.7L
    You can literally do this is about 2 minutes. With about one minute of that being fetching and putting away a 10mm socket/ratchet and a Phillips screwdriver. Soooo easy. Ha ha

  9. Oct 21, 2017 at 3:56 PM
    #49
    frizzman

    frizzman Well-Known Member

    Joined:
    Sep 25, 2013
    Member:
    #113212
    Messages:
    4,921
    Gender:
    Male
    Pittsburgh, PA
    Vehicle:
    04 XCab 4x4 TRD/OR
    OME 2.5,Tundra 17s,Falken Wildpeak AT3W hitch w/ 7-pin, ARE cap, JVC HU w/BT, HID/LED lights
    there is a piezo buzzer in the engine bay on the driver's side that does the beep beep

    Sicyota04 likes this.
  10. Oct 21, 2017 at 7:59 PM
    #50
    Sicyota04

    Sicyota04 Slowly but surely.

    Joined:
    Jan 9, 2015
    Member:
    #145940
    Messages:
    3,104
    Gender:
    Male
    First Name:
    Morgan
    California
    Vehicle:
    04 DC 4x4
    I hate to say it. But I don't know what that buzzer looks like. So I wouldn't be able to find it. Even though I'm sure it's going to be staring me right in the face! I just got done under the hood today installing my new battery hold down. I probably saw it while doing that.

  11. Oct 21, 2017 at 8:50 PM
    #51
    frizzman

    frizzman Well-Known Member

    Joined:
    Sep 25, 2013
    Member:
    #113212
    Messages:
    4,921
    Gender:
    Male
    Pittsburgh, PA
    Vehicle:
    04 XCab 4x4 TRD/OR
    OME 2.5,Tundra 17s,Falken Wildpeak AT3W hitch w/ 7-pin, ARE cap, JVC HU w/BT, HID/LED lights

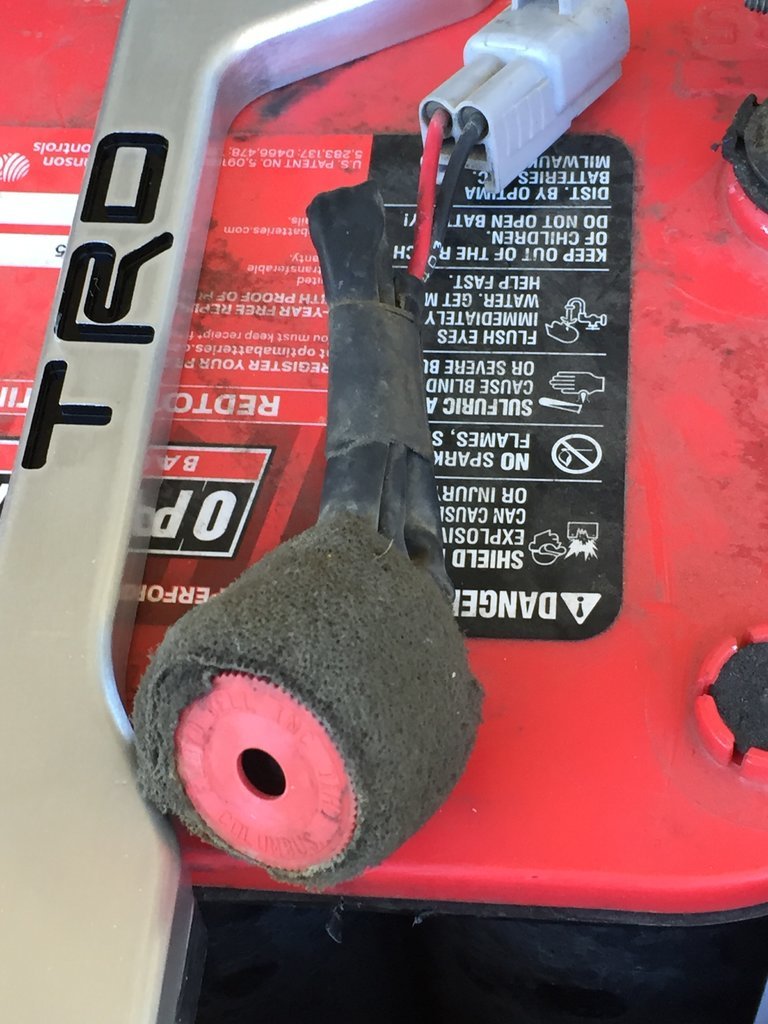

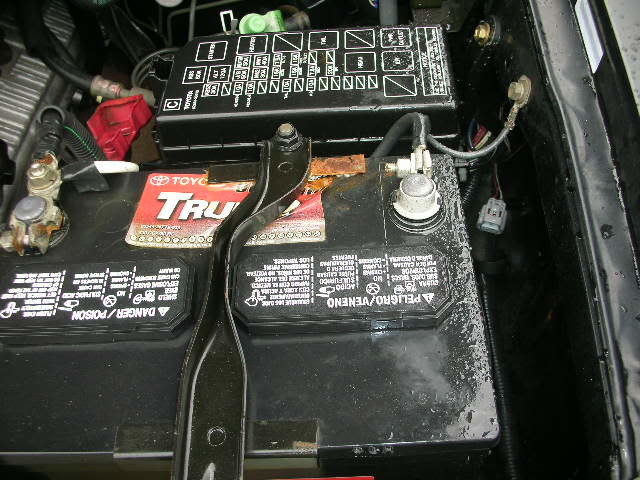

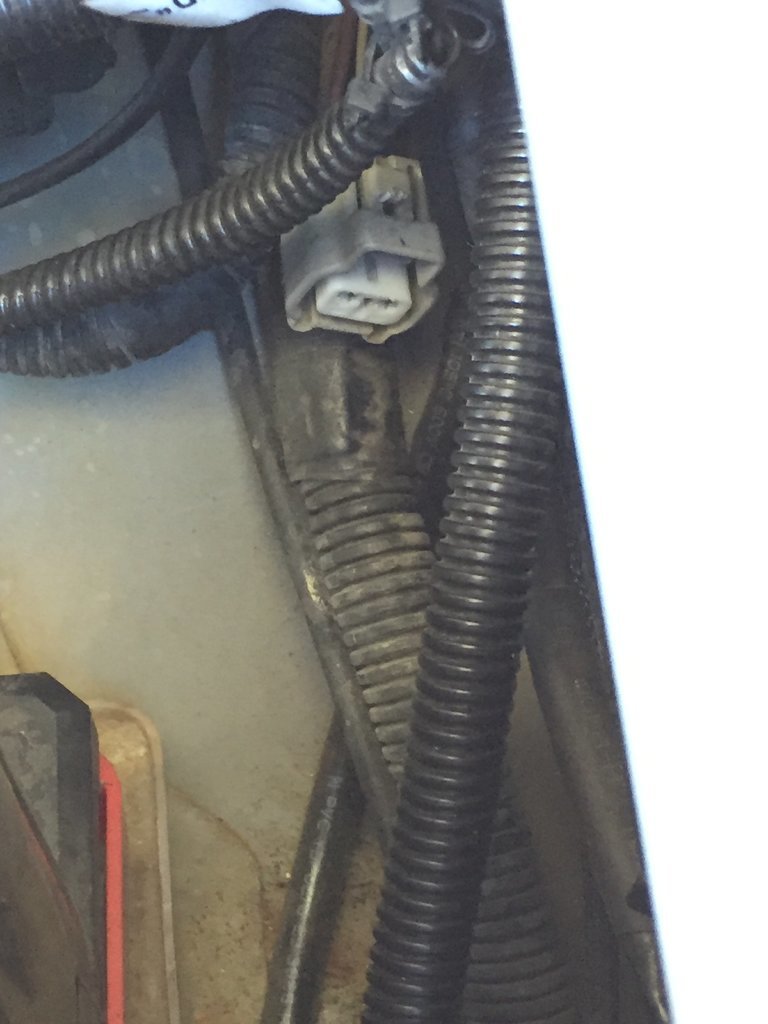

    this is the plug next to the fender, under the ground strap. the piezo is wrapped in foam


    Sicyota04 likes this.
  12. Oct 21, 2017 at 8:51 PM
    #52
    frizzman

    frizzman Well-Known Member

    Joined:
    Sep 25, 2013
    Member:
    #113212
    Messages:
    4,921
    Gender:
    Male
    Pittsburgh, PA
    Vehicle:
    04 XCab 4x4 TRD/OR
    OME 2.5,Tundra 17s,Falken Wildpeak AT3W hitch w/ 7-pin, ARE cap, JVC HU w/BT, HID/LED lights
  13. Oct 21, 2017 at 8:52 PM
    #53
    Sicyota04

    Sicyota04 Slowly but surely.

    Joined:
    Jan 9, 2015
    Member:
    #145940
    Messages:
    3,104
    Gender:
    Male
    First Name:
    Morgan
    California
    Vehicle:
    04 DC 4x4
    Ok, thank you! I just read the that link. It says the lights will still blink when you lock & unlock the doors or hit the panic button. It is going to be a tight fit too. Since I have my ballasts and relay for my retrofits attached to that side of the fender sheet metal. I can barely get a socket on there to adjust the projector cut off. Can't wait to get that damn beep to stop!

    Last edited: Oct 22, 2017
  14. Oct 21, 2017 at 9:11 PM
    #54
    frizzman

    frizzman Well-Known Member

    Joined:
    Sep 25, 2013
    Member:
    #113212
    Messages:
    4,921
    Gender:
    Male
    Pittsburgh, PA
    Vehicle:
    04 XCab 4x4 TRD/OR
    OME 2.5,Tundra 17s,Falken Wildpeak AT3W hitch w/ 7-pin, ARE cap, JVC HU w/BT, HID/LED lights
    when I got my remote starter put in they hooked it up to the horn instead :(

  15. Oct 21, 2017 at 9:14 PM
    #55
    Sicyota04

    Sicyota04 Slowly but surely.

    Joined:
    Jan 9, 2015
    Member:
    #145940
    Messages:
    3,104
    Gender:
    Male
    First Name:
    Morgan
    California
    Vehicle:
    04 DC 4x4
    Oh! That sucks! I hate it when people lock their vehicles and you hear that damn horn honk! :angrygirl:

    Nevin likes this.
  16. Oct 21, 2017 at 9:39 PM
    #56
    36tacundra

    36tacundra Well-Known Member

    Joined:
    Oct 2, 2017
    Member:
    #231848
    Messages:
    460
    Gender:
    Male
    The plug is (U1) pin numbers 1,3 White-black are grounds. pin 2, light green- red goes from the body ecu to the unlock warning switch. pin 4 L-R blue-red goes from the plug to the shift lock control relay (automatic trans)

  17. Oct 22, 2017 at 12:40 PM
    #57
    Sicyota04

    Sicyota04 Slowly but surely.

    Joined:
    Jan 9, 2015
    Member:
    #145940
    Messages:
    3,104
    Gender:
    Male
    First Name:
    Morgan
    California
    Vehicle:
    04 DC 4x4
    Got it done! No more annoying beep!!! Thanks! @frizzman


    Last edited: Oct 22, 2017
    frizzman likes this.
  18. Oct 22, 2017 at 4:08 PM
    #58
    frizzman

    frizzman Well-Known Member

    Joined:
    Sep 25, 2013
    Member:
    #113212
    Messages:
    4,921
    Gender:
    Male
    Pittsburgh, PA
    Vehicle:
    04 XCab 4x4 TRD/OR
    OME 2.5,Tundra 17s,Falken Wildpeak AT3W hitch w/ 7-pin, ARE cap, JVC HU w/BT, HID/LED lights
  19. Oct 22, 2017 at 5:22 PM
    #59
    cruxofthebisquit

    cruxofthebisquit Well-Known Member

    Joined:
    Jun 26, 2009
    Member:
    #18936
    Messages:
    4,787
    Gender:
    Male
    First Name:
    John
    Orange Texas
    Vehicle:
    2000 TRD
    OME and worth every penny.
    So the button in the door couldn't just be either disconnected of a wire or jumped? How about just pulling the 1 wire from that connector? I bet it can be wiggled out. It has a branch somewhere because the overhead light is independent of whether the key is in or not.

  20. Oct 22, 2017 at 6:32 PM
    #60
    frizzman

    frizzman Well-Known Member

    Joined:
    Sep 25, 2013
    Member:
    #113212
    Messages:
    4,921
    Gender:
    Male
    Pittsburgh, PA
    Vehicle:
    04 XCab 4x4 TRD/OR
    OME 2.5,Tundra 17s,Falken Wildpeak AT3W hitch w/ 7-pin, ARE cap, JVC HU w/BT, HID/LED lights
    remember this is an old post. so I'm not sure who you are quoting
