Discontinued Seat Heater Control Assembly

Discussion in '2nd Gen. Tacomas (2005-2015)' started by rlamb01, Jan 8, 2019.

  1. Jan 8, 2019 at 9:17 AM
    #1
    rlamb01

    rlamb01 [OP] New Member

    Joined:
    Jan 8, 2019
    Member:
    #278550
    Messages:
    2
    Gender:
    Male
    First Name:
    Roberto
    Vehicle:
    2013 Tacoma Limited

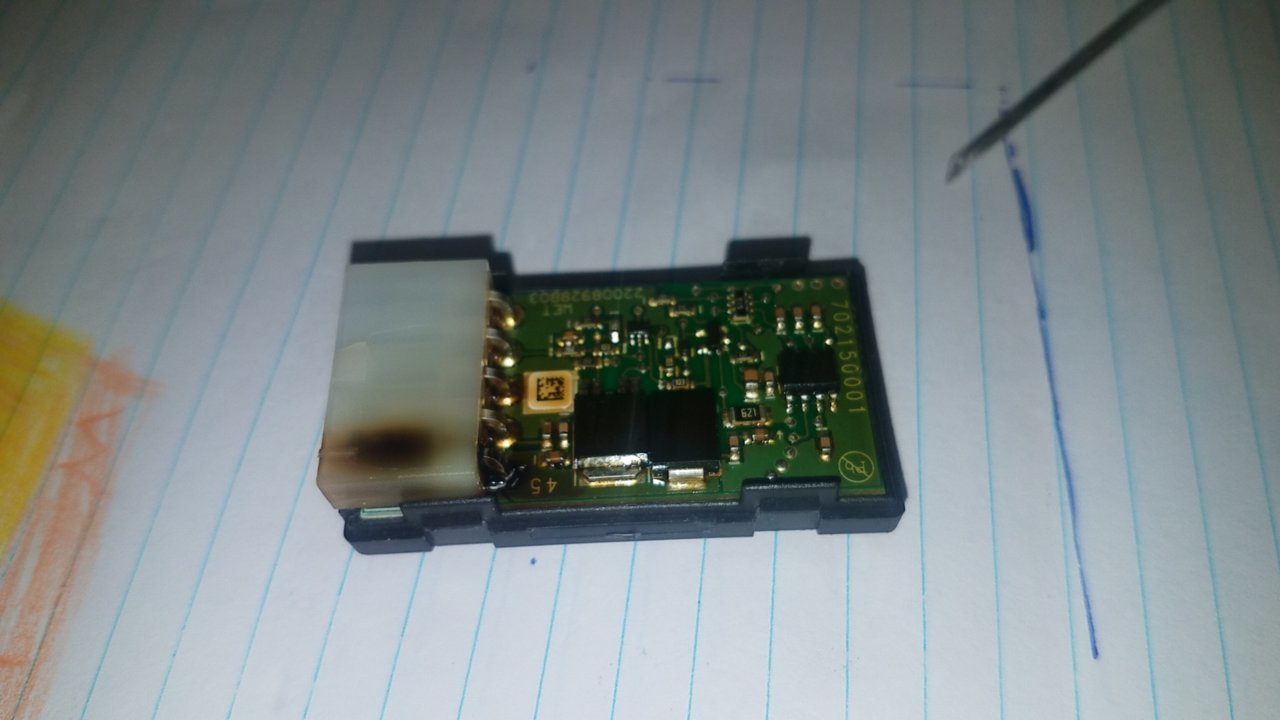

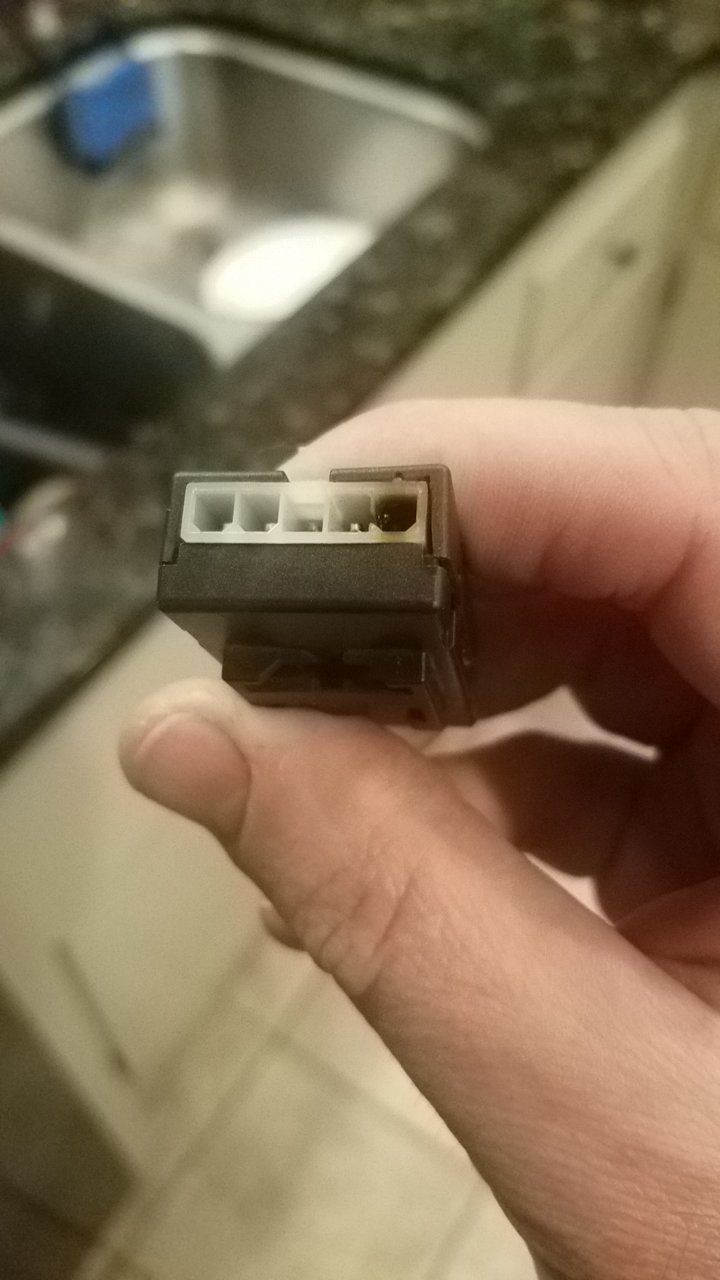

    I own a 2013 Tacoma Limited. The driver side heated seat stopped working. Passenger works fine and both switches will light up on the control panel. I pulled the seat and was able to see that by Seat Heater Control Assembly unit has a visibly burned out lead(see pic). So I called the dealer who gave me Toyota part # 87501-0C020 but then advised that it was a discontinued part with no replacement available. He then found one listed on Amazon which I ordered. This morning I received an email from the Amazon vendor saying the part was no longer available.

    My questions:
    Where can I get this replacement part?

    Obviously I can take the replacement part from the passenger side. However, I am stuck on the fact that my recently manufactured Tacoma includes parts which have no replacements.


  2. Jan 8, 2019 at 9:21 AM
    #2
    Tacoma Mike

    Tacoma Mike 46 Year Toyota Master/ASE Master Tech.

    Joined:
    Aug 6, 2011
    Member:
    #61230
    Messages:
    18,887
    Gender:
    Male
    First Name:
    Mike
    Southern Maine
    Vehicle:
    2011 Double Cab V6
    Large Storage Box, 02610 intermittent switch swap, "Hot Wire" Power Outlets, DRL Shut Off, Disable Fob Beep, Disable Seat Belt Buzzers, Parking Light Mod, Battery Tender, 4 Leaf Spring Pack, Rear Headrest Removal, Custom Ultragauge Mount, Factory Tow Package (7 Pin) Rear Diff Mod, Taco Lean Mod
    I have had to order the cushion element and it came with it.
    Done two the past year.
    Been about 5 months since last repair I did so don't know if things have changed since then.

    On edit.

    If it's burned like that then you should replace the element also as bad connections there will cause hi amp and overheating again.

    Jimmyh and floodedkiwi like this.
  3. Jan 8, 2019 at 9:21 AM
    #3
    bobsuruncle

    bobsuruncle I void warranties

    Joined:
    Feb 17, 2015
    Member:
    #148863
    Messages:
    6,968
    Gender:
    Male
    First Name:
    Robert
    North Bend, WA
    Vehicle:
    06 TRD OR DCSB and 1991 Lexus LS400
    ARB bull bumper, warn 9000 with synthetic rope, icon CO's & 700lb coils, road armor rear bumper, dakars + Archive Garage shackle flip.
    https://www.ebay.com/ulk/itm/323625213588

  4. Jan 8, 2019 at 9:23 AM
    #4
    mateo_roberto

    mateo_roberto Well-Known Member

    Joined:
    Feb 29, 2016
    Member:
    #179798
    Messages:
    714
    Gender:
    Male
    First Name:
    Mateo
    San Diego, CA
    Vehicle:
    1995.5 Tijuana Teal 4x4
    Stock
    bobsuruncle likes this.
  5. Jan 8, 2019 at 10:05 AM
    #5
    nd4spdbh

    nd4spdbh Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114055
    Messages:
    11,106
    Gender:
    Male
    SoCal
    Vehicle:
    13 DCSB TRD OR v6 Auto
    Dunno that id want to replace a part thats been discontinued for that very reason.... vehicle electrical fires are NO JOKE.

  6. Jan 8, 2019 at 10:25 AM
    #6
    rlamb01

    rlamb01 [OP] New Member

    Joined:
    Jan 8, 2019
    Member:
    #278550
    Messages:
    2
    Gender:
    Male
    First Name:
    Roberto
    Vehicle:
    2013 Tacoma Limited
    Excellent! Thanks for the direction!

    Interesting statement regarding the reason for discontinuing part. @nd4spdbh: Is your statement based on personal knowledge of their motive behind discontinuing part? Perhaps the integrity and safety of the seat heating system is compromised if just a single part it replaced.

    Based on above thread it seems it can be ordered from Toyota but only as a part of replacement cushion per Tacoma Mike.

    I'll take a look at both options. Thanks again for the practical advice.

    BR

  7. Jan 8, 2019 at 11:34 AM
    #7
    gearcruncher

    gearcruncher Well-Known Member

    Joined:
    Nov 1, 2012
    Member:
    #90305
    Messages:
    6,152
    Gender:
    Male
    First Name:
    Canadain bumper technician
    Great white North 51.0333° N, 93.8333° W
    Vehicle:
    2010.TRD.SportDCLB4x4Limited leather package
    TRD Sport Rally -5 speed automatic Limited ,Factory heated leather seats ,chrome package,Super white with front windows tinted to 35 % Dick Cepek DC-2 wheels Summer tires - Good year silent armor P265/65R17 Winter tires - Good year P265/65R17 Ultra Ice studded Illuminated 4x4 switch TRD 3rd brake light cover ($20) TRD seat belt shoulder protectors (5). ($50) TRD ...B pillar emblems ($20) TRD rear slider sticker with devil horns ( $6) TRD summer floor matts ($60) TRD steering wheel emblem ($20) TRD floor pedals .($95) TRD shorty antenna ($14) TRD front Windshield emblems ($17) TRD head pillows .($60) TRD head rest protectors TRD door scuff protection $20 TRD floor matt emblems ($40) TRD tow plug emblem . ($40) TRD cigarette lighter with LED.($35) TRD tissue dispenser ($12) TRD front bezel emblems ($9) TRD door emblems ($6) TRD lanyards($9) TRD lisence plates with TRD bolts($50) TRD fender emblems TRD center caps Part Number:PT904-35070-CC ($80) TRD cd
    I have occasionaly smelled smoke in my truck the odd time .
    Wondering if this could be the cause .
    My truck is all original 2010 with the fake leather heated seats .
    They both seem to function fine so far

  8. Jan 8, 2019 at 12:53 PM
    #8
    nd4spdbh

    nd4spdbh Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114055
    Messages:
    11,106
    Gender:
    Male
    SoCal
    Vehicle:
    13 DCSB TRD OR v6 Auto

    Pretty sure there was a big safety recall / stop sale on tacomas with heated seats.... just saying.

    bobsuruncle likes this.
  9. Jan 8, 2019 at 3:03 PM
    #9
    Ares

    Ares Well-Known Member

    Joined:
    Sep 8, 2017
    Member:
    #229441
    Messages:
    120
    Gender:
    Male
    First Name:
    Darek
    Hamilton , ON
    Vehicle:
    2015 LTD DCLB
    You are not alone in the search for this part, more info here.

    Driver side stop working on mine couple days ago, and I'm yet to verify if that is the part that failed.

    Last edited: Jan 8, 2019
  10. Jan 8, 2019 at 4:08 PM
    #10
    Tacoma Mike

    Tacoma Mike 46 Year Toyota Master/ASE Master Tech.

    Joined:
    Aug 6, 2011
    Member:
    #61230
    Messages:
    18,887
    Gender:
    Male
    First Name:
    Mike
    Southern Maine
    Vehicle:
    2011 Double Cab V6
    Large Storage Box, 02610 intermittent switch swap, "Hot Wire" Power Outlets, DRL Shut Off, Disable Fob Beep, Disable Seat Belt Buzzers, Parking Light Mod, Battery Tender, 4 Leaf Spring Pack, Rear Headrest Removal, Custom Ultragauge Mount, Factory Tow Package (7 Pin) Rear Diff Mod, Taco Lean Mod
    Look for any discoloring on the fabric as well..

  11. Feb 6, 2019 at 5:46 PM
    #11
    AKTacoParty

    AKTacoParty Well-Known Member

    Joined:
    Nov 22, 2012
    Member:
    #91614
    Messages:
    423
    Gender:
    Male
    First Name:
    Jake
    Astoria, OR
    Vehicle:
    2013 DCLB
    885s, Dakars, Bilsteins, Allpro Sliders, Archive Garage Hammer Hangers, Wheelers Ubolt flip, super bumps, RCI front skid
    Well shit mine just stopped working and I was searching for a wiring diagram for the seats. Guess Ill go look for that control box and see what mine looks like.

  12. Feb 6, 2019 at 5:47 PM
    #12
    AKTacoParty

    AKTacoParty Well-Known Member

    Joined:
    Nov 22, 2012
    Member:
    #91614
    Messages:
    423
    Gender:
    Male
    First Name:
    Jake
    Astoria, OR
    Vehicle:
    2013 DCLB
    885s, Dakars, Bilsteins, Allpro Sliders, Archive Garage Hammer Hangers, Wheelers Ubolt flip, super bumps, RCI front skid
    This is the worst time too because its been super cold lately.

  13. Feb 6, 2019 at 6:21 PM
    #13
    AKTacoParty

    AKTacoParty Well-Known Member

    Joined:
    Nov 22, 2012
    Member:
    #91614
    Messages:
    423
    Gender:
    Male
    First Name:
    Jake
    Astoria, OR
    Vehicle:
    2013 DCLB
    885s, Dakars, Bilsteins, Allpro Sliders, Archive Garage Hammer Hangers, Wheelers Ubolt flip, super bumps, RCI front skid
    Best part is it melted the plug so I couldn't replace it even it was available.....


  14. Feb 6, 2019 at 6:32 PM
    #14
    12TRDTacoma

    12TRDTacoma Ocean TRD

    Joined:
    Aug 20, 2012
    Member:
    #85133
    Messages:
    14,165
    Gender:
    Male
    First Name:
    Rob
    Concordia
    Vehicle:
    12 TRD Sport DCLB 4x4 Tacoma
    Supercharged
    I wonder if the cause of this situation is similar to the reason why the earlier Tacoma's had prematurely failing, ultimately burning HVAC resistors and plugs.

    The cause was poor contact at the pins, which would cause a constant arcing situation which caused high resistance > excessive heat > burning items > constant replacement of items.

    The fix for that was to tweak the male pins so they would sit like this / / / / in the resistor (not so extreme but you get the idea), instead of like this - - - - this ensured a superior physical contact which negates high resistance and constant electrical arcing.

    Just putting ideas out there.

  15. Feb 6, 2019 at 7:54 PM
    #15
    AKTacoParty

    AKTacoParty Well-Known Member

    Joined:
    Nov 22, 2012
    Member:
    #91614
    Messages:
    423
    Gender:
    Male
    First Name:
    Jake
    Astoria, OR
    Vehicle:
    2013 DCLB
    885s, Dakars, Bilsteins, Allpro Sliders, Archive Garage Hammer Hangers, Wheelers Ubolt flip, super bumps, RCI front skid
    I wonder if there is/was a TSB out there for this. Guess Im gonna have a cold butt for a while, especially with probably not getting paid here shortly...

  16. Feb 7, 2019 at 7:49 AM
    #16
    12TRDTacoma

    12TRDTacoma Ocean TRD

    Joined:
    Aug 20, 2012
    Member:
    #85133
    Messages:
    14,165
    Gender:
    Male
    First Name:
    Rob
    Concordia
    Vehicle:
    12 TRD Sport DCLB 4x4 Tacoma
    Supercharged
    Whoo.. Alaska. It must be really cold. The seat heaters are a nice amenity.

  17. Oct 23, 2019 at 9:17 AM
    #17
    mobgma

    mobgma Well-Known Member

    Joined:
    Nov 12, 2012
    Member:
    #91006
    Messages:
    214
    Gender:
    Male
    Edmonton, AB, Canada
    Vehicle:
    2016 Toyota Tacoma TRD Double Cab Long Box

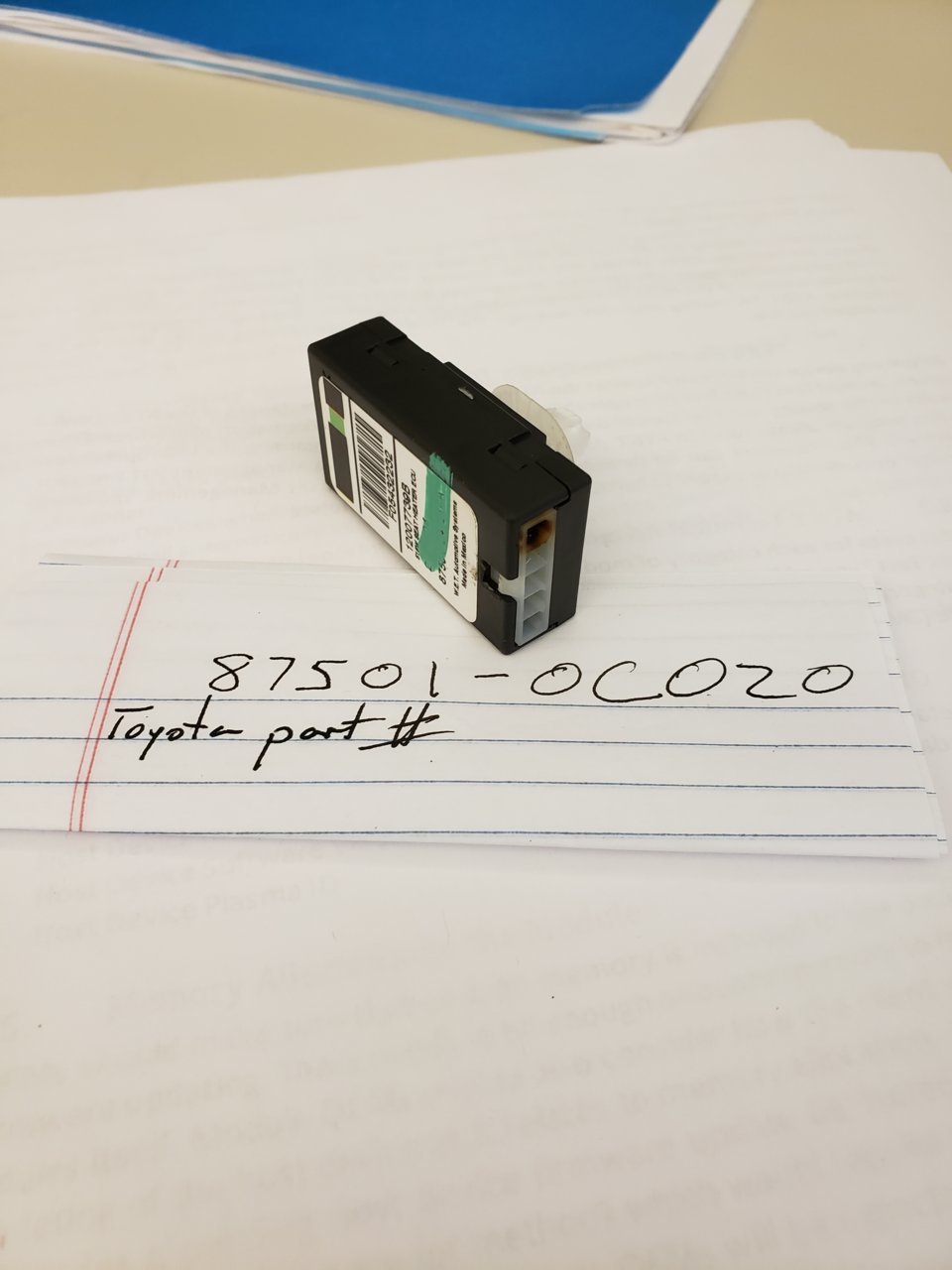

    Also looking for this part 87501-0C020. Any luck?

  18. Feb 9, 2020 at 5:12 PM
    #18
    Jeff Lange

    Jeff Lange Well-Known Member

    Joined:
    May 19, 2015
    Member:
    #155616
    Messages:
    1,567
    Edmonton, AB
    Vehicle:
    '86 AE86, '05 NCP13, '11 GSE21
    Interesting fact for people that had been dealing with blown seat heater control modules, the latest parts catalog update added that part back into the catalog as something that can be ordered separately. Part number listed is 87501-0C020, which is what people were trying to order before without luck. It appears this part number is now in the system as orderable and so should be easier to get moving forward. May take some time before online parts stores update their websites to not show it as discontinued.

    Getting the connector from Toyota will only be available with the seat heater element (which includes the module), but at least there may be a source for modules once stock is acquired for the distribution network.

    If you really do need the connector as well, it can be sourced separately from Molex:

    39-01-4050 - Housing, Connector
    39-00-0078 - Terminal, Connector (For 16 AWG Wire; Qty: 5)
    39-00-0039 - Terminal, Connector (For 18-24 AWG Wire; Qty: 5)

    I have not verified the size of wire that is used, so have provided both size terminals here. I would expect it to be in the 18-24 range, but it may be larger.

    It seems that Toyota or the seat heater manufacturer started using a CPA (connector position assurance) on the Molex connector (the little black plastic piece designed to prevent the connector from accidentally being disconnected), however I can't seem to find any evidence that the CPA is from Molex, so it will need to be reused if replacing the connector itself. Molex offers an improved version of the connector with both TPA and CPA, however I suspect it may not quite clear the housing on the module to latch in place without trimming. Molex rates these connectors for 13A per terminal. I am not sure if the harness side or the module side is entirely to blame. I've never been a fan of these types of connectors though, wish they used something different. If it was me, I'd probably depin the Molex connector from the PCB if I kept having issues with the latest pieces. Kind of surprised Toyota hasn't changed things with these, it's been an issue on several North American-produced models over the last decade.

    Jeff

    mobgma likes this.
  19. Oct 9, 2020 at 1:40 PM
    #19
    Sderenne

    Sderenne Member

    Joined:
    Oct 9, 2020
    Member:
    #343306
    Messages:
    5
    Gender:
    Male
    Has anyone successfully ordered and received just the seat heater amp module? I need one and am not having luck online or with local toyota dealer.

  20. Oct 9, 2020 at 8:20 PM
    #20
    gearcruncher

    gearcruncher Well-Known Member

    Joined:
    Nov 1, 2012
    Member:
    #90305
    Messages:
    6,152
    Gender:
    Male
    First Name:
    Canadain bumper technician
    Great white North 51.0333° N, 93.8333° W
    Vehicle:
    2010.TRD.SportDCLB4x4Limited leather package
    TRD Sport Rally -5 speed automatic Limited ,Factory heated leather seats ,chrome package,Super white with front windows tinted to 35 % Dick Cepek DC-2 wheels Summer tires - Good year silent armor P265/65R17 Winter tires - Good year P265/65R17 Ultra Ice studded Illuminated 4x4 switch TRD 3rd brake light cover ($20) TRD seat belt shoulder protectors (5). ($50) TRD ...B pillar emblems ($20) TRD rear slider sticker with devil horns ( $6) TRD summer floor matts ($60) TRD steering wheel emblem ($20) TRD floor pedals .($95) TRD shorty antenna ($14) TRD front Windshield emblems ($17) TRD head pillows .($60) TRD head rest protectors TRD door scuff protection $20 TRD floor matt emblems ($40) TRD tow plug emblem . ($40) TRD cigarette lighter with LED.($35) TRD tissue dispenser ($12) TRD front bezel emblems ($9) TRD door emblems ($6) TRD lanyards($9) TRD lisence plates with TRD bolts($50) TRD fender emblems TRD center caps Part Number:PT904-35070-CC ($80) TRD cd
    Thanks for bumping the thread .
    My seat heaters just crapped out as well .
    There is a bunch of good info here .
    I will be looking into this in the morning and will post some pics with my findings

    jkuniverse likes this.
