ditch light wiring please help!

Discussion in '2nd Gen. Tacomas (2005-2015)' started by tbraumb11, Aug 28, 2020.

  1. Aug 28, 2020 at 9:19 PM
    #1
    tbraumb11

    tbraumb11 [OP] Well-Known Member

    Joined:
    Nov 13, 2019
    Member:
    #310580
    Messages:
    153
    Gender:
    Male
    nanaimo
    Vehicle:
    2015 tacoma double cab magnetic grey
    what are those?
    I posted this in the lighting thread with no bites, i have no idea why this is so hard for me to wrap my brain around but i cant seem to get it to even light the switch.


    Hey pair of ditch lights I installed.

    I have this mictuning 2 lead wiring harness
    [​IMG]
    [​IMG]


    MICTUNING LED Light Bar Wiring Harness Fuse 40A Relay On-off Rocker Switch Blue(2 Lead)
    https://www.amazon.ca/gp/product/B00PTQOF4W/ref=ppx_yo_dt_b_asin_title_o04_s01?ie=UTF8&psc=1
    that i have installed and ran through firewall it has a relay.

    I have an air on board push button switch that I cant seem to figure out how to wire up.

    The air on board switch has 4 wires:

    1 red
    1 green
    1 blue
    1 black

    the mictuning harness had quick connects that made it 4 wires by having the white have 2 wires that I cut off to get through firewall and was going to but connect anyhow, it has:

    1 black
    1 white
    1 blue


    I have read a lot on this on other posts and I can't seem to get this figured out because there is so many different posts about add a fuse options and tapping into accessory wires, people that understand electrical make it sound so easy. unfortunately that is just not me.

    I want the led on only when the truck is on ideally.

    If anybody could shed some light that would be great.

  2. Aug 28, 2020 at 9:32 PM
    #2
    KaroS

    KaroS Well-Known Member

    Joined:
    Jan 12, 2020
    Member:
    #315921
    Messages:
    49
    Gender:
    Male
    First Name:
    Javi
    NE Florida
    Vehicle:
    2006 Tacoma DCSB TRD Offroad
    3" Bilstein 5100, Firestone Airbags & Add a leaf,
    Could you provide pictures of the switch? Is it a rocker switch or push switch? LED Lit when on or off? The wiring is usually (not a professional) as below.

    Red = Hot
    Black = Ground
    Other colors could be to light it up with your dash lights or to power a top vs bottom LED within the switch.

  3. Aug 28, 2020 at 9:35 PM
    #3
    DaveB.inVa

    DaveB.inVa Well-Known Member

    Joined:
    Sep 20, 2014
    Member:
    #138742
    Messages:
    207
    Gender:
    Male
    SWVa
    Vehicle:
    2015 AC SR5 4x4 V6 AT MGM
    Oil Catch Can, OIl Pressure and Temp Gauges, Falken Wildpeak A/T3W 265/70R16
    Get an ohmmeter and a 9V battery. I don't know what the colors are but you'll find that two of the wires are for the switch. You'll get continuity with the switch on and nothing with it off.

    The other two wires will likely be for switch lighting. If it's an incandescent polarity won't matter(but nobody does that). It's likely LED so use the 9V battery to find the positive and negative wire for the light.

    The negative will go to ground and the positive can be done a couple different ways. Put it ahead of the switch and it'll be on constantly if hooked directly to the battery, or on when the truck is running if powered from an ignition hot source. If you connect it to the circuit going to feed your lights, it will only light up when you turn the ditch lights on.

    By having separate wires for the internal lights you can also connect this to the factory dimmer circuit. Keep in mind that the factory dimmer uses a pulse width modulated signal where the positive is always 12V to ground and the negative will vary between 0 to 12V with respect to ground as the dimmer is operated. That really doesn't matter, the key thing here is that you'd need to tie into both wires from the dimmer if you went this route.

  4. Aug 28, 2020 at 9:44 PM
    #4
    tbraumb11

    tbraumb11 [OP] Well-Known Member

    Joined:
    Nov 13, 2019
    Member:
    #310580
    Messages:
    153
    Gender:
    Male
    nanaimo
    Vehicle:
    2015 tacoma double cab magnetic grey
    what are those?
    https://www.aironboard.com/online/p...em-replacement-off-road-lights-green-red.html its this switch

  5. Aug 28, 2020 at 10:04 PM
    #5
    KaroS

    KaroS Well-Known Member

    Joined:
    Jan 12, 2020
    Member:
    #315921
    Messages:
    49
    Gender:
    Male
    First Name:
    Javi
    NE Florida
    Vehicle:
    2006 Tacoma DCSB TRD Offroad
    3" Bilstein 5100, Firestone Airbags & Add a leaf,
    So I believe below is a similar wiring diagram to what you have currently with the blue you have being equal to "red 2" below.


    So to make it simple.

    SWITCH
    Green = Connect to your battery.
    Red 1 = Connect to White cable from your Mictuning relay.
    Red 2 (probably Blue on your switch) = Connects to dashboard lights so it'll come on when you turn on headlights. This doesn't have to be done for it to work so you can wait on this for now. Otherwise you'll need to get an add-a-fuse or splice into a wire which we don't need to do test.
    Black = Ground.

    HARNESS:
    Black = Ground
    White = Connect to Red 1 On Switch.

    To be honest, I use this dual harness for my ditch lights and have used other mictuning harnesses before and don't ever recall a blue wire in them. I'm not sure what it would be used for.

  6. Aug 28, 2020 at 10:45 PM
    #6
    tbraumb11

    tbraumb11 [OP] Well-Known Member

    Joined:
    Nov 13, 2019
    Member:
    #310580
    Messages:
    153
    Gender:
    Male
    nanaimo
    Vehicle:
    2015 tacoma double cab magnetic grey
    what are those?
    so the above is exactly how I "thought" it should be done as well but it doesn't seem to want to work.

    very strange... guess i will have to play with it some more.

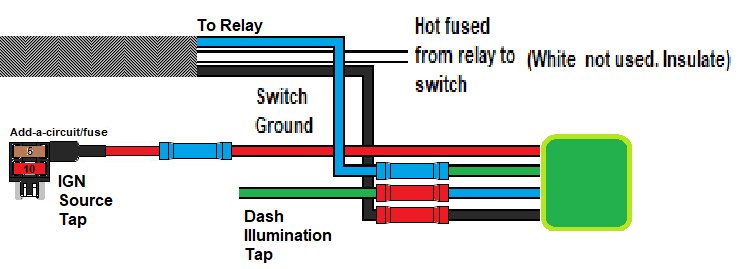

  7. Aug 29, 2020 at 12:55 AM
    #7
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,605
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

    Last edited: Aug 29, 2020
  8. Sep 11, 2020 at 10:25 PM
    #8
    tbraumb11

    tbraumb11 [OP] Well-Known Member

    Joined:
    Nov 13, 2019
    Member:
    #310580
    Messages:
    153
    Gender:
    Male
    nanaimo
    Vehicle:
    2015 tacoma double cab magnetic grey
    what are those?

    So I got these working after a bunch of screwing around I was like this doesn't make sense I popped out the fuse and switched it to a 15 amp from the 7.5 that was in there, it now works.

    now all I have to do is figure out where to tap the dash light (blue wire) on the switch but the lights work.

    black switch to black harness
    green switch to blue harness
    red switch to white harness
    blue to accessory.

    PS I feel like a moron for not testing a new fuse and didnt want post this but thought I should if anyone else has the same issue in future and I couldn't find anything on these exact models anywhere.

  9. Sep 11, 2020 at 10:38 PM
    #9
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,605
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Where? So you were blowing fuses and decided to UP the amps...:facepalm:

    So the switch is always illuminated now..if that's what you wanted. And also can be turned ON with vehicle off...

  10. Sep 11, 2020 at 10:49 PM
    #10
    tbraumb11

    tbraumb11 [OP] Well-Known Member

    Joined:
    Nov 13, 2019
    Member:
    #310580
    Messages:
    153
    Gender:
    Male
    nanaimo
    Vehicle:
    2015 tacoma double cab magnetic grey
    what are those?
    No the fuse was dead from the start it never blew, the switch never illuminated at all. I think it was a bad fuse.

    right now the switch is only illuminated when i press the button to turn on the lights which is fine for now but I need to hook up the blue wire to an accessory wire and it should come on only when the dash lights come on.

    and yes you can turn lights on when truck is off

    I just need to know what wire the dash lights are.....

    Last edited: Sep 11, 2020
