DIY - 2.4L / 2.7L fuel filter relocation mod

Discussion in '1st Gen. Tacomas (1995-2004)' started by keakar, Oct 25, 2014.

  1. Mar 22, 2016 at 6:18 AM
    #21
    FIRTH4X4

    FIRTH4X4 Well-Known Member

    Joined:
    Dec 17, 2011
    Member:
    #68920
    Messages:
    70
    Gender:
    Male
    First Name:
    Eric
    Wyoming
    Vehicle:
    98 Taco 2.7L 5spd
    Thanks for the write up - worked great. Did mine while the intake was off.

    keakar [OP] likes this.
  2. May 10, 2016 at 2:14 PM
    #22
    irhunter

    irhunter Member

    Joined:
    Aug 8, 2013
    Member:
    #110054
    Messages:
    16
    Gender:
    Male
    Greenville, Maine
    Vehicle:
    '96 2WD 5-sp 2.4
    Got a link for that?

    Roy

  3. May 13, 2016 at 10:35 PM
    #23
    DJB1

    DJB1 Well-Known Member

    Joined:
    Jun 8, 2013
    Member:
    #105835
    Messages:
    1,586
    Gender:
    Male
    First Name:
    Dave
    SLC, UT
    Vehicle:
    2003 Regular Cab 4X4 5MT
    Excellent write-up, @keakar! I used 1/4" fuel injection line and fuel injection clamps just to be safe. I also got 2 new washers for the fuel rail banjo nut. Anyone who does this, get 2 or 3 spare fuel rail banjo nut washers, the bottom one is a bitch when you're trying to reassemble and you WILL drop one into the engine bay netherworld. The OEM fuel filter comes with 4 new washers for the banjo fittings on the fuel filter. There is no scheduled replacement interval for the fuel filter, which is stupid. My truck only has 90,000 miles and the gas I dumped out of the old filter was dark brown with visible sediment. Once I got everything put back together, the idle was noticeably smoother, the engine cranks less before starting and the butt-dyno is measuring a 5 HP improvement. It's also a huge relief that fuel filter changes will be fast and easy now.

  4. May 22, 2016 at 12:07 PM
    #24
    keakar

    keakar [OP] Well-Known Member

    Joined:
    Oct 2, 2014
    Member:
    #139537
    Messages:
    5,262
    Gender:
    Male
    First Name:
    karl
    louisiana
    Vehicle:
    2006 4runner sport 4.7L V8 (white)
    used to have - 99 2.4L I4 5 lug & 04 prerunner v6
    glad it helped you and sounds like you really needed it changed :cheers:

    PS - that's where Toyota should have put the damn fuel filter on both the 4 & 6 engine trucks

    now that I own a v6 taco I figured changing the fuel filter on it sounds easy and its right there under the drivers seat on the frame rail, but its not that easy to do even if it is easy to get to, the gas keeps draining out all over you and you have to literally pull the fuel lines loose to release them from the fuel line brackets that are cheap plastic and I was scared as hell they would break off but I managed to do it without breaking anything but I was covered in gas even after releasing all fuel pressure in advance of doing it. no need for a write up on the v6 filter change except to say wear a frickin rain coat and old clothes you don't mind throwing away after being soaked in gas

    Last edited: May 22, 2016
  5. May 30, 2016 at 3:24 AM
    #25
    JPinFL

    JPinFL Well-Known Member

    Joined:
    Nov 16, 2015
    Member:
    #169817
    Messages:
    734
    Vehicle:
    '01 Tacoma Xtra Cab 4x4
    Nice write-up and some great info from everyone. Thank you.

    Looks like I will be doing this very soon.

  6. Jun 2, 2016 at 12:49 AM
    #26
    Chris D.

    Chris D. Well-Known Member

    Joined:
    Jul 18, 2008
    Member:
    #8013
    Messages:
    155
    Gender:
    Male
    First Name:
    Chris
    Eagan, Minnesota
    Vehicle:
    2002 Tacoma RZN150 turbo
    2RZ-FE Turbo Intercooled, standalone........... Exactly 150% more power to the wheels than stock at the wheels. Supra transmission, 4 linked rear, QA1 coilovers all around, S-Runner rear sway bar, Corbeau bucket seats, forged 5 spoke 17x9 wheels, Wilwood 12.19" 4 piston brakes, Ford 9" rear end (early bronco) 31 spline, full floater, big bearing, 3.50 gears, trac-lock. fully functioning air conditioning and cruise control....
    I just ended up remounting mine in the factory location because it'll be good for another 175k..

  7. Jun 5, 2016 at 7:46 PM
    #27
    Dustrider

    Dustrider Well-Known Member

    Joined:
    Nov 23, 2011
    Member:
    #67601
    Messages:
    138
    Gender:
    Male
    First Name:
    Dave
    Hillsboro Oregon
    Vehicle:
    98 Tacoma 4x4 2.7
    I thought about just going back to the factory mount because its really not that hard, after second thought I did the re-locate ,
    I also found the fitting size for the hose extension to be 1/4" , NOT 5/16" hose like the OP suggested
    I got everything ready to go and the 5/16 hose was loosey goosey and could cause catastrophic failure
    I had to make another run to the auto parts store
    critical safety item to avoid injury or death:
    use only 1/4" fuel injection hose and special fuel injection hose clamps, insure routing is not rubbing anything sharp
    and because I have a 4x4 and travel gravel roads I found a relaxed position on the fender and drilled holes and bolted it through at both clamp locations with fender washers and nylock nuts
    I also carry a round point shovel for firefighting. As long as there is a good supply of soft mineral dirt it makes an excellent fire extinguisher. ( also comes in handy for snuffing abandoned campfires)
    I have put out underhood car fires before they consume the entire vehicle with a shovel and dirt long after a fire extiguisher is spent

  8. Jun 12, 2016 at 8:08 AM
    #28
    keakar

    keakar [OP] Well-Known Member

    Joined:
    Oct 2, 2014
    Member:
    #139537
    Messages:
    5,262
    Gender:
    Male
    First Name:
    karl
    louisiana
    Vehicle:
    2006 4runner sport 4.7L V8 (white)
    used to have - 99 2.4L I4 5 lug & 04 prerunner v6
    don't know what to tell you, but the 5/16" hose fit very snug on my reused stock fittings but just for the sake of safety I will edit the first post accordingly

    Dustrider likes this.
  9. Jun 13, 2016 at 11:09 PM
    #29
    Dustrider

    Dustrider Well-Known Member

    Joined:
    Nov 23, 2011
    Member:
    #67601
    Messages:
    138
    Gender:
    Male
    First Name:
    Dave
    Hillsboro Oregon
    Vehicle:
    98 Tacoma 4x4 2.7
    oh yeah thanks
    sometimes factory parts can vary slightly sorry for all the drama just want to be sure no one has a fuel leak
    thanks for the mod idea

  10. Sep 1, 2016 at 9:47 PM
    #30
    Stepside01

    Stepside01 Well-Known Member

    Joined:
    May 27, 2016
    Member:
    #188079
    Messages:
    53
    Gender:
    Male
    Ohio
    Vehicle:
    01 Taco 2.7 SR5 4x4 Stepside
    I was going to attempt this but let a local shop change mine. I bought the oem filter for 31$ from camelback and he installed it for 45$. He said it was the original so I'm glad I changed it.

  11. Mar 4, 2017 at 10:30 AM
    #31
    rolandvz71

    rolandvz71 New Member

    Joined:
    Oct 20, 2016
    Member:
    #200228
    Messages:
    4
    Gender:
    Male
    First Name:
    RVz71
    Vehicle:
    1998 Tacoma 5 LUG and 2005 Tundra DC 2 wheel drive
    seems like the hose closer to the fire wall is to short to make this happen......this filter is somewhat of a PITA to rerplace.....

  12. Apr 2, 2017 at 12:15 AM
    #32
    OldBoysToys

    OldBoysToys Active Member

    Joined:
    Jun 5, 2015
    Member:
    #156829
    Messages:
    36
    Gender:
    Male
    First Name:
    Jim
    Vehicle:
    1997 Black extracab tacoma - 2002 Imperila jade extracab TRD Tacoma
    Bilstien shocks toy tec lift Brush guard / Helwig 1250 Helpers
    I can relate when I first got my 97 I couldn't find the fuel filter ,when I traced it down ,i called Toyota shop and asked how they attack changing it. Believe it or not they told me they drop the starter for access. I thought ,no way got to be a better way , then i found the inner fender irremovable plate for lack of a better word . I could go straight into the filter and using Braille change it with out dropping the starter.Not too bad ,but is a poor location ~~OBT~~

  13. Nov 4, 2017 at 3:43 PM
    #33
    chiago

    chiago Well-Known Member

    Joined:
    Jun 18, 2012
    Member:
    #80867
    Messages:
    133
    Gender:
    Male
    First Name:
    Chad
    CA
    Vehicle:
    2001 Reg Cab Stepside 4x4
    Well Ive had the truck for bout 40k mikes and never changed the fuel filter so i thought it was about time to get'er done... Wasnt nearly as bad as i was expecting thanks to this thread... I just put her back where i found her this time but next time i will doing the relocation mod.... them mounting screws were a bit of a bitch to get into but once i found the path for my right arm it was clear sailing, no need to take off the tire as suggested in the video...Hardest and most frustrating part was locating the dropped banjo screw i knocked into the engine like an idiot... Lots of brown nasty came out so im glad i did, the truck is purring much smoother now...

    Thank you keakar and to all those who contributed...

    DJB1 likes this.
  14. Dec 6, 2017 at 1:25 PM
    #34
    irhunter

    irhunter Member

    Joined:
    Aug 8, 2013
    Member:
    #110054
    Messages:
    16
    Gender:
    Male
    Greenville, Maine
    Vehicle:
    '96 2WD 5-sp 2.4
    I am doing mine now. '96 2.4 I4. The bottom mount bolt is easy from below with the tire off, and a long extension; no u-joint required on mine. The upper bolt is a PIA; I did mine from above and from the front. Broke it loose with a 3/8" ratchet and 2" extension. Then, switched to a stubby 3/8" ratchet with the same extension to get it the rest of the way out.

    Roy

  15. Jan 20, 2018 at 7:40 AM
    #35
    Whitebutler

    Whitebutler No need to compensate!

    Joined:
    Jun 3, 2017
    Member:
    #220636
    Messages:
    2,861
    Gender:
    Male
    First Name:
    John
    Relative to what I feel like at the time.
    Vehicle:
    06 black sand Perl access cab. 99 T4R
    33s and stryker440 10 meter conversion to 11 radio
    Done! With same loosening method as Roy. I'll never go back.

  16. Jan 20, 2018 at 8:16 AM
    #36
    irhunter

    irhunter Member

    Joined:
    Aug 8, 2013
    Member:
    #110054
    Messages:
    16
    Gender:
    Male
    Greenville, Maine
    Vehicle:
    '96 2WD 5-sp 2.4

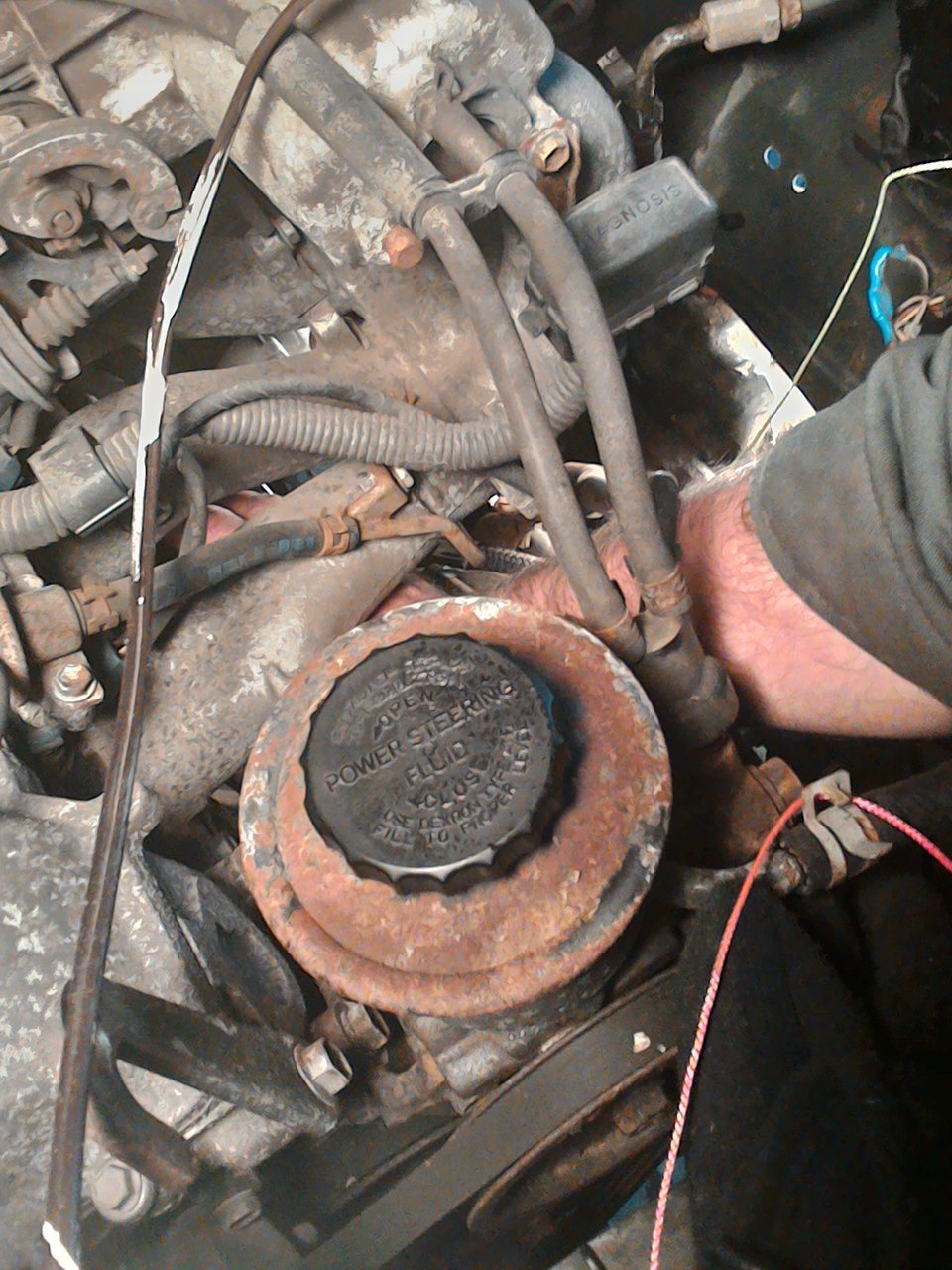

    One just needs to understand you will never see that top bolt. Just reach in, and feel for it.P_20171213_135704_HDR.jpg

  17. Jan 22, 2018 at 7:14 PM
    #37
    irhunter

    irhunter Member

    Joined:
    Aug 8, 2013
    Member:
    #110054
    Messages:
    16
    Gender:
    Male
    Greenville, Maine
    Vehicle:
    '96 2WD 5-sp 2.4
    And, the bottom bolt.

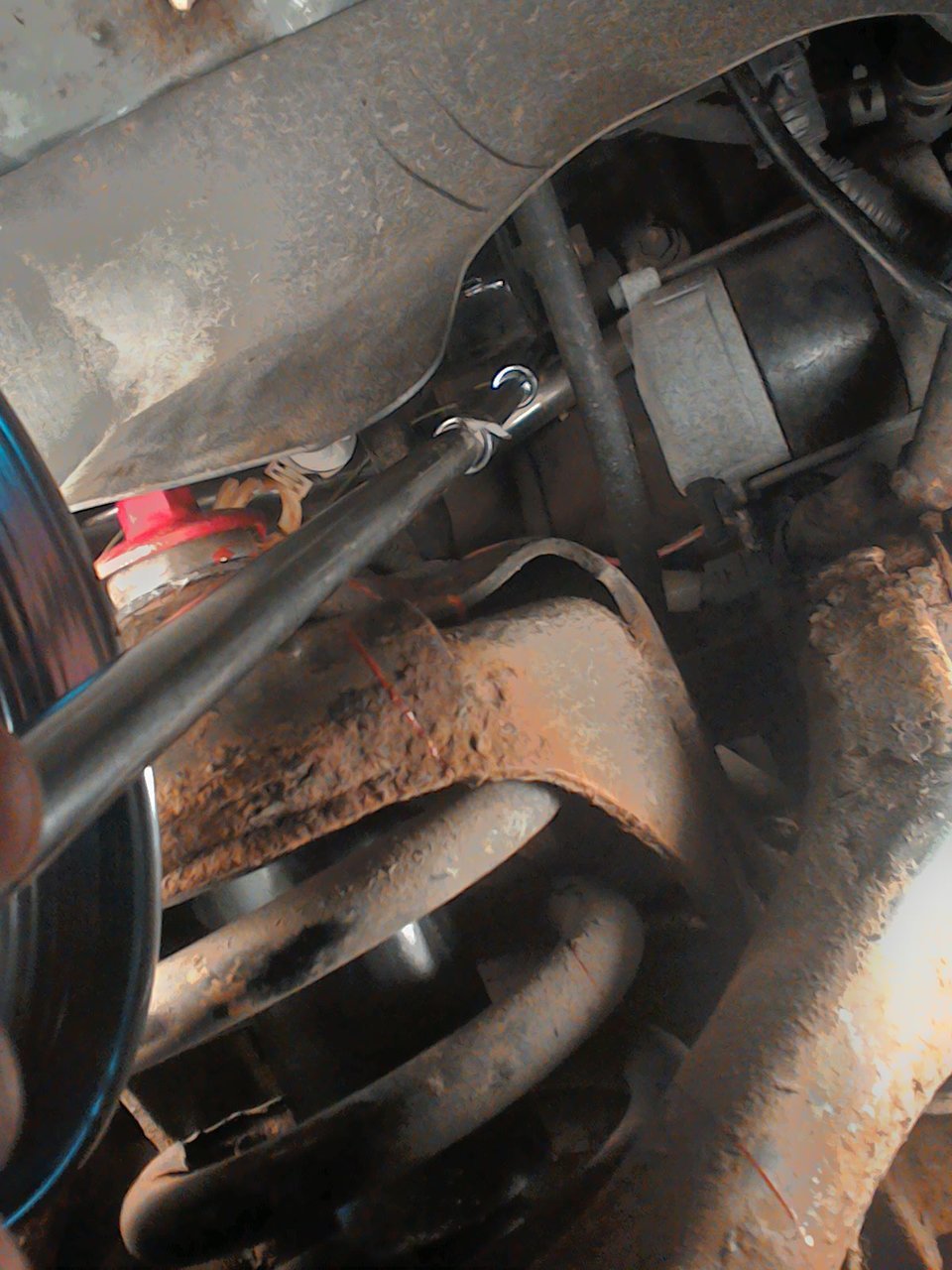

    Bottom bolt.jpg

  18. Jun 8, 2018 at 8:25 AM
    #38
    ThunderOne

    ThunderOne Average Contributor

    Joined:
    May 20, 2009
    Member:
    #17473
    Messages:
    7,242
    First Name:
    Mitchell
    Nashville
    Vehicle:
    1ST GEN OR GTFO
    PlastiDERP
    @tcBob please un-sticky. Too many stickies in the first gen section.

  19. Aug 5, 2018 at 3:35 PM
    #39
    Wsidr1

    Wsidr1 Well-Known Member

    Joined:
    Jul 11, 2018
    Member:
    #259004
    Messages:
    583
    Gender:
    Male
    Indiana
    Vehicle:
    2 x 95.5 Ext 2.7L & 3.4L A/T 4x4
    I have a 2.7L with the filter also "buried" under the throttle body. I am not relocating mine.

    That location was likely chosen to protect the filter in the event of a side impact collision. Locating it on the inner fender panel makes it much more likely it will be crushed between the UCA or strut and the TB.

    I know the fuel lines run through that area, but if you think about what would happen to a fuel line in a crash, it is likely to be bent and mostly pinched shut. Even if not, it will only output a small stream of fuel. The filter, on the other hand, is like a tiny tank and will be ruptured and instantly spread fuel.

    Don't kill the messenger. Just something to consider.

  20. Aug 10, 2018 at 11:40 PM
    #40
    DJB1

    DJB1 Well-Known Member

    Joined:
    Jun 8, 2013
    Member:
    #105835
    Messages:
    1,586
    Gender:
    Male
    First Name:
    Dave
    SLC, UT
    Vehicle:
    2003 Regular Cab 4X4 5MT
    Damn you, @Wsidr1, you are so right. At first I just glanced over your post, but the more I thought about it over the last few days, the more paranoid I got. So I put my fuel filter back in the original location. It's a whore but doesn't have to be done that often. The top bolt on the fuel filter bracket is no big deal, but the bottom bolt is a S.O.B. I used every 3/8" extension on hand to reach it without taking off the tire. I used a couple drops of superglue to hold the bolt in the socket so it didn't fall into a black hole. The bond breaks easy once the bolt is started in it's threads.

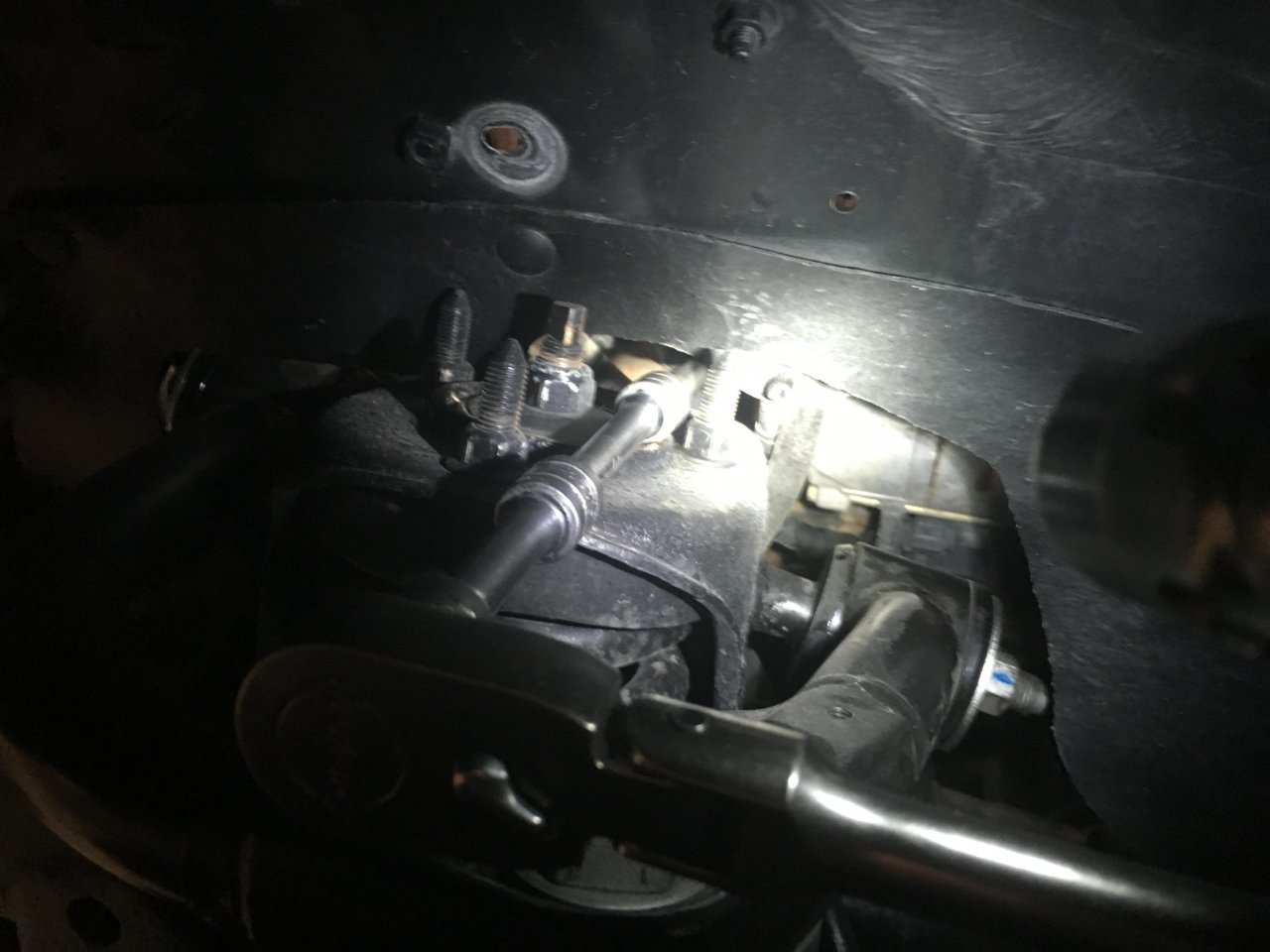

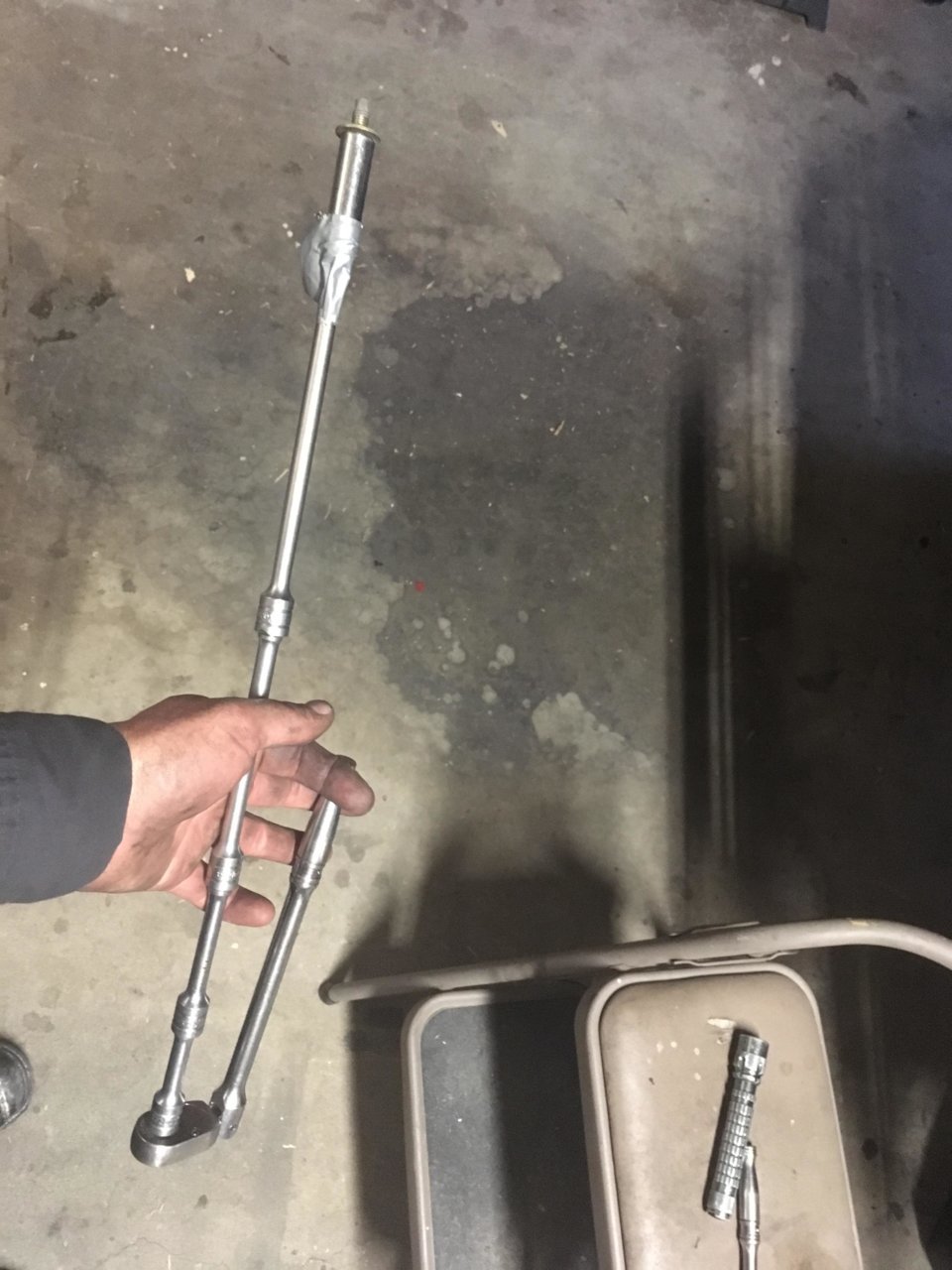

    The lower fuel filter bracket bolt is reachable like so:

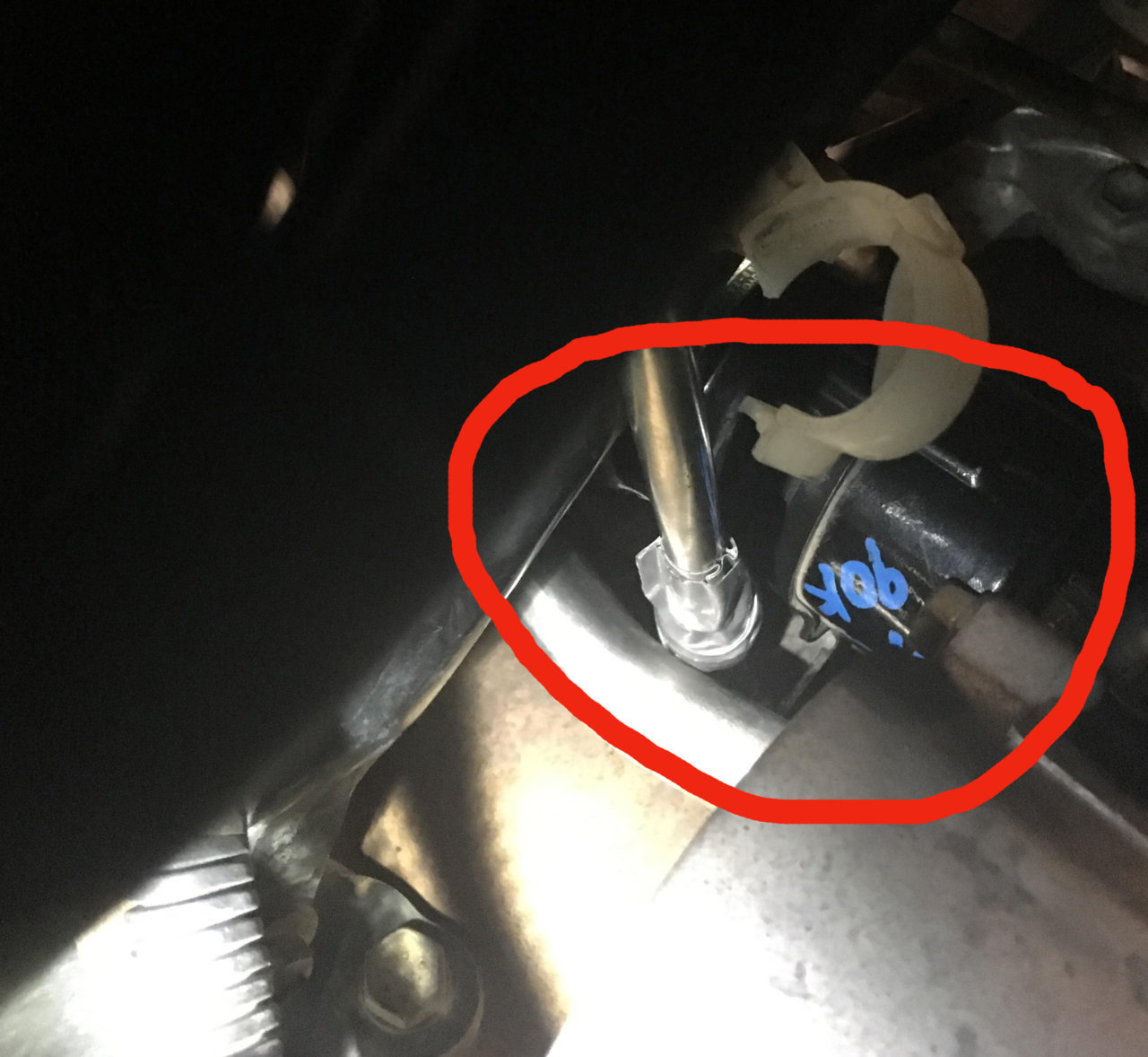

    ...aaand the fuel filter is back in its OG location so hopefully I won't perish in an excruciating inferno if I'm ever hit in the front left fender:
