DIY Axe Mount on Bedrails

Discussion in '3rd Gen. Tacomas (2016+)' started by vtac, Feb 10, 2018.

  1. Feb 10, 2018 at 6:23 PM
    #1
    vtac

    vtac [OP] Well-Known Member

    Joined:
    Jun 13, 2017
    Member:
    #221395
    Messages:
    340
    Gender:
    Male
    Vehicle:
    2017 Tacoma TRD OR DCSB
    I got bored so I decided to make an axe mount for my bed rails.

    Here it goes.

    What's required:

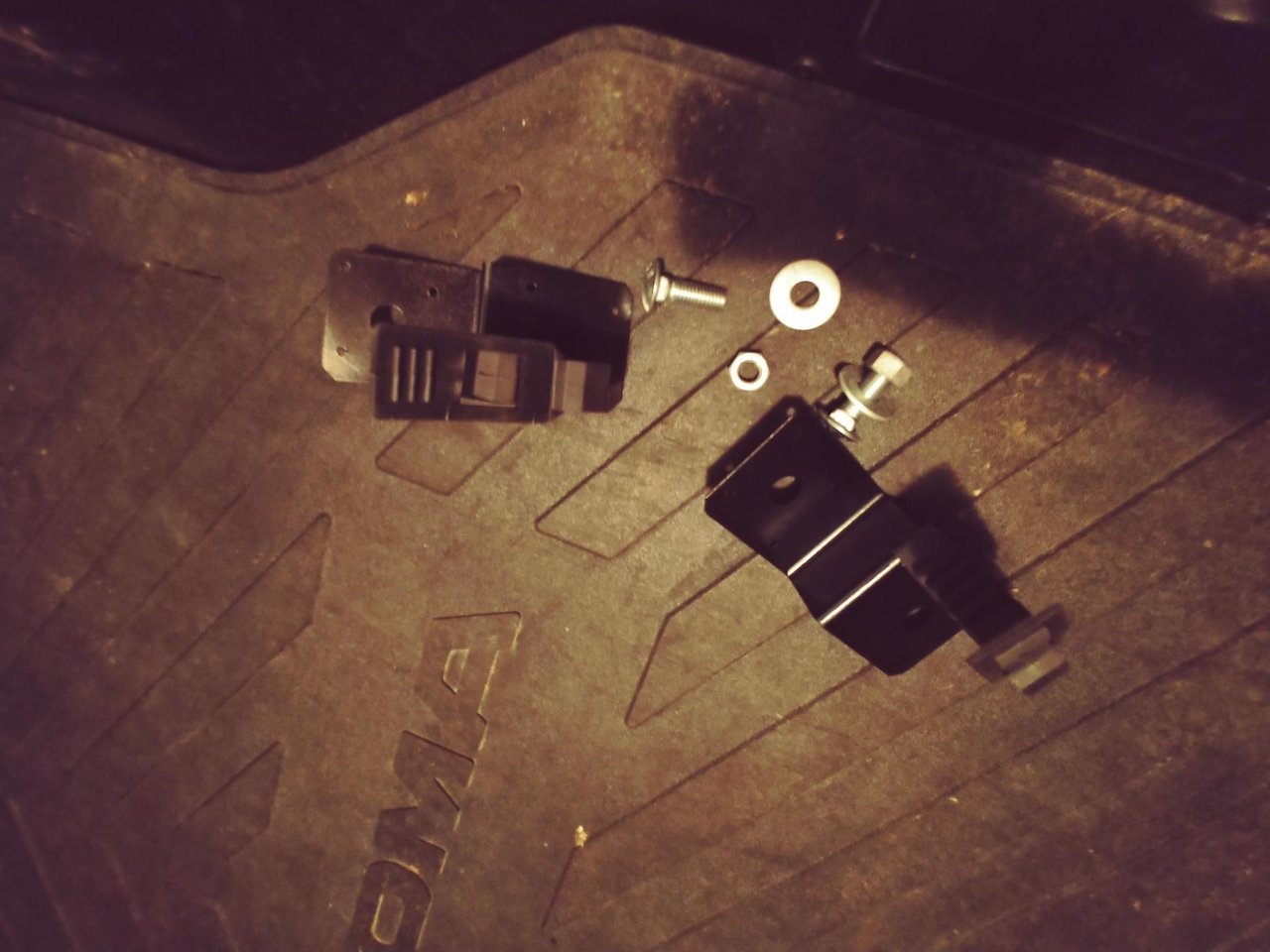

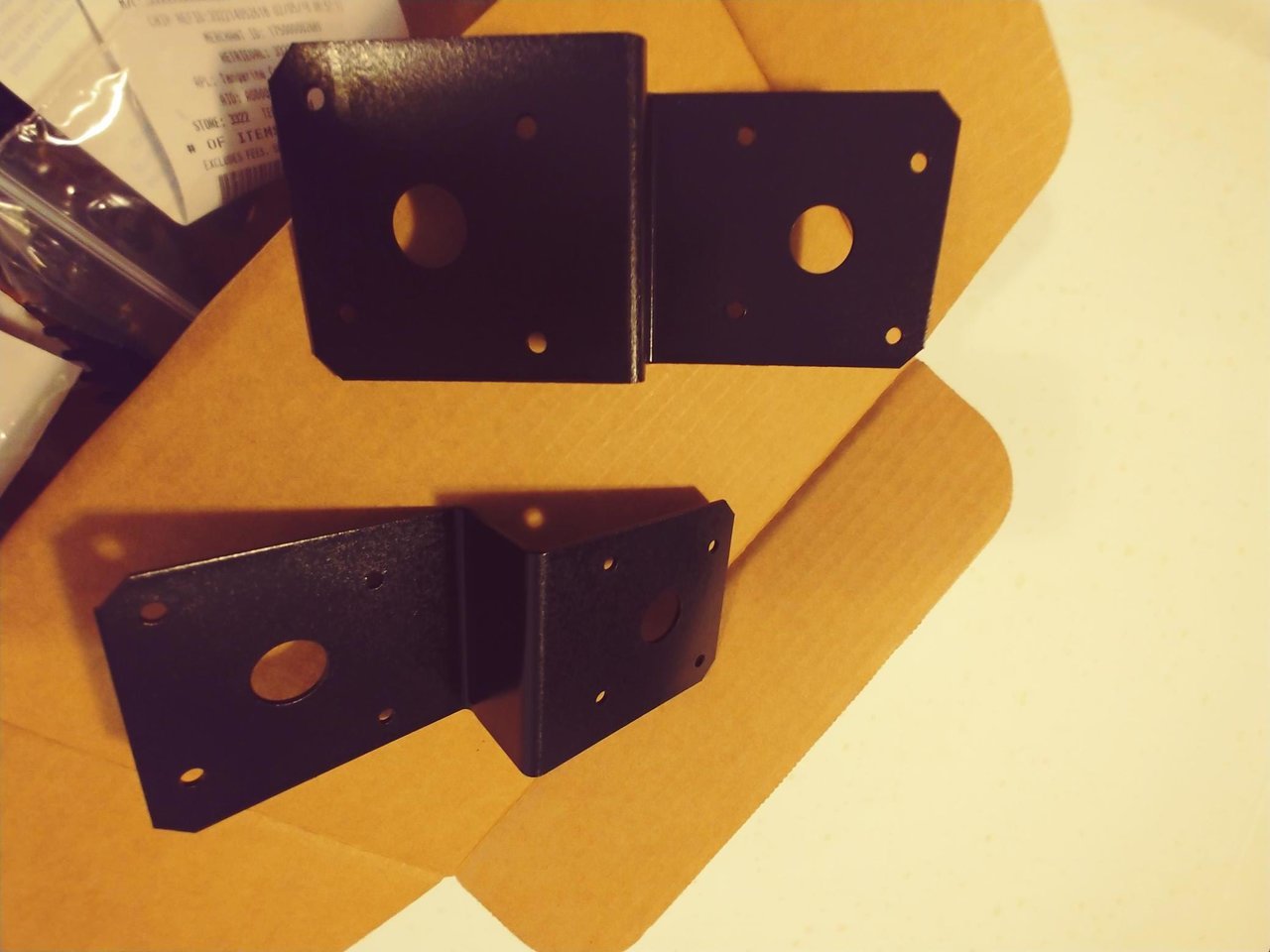

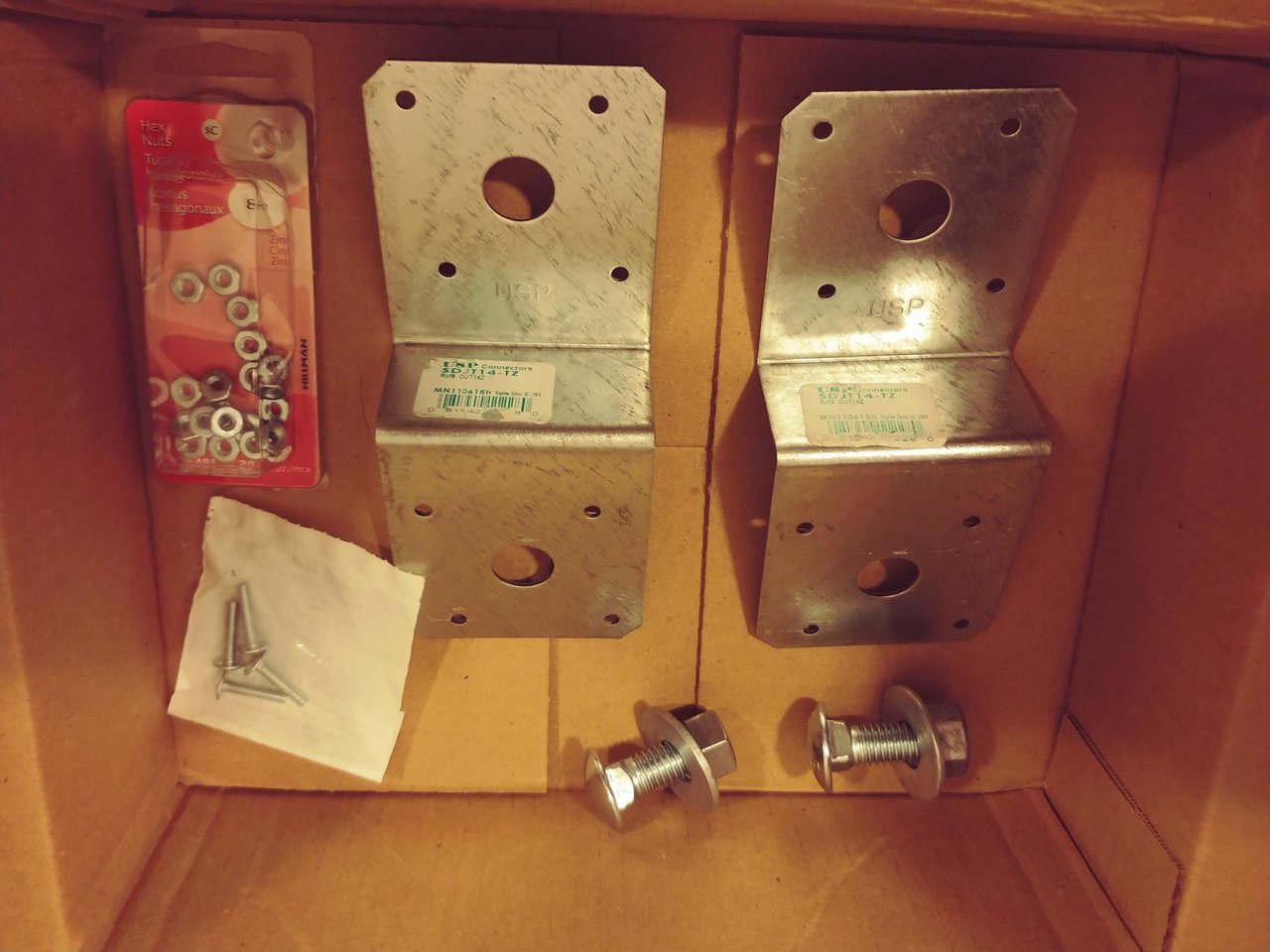

    - A mounting plate (I bought a roof joist from LOWES for $4 a piece. It would've been ideal to find a flatter piece but I was focused on doing minimal work as possible. So I found ones pictured below which had drilled holes that were the perfect size for my application.)

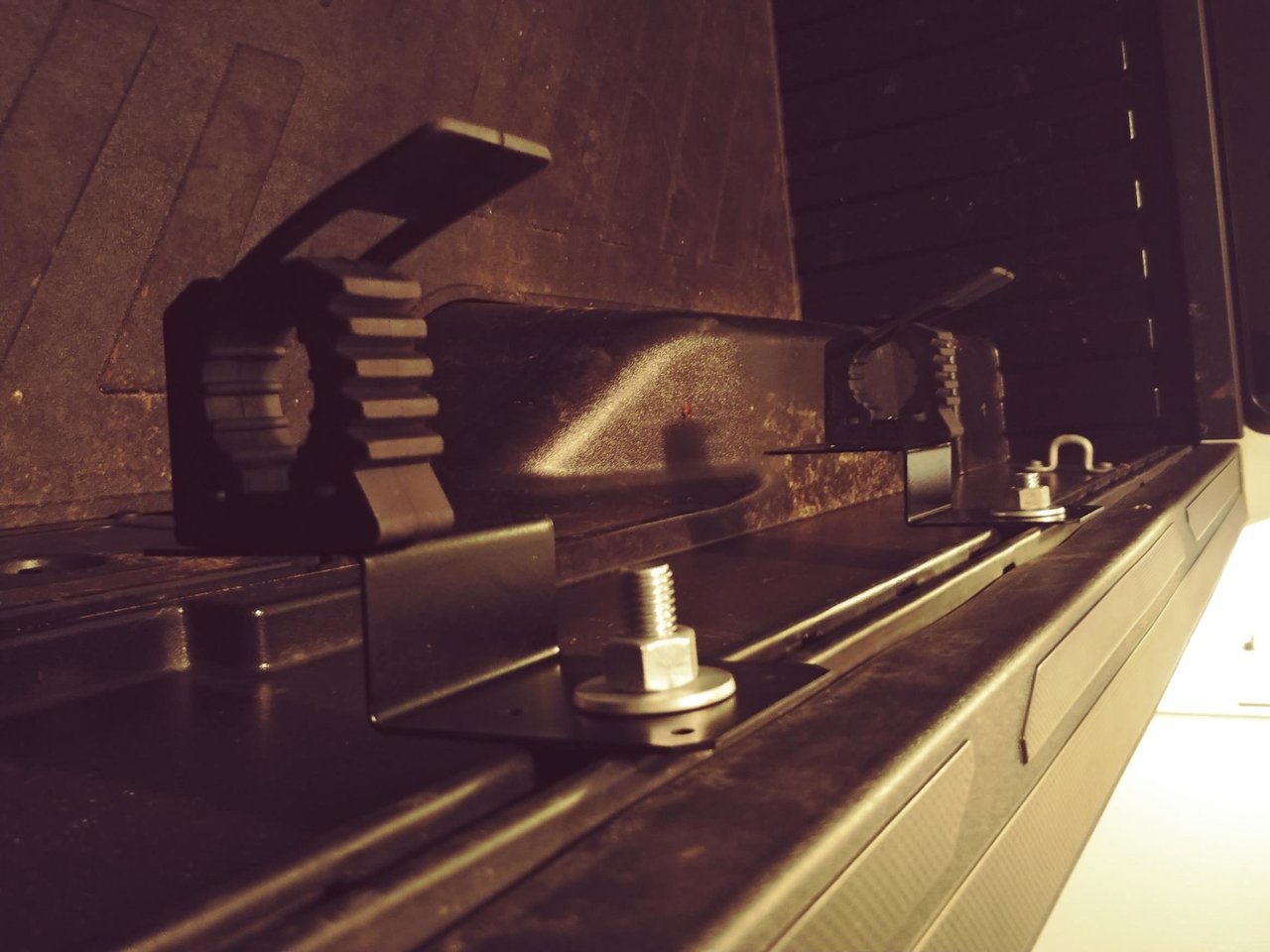

    - Large bolt+washer+nuts X2 for $3 (This is to slide through the rails and hold the plate. I can't recall what exact sizes these were, but I'm pretty sure some can provide a link to a different thread with the measurements.
    - Screws 8-32 x 3/4 (x2) $2 (For mounting the quickfist on to the plate)
    - Nuts 8-32 (x2) $2 (For securing the screws that mount the quickfist on to the plate)
    - Medium Quickfist clamps x2 (this $30 pack is a great deal https://www.amazon.com/piece-Quick-...d=1518313769&sr=8-2&keywords=quickfist+clamps)

    I won't do a step by step as it is pretty self explanatory but I will add my 2 cents:
    - I primed and painted the plates with some rattle cans that I had left over for rust prevention and a better cosmetic look.
    - The closer the mounts are to each other towards the centre of the axe the better the axe fits as the handle gets thicker towards the head and makes the clamp too tight.

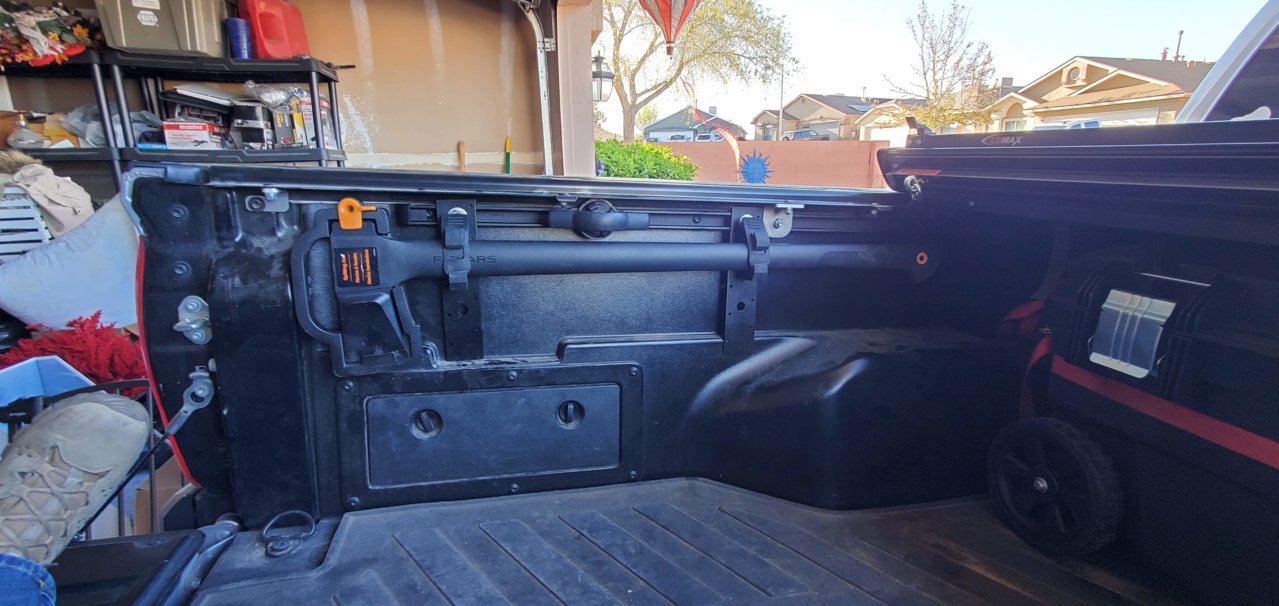

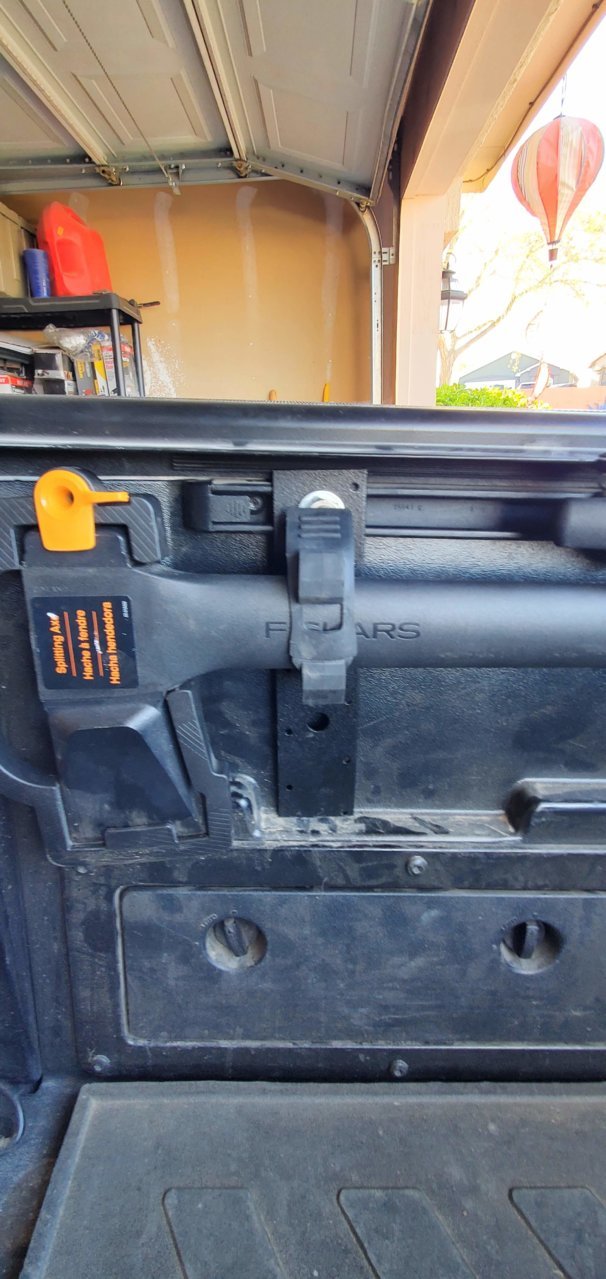

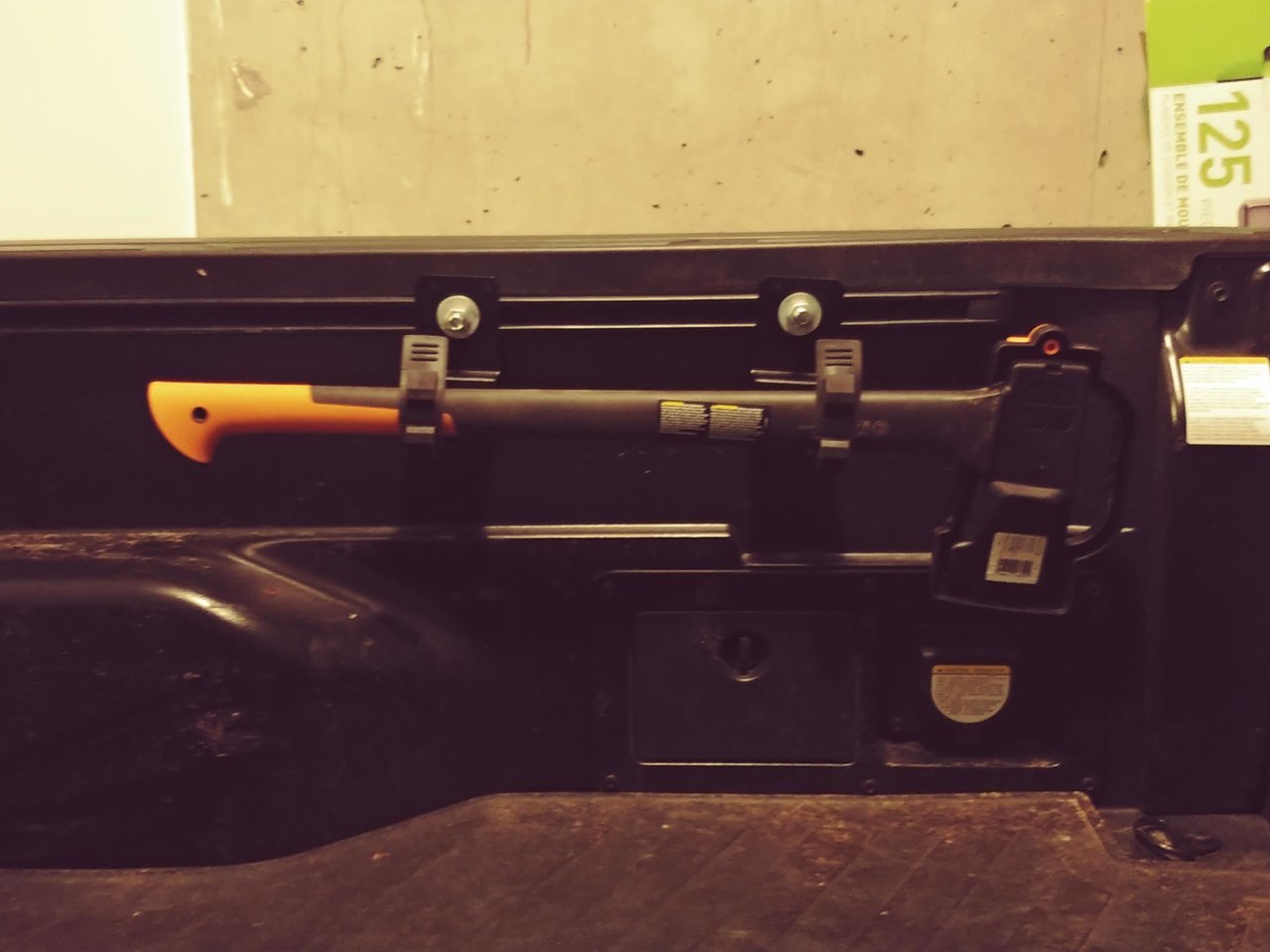

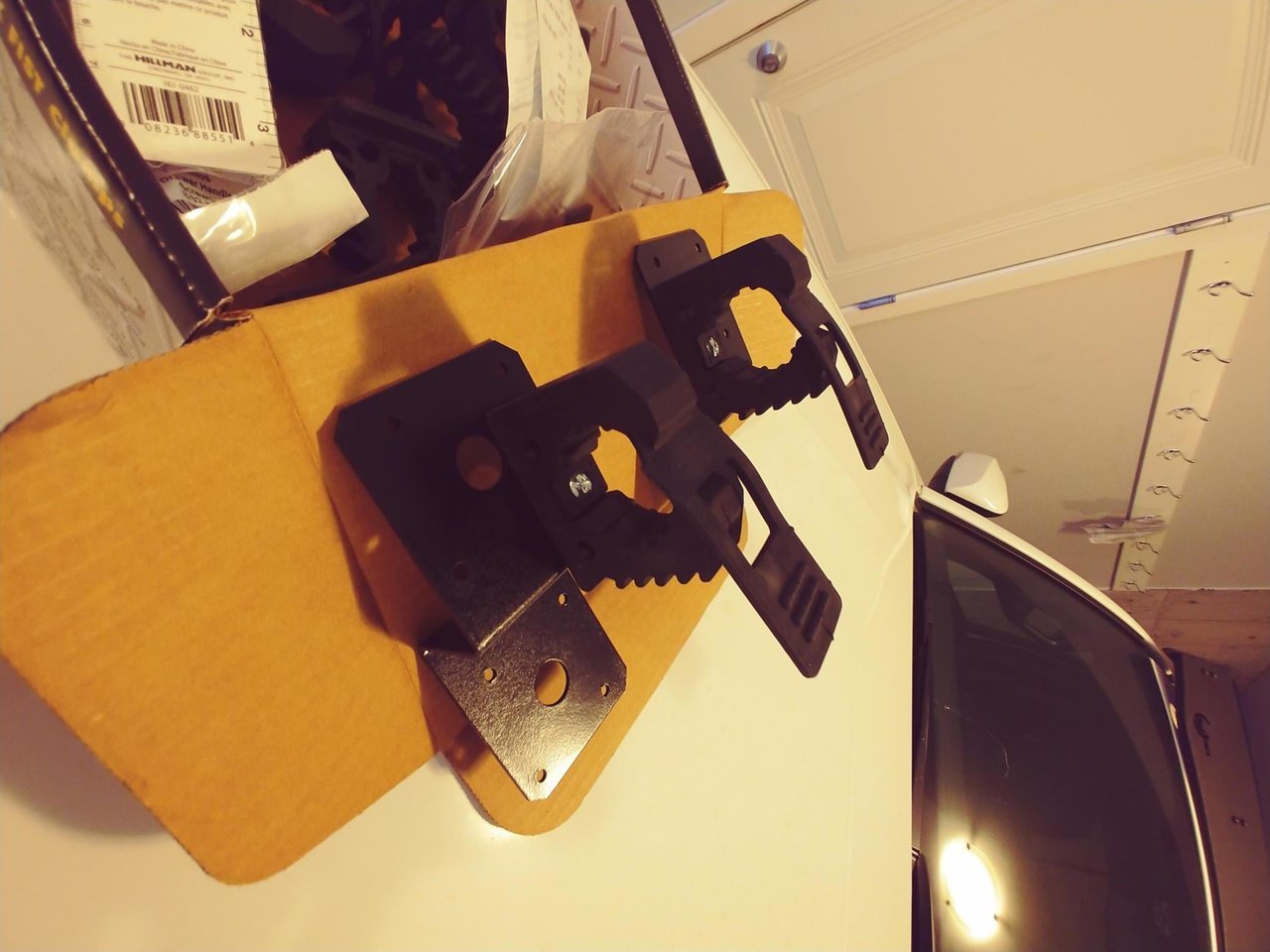

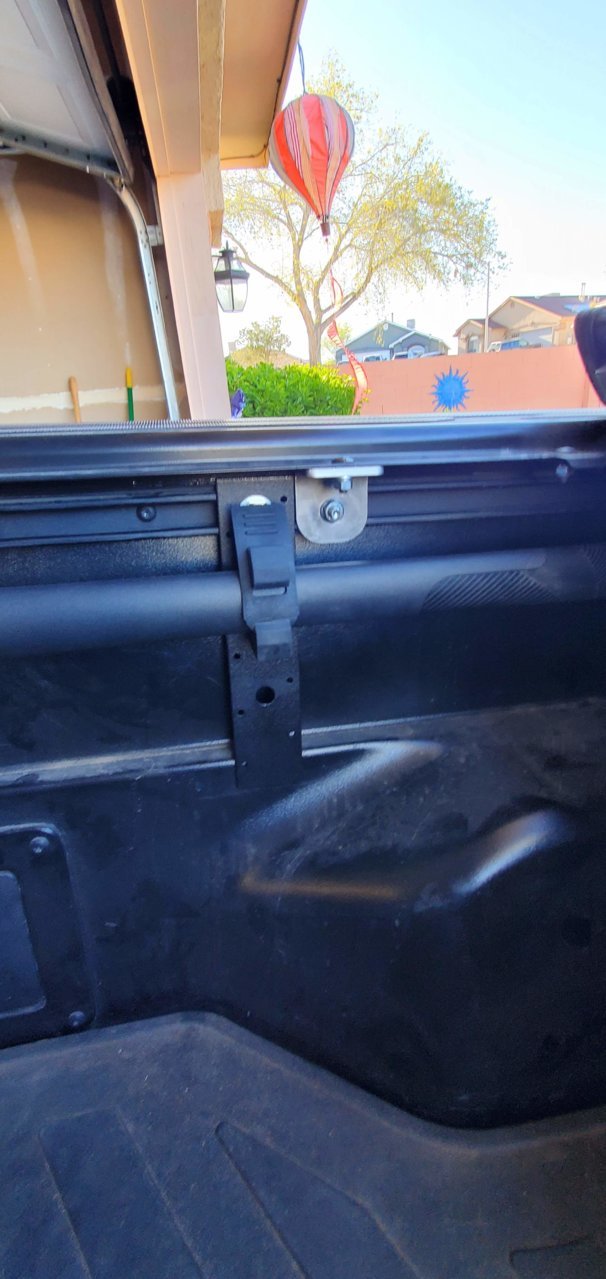

    - After fit testing on the passenger side as seen in picture, I decided to move it to the driver's side for easier accessibility when I get out of the truck.
    *Please excuse the plates appearing to be a little crooked, it was only for fit test purposes.

    If you are curious about the axe, it is a Fiskars X27. This thing is a beast,splits wood like butter. My friend was bitching why I would spend $50 on an axe. Needless to say once he tried it out, he asked me where he could get one. lol


  2. Feb 10, 2018 at 6:28 PM
    #2
    RocTaco

    RocTaco Free stun!

    Joined:
    Nov 12, 2016
    Member:
    #202199
    Messages:
    1,995
    First Name:
    Pete
    Rochester NY
    Vehicle:
    2017 Taco (sold) 2007 4runner Limited 4.7L 4x4
  3. Feb 10, 2018 at 6:28 PM
    #3
    gunn_runner

    gunn_runner www.gunnphotoservices.com

    Joined:
    Apr 15, 2013
    Member:
    #102157
    Messages:
    1,502
    Gender:
    Male
    Rocky River, OH
    Vehicle:
    2013 DCLB TRD
    OME 886 & Dakars. 35" Mickey Thompson Baja Boss
    Looks like it works well. You wrote: "It would've been ideal to find a flatter piece but I was focused on doing minimal work as possible."

    If I recall, the flat roofing plates should be located right there with those angled ones you bought... for future reference. :)

    But that bent mount would also make a good axe and shovel holder if you put a second set of quick fists on there.

    vtac [OP] likes this.
  4. Feb 10, 2018 at 6:30 PM
    #4
    vtac

    vtac [OP] Well-Known Member

    Joined:
    Jun 13, 2017
    Member:
    #221395
    Messages:
    340
    Gender:
    Male
    Vehicle:
    2017 Tacoma TRD OR DCSB
    Lol as embarassing as it is to say, I've only been to a hardware store a handful of times in my lifetime. Just grabbed what I could find :p

  5. Feb 10, 2018 at 6:37 PM
    #5
    OnHartung'sRoad

    OnHartung'sRoad -So glad I didn't take the other...

    Joined:
    Jul 24, 2017
    Member:
    #224878
    Messages:
    6,691
    Somewhere in the Mojave Desert...
    Vehicle:
    2017 Tacoma OR 4x4 (formerly 2002 OR 4x4, 1995 4x4 4Runner, 1985 4x4 Toy PU) ... and RIP’s (rust in pieces) to a Bronco II 4x4 & S10 Blazer 4x4
    :eek:

  6. Feb 10, 2018 at 6:42 PM
    #6
    vtac

    vtac [OP] Well-Known Member

    Joined:
    Jun 13, 2017
    Member:
    #221395
    Messages:
    340
    Gender:
    Male
    Vehicle:
    2017 Tacoma TRD OR DCSB
    Okay maybe a little bit exaggerated lol. But I've only starting being a bit more "handy" or motivated to "DIY" since recently buying my taco and buying a house with more workspace. Slowly getting my Man Card since owning this beauty. haha

  7. Feb 10, 2018 at 6:44 PM
    #7
    OnHartung'sRoad

    OnHartung'sRoad -So glad I didn't take the other...

    Joined:
    Jul 24, 2017
    Member:
    #224878
    Messages:
    6,691
    Somewhere in the Mojave Desert...
    Vehicle:
    2017 Tacoma OR 4x4 (formerly 2002 OR 4x4, 1995 4x4 4Runner, 1985 4x4 Toy PU) ... and RIP’s (rust in pieces) to a Bronco II 4x4 & S10 Blazer 4x4
    You’ll be buying man stuff and filling up your workspace soon :)

    Dang, my wife came with more tools than me, but that didnt last long when we moved between a True Value and Harbor Freight!

    vtac [OP] likes this.
  8. Mar 2, 2018 at 4:25 PM
    #8
    Junior314

    Junior314 Well-Known Member

    Joined:
    Aug 17, 2017
    Member:
    #227131
    Messages:
    212
    Northeast
    Vehicle:
    '17 MGM OR DC/SB
    Cosmetic.
    Will be trying out this setup this weekend. Bought all the screws etc. Guess we will find out if the bolts I bought are the right size.

    Thanks for the idea for a cheap alternative!

  9. Mar 2, 2018 at 5:21 PM
    #9
    vtac

    vtac [OP] Well-Known Member

    Joined:
    Jun 13, 2017
    Member:
    #221395
    Messages:
    340
    Gender:
    Male
    Vehicle:
    2017 Tacoma TRD OR DCSB
    Nice. Post pics after install. I've realized you can shave down the edges of the bolt to make it slide on the bed rail a bit smoother. Shave it like so it ends up looking like ( ) this.

  10. Mar 3, 2018 at 1:02 PM
    #10
    Junior314

    Junior314 Well-Known Member

    Joined:
    Aug 17, 2017
    Member:
    #227131
    Messages:
    212
    Northeast
    Vehicle:
    '17 MGM OR DC/SB
    Cosmetic.
    Does anyone know what size bolt heads would fit in the bedrail?

  11. Mar 22, 2018 at 12:06 PM
    #11
    sandyTrd87

    sandyTrd87 Well-Known Member

    Joined:
    Sep 27, 2015
    Member:
    #165297
    Messages:
    343
    Gender:
    Male
    Socal

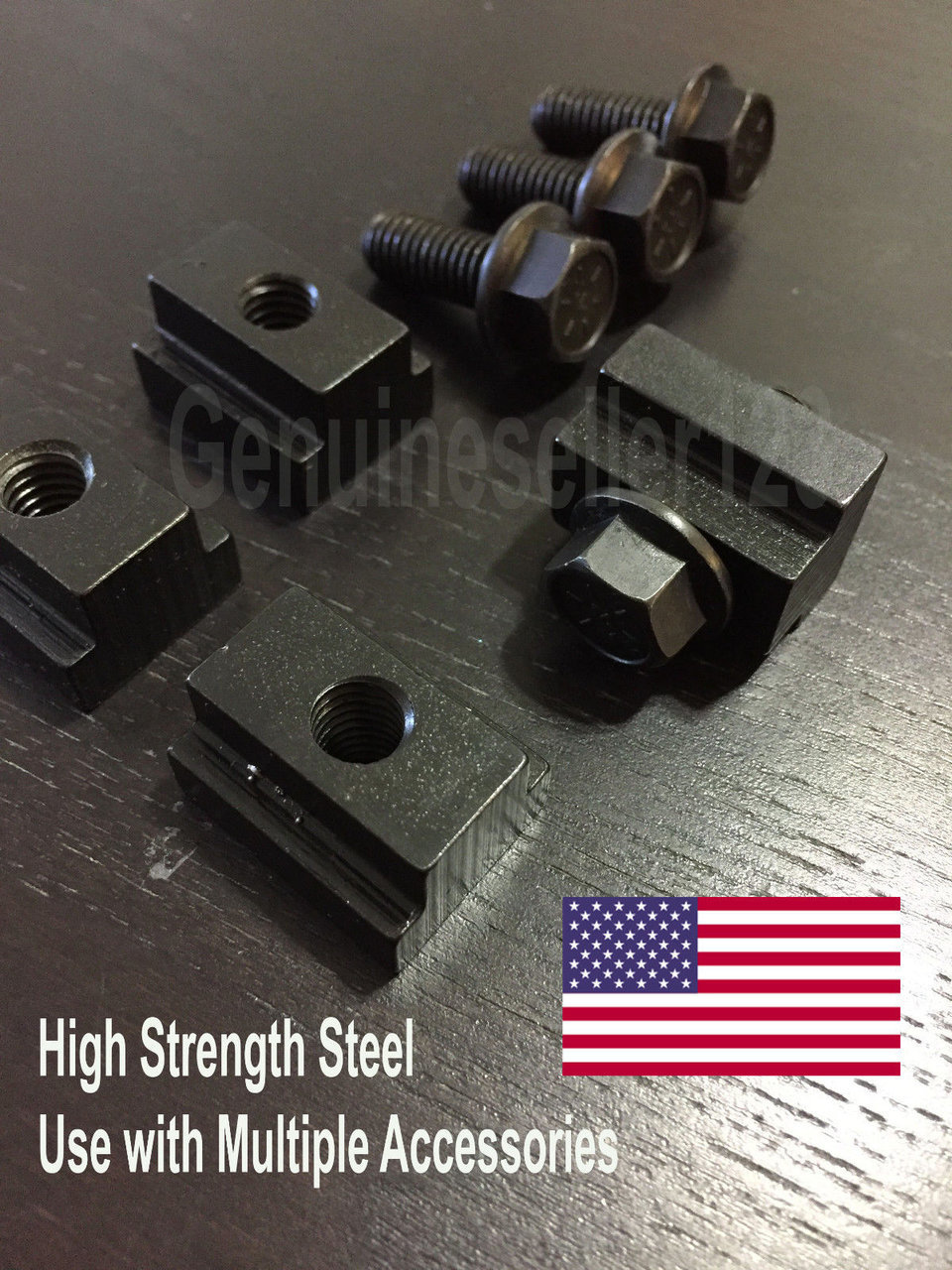

    Bilstien 5100's x4 Dobinson 448 springs, rear 2inch AAL
    Junior314 likes this.
  12. Jun 7, 2020 at 6:28 AM
    #12
    Supermansami

    Supermansami Member

    Joined:
    Nov 25, 2019
    Member:
    #311702
    Messages:
    14
    Gender:
    Male
    First Name:
    Sami
    Vehicle:
    2020 toyota tacoma trd offroad

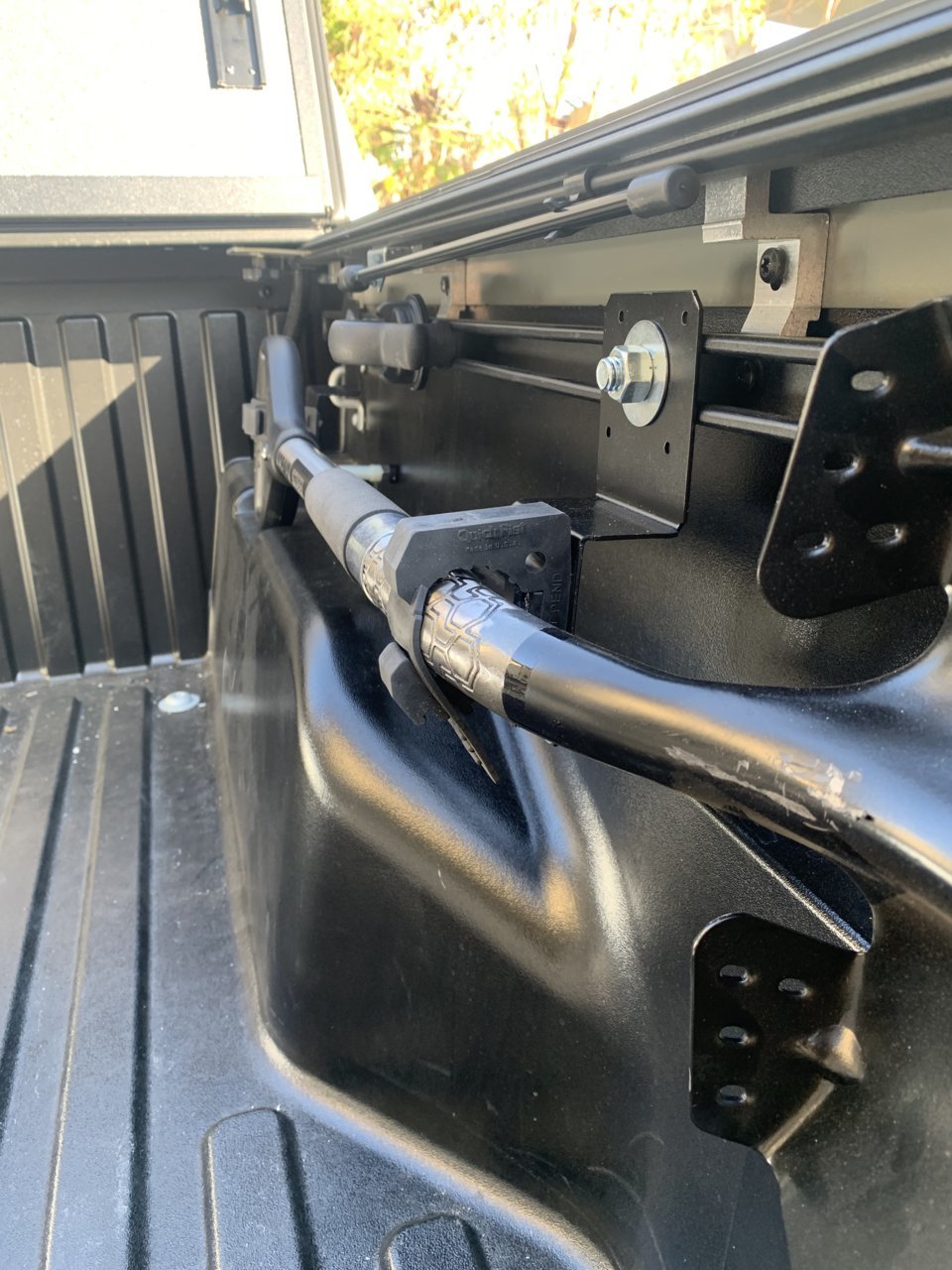

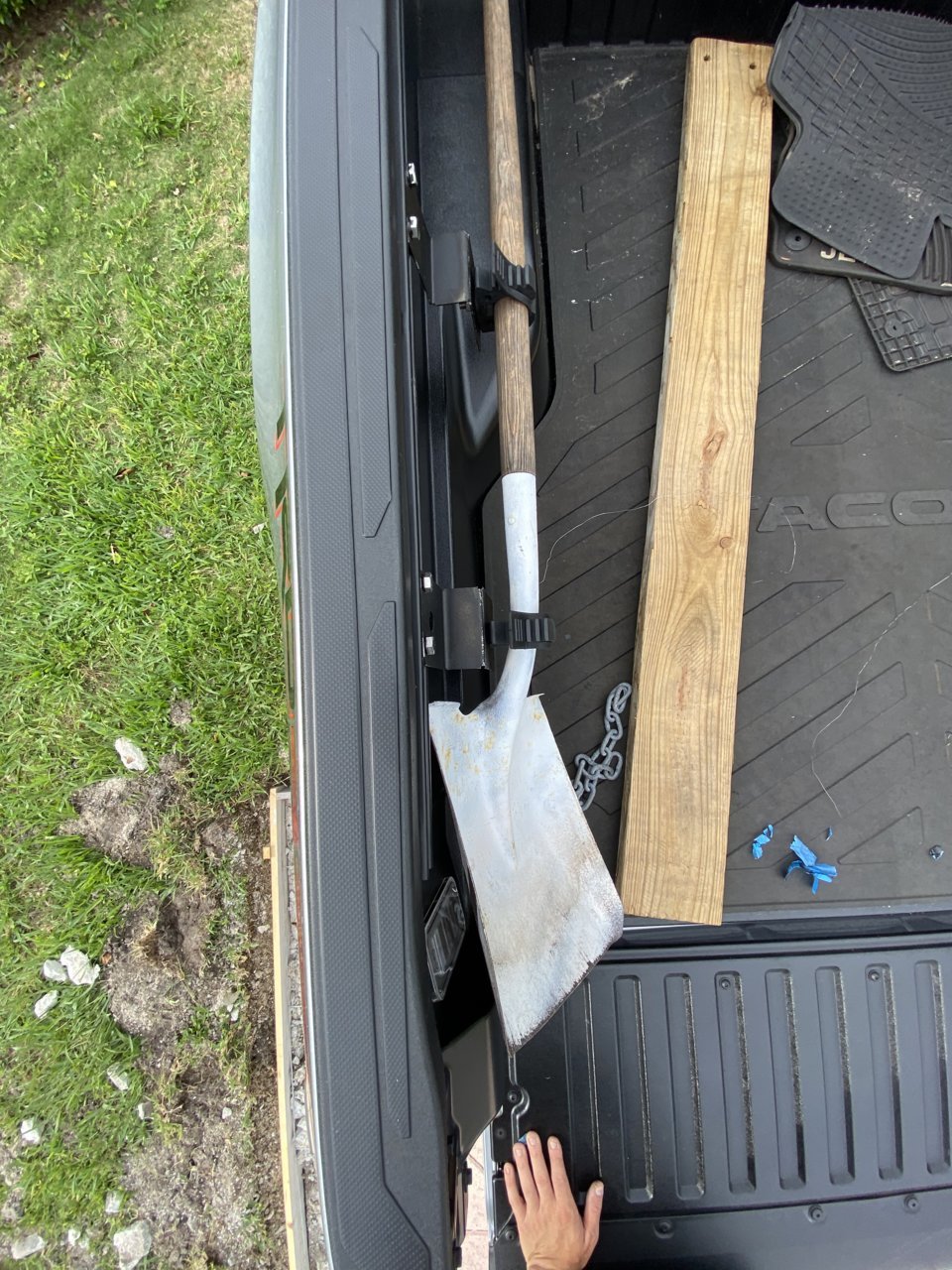

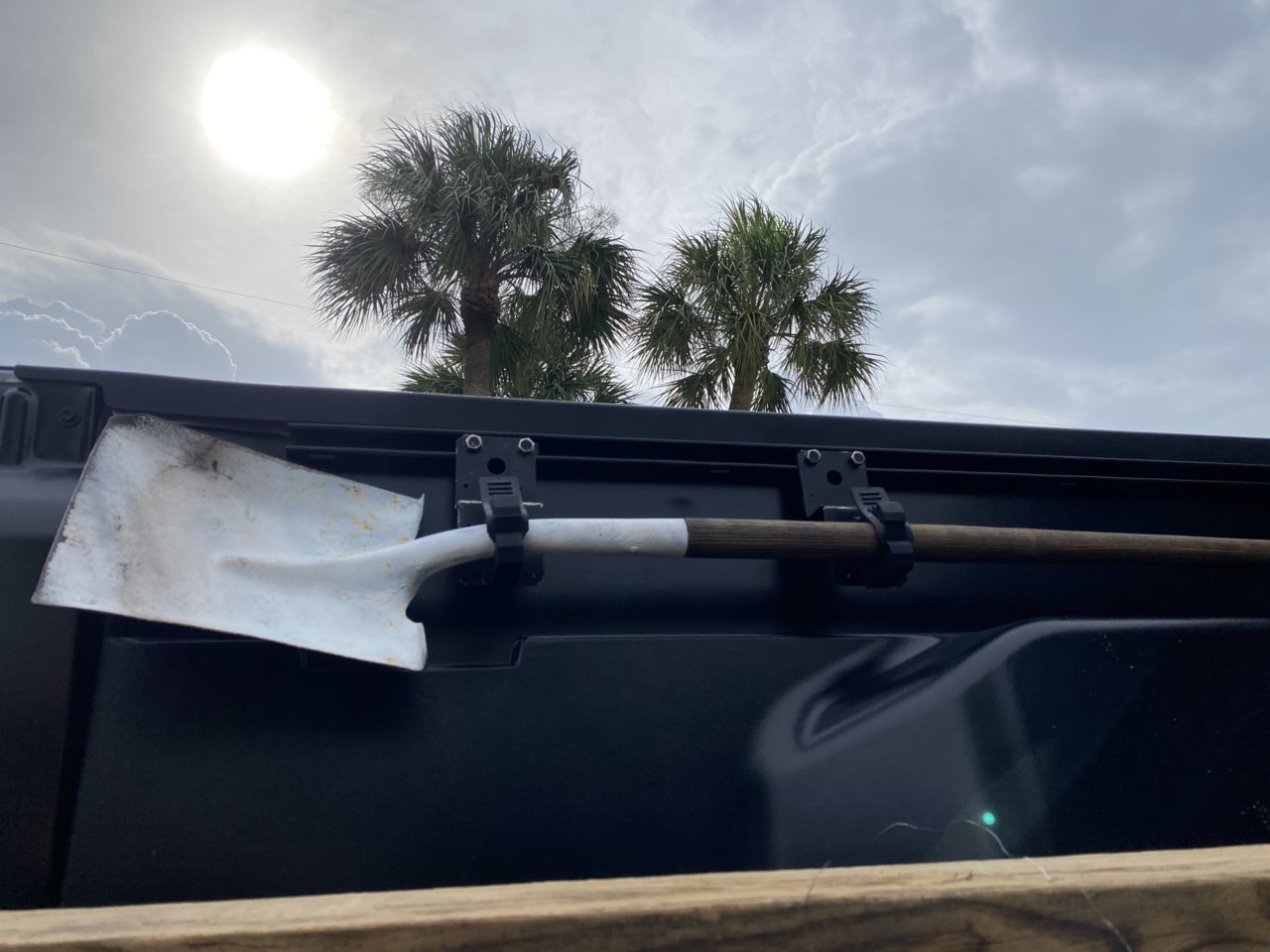

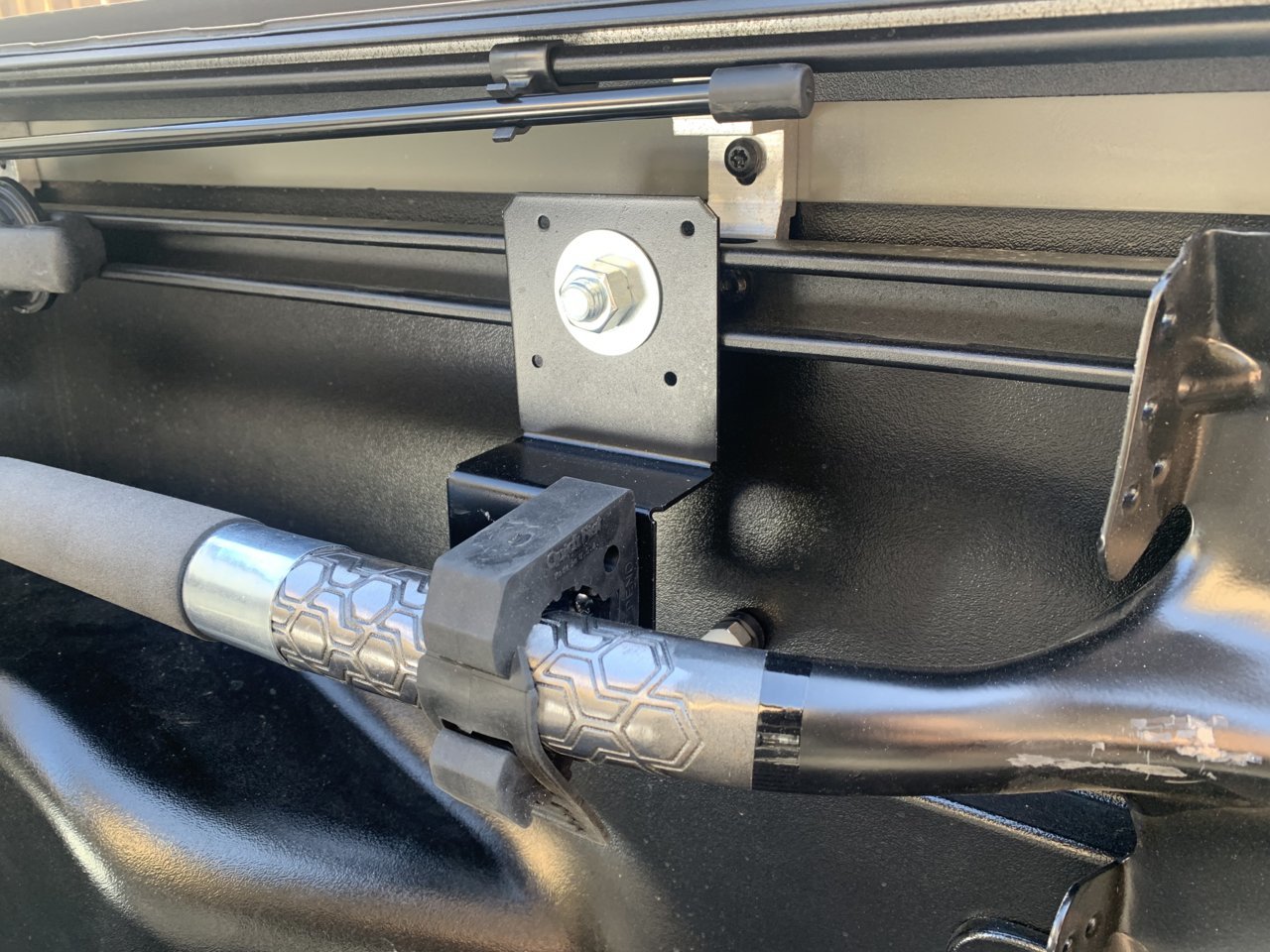

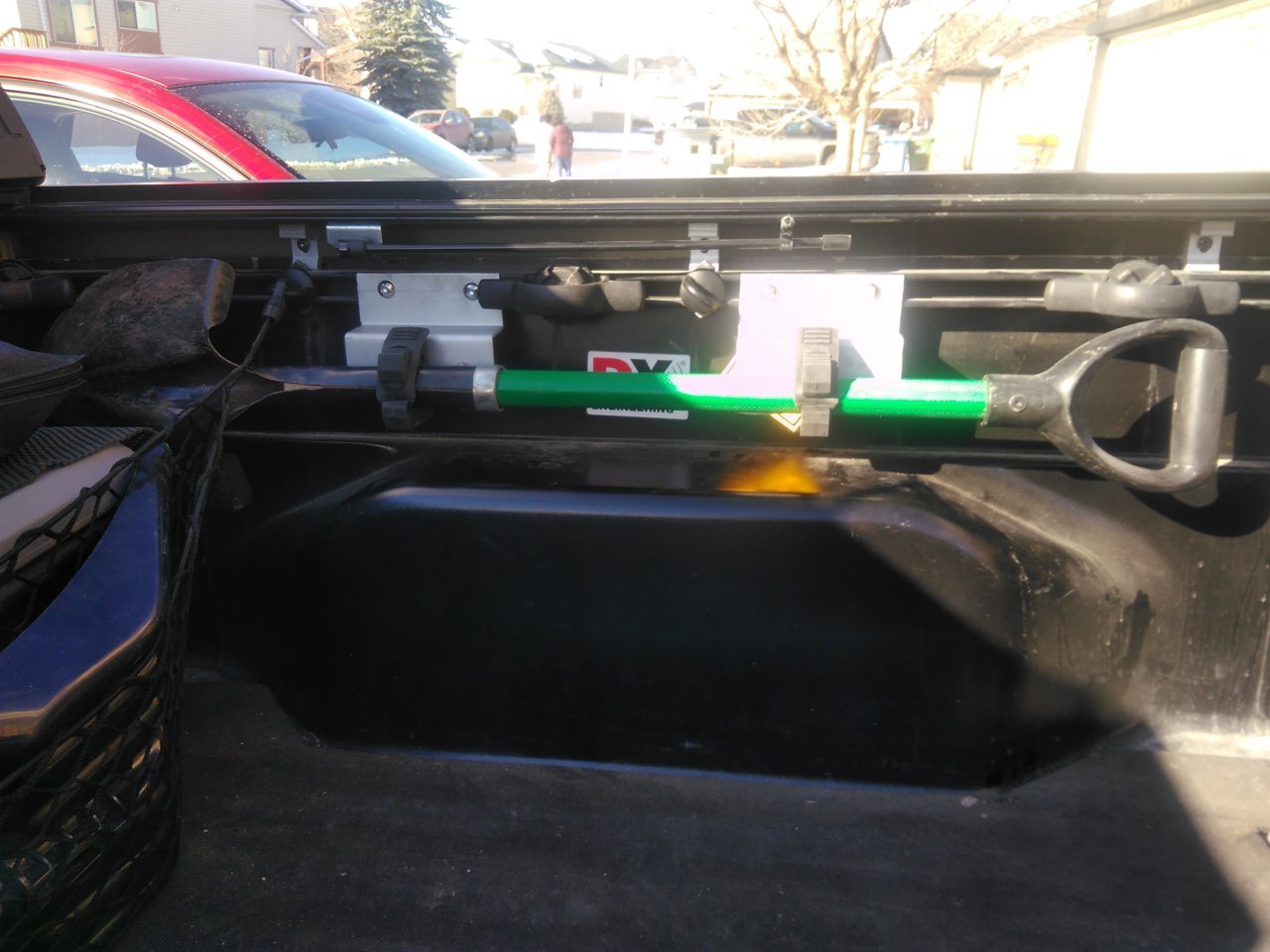

    I like this mod but I’m a bit impatient with painting so mine are a little special. But I liked using these joist so the shovel sit off the side of the bed and doesn’t scratch the bed.
