DIY Bed Cross bars.

Discussion in '3rd Gen. Tacomas (2016+)' started by Rileyk700, Nov 26, 2017.

  1. Nov 26, 2017 at 6:50 PM
    #1
    Rileyk700

    Rileyk700 [OP] BigRedMachine

    Joined:
    Jun 14, 2017
    Member:
    #221550
    Messages:
    37
    First Name:
    Carl
    Vehicle:
    2017 Tacoma Off-Road
    Fox 2.5 lift. Pelfrey built rear bumper.
    Total: $50
    Purchased everything from Home depot. (sorry do not know the dimensions).
    I added another bar because I needed the height so it would go over my toolbox.
    Have not got to test weight yet but will update when I can.

    Hope this helps someone else one day looking for cross bars and do not want to spend $200.

    IMG_0429.jpg IMG_0427.jpg IMG_0425.jpg +

  2. Nov 26, 2017 at 6:58 PM
    #2
    Blais03

    Blais03 Guess I'll bring a spare wheel bearing...

    Joined:
    Nov 13, 2015
    Member:
    #169518
    Messages:
    4,236
    Gender:
    Male
    First Name:
    Nick
    Easthampton MA
    Vehicle:
    '08 Reg. Cab 4WD 5-speed
    Looks a little sketchy

    I’d recommend a better way to attach it to the trucks rail system

    Last edited: Nov 26, 2017
    BRFAb, C41n, OneFastGeek and 4 others like this.
  3. Nov 26, 2017 at 7:31 PM
    #3
    Blktre

    Blktre Well-Known Member

    Joined:
    Oct 13, 2016
    Member:
    #199651
    Messages:
    676
    Gender:
    Male
    Land of Oz....
    Vehicle:
    16 Super White DCLB TRDOR: The White Goat
    Maybe add a short plate to add another bolt. If you could figure a way to go directly to the track that would be even better. However, I do like where this is heading.

    Rileyk700 [OP] and Blais03 like this.
  4. Nov 26, 2017 at 7:32 PM
    #4
    QuickBurn

    QuickBurn Well-Known Member

    Joined:
    Oct 25, 2017
    Member:
    #234130
    Messages:
    63
    Gender:
    Male
    A for effort, but that bolt can't be properly sheer rated with that much left over extension.

    mrtonyd and Rileyk700 [OP] like this.
  5. Nov 26, 2017 at 8:55 PM
    #5
    Rileyk700

    Rileyk700 [OP] BigRedMachine

    Joined:
    Jun 14, 2017
    Member:
    #221550
    Messages:
    37
    First Name:
    Carl
    Vehicle:
    2017 Tacoma Off-Road
    Fox 2.5 lift. Pelfrey built rear bumper.
    Thanks for the comments, I will look into a better way to attach to the rails. Maybe another section down and then finding a bolt that goes into the railing system. I am looking something that is easily moveable in the railing system soft when I need to move it back to get into the toolbox. Once it is complete I will be welding it all together for extra strength.

  6. Nov 26, 2017 at 8:57 PM
    #6
    OnlyTaco

    OnlyTaco Well-Known Member

    Joined:
    Dec 18, 2016
    Member:
    #205117
    Messages:
    126
    Gender:
    Male
    What basket is that? It's pretty nice

  7. Nov 26, 2017 at 9:00 PM
    #7
    Rileyk700

    Rileyk700 [OP] BigRedMachine

    Joined:
    Jun 14, 2017
    Member:
    #221550
    Messages:
    37
    First Name:
    Carl
    Vehicle:
    2017 Tacoma Off-Road
    Fox 2.5 lift. Pelfrey built rear bumper.
    Thanks man, it is the ROLA 59504 V-Tex Rooftop Cargo Basket with extension.

    Bought them both of Amazon used for $150. Came in actually really good condition for being used and that shaved off about $100.

    OnlyTaco likes this.
  8. Nov 26, 2017 at 9:03 PM
    #8
    bhh2000

    bhh2000 Well-Known Member

    Joined:
    Dec 18, 2010
    Member:
    #47888
    Messages:
    264
    Gender:
    Male
    First Name:
    Ben
    Santa Rosa
    Vehicle:
    2016 DCLB TRD 4X4
    I built a similar system but with 2x4's when I was waiting for my rack to be built. Used it for almost 6 months trouble free with the RTT doing 90 on the highway :D

    I bought uni-strut square nuts and put them into the track then bolted into them. You want something with more sheer though........ I cut 3/4 plywood and used it as a brace to provide sheer strength. Mine also wasn't as tall so the weight went directly onto the rails, I'll see if I can dig up some pictures.

    The low mounted basket looks clean man! Don't mean to be sh!ting on your concept.

    TacoManOne likes this.
  9. Nov 26, 2017 at 9:13 PM
    #9
    Rileyk700

    Rileyk700 [OP] BigRedMachine

    Joined:
    Jun 14, 2017
    Member:
    #221550
    Messages:
    37
    First Name:
    Carl
    Vehicle:
    2017 Tacoma Off-Road
    Fox 2.5 lift. Pelfrey built rear bumper.
    Pictures would be awesome and the uni-strut square nuts are a great idea.This is what I fucking love about the forum, post the ideas, and then figure out where it needs fixed and how to improve it. I need to look more into sheer and where the majority of the weight is being applied.

  10. Nov 26, 2017 at 11:34 PM
    #10
    bhh2000

    bhh2000 Well-Known Member

    Joined:
    Dec 18, 2010
    Member:
    #47888
    Messages:
    264
    Gender:
    Male
    First Name:
    Ben
    Santa Rosa
    Vehicle:
    2016 DCLB TRD 4X4
    Here you go @Rileyk700

    This looks like the best picture I have, this super lo-pro system worked great for me.

    There is a short piece of 2X4 screwed onto the cross piece right next to the rail that was a bolt and washer that goes into the rail and threads into the uni-strut stuff. I have since learned that you can get square washers that fit a little better than the uni-strut but the uni-strut works.

    Good luck on your system! IMG_6257.jpg

    Black taco., C41n, RangerComa and 2 others like this.
  11. Nov 26, 2017 at 11:42 PM
    #11
    bhh2000

    bhh2000 Well-Known Member

    Joined:
    Dec 18, 2010
    Member:
    #47888
    Messages:
    264
    Gender:
    Male
    First Name:
    Ben
    Santa Rosa
    Vehicle:
    2016 DCLB TRD 4X4
    I just noticed the conundrum you got yourself in with the tool box and full length rack..... I see a bedslide in your future sir. Now that is something that needs a good DIY option, has anyone seen one?

    I miss my behind the cab toolbox from my first gen. Kept so much junk out of the cab.

  12. Nov 27, 2017 at 6:48 AM
    #12
    TC_Mic

    TC_Mic Well-Known Member

    Joined:
    Mar 28, 2017
    Member:
    #214625
    Messages:
    1,200
    Gender:
    Male
    State of confusion, aka Flori-duh
    Vehicle:
    2017 Silver Sky 2x4 Limited
    AMP Powerstep, UC Flex, bed lights, Opt7 Tailgate bar, black tailgate lettering Pending: re-configure tail light,s custom storage pocket bags, pinch weld painting, blackout badges, ......
    Just a suggestion.. at Home Depot they have the flat, boxed, U-channel, struts, and angle metal. Might try picking up a piece or two and use them to bolt straight to your rails with either 1/2 carriage bolts or a channel nut.

    Maybe something like this https://www.homedepot.com/p/Superstrut-1-5-8-in-x-10-ft-Metal-Framing-Channel-ZB14HS10PG/100183826

    You could have used it to increase the height of your boxed bar. You could still leave a few inches, maybe a foot, to allow you to raise it higher when needed for more cargo room under your basket. I will suggest you put a plate, or another piece of strut, to reinforce the corner where it meets you rack.

    Best of luck!!

    Last edited: Nov 27, 2017
    Rileyk700 [OP] likes this.
  13. Nov 27, 2017 at 7:30 AM
    #13
    backcountryj

    backcountryj Well-Known Member

    Joined:
    Aug 19, 2010
    Member:
    #41950
    Messages:
    4,229
    Gender:
    Male
    First Name:
    Jonathan
    GA
    Vehicle:
    2017 QS DCSB TRD OR 4wd

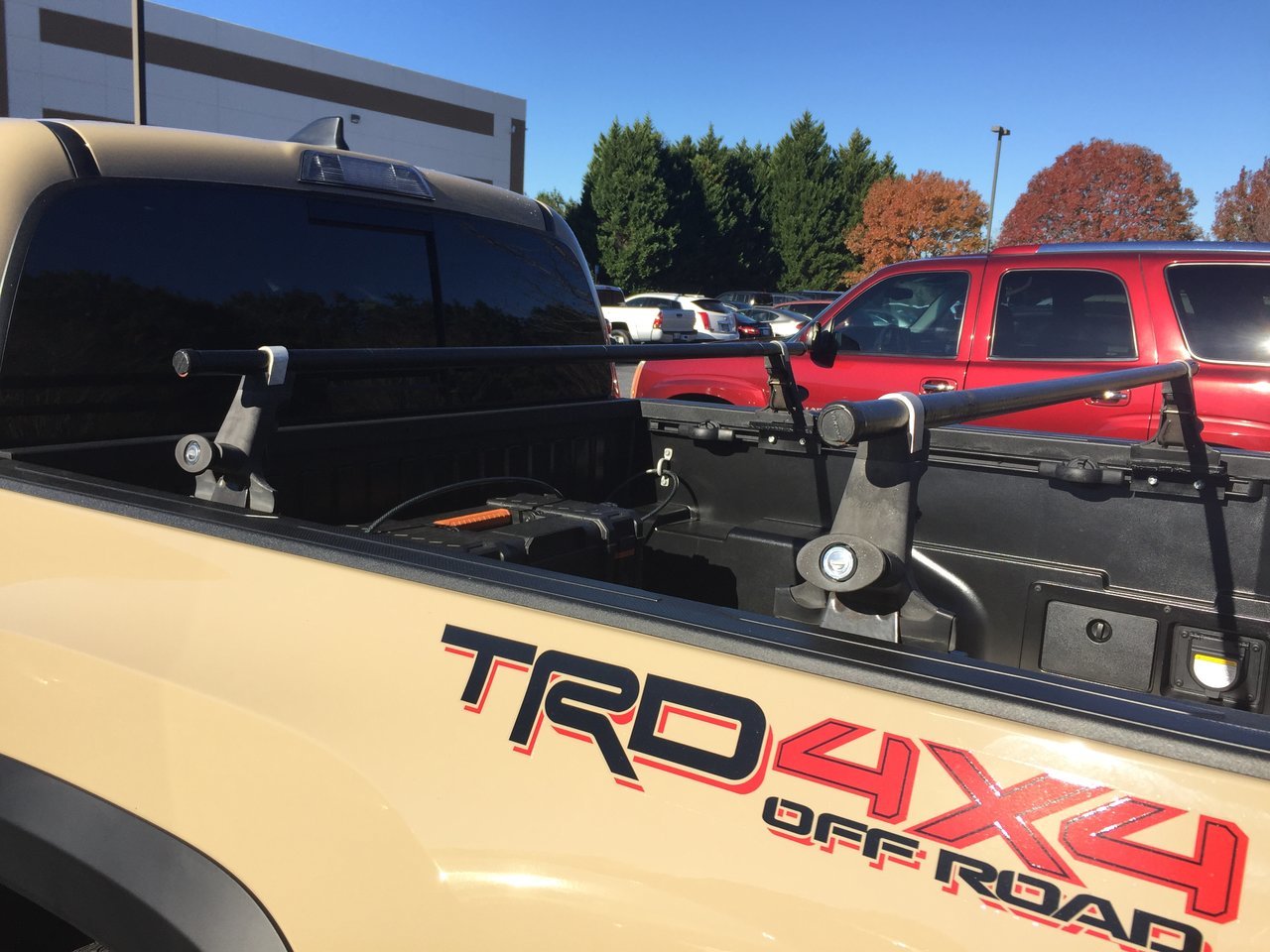

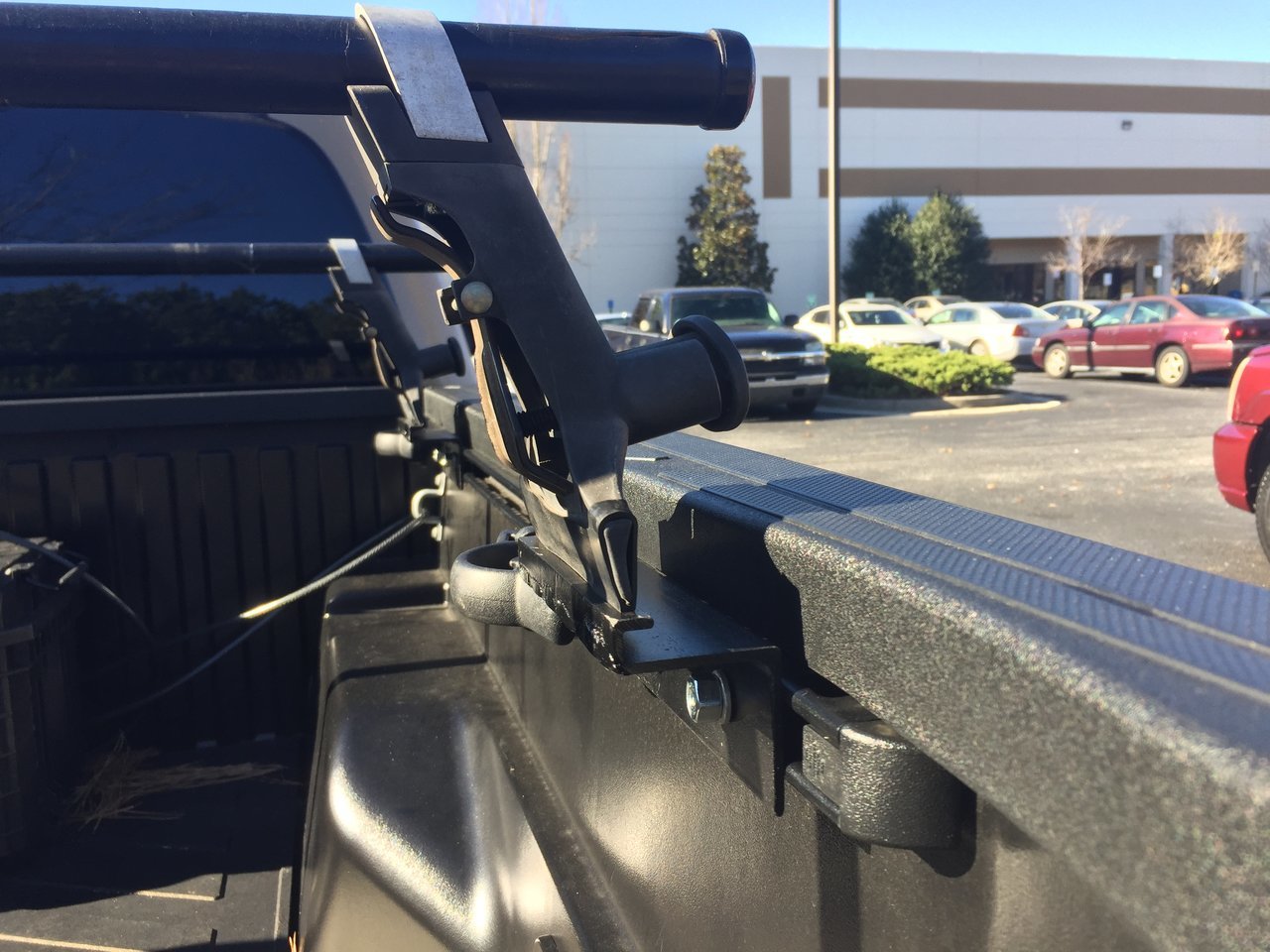

    These aren’t DIY crossbars, but rather DIY brackets for some Yakima rain gutter towers I had laying around.

    I think I spent less than $30 on the hardware and angle iron.

    A simple angle iron bracket would work for your setup @Rileyk700. You could bolt or weld your bars to the angle iron.
    33DB7229-647D-4EA0-AE26-F57B7D37C3EB.jpg 3B7FEC6E-B1AF-4B15-9A7E-F6F22209576B.jpg

  14. Nov 27, 2017 at 8:02 AM
    #14
    tonered

    tonered tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    12,792
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    I like what you did. Nice work.

    I would have suggested what others have said / shown to extend your bars and let them bars rest on the bed rail. Put a piece of thick rubber between your bars and the bed rail, and you'll be set for a long time.

    Also, it looks like your are using plain steel sections and fasteners. I'd hit those with at least some good paint primer to keep them rust free.

    Rileyk700 [OP] likes this.

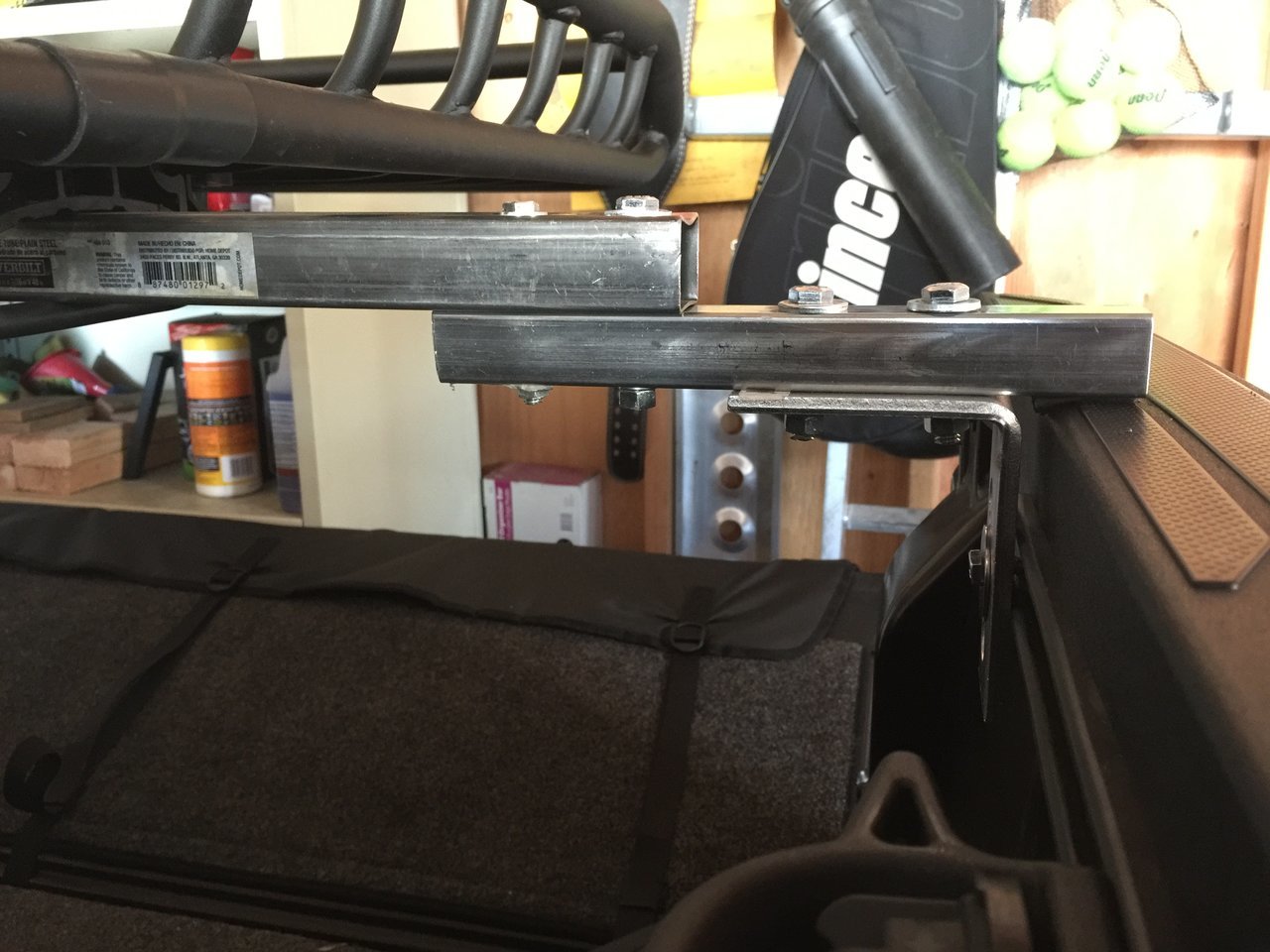

  15. Nov 29, 2017 at 12:11 PM
    #15
    Rileyk700

    Rileyk700 [OP] BigRedMachine

    Joined:
    Jun 14, 2017
    Member:
    #221550
    Messages:
    37
    First Name:
    Carl
    Vehicle:
    2017 Tacoma Off-Road
    Fox 2.5 lift. Pelfrey built rear bumper.
  16. Nov 29, 2017 at 12:32 PM
    #16
    tonered

    tonered tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    12,792
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    Yep. You're gonna be a lot happier with that.

  17. Nov 29, 2017 at 1:21 PM
    #17
    TC_Mic

    TC_Mic Well-Known Member

    Joined:
    Mar 28, 2017
    Member:
    #214625
    Messages:
    1,200
    Gender:
    Male
    State of confusion, aka Flori-duh
    Vehicle:
    2017 Silver Sky 2x4 Limited
    AMP Powerstep, UC Flex, bed lights, Opt7 Tailgate bar, black tailgate lettering Pending: re-configure tail light,s custom storage pocket bags, pinch weld painting, blackout badges, ......
    Looks good. :thumbsup:

    A little rust proofing/painting and you are set!!

  18. Mar 22, 2018 at 2:21 PM
    #18
    phsycle

    phsycle Well-Known Member

    Joined:
    Aug 22, 2011
    Member:
    #62149
    Messages:
    1,870
    Gender:
    Male
    CA
    Hey Rileyk, how's this been working out for you? I am looking to do the same thing. Except I will be using regular Yakima round cross bars. I'm unsure why you cut the top bar short of the bed and bolted on the bottom piece (for rise?), but I would've suggested taking it all the way across to the bed and bolted both bars to the L bracket. Where did you get those L brackets from? Did you use a cleat on the bolt, or just a nut?

    I don't need the rise and will be taking the single bar all the way across and have the bed carry the weight than the bracket. I just need to find a nice, sturdy bracket and some security torx bolts.

    Anyone know where I can get some L brackets that would be ideal for a job like this?

  19. Mar 22, 2018 at 2:25 PM
    #19
    FrayAdjacent

    FrayAdjacent Well-Known Member

    Joined:
    Aug 7, 2017
    Member:
    #226135
    Messages:
    317
    Gender:
    Male
    First Name:
    Matthew
    Austin, TX
    Vehicle:
    2017 Tacoma SR5 4x4
    Last setup looks better. I'd posit you want the weight of the rack and whatever is on it to rest on the BED, not the rails. Securing to the rails would be done to prevent the rack from sliding back and forth or side to side, and possibly also to prevent it from 'hopping' if you should do some Dukes of Hazzard type shit.

    silvertxtaco likes this.
  20. Jan 4, 2020 at 1:54 PM
    #20
    AdventureTaco

    AdventureTaco Active Member

    Joined:
    Jan 4, 2020
    Member:
    #315136
    Messages:
    28
    Gender:
    Male
    First Name:
    Tom
    Vehicle:
    2019 Tacoma TRD Off-Road

    I have been searching for something like this since before I bought my truck. This idea seems genius. How much have you tried to load it up with? Also how well has it held up. Again great job and very ingenious.

    I'm going to also try and use a similar concept to design a bed slide
