DIY bed racks

Discussion in '3rd Gen. Tacomas (2016+)' started by Wixo, Nov 10, 2019 at 7:03 PM.

  1. Nov 10, 2019 at 7:03 PM
    #1
    Wixo

    Wixo [OP] Very Well-Known Member TTC#0175

    Joined:
    Dec 12, 2016
    Member:
    #204665
    Messages:
    2,441
    Gender:
    Male
    First Name:
    Mau
    Vehicle:
    '17 Tacoma TRD Off-Road Inferno
    Good evening everybody!

    I have a bunch of 1x1 (I think, maybe 1.5x1.5) square tubing. Im thinking of utilizing said material to make some bed bars for a tent. I was just curious as to how to make the mounts? The bars themselves are pretty straight forward although Im not sure if I shuold make the angled or 90 degrees. Anyways, how should I make the mounts and how do I go about mounting them on the bed? Do I just drill anywhere I see fit? Do I drill from the top or side or both? 2 bolts or 1? If yall could help me out and upload pics of you mounts and where they are bolted on it would help me out a lot. TIA

  2. Nov 10, 2019 at 7:04 PM
    #2
    Hobbs

    Hobbs .

    Joined:
    Mar 20, 2016
    Member:
    #181838
    Messages:
    7,790
    ***El Camino Sierra
    Vehicle:
    2016 TRD Off-Road Quicksand, AC, AT, Fun Machine!
    < < I gotta go! > >
    Perhaps look at how the fabricators/vendors have designed the bed racks they sell.

    Skydvrr and Wixo [OP] like this.
  3. Nov 10, 2019 at 7:06 PM
    #3
    Wixo

    Wixo [OP] Very Well-Known Member TTC#0175

    Joined:
    Dec 12, 2016
    Member:
    #204665
    Messages:
    2,441
    Gender:
    Male
    First Name:
    Mau
    Vehicle:
    '17 Tacoma TRD Off-Road Inferno
    Ive seen some, but there are no up-close pics of how they are mounted. I will keep researching, but I wouldn't want to go up to a company and ask how to replicate their product.

  4. Nov 10, 2019 at 7:11 PM
    #4
    Hobbs

    Hobbs .

    Joined:
    Mar 20, 2016
    Member:
    #181838
    Messages:
    7,790
    ***El Camino Sierra
    Vehicle:
    2016 TRD Off-Road Quicksand, AC, AT, Fun Machine!
    < < I gotta go! > >
    Have you looked for installation documentation from rack vendors? Some may post up such info.

    Skydvrr and Wixo [OP] like this.
  5. Nov 10, 2019 at 7:11 PM
    #5
    5nahalf

    5nahalf Well-Known Member

    Joined:
    Sep 22, 2018
    Member:
    #267058
    Messages:
    1,460
    Gender:
    Male
    First Name:
    Erik
    Vehicle:
    2018 inferno orange trd off-road
    Most just sit on top of the bed rails, but bolt into the track system on the sides of the bed.

    Don’t drill into the bed, there is no need to when the bed has a track system to bolt to.

    Skydvrr, Wixo [OP] and shakerhood like this.
  6. Nov 10, 2019 at 7:12 PM
    #6
    shakerhood

    shakerhood Well-Known Member

    Joined:
    Aug 9, 2015
    Member:
    #161370
    Messages:
    20,607
    Gender:
    Male
    Southern Ohio
    Vehicle:
    2017 MGM DCSB Off Road, 6 Speed MT, P&T
    I think I used 3 1/2" x 3 1/2" or 4" x 4" Angle to fit over the rail and bolt into the track.

    Skydvrr and Wixo [OP] like this.
  7. Nov 10, 2019 at 7:15 PM
    #7
    CrispyTacoLover

    CrispyTacoLover Well-Known Member

    Joined:
    Jun 27, 2019
    Member:
    #297647
    Messages:
    646
    Gender:
    Male

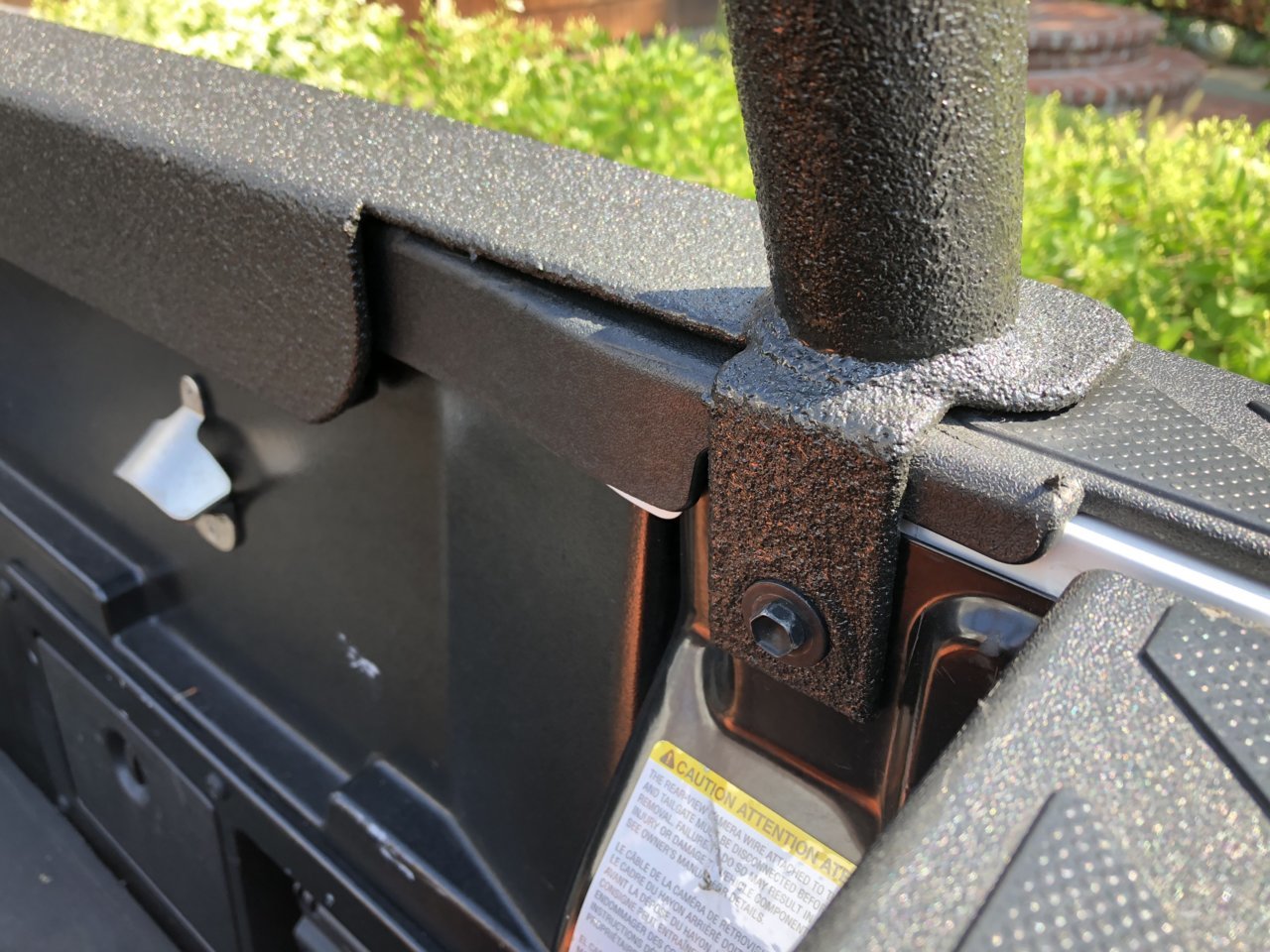

    Does this give you any idea? T bolts in the track. You should be able to zoom in.

    Fastbilly5, shakerhood and Wixo [OP] like this.
  8. Nov 10, 2019 at 7:17 PM
    #8
    Wixo

    Wixo [OP] Very Well-Known Member TTC#0175

    Joined:
    Dec 12, 2016
    Member:
    #204665
    Messages:
    2,441
    Gender:
    Male
    First Name:
    Mau
    Vehicle:
    '17 Tacoma TRD Off-Road Inferno
    Could you upload some pics?

  9. Nov 10, 2019 at 7:19 PM
    #9
    shakerhood

    shakerhood Well-Known Member

    Joined:
    Aug 9, 2015
    Member:
    #161370
    Messages:
    20,607
    Gender:
    Male
    Southern Ohio
    Vehicle:
    2017 MGM DCSB Off Road, 6 Speed MT, P&T
    Let me see if I have anything stashed on my phone.

    Wixo [OP] likes this.
  10. Nov 10, 2019 at 7:19 PM
    #10
    Wixo

    Wixo [OP] Very Well-Known Member TTC#0175

    Joined:
    Dec 12, 2016
    Member:
    #204665
    Messages:
    2,441
    Gender:
    Male
    First Name:
    Mau
    Vehicle:
    '17 Tacoma TRD Off-Road Inferno
    Yessir, thats very helpful thank you. Would you be able to tell me more or less how long those bolts are? Do they have a nut on the other side? Self tapping?

    shakerhood likes this.
  11. Nov 10, 2019 at 7:19 PM
    #11
    Wixo

    Wixo [OP] Very Well-Known Member TTC#0175

    Joined:
    Dec 12, 2016
    Member:
    #204665
    Messages:
    2,441
    Gender:
    Male
    First Name:
    Mau
    Vehicle:
    '17 Tacoma TRD Off-Road Inferno
    Thanks

    shakerhood likes this.
  12. Nov 10, 2019 at 7:25 PM
    #12
    shakerhood

    shakerhood Well-Known Member

    Joined:
    Aug 9, 2015
    Member:
    #161370
    Messages:
    20,607
    Gender:
    Male
    Southern Ohio
    Vehicle:
    2017 MGM DCSB Off Road, 6 Speed MT, P&T

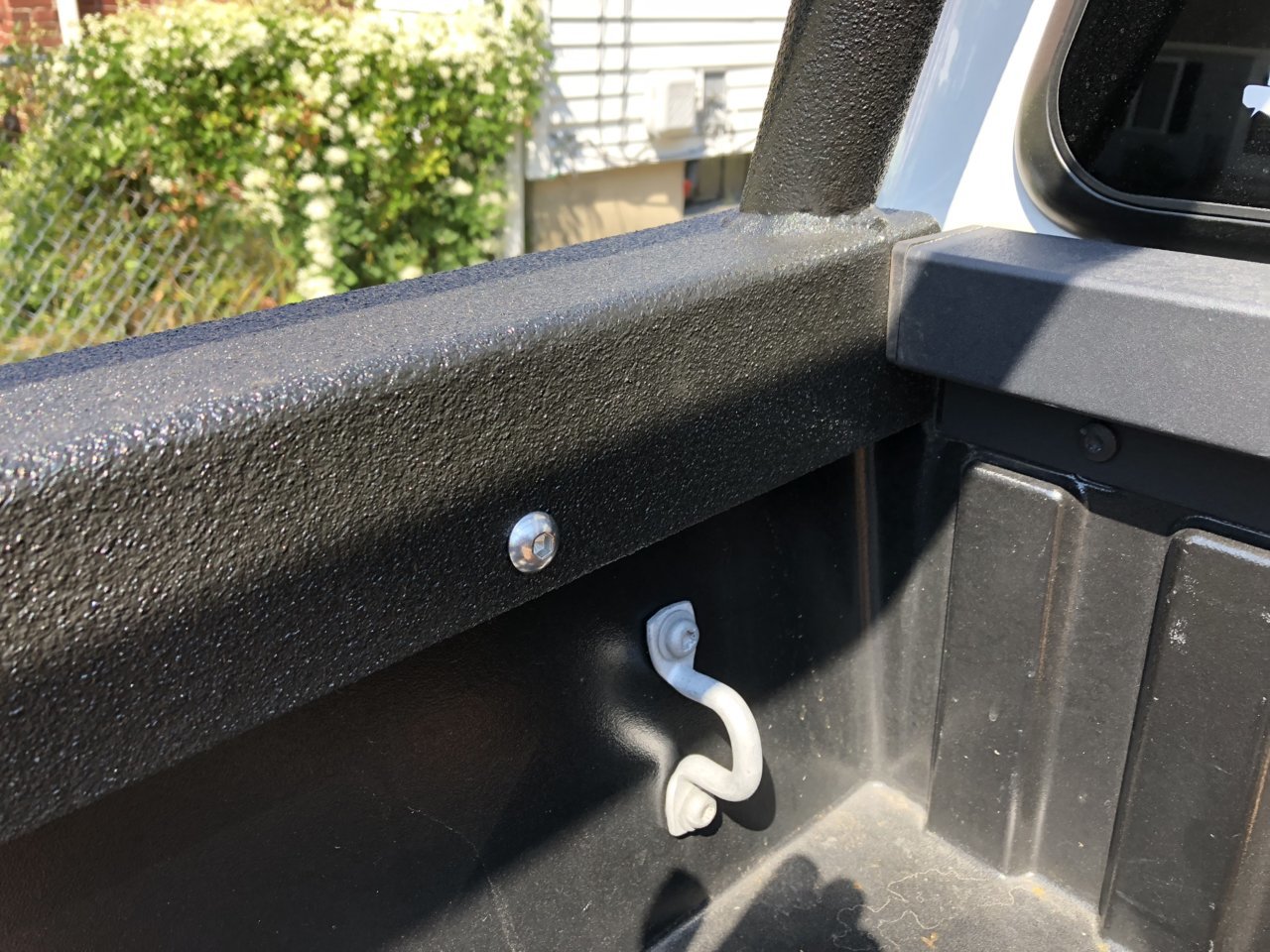

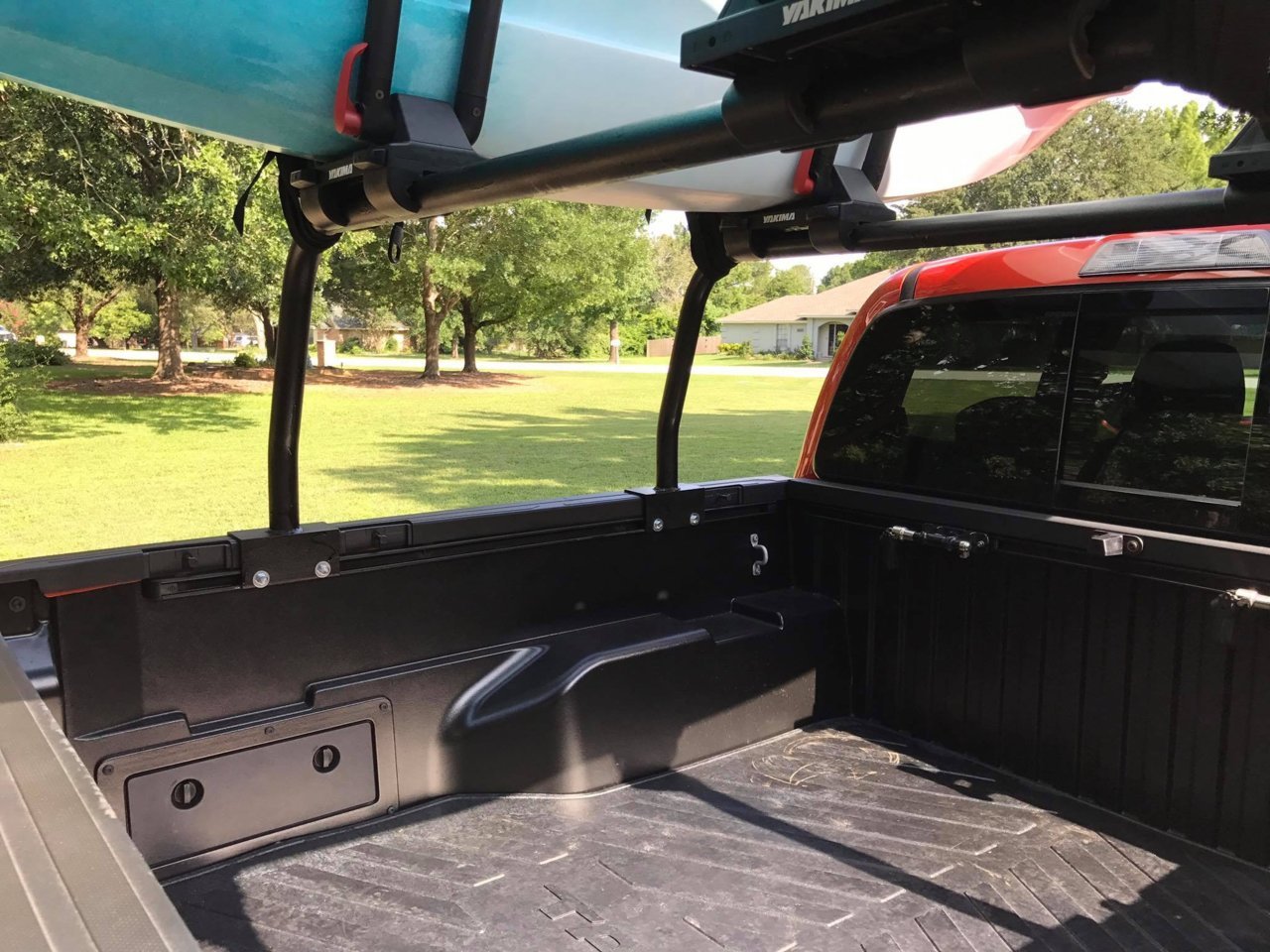

    This is a decent shot as it shows how the angle fits over the bed rail, it also gets bolted into the track with tamper proof stainless bolts. I went with no rise over the bed but you could fab any height you wish

    Tacospike, Fastbilly5 and Wixo [OP] like this.
  13. Nov 10, 2019 at 7:39 PM
    #13
    CrispyTacoLover

    CrispyTacoLover Well-Known Member

    Joined:
    Jun 27, 2019
    Member:
    #297647
    Messages:
    646
    Gender:
    Male
    I think I commented a few days ago on the exact t nuts you want in a different thread. The bolt length is going to depend on the thickness of the stuff you are bolting down. These bolts are 1.5” long grade 8.

    Wixo [OP] and shakerhood like this.
  14. Nov 10, 2019 at 7:43 PM
    #14
    CrispyTacoLover

    CrispyTacoLover Well-Known Member

    Joined:
    Jun 27, 2019
    Member:
    #297647
    Messages:
    646
    Gender:
    Male
    yep... https://www.tacomaworld.com/threads/black-horse-roll-bar-question.631352/#post-21661150

    I purchased at https://www.zoro.com/te-co-tap-thru-t-slot-nut-38x12-41405t/i/G1717033/?q=41405t

    Bolts and washers came from homedepot or boltdepot. I forget which.

    Last edited: Nov 10, 2019 at 7:50 PM
    Wixo [OP] likes this.
  15. Nov 10, 2019 at 7:52 PM
    #15
    t4daddy

    t4daddy Well-Known Member

    Joined:
    Jun 16, 2010
    Member:
    #39041
    Messages:
    7,232
    Gender:
    Male
    North Alabama
    Vehicle:
    2008 PreRunner Double Cab
    Those appear to be one inch bolts, unless they are Metric, then they appear to be a 25mm M8? Typically you don't count the "head thickness" just the thread length.

    Wixo [OP] likes this.
  16. Nov 10, 2019 at 7:56 PM
    #16
    CrispyTacoLover

    CrispyTacoLover Well-Known Member

    Joined:
    Jun 27, 2019
    Member:
    #297647
    Messages:
    646
    Gender:
    Male
    Yes, they are 1.5 with the head. Your application determines actual length so this is just an example of what I used.

    Most people recommend the t nuts that aren’t threaded all the way through. Those will hose your bolts if you aren’t precise. Hence the reason I recommend and use fully threaded t nuts.

    Fastbilly5 likes this.
  17. Nov 10, 2019 at 8:00 PM
    #17
    Ronzio

    Ronzio Well-Known Member

    Joined:
    Feb 20, 2018
    Member:
    #245114
    Messages:
    1,740
    Gender:
    Male
    Pennsylvania
    Vehicle:
    17 DCSB TRDOR
  18. Nov 10, 2019 at 8:01 PM
    #18
    shakerhood

    shakerhood Well-Known Member

    Joined:
    Aug 9, 2015
    Member:
    #161370
    Messages:
    20,607
    Gender:
    Male
    Southern Ohio
    Vehicle:
    2017 MGM DCSB Off Road, 6 Speed MT, P&T
  19. Nov 10, 2019 at 8:02 PM
    #19
    t4daddy

    t4daddy Well-Known Member

    Joined:
    Jun 16, 2010
    Member:
    #39041
    Messages:
    7,232
    Gender:
    Male
    North Alabama
    Vehicle:
    2008 PreRunner Double Cab
    Per your pic, they are 1.25” with the head included...

    Wixo [OP] likes this.
  20. Nov 10, 2019 at 8:29 PM
    #20
    CrispyTacoLover

    CrispyTacoLover Well-Known Member

    Joined:
    Jun 27, 2019
    Member:
    #297647
    Messages:
    646
    Gender:
    Male
    You’re a picky mother fucker aren’t you? Did you account for camera angel, shadows and wine.

    I think the OP gets the idea. You can butt out now.

    Skydvrr and Wixo [OP] like this.
