as far as i know yes.



How many prongs on the relay you are using?



4



What are you tapping for a power source to trip the relay? The accessory circuit should put out enough power to flip the relay and it has power only when the key is turned. That power should go to the energizing coil. The power for the buzzer should come from through the relay with the ground side of the buzzer connected to chassis ground. It should also be a Normally Closed relay. You want it to disable the buzzer's power path when the key is turned on.



i just stuck a wire into a fuse to the radio to test it out. Probably a user error.



There are two types of relays: normally open and normally closed. Make sure it's a normally closed relay. Normally open relays have a disrupted path when no power is connected to the coil. This is the type that is usually used with off-road lights (turning on my driving lights energizes the coil which allows me to use my off-road lights). Normally closed relay's have a path for power when no power is applied to the coil.



that would be the problem. thanks for solving that for me.



i think i'll do this one after work. I feel like messing with my truck. Just bought all the stuff the other day..



you trying a relay out?



I dont think so. I dont believe it would be all that necessary

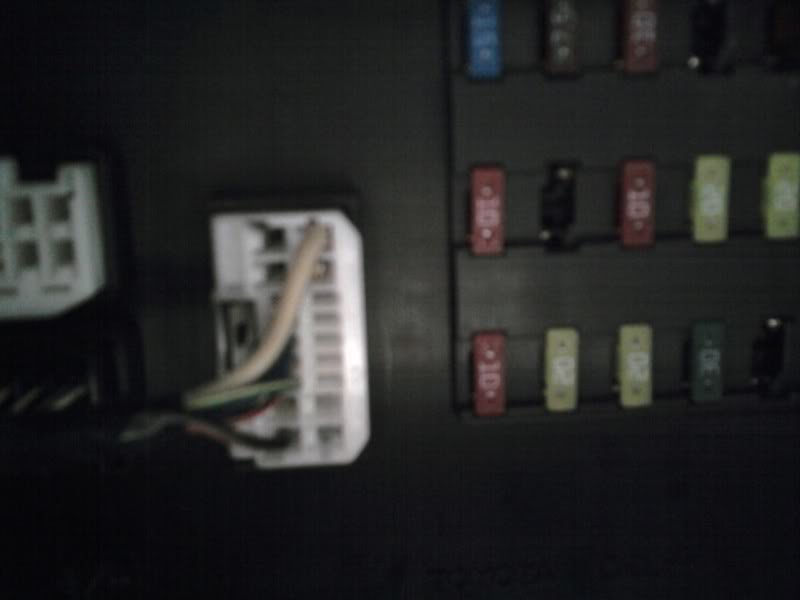

OKAY so here's your picture of that harness plug,

and here is mine:



So you can see why i'm a bit confused...



yours is like lents and mine. can't follow his write up cause there are different fuse boxes. Gotta dig around that wire bundel. its in there.



yah, i might just follow your writeup tomorrow when i do the window thing.



maybe lents will take some pictures. i was fumbling all around in the dash and door and then just decided to dig around that harness. It's the blue and pink wire (i think, tell lentsnh i told you pm him and ask for a picture)



I just did this beep mod and love the confirmation the doors are locked. Thanks for the clear instructional pics-it made doing mine a piece of cake!



Found it! I'll do it tomorrow when im not workin



Some reason mine didn't work???



The $7.50 Piezoelectric Buzzer gave up the ghost already after 2 weeks. I'm going to try using a 12V backup alarm instead. You get what you pay for...



Does it matter if the buzzer is a Pulsating buzzer or not?



The 12 volts isn't on very long, just long enough to pop the door locks...so I'm not sure if a pulsating buzzer will work.
