DIY DTL MOD under $20 bucks write Up How too..

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Hunter7, Dec 25, 2016.

  1. Dec 25, 2016 at 5:30 PM
    #1
    Hunter7

    Hunter7 [OP] Well-Known Member

    Joined:
    Dec 3, 2016
    Member:
    #203910
    Messages:
    144
    Gender:
    Male
    First Name:
    Paul
    Vehicle:
    2015 tacoma double cab long bed
    Step 1:

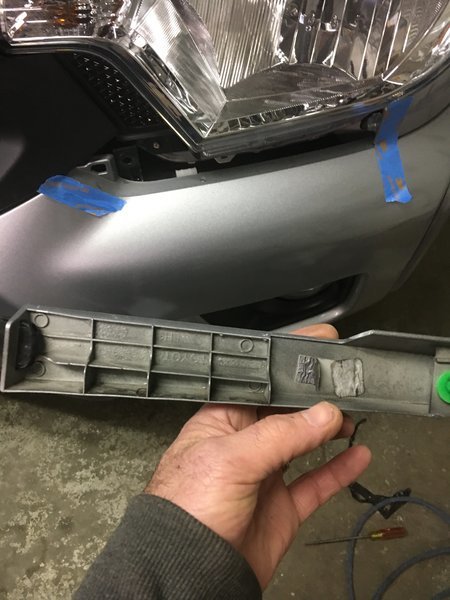

    Remove the plastic Trim piece under the headlights. You can do this by carefully prying out the side closest to the grill, then carefully wiggle the far side towards the center of the truck. and it will Pop off.

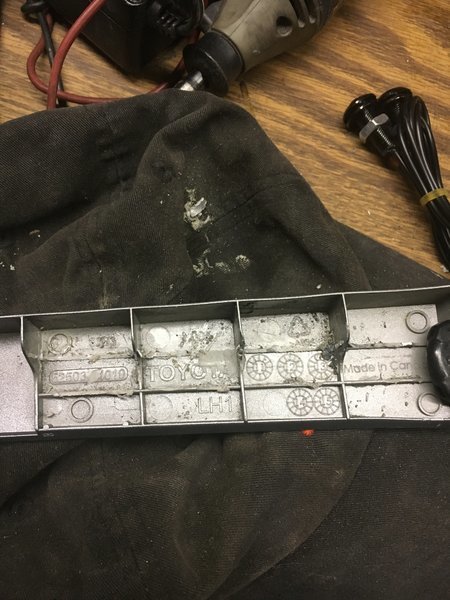

    Step 2: If you look at the back side of the trim piece you will see a grid type section' I use a dremel tool to cut these out flush, To make Room for the led's.Fig 1&2

    fig 1020.jpg



    Step:3 I drew a line right over where the pieces I cut out were and directly in the center of each piece. see fig :3

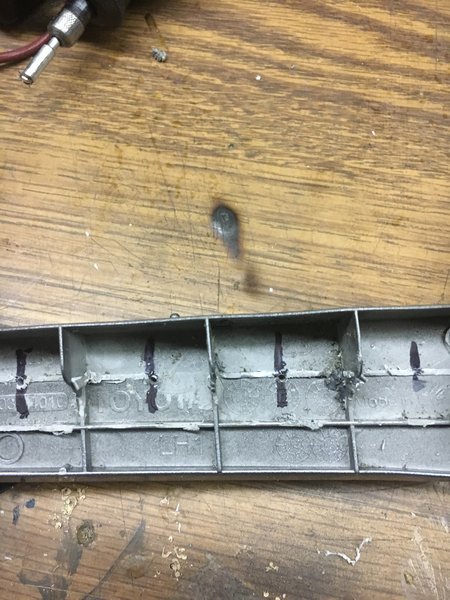

    Fig 3:027.jpg Drill a tiny pilot hole where as seen in fig :3

    Step:4 carefully drill the pilot holes
    then drill the correct size to accept the led threaded shank: NOTE:
    DRILL FROM THE FINISHED SIDE OF TRIM PLATE:

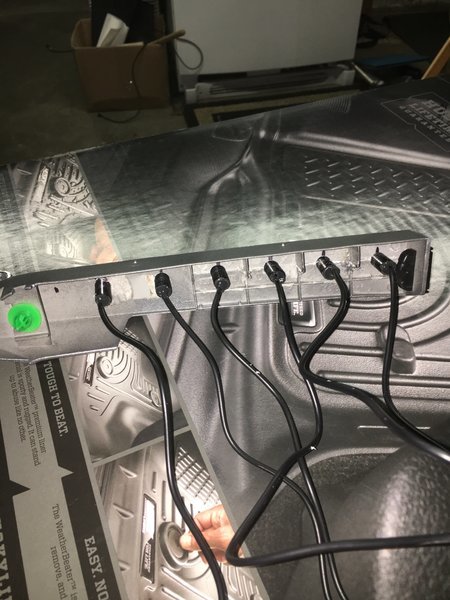

    Step :4 Trim each led light wire leaving about 4" , Insert all led's and tighten the supplied Nuts on the unfinished side of trim plate. as seen in Fig: 4.&5

    Fig:4

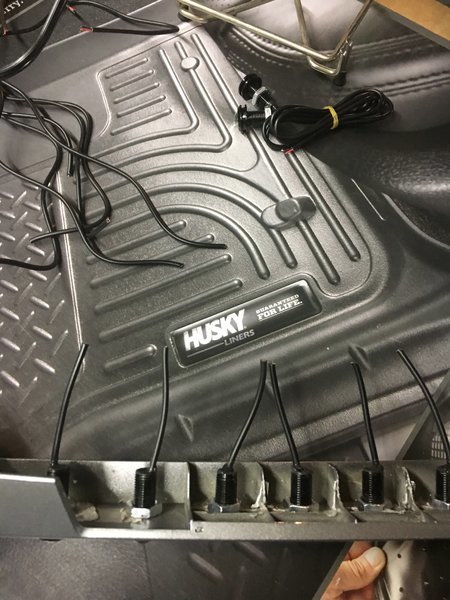

    Fig: 5035.jpg

    Step: 6 carefully strip the black outer insulation about 2" be careful the red and black wires under this insulation are extremely thin. see fig:6

    FIG: 6036.jpg

    Step: 7 very very carefully strip about 1/2" of each red and each black led wire. also refer to step FIG 6:

    Step :8 take two pieces of wire . like 14 ga supple insulation is easier to work with. Cut approximately 3ft of each one will be + POS the other will be - Neg.

    Step:9 strip the end of the wire and I soldered the pos + to all the red wires coning from the leds, then do the same with the other wire solder all the - neg from the led's See Fig 7

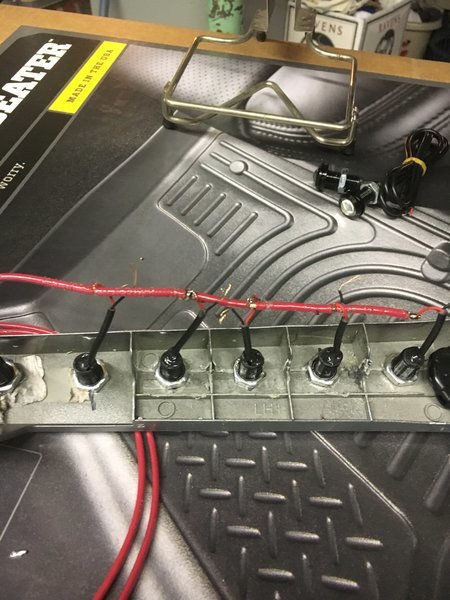

    fig: 7 038.jpg

    FIG: 7: B 040.jpg

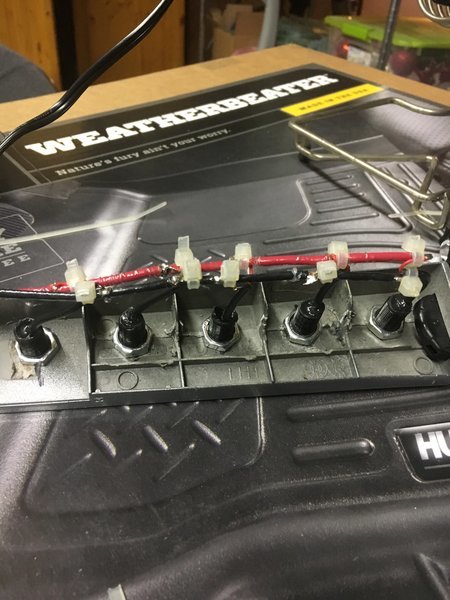

    Step :9 After all wires are soldered or taped , I wire tied each one for strength. as seen in FIG:7B

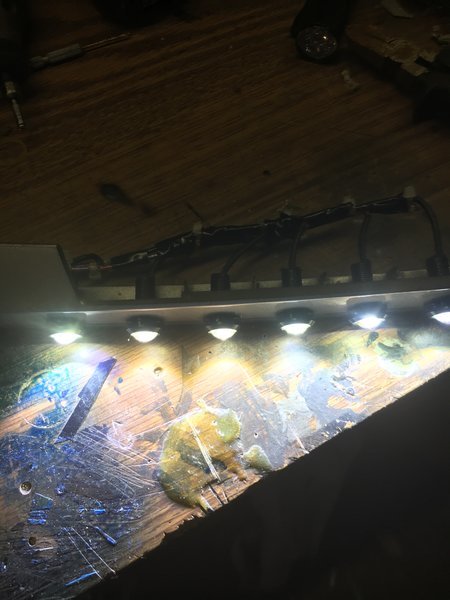

    Then simply bench test, By connecting the + pos wire to 12 V pos supply and the - Neg wire to the neg Ground , All your leds should light. as seen in Fig: 8

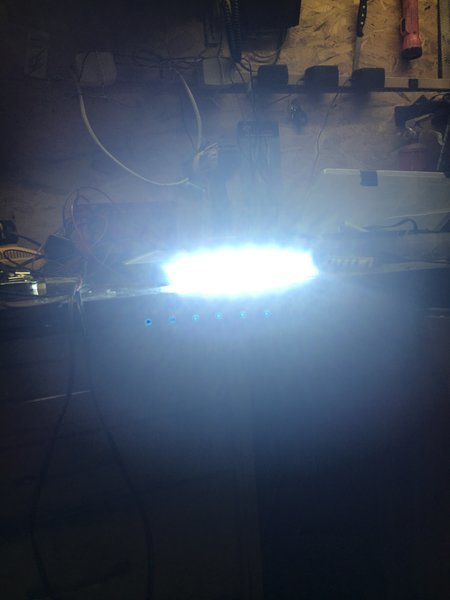

    FIG: 8045.jpg

    FIG 8:B044.jpg

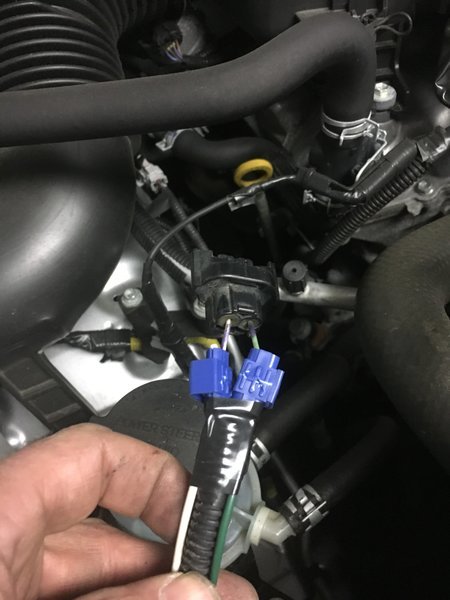

    Step 10: carefully reinstall the Plastic trim on your vehicle.. I connected my power source to my fogs , I may run a seperate switch in the future. I simply removed the fog bulb undid the clips and connected POS+ to Pos fog then Neg from new drl to Neg fog. See Fig :9

    Fig: 9070.jpg , then snake wires back down install fog bulb back in socket and install socket back in fog, Or run to a separate switch. If you do run to a separate switch make sure you add a fuse in -line.

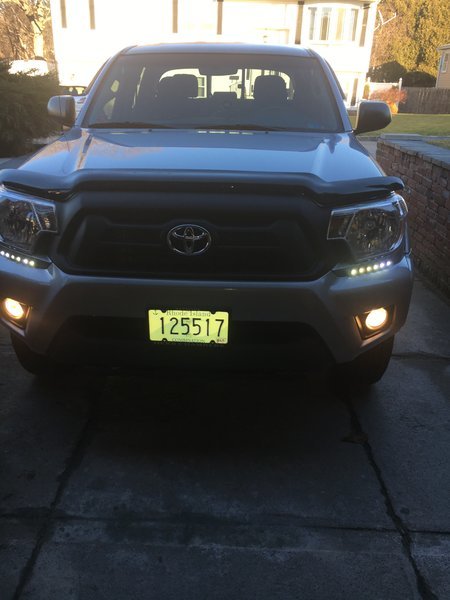

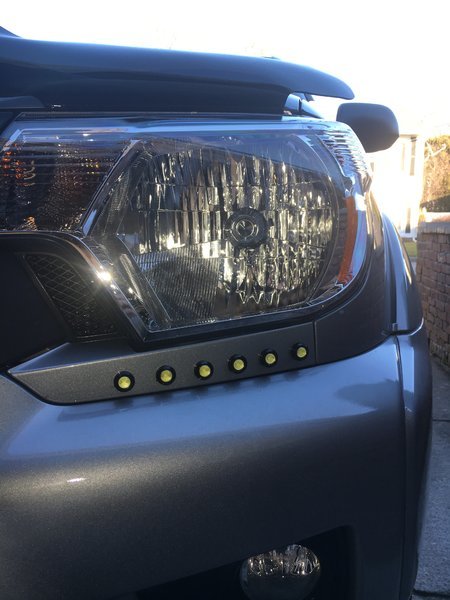

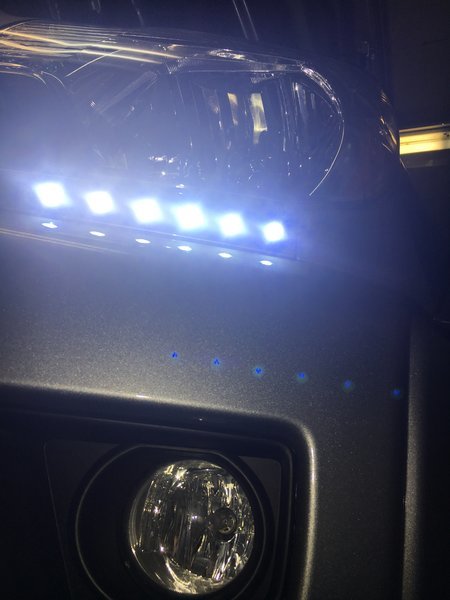

    Step 11: time to secure all wires and light them up ..... see pix below





    here is the link for the Led lights ,http://www.ebay.com/itm/281987848429

    Last edited: Dec 25, 2016
  2. Dec 25, 2016 at 5:36 PM
    #2
    Kyitty

    Kyitty Mr. Beard

    Joined:
    Feb 20, 2015
    Member:
    #149179
    Messages:
    9,247
    Gender:
    Male
    Bozeman, MT
    Vehicle:
    2015 Tacoma DCLB Better Than TRD
    See Build Page
    Awesome! Would love to do this on my rig.

    ChadsPride likes this.
  3. Dec 25, 2016 at 5:42 PM
    #3
    Hunter7

    Hunter7 [OP] Well-Known Member

    Joined:
    Dec 3, 2016
    Member:
    #203910
    Messages:
    144
    Gender:
    Male
    First Name:
    Paul
    Vehicle:
    2015 tacoma double cab long bed
    simple cheap Mod and very easy just a bit time consuming because I always solder everything I can... I was looking at the kits on line they want like $180.00 dollars NOT!

    ChadsPride likes this.
  4. Dec 25, 2016 at 8:20 PM
    #4
    rjbiii

    rjbiii Alleged Member

    Joined:
    May 3, 2016
    Member:
    #186002
    Messages:
    11,688
    Gender:
    Male
    First Name:
    Robert
    SATX
    Vehicle:
    '09 ACLB 5spd PreRunner & '13 DCSB 6spd 4x4
    stock
    Great write up! Ill most likely be doing this in the future. This should definitely be in the cheap/free mods thread! Ill put a link in there for this write up, good job.

    https://www.tacomaworld.com/threads/cheap-free-mods.4838/

    stbear and Hunter7 [OP] like this.
  5. Dec 25, 2016 at 8:51 PM
    #5
    Hunter7

    Hunter7 [OP] Well-Known Member

    Joined:
    Dec 3, 2016
    Member:
    #203910
    Messages:
    144
    Gender:
    Male
    First Name:
    Paul
    Vehicle:
    2015 tacoma double cab long bed
    Thanks I did not know If a Mod had to put it there... Please feel free

  6. Dec 25, 2016 at 9:00 PM
    #6
    ZachPrerunner

    ZachPrerunner Live LOUD, REDNECK PROUD!

    Joined:
    Jul 7, 2015
    Member:
    #158942
    Messages:
    2,615
    Gender:
    Male
    Southeast TN
    Vehicle:
    2007 TRD Offroad Prerunner
  7. Dec 25, 2016 at 9:09 PM
    #7
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    108,943
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
  8. Dec 26, 2016 at 2:35 PM
    #8
    jv_74

    jv_74 Well-Known Member

    Joined:
    Dec 7, 2016
    Member:
    #204258
    Messages:
    353
    Gender:
    Male
    First Name:
    Jesse
    Filthadelphia
    Vehicle:
    2015 DCSB Silver Sky Metallic
    Adding to my to-do list. Cool!!!

  9. Dec 29, 2016 at 12:33 PM
    #9
    steveoh

    steveoh Well-Known Member

    Joined:
    May 15, 2012
    Member:
    #78913
    Messages:
    189
    Gender:
    Male
    First Name:
    Steve
    SLC
    Vehicle:
    08 ACLB SR5 4x4
    has anyone done this to say a 2008 that doesn't have DTRL? I suppose you could wire it up to the middle light setting or always on...

  10. Jan 12, 2018 at 2:19 PM
    #10
    TacoLou

    TacoLou Member

    Joined:
    Jan 6, 2018
    Member:
    #240421
    Messages:
    24
    Gender:
    Male
    First Name:
    Louie
    Ocala, FL
    Vehicle:
    '07 Silver TRD Prerunner SR5
    Tail lights and interior lights so far but I'm looking to go LEDs all the way around. I like the hood light strip and I'm considering it.
    Can't find those LEDs. I may not be looking in the right place.

  11. Jan 16, 2018 at 10:47 AM
    #11
    LC7

    LC7 Well-Known Member

    Joined:
    Mar 27, 2017
    Member:
    #214529
    Messages:
    130
    Gender:
    Male
    Far Nor Cal
    Vehicle:
    2011 MGM DCLB 4x4 V6
    5100's w/885's, LR UCA, 3 leaf AAL, 255/80r17 ST Maxx on stock sport wheels, Dynabeads
  12. Jan 18, 2018 at 10:43 AM
    #12
    TacoLou

    TacoLou Member

    Joined:
    Jan 6, 2018
    Member:
    #240421
    Messages:
    24
    Gender:
    Male
    First Name:
    Louie
    Ocala, FL
    Vehicle:
    '07 Silver TRD Prerunner SR5
    Tail lights and interior lights so far but I'm looking to go LEDs all the way around. I like the hood light strip and I'm considering it.
