DIY Fumoto Valve on Oil Filter Cartridge

Discussion in '3rd Gen. Tacomas (2016+)' started by 05Taco4x4, Sep 6, 2018.

  1. Sep 6, 2018 at 1:34 AM
    #1
    05Taco4x4

    05Taco4x4 [OP] ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    5,038
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    FJ Tcase, Manual Hubs, 2017 Head unit, Mirror Riser

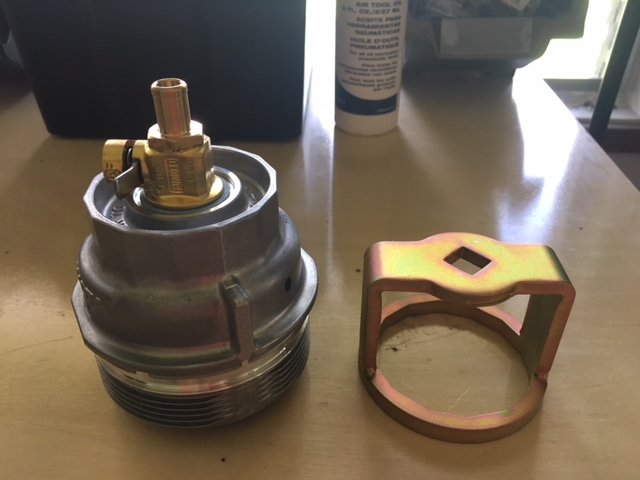

    This mod is for adding a Fumoto Valve to the cartridge, makes draining it quick and easy.
    Replaces and no longer need to remove/install the plug, plastic nipple and O-ring.

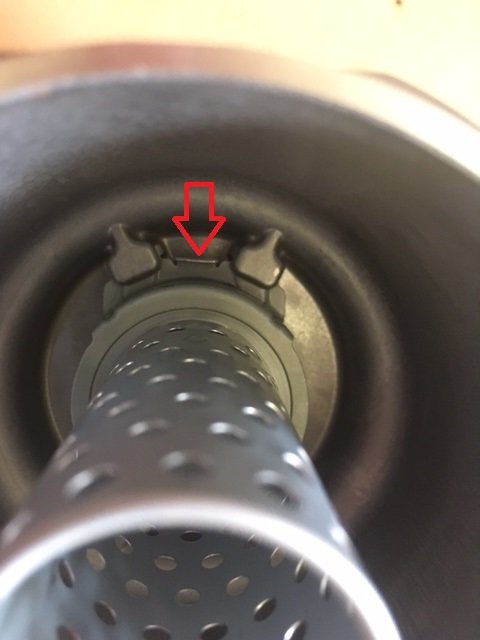

    Disassemble by flipping back the ear and pushing in/rotating the cone.

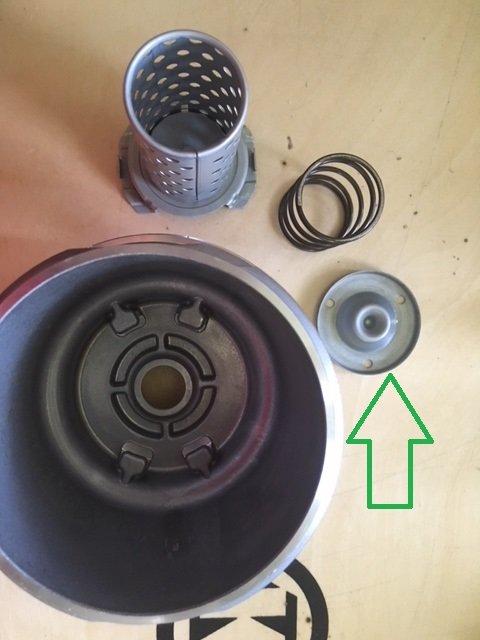

    Lift the cone up and out, followed by the spring and then the valve.
    Dispose of the valve, everything else will be reinstalled.

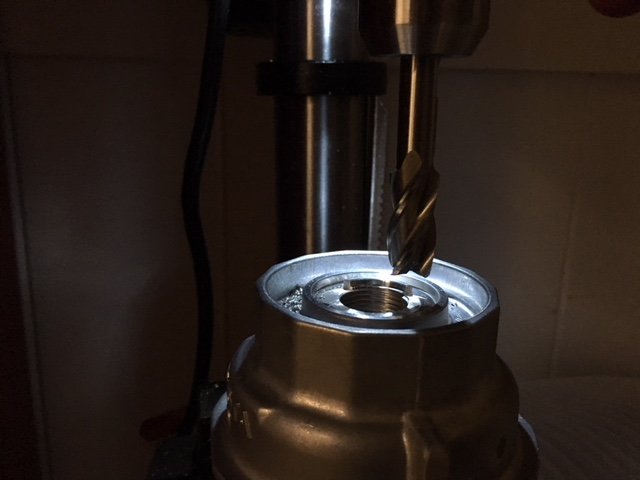

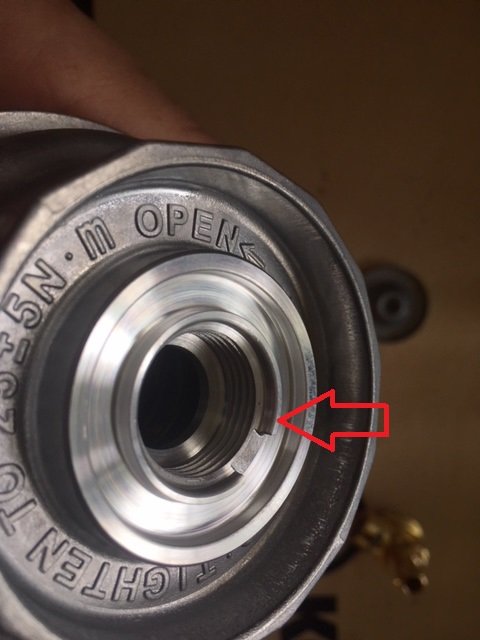

    Machine off the raised lip.
    Tap the thread all the way through, M20x1.5

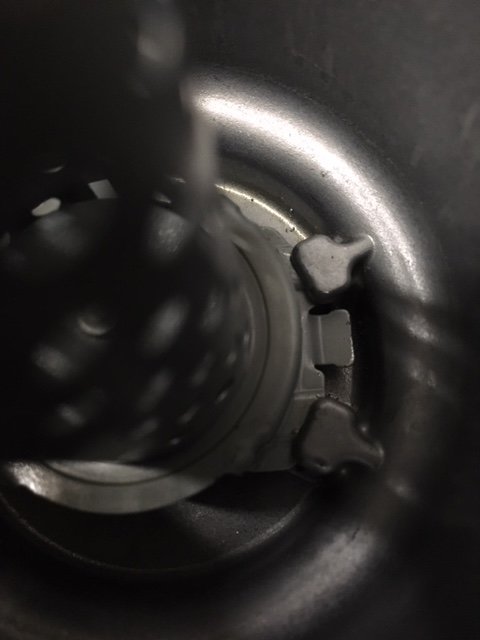

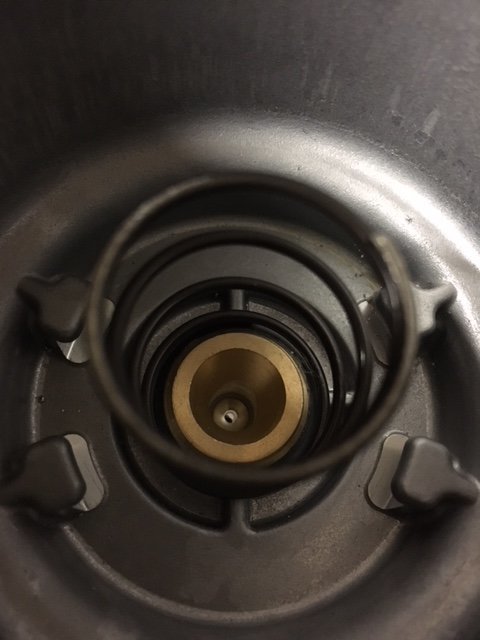

    Reinstall the spring and cone, flip the tab back down


    Nipple version F-105N is not necessary, plain F-105 is probably best
    http://www.amazon.com/dp/B07D9DW6L3
    http://www.amazon.com/dp/B077NYPG8K


    Contact me if you don't have the means to machine/tap the cartridge yourself, I can do for a reasonable price.

    4 minute oil change on 2TR-FE with Cartridge Conversion

    For those interested in converting their 2.7L spin on filter to a 3.5L Oil Filter Cartridge
    http://www.tacomaworld.com/threads/536996/

    Last edited: Jan 27, 2019
  2. Sep 6, 2018 at 7:55 AM
    #2
    Boricua

    Boricua Well-Known Member

    Joined:
    Apr 22, 2018
    Member:
    #251290
    Messages:
    516
    Gender:
    Male
    First Name:
    Jack
    Vehicle:
    2018 TRD Sport
    Is there a video how this thing truly works??

  3. Sep 6, 2018 at 8:07 AM
    #3
    stun gun

    stun gun Well-Known Member

    Joined:
    Nov 18, 2016
    Member:
    #202729
    Messages:
    14,129
    Gender:
    Male
    First Name:
    Aaronski
    Vehicle:
    Tacomas.
    17 4X4 sr5spd/01 LT sr5spd
    What are the benefits of switching from a spin on to a cartridge on a 2.7?

    BillsSR5 likes this.
  4. Sep 6, 2018 at 8:14 AM
    #4
    05Taco4x4

    05Taco4x4 [OP] ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    5,038
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    FJ Tcase, Manual Hubs, 2017 Head unit, Mirror Riser
    I don’t have a video; many people add a Fumoto Valve to their oil pan to drain oil. This drains the oil before removing the oil cap- no mess.
    Not getting oil everywhere, there’s threads on it

    taco 16 and stun gun like this.
  5. Sep 6, 2018 at 8:18 AM
    #5
    stun gun

    stun gun Well-Known Member

    Joined:
    Nov 18, 2016
    Member:
    #202729
    Messages:
    14,129
    Gender:
    Male
    First Name:
    Aaronski
    Vehicle:
    Tacomas.
    17 4X4 sr5spd/01 LT sr5spd
    It’s a very well put together mod, would probably look nice on my 2.7, but I would miss the disposable filter look, and I mastered the black art of “get a grocery bag and use it like a big glove to spin off the filter and then curse and scream when you realize there’s a hole in the bag” technique.
    Looking into a new system

  6. Sep 6, 2018 at 8:27 AM
    #6
    7r41lbr34k3r

    7r41lbr34k3r @gmail

    Joined:
    Sep 6, 2016
    Member:
    #196549
    Messages:
    2,840
    Gender:
    Male
    First Name:
    Rick
    Upper Perkiomen Valley, PA
    Vehicle:
    '17 SR w/ Conv. Pkg 2TR-FE 5MT 4x4 MGM
    [​IMG]
    [​IMG]



    Definitely a cool mod for an annoying issue the 2TR surely has, would probably do it if the cost was lower. Doesn't bother me enough to spend that kind of coin.

    stun gun likes this.
  7. Sep 6, 2018 at 9:28 AM
    #7
    Boricua

    Boricua Well-Known Member

    Joined:
    Apr 22, 2018
    Member:
    #251290
    Messages:
    516
    Gender:
    Male
    First Name:
    Jack
    Vehicle:
    2018 TRD Sport
    I used to have an s2000 and this oil drain was popular with the exception of some people having issues with oil leaks afterwards. I appreciate your work on this mod for sure!, but you still have to take the filter off to change it anyways. I have free oil changes on my truck, once I start changing it myself, I may consider this option if necessary.

  8. Sep 6, 2018 at 1:25 PM
    #8
    75z28

    75z28 Well-Known Member

    Joined:
    Jan 27, 2015
    Member:
    #147330
    Messages:
    607
    Gender:
    Male
    Homer
    Vehicle:
    2017 OR 4x4 DCLB SSM
    Absolutely none other than making a PAIN to change the oil. It is literally worthless lol
    I have had both types of filters and the set up on the 2tr is 100000000x better for oil changes.

  9. Sep 6, 2018 at 2:01 PM
    #9
    05Taco4x4

    05Taco4x4 [OP] ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    5,038
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    FJ Tcase, Manual Hubs, 2017 Head unit, Mirror Riser
    This thread is to show you how to make the 3.5L oil change easier.

    Tons of people installed Fumoto Valves on their 2nd Gen oil pans, haven’t seen a thread yet about a leak.

    Once you start changing your oil you’ll quickly recognize installing/removing the plastic drain nipple is a pain- you’ll have one less o-ring to install too.

    Last edited: Sep 6, 2018
    Spike_E and over60 like this.
  10. Sep 6, 2018 at 3:31 PM
    #10
    75z28

    75z28 Well-Known Member

    Joined:
    Jan 27, 2015
    Member:
    #147330
    Messages:
    607
    Gender:
    Male
    Homer
    Vehicle:
    2017 OR 4x4 DCLB SSM
    I have been changing oil since I was 10. It is really not that difficult. now I will admit a drain valve would be nice, but that is one more place to leak that isn't work the effort.
    I guess you haven't researched them very much if you haven't read about a leak. I wanted to do it and realized eh, the oil pan isn't hard to drain. The oil filter is, which you know what? Oh well, I don't change my oil THAT often to worry about needing to get a valve.

  11. Sep 6, 2018 at 3:52 PM
    #11
    rodrigger

    rodrigger Active Member

    Joined:
    Aug 16, 2017
    Member:
    #227009
    Messages:
    42
    Gender:
    Male
    Canada, BC
    Vehicle:
    2017 Tacoma TRD Sports Upgrade
    over60 likes this.
  12. Sep 6, 2018 at 3:58 PM
    #12
    KenLyns

    KenLyns 8.75" Third Member

    Joined:
    May 23, 2010
    Member:
    #37674
    Messages:
    29,373
    Gender:
    Male
    Belly of the Beast
    Vehicle:
    4x4 TRD Off-Road Full-Auto
    LED Headlights, Volant CAI, 32" Duratracs
    Been searching for a filter with drain bolt for my Subaru, to no avail. Only ones I saw were sold in Japan for Mitsubishis.

    stun gun likes this.
  13. Sep 6, 2018 at 4:10 PM
    #13
    stun gun

    stun gun Well-Known Member

    Joined:
    Nov 18, 2016
    Member:
    #202729
    Messages:
    14,129
    Gender:
    Male
    First Name:
    Aaronski
    Vehicle:
    Tacomas.
    17 4X4 sr5spd/01 LT sr5spd

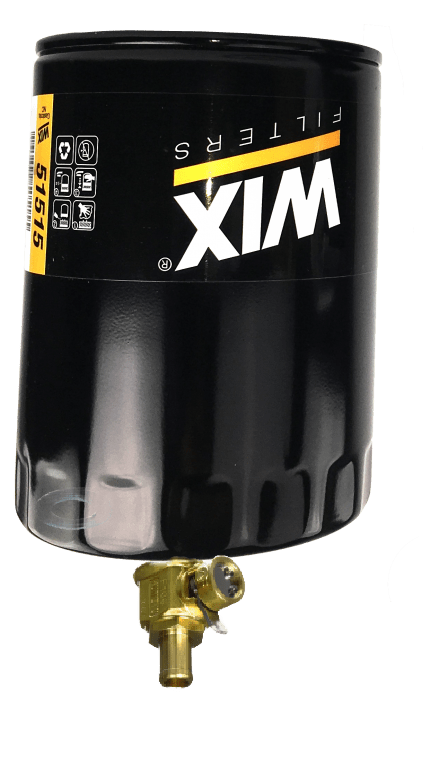

    One could just pop a quick hole in the filter, with a punch, and let it drain for a moment. But why do that when you’ve got holey bags.

    BillsSR5 likes this.
  14. Sep 6, 2018 at 4:25 PM
    #14
    inesshell

    inesshell blah blah blah

    Joined:
    Aug 2, 2011
    Member:
    #60986
    Messages:
    7,047
    Vehicle:
    All stock Superwhite 10' AC
    That's a lot of work to drain a small filter. Pan yes but a filter...I dunno.

    sierra141 and over60 like this.
  15. Sep 6, 2018 at 5:47 PM
    #15
    05Taco4x4

    05Taco4x4 [OP] ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    5,038
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    FJ Tcase, Manual Hubs, 2017 Head unit, Mirror Riser
    How many of you guys change your own 3.5L?

    over60, taco 16 and gilligoon like this.
  16. Sep 6, 2018 at 5:48 PM
    #16
    05Taco4x4

    05Taco4x4 [OP] ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    5,038
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    FJ Tcase, Manual Hubs, 2017 Head unit, Mirror Riser
    That's what I was using until this.

    With that tool you still have to unscrew the bottom (oil does gets past the valve and needs to be cleaned up), screw/unscrew the tool in, replace the O-ring, screw the cover back on.

    Last edited: Sep 6, 2018
    stun gun likes this.
  17. Sep 6, 2018 at 6:58 PM
    #17
    plode682

    plode682 Well-Known Member

    Joined:
    Jan 30, 2016
    Member:
    #176593
    Messages:
    180
    Gender:
    Male
    Southern NJ
    Vehicle:
    2016 Tacoma TRD Off Road
    I wonder if there's any way to change to a standard spin on oil filter on the 3.5L. I really don't like the cartridge setup.

    over60 likes this.
  18. Sep 6, 2018 at 7:28 PM
    #18
    05Taco4x4

    05Taco4x4 [OP] ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    5,038
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    FJ Tcase, Manual Hubs, 2017 Head unit, Mirror Riser
    There is, I've seen it on here somewhere

  19. Sep 6, 2018 at 7:32 PM
    #19
    KellyJoe

    KellyJoe Well-Known Member

    Joined:
    Aug 12, 2010
    Member:
    #41630
    Messages:
    584
    Gender:
    Male
    First Name:
    Kelly
    Victoria, TX
    Vehicle:
    '17 TRD Sport DCSB

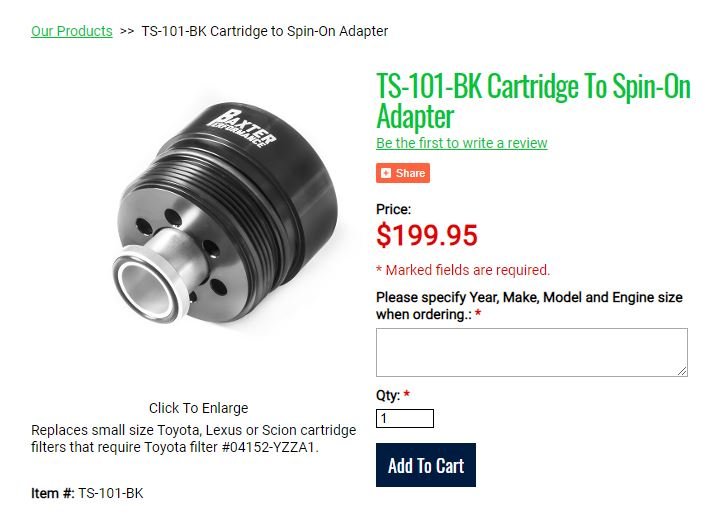

    Google Baxter Performance. @Xena1 has one. :thumbsup:

    Last edited: Sep 6, 2018
    Methadras likes this.
  20. Sep 6, 2018 at 7:36 PM
    #20
    05Taco4x4

    05Taco4x4 [OP] ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    5,038
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    FJ Tcase, Manual Hubs, 2017 Head unit, Mirror Riser
    That's the one
    For only $199 you can have the same complaints as the 2.7L guys :rofl:


    mcharfauros, Skydvrr and taco 16 like this.
