DIY: Gen 2 Illuminated 4wd switch

Discussion in 'Technical Chat' started by maverick491, Oct 31, 2007.

  1. Apr 5, 2022 at 11:32 AM
    #81
    CuriousMonkey

    CuriousMonkey Member

    Joined:
    Mar 1, 2022
    Member:
    #391531
    Messages:
    15
    Gender:
    Male
    Vehicle:
    2008 Tacoma 4x4
    Anybody know where the little ball bearing goes in the switch housing?? Mine fell out and I don’t know where it goes.

  2. Apr 6, 2022 at 7:25 AM
    #82
    Mayak1957

    Mayak1957 Member

    Joined:
    Sep 12, 2020
    Member:
    #340615
    Messages:
    19
    Gender:
    Male
    First Name:
    Tony
    Connecticut
    Vehicle:
    09' Speedway blue, DCSB TRDOR taco, 6spd Man.
    2WD Low module, Foglights anytime, Ultimate headlight Upgrade.
    Had the same thing just happen to me.

    Ball bearing goes into/rests on a small hole with a tiny spring on the lower white plastic arm that sweeps as the knob is turned.

    I didn’t take pics of the switch apart but you’ll need to take the back cover off, and there will be two white pieces that are sandwiching a spring

    I believe the lower of the two white pieces house the ball bearing.

    The ball bearing is pushed against the wall of the switch which provides the resistance you felt originally.

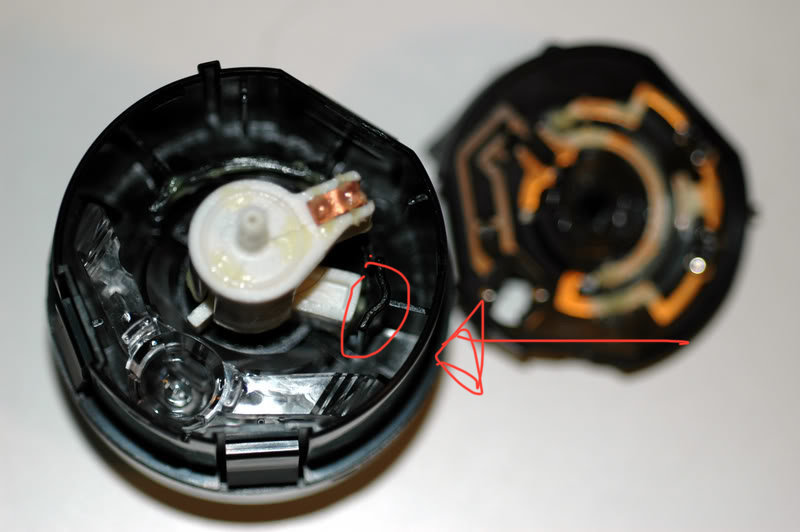

    Ball bearing is circled in red.




    Last edited: Apr 6, 2022
  3. Jul 28, 2022 at 11:01 PM
    #83
    Dagralph

    Dagralph Well-Known Member

    Joined:
    Aug 31, 2021
    Member:
    #375815
    Messages:
    195
    Gender:
    Male
    Vehicle:
    2015 SW DCLB taco
    Does anyone have a link for the holiday switch?

  4. Jul 28, 2022 at 11:02 PM
    #84
    Dagralph

    Dagralph Well-Known Member

    Joined:
    Aug 31, 2021
    Member:
    #375815
    Messages:
    195
    Gender:
    Male
    Vehicle:
    2015 SW DCLB taco
    Wanting to do this mod, but I’m not able to find the holiday switch through any links on TW or eBay. Thanks.

    This site contains affiliate links for which the site may be compensated.
    #84
  5. Aug 4, 2022 at 11:57 AM
    #85
    airkewled

    airkewled Well-Known Member

    Joined:
    Jan 25, 2016
    Member:
    #176025
    Messages:
    129
    Gender:
    Male
    First Name:
    Kevin
    Moab
    Vehicle:
    2006 Tacoma DCSB
    You can watch Holiday Switch on peacocktv.com

    What else do you mean by holiday switch?

    This site contains affiliate links for which the site may be compensated.
    #85
    CowboyTaco likes this.
  6. Aug 4, 2022 at 12:04 PM
    #86
    Dagralph

    Dagralph Well-Known Member

    Joined:
    Aug 31, 2021
    Member:
    #375815
    Messages:
    195
    Gender:
    Male
    Vehicle:
    2015 SW DCLB taco
    yeaaaa, I meant hilux switch

  7. Aug 8, 2022 at 8:09 PM
    #87
    airkewled

    airkewled Well-Known Member

    Joined:
    Jan 25, 2016
    Member:
    #176025
    Messages:
    129
    Gender:
    Male
    First Name:
    Kevin
    Moab
    Vehicle:
    2006 Tacoma DCSB
  8. Aug 8, 2022 at 10:40 PM
    #88
    Dagralph

    Dagralph Well-Known Member

    Joined:
    Aug 31, 2021
    Member:
    #375815
    Messages:
    195
    Gender:
    Male
    Vehicle:
    2015 SW DCLB taco
    And like you, others who have done this mod have done it other ways. The hilux switch is an alternative to the 4Runner, but similar install otherwise. I was hoping someone else might have done it.

    thanks anyways for your help

  9. Mar 18, 2023 at 1:00 AM
    #89
    sliderbot

    sliderbot Member

    Joined:
    Jun 27, 2020
    Member:
    #332746
    Messages:
    6
    Gender:
    Male
    Pocatello, ID
    Has anyone removed a wire from this plug? My 4Runner switch came with the plug and a wire harness and so I wish to pull two wires from the plug to repurpose in my Tacoma plug. I have tried putting a screwdriver in what appears to be the release slot below the plug hole to no avail.

    ACEkraut likes this.
  10. Mar 21, 2023 at 6:40 AM
    #90
    ACEkraut

    ACEkraut Well-Known Member

    Joined:
    May 11, 2014
    Member:
    #129627
    Messages:
    4,233
    Gender:
    Male
    First Name:
    Aaron
    Topsham, Maine
    Vehicle:
    2014 DCSB TRD Off Road
    I have not tried with this particular plug but I had a friend give me a rats nest of wiring from an 80's Land Rover Defender one time and spent hours de-pinning all the wires from the various connectors, both for the challenge, learning process and to provide various different colors automotive wires that I might use in the future. I bought a de-pinning tool kit off from Amazon and spent a lot of trial and error getting the wires out of various connectors. Sometimes they popped right out and other times it took awhile, often quick success and slow success happening on the same connector. I am not confident I can provide you with any advice that is guaranteed to offer you success but if you want to send a picture of the offending plug I can see if I can recommend anything. One thing I will suggest is that if you have only tried a screwdriver then switch to something thinner and more pointed. The screwdriver may be too wide to allow you to be able to release the pin.

    Here is the one that I purchased:

    https://www.amazon.com/Yoursme-Univ...05858&sprefix=automotive+depin,aps,96&sr=8-11

    [​IMG]

  11. Nov 4, 2023 at 7:50 PM
    #91
    TacoCod

    TacoCod New Member

    Joined:
    Nov 4, 2023
    Member:
    #436855
    Messages:
    1
    Gender:
    Male
    Bumping up this old thread as well however a follow up question to DellGriffith ..I also am attempting this mod in a 07 Tacoma..however i am having a problem with the 2 new molex terminals leads ( # 82998-12420 .. 2 @21.00 ea. CDN ..Yikes this is getting outta control lol ) fitting into OEM connector at 4x4 selector ..your thread mentioned picking up new terminals from Eastern Beaver ..Can you elaborate to which leads you purchased from Eastern Beaver? Thanks from an overwhelmed senior .
