DIY Headache Rack

Discussion in '3rd Gen. Tacomas (2016+)' started by Yota Fabber, Feb 26, 2020.

  1. Feb 26, 2020 at 2:59 PM
    #1
    Yota Fabber

    Yota Fabber [OP] Member

    Joined:
    Feb 12, 2020
    Member:
    #319057
    Messages:
    7
    Gender:
    Male
    First Name:
    Andy
    Vehicle:
    2016 Tacoma Access Cab
    Tiger side steps Truxedo tonneau K&N air filter Iridium plugs Led head/fogs Weather mats Aftermarket grill
    This is my first post to a forum so be nice lol I’ve always searched forums for every project I’ve tried on every car I’ve had and they’ve always helped so I’m hoping this can help someone as well. I had a hard time finding anything on making a back rack let alone making one for a 3rd gen. And then a tonneau on top of that was even more difficult. So, I’m very blessed to work in a machine shop where I machine, weld, polish and assemble medical tools. So that made this project waaaay easier, about 10 hours total or so. We had some scrap leftover from making new welding tables so I decided to give it a go.

    2”x2” square tubing
    1/4”x 2” flat stock
    1”x1” square tubing
    And 5/8” round stock for my handles

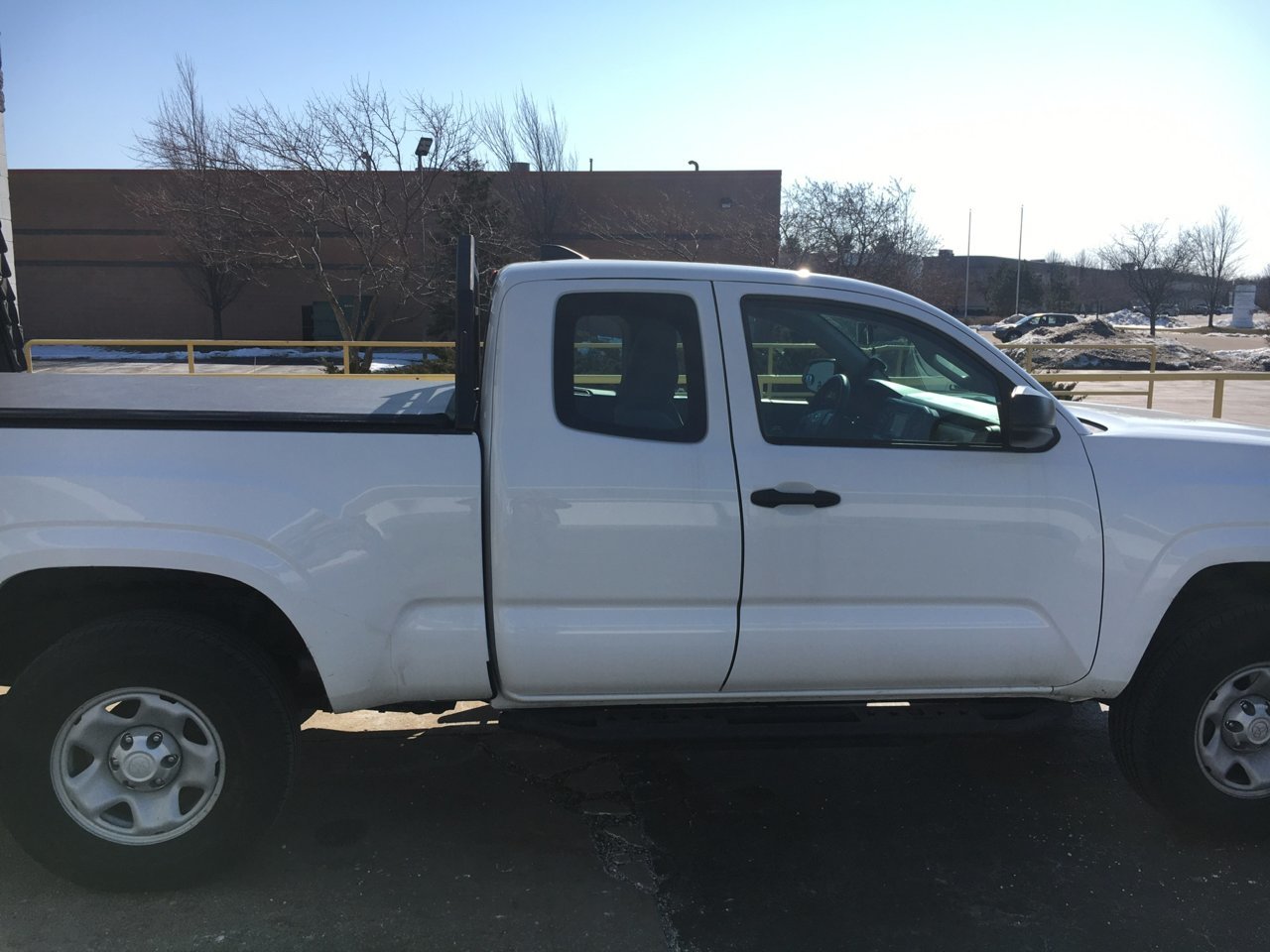

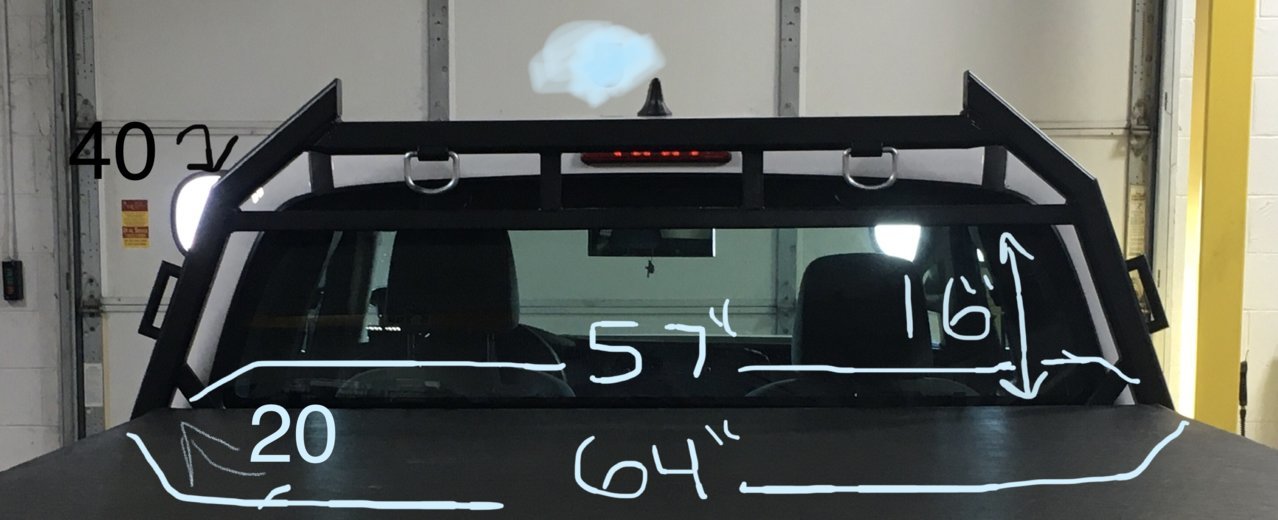

    So I started with just a protractor and ruler behind my cab to get my angles and height and just made two sets of two cuts. First bar going up was at a 20 degree angle to match the cab, the second one was 40, then a straight cross bar set down 2” to allow for wood, ladder etc. I used the flat stock to sit flush on the front header bar of the bed and to make for a stable welding spot for my bars. After all the cuts I racked everything together and test fit. Got lucky and it was golden first try.


    After that the longest stage was welding. Due to how much overkill the thickness of the tube was the welds needed a lot of heat so I made sure everything was super clamped down while getting the main welds done

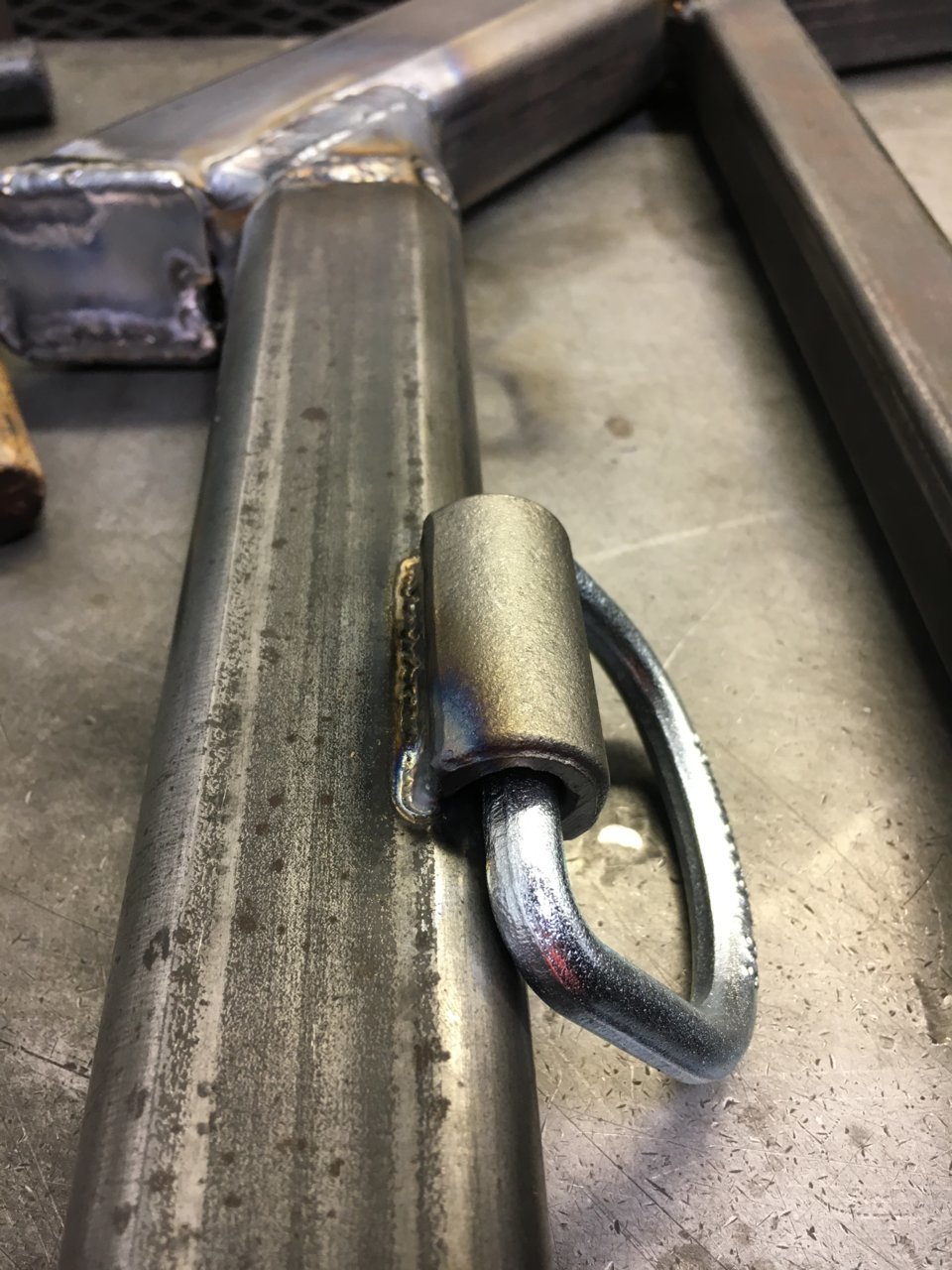

    I found some nice little weld on D-rings at menards for $4 too

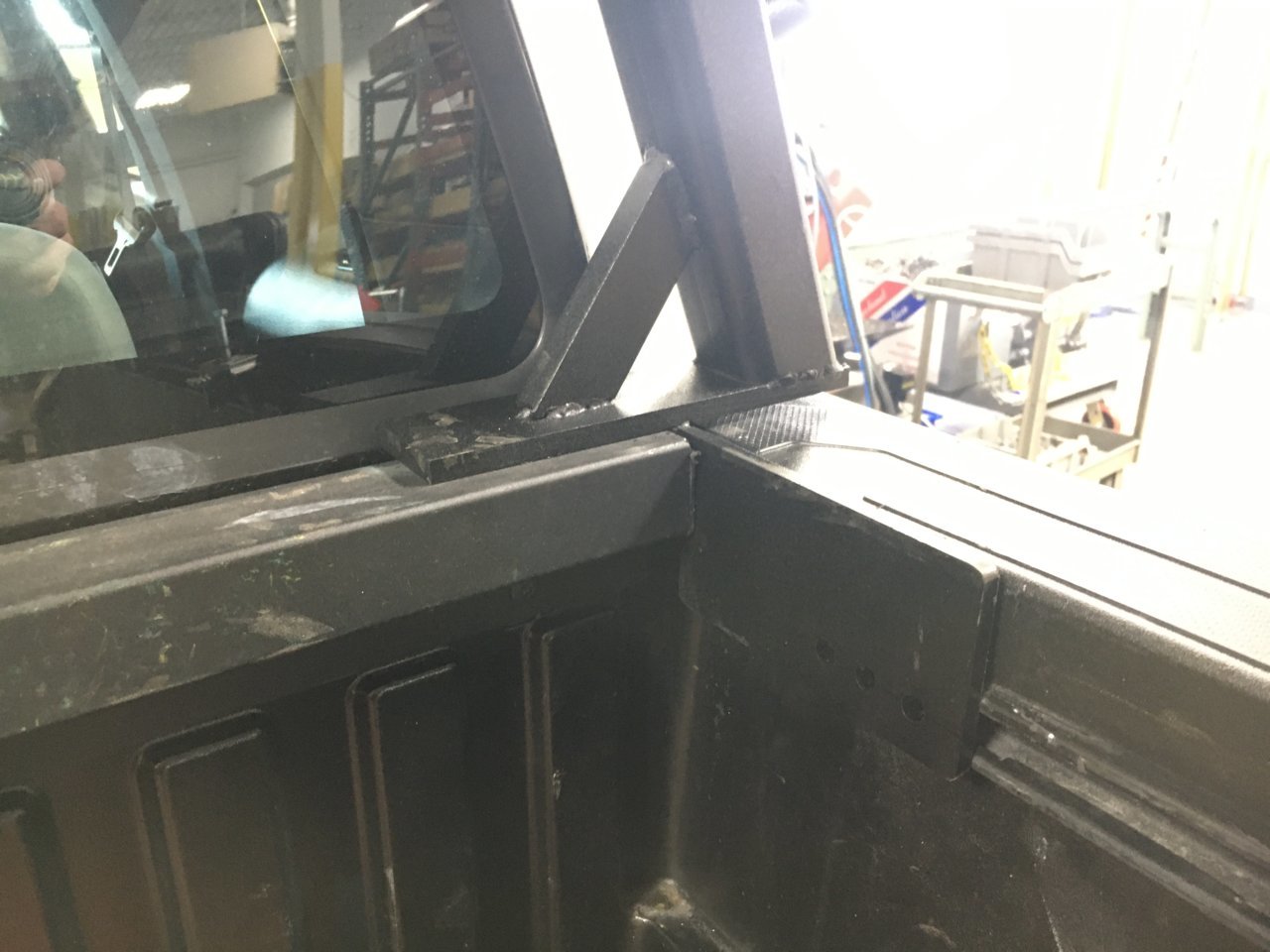

    Since the rack sat flush on the header bar all I had to do was find a way to mount it. I saw how the black horse roll bar mounted to the utility track and noticed the 1/4” clearance on each side of the header bar and knew that would work perfect. So I welded two mounting plates running back to the track and also made some t-nuts for the track to bolt them too.

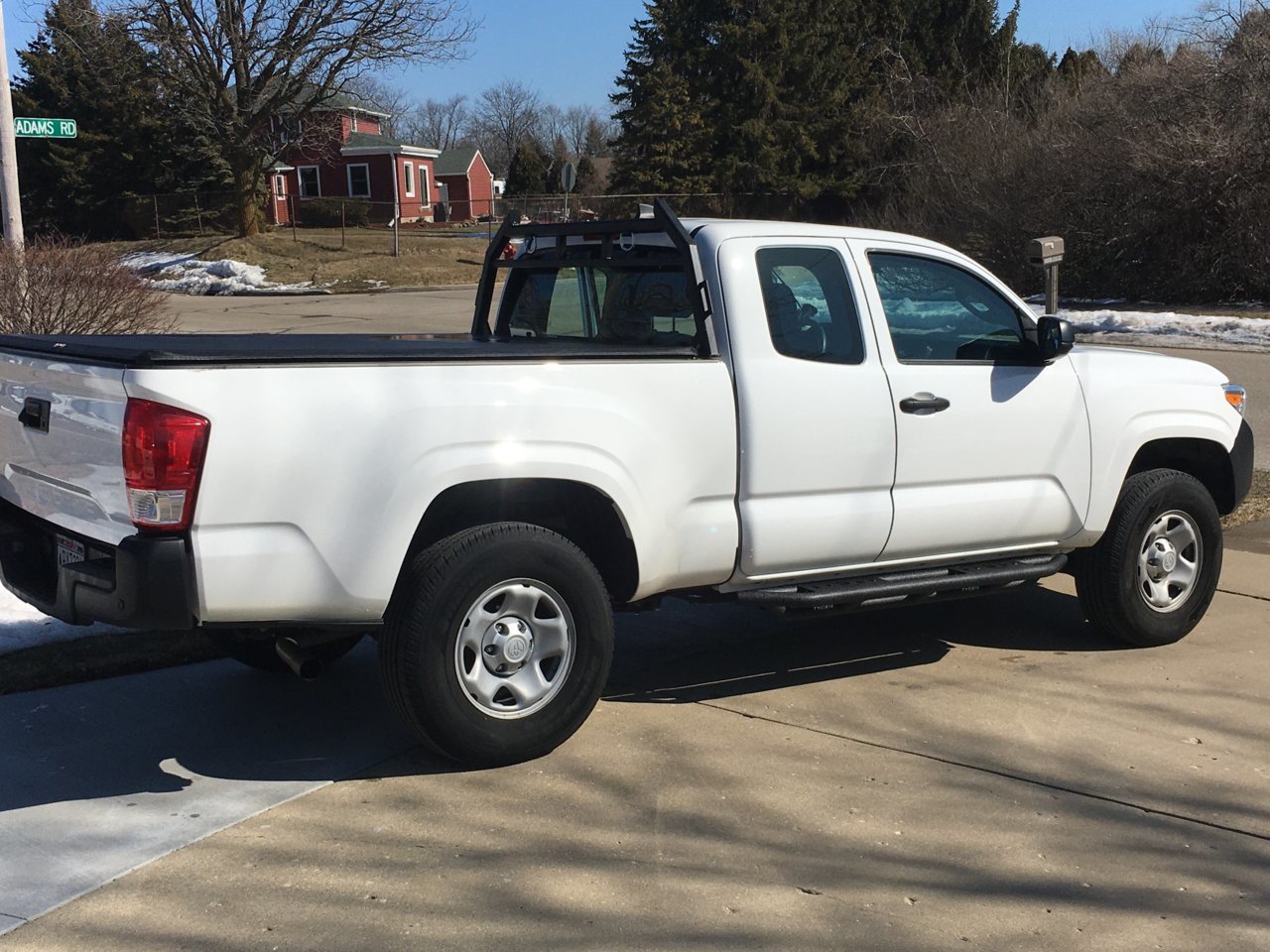

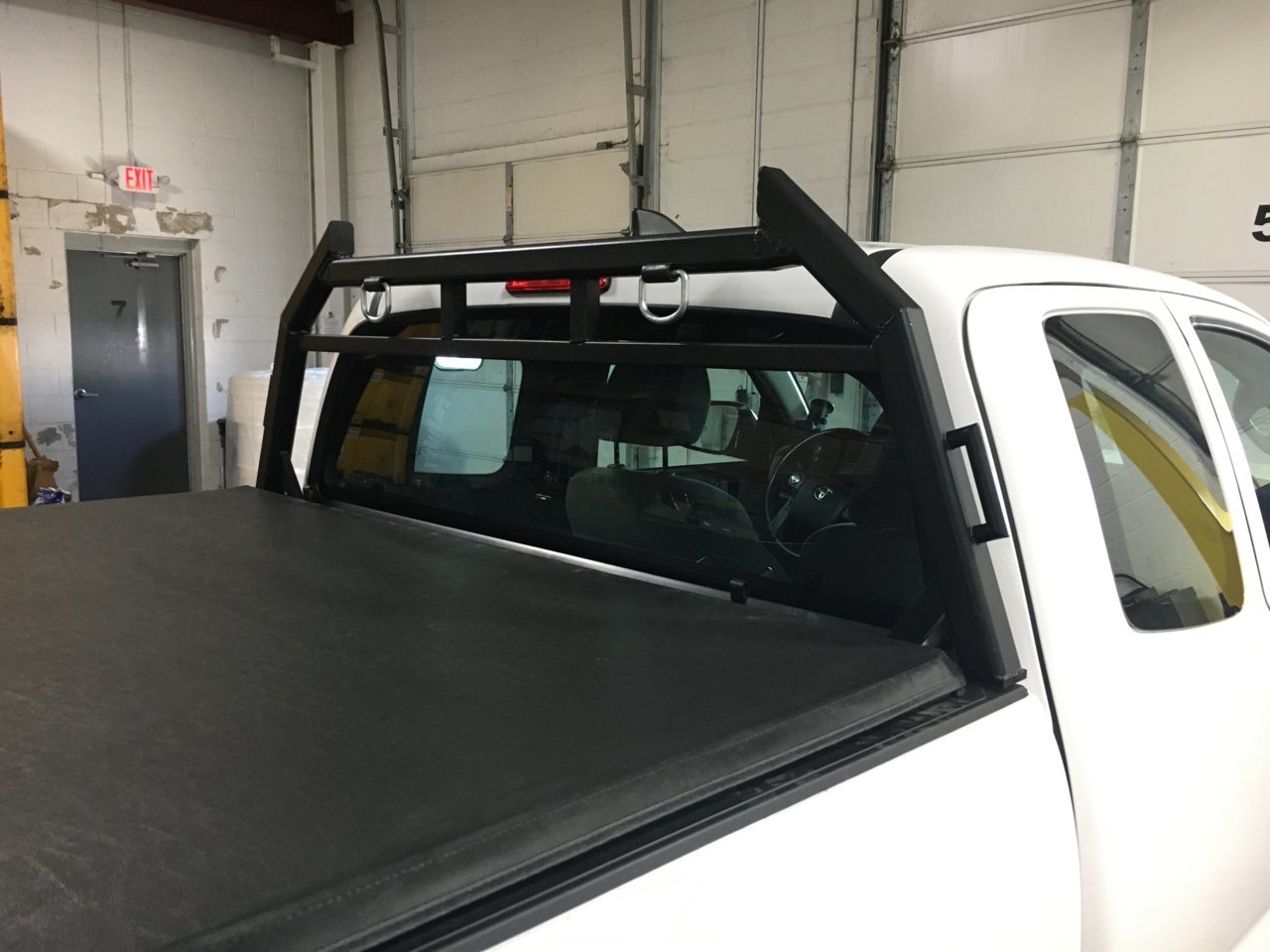

    I must admit I may have gotten very lucky how everything worked out first shot or it’s just because I measured 5 times before I ever did the next step but all in all it turned out aweeeesome. Let me know what you think and feel free to ask any questions and sorry if I didn’t explain in more detail.


    Canufixit, SSMTRDOR, C41n and 9 others like this.
  2. Feb 26, 2020 at 3:26 PM
    #2
    gator2764

    gator2764 Well-Known Member

    Joined:
    May 2, 2016
    Member:
    #185909
    Messages:
    334
    Gender:
    Male
    Mid Ga
    Vehicle:
    2016 TRD DCLB 4X
    Looks nice! At least you know the rack will survive a nuclear blast. .250 wall thickness, stout. It does look nice , I make shit like that as well and usually overkill.

  3. Feb 26, 2020 at 3:33 PM
    #3
    BalutTaco

    BalutTaco Moja_Przygoda

    Joined:
    Apr 2, 2019
    Member:
    #288885
    Messages:
    3,003
    Gender:
    Male
    Vehicle:
    2019 Cement Limo Trail Edition.
    Bird nest engine bay.
    Damn man you should fab yourself some sliders!

    gator2764 likes this.
  4. Feb 26, 2020 at 3:34 PM
    #4
    Yota Fabber

    Yota Fabber [OP] Member

    Joined:
    Feb 12, 2020
    Member:
    #319057
    Messages:
    7
    Gender:
    Male
    First Name:
    Andy
    Vehicle:
    2016 Tacoma Access Cab
    Tiger side steps Truxedo tonneau K&N air filter Iridium plugs Led head/fogs Weather mats Aftermarket grill
    I have the tiger side steps already but I’m going to start on a front bull/push bar next week probably

  5. Feb 26, 2020 at 3:56 PM
    #5
    gator2764

    gator2764 Well-Known Member

    Joined:
    May 2, 2016
    Member:
    #185909
    Messages:
    334
    Gender:
    Male
    Mid Ga
    Vehicle:
    2016 TRD DCLB 4X
    And only add 300 pounds from what he is using

  6. Feb 26, 2020 at 3:58 PM
    #6
    gator2764

    gator2764 Well-Known Member

    Joined:
    May 2, 2016
    Member:
    #185909
    Messages:
    334
    Gender:
    Male
    Mid Ga
    Vehicle:
    2016 TRD DCLB 4X
    Curious, how did you mount it? The rack.

  7. Feb 26, 2020 at 4:47 PM
    #7
    danwray

    danwray Traitor

    Joined:
    Aug 21, 2018
    Member:
    #263556
    Messages:
    287
    Gender:
    Male
    First Name:
    Dan
    Kentucky
    Vehicle:
    2021 Ford F150 XL 4x4 2.7 ecoboost
    I like it

    Yota Fabber [OP] likes this.
  8. Feb 26, 2020 at 4:58 PM
    #8
    bassmusic

    bassmusic Well-Known Member

    Joined:
    Feb 17, 2020
    Member:
    #319549
    Messages:
    183
    First Name:
    Spicoli
    nice rack!

    Yota Fabber [OP] likes this.
  9. Feb 27, 2020 at 3:00 AM
    #9
    Yota Fabber

    Yota Fabber [OP] Member

    Joined:
    Feb 12, 2020
    Member:
    #319057
    Messages:
    7
    Gender:
    Male
    First Name:
    Andy
    Vehicle:
    2016 Tacoma Access Cab
    Tiger side steps Truxedo tonneau K&N air filter Iridium plugs Led head/fogs Weather mats Aftermarket grill

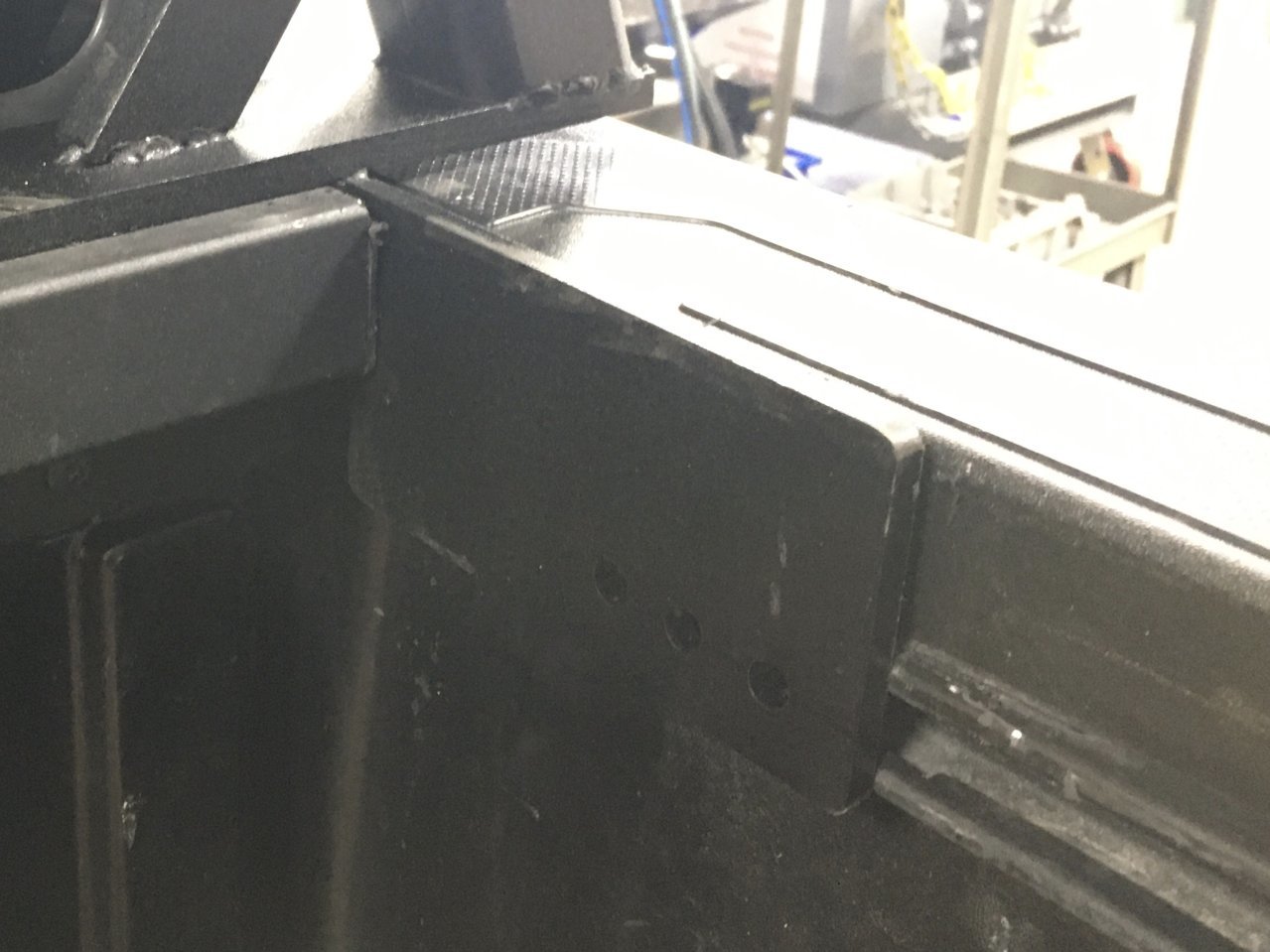

    The three holes in the picture have three bolts into three t-nuts that I made and sit in the utility track behind it


  10. Feb 27, 2020 at 5:08 AM
    #10
    BlkTaco47

    BlkTaco47 Unhinged

    Joined:
    Apr 9, 2011
    Member:
    #54635
    Messages:
    5,115
    Gender:
    Male
    Vehicle:
    2016 Black AT DCSB 4x4 TRD
    JL Audio C2690tx Speakers Alpine MRV-F300 JL Audio 10" Sub - Full length Ported Sub Box Kicker Tweeters BFG KO2's 265/70/17 Tint N-Fab Bars Husky WB Mats AVS Visors Console Divider Tacoma Tonneau Cover ALL PRO 1.5" wheel spacers aFe CAI w/ Dry filter TRD Wheels Custom Remote Starter TRD Pro Grille ROAV Dash Cam 3" RC Lift Turn-down exhaust pipe TRD PRO Shift Knob vF Tune
    very nice!

  11. Feb 27, 2020 at 9:04 AM
    #11
    holvey

    holvey Well-Known Member

    Joined:
    Aug 16, 2019
    Member:
    #302374
    Messages:
    184
    Gender:
    Male
    First Name:
    Brian
    Portland, OR
    Vehicle:
    2020 DCSB TRD OR
    Looks great man!

    I'm curious to what Truxedo tonneau cover you're running with that, and if the cover rails needed to be modified at all to work with your rack? I'm looking to weld up a bedrack/ladderrack hybrid in similar fashion, but my goal is to build it so that my tonneau cover (Truxedo Sentry) can roll past the back upright and stop at the front. Thanks for giving the dimensions too! that 20 degree angle seams to work perfectly with the truck.

  12. Feb 27, 2020 at 9:47 AM
    #12
    Yota Fabber

    Yota Fabber [OP] Member

    Joined:
    Feb 12, 2020
    Member:
    #319057
    Messages:
    7
    Gender:
    Male
    First Name:
    Andy
    Vehicle:
    2016 Tacoma Access Cab
    Tiger side steps Truxedo tonneau K&N air filter Iridium plugs Led head/fogs Weather mats Aftermarket grill

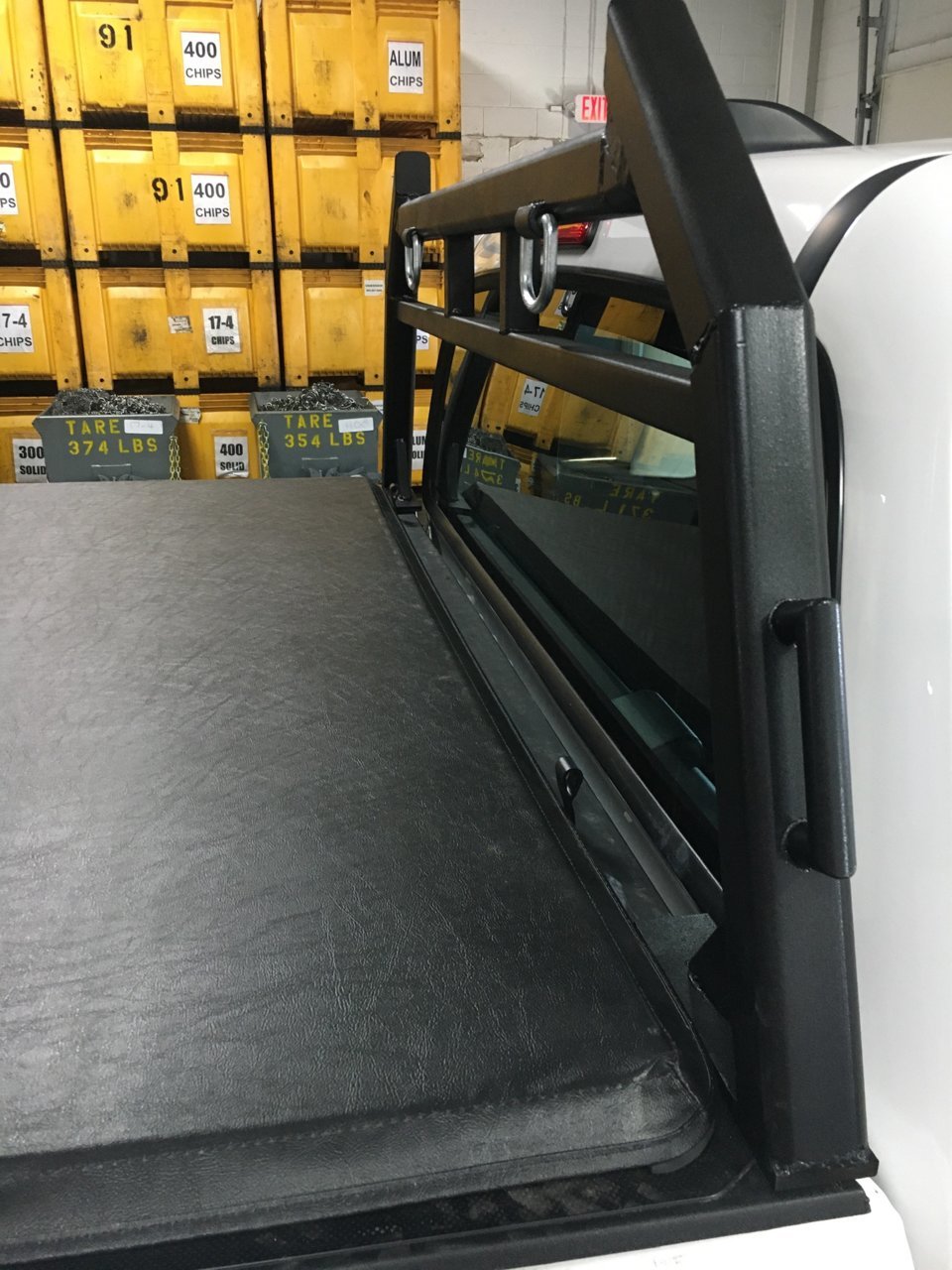

    It’s the truxport, and no modification needed at all, that’s what I love about it. And agreed, the 20 degrees worked out perfect with the cab angle! If your back upright is far enough back it shouldn’t be much of an issue, as u get farther forward you have a roll of cover to deal with too ya know?

  13. Feb 27, 2020 at 9:50 AM
    #13
    Speedfreak

    Speedfreak Member in poor standing

    Joined:
    Sep 22, 2017
    Member:
    #230756
    Messages:
    2,740
    First Name:
    Dave
    Canadian Eh
    Vehicle:
    2017 Tacoma TRD Sport DCSB 6MT, Blazing Blue Pearl
    Manual Mall Cruiser
    Damn that's some heavy tube on that headache rack! Looks great. Nice work.:hattip::thumbsup:


    Now, am I seeing things, is the frame starting to sag between the box and cab from the weight? :boink::D

  14. Feb 27, 2020 at 9:51 AM
    #14
    Yota Fabber

    Yota Fabber [OP] Member

    Joined:
    Feb 12, 2020
    Member:
    #319057
    Messages:
    7
    Gender:
    Male
    First Name:
    Andy
    Vehicle:
    2016 Tacoma Access Cab
    Tiger side steps Truxedo tonneau K&N air filter Iridium plugs Led head/fogs Weather mats Aftermarket grill
    lmao no, it’s only like...maybe 40 pounds

    Speedfreak likes this.
  15. Feb 27, 2020 at 10:20 AM
    #15
    Tiger109

    Tiger109 Well-Known Member

    Joined:
    Aug 18, 2019
    Member:
    #302588
    Messages:
    118
    Gender:
    Male
    Louisiana
    Vehicle:
    2020 TRD OR
    Looks very nice. But it doesn't seem it could be very strong without bracing on the side of the bed. At least a 1 foot 45 degree brace on each side. If it took a hard hit it would be into the cab of your truck. You do beautiful work!

  16. Feb 27, 2020 at 11:19 AM
    #16
    Yota Fabber

    Yota Fabber [OP] Member

    Joined:
    Feb 12, 2020
    Member:
    #319057
    Messages:
    7
    Gender:
    Male
    First Name:
    Andy
    Vehicle:
    2016 Tacoma Access Cab
    Tiger side steps Truxedo tonneau K&N air filter Iridium plugs Led head/fogs Weather mats Aftermarket grill
    The plate is 10 inches long and has three bolts on each side inside the utility track, maybe if I rolled it a couple times it’d bust ya but...


  17. Feb 27, 2020 at 2:57 PM
    #17
    Tiger109

    Tiger109 Well-Known Member

    Joined:
    Aug 18, 2019
    Member:
    #302588
    Messages:
    118
    Gender:
    Male
    Louisiana
    Vehicle:
    2020 TRD OR

  18. Feb 27, 2020 at 2:59 PM
    #18
    Tiger109

    Tiger109 Well-Known Member

    Joined:
    Aug 18, 2019
    Member:
    #302588
    Messages:
    118
    Gender:
    Male
    Louisiana
    Vehicle:
    2020 TRD OR
    See it better, good idea!

    Yota Fabber [OP] likes this.
  19. Mar 6, 2020 at 6:16 PM
    #19
    20taco20

    20taco20 Rock and roll!!!

    Joined:
    Feb 16, 2020
    Member:
    #319394
    Messages:
    7
    Gender:
    Male
    Philadelphia
    Vehicle:
    2020 Trd off-road
    I got that change thing that goes in the top of the console.
    this is great

    Yota Fabber [OP] likes this.
  20. Dec 3, 2020 at 4:08 AM
    #20
    SilverSkyTRD

    SilverSkyTRD Well-Known Member

    Joined:
    May 30, 2016
    Member:
    #188241
    Messages:
    175
    Gender:
    Male
    you did a great job. I envy your skills!
