DIY Headgasket advice for '02 5VZ-FE

Discussion in '1st Gen. Tacomas (1995-2004)' started by Grousin, Sep 21, 2022.

  1. Sep 21, 2022 at 8:20 AM
    #1
    Grousin

    Grousin [OP] Member

    Joined:
    Sep 30, 2020
    Member:
    #342392
    Messages:
    15
    Gender:
    Male
    Vehicle:
    2002 4x4 Doublecab
    Cylinder 4 is failing compression test, I'm loosing a bit of coolant and the oil cap is milky. A rough idle on startup spurred the check. Adding oil to the cylinder only gave me [edit] an extra [/edit] 10psi. It seems all signs lead to head gasket. Just over 250k on the truck

    I've made it in far enough to replace the valve cover gaskets two years ago but no further. This will be my first go at a head gasket. Any thoughts, tips, warnings, advice? Things to look for when it's apart?

    What else should I replace while I'm there? I'm buying the full gasket kit from Toyota. The timing belt only has 40k on it. Is it still worth replacing? Water pump? I've read the headbolts should be replaced, but I didn't see that indicate in the service manual.

    Last edited: Sep 21, 2022
  2. Sep 21, 2022 at 8:35 AM
    #2
    5efvz

    5efvz Well-Known Member

    Joined:
    Jul 22, 2022
    Member:
    #401886
    Messages:
    284
  3. Sep 21, 2022 at 8:50 AM
    #3
    Grousin

    Grousin [OP] Member

    Joined:
    Sep 30, 2020
    Member:
    #342392
    Messages:
    15
    Gender:
    Male
    Vehicle:
    2002 4x4 Doublecab
    Thanks. I've seen the Timmy videos and worsethanchiggers but I hadn't come across this one.

  4. Sep 21, 2022 at 8:54 AM
    #4
    Smokestacks

    Smokestacks Well-Known Member

    Joined:
    Jul 3, 2020
    Member:
    #333324
    Messages:
    222
    Gender:
    Male
    BayArea
    Vehicle:
    1996 3.4L 4x4 Tacoma extra cab MT.
    Eaton Truetac limited slip Bilstein 5100s struts set at 2” 5100s shocks Torch add a leaf B&M short throw shifter Hella h4 headlights Warn front hitch Curt rear hitch Sony DSX-GS900 Deck Custic 1000watt amp Alumpro 10” sub Lund Steel Gullwing tool box Broadway rearview mirror Weather tech window deflectors
    Yes do water pump and Knock sensor.(maybe injectors) It might help to get a service manual I found a free one online. This video series helped me a lot he is pretty detailed and has a few tricks to take the pulleys off a little easier. https://youtu.be/voLBRDZL9fE

    don’t forget to put the bolt in the cam before removing. And the timing belt skips around every revolution shit had me confused for hours.

    Last edited: Sep 21, 2022
    Grousin [OP] likes this.
  5. Sep 21, 2022 at 9:01 AM
    #5
    tirediron

    tirediron Well-Known Member

    Joined:
    Jan 19, 2019
    Member:
    #279864
    Messages:
    3,408
    Gender:
    Male
    First Name:
    John
    Victoria, BC< Canada
    Vehicle:
    2022 4x4 Sport, Auto, BCM
    I almost wonder if you don't have two issues; definitely sounds like your head gasket has gone south, but having virtually zero compression makes me wonder if there isn't another issue as well. Specifically, rings and/or valves which is causing the low compression.

    Smokestacks likes this.
  6. Sep 21, 2022 at 9:12 AM
    #6
    Grousin

    Grousin [OP] Member

    Joined:
    Sep 30, 2020
    Member:
    #342392
    Messages:
    15
    Gender:
    Male
    Vehicle:
    2002 4x4 Doublecab
    Sorry, I should have been more clear on the failed test. I've got 190+ on the other cylinders. Cylinder 4 is at 150, ~160 after adding a bit of oil.

    1997tacomav6 likes this.
  7. Sep 21, 2022 at 9:34 AM
    #7
    tirediron

    tirediron Well-Known Member

    Joined:
    Jan 19, 2019
    Member:
    #279864
    Messages:
    3,408
    Gender:
    Male
    First Name:
    John
    Victoria, BC< Canada
    Vehicle:
    2022 4x4 Sport, Auto, BCM
    Ahhh... got'cha'. Okay, that makes sense.

  8. Sep 21, 2022 at 10:07 AM
    #8
    jacobrippey

    jacobrippey It’s always Taco Tuesday Instagram #rippstik

    Joined:
    Apr 26, 2014
    Member:
    #128494
    Messages:
    825
    Gender:
    Male
    First Name:
    Jacob
    Phoenix, Arizona. USA
    Vehicle:
    2004 Tacoma DC 4wd
    Find me on Instagram: @rippstik
    Remember, when removing the exhaust cam, make sure the service bolt is in-place before removal. Otherwise, you'll launch a cam across your garage...

  9. Sep 21, 2022 at 10:31 AM
    #9
    Itsgottabeyourbull

    Itsgottabeyourbull Well-Known Member

    Joined:
    Aug 16, 2017
    Member:
    #226955
    Messages:
    195
    Gender:
    Male
    Tulsa Oklahoma
    Vehicle:
    20 Tundra SR5 TSS/ 02 Tacoma DCSB TRD OR
  10. Sep 21, 2022 at 11:43 AM
    #10
    Grousin

    Grousin [OP] Member

    Joined:
    Sep 30, 2020
    Member:
    #342392
    Messages:
    15
    Gender:
    Male
    Vehicle:
    2002 4x4 Doublecab
    :eek: Sounds like there's a story there. Oof. I'll be sure to double check that box when I get there.

  11. Sep 21, 2022 at 11:43 AM
    #11
    Grousin

    Grousin [OP] Member

    Joined:
    Sep 30, 2020
    Member:
    #342392
    Messages:
    15
    Gender:
    Male
    Vehicle:
    2002 4x4 Doublecab
    Thanks!

  12. Sep 21, 2022 at 12:20 PM
    #12
    garetcurry

    garetcurry Well-Known Member

    Joined:
    Dec 12, 2010
    Member:
    #47615
    Messages:
    108
    Gender:
    Male
    First Name:
    Garet
    Virginia
    Vehicle:
    Forged 5vz Turbo Taco
    Engine: JDM Block bored 0.020" over Forged Crankshaft, Carillo Pistons, Pauter Rods: 9.0:1 compression ARP headstuds with Cometic 0.051" head gasket Ported and polished head with stainless steel valves (stock camshafts) CX Racing Turbo Kit (.70 A/R Compressor, .68 A/R Turbine, 61.3 /82 mm Compressor Wheel, 62 /67.8 mm Turbine Wheel), TiAL F38 Wastegate (8.7 psi spring) Go Fast Bits T9301 Diverter Valve, 31" x 11" x 3" Intercooler w/3" piping & T-Clamps, 4" Air Filter & Aluminum tube EVAP Delete, Catch Can, URD Lightweight Crank Pulley, 170 Degree Thermostat, GM SU1075 Knock Sensors, Turbo Blanket Electronics: AEM FIC-6, Innovate SCG-1: Solenoid Boost Controller Wideband O2, Innovate MTX-D: Vacuum / Boost & Shift Light, Exhaust Cut-Out Switch Exhaust: All V-Band & Stainless Steel, 3" Downpipe, 3" Magnaflow Hi-flow Catalytic Converter, Granatelli 4" Exhaust Cut-Out, Magnaflow 2.5" 11246 & 12646 Chassis: 4 Link w/QA1 Coilovers Front & Rear Wheels & Tires: XXR 968's Continental Extreme Contact 18" front DWS 06 245/40, 17" rear Sport 285/40 Body: KBD Valance, RaceMesh Grille, Rollpan Interior: 2000-2005 Toyota Celica Seats, Craven Dual Gauge Mount, Custom Subwoofer Fiberglass Box, Pioneer GM-D8601 & GM-D8604 Amps Kenwood Deck, 8" Kicker 40CWRT82 Sub, Alpine Tweeters, MTX TX68 Front & Kenwood KFC-C6894P Rear Speakers
    Indeed, this seems like a head gasket issue.

    Over time the camshaft lobes wear down the shims over the valve buckets. This puts valve lash out of spec and can affect compression. Just something to be mindful of if you're going to go through the trouble of digging into your head. Shims can be bought from the dealership or online and come in sizes incrementing by 0.05mm or ~0.002".

    Don't forget the Allen head bolt after the eight "regular" head bolts come out. It's torque spec is also less than the regular head bolts.

    I have a 0.040" MLS cometic head gasket if you want it.

  13. Sep 21, 2022 at 12:54 PM
    #13
    Old green toyota

    Old green toyota Well-Known Member

    Joined:
    Jul 12, 2020
    Member:
    #334200
    Messages:
    719
    Sacramento,CA
    Vehicle:
    99 2.7 4x4 Standard cab
    Oil leaks

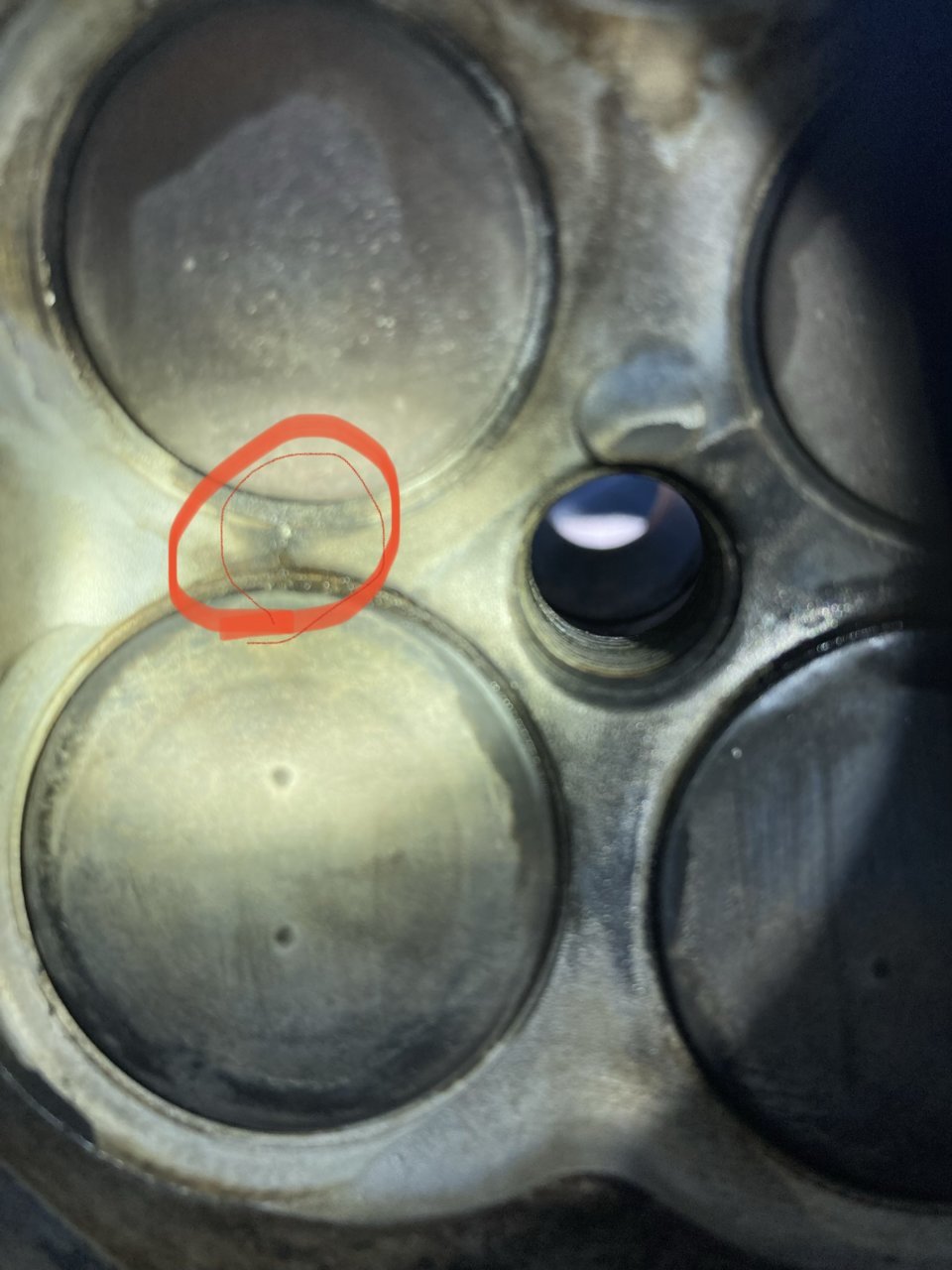

    The above is very important. Also get the head checked over by a good machine shop. Mine had a small crack when I took it in for inspection.

  14. Sep 21, 2022 at 3:57 PM
    #14
    Grousin

    Grousin [OP] Member

    Joined:
    Sep 30, 2020
    Member:
    #342392
    Messages:
    15
    Gender:
    Male
    Vehicle:
    2002 4x4 Doublecab
    A big thanks for the gasket offer. Unfortunately I already ordered the OEM kit.
    Good call on the valves. I hadn't given them much thought, but last time I checked a couple were barely within spec and I let them go.

  15. Sep 21, 2022 at 4:00 PM
    #15
    Grousin

    Grousin [OP] Member

    Joined:
    Sep 30, 2020
    Member:
    #342392
    Messages:
    15
    Gender:
    Male
    Vehicle:
    2002 4x4 Doublecab
    hmm. I was hoping to avoid the machine shop as long as things looked flat and copasetic. Admittedly a bit of a pipe dream, but it's a couple hours drive to the headshop. Was the crack visible at all before you took it in? It sounds like I may have to rethink that one. o_O

  16. Sep 21, 2022 at 4:06 PM
    #16
    Bishop84

    Bishop84 Well-Known Member

    Joined:
    Dec 17, 2015
    Member:
    #172494
    Messages:
    7,272
    Gender:
    Male
    You don't have to machine it, but its best practice to do so.

    My tips are, clean flush, but not mirror finish. Basically if its clean you wont be able to feel the old material with a finger nail. Resist the urge to clean it until it shines.

    Blow out the head bolt holes, they can trap fluid and hydrolock when reinstalling.

    Replace Valve seals while the head is off. Old toyotas are known for them leaking slowly, and its way easier with the head off. This also lets you inspect the valves and clean them off gently.

    Take pictures. Sort stuff out carefully.

    The exhaust is the hardest part depending on how rusty it is. I typically leave the manifolds on the heads and remove the pipes from the manifolds.

    Grousin [OP] and Kwikvette like this.
  17. Sep 22, 2022 at 7:18 AM
    #17
    tirediron

    tirediron Well-Known Member

    Joined:
    Jan 19, 2019
    Member:
    #279864
    Messages:
    3,408
    Gender:
    Male
    First Name:
    John
    Victoria, BC< Canada
    Vehicle:
    2022 4x4 Sport, Auto, BCM
    As long as you have a good machinist's rule, you can check the head for true easily enough, but if you're going to all this trouble, I would go the extra mile and get the head pressure-tested and magnafluxed. It would suck balls to get it all back together and find out you had a crack between passages or something like that. Chances are, you're fine, but that's a LOT of time, effort and money on a chance.... YMMV.

  18. Sep 22, 2022 at 8:22 AM
    #18
    frizzman

    frizzman Well-Known Member

    Joined:
    Sep 25, 2013
    Member:
    #113212
    Messages:
    5,202
    Gender:
    Male
    Pittsburgh, PA
    Vehicle:
    04 XCab 4x4 TRD/OR
    OME 2.5,Tundra 17s,Falken Wildpeak AT3W hitch w/ 7-pin, ARE cap, JVC HU w/BT, HID/LED lights
    sub'd for outcome, GL OP

    Kwikvette likes this.
  19. Sep 22, 2022 at 5:12 PM
    #19
    Old green toyota

    Old green toyota Well-Known Member

    Joined:
    Jul 12, 2020
    Member:
    #334200
    Messages:
    719
    Sacramento,CA
    Vehicle:
    99 2.7 4x4 Standard cab
    Oil leaks
    It's worth a trip to the machine shop. My crack was not visible, they saved me from doing the job twice.

    It was around 3-500 I don't remember. I know they fixed the crack and cut the head a little with my permission. It runs fantastic on 91, and adequate on 87. I also have a long tube header, high flow cat and straight shot intake.

  20. Sep 22, 2022 at 8:34 PM
    #20
    Smokestacks

    Smokestacks Well-Known Member

    Joined:
    Jul 3, 2020
    Member:
    #333324
    Messages:
    222
    Gender:
    Male
    BayArea
    Vehicle:
    1996 3.4L 4x4 Tacoma extra cab MT.
    Eaton Truetac limited slip Bilstein 5100s struts set at 2” 5100s shocks Torch add a leaf B&M short throw shifter Hella h4 headlights Warn front hitch Curt rear hitch Sony DSX-GS900 Deck Custic 1000watt amp Alumpro 10” sub Lund Steel Gullwing tool box Broadway rearview mirror Weather tech window deflectors
    I also had a crack they tend to happen between valves I didn’t need a shop to point it out. But my gasket also was fine


    Grousin [OP] likes this.
