DIY Hi-Lift and Tool Mounts

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Benson X, Jan 26, 2013.

  1. Jan 26, 2013 at 2:21 PM
    #1
    Benson X

    Benson X [OP] ...and we're back!

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    4,662
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    Debadged, Black Toyota Emblem, TRD Emblem, Tint, Leer 100XL w/ Thule Tracker II rails, aFe Stage II Si Pro Dry-S CAI, aFe Mach Power 3" cat-back exhaust, Doug Thorley Y-Pipe, Bedmat, Weathertech liners, Weathertech window vents, Redline Hood Struts, 12v Anytime Mod, Maglight Mod, FOB/Seatbelt Mod, Rear Diff. Breather Mod, OEM Heated Mirrors Mod, OME 886 Coils w/ 90k Nitro Shocks up front, OME N182 Shocks with Dakars and a D29XL AAL in back, Light Racing UCAs, 1/2" Toytec Front Spacers, swaybar delete Mod, (4) 1" BORA Wheel Spacers, 285/70R17 Goodyear MT/R (originals), hidden Cobra 19DX IV w/ 4' Firestik on a Relentless Mount, custom Sliders, ARB Bumper, Warn VR-8000s w/ Syn. line, custom Tool/Hi-Lift mounts, custom Engine Bay and Winch-area LEDs, csJumper interior LEDs, custom TRD Skull Decal, 10" SeeLite LED light-bar custom mounted in the grille, custom Front & Mid skidplate, Garmin 60CSX GPS w/ RAM mounts....RAN OUT OF
    [​IMG]

    I finally got around to making a mount for my Hi-Lift using the factory bed rails, and ended up making a few more for my shovel, axe, hatchet, fire extinguisher, and flashlight.

    I have limited tools, so I had to improvise on some things. Not all the holes and measurements are are 100% exact, but each mount it still solid and secure.

    NOTES:
    • A drill press and vise is recommended and would speed up the entire process. I did not use either, but it made for additional work.
    • You can make all the mounts on here using (2) 36" pieces of flat-bar (listed below)
    • Most people will be using different style shovels, axes, hatchets, flashlights, fire extinguishers etc. - keep that in mind and make sure to measure and test fit your tools before drilling and cutting. Don't get pissed at me if your setup isn't the same as mine.
    • I am not proficient in drafting or design, so please excuse the crappy dimensions/diagrams
    • Please feel free to leave pertinent questions, constructive feedback, or comments.
    • As always, I am not responsible for any damage or injury resulting from anyone doing these mods.

    TOOLS USED:
    Drill (or drill press)
    Center punch
    Small Pilot bit (7/32")
    1/4" bit (titanium recommended)
    5/16" bit (titanium recommended)
    3/8" bit (titanium recommended)
    Hammer
    Vise (or equivalent)
    Cut-Off Wheel (Dremel works)
    10mm wrench and socket
    13mm wrench and socket
    14mm wrench and socket
    Tape measure
    Sharpie
    LIGHT!!!


    PAINT:
    I primed and spray painted each mounting bracket black. I then dipped each bend in Plasti-Dip and double-dipped the bottom mounting brace for the fire extinguisher. The plasti-dip should help prevent any vibrations and absorb some shock.


    ----< Hi-Lift Mount >----

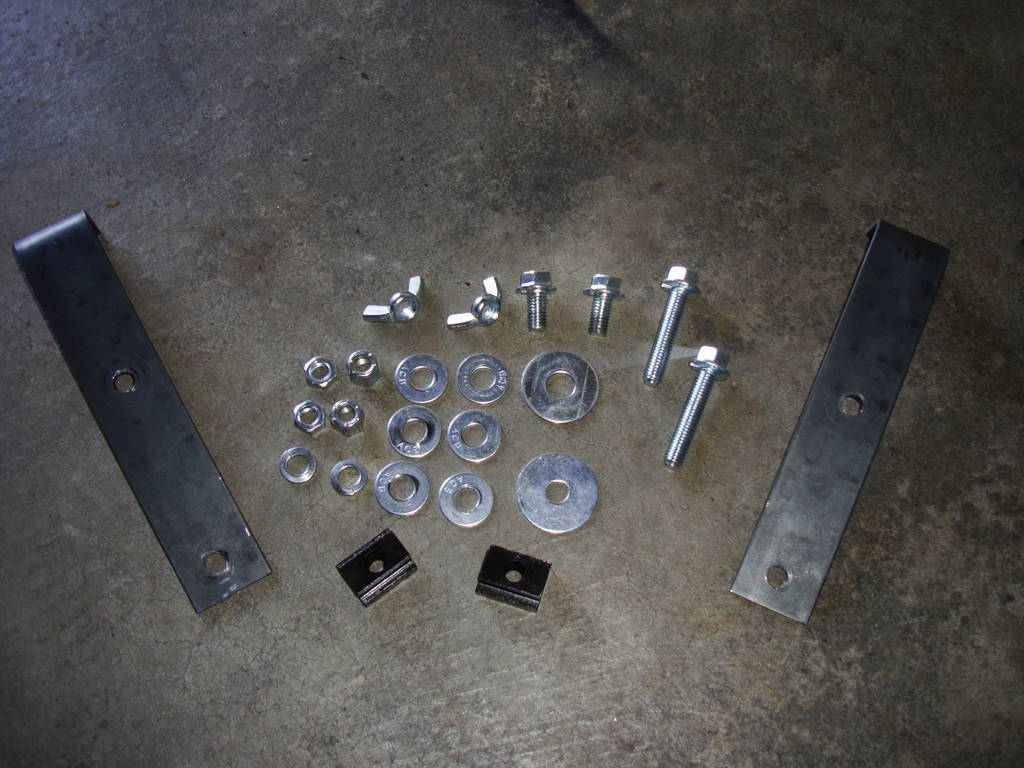

    PARTS NEEDED:(each part is a hyperlink)
    I got pretty much everything at Home Depot aside from the T-Nuts.

    (2) 3/8-16 T-Slot nuts
    (1) 1.5" x 18" Steel Flat Bar (1/8" thick)
    (2) 2" 3/8-16 Bolts
    (2) .75" 3/8-16 Bolts
    (2) 3/8" Lock Washers
    (6) 3/8" Washers
    (2) 3/8" Fender Washers

    (2) 3/8" Rubber Fender Washers
    (2) 3/8-16 Nylon Locking Nuts
    (2) 3/8-16 Jam Nuts
    (2) 3/8-16 Wing Nuts*

    *I found some 3/8-16 Knobs at Lowes that work much better than the Wing Nuts to secure the Hi-Lift. Pics updated.

    [​IMG]

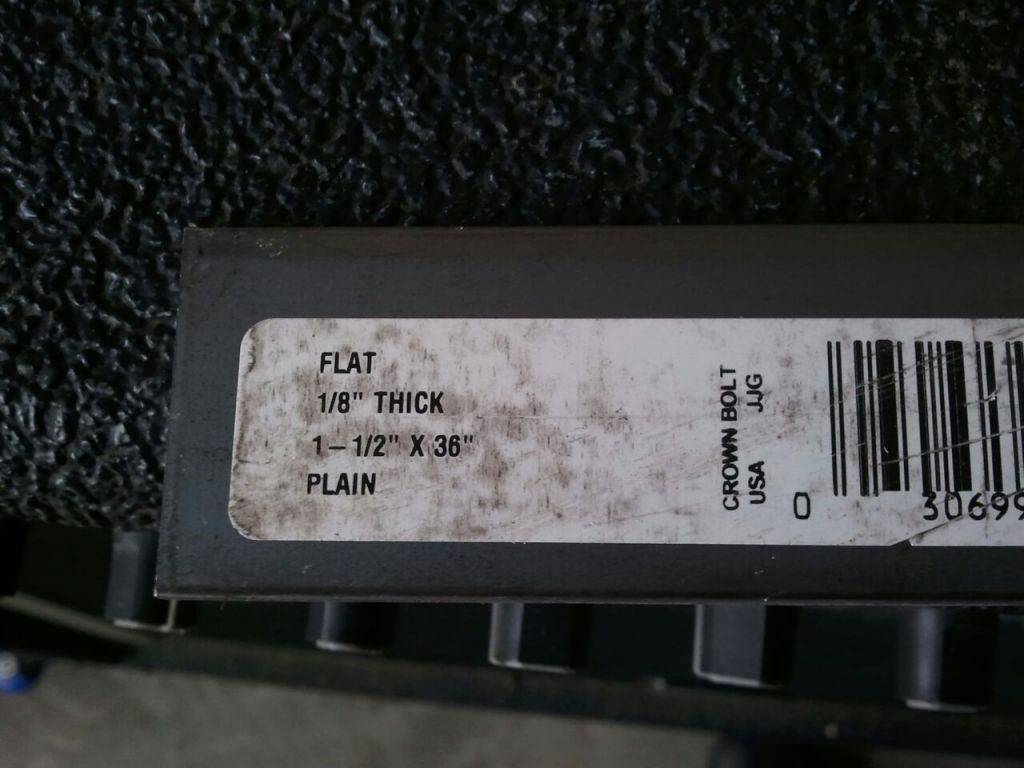

    Step 1:I measured, cut and drilled my mounting plates using the 1.5" x 36" Steel Flat Bar (1/8" thick).

    [​IMG]


    • I measured 9" down and marked it with my Sharpie, and then made another mark at 8".
    • Cut it off @ 9". Bend it to 90°from the 8" mark using your hammer and vise (or equivalent). Make (2) of these pieces.
    • I drilled my top holes .75" down from the top (the un-bent side) centered .75" in.
    • I drilled my second holes 4" down from the top, again centered .75" in.

    Step 2: Assemble your mounts and attach to the bed rail.

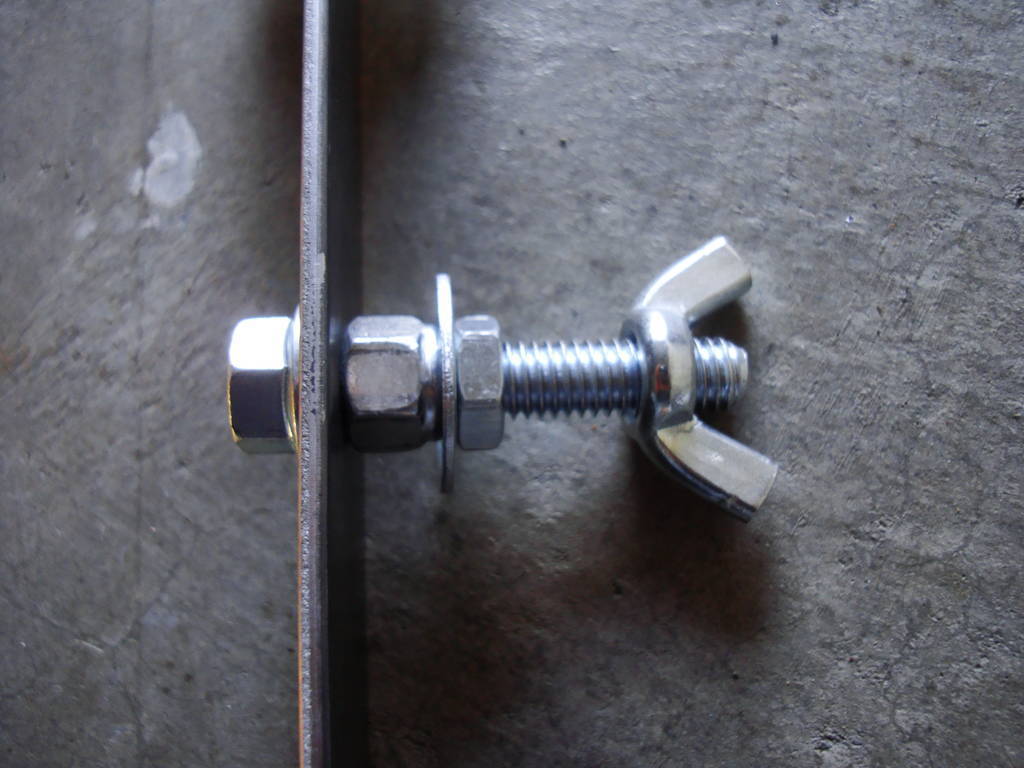

    For the Hi-Lift Mounting Bolt:
    2" Bolt >>> Mounting Bracket >>> Nylon Locking Nut >>> Washer >>> Jam Nut >>> Hi-Lift >>> Wing Nut

    [​IMG]
    [​IMG]


    *NOTE* When tightening your Jam Nuts down, make sure the flat edges are parallel to the edge of your flat bar. The Jam Nuts fit perfectly in the Hi-Lift holes to help stabilize it when mounting and help hold it in place.

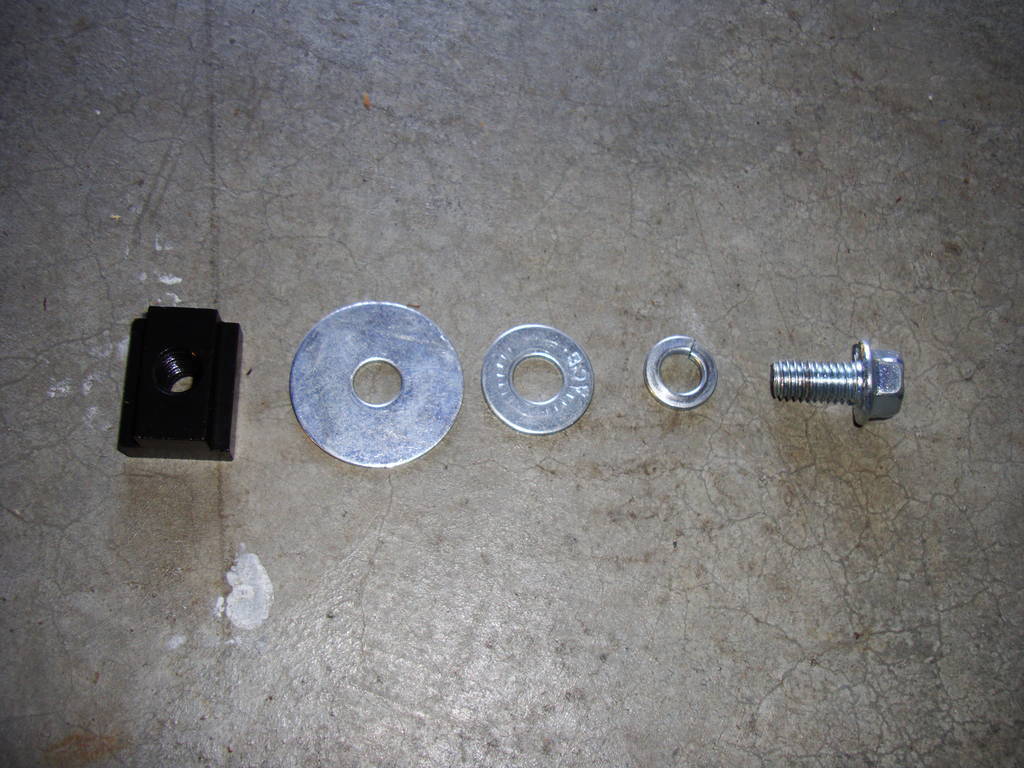

    For the T-Slot nut that goes in the rail:
    T-Slot Nut >>> Fender Washer >>> Mounting Bracket >>> Washer >>> Lock Washer >>> .75" Bolt

    [​IMG]
    [​IMG]

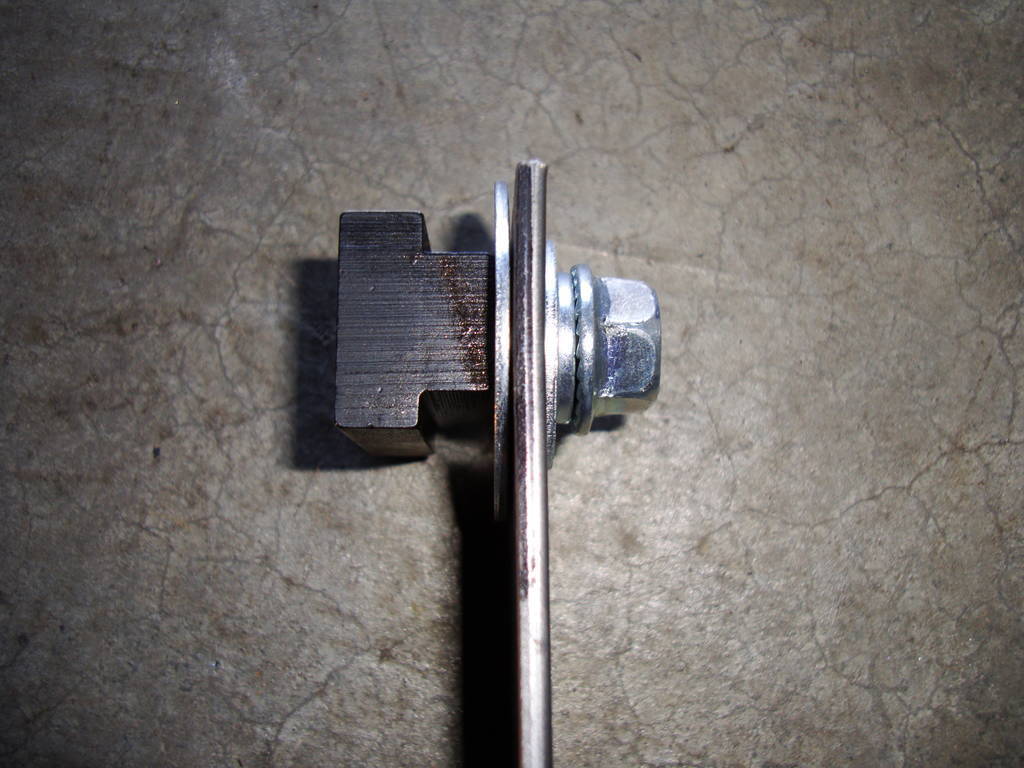

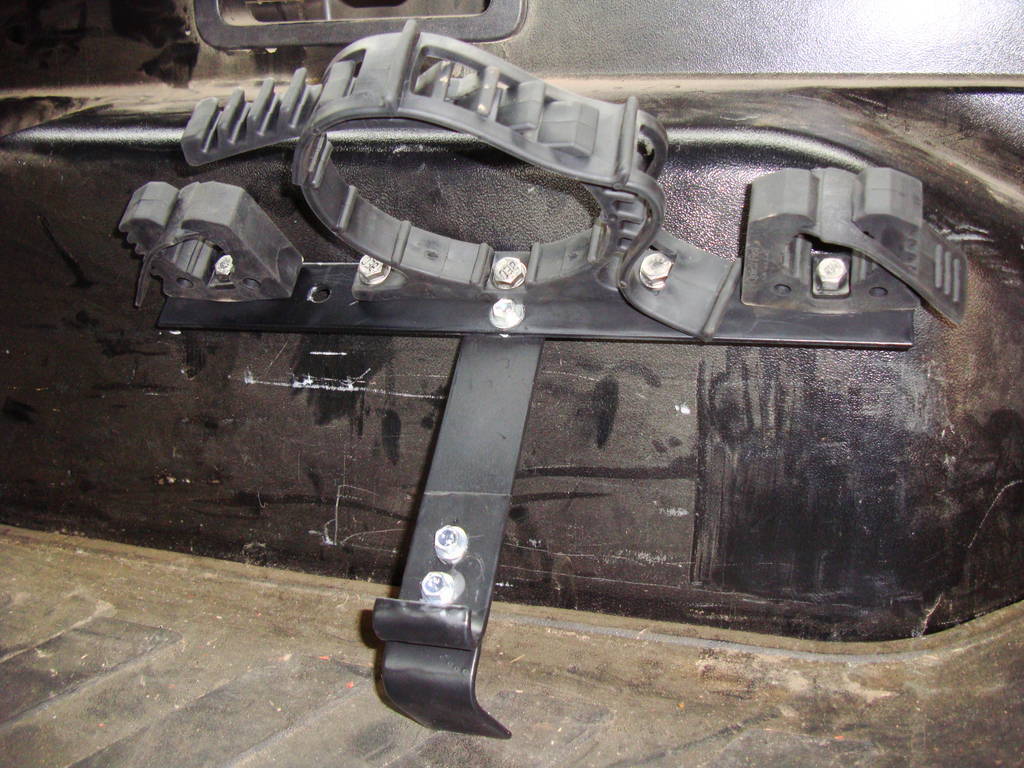

    Assembled:

    [​IMG]



    Step 3: Attach it to your bed rails, and mount your Hi-Lift

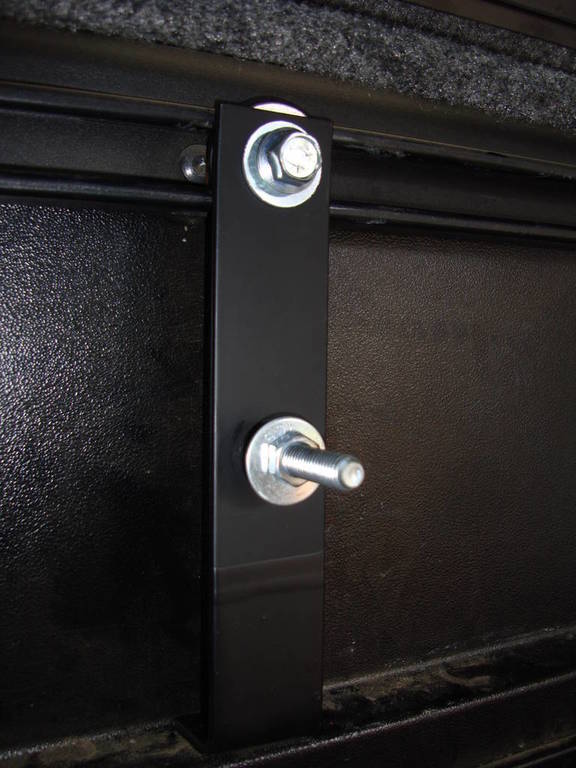

    FRONT:
    [​IMG]

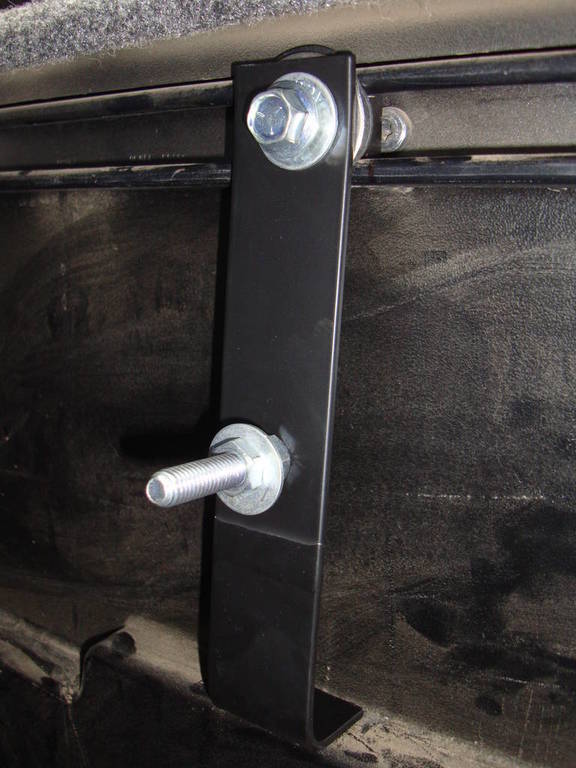

    BACK:
    [​IMG]

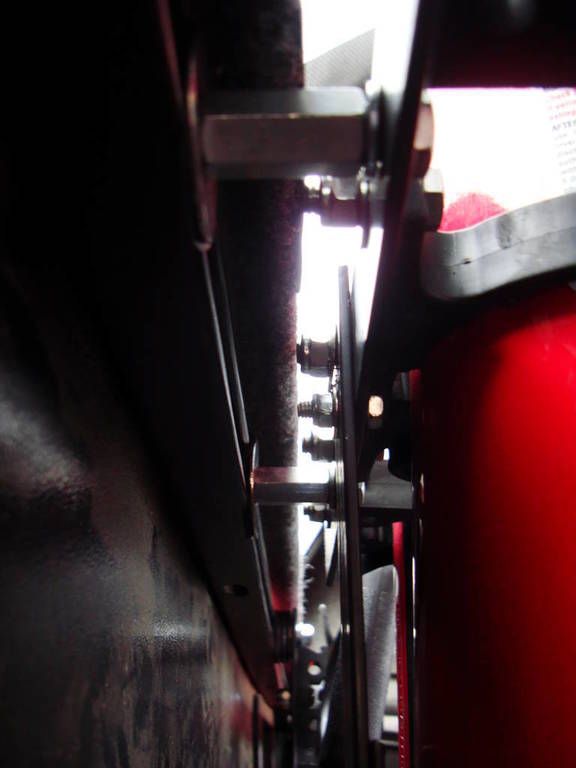

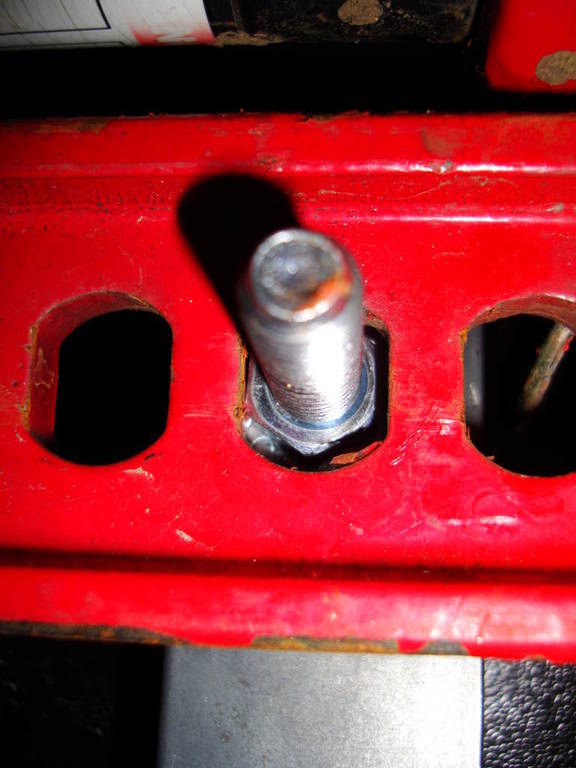

    DETAIL OF THE JAM NUT IN THE HI-LIFT HOLE:
    [​IMG]

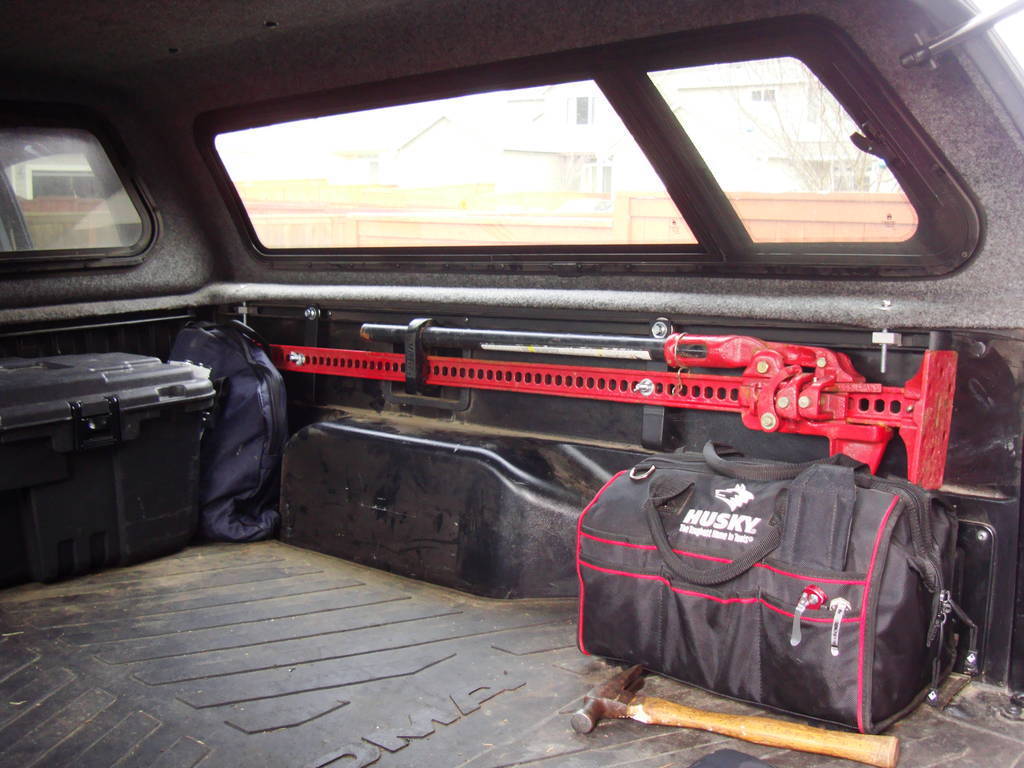

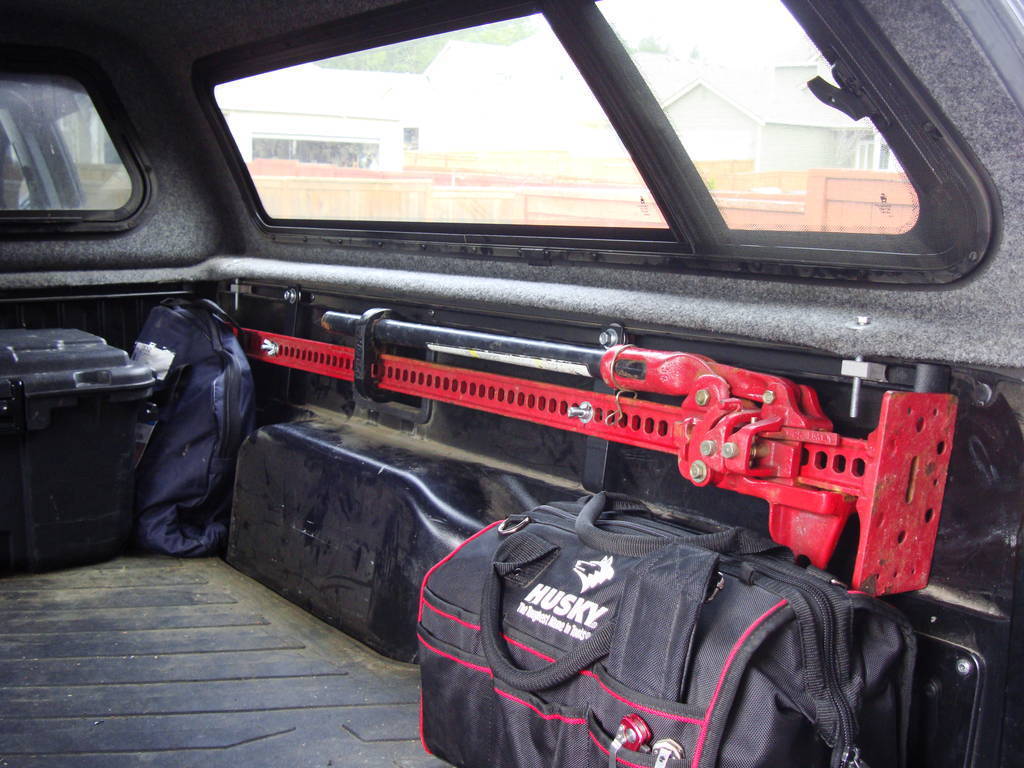

    HI-LIFT MOUNTED:
    [​IMG]

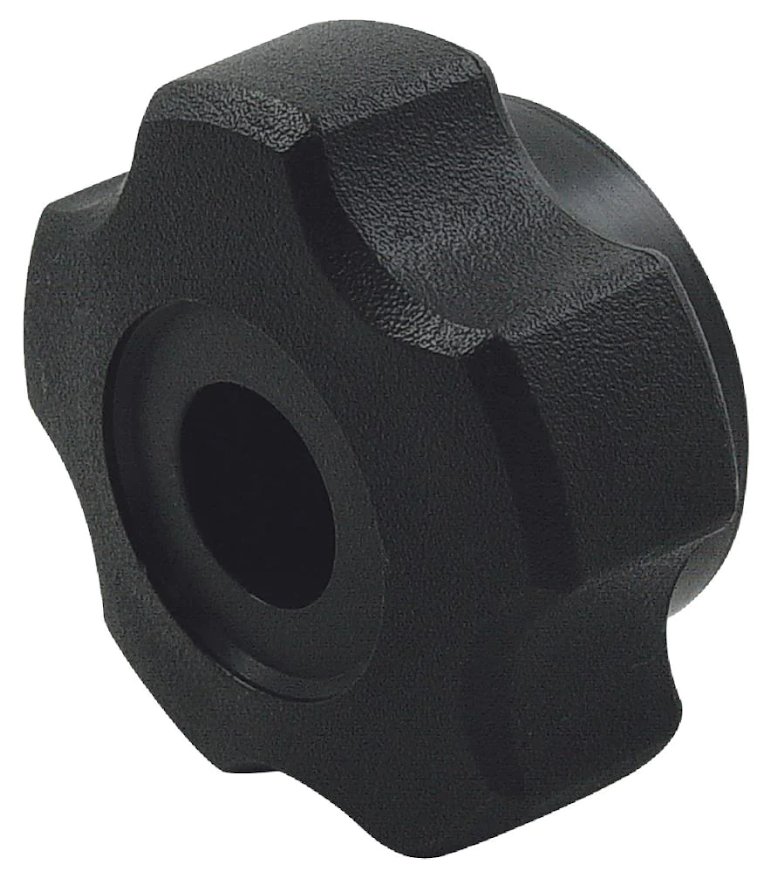

    Upgraded to these Knobs instead of the Wing Nuts.
    [​IMG]

    [​IMG]

    [​IMG]



    ----< Tool Mount >----

    PARTS NEEDED: (each part is a hyperlink)
    I got pretty much everything at Home Depot or Lowe's aside from the Quick-Fists and T-Nuts.


    (4) Original QuickFists (I got the combo pack + 2 originals)
    (2) 3/8-16 T-Slot nuts
    (1) 1.5" x 19" Steel Flat Bar (1/8" thick)
    (2) 1-1/2" 3/8-16 Bolts
    (2) 3/8" Lock Washers
    (6) 3/8" Fender Washers
    (6) 3/8" Thick Rubber Fender Washers
    (4) 1/4-20 1" Bolts
    (4) 1/4-20 Nylon Locking Nuts

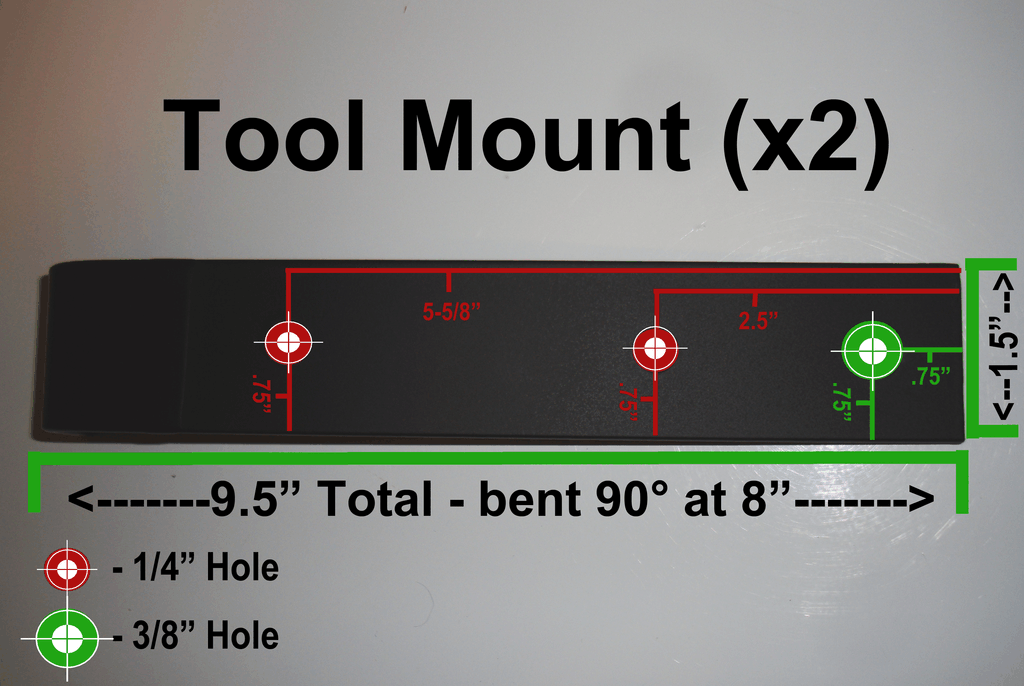

    Step 1: I measured, cut and drilled my mounting plates using the 1.5" x 36" Steel Flat Bar (1/8" thick).

    • I measured 9.5" down and marked it with my Sharpie, and then made another mark at 8".
    • Cut it off @ 9.5". Bend it to 90°from the 8" mark using your hammer and vise (or equivalent). Make (2) of these pieces. I drilled my 3/8" top holes .75" down from the top (the un-bent side) centered .75" in.
    • I drilled my 1/4" holes 2.5" down from the top, and the third set at 5-5/8" down from the top, both centered .75" in.
    [​IMG]


    Step 2: Assemble your mounts and attach to the bed rail.

    Quick-Fists to the Mounting Bracket:
    1" 1/4-20 bolt >>> plastic washer (incl. w/ Quick-Fist) >>> Quick-Fist >>> flat bar >>> 1/4 washer >>> 1/4-20 nylon locking washer

    Mounting Bracket to the T-Slot Nut:

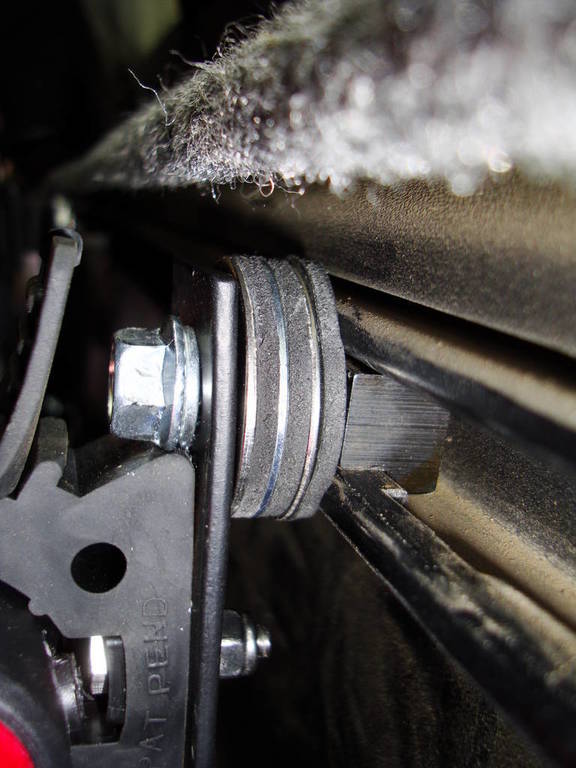

    I had to stack the fender washers to make a spacer. Otherwise, my shovel would hit the rail.

    1.5" 3/8-16 Bolt >>> 3/8 lock washer >>> Mounting Bracket >>> fender washer >>> rubber fender washer >>> fender washer >>> rubber fender washer >>> fender washer >>> rubber fender washer >>> T-Slot nut

    [​IMG]

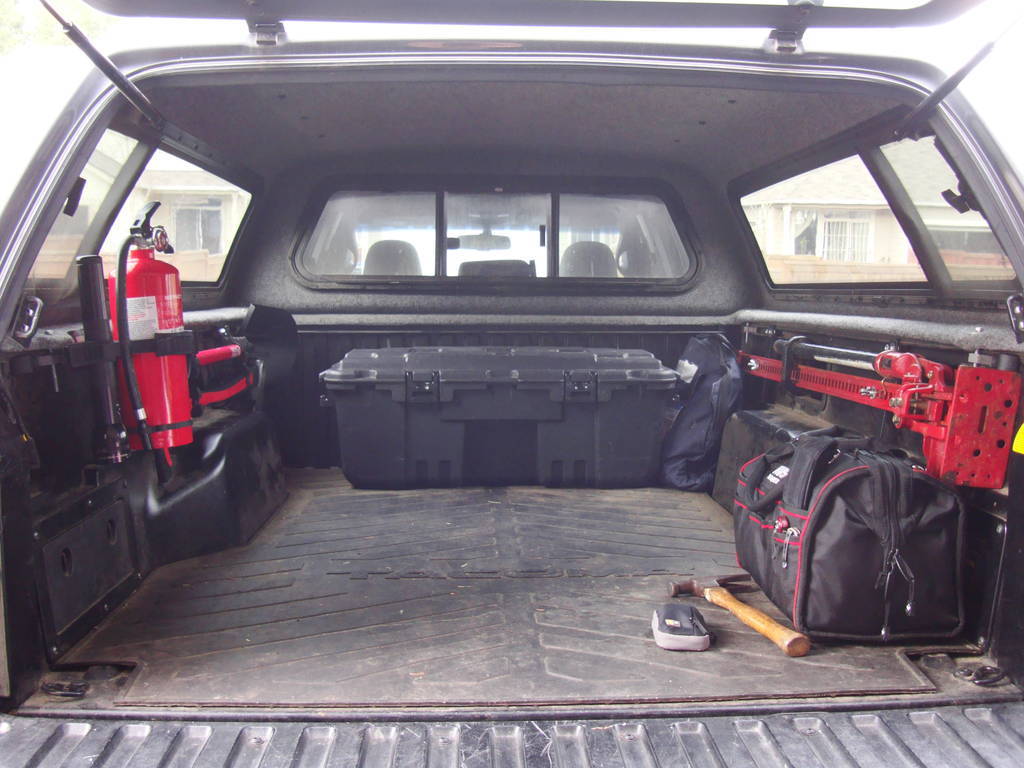

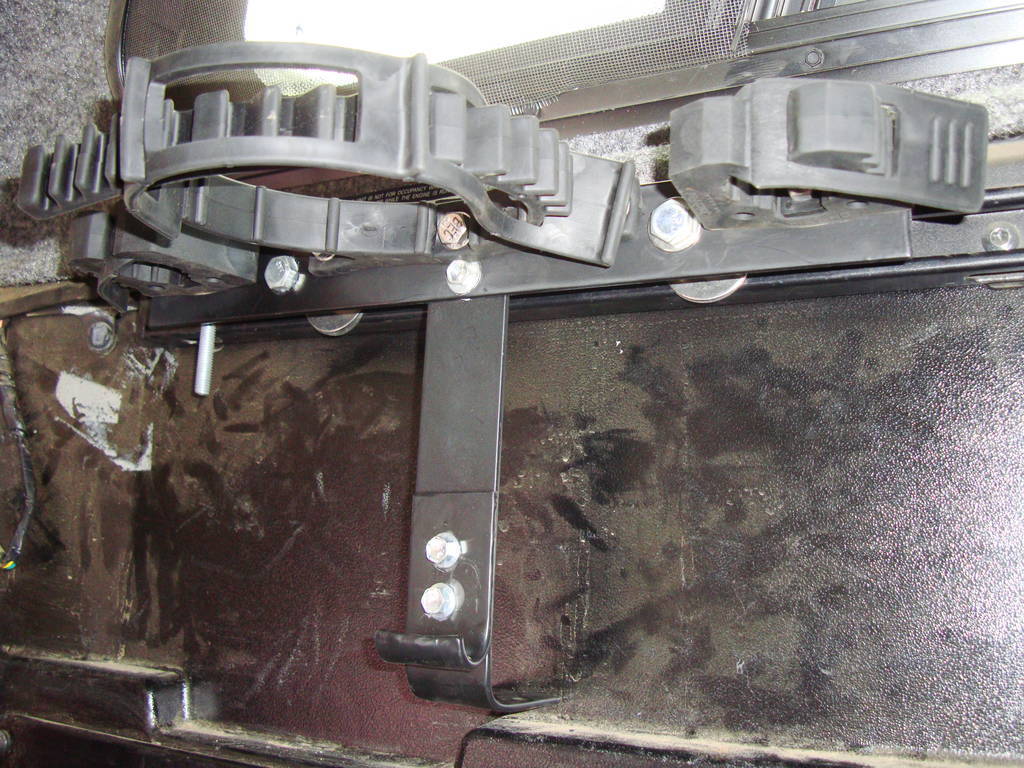

    Step 3: Attach your mounting brackets, and mount your tools.
    [​IMG]


    SEE BELOW FOR THE "T-MOUNT"

    Last edited: Jun 8, 2015
    Dj Suisav and Rhyno like this.
  2. Jan 26, 2013 at 2:27 PM
    #2
    KenpachiZaraki

    KenpachiZaraki Its Wicked Flow BITCHES!!

    Joined:
    May 24, 2009
    Member:
    #17581
    Messages:
    3,587
    Gender:
    Male
    First Name:
    Alex •﹏•
    Lubbock
    Vehicle:
    05 TRD OffRoad Poser ψ(`∇´)ψ
    ALL POSER- Afe Pro Dry S drop in filter, 3" AP leaf pack, Eibach w/5100's up front, 5100's rear, Fog Light Mod, ABS off mod, Dash Light MOD, Doug Thorley Long Tube Headers, Wicked Flow Bitches MAX Muffler, 4" floods, 20", 43" light bars, 265/75/16 Hankook Dynapro ATm, oil catch can, rear diff breather relocate, Custome Sliders, SOS concepts Front bumper, Demon Eye Mod, backlit TRD emblem on bumper, Morimoto D2S projectors,
    Thanks!! Where did you get those slot nuts?

  3. Jan 26, 2013 at 2:32 PM
    #3
    folmonty

    folmonty Active Member

    Joined:
    Dec 19, 2012
    Member:
    #93388
    Messages:
    34
    Gender:
    Male
    First Name:
    Monty
    NorCal
    Vehicle:
    05 PreRunner Sport (sold) 13 AC 4X4 (inbound)
    Nicely done and well detailed Benson X. Stuff like this is exactly why forums are so useful.

    Just might be a first project before or after the truck is delivered. Went from Pre-Runner Sport to 4X4. Now a highlift has purpose :D

  4. Jan 26, 2013 at 2:48 PM
    #4
    Benson X

    Benson X [OP] ...and we're back!

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    4,662
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    Debadged, Black Toyota Emblem, TRD Emblem, Tint, Leer 100XL w/ Thule Tracker II rails, aFe Stage II Si Pro Dry-S CAI, aFe Mach Power 3" cat-back exhaust, Doug Thorley Y-Pipe, Bedmat, Weathertech liners, Weathertech window vents, Redline Hood Struts, 12v Anytime Mod, Maglight Mod, FOB/Seatbelt Mod, Rear Diff. Breather Mod, OEM Heated Mirrors Mod, OME 886 Coils w/ 90k Nitro Shocks up front, OME N182 Shocks with Dakars and a D29XL AAL in back, Light Racing UCAs, 1/2" Toytec Front Spacers, swaybar delete Mod, (4) 1" BORA Wheel Spacers, 285/70R17 Goodyear MT/R (originals), hidden Cobra 19DX IV w/ 4' Firestik on a Relentless Mount, custom Sliders, ARB Bumper, Warn VR-8000s w/ Syn. line, custom Tool/Hi-Lift mounts, custom Engine Bay and Winch-area LEDs, csJumper interior LEDs, custom TRD Skull Decal, 10" SeeLite LED light-bar custom mounted in the grille, custom Front & Mid skidplate, Garmin 60CSX GPS w/ RAM mounts....RAN OUT OF
    ----< T-Mount >----

    [COLOR=Red][SIZE=5][COLOR=RoyalBlue][U][B]PARTS NEEDED[/B][/U]:[/COLOR][/SIZE][/COLOR][SIZE=2][SIZE=2](each part [SIZE=2]i[/SIZE]s a hyperlink) [/SIZE][/SIZE]

    [SIZE=2][SIZE=2] I got pretty much everything at Home Depot or Lowe's aside from the Quick-Fists and T-Nuts[SIZE=2].[/SIZE][/SIZE][/SIZE]

    [SIZE=2][SIZE=2][SIZE=4][SIZE=4][COLOR=Red][SIZE=5][COLOR=RoyalBlue][COLOR=Black][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=4][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2](2) [URL="http://www.endroad.com/index.php/quick-fist-mounts/quick-fist-clamp.html"]Original QuickFists[/URL][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/COLOR][/COLOR][/SIZE][/COLOR][/SIZE][/SIZE][/SIZE][/SIZE]
    (1) Super QuickFist
    (2) 3/8-16 T-Slot nuts
    (1) 1.5" x 28" Steel Flat Bar (1/8" thick)
    (2) 2" 3/8-16 Bolts
    (2) 1-1/8" 3/8-16 Coupling Nuts (used as spacers)
    (2) 3/8 Lock Washers
    (2) 3/8 Fender Washers
    (2) 3/8Thick Rubber Fender Washers
    (5) 1/4-20 1" Bolts
    (5) 1/4-20 Nylon Locking Nuts
    (5) 1/4 Washers
    (3) 5/16-18 1" Bolts
    (6) 5/16 Washers


    [SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=4][SIZE=4][COLOR=Red][SIZE=5][COLOR=RoyalBlue][U][B]Step 1[/B][/U]:[/COLOR][/SIZE][B][SIZE=4][COLOR=Black]I measured, cut and drilled my mounting plates using the [/COLOR][/SIZE][/B][/COLOR][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE]1.5" x 36" Steel Flat Bar (1/8" thick).


    • I measured 14" down and marked it with my Sharpie. I made another mark at 24" and one more mark at 27.25"

    • Cut into ([B]3[/B]) pieces: [B][SIZE=3][COLOR=Red]14", 10", [/COLOR][/SIZE][/B][SIZE=2]and[/SIZE][B][SIZE=3][COLOR=Red] 3.25"[/COLOR][/SIZE][/B][B][SIZE=3][COLOR=Red]
      [/COLOR][/SIZE][/B]

    • [SIZE=3][COLOR=Red][SIZE=3][SIZE=5][COLOR=RoyalBlue][COLOR=Black][SIZE=2]Bend the 10" pi[SIZE=2]ece [/SIZE][/SIZE][/COLOR][/COLOR][/SIZE][/SIZE][/COLOR][/SIZE][SIZE=3][COLOR=Red][SIZE=3][SIZE=5][COLOR=RoyalBlue][COLOR=Black][SIZE=2][SIZE=2][SIZE=2][SIZE=4][SIZE=4][COLOR=Red][COLOR=Black][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=4][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=3][COLOR=Red][SIZE=3][COLOR=Black][SIZE=4][SIZE=4][COLOR=Red][SIZE=2][COLOR=Black]90° at the 8" mark. [/COLOR][/SIZE][/COLOR][/SIZE][/SIZE][/COLOR][/SIZE][/COLOR][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/COLOR][/COLOR][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/COLOR][/COLOR][/SIZE][/SIZE][/COLOR][/SIZE]


    Piece #1- (14") The Top Mount
    [SIZE=3][COLOR=Red][SIZE=3][COLOR=Black][SIZE=4]
    [/SIZE][/COLOR][/SIZE][/COLOR][/SIZE]
    [COLOR=Red][COLOR=Black][B]Drill holes a[/B][SIZE=2][B]ccord[/B][SIZE=2][B]ing to the diagram[SIZE=2]:[/SIZE][/B]
    [/SIZE][/SIZE][/COLOR][/COLOR]
    [​IMG]



    [B][SIZE=3][COLOR=Red][SIZE=3][SIZE=4][COLOR=RoyalBlue][U]Piece #2[/U][/COLOR][/SIZE][COLOR=Black][COLOR=Red][SIZE=3][COLOR=RoyalBlue]-[/COLOR] [/SIZE][/COLOR][SIZE=4]([COLOR=Red]10"[/COLOR][SIZE=4] [COLOR=Red]bent 90[/COLOR][/SIZE][/SIZE][/COLOR][/SIZE][/COLOR][/SIZE][/B][B][SIZE=3][COLOR=Red][SIZE=3][COLOR=Black][SIZE=4][SIZE=4][COLOR=Red]°[SIZE=4] at 8"[/SIZE][/COLOR]) [/SIZE]The Middle Mount
    [/SIZE][/COLOR][/SIZE][/COLOR][/SIZE][/B]
    [SIZE=3][COLOR=Red][SIZE=3][COLOR=Black]
    [/COLOR][/SIZE][/COLOR][/SIZE]
    [COLOR=Red][COLOR=Black][B]Drill holes a[/B][SIZE=2][B]ccord[/B][SIZE=2][B]ing to the diagram[/B][SIZE=2][B]:[/B]
    [SIZE=2][URL="http://www.tacomaworld.com/gallery/showphoto.php/photo/307000/cat/500"][IMG]http://www.tacomaworld.com/gallery/data/500/Mid_T.png[/IMG][/URL]


    [/SIZE][/SIZE][/SIZE][/SIZE][/COLOR][/COLOR]

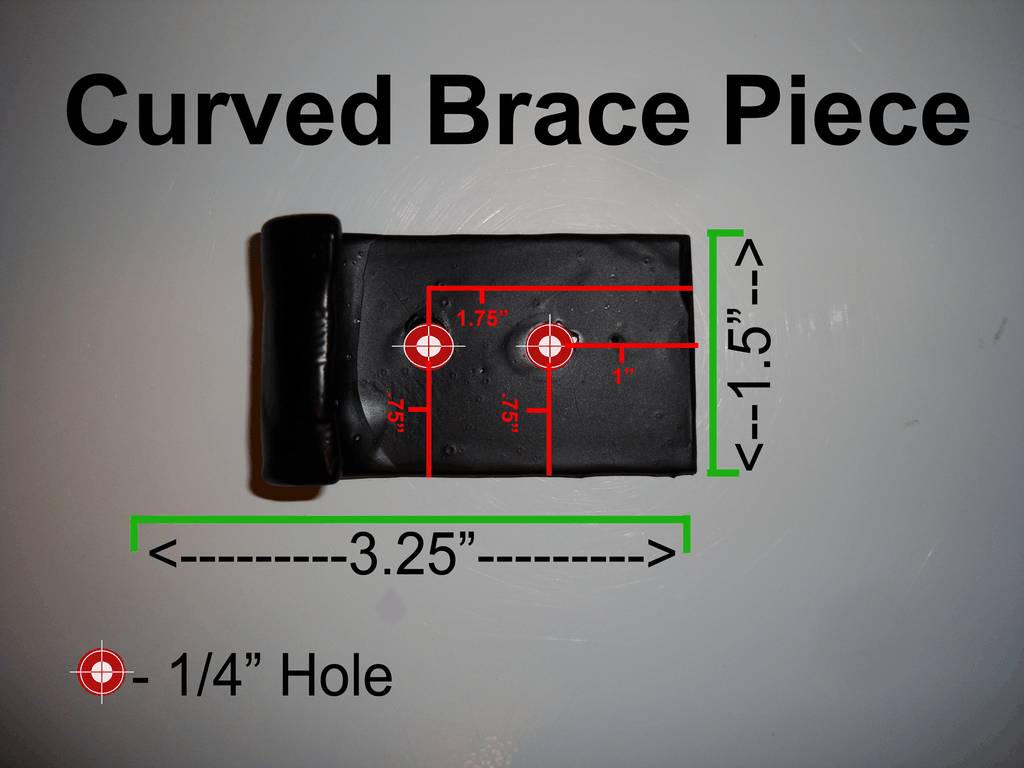

    [SIZE=3][COLOR=Red][SIZE=3][SIZE=4][COLOR=RoyalBlue][U]Piece #3[/U][/COLOR][/SIZE][COLOR=Black][COLOR=Red][SIZE=3][COLOR=RoyalBlue]-[/COLOR] [/SIZE][/COLOR][SIZE=4]([COLOR=Red]3.25"[/COLOR][SIZE=4] [COLOR=Red][SIZE=4]curved[/SIZE] to form [SIZE=4]a "J"[/SIZE][/COLOR][/SIZE][/SIZE][/COLOR][/SIZE][/COLOR][/SIZE][SIZE=3][COLOR=Red][SIZE=3][COLOR=Black][SIZE=4][SIZE=4]) [/SIZE]The Bottom Brace

    [/SIZE][/COLOR][/SIZE][/COLOR][/SIZE]
    [COLOR=Red][SIZE=3][COLOR=Black][SIZE=4][SIZE=2][URL="http://www.tacomaworld.com/gallery/showphoto.php/photo/307004/cat/500"][IMG]http://www.tacomaworld.com/gallery/data/500/DSC06940.JPG[/IMG][/URL][/SIZE][/SIZE][/COLOR][/SIZE][/COLOR][SIZE=3][COLOR=Red][SIZE=3][COLOR=Black][SIZE=4]
    [/SIZE][/COLOR][/SIZE][/COLOR][/SIZE]

    [SIZE=3][COLOR=Red][SIZE=3][COLOR=Black][SIZE=4][SIZE=4][SIZE=4][COLOR=Red][COLOR=Black][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=4][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][COLOR=Red][COLOR=Black]Drill holes a[SIZE=2]ccord[SIZE=2]ing to the diagram[SIZE=2]:
    [/SIZE][/SIZE][/SIZE][/COLOR][/COLOR][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/COLOR][/COLOR][/SIZE][/SIZE][/SIZE][/COLOR][/SIZE][/COLOR][/SIZE]
    [​IMG]



    [SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=4][SIZE=4][COLOR=Red][SIZE=5][COLOR=RoyalBlue][U][B]Step 2[/B][/U]: [SIZE=4][COLOR=Black][B][SIZE=5]Assemble Your T-Mount[/SIZE][/B]

    [SIZE=2]Starting with your [U][B]Top Bar,[/B][/U] tighten your [SIZE=2]Original [/SIZE]Quick-Fists to the 1/4" holes on each end. I attached them just as I did on Tool Mount:

    [U][B][SIZE=2]Quick-Fists to Top Bar[/SIZE][/B][/U][SIZE=2][SIZE=2]:[/SIZE][/SIZE]
    1/4"-20 Bolt [SIZE=2]>>> [/SIZE]plastic washer (incl. w/ Quick-F[SIZE=2]ist)[SIZE=2] >>>[/SIZE] Quick-Fist[SIZE=2] >>>[/SIZE] Mou[SIZE=2]nting Bracke[SIZE=2]t[SIZE=2] >>>[/SIZE] 1/4 [SIZE=2]washer [SIZE=2]>>>[/SIZE] 1/4-20 nylon locking nut

    [/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/COLOR][/SIZE][/COLOR][/SIZE][/COLOR][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE]

    Next, attach your Bottom Brace to the Middle Bar.

    Bottom Brace to
    [SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=4][SIZE=4][COLOR=Red][SIZE=5][COLOR=RoyalBlue][SIZE=2][COLOR=black][SIZE=2][U][B][SIZE=2]Middle Bar:
    [/SIZE][/B][/U][/SIZE][/COLOR][/SIZE][/COLOR][/SIZE][/COLOR][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE]
    [SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=4][SIZE=4][COLOR=Red][SIZE=2][COLOR=black][SIZE=4][SIZE=4][COLOR=Red][SIZE=5][COLOR=RoyalBlue][COLOR=Black][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=4][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=4][SIZE=4][COLOR=Red][SIZE=5][COLOR=RoyalBlue][SIZE=4][COLOR=Black][SIZE=2]1/4"-20 Bolt [SIZE=2]>>>[/SIZE][SIZE=2] [SIZE=2]Bottom Brace >>> [/SIZE]Mou[SIZE=2]nting Bracke[SIZE=2]t[SIZE=2] >>>[/SIZE] 1/4 [SIZE=2]washer [SIZE=2]>>>[/SIZE] 1/4-20 nylon locking nut[/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/COLOR][/SIZE][/COLOR][/SIZE][/COLOR][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/COLOR][/COLOR][/SIZE][/COLOR][/SIZE][/SIZE][/COLOR][/SIZE][/COLOR][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE].
    [SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=4][SIZE=2]

    [SIZE=2]Lastly, attach your Super Quick-F[SIZE=2]ist to your [B]Top Bar[/B] and connect the [B]Middle [SIZE=2]Bar.

    [SIZE=2][U][SIZE=2][SIZE=2]Super Quick-Fist To Top Bar[/SIZE][/SIZE][/U][SIZE=2][SIZE=2][SIZE=2]:
    [/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/B][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE]
    5/16-18" bolt >>> 5/16 washer >>> Super Quick-Fist >>> Top Bar >>> Middle Bar >>> 5/16 washer >>> 5/16"-18 nylon lock nut

    Tighten the last 1/4"-20 bolt through the Top Bar into the Middle Bar.

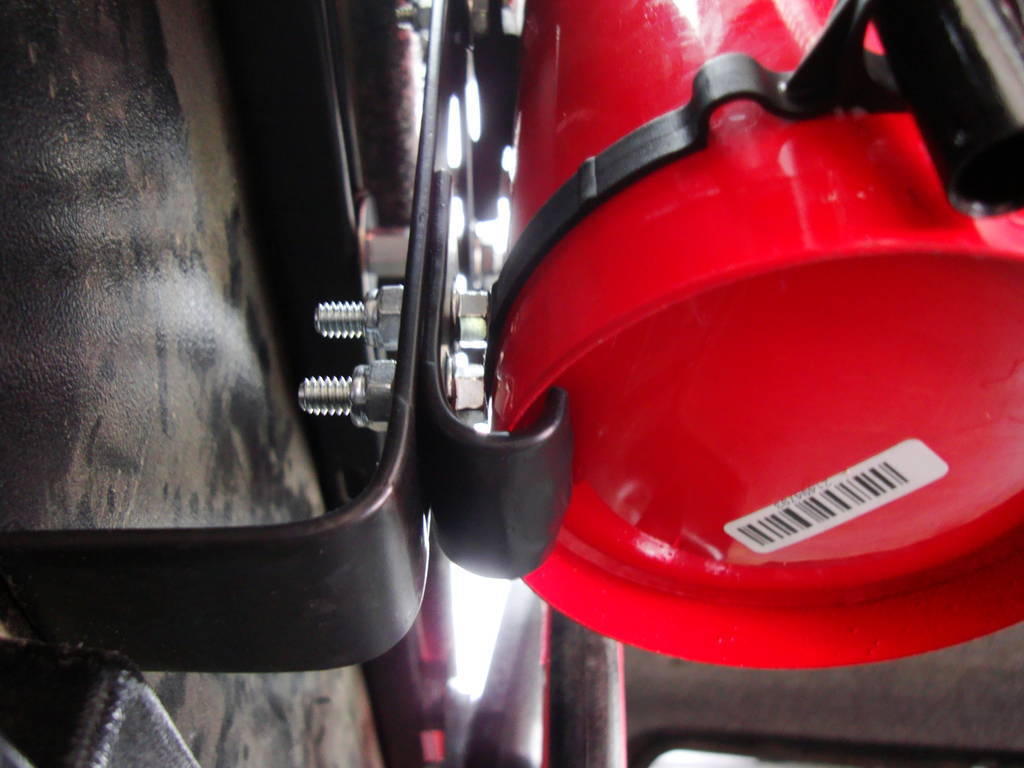

    Assembled:
    [​IMG]
    [​IMG]




    [SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=4][SIZE=4][COLOR=Red][SIZE=5][COLOR=RoyalBlue][U][B]Step 3[/B][/U]: [SIZE=4][COLOR=Black][B][SIZE=5]Attach the T-Mount to the bed rails

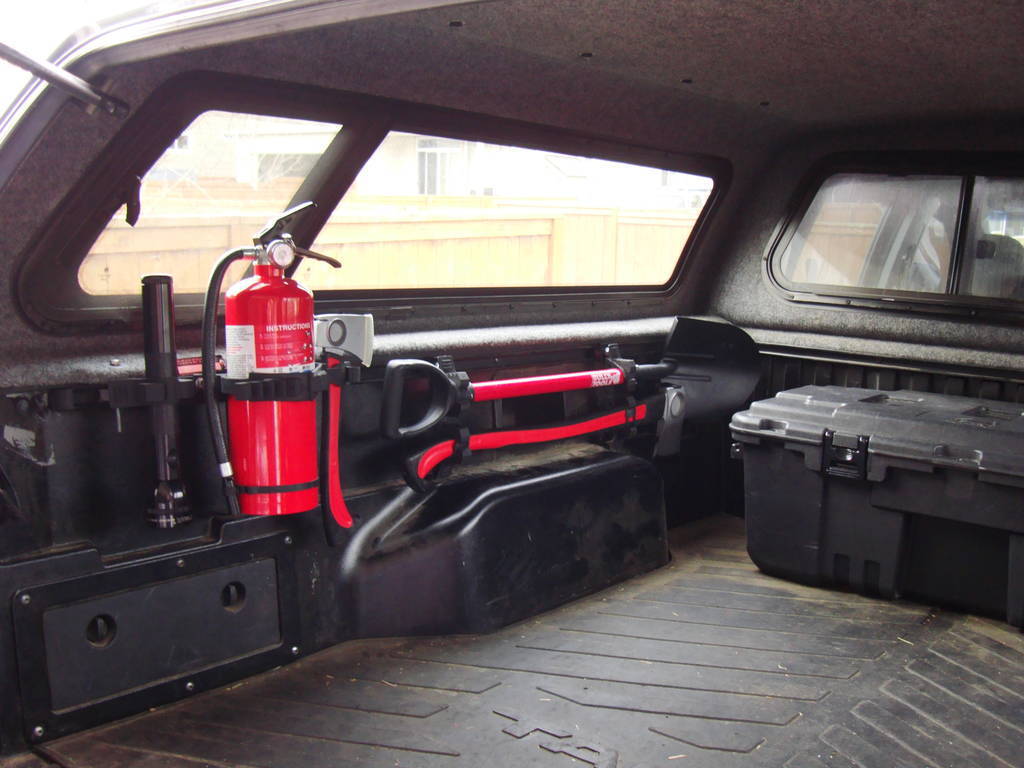

    [/SIZE][/B][SIZE=5][SIZE=2]Now it's time to attach the T-Mount to the bed rails.

    [SIZE=2]2" 3/8-16 [SIZE=2]bolt >>> 3/8 washer >>> T-Mount >>> 3/8 lock washer >>> 1-1/8" 3/[SIZE=2]8-16 [SIZE=2]c[SIZE=2]oupling nut [SIZE=2]>>> 3/8 fender washer >>> 3/8 rubber fender washer >>> T-Nut

    [U][B][SIZE=2]Assembled:[/SIZE][/B][/U]
    [SIZE=2][URL="http://www.tacomaworld.com/gallery/showphoto.php/photo/307007/cat/500"][IMG]http://www.tacomaworld.com/gallery/data/500/DSC06955.JPG[/IMG][/URL]
    [SIZE=2][URL="http://www.tacomaworld.com/gallery/showphoto.php/photo/307009/cat/500"][IMG]http://www.tacomaworld.com/gallery/data/500/DSC06956.JPG[/IMG][/URL]
    [SIZE=2][URL="http://www.tacomaworld.com/gallery/showphoto.php/photo/307008/cat/500"][IMG]http://www.tacomaworld.com/gallery/data/500/DSC06971.JPG[/IMG][/URL]
    [SIZE=2][URL="http://www.tacomaworld.com/gallery/showphoto.php/photo/307013/cat/500"][IMG]http://www.tacomaworld.com/gallery/data/500/DSC06973.JPG[/IMG][/URL][/SIZE]



    [/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/COLOR][/SIZE][/COLOR][/SIZE][/COLOR][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE]

    [SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=4][SIZE=4][COLOR=Red][SIZE=5][COLOR=RoyalBlue][SIZE=4][COLOR=Black][SIZE=5][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][FONT=Arial Black][COLOR=RoyalBlue][I][COLOR=Red][B][SIZE=7]----< [/SIZE][/B][/COLOR][B][SIZE=7][COLOR=Red]Finished Product>----[/COLOR][/SIZE][/B][/I][/COLOR][/FONT][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/COLOR][/SIZE][/COLOR][/SIZE][/COLOR][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE]

    [​IMG]

    [​IMG]
    [​IMG]
    [​IMG]




    [SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=4][SIZE=4][COLOR=Red][SIZE=5][COLOR=RoyalBlue][SIZE=4][COLOR=Black][SIZE=5][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2][SIZE=2]
    [/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/COLOR][/SIZE][/COLOR][/SIZE][/COLOR][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE][/SIZE]

    Last edited: Apr 14, 2013
  5. Jan 26, 2013 at 2:57 PM
    #5
    folmonty

    folmonty Active Member

    Joined:
    Dec 19, 2012
    Member:
    #93388
    Messages:
    34
    Gender:
    Male
    First Name:
    Monty
    NorCal
    Vehicle:
    05 PreRunner Sport (sold) 13 AC 4X4 (inbound)
    I stand corrected - Bit of an admitted rookie in the wheeling department.

    Thanks for the shopping and DYI links / ideas. Helps a lot and saves tons of time!

  6. Jan 26, 2013 at 3:06 PM
    #6
    Benson X

    Benson X [OP] ...and we're back!

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    4,662
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    Debadged, Black Toyota Emblem, TRD Emblem, Tint, Leer 100XL w/ Thule Tracker II rails, aFe Stage II Si Pro Dry-S CAI, aFe Mach Power 3" cat-back exhaust, Doug Thorley Y-Pipe, Bedmat, Weathertech liners, Weathertech window vents, Redline Hood Struts, 12v Anytime Mod, Maglight Mod, FOB/Seatbelt Mod, Rear Diff. Breather Mod, OEM Heated Mirrors Mod, OME 886 Coils w/ 90k Nitro Shocks up front, OME N182 Shocks with Dakars and a D29XL AAL in back, Light Racing UCAs, 1/2" Toytec Front Spacers, swaybar delete Mod, (4) 1" BORA Wheel Spacers, 285/70R17 Goodyear MT/R (originals), hidden Cobra 19DX IV w/ 4' Firestik on a Relentless Mount, custom Sliders, ARB Bumper, Warn VR-8000s w/ Syn. line, custom Tool/Hi-Lift mounts, custom Engine Bay and Winch-area LEDs, csJumper interior LEDs, custom TRD Skull Decal, 10" SeeLite LED light-bar custom mounted in the grille, custom Front & Mid skidplate, Garmin 60CSX GPS w/ RAM mounts....RAN OUT OF
    LOL, just giving you a hard time man. There's always a few guys that think a Sport isn't a capable off-roading rig and the Off-Road with ATRAC and a locker is the better choice. It's more about the driver than the rig. But either way, any Tacoma is badass IMO :mudding:

  7. Jan 26, 2013 at 5:42 PM
    #7
    rubenc87

    rubenc87 Cobra

    Joined:
    Feb 2, 2009
    Member:
    #13214
    Messages:
    1,463
    Gender:
    Male
    Texas
    Vehicle:
    2013 Tacoma DCSB 4x4
    DTRL,HID's, Redline Elite Hood Struts,IVD Coilovers and Rear Shocks W/ Ext. Res.,N-FAB Light Bar W/ KC Titanium Lights, Alcan AAL,Wet Okole's, URD T.C.A.I. M/T Classic Lock's BFG AT, Chrome TC UCA'S,TRD Exhaust, Bed Mat,Painted Roof Rack,Access LE,Weathertech's F&R,P&L Lock
    Great write up. Thanks. Pics are also a great help.

  8. Jan 27, 2013 at 8:15 AM
    #8
    Benson X

    Benson X [OP] ...and we're back!

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    4,662
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    Debadged, Black Toyota Emblem, TRD Emblem, Tint, Leer 100XL w/ Thule Tracker II rails, aFe Stage II Si Pro Dry-S CAI, aFe Mach Power 3" cat-back exhaust, Doug Thorley Y-Pipe, Bedmat, Weathertech liners, Weathertech window vents, Redline Hood Struts, 12v Anytime Mod, Maglight Mod, FOB/Seatbelt Mod, Rear Diff. Breather Mod, OEM Heated Mirrors Mod, OME 886 Coils w/ 90k Nitro Shocks up front, OME N182 Shocks with Dakars and a D29XL AAL in back, Light Racing UCAs, 1/2" Toytec Front Spacers, swaybar delete Mod, (4) 1" BORA Wheel Spacers, 285/70R17 Goodyear MT/R (originals), hidden Cobra 19DX IV w/ 4' Firestik on a Relentless Mount, custom Sliders, ARB Bumper, Warn VR-8000s w/ Syn. line, custom Tool/Hi-Lift mounts, custom Engine Bay and Winch-area LEDs, csJumper interior LEDs, custom TRD Skull Decal, 10" SeeLite LED light-bar custom mounted in the grille, custom Front & Mid skidplate, Garmin 60CSX GPS w/ RAM mounts....RAN OUT OF
    No problem and thanks Ruben. :thumbsup:

  9. Jan 27, 2013 at 8:18 AM
    #9
    Faryota

    Faryota Well-Known Member

    Joined:
    Jan 29, 2010
    Member:
    #30291
    Messages:
    559
    Gender:
    Male
    First Name:
    Mic
    Ridgefield, WA.
    Vehicle:
    13, 4x4, long bed, Sport, Debad
    6" BDS lift in front, warn winch, AFE cold air intake & exhaust, Body Armor Rear bumper, Tuffy in bed storage box, DZ bed mat, ARB front bumper & Warn winch w/light kit, Husky floor mats, dash mat,
    Nice write up & pictures!!! Thanks!!!

  10. Jan 27, 2013 at 8:25 AM
    #10
    rubenc87

    rubenc87 Cobra

    Joined:
    Feb 2, 2009
    Member:
    #13214
    Messages:
    1,463
    Gender:
    Male
    Texas
    Vehicle:
    2013 Tacoma DCSB 4x4
    DTRL,HID's, Redline Elite Hood Struts,IVD Coilovers and Rear Shocks W/ Ext. Res.,N-FAB Light Bar W/ KC Titanium Lights, Alcan AAL,Wet Okole's, URD T.C.A.I. M/T Classic Lock's BFG AT, Chrome TC UCA'S,TRD Exhaust, Bed Mat,Painted Roof Rack,Access LE,Weathertech's F&R,P&L Lock
    Members such as yourself, make this the forum what it is. Awesome when members share what they have learned and share with the rest of us and show us with these great write ups. Thanks

  11. Jan 28, 2013 at 11:30 AM
    #11
    JoeTacoma02

    JoeTacoma02 Well-Known Member

    Joined:
    Jul 27, 2010
    Member:
    #40831
    Messages:
    3,372
    Gender:
    Male
    Beaverton, OR
    Vehicle:
    SWB 05 Double Cab 4x4 TRD Off Road
  12. Feb 5, 2013 at 12:47 PM
    #12
    AK2NM

    AK2NM Active Member

    Joined:
    Mar 29, 2012
    Member:
    #75848
    Messages:
    31
    Gender:
    Male
    Surprise, AZ
    spacer lift,275/60R17, hi-lift mounted in bed, tailgate secured, rear window bar,many to come
    Thanks for the excellent write up. Following your instructions this is mine.


  13. Feb 5, 2013 at 12:55 PM
    #13
    Benson X

    Benson X [OP] ...and we're back!

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    4,662
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    Debadged, Black Toyota Emblem, TRD Emblem, Tint, Leer 100XL w/ Thule Tracker II rails, aFe Stage II Si Pro Dry-S CAI, aFe Mach Power 3" cat-back exhaust, Doug Thorley Y-Pipe, Bedmat, Weathertech liners, Weathertech window vents, Redline Hood Struts, 12v Anytime Mod, Maglight Mod, FOB/Seatbelt Mod, Rear Diff. Breather Mod, OEM Heated Mirrors Mod, OME 886 Coils w/ 90k Nitro Shocks up front, OME N182 Shocks with Dakars and a D29XL AAL in back, Light Racing UCAs, 1/2" Toytec Front Spacers, swaybar delete Mod, (4) 1" BORA Wheel Spacers, 285/70R17 Goodyear MT/R (originals), hidden Cobra 19DX IV w/ 4' Firestik on a Relentless Mount, custom Sliders, ARB Bumper, Warn VR-8000s w/ Syn. line, custom Tool/Hi-Lift mounts, custom Engine Bay and Winch-area LEDs, csJumper interior LEDs, custom TRD Skull Decal, 10" SeeLite LED light-bar custom mounted in the grille, custom Front & Mid skidplate, Garmin 60CSX GPS w/ RAM mounts....RAN OUT OF
    Sweet, looks good man! :thumbsup:

    Did the dimensions work well for you? I didn't have access to a vise or drill press, so making the holes and bends was "interesting" and not perfect, but it works :D

    I just added another set of Quick-Fists to the tool mount for my axe and need to make a T-Mount for my Fire Extinguisher, Maglight, and Hatchet. I will eventually paint them all black (like you did).

  14. Feb 5, 2013 at 12:58 PM
    #14
    TacoFMS

    TacoFMS My turn.

    Joined:
    Jan 24, 2010
    Member:
    #29938
    Messages:
    4,164
    Gender:
    Male
    First Name:
    Justin
    Louisa County, VA
    Vehicle:
    just another grocery getter
    crushed goldfish crackers & spilled apple juice
    saw your write up and it inspired me to get off my arse and make something for my truck. so i took your parts list and modified the bends a little.

    [​IMG]

    then cut the center out of an old stock rubber exhaust hanger

    [​IMG]

    put it all together and came up with this...

    [​IMG]

    thanks for giving me the motivation and start up parts list!!!

  15. Feb 5, 2013 at 1:01 PM
    #15
    DoorDing

    DoorDing Thank you, Nancy Roman

    Joined:
    Sep 7, 2012
    Member:
    #86445
    Messages:
    24,986
    Gender:
    Male
    Vehicle:
    2012 DCSB Off-Road 4WD
    Thanks for the DIY. My Hi-Lift is on the way and I've been looking at mounting ideas.
    Very true. I went to the Easter Jeep Safari in Moab last year with a friend in his lightly modified Jeep. On paper, we had one of the least capable Jeeps in town, but had no problem on the trails - lots of concern for us from people on the same trails with $40k or more in theirs.

    I still like my OR, though. :cool:

  16. Feb 5, 2013 at 1:14 PM
    #16
    Benson X

    Benson X [OP] ...and we're back!

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    4,662
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    Debadged, Black Toyota Emblem, TRD Emblem, Tint, Leer 100XL w/ Thule Tracker II rails, aFe Stage II Si Pro Dry-S CAI, aFe Mach Power 3" cat-back exhaust, Doug Thorley Y-Pipe, Bedmat, Weathertech liners, Weathertech window vents, Redline Hood Struts, 12v Anytime Mod, Maglight Mod, FOB/Seatbelt Mod, Rear Diff. Breather Mod, OEM Heated Mirrors Mod, OME 886 Coils w/ 90k Nitro Shocks up front, OME N182 Shocks with Dakars and a D29XL AAL in back, Light Racing UCAs, 1/2" Toytec Front Spacers, swaybar delete Mod, (4) 1" BORA Wheel Spacers, 285/70R17 Goodyear MT/R (originals), hidden Cobra 19DX IV w/ 4' Firestik on a Relentless Mount, custom Sliders, ARB Bumper, Warn VR-8000s w/ Syn. line, custom Tool/Hi-Lift mounts, custom Engine Bay and Winch-area LEDs, csJumper interior LEDs, custom TRD Skull Decal, 10" SeeLite LED light-bar custom mounted in the grille, custom Front & Mid skidplate, Garmin 60CSX GPS w/ RAM mounts....RAN OUT OF
    Hell yeah man, good job! That's why I love TW!!! Get new ideas, get inspired and motivated. I love DIY projects because their cheap, and more custom. Plus you get that manly feeling of accomplishment once it's done.

    NP man, the wing nuts are holding tight so far :thumbsup:.

    I recently contacted a couple companies about their nylon insert locking wing nuts, but have yet to hear back. They are available, but only in bulk orders of 10+. If nothing else, I might just bite the bullet and buy 10 of them, and sell/give/trade the rest on TW.

  17. Feb 5, 2013 at 6:18 PM
    #17
    nammer

    nammer Well-Known Member

    Joined:
    Aug 1, 2011
    Member:
    #60945
    Messages:
    7,945
    Gender:
    Male
    First Name:
    Nam
    St. Petersburg, Florida
    Vehicle:
    2006 SR5 DCSB
    15000K HID headlights 3000K HID fogs LED Front Side Marker Bulbs LED License Plate Bulbs LED Front Turn Signals Color Matched Grille Color Matched Side Mirrors and Door Handles CB radio and PA speaker Overhead Compass and Temperature Window Tint Anytime Fog Light Mod Bakflip G2 Westin Stainless Bull Bar Pop N Lock PL5300 UltraGauge K&N Intake Stant Locking Gas Cap Color Matched Rear Bumper Jet Throttle Body Spacer
    sorry to ask a redundant question, but did the t slots fit without any mods? i saw the bed attachment hardware thread, but if i remember correctly, i thought they trimmed it a tiny, thanks for the info and pics!

  18. Feb 5, 2013 at 8:08 PM
    #18
    Benson X

    Benson X [OP] ...and we're back!

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    4,662
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    Debadged, Black Toyota Emblem, TRD Emblem, Tint, Leer 100XL w/ Thule Tracker II rails, aFe Stage II Si Pro Dry-S CAI, aFe Mach Power 3" cat-back exhaust, Doug Thorley Y-Pipe, Bedmat, Weathertech liners, Weathertech window vents, Redline Hood Struts, 12v Anytime Mod, Maglight Mod, FOB/Seatbelt Mod, Rear Diff. Breather Mod, OEM Heated Mirrors Mod, OME 886 Coils w/ 90k Nitro Shocks up front, OME N182 Shocks with Dakars and a D29XL AAL in back, Light Racing UCAs, 1/2" Toytec Front Spacers, swaybar delete Mod, (4) 1" BORA Wheel Spacers, 285/70R17 Goodyear MT/R (originals), hidden Cobra 19DX IV w/ 4' Firestik on a Relentless Mount, custom Sliders, ARB Bumper, Warn VR-8000s w/ Syn. line, custom Tool/Hi-Lift mounts, custom Engine Bay and Winch-area LEDs, csJumper interior LEDs, custom TRD Skull Decal, 10" SeeLite LED light-bar custom mounted in the grille, custom Front & Mid skidplate, Garmin 60CSX GPS w/ RAM mounts....RAN OUT OF
    I think those were the Grizzly brand ones. I got mine from Zorotools.com and they look slightly different, more like the Fastenal ones. Grizzly is cheaper, but you may have to trim them down.

    Gonna build the T-mount sometime this week and update the OP

  19. Feb 5, 2013 at 8:18 PM
    #19
    IgnorantlyAlberta

    IgnorantlyAlberta VA6DCO

    Joined:
    Apr 22, 2012
    Member:
    #77432
    Messages:
    3,146
    Gender:
    Male
    First Name:
    David
    edmonton
    Vehicle:
    06 sr5 tacoma rear shock relocate, 35s
    lift, wheels, bumper, rear bumper, intake, front and rear winches, swing tailgate, OBA, sliders.
    Looks pretty good.
    Just wondering with the wieght of the jack and no fixed point on the bottom of the mount, does the jack shake or bounce around at all? or vibrate against the box?

  20. Feb 5, 2013 at 8:25 PM
    #20
    nammer

    nammer Well-Known Member

    Joined:
    Aug 1, 2011
    Member:
    #60945
    Messages:
    7,945
    Gender:
    Male
    First Name:
    Nam
    St. Petersburg, Florida
    Vehicle:
    2006 SR5 DCSB
    15000K HID headlights 3000K HID fogs LED Front Side Marker Bulbs LED License Plate Bulbs LED Front Turn Signals Color Matched Grille Color Matched Side Mirrors and Door Handles CB radio and PA speaker Overhead Compass and Temperature Window Tint Anytime Fog Light Mod Bakflip G2 Westin Stainless Bull Bar Pop N Lock PL5300 UltraGauge K&N Intake Stant Locking Gas Cap Color Matched Rear Bumper Jet Throttle Body Spacer
    cool, thanks for info, GL with ur mount!

To Top
