DIY Hi-Lift and Tool Mounts

Discussion in '2nd Gen. Tacomas' started by Benson X, Jan 26, 2013.

  1. rob1

    rob1 Well-Known Member

    Joined:
    Jun 23, 2009
    Member:
    #18799
    Messages:
    1,813
    Gender:
    Male
    First Name:
    Robert
    South Texas
    Vehicle:
    Indigo Blue DblCab 4X4 Long Bed TRD Sport SR5
    Tail gate mod, locking gas cap, locking spare tire, rear spring tsb,Weathertech Digital fit's
    :eek: ....SAWEEEEEEEEET!!!!!!

  2. Benson X

    Benson X [OP] ...and we're back!

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    4,499
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    Debadged, Black Toyota Emblem, TRD Emblem, Tint, Leer 100XL w/ Thule Tracker II rails, aFe Stage II Si Pro Dry-S CAI, aFe Mach Power 3" cat-back exhaust, Doug Thorley Y-Pipe, Bedmat, Weathertech liners, Weathertech window vents, Redline Hood Struts, 12v Anytime Mod, Maglight Mod, FOB/Seatbelt Mod, Rear Diff. Breather Mod, OEM Heated Mirrors Mod, OME 886 Coils w/ 90k Nitro Shocks up front, OME N182 Shocks with Dakars and a D29XL AAL in back, Light Racing UCAs, 1/2" Toytec Front Spacers, swaybar delete Mod, (4) 1" BORA Wheel Spacers, 285/70R17 Goodyear MT/R (originals), hidden Cobra 19DX IV w/ 4' Firestik on a Relentless Mount, custom Sliders, ARB Bumper, Warn VR-8000s w/ Syn. line, custom Tool/Hi-Lift mounts, custom Engine Bay and Winch-area LEDs, csJumper interior LEDs, custom TRD Skull Decal, 10" SeeLite LED light-bar custom mounted in the grille, custom Front & Mid skidplate, Garmin 60CSX GPS w/ RAM mounts....RAN OUT OF
    Thanks Craig, I will have some more pics and an in depth write-up for this mount and the tool mount soon, so stay tuned! My new shovel was just delivered too :woot:

  3. Benson X

    Benson X [OP] ...and we're back!

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    4,499
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    Debadged, Black Toyota Emblem, TRD Emblem, Tint, Leer 100XL w/ Thule Tracker II rails, aFe Stage II Si Pro Dry-S CAI, aFe Mach Power 3" cat-back exhaust, Doug Thorley Y-Pipe, Bedmat, Weathertech liners, Weathertech window vents, Redline Hood Struts, 12v Anytime Mod, Maglight Mod, FOB/Seatbelt Mod, Rear Diff. Breather Mod, OEM Heated Mirrors Mod, OME 886 Coils w/ 90k Nitro Shocks up front, OME N182 Shocks with Dakars and a D29XL AAL in back, Light Racing UCAs, 1/2" Toytec Front Spacers, swaybar delete Mod, (4) 1" BORA Wheel Spacers, 285/70R17 Goodyear MT/R (originals), hidden Cobra 19DX IV w/ 4' Firestik on a Relentless Mount, custom Sliders, ARB Bumper, Warn VR-8000s w/ Syn. line, custom Tool/Hi-Lift mounts, custom Engine Bay and Winch-area LEDs, csJumper interior LEDs, custom TRD Skull Decal, 10" SeeLite LED light-bar custom mounted in the grille, custom Front & Mid skidplate, Garmin 60CSX GPS w/ RAM mounts....RAN OUT OF
    [​IMG]

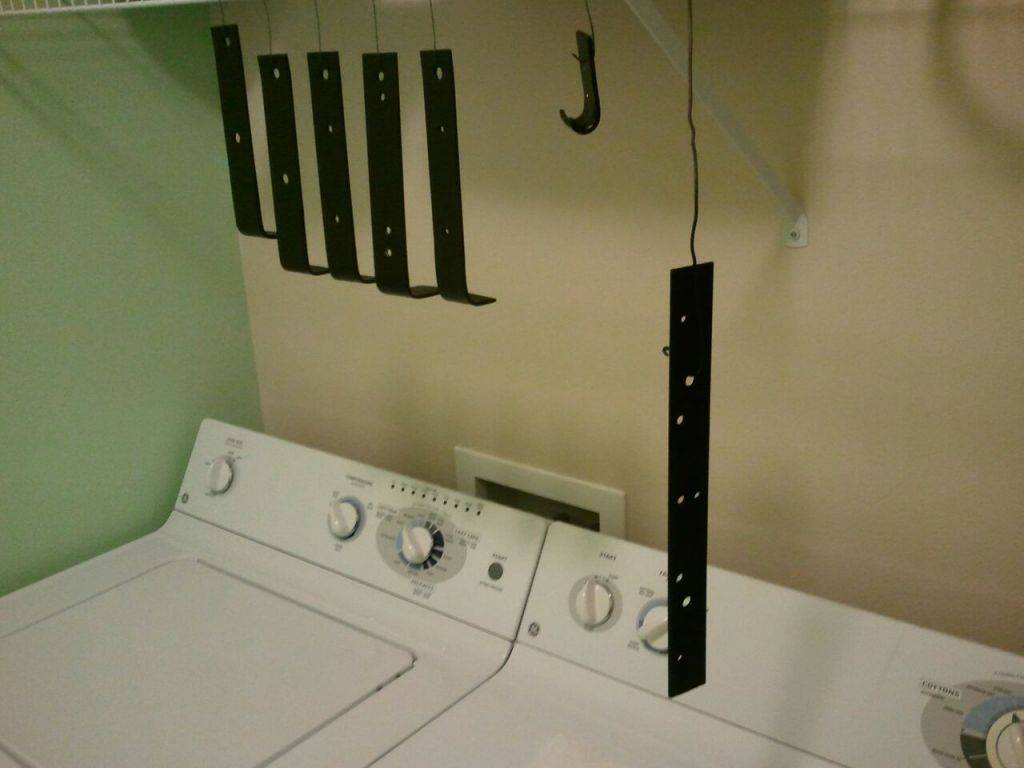

    Finished painting and plasti-dipping. Gonna reassemble everything tomorrow and tale more pics/notes.

  4. Benson X

    Benson X [OP] ...and we're back!

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    4,499
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    Debadged, Black Toyota Emblem, TRD Emblem, Tint, Leer 100XL w/ Thule Tracker II rails, aFe Stage II Si Pro Dry-S CAI, aFe Mach Power 3" cat-back exhaust, Doug Thorley Y-Pipe, Bedmat, Weathertech liners, Weathertech window vents, Redline Hood Struts, 12v Anytime Mod, Maglight Mod, FOB/Seatbelt Mod, Rear Diff. Breather Mod, OEM Heated Mirrors Mod, OME 886 Coils w/ 90k Nitro Shocks up front, OME N182 Shocks with Dakars and a D29XL AAL in back, Light Racing UCAs, 1/2" Toytec Front Spacers, swaybar delete Mod, (4) 1" BORA Wheel Spacers, 285/70R17 Goodyear MT/R (originals), hidden Cobra 19DX IV w/ 4' Firestik on a Relentless Mount, custom Sliders, ARB Bumper, Warn VR-8000s w/ Syn. line, custom Tool/Hi-Lift mounts, custom Engine Bay and Winch-area LEDs, csJumper interior LEDs, custom TRD Skull Decal, 10" SeeLite LED light-bar custom mounted in the grille, custom Front & Mid skidplate, Garmin 60CSX GPS w/ RAM mounts....RAN OUT OF
    TTT, finally got the OP update with the other mounts.

    Don't know what was up with TW tonight, but the server was WAY slow, and timed-out quite a few times. Thank god for cached browsing.

  5. rubenc87

    rubenc87 Cobra

    Joined:
    Feb 2, 2009
    Member:
    #13214
    Messages:
    1,444
    Gender:
    Male
    Texas
    Vehicle:
    2013 Tacoma DCSB 4x4
    DTRL,HID's, Redline Elite Hood Struts,IVD Coilovers and Rear Shocks W/ Ext. Res.,N-FAB Light Bar W/ KC Titanium Lights, Alcan AAL,Wet Okole's, URD T.C.A.I. M/T Classic Lock's BFG AT, Chrome TC UCA'S,TRD Exhaust, Bed Mat,Painted Roof Rack,Access LE,Weathertech's F&R,P&L Lock
    I like the updated pics with the measurement details. Thanks

  6. Lagunito

    Lagunito Deceased

    Joined:
    Dec 12, 2012
    Member:
    #92910
    Messages:
    59
    Gender:
    Male
    South Florida
    Vehicle:
    Pre Runner
    Say what you want, don't cry when you get bitch slapped in real life, these forums are moderated by your make believe friends of your alter (troll) ego.
    You can use a premade brace that are sold at home improvement stores.
    They are pre drilled and only need trimming with a cutoff wheel or chop saw.
    The fender bolts can be mounted on the bed rail using washers that fit the width of the rail but the inside of the diameter of the washer filed to fit the square shank of the fender bolt, to assimulate tightening inside the rail.

  7. Benson X

    Benson X [OP] ...and we're back!

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    4,499
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    Debadged, Black Toyota Emblem, TRD Emblem, Tint, Leer 100XL w/ Thule Tracker II rails, aFe Stage II Si Pro Dry-S CAI, aFe Mach Power 3" cat-back exhaust, Doug Thorley Y-Pipe, Bedmat, Weathertech liners, Weathertech window vents, Redline Hood Struts, 12v Anytime Mod, Maglight Mod, FOB/Seatbelt Mod, Rear Diff. Breather Mod, OEM Heated Mirrors Mod, OME 886 Coils w/ 90k Nitro Shocks up front, OME N182 Shocks with Dakars and a D29XL AAL in back, Light Racing UCAs, 1/2" Toytec Front Spacers, swaybar delete Mod, (4) 1" BORA Wheel Spacers, 285/70R17 Goodyear MT/R (originals), hidden Cobra 19DX IV w/ 4' Firestik on a Relentless Mount, custom Sliders, ARB Bumper, Warn VR-8000s w/ Syn. line, custom Tool/Hi-Lift mounts, custom Engine Bay and Winch-area LEDs, csJumper interior LEDs, custom TRD Skull Decal, 10" SeeLite LED light-bar custom mounted in the grille, custom Front & Mid skidplate, Garmin 60CSX GPS w/ RAM mounts....RAN OUT OF
    cool, how did that work for you? I didn't find any "pre-made" L or T brackets with the right dimensions that would work for this.

    I prefer the T-slot nuts as a bed rail fastener. nice solid fit, and wide enough to distribute the load evenly.

  8. Lagunito

    Lagunito Deceased

    Joined:
    Dec 12, 2012
    Member:
    #92910
    Messages:
    59
    Gender:
    Male
    South Florida
    Vehicle:
    Pre Runner
    Say what you want, don't cry when you get bitch slapped in real life, these forums are moderated by your make believe friends of your alter (troll) ego.
    I just used some that were about 12 inches long and cut them to length,
    I used Carriage Bolts and fender washers (not fender bolts sorry)
    (The head of the carriage bolt slides into the bed rail with the washers)
    The washers are stacked to a reasonable thickness to allow for adjustment
    but the washer closest to the head of the carriage bolt head is cut square with a file so it locks itself in place when you tighten the wing nut or bolt.

    I mounted my hi-lift on the opposite bedrail than yours but I made sure the ratcheting mechanisim catch springs were outside of the rail and the jack was more flush and against the bedrail.
    With the jack secured at both ends and
    only a slight bend to the braces I find no need for a t-brace.

    I think I used 1/2 inch Carriage Bolts though instead of 3/8.
    Most of the weight of the jack is in it's foot (base) so supporting the bar with a brace and fastners is on each end is sufficent.

    I re thought the design somewhat and was considering using wheel bolts so I could have the extra security of implimenting wheel locks instead of nuts or wing nuts.

    I saw a few T braces in the fastener section near the lumber I think they're called "Everbilt"?

    *Reviewing your pictures you could have used 1/2 inch bolts and the weight of your jack is mounted
    up where mine is down the handel lever and the back of the base is where most of the weight is.
    My mounting postion with the handel down is also closer to the rail so I have shorter braces.

  9. rubenc87

    rubenc87 Cobra

    Joined:
    Feb 2, 2009
    Member:
    #13214
    Messages:
    1,444
    Gender:
    Male
    Texas
    Vehicle:
    2013 Tacoma DCSB 4x4
    DTRL,HID's, Redline Elite Hood Struts,IVD Coilovers and Rear Shocks W/ Ext. Res.,N-FAB Light Bar W/ KC Titanium Lights, Alcan AAL,Wet Okole's, URD T.C.A.I. M/T Classic Lock's BFG AT, Chrome TC UCA'S,TRD Exhaust, Bed Mat,Painted Roof Rack,Access LE,Weathertech's F&R,P&L Lock
    Do you have any pics of your install?

  10. Benson X

    Benson X [OP] ...and we're back!

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    4,499
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    Debadged, Black Toyota Emblem, TRD Emblem, Tint, Leer 100XL w/ Thule Tracker II rails, aFe Stage II Si Pro Dry-S CAI, aFe Mach Power 3" cat-back exhaust, Doug Thorley Y-Pipe, Bedmat, Weathertech liners, Weathertech window vents, Redline Hood Struts, 12v Anytime Mod, Maglight Mod, FOB/Seatbelt Mod, Rear Diff. Breather Mod, OEM Heated Mirrors Mod, OME 886 Coils w/ 90k Nitro Shocks up front, OME N182 Shocks with Dakars and a D29XL AAL in back, Light Racing UCAs, 1/2" Toytec Front Spacers, swaybar delete Mod, (4) 1" BORA Wheel Spacers, 285/70R17 Goodyear MT/R (originals), hidden Cobra 19DX IV w/ 4' Firestik on a Relentless Mount, custom Sliders, ARB Bumper, Warn VR-8000s w/ Syn. line, custom Tool/Hi-Lift mounts, custom Engine Bay and Winch-area LEDs, csJumper interior LEDs, custom TRD Skull Decal, 10" SeeLite LED light-bar custom mounted in the grille, custom Front & Mid skidplate, Garmin 60CSX GPS w/ RAM mounts....RAN OUT OF

    Yeah, as with anything, there are different options and configurations. I think 3/8" bolts for the Hi-Lift are a better option because the outside diameter on the 3/8" nut fits perfectly in the hi-lift hole, providing a more secure fitment with no play.

    There are 100s of different ways to make your own mount, I just wanted to share a relatively cheap and easy option that worked great for me. Hopefully other members will try it and share their results and possible areas of improvement.

    Thanks for sharing your feedback and ideas. :thumbsup:

  11. Lagunito

    Lagunito Deceased

    Joined:
    Dec 12, 2012
    Member:
    #92910
    Messages:
    59
    Gender:
    Male
    South Florida
    Vehicle:
    Pre Runner
    Say what you want, don't cry when you get bitch slapped in real life, these forums are moderated by your make believe friends of your alter (troll) ego.
    These are 1/2 inch bolts, but it had been a while since I made these so I
    discovered the bed rail bolts were hexagon head with a washer and internal and external star lock washers .

    The Jack is held by the carriage bolt, and the strap braces pre drilled hole is filed square for the carriage bolt's neck to lock into and sit flush, internal star washer and a washer with a wing nut.

    The jack is actually only being held by one strap, since I was side tracked when fabricating them but it hasn't moved or bounced.

    I will probably cut the other brace tomorrow but since the jack sits flush against the bed I'll need to attach the brace to the outside of the Jack and won't need to square the strap's hole, because a 1/2 carriage bolt snuggly locks into the elongated hole of the Jack's bar.

    *Comparing your Jack mount to mine yours is mounted higher,
    and I will probably adjust my Jacks position to sit like yours.

    [​IMG]

  12. Lagunito

    Lagunito Deceased

    Joined:
    Dec 12, 2012
    Member:
    #92910
    Messages:
    59
    Gender:
    Male
    South Florida
    Vehicle:
    Pre Runner
    Say what you want, don't cry when you get bitch slapped in real life, these forums are moderated by your make believe friends of your alter (troll) ego.
    [​IMG]

    Last edited: Feb 27, 2013
  13. Benson X

    Benson X [OP] ...and we're back!

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    4,499
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    Debadged, Black Toyota Emblem, TRD Emblem, Tint, Leer 100XL w/ Thule Tracker II rails, aFe Stage II Si Pro Dry-S CAI, aFe Mach Power 3" cat-back exhaust, Doug Thorley Y-Pipe, Bedmat, Weathertech liners, Weathertech window vents, Redline Hood Struts, 12v Anytime Mod, Maglight Mod, FOB/Seatbelt Mod, Rear Diff. Breather Mod, OEM Heated Mirrors Mod, OME 886 Coils w/ 90k Nitro Shocks up front, OME N182 Shocks with Dakars and a D29XL AAL in back, Light Racing UCAs, 1/2" Toytec Front Spacers, swaybar delete Mod, (4) 1" BORA Wheel Spacers, 285/70R17 Goodyear MT/R (originals), hidden Cobra 19DX IV w/ 4' Firestik on a Relentless Mount, custom Sliders, ARB Bumper, Warn VR-8000s w/ Syn. line, custom Tool/Hi-Lift mounts, custom Engine Bay and Winch-area LEDs, csJumper interior LEDs, custom TRD Skull Decal, 10" SeeLite LED light-bar custom mounted in the grille, custom Front & Mid skidplate, Garmin 60CSX GPS w/ RAM mounts....RAN OUT OF
    aah, gotcha. Now I see what you were talking about. I had it pictured completely different in my head. Thanks for posting pics :thumbsup:

    Do the star washers/lock-washers keep the hex head from spinning in the bed rail? It seems like it would be hard to sufficiently tighten it down like that.

    I like the height of the mounts I built because the Hi-Lift clears everything perfectly, and the base plate securely rests on top of the of the edge/lip of the bed liner.

  14. JayDirt

    JayDirt I owe it all to little chocolate donuts

    Joined:
    Oct 26, 2011
    Member:
    #65928
    Messages:
    1,100
    Gender:
    Male
    I like your set up Ben...clean for sure. Does the jack move at all while wheeling?

  15. Benson X

    Benson X [OP] ...and we're back!

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    4,499
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    Debadged, Black Toyota Emblem, TRD Emblem, Tint, Leer 100XL w/ Thule Tracker II rails, aFe Stage II Si Pro Dry-S CAI, aFe Mach Power 3" cat-back exhaust, Doug Thorley Y-Pipe, Bedmat, Weathertech liners, Weathertech window vents, Redline Hood Struts, 12v Anytime Mod, Maglight Mod, FOB/Seatbelt Mod, Rear Diff. Breather Mod, OEM Heated Mirrors Mod, OME 886 Coils w/ 90k Nitro Shocks up front, OME N182 Shocks with Dakars and a D29XL AAL in back, Light Racing UCAs, 1/2" Toytec Front Spacers, swaybar delete Mod, (4) 1" BORA Wheel Spacers, 285/70R17 Goodyear MT/R (originals), hidden Cobra 19DX IV w/ 4' Firestik on a Relentless Mount, custom Sliders, ARB Bumper, Warn VR-8000s w/ Syn. line, custom Tool/Hi-Lift mounts, custom Engine Bay and Winch-area LEDs, csJumper interior LEDs, custom TRD Skull Decal, 10" SeeLite LED light-bar custom mounted in the grille, custom Front & Mid skidplate, Garmin 60CSX GPS w/ RAM mounts....RAN OUT OF
    Thanks Jay. The Jack seems very secure and doesn't budge when I try to move it by hand. I haven't had a chance to wheel with it yet, but I will know this weekend though :D

  16. Lagunito

    Lagunito Deceased

    Joined:
    Dec 12, 2012
    Member:
    #92910
    Messages:
    59
    Gender:
    Male
    South Florida
    Vehicle:
    Pre Runner
    Say what you want, don't cry when you get bitch slapped in real life, these forums are moderated by your make believe friends of your alter (troll) ego.

    What isn't seen very well is the fender washer between the internal,
    and external stars.
    The hex head and all the washers are slid into the end of the rail,
    the fender washer is almost the same width as the inside of the bedrail.

    In effect the fender washer centers the bolt,
    and the opposing star washers are more than enough to provide bite,
    and prevent the bolt from turning.

  17. JayDirt

    JayDirt I owe it all to little chocolate donuts

    Joined:
    Oct 26, 2011
    Member:
    #65928
    Messages:
    1,100
    Gender:
    Male
    Cool, very interested in the test results. I was thinking if it did move/swing out, I could shorten the first bend and add another bend at the bottom of the bracket and secure it with another nut/bolt through the bed. Looks like I would have access to do that.

  18. Lagunito

    Lagunito Deceased

    Joined:
    Dec 12, 2012
    Member:
    #92910
    Messages:
    59
    Gender:
    Male
    South Florida
    Vehicle:
    Pre Runner
    Say what you want, don't cry when you get bitch slapped in real life, these forums are moderated by your make believe friends of your alter (troll) ego.
    A farm jacks only weight 30 to 35 lbs, a plastic bed cleat with it's 1/4
    fastener holds something like 25lbs.
    3/8 to 1/2 fasteners probably will hold 50 to 55 lbs.
    The 1/8 straping is super rigid and,
    will probably take 175 to 200ft lbs to bend.

  19. JayDirt

    JayDirt I owe it all to little chocolate donuts

    Joined:
    Oct 26, 2011
    Member:
    #65928
    Messages:
    1,100
    Gender:
    Male
    Yeah, I hear you. Just wondering if it wiggles/rattles against the bed. I hate all the noise my jack already makes....lol

  20. Benson X

    Benson X [OP] ...and we're back!

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    4,499
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    Debadged, Black Toyota Emblem, TRD Emblem, Tint, Leer 100XL w/ Thule Tracker II rails, aFe Stage II Si Pro Dry-S CAI, aFe Mach Power 3" cat-back exhaust, Doug Thorley Y-Pipe, Bedmat, Weathertech liners, Weathertech window vents, Redline Hood Struts, 12v Anytime Mod, Maglight Mod, FOB/Seatbelt Mod, Rear Diff. Breather Mod, OEM Heated Mirrors Mod, OME 886 Coils w/ 90k Nitro Shocks up front, OME N182 Shocks with Dakars and a D29XL AAL in back, Light Racing UCAs, 1/2" Toytec Front Spacers, swaybar delete Mod, (4) 1" BORA Wheel Spacers, 285/70R17 Goodyear MT/R (originals), hidden Cobra 19DX IV w/ 4' Firestik on a Relentless Mount, custom Sliders, ARB Bumper, Warn VR-8000s w/ Syn. line, custom Tool/Hi-Lift mounts, custom Engine Bay and Winch-area LEDs, csJumper interior LEDs, custom TRD Skull Decal, 10" SeeLite LED light-bar custom mounted in the grille, custom Front & Mid skidplate, Garmin 60CSX GPS w/ RAM mounts....RAN OUT OF
    From what I can tell, there are no rattles or vibrations from any of the mounts. I drove with my music down and vents off and had the cab/canopy windows open. Went on some dirt and over some bumps and it was all good. That's the main reason I plasti-dipped all the bends though - to reduce any metal-on-plastic vibrations.
