DIY Overland Solar Power

Discussion in '2nd Gen. Tacomas (2005-2015)' started by FloTaco, Jun 28, 2019.

  1. Jun 28, 2019 at 1:48 PM
    #1
    FloTaco

    FloTaco [OP] Well-Known Member

    Joined:
    Oct 31, 2013
    Member:
    #115610
    Messages:
    339
    Gender:
    Male
    Bay Area, CA
    Vehicle:
    2021 SR DC 4X4
    Kings, Total Chaos, Deavers, Eaton E-locker, 4.88s

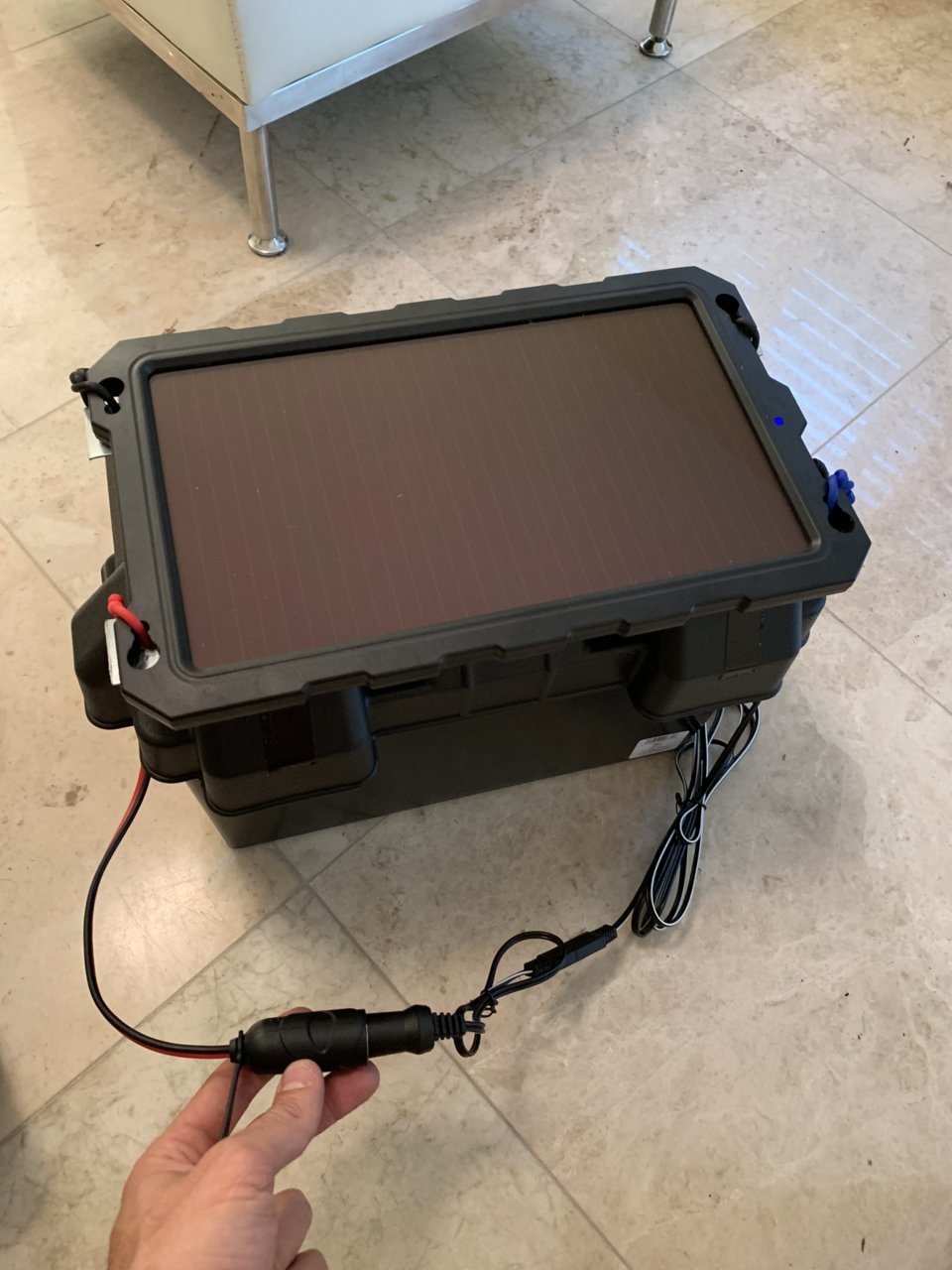

    Posting in the off chance this is useful for anyone else. Utilizing a spare 24F battery, and various Amazon parts, I’ve rigged up a solar charging system that should power everything in camp.

    Parts:

    - waterproof 3W trickle charging solar panel (comes with ASE adapted alligator clips and cigarette male end).
    - waterproof cigarette lighter charger with inline fuse.
    - Atwood marine battery box.
    - Marine terminal clamps.
    - USB adapter with voltage display.
    - Pack of 5 weatherproof ASE adapters.

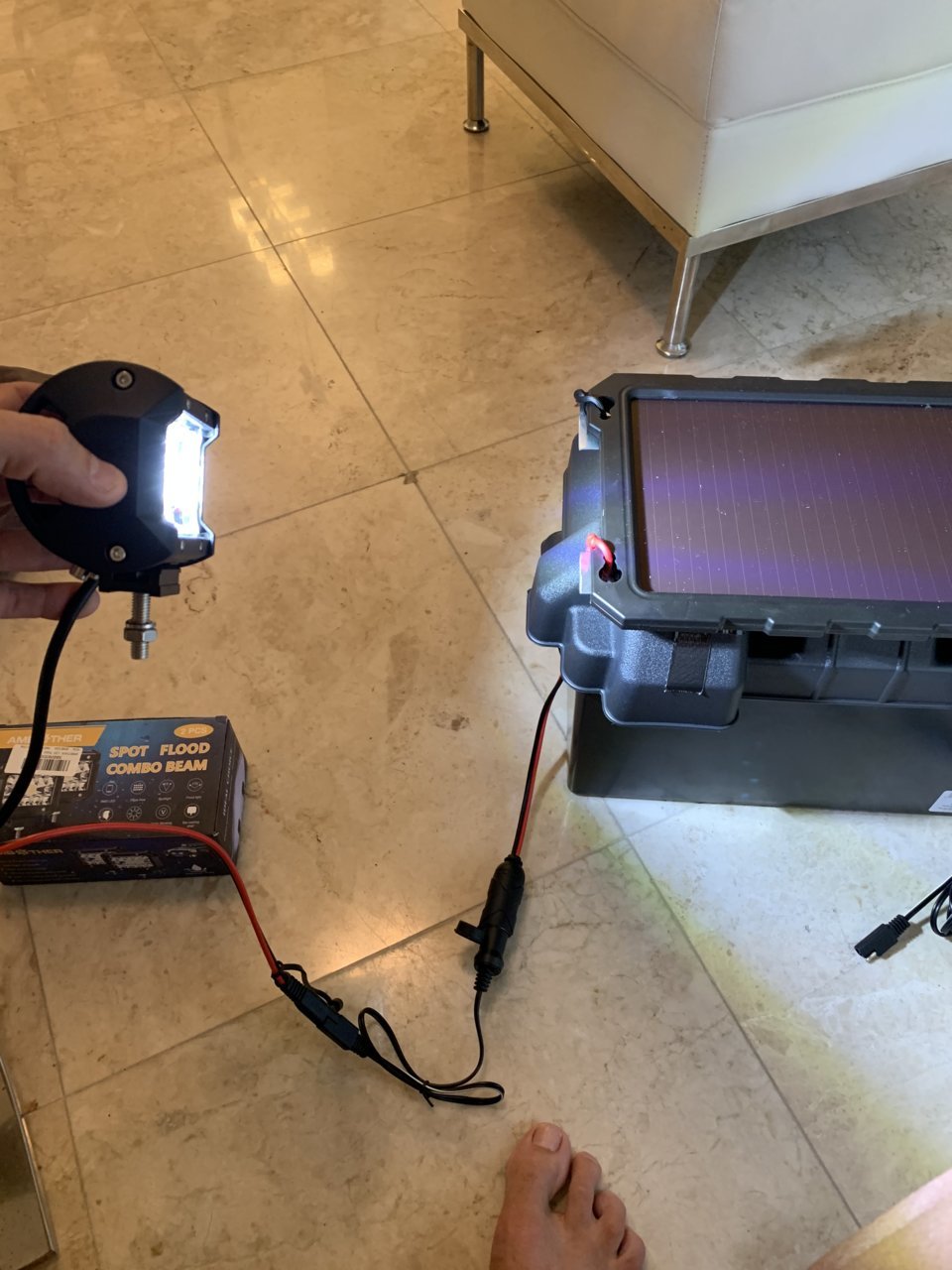

    I don’t like wiring anything not factory to my truck’s primary battery; there are too many stories of accessory electrical fires. This spare battery will live in the bed of the truck to power LED pod lights and various USB items at night while the solar panel tops off the 24F during the day via the cigarette charger while driving to the next camp site. Total cost less battery, $75.

  2. Jun 28, 2019 at 9:11 PM
    #2
    Gus87

    Gus87 Well-Known Member

    Joined:
    Jun 10, 2018
    Member:
    #255991
    Messages:
    447
    Gender:
    Male
    Chicagoland
    Vehicle:
    16 trd sport
    I was thinking of something very similar with a battery i have laying around just to play with. I haven't really read into it cuz it hasn't been my highest priority. Why did you use a 3w charger? Can you use bigger? Sorry if these are basic or stupid questions.

  3. Jun 28, 2019 at 10:09 PM
    #3
    FloTaco

    FloTaco [OP] Well-Known Member

    Joined:
    Oct 31, 2013
    Member:
    #115610
    Messages:
    339
    Gender:
    Male
    Bay Area, CA
    Vehicle:
    2021 SR DC 4X4
    Kings, Total Chaos, Deavers, Eaton E-locker, 4.88s
    I used a lower W trickle charger to avoid overcharging and damaging the battery.

  4. Jun 29, 2019 at 11:07 AM
    #4
    weazel

    weazel Well-Known Member

    Joined:
    May 20, 2010
    Member:
    #37480
    Messages:
    143
    Gender:
    Male
    Trickle charger will not keep up

    Redsyota likes this.
  5. Jun 29, 2019 at 11:32 AM
    #5
    Gus87

    Gus87 Well-Known Member

    Joined:
    Jun 10, 2018
    Member:
    #255991
    Messages:
    447
    Gender:
    Male
    Chicagoland
    Vehicle:
    16 trd sport
    What kind of charger would you recommend?

  6. Jun 29, 2019 at 12:16 PM
    #6
    FloTaco

    FloTaco [OP] Well-Known Member

    Joined:
    Oct 31, 2013
    Member:
    #115610
    Messages:
    339
    Gender:
    Male
    Bay Area, CA
    Vehicle:
    2021 SR DC 4X4
    Kings, Total Chaos, Deavers, Eaton E-locker, 4.88s
    Can you help us understand the math using my battery as an example?

    24F battery rated at 935 cranking amps and 130 minute reserve time. Let’s use a single 60 Amp LED pod drawing off the battery for 1 hour. If 130 minute reserve time is based on 25ah until the battery gets to 10.5V, does a 60a draw essentially cut the reserve time in half? And if the battery is run down to 10.5V at that point, how long would my 3.3W solar charger take to bring the battery back to 12.6V?

  7. Jun 29, 2019 at 2:53 PM
    #7
    weazel

    weazel Well-Known Member

    Joined:
    May 20, 2010
    Member:
    #37480
    Messages:
    143
    Gender:
    Male
    You mean 60 watts

  8. Jun 29, 2019 at 3:18 PM
    #8
    FloTaco

    FloTaco [OP] Well-Known Member

    Joined:
    Oct 31, 2013
    Member:
    #115610
    Messages:
    339
    Gender:
    Male
    Bay Area, CA
    Vehicle:
    2021 SR DC 4X4
    Kings, Total Chaos, Deavers, Eaton E-locker, 4.88s
    Correction, 60W

  9. Jun 29, 2019 at 11:01 PM
    #9
    5678ta

    5678ta Well-Known Member

    Joined:
    May 11, 2013
    Member:
    #103944
    Messages:
    556
    Gender:
    Male
    First Name:
    Hogan
    Henderson, NV
    Vehicle:
    '18 ECLB Colorado ZR2
    Watt rating is per hour.

    A 60w drain for 1 hour is 60w drain on the battery. So it would take your 3w charger 20 hours to fully recover that loss. And that's if the sun is strong and your panel is aimed directly at it.

    Also, wattage is amps*voltage. Still on 1 hour basis. 25a/hour draw on 130 minute reverse is 54a total, or roughly 650watts total based of 12v. In theory, you could run that 60w pod for almost 11hours.

    Aaaaaand if your battery has completely used the reserve, that would take your 3w solar a whole 216 hours to recover. That's eighteen, 12 hour days in full sunshine.

    PS: electrical fires are usually caused my someone not wiring in a properly sized fuse (also not in the correct location, near the power source), and/or using too small of wire.

  10. Jun 30, 2019 at 12:32 AM
    #10
    1mike1888

    1mike1888 Well-Known Member

    Joined:
    Feb 14, 2017
    Member:
    #210546
    Messages:
    220
    Gender:
    Male
    First Name:
    Mike
    Gilbert, AZ
    Vehicle:
    2015 Tacoma TRD Off Road
    An empty wallet
    So outside of all the comments about how long it will take to charge and draw etc.....you really need to buy a charge controller. They are very inexpensive on Amazon and will save you the price of a new battery. They are designed to stop you from over charging your battery.
    I've built a ton of these mini off grid kits and used to sell them as well. I just got finished installing a new set up on my camper last week and cannot stress the importance of a charge controller.
    Here's one for $13 that would work for what you are trying to do...https://www.amazon.com/Controller-B...ge+controller&qid=1561879873&s=gateway&sr=8-3

  11. Jun 30, 2019 at 10:14 AM
    #11
    FloTaco

    FloTaco [OP] Well-Known Member

    Joined:
    Oct 31, 2013
    Member:
    #115610
    Messages:
    339
    Gender:
    Male
    Bay Area, CA
    Vehicle:
    2021 SR DC 4X4
    Kings, Total Chaos, Deavers, Eaton E-locker, 4.88s
    Thanks for the education, guys. After this trip I’ll probably switch to a better panel and add the controller. For now I’ll try to use the battery as a back up source of power only.

  12. Jun 30, 2019 at 6:22 PM
    #12
    Grossomotto

    Grossomotto Complete 3rd Member

    Joined:
    Mar 13, 2018
    Member:
    #247175
    Messages:
    7,085
    39.9526° N, 75.1652° W
    Vehicle:
    2017 4WDV6LB6MT
