DIY prinsu style shell rack

Discussion in '2nd Gen. Tacomas (2005-2015)' started by paranoid56, Nov 23, 2017.

  1. Feb 11, 2019 at 7:31 AM
    #821
    masterwacker

    masterwacker Well-Known Member

    Joined:
    Feb 11, 2012
    Member:
    #72656
    Messages:
    114
    Gender:
    Male
    First Name:
    Paul
    Orlando
    Vehicle:
    2010 Tacoma TRD Off Road
    TRD Sport hood, TRD Sport paint matched rear bumper and grill, BDF grill light bracket with some Rigids, 40" Rigid roof bar, SPOD, Stereo, Pro Comp Prorunner front strut lift and rear shocks, PXA 7036 Wheels-285/70R17 BFG AT/KOs and some other stuff

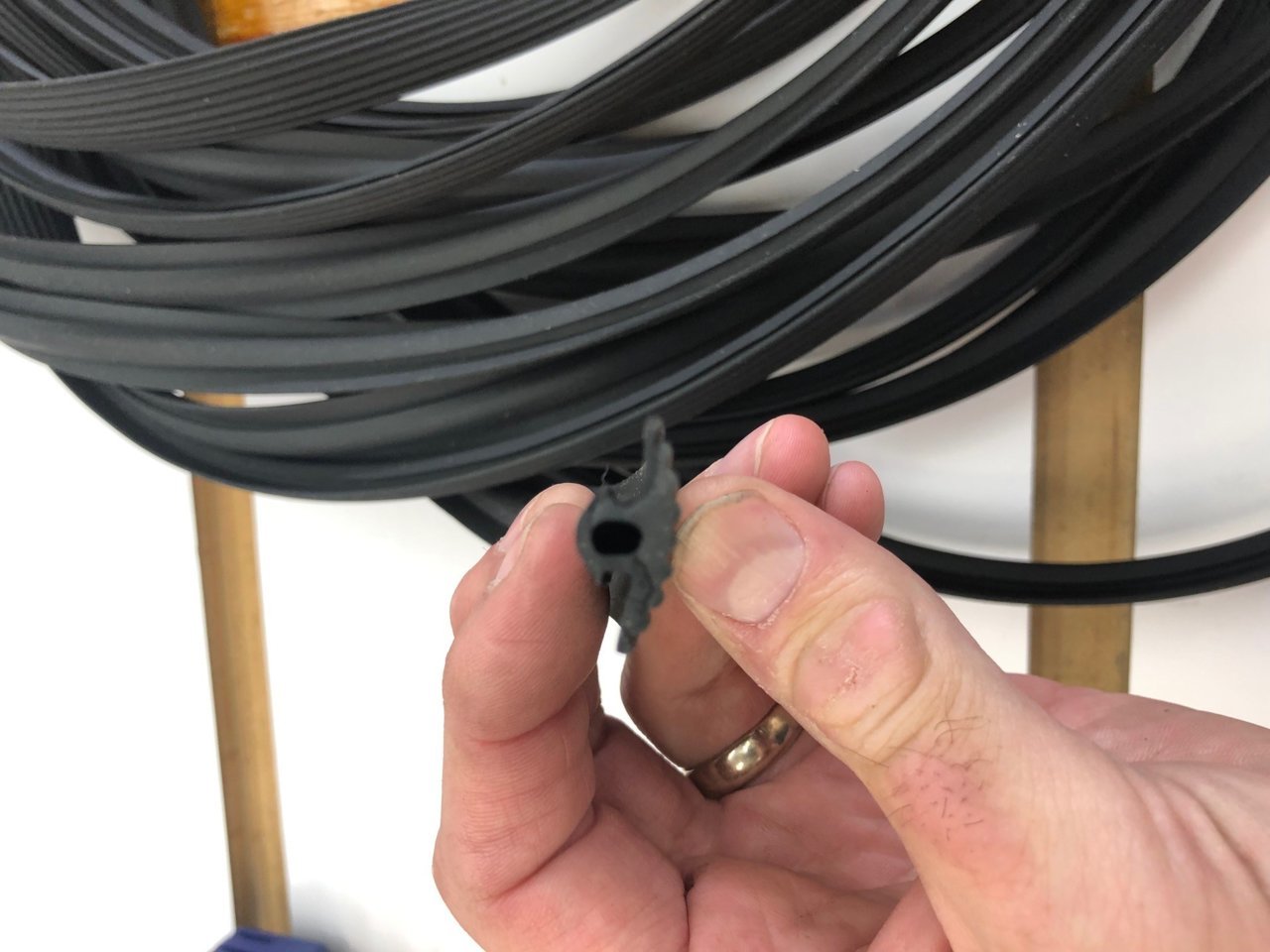

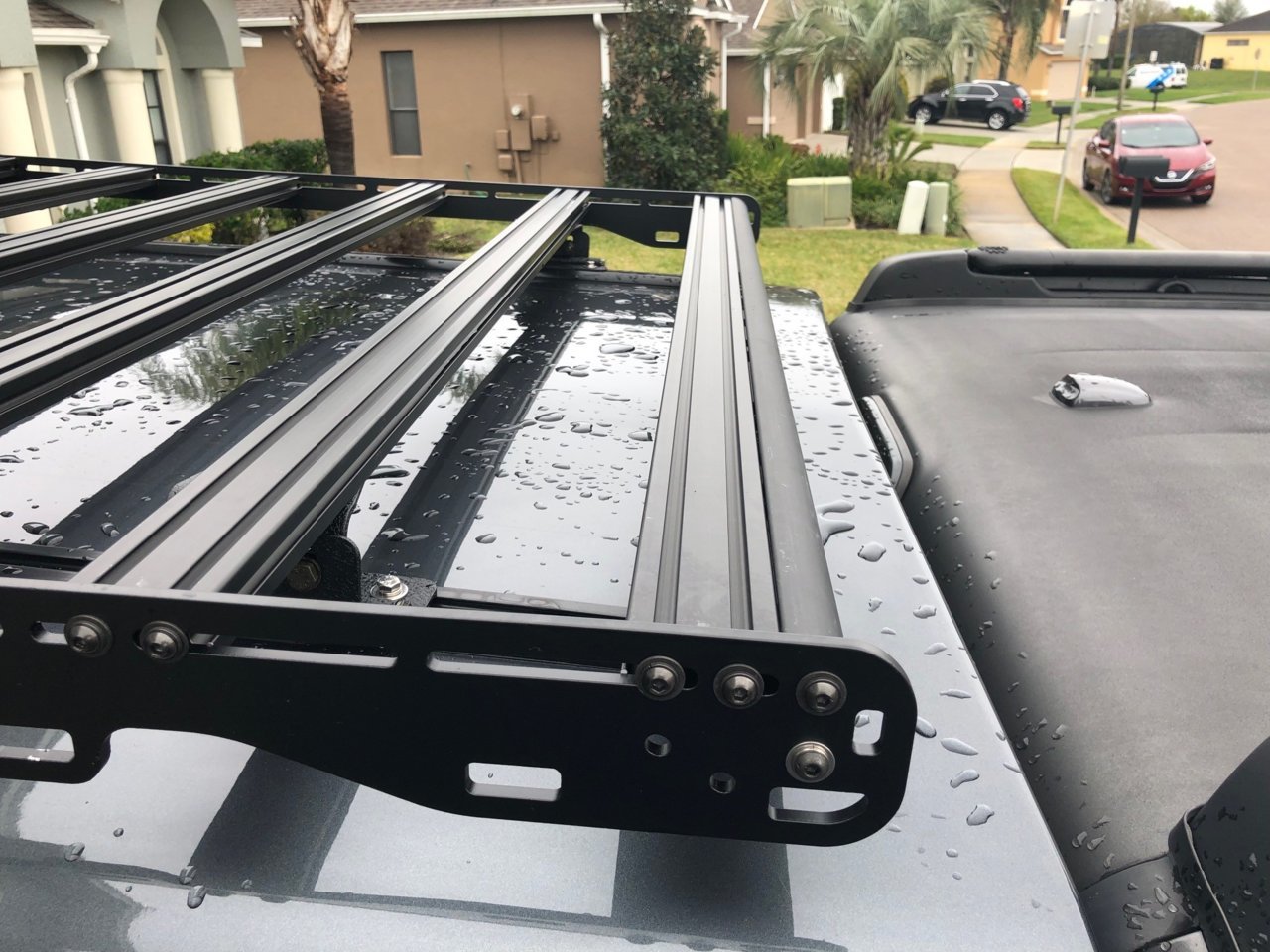

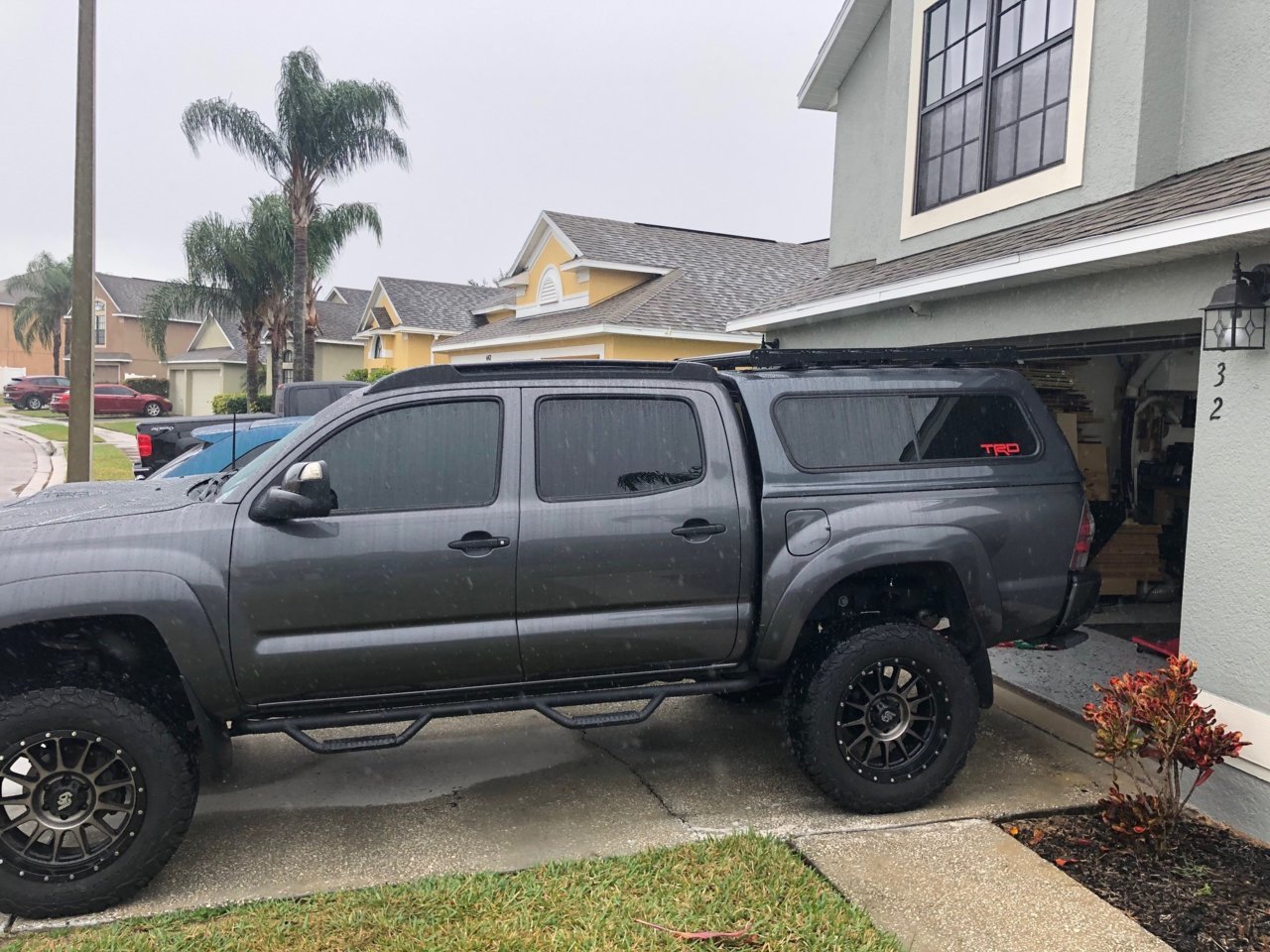

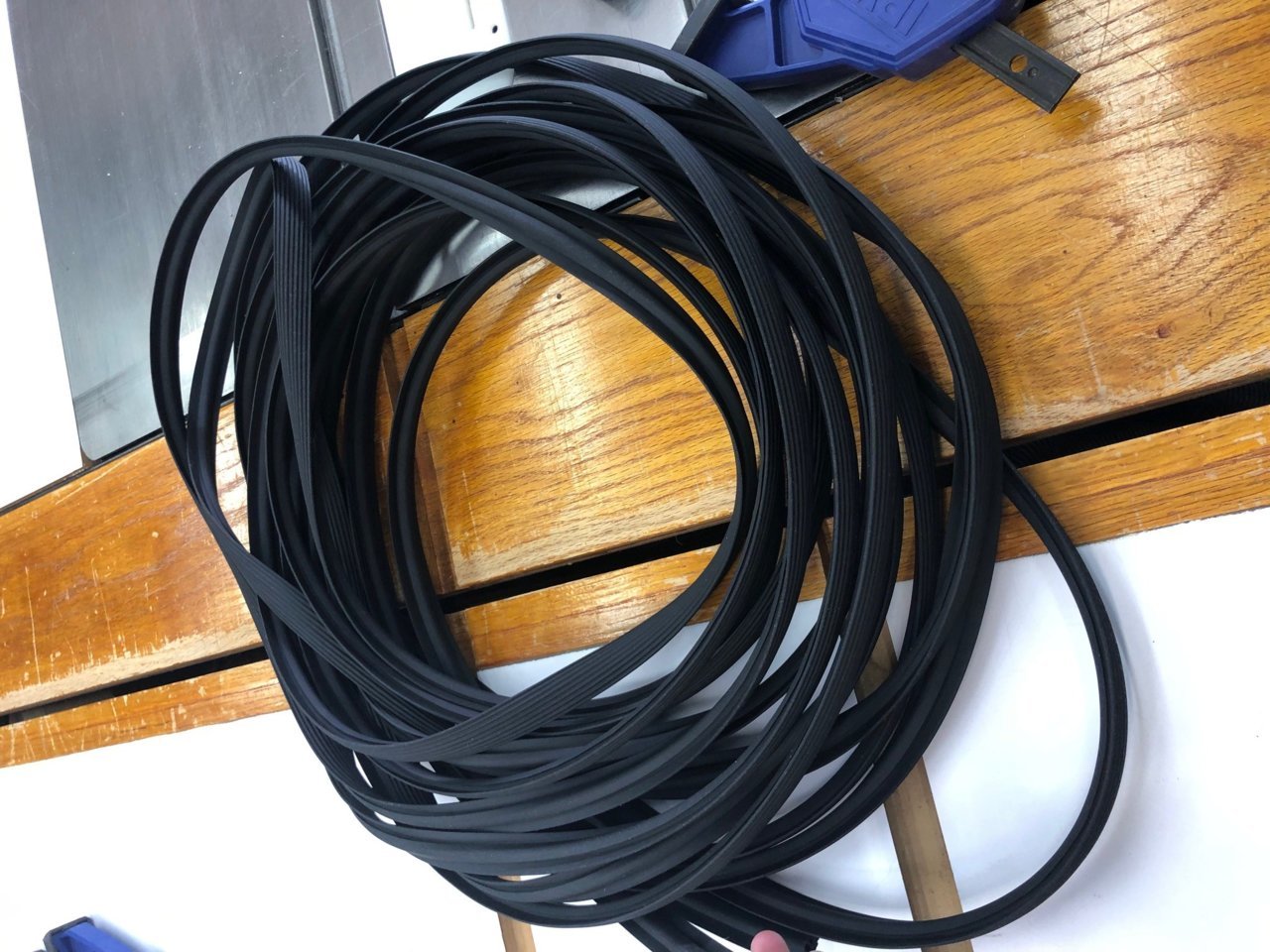

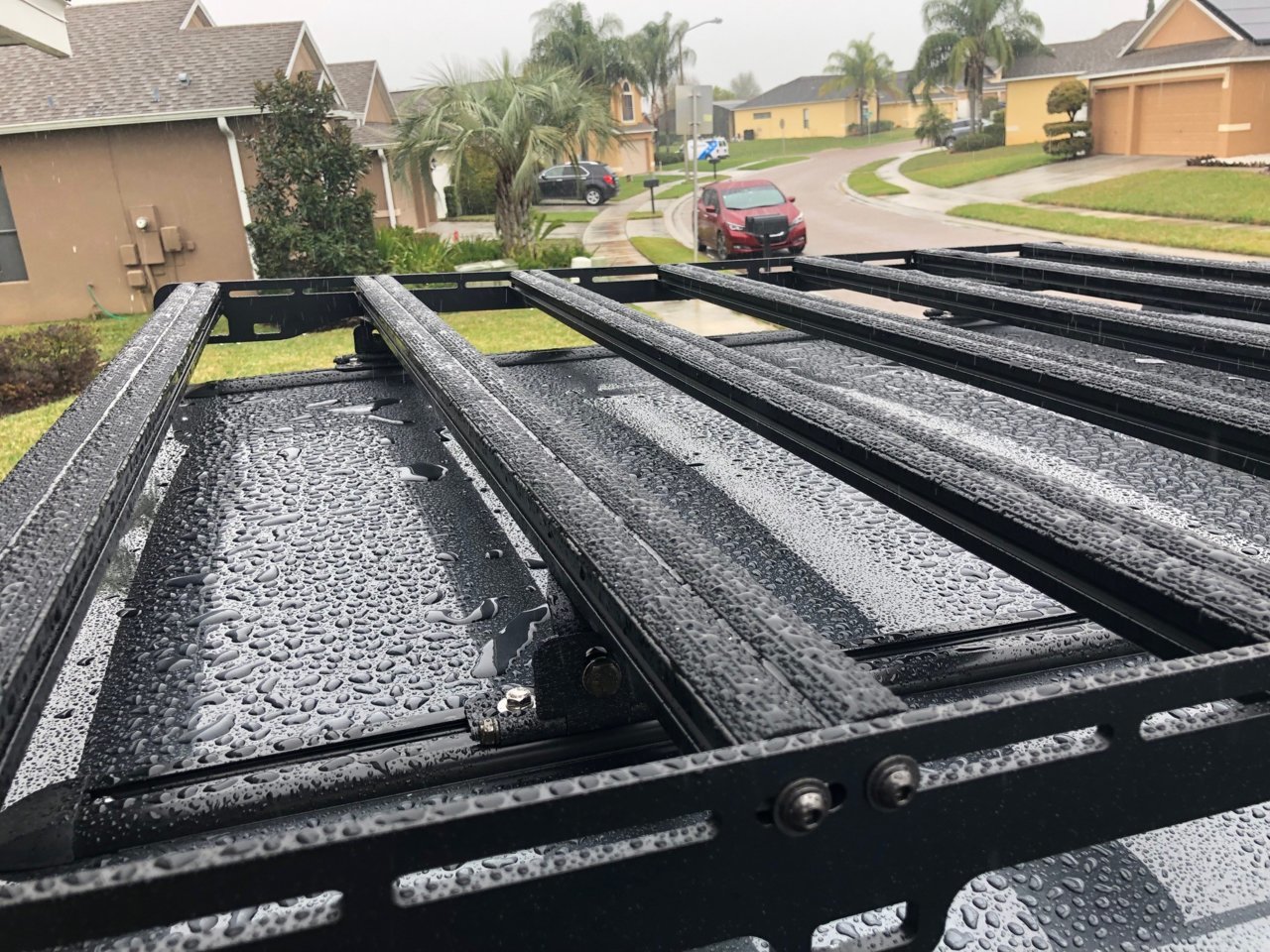

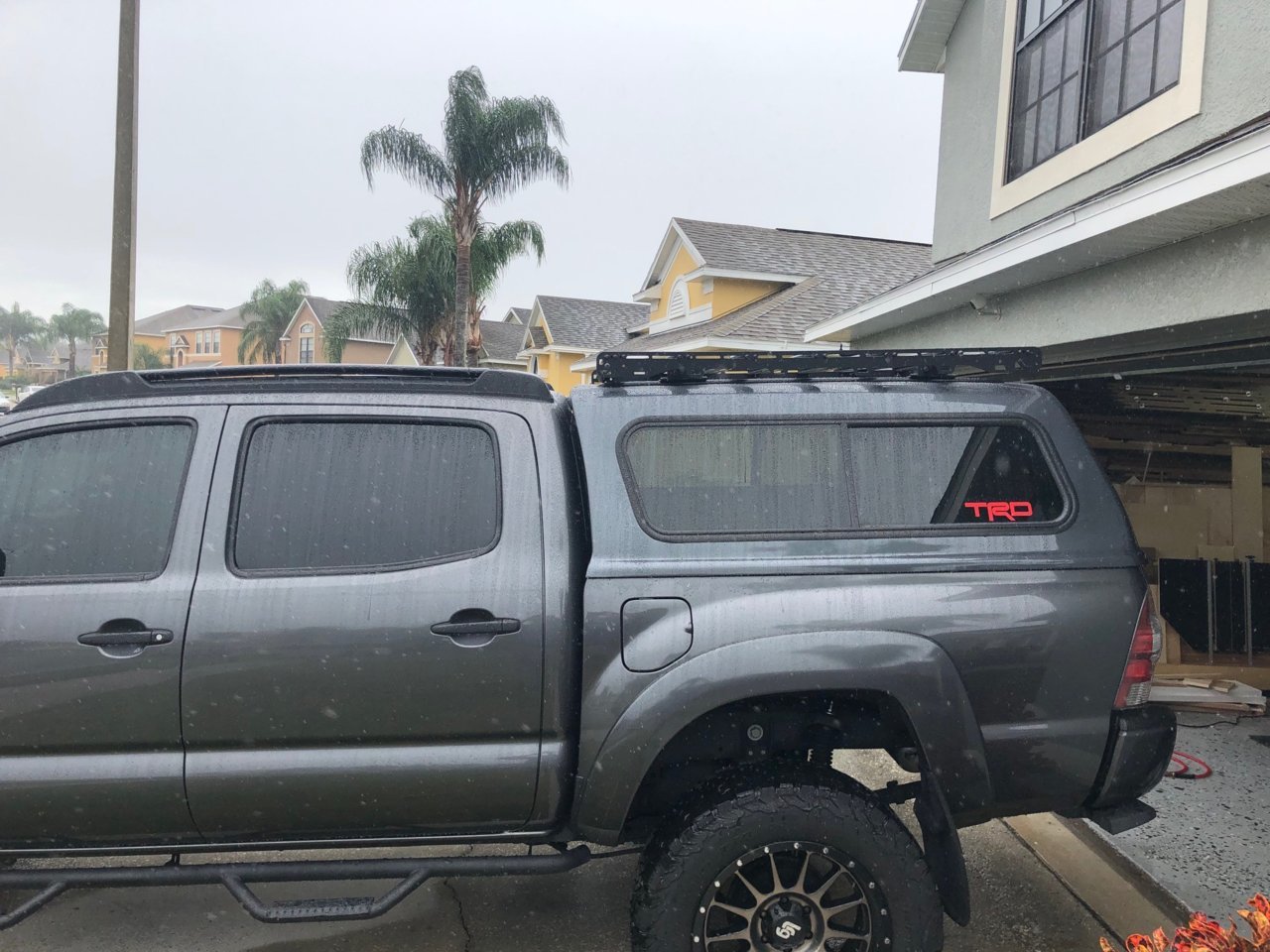

    First off, thanks Barbburner, for the side plates. Got everything installed over the weekend and great fitment and install was a breeze. When I ordered the extruded bards from tnutz.com I also ordered (2) 1/4 radius bars. Also did some searching on 80/20.net and found some tread step for the grooves in the T-slot. I got everything installed (without the round bards and tread step stuff) and there was a little wind noise that was not there before. I was driving around 70mph when I heard it and it was consistent. The radio and HVAC was off. Just turning on the HVAC and I could not hear the wind noise. Returned home and installed the (2) 1/4 radius bars and the tread step seal. Due to the great placement of the holes and slots on the side plates the radius bars fit tight up against the regulary extruded cross bars with no gap. Test drove again and no noise no matter what I tried. The other benefit to the tread step seal is that you can lay stuff on the bars without really messing up the paint/anodized coat and gives it a non skid finish. The tread stuff was pretty cheap and have plenty left over if I need to make other lengths and such. Overall, install was a breeze, and really like the way it turned out. On to the pictures.

















  2. Feb 11, 2019 at 8:41 AM
    #822
    Barnburner

    Barnburner Well-Known Member

    Joined:
    Jul 29, 2017
    Member:
    #225319
    Messages:
    130
    Gender:
    Male
    Vehicle:
    2015 Tacoma SR
    Man that looks great!

  3. Feb 11, 2019 at 10:26 AM
    #823
    BeachBoy

    BeachBoy Well-Known Member

    Joined:
    Apr 10, 2009
    Member:
    #15819
    Messages:
    967
    Gender:
    Male
    VT & QC
    Vehicle:
    '09 DC LB Sport+Leather
    Icon Extended COs / Camburg UCA / ATX Predator Teflon / Mickey Thompson MTZ / Color-Matched emblems / All-Pro Bumper & skids / Stubbs HD-SKO / Alcans custom leafs / U-Bolt flip / Icon rear resi shocks / Rear Bumper
    +1 looks very good!!!

    It's a great idea the strip.

  4. Feb 11, 2019 at 11:22 AM
    #824
    Barnburner

    Barnburner Well-Known Member

    Joined:
    Jul 29, 2017
    Member:
    #225319
    Messages:
    130
    Gender:
    Male
    Vehicle:
    2015 Tacoma SR
    angeldavid216 likes this.
  5. Feb 11, 2019 at 11:31 AM
    #825
    Barnburner

    Barnburner Well-Known Member

    Joined:
    Jul 29, 2017
    Member:
    #225319
    Messages:
    130
    Gender:
    Male
    Vehicle:
    2015 Tacoma SR
    Oh, Should have included some glam shots!

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  6. Feb 11, 2019 at 12:43 PM
    #826
    masterwacker

    masterwacker Well-Known Member

    Joined:
    Feb 11, 2012
    Member:
    #72656
    Messages:
    114
    Gender:
    Male
    First Name:
    Paul
    Orlando
    Vehicle:
    2010 Tacoma TRD Off Road
    TRD Sport hood, TRD Sport paint matched rear bumper and grill, BDF grill light bracket with some Rigids, 40" Rigid roof bar, SPOD, Stereo, Pro Comp Prorunner front strut lift and rear shocks, PXA 7036 Wheels-285/70R17 BFG AT/KOs and some other stuff
    Thanks, damn good product from you and Beachboy. Sorry, Beachboy, missed you the first time.... So now the question becomes (dramatic pause....) when will those fancy new mounts be done with and ready for the masses??? Get the freakin lead out and quit screwing around already!!!! ****laughs****

  7. Feb 11, 2019 at 1:36 PM
    #827
    BeachBoy

    BeachBoy Well-Known Member

    Joined:
    Apr 10, 2009
    Member:
    #15819
    Messages:
    967
    Gender:
    Male
    VT & QC
    Vehicle:
    '09 DC LB Sport+Leather
    Icon Extended COs / Camburg UCA / ATX Predator Teflon / Mickey Thompson MTZ / Color-Matched emblems / All-Pro Bumper & skids / Stubbs HD-SKO / Alcans custom leafs / U-Bolt flip / Icon rear resi shocks / Rear Bumper
    Have you seen the 3D prints in the dedicated thread?

    We're close. The main test now is if we have clearance to tighten the bolts and if we need a sequence/instructions to install or tighten. The more motion and tightest package makes it a little more complex to reach the bolts.

    I bought my own 3D printer so I can do prototype much faster.

    ready6delta likes this.
  8. Feb 11, 2019 at 2:16 PM
    #828
    masterwacker

    masterwacker Well-Known Member

    Joined:
    Feb 11, 2012
    Member:
    #72656
    Messages:
    114
    Gender:
    Male
    First Name:
    Paul
    Orlando
    Vehicle:
    2010 Tacoma TRD Off Road
    TRD Sport hood, TRD Sport paint matched rear bumper and grill, BDF grill light bracket with some Rigids, 40" Rigid roof bar, SPOD, Stereo, Pro Comp Prorunner front strut lift and rear shocks, PXA 7036 Wheels-285/70R17 BFG AT/KOs and some other stuff
    Bad Ass. After I left my post above I saw the dedicated thread. Looking forward to seeing them in action and on my truck. Do you see a need for more than 4 mounts on a short bed? If so how would you get around the rise in the center on most toppers?

  9. Feb 11, 2019 at 2:24 PM
    #829
    BeachBoy

    BeachBoy Well-Known Member

    Joined:
    Apr 10, 2009
    Member:
    #15819
    Messages:
    967
    Gender:
    Male
    VT & QC
    Vehicle:
    '09 DC LB Sport+Leather
    Icon Extended COs / Camburg UCA / ATX Predator Teflon / Mickey Thompson MTZ / Color-Matched emblems / All-Pro Bumper & skids / Stubbs HD-SKO / Alcans custom leafs / U-Bolt flip / Icon rear resi shocks / Rear Bumper
    I think 4 is enough for short bed

    Our mounts will allow height adjustment (using shims), small adjustments likely included with the kit, and longer ones available

    masterwacker likes this.
  10. Feb 12, 2019 at 11:11 AM
    #830
    MY50cal

    MY50cal ---- Tread Lightly ---- Leave No Trace

    Joined:
    Apr 5, 2009
    Member:
    #15613
    Messages:
    3,717
    Gender:
    Male
    First Name:
    Mojo
    Chester County, PA
    Vehicle:
    09 PM RC / 05 SWB AC (RIP)
    Yep.
    The 1/4 radius bars and step seal were excellent ideas :thumbsup:

    Looks great!

    masterwacker likes this.
  11. Feb 18, 2019 at 9:52 AM
    #831
    BeachBoy

    BeachBoy Well-Known Member

    Joined:
    Apr 10, 2009
    Member:
    #15819
    Messages:
    967
    Gender:
    Male
    VT & QC
    Vehicle:
    '09 DC LB Sport+Leather
    Icon Extended COs / Camburg UCA / ATX Predator Teflon / Mickey Thompson MTZ / Color-Matched emblems / All-Pro Bumper & skids / Stubbs HD-SKO / Alcans custom leafs / U-Bolt flip / Icon rear resi shocks / Rear Bumper
    Printing a 1:10 scale roof to test new sideplated design

    [​IMG]

  12. Feb 22, 2019 at 9:56 PM
    #832
    raskal311

    raskal311 Well-Known Member

    Joined:
    Feb 18, 2009
    Member:
    #13812
    Messages:
    2,183
    Gender:
    Male
    S. Cal
    5100 set to max, pending LSD and TRD CAI

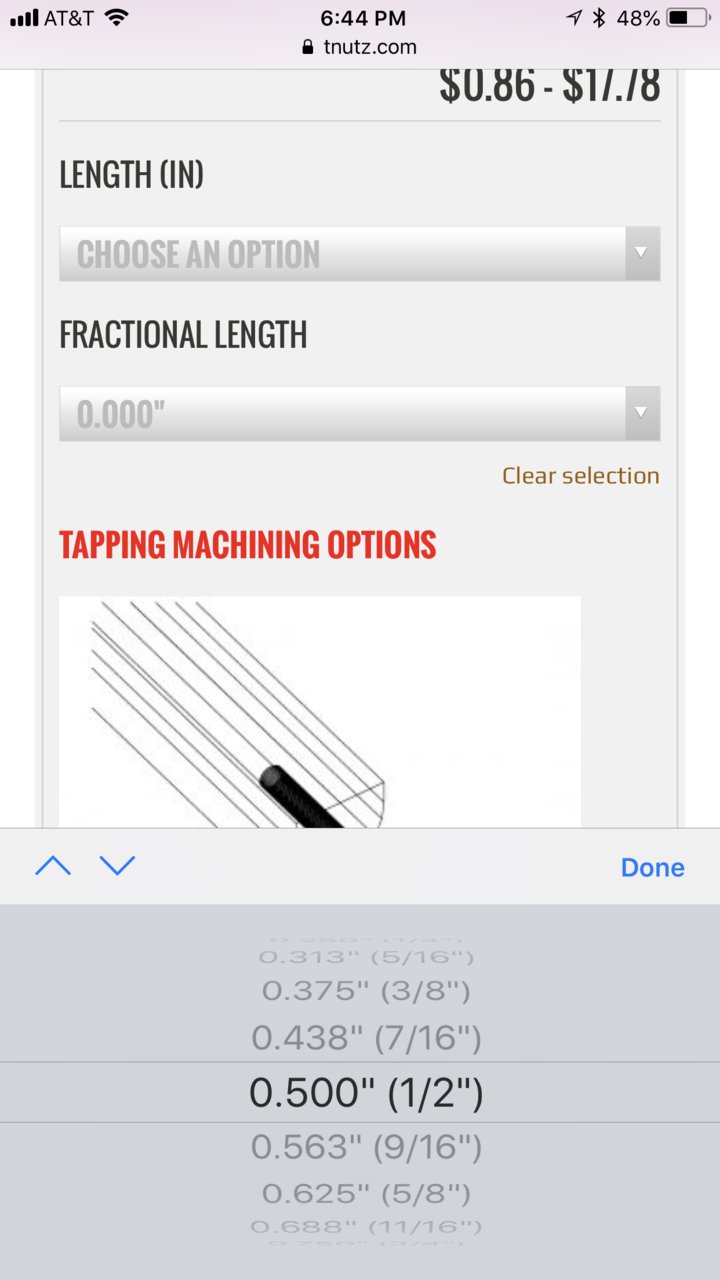

    What fractal length did you select for the 1/4 bars?

  13. Feb 24, 2019 at 6:31 PM
    #833
    masterwacker

    masterwacker Well-Known Member

    Joined:
    Feb 11, 2012
    Member:
    #72656
    Messages:
    114
    Gender:
    Male
    First Name:
    Paul
    Orlando
    Vehicle:
    2010 Tacoma TRD Off Road
    TRD Sport hood, TRD Sport paint matched rear bumper and grill, BDF grill light bracket with some Rigids, 40" Rigid roof bar, SPOD, Stereo, Pro Comp Prorunner front strut lift and rear shocks, PXA 7036 Wheels-285/70R17 BFG AT/KOs and some other stuff
    Same length as the other cross bars.

  14. Feb 24, 2019 at 6:45 PM
    #834
    raskal311

    raskal311 Well-Known Member

    Joined:
    Feb 18, 2009
    Member:
    #13812
    Messages:
    2,183
    Gender:
    Male
    S. Cal
    5100 set to max, pending LSD and TRD CAI
    Not length, I meant fractional length.


  15. Feb 24, 2019 at 7:03 PM
    #835
    08tacomike

    08tacomike Well-Known Member

    Joined:
    May 22, 2018
    Member:
    #254279
    Messages:
    54
    Gender:
    Male
    Vehicle:
    2008 DCSB 4x4 TRD Off Road
    Do you have a link to source the seal material?

  16. Feb 25, 2019 at 5:11 AM
    #836
    BeachBoy

    BeachBoy Well-Known Member

    Joined:
    Apr 10, 2009
    Member:
    #15819
    Messages:
    967
    Gender:
    Male
    VT & QC
    Vehicle:
    '09 DC LB Sport+Leather
    Icon Extended COs / Camburg UCA / ATX Predator Teflon / Mickey Thompson MTZ / Color-Matched emblems / All-Pro Bumper & skids / Stubbs HD-SKO / Alcans custom leafs / U-Bolt flip / Icon rear resi shocks / Rear Bumper
    Printed a 1:1 version of the end (blank area for logo) in order to trial fit the adjustable wind fairing (adjustable 30 degrees and from top of sidebar down to below your lightbar).

    This rack is much more versatile than our previous one and much more versatile than anything you've seen on the market.

    I will post some more design comments in the dedicated thread.

    [​IMG]

    ready6delta and outxider like this.
  17. Feb 25, 2019 at 6:19 AM
    #837
    USMCtaco88

    USMCtaco88 Common sense isn't always a common trait

    Joined:
    Aug 6, 2018
    Member:
    #261949
    Messages:
    197
    Gender:
    Male
    First Name:
    My names Jeff
    Savannah, Georgia
    Vehicle:
    2015 Silver Sky DCSB TRD OR
    I did some stuff.
  18. Feb 25, 2019 at 6:25 AM
    #838
    08tacomike

    08tacomike Well-Known Member

    Joined:
    May 22, 2018
    Member:
    #254279
    Messages:
    54
    Gender:
    Male
    Vehicle:
    2008 DCSB 4x4 TRD Off Road
  19. Feb 25, 2019 at 6:48 PM
    #839
    masterwacker

    masterwacker Well-Known Member

    Joined:
    Feb 11, 2012
    Member:
    #72656
    Messages:
    114
    Gender:
    Male
    First Name:
    Paul
    Orlando
    Vehicle:
    2010 Tacoma TRD Off Road
    TRD Sport hood, TRD Sport paint matched rear bumper and grill, BDF grill light bracket with some Rigids, 40" Rigid roof bar, SPOD, Stereo, Pro Comp Prorunner front strut lift and rear shocks, PXA 7036 Wheels-285/70R17 BFG AT/KOs and some other stuff
    That is if you want a length that is not full inches. Like 47” + .5”. The 1”x1” quarter radius bars are the ones I got.

  20. Feb 25, 2019 at 6:57 PM
    #840
    Demodan

    Demodan New Member

    Joined:
    Feb 25, 2019
    Member:
    #284472
    Messages:
    3
    Gender:
    Male
    First Name:
    dan
    Vehicle:
    trdpro tacoma
    Hey beachboy and barnburner how can I get some side rails? Im making a rack to go over my softopper and dig your side rails that will match my prinsu.Do you make a side rail 5' long?
    Im a new member so Im new to this whole adding to a thread.
