DIY Raptor Lights - $15-$30

Discussion in '3rd Gen. Tacomas (2016-2023)' started by TacomaDanK, May 8, 2018.

  1. Jun 8, 2018 at 8:34 PM
    #61
    andrew8404

    andrew8404 Well-Known Member

    Joined:
    Dec 9, 2010
    Member:
    #47389
    Messages:
    1,494
    Gender:
    Male
    First Name:
    ANDREW
    Albuquerque, NM
    Vehicle:
    17 DCSB TRD OR 4x4 (Sold) 19 Ford Ranger Sport XLT 4x4
  2. Jun 8, 2018 at 8:46 PM
    #62
    AZDesertTRD

    AZDesertTRD Well-Known Member

    Joined:
    Apr 30, 2012
    Member:
    #77969
    Messages:
    308
    Gender:
    Female
    First Name:
    Pamela
    Arizona
    Vehicle:
    2012 PreRunner Sport
    Nice write-up!

  3. Jun 8, 2018 at 9:09 PM
    #63
    Sullivan0930

    Sullivan0930 Well-Known Member

    Joined:
    Jan 29, 2018
    Member:
    #242812
    Messages:
    323
    Gender:
    Male
    First Name:
    Daniel
    Vehicle:
    2024 TRD Offroad. iforce max. Bronze oxide.
    So Big problem here... I was quick splicing into the Purple wire and was clamping it down and then both my DRLs and the marker lights shut off, both sides. The wire isnt cut and everything is connected, checked the DRL fuse and its not blown. But i cant get my DRLs or markers to turn on. any help?

  4. Jun 9, 2018 at 10:17 AM
    #64
    Sullivan0930

    Sullivan0930 Well-Known Member

    Joined:
    Jan 29, 2018
    Member:
    #242812
    Messages:
    323
    Gender:
    Male
    First Name:
    Daniel
    Vehicle:
    2024 TRD Offroad. iforce max. Bronze oxide.

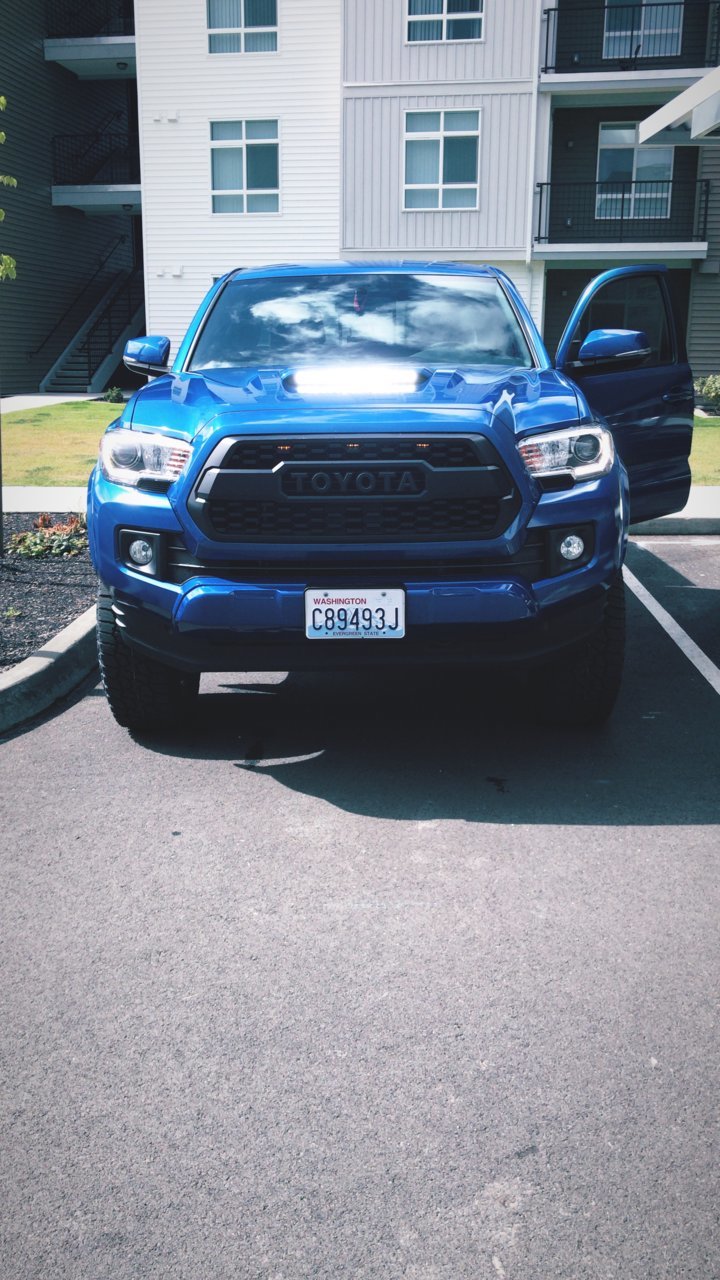

    Well after many hours I’m finally all setup. Ended up running add a circuit off the engine. (I can’t see how it would effect the operation like the poster said, maybe didn’t have two fuses in idk. We will see.) Hard to see since its in direct sunlight.


    TacomaDanK[OP], Atl_taco_ and helix66 like this.
  5. Jun 10, 2018 at 11:09 AM
    #65
    gmazz73

    gmazz73 Well-Known Member

    Joined:
    May 11, 2018
    Member:
    #253181
    Messages:
    58
    Gender:
    Male
    First Name:
    Greg
    Vehicle:
    2018 Tacoma TRD Offroad Cement
    Can anyone verify that tapping into the side markers will allow these to run on both the daytime running lights and night on automatic?

    soup222002 likes this.
  6. Jun 10, 2018 at 11:11 AM
    #66
    gmazz73

    gmazz73 Well-Known Member

    Joined:
    May 11, 2018
    Member:
    #253181
    Messages:
    58
    Gender:
    Male
    First Name:
    Greg
    Vehicle:
    2018 Tacoma TRD Offroad Cement
    Can you possibly show a pic of where you tapped into your fogs please?

  7. Jun 10, 2018 at 12:30 PM
    #67
    Sullivan0930

    Sullivan0930 Well-Known Member

    Joined:
    Jan 29, 2018
    Member:
    #242812
    Messages:
    323
    Gender:
    Male
    First Name:
    Daniel
    Vehicle:
    2024 TRD Offroad. iforce max. Bronze oxide.
    I’ve checked the purple and white with a multi meter and get no current. I’ve tapped them and got nothing so idk how people are getting it. I did add a circuit to the fuel injectors and put a 2A fuse on top and the original 10A on the bottom. Works with no issues.

    gmazz73[QUOTED] likes this.
  8. Jun 11, 2018 at 1:38 PM
    #68
    plode682

    plode682 Well-Known Member

    Joined:
    Jan 30, 2016
    Member:
    #176593
    Messages:
    214
    Gender:
    Male
    Southern NJ
    Vehicle:
    2016 Tacoma TRD Off Road
    Thank god reverse polarity doesn't kill these lights. What idiot thought to make the ground white and black is positive?!
    That's like the opposite of every electrical wiring related thing I've ever done. I was beginning to think maybe I got defective ones, or that they weren't 12v and I killed them. Looked at Amazon description to find the wiring info.

    COYOCO likes this.
  9. Jun 11, 2018 at 1:46 PM
    #69
    Sullivan0930

    Sullivan0930 Well-Known Member

    Joined:
    Jan 29, 2018
    Member:
    #242812
    Messages:
    323
    Gender:
    Male
    First Name:
    Daniel
    Vehicle:
    2024 TRD Offroad. iforce max. Bronze oxide.
    Lol same here. At first I was super mad came inside and then looked at the diagrams posted again and was like oooooooh.


  10. Jun 11, 2018 at 2:47 PM
    #70
    goose443

    goose443 Well-Known Member

    Joined:
    Jun 8, 2016
    Member:
    #189076
    Messages:
    741
    Gender:
    Male
    First Name:
    Austin
    Texas
    Vehicle:
    2016 Tacoma TRD Off Road 4x4
    I’d recommend using an add a fuse instead of tapping into existing wiring. Add a fuse is completely reversible and won’t interfere with the factory wiring. It is super easy as well

    ready6delta and Tullie D like this.
  11. Jun 12, 2018 at 5:55 PM
    #71
    TacomaDanK

    TacomaDanK [OP] Well-Known Member

    Joined:
    Feb 17, 2018
    Member:
    #244685
    Messages:
    52
    Gender:
    Male
    First Name:
    Daniel
    Spanish Fork, UT
    Vehicle:
    2016 Tacoma TRD OffRoad
    Custom Roof Rack by Rave Off Road
    I still have mine tapped into the Fuel Injector Add-A-Fuse and still haven't had any problems. I put a 7.5 A mini fuse into the second slot for the raptor lights and no issues yet. The dash lights flicker sometimes on the temperature/seat heater panel but not sure if it's related to the fuel injector...can't see how that would be the case...any insight to this? Engine runs fine though.

  12. Jun 12, 2018 at 7:35 PM
    #72
    Sullivan0930

    Sullivan0930 Well-Known Member

    Joined:
    Jan 29, 2018
    Member:
    #242812
    Messages:
    323
    Gender:
    Male
    First Name:
    Daniel
    Vehicle:
    2024 TRD Offroad. iforce max. Bronze oxide.
    same, except with a 5amp fuse. Smallest i had. I think the issue might come from putting another 10 in there and overloading it, but idk.

  13. Jul 10, 2018 at 3:18 PM
    #73
    808Cementtaco

    808Cementtaco Well-Known Member

    Joined:
    Jun 9, 2018
    Member:
    #255961
    Messages:
    151
    Gender:
    Male
    First Name:
    Kea
    Vehicle:
    2018 trd sport dcsb cement 6sp M/T
    3in front spacer lift with 2in rear block, 17in Ballistic w/285/70r17s 25%tint in front and 15%rear Plastidipped all badges Removed trd stickers Etc.....
    Has anyone tapped into their fog light wires? I’m thinking of just splicing the power wire and just adding in an extended wire for the leds then just tap each power lead from each led into the main wire and all the grounds just ground somewhere on the truck??

  14. Jul 10, 2018 at 6:46 PM
    #74
    plode682

    plode682 Well-Known Member

    Joined:
    Jan 30, 2016
    Member:
    #176593
    Messages:
    214
    Gender:
    Male
    Southern NJ
    Vehicle:
    2016 Tacoma TRD Off Road
    I'm still debating on how to mount these. I currently have two blue emergency lights(for the fire dept) mounted about where the outer two raptor lights would go.

  15. Jul 11, 2018 at 12:08 AM
    #75
    808Cementtaco

    808Cementtaco Well-Known Member

    Joined:
    Jun 9, 2018
    Member:
    #255961
    Messages:
    151
    Gender:
    Male
    First Name:
    Kea
    Vehicle:
    2018 trd sport dcsb cement 6sp M/T
    3in front spacer lift with 2in rear block, 17in Ballistic w/285/70r17s 25%tint in front and 15%rear Plastidipped all badges Removed trd stickers Etc.....
    Figured out how to tap into your fogs, there’s a clip for them in the center of our front end that travels up the middle. But on the bottom right above the bumper bracket there’s a spot where the fog lights have a plug, and at that spot I opened the conduit and spliced in my leads to my leds. Everything still running cherry but it’s only the first day lol

  16. Jul 15, 2018 at 4:49 PM
    #76
    JDW007

    JDW007 Well-Known Member

    Joined:
    Jun 9, 2018
    Member:
    #255950
    Messages:
    51
    Good info. Thanks!

  17. Jul 16, 2018 at 8:01 AM
    #77
    DLRIII

    DLRIII Well-Known Member

    Joined:
    Feb 27, 2018
    Member:
    #245744
    Messages:
    1,977
    Gender:
    Male
    First Name:
    David
    Baton Rouge
    Vehicle:
    2018 Quicksand SR5 DCSB V6
    Sorry to be replying to an old post, but I'm working on some grill lighting myself and I have a couple questions. I want to do as you suggested and use these connectors to tap wires to power my grill lights, but I see you guys saying to tap the side market lights. Won't that mean that the grill lights will only be on with the parking lights on? I never use the parking lights and I'd really prefer to have the grill lights on with the drls and the low beams, or just all the time. Can you help me understand how to make that work? Thank you

  18. Jul 16, 2018 at 8:12 AM
    #78
    txtaco87

    txtaco87 Budget Travel Hard AF

    Joined:
    Apr 21, 2015
    Member:
    #153640
    Messages:
    4,291
    Gender:
    Male
    First Name:
    Nik
    Houston, Tx
    Vehicle:
    08 PreRunner DCSB
    PreRun hard AF
    :rofl: Love the custom plate!!

  19. Jul 16, 2018 at 8:14 AM
    #79
    no vtec 4me

    no vtec 4me Well-Known Member

    Joined:
    Jan 29, 2017
    Member:
    #209016
    Messages:
    1,595
    Gender:
    Male
    First Name:
    Kevin
    West Chester, Pa
    Vehicle:
    2017 Tacoma TRD Sport

    I know you have an sr5 so it’s slightly different. By sidemarker bulb I’m referring to the small bulb under the amber lens on the outside of the truck. This bulb comes on with your marker lights, and stays on with your headlights. It’s only off when only your drl is on. If you want them on with your drl, you can wire it to that. Being that is also your turn signal bulb, I think they will turn off every time you put your turn signal on though.

    Atl_taco_ likes this.
  20. Jul 16, 2018 at 8:52 AM
    #80
    DLRIII

    DLRIII Well-Known Member

    Joined:
    Feb 27, 2018
    Member:
    #245744
    Messages:
    1,977
    Gender:
    Male
    First Name:
    David
    Baton Rouge
    Vehicle:
    2018 Quicksand SR5 DCSB V6
    Ok, that clears it up for me, I do think I want it spliced into the marker light then. Thanks man. Now I just need to find these little wire splice connectors you guys are talking about
