DIY rear diff armor on the cheap

Discussion in '1st Gen. Tacomas (1995-2004)' started by paranoid56, Aug 18, 2014.

  1. Aug 18, 2014 at 12:12 PM
    #1
    paranoid56

    paranoid56 [OP] Well-Known Member

    Joined:
    Jul 25, 2012
    Member:
    #83443
    Messages:
    3,194
    Gender:
    Male
    San Diego
    Vehicle:
    14 double cab taco
    have done this on other toyotas so figured i would do it again.
    now you can go buy ones for 50-80 bucks and those are totally fine, but i like using these as they are beefy and cheap. just requires a little work.

    the main reason for doing this, is that the stock covers are paper thin, so a little ding on a rock will push it onto the ring gear. you dont want that.

    Step 1

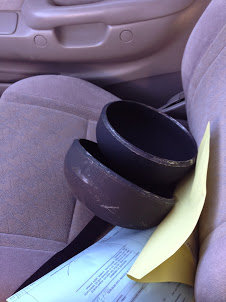

    first up pick up yourself a butt weld 8" weld cap. they look like this. they are 3/8" thick. so very thick.

    Step 2

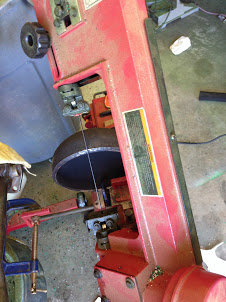

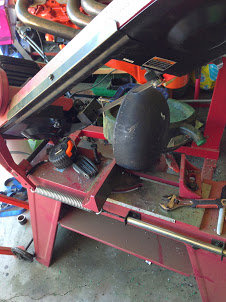

    next up you will need to cut it in half. you can do this a few ways, but i used my band saw (you can use a chop saw, cut off wheel, hacksaw lol)

    Step 3
    drink a beer.

    Step 4

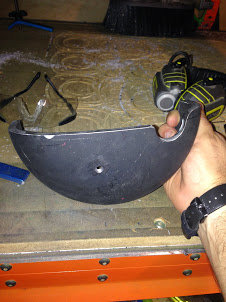

    once you have the two halfs, you will want to add a drain hole on the bottom. i also drilled and tapped a hole to reattach the ebrake cable guide. I also cut a half circle out of the top to get easier access to the fill plug. i did that with just a hole saw.

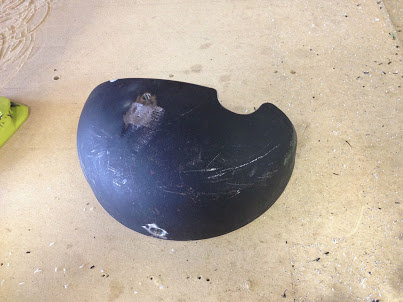

    and a bottom shot showing the drain hole. i think i just drilled a 1/2" hole as that should be fine.

    Step 5

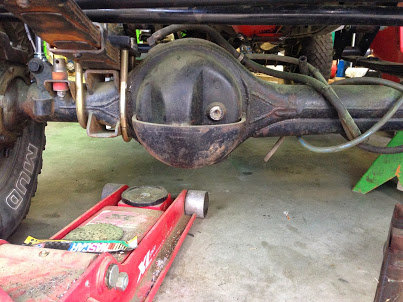

    then weld it up. sand off any paint before welding and have at it. I will say that my bottom weld didnt turn out to great due to getting contaminated/ windy/ upside down lol
    but its not going anywhere. you dont need to fully weld it, i normally just do a 2" weld on both sides and one on the bottom.

    Step 6
    Drink another beer and watch the paint dry :D

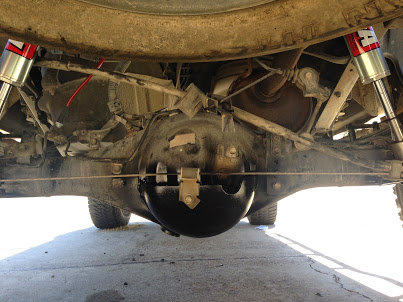

    and one i did on my other toyota. this thing has hit many many rocks and still looks new.
