DIY Spod/switchpro fuse relay panel

Discussion in 'General Automotive' started by Matmo215, May 13, 2020.

?

What do you think?

  1. Looks good!

    7 vote(s)
    100.0%
  2. You did horrible

    0 vote(s)
    0.0%
  1. May 13, 2020 at 8:41 PM
    #1
    Matmo215

    Matmo215 [OP] Baylor '23

    Joined:
    Sep 15, 2016
    Member:
    #197333
    Messages:
    5,629
    Gender:
    Male
    First Name:
    Matthew
    Denton, TX
    Vehicle:
    2011 DCSB
    Ever since I posted my DIY fuse relay panel build I’ve been getting a ton of PM’s on what I used, how I wired it, etc.

    I figured it’d be easiest to make a new thread explaining exactly how I made it and what I used using my easy 12 step program. Keep in mind, I’m a 19 year old college student doing this for the first time with no wiring experience. I followed a youtube video and it’s actually unbelievably easy to make.

    This is the video I followed: https://youtu.be/RY45UHCfeHk

    For those who don’t know, this is essentially the same thing as an Spod or switch pro, which can be made at a fraction of the cost. The parts I used were mainly Bluesea and Bussman, however there are many cheaper alternatives that accomplish the same thing. I wanted to use high quality components to reduce the risk of failure.

    I built this to replace all of my old wiring harnesses that made an absolute mess in my engine bay and to drastically reduce the positive and negative wires going through my firewall to the switches in the cab.

    Before/during removal of the wire harnesses:

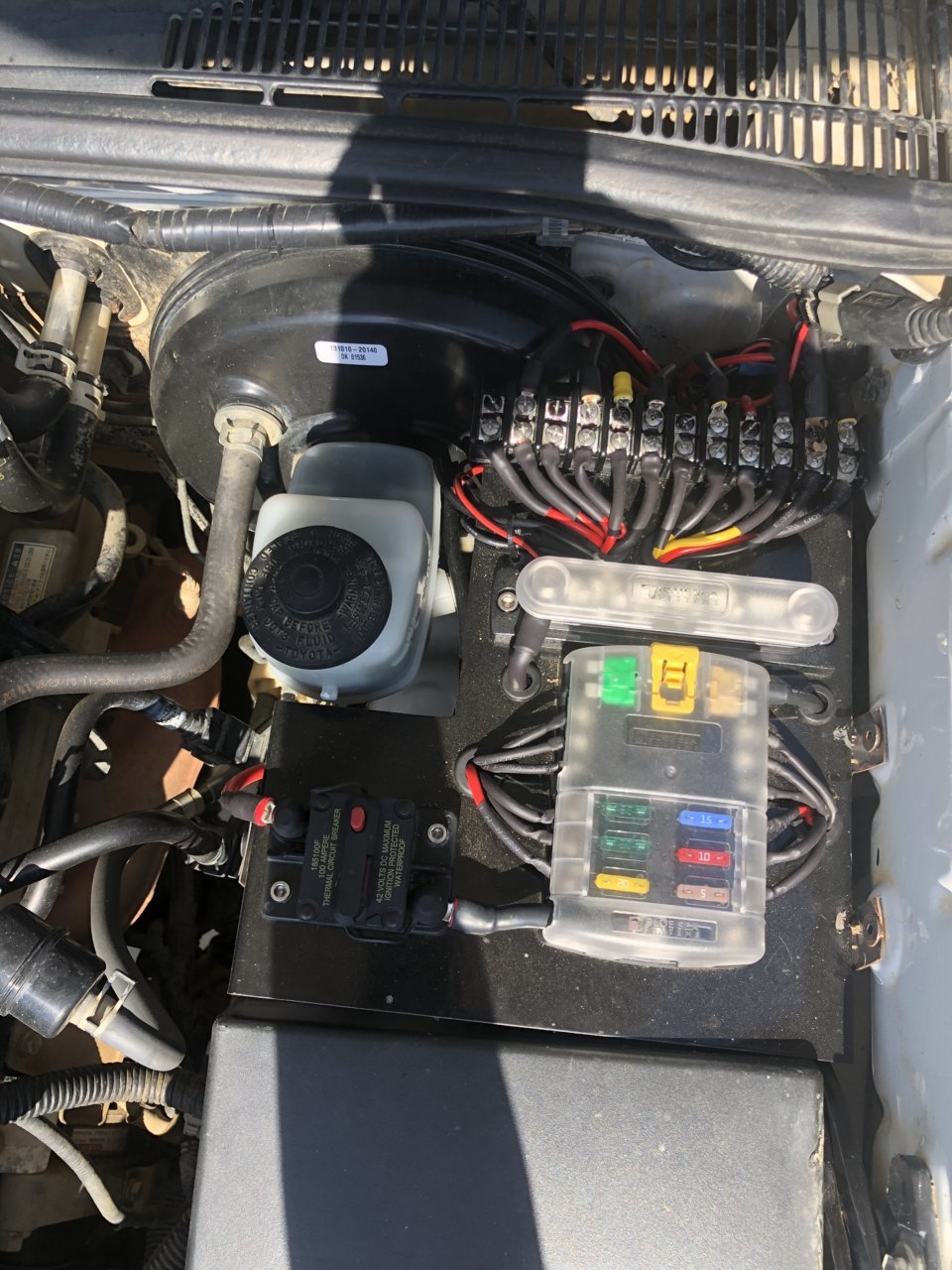

    Final product (the screws marked with black sharpie are where I chose to connect my positive wires from the accessories. The silver screws go to the switches) :

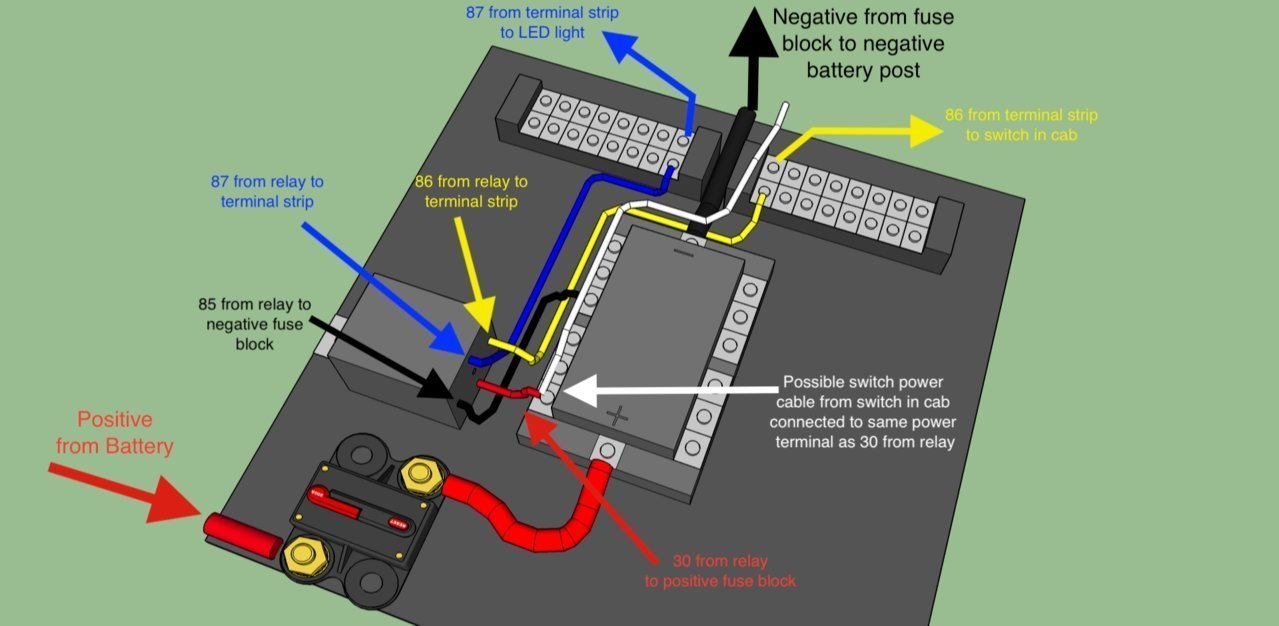

    This fuse relay panel allows for ONE wire to go to each switch total. That’s it. When adding new lights or accessories all you have to do is connect the positive and negative wires of the accessories to the terminals on the fuse block. You can of course customize the panel to accomplish however many lights you would like to add, but I found a 6 switch panel fits best while still allowing room for adding new accessories.

    List of parts needed:

    For the mount I used a 22ga 12x12 piece of sheet metal from Home Depot for like $10. Bent and shaped using a dremel with a cutoff wheel and a BFH with a 2x4 for the 90* bend.

    Relays, they only come in a 5 pack or a 1 pack, so for 6 switches youll need to order one more. Make sure they are waterproof:
    5 PACK 40/30 AMP 12 V DC... https://www.amazon.com/dp/B074FSZWVT?ref=ppx_pop_mob_ap_share

    Fuse block:
    Blue Sea Systems 5025 ST Blade... https://www.amazon.com/dp/B000THQ0CQ?ref=ppx_pop_mob_ap_share

    Circuit breaker:
    Bussmann CB185-100 100 Amp Type... https://www.amazon.com/dp/B00139FQSS?ref=ppx_pop_mob_ap_share

    8 Gauge wire for power leads:
    BNTECHGO 8 Gauge Silicone Wire 3... https://www.amazon.com/dp/B074P4HSF2?ref=ppx_pop_mob_ap_share

    Negative bus terminal for all negative wires for the lights to connect to:
    Blue Sea Systems Common 150A... https://www.amazon.com/dp/B0091VHLW4?ref=ppx_pop_mob_ap_share

    12 circuit dual terminal bus for 6 switches:
    Blue Sea Systems 12 Circuit 30A... https://www.amazon.com/dp/B000K2K6L6?ref=ppx_pop_mob_ap_share

    Stupid cheap heat shrink kit:
    625pcs Heat Shrink Tubing Kit,... https://www.amazon.com/dp/B07QM8249H?ref=ppx_pop_mob_ap_share

    Switches I used:
    Nilight 90017C 3 Gang Aluminum... https://www.amazon.com/dp/B07TJQ7738?ref=ppx_pop_mob_ap_share

    and you’ll need a lot of 12 gauge wire, various sizes of heat shrink, grommets, 8 gauge ring connectors, and fork connectors. Once you have everything follow the video I linked and hook everything up. I used heavy duty double sided 3M tape to stick the relays to the underside of the relay mount.

    The switches I used require a POSITIVE switch. I believe the video uses a negative switch, but you can always rewire the switches to a negative load. Here’s the diagram I used.


    I will update the post with the dimensions of my DIY panel for those who wish to make their own. It’s much cheaper than paying $100 for a powertray.

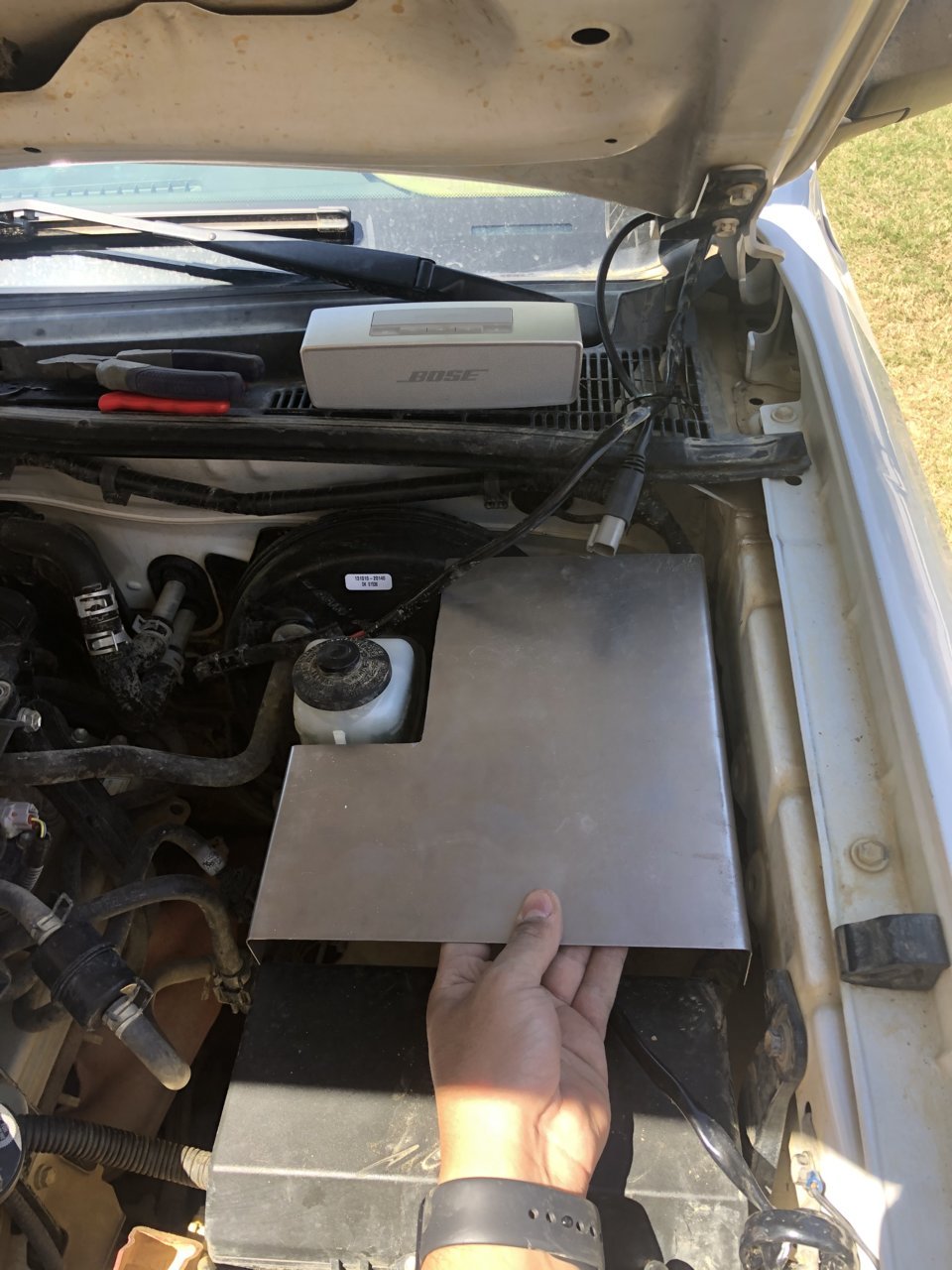

    Step 1: Build the actual panel for everything to mount to.

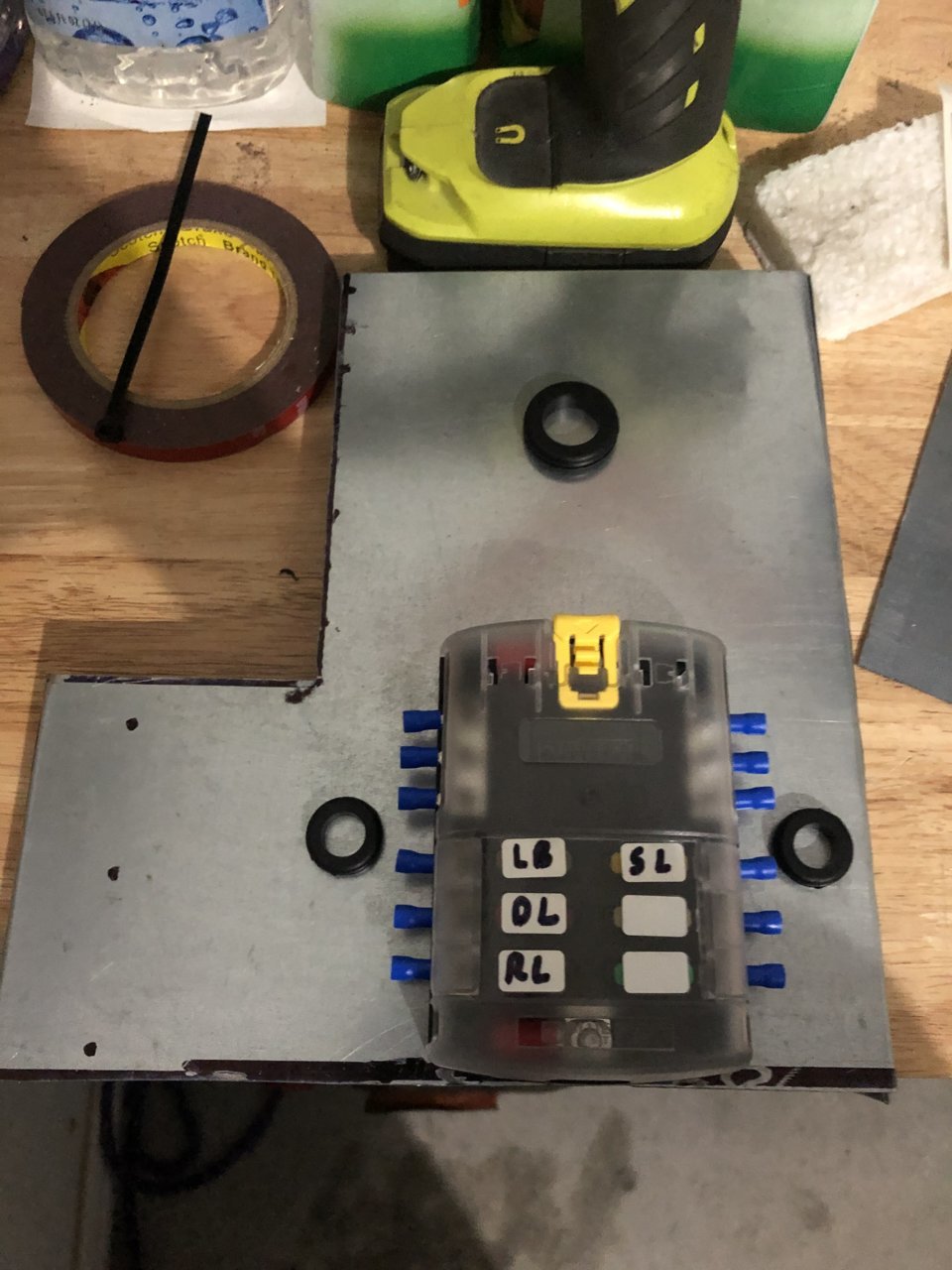

    Step 2: Begin to layout all your components and grommets for the wires from the relays to pass through. I purchased the grommets from Home depot. Most of the ones I used were 1/2” I believe. You can only fit 6 12 gauge wires through each grommet, hence multiple grommet holes drilled.

    *I chose to mount the relays on the bottom for the cleanest possible outcome*


    Step 3: Once you have everything in place where you like it, drill all mounting holes for the fuse block, circuit breaker, dual bus terminal, and the ground terminal.

    Step 4: Use small hex bolts to secure everything

    Step 5: mount the relays with heavy duty double sided tape under the panel

    Step 5: Cut off the center wire in each of the relays or pull it out. It will not be used

    Step 6: Use either a soldering gun (I used this method) or butt connectors to extend each of the wires of the relays as they will not be long enough. I added 6” to each relay and trimmed them down as needed.

    Step 7: Begin to solder or crimp fork connectors onto the ends of the relays to connect to the dual bus terminal and the fuse block. Use the diagram above to determine what to plug into where.

    Step 8: Once everything is wired up, crimp ring connectors to the 8 gauge wire and connect the wires to the positive and negative terminals of the battery. I grounded mine on the ground bolt located on the drivers side fender.

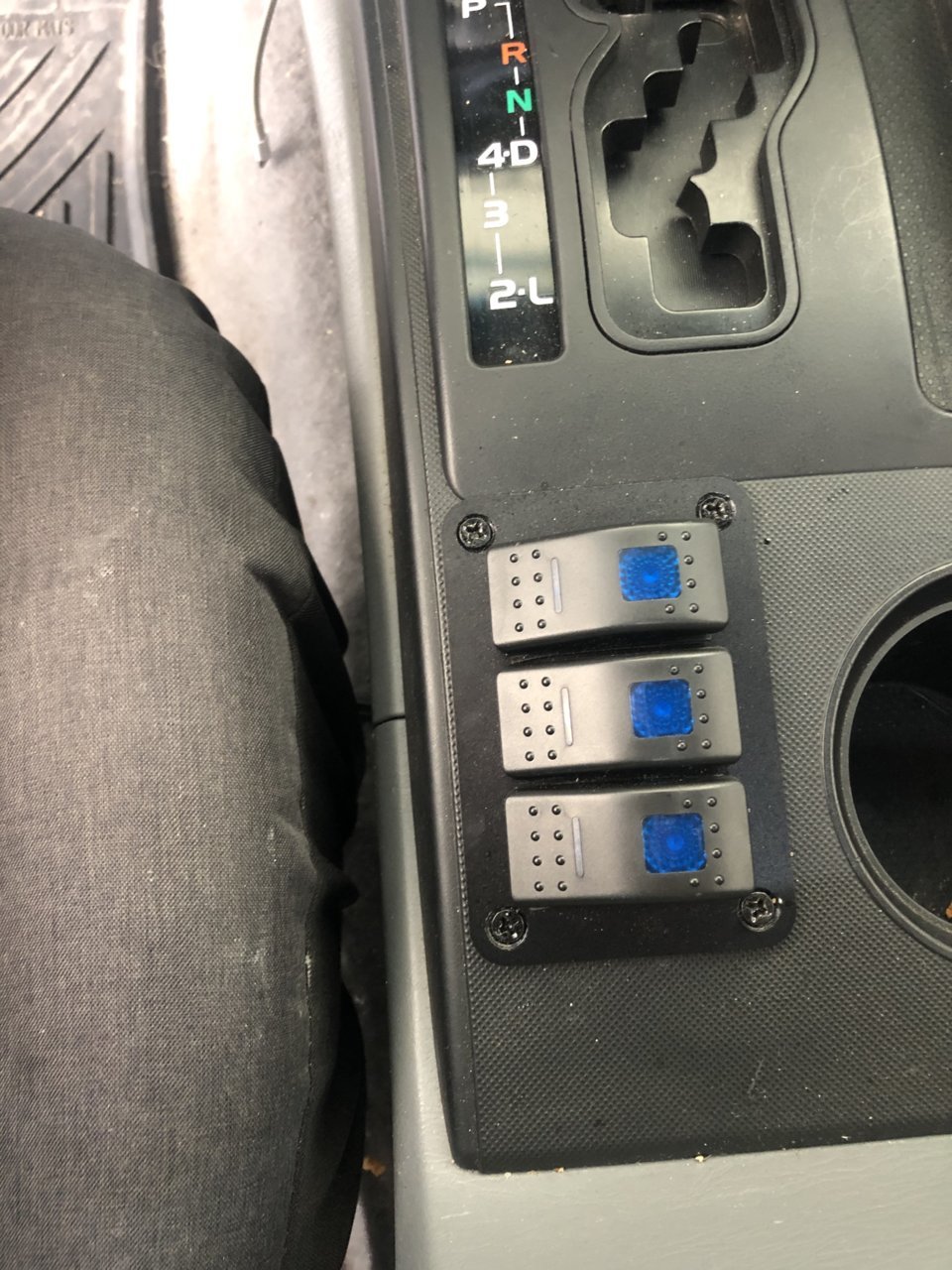

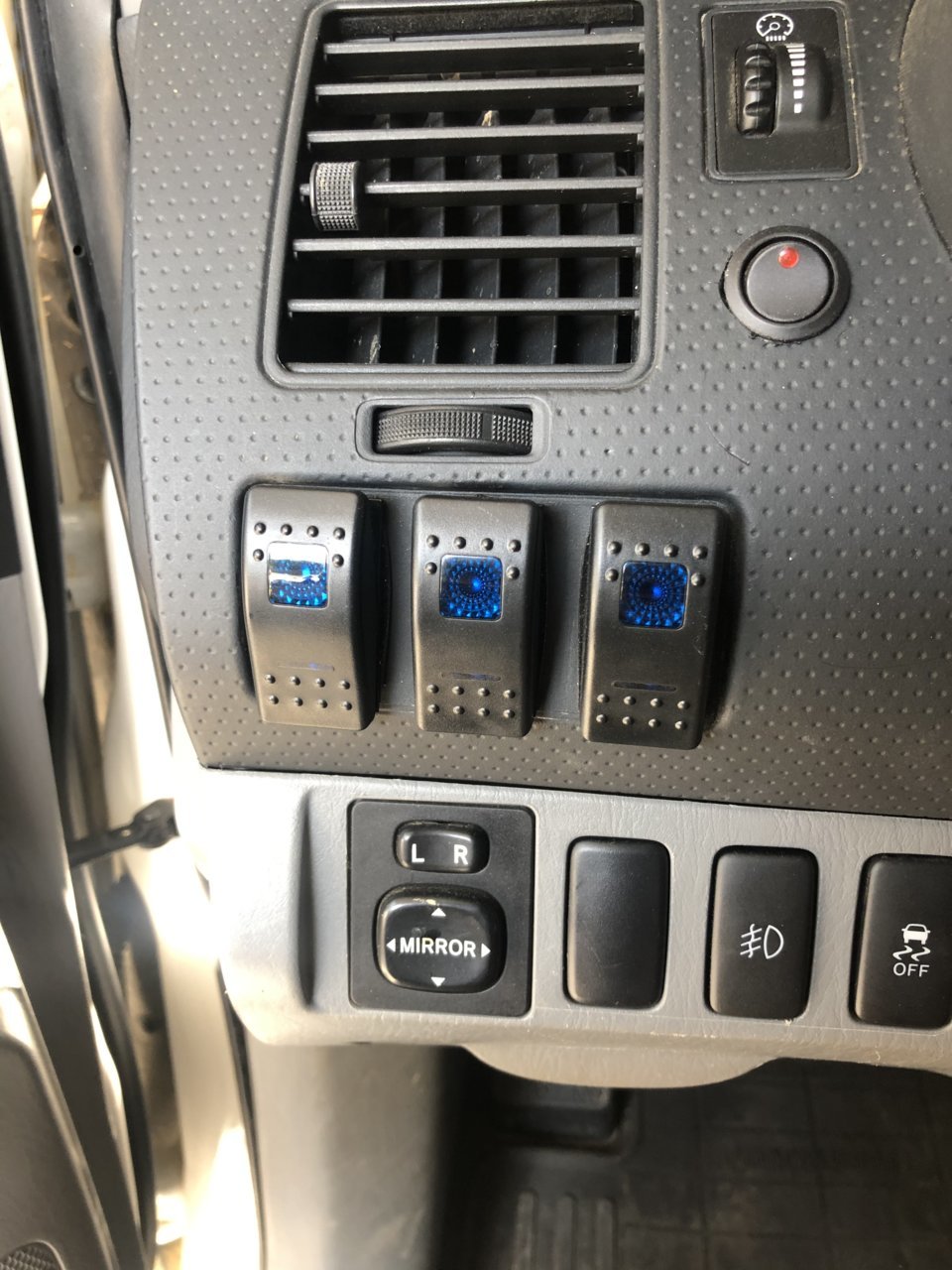

    Step 9: Mount your switches in your desired location. I already had 3 switches where blanks would normally be, so I purchased 3 more and mounted it in my center console. Excuse the dirty truck.
    781146E2-F8FB-4641-A903-9A1A5E4C7A06.jpg A8DF7306-FDA4-44D0-AFC4-4BA86FE7ADFE.jpg
    I used these switches because they come prewired to accept only a positive input from the device. In this case, the positive will come from the dual bus terminal and go to the relay to activate it when the switch is put in the ON position.

    Step 10: use a fuse tap to connect the positive leads of the switches to a fuse located under the steering wheel and ground the ground wire somewhere.

    Step 11: run wires through the firewall to each switch and connect them to the dual bus terminal. When wiring the dual bus terminal, every other terminal should be a switch with the positive wire going to the accessory in between.

    Step 12: Connect your accessories to the ground terminal bus and the positive wire to the dual bus terminal.

    Turn the ignition key and test it out to make sure it works! If you have any questions feel free to ask. This is very simple to make and looks very clean. The hardest part of this install is making it look nice. You can follow my layout for the best looking results or do your own take on it!

    Last edited: May 14, 2020
    Red Mountain likes this.
  2. May 14, 2020 at 9:21 AM
    #2
    Matmo215

    Matmo215 [OP] Baylor '23

    Joined:
    Sep 15, 2016
    Member:
    #197333
    Messages:
    5,629
    Gender:
    Male
    First Name:
    Matthew
    Denton, TX
    Vehicle:
    2011 DCSB
    MattCowsmasher and Beretta4x4 like this.
  3. May 14, 2020 at 9:23 AM
    #3
    Beretta4x4

    Beretta4x4 Infantry leads the way! TTC #114

    Joined:
    Jan 20, 2016
    Member:
    #175568
    Messages:
    23,876
    Gender:
    Male
    First Name:
    Josh
    USA
    Vehicle:
    6-speed death mobile
    Nah. I don't have the space on that side and the other side will be dedicated to my dual battery and compressor setup.

    I did a ghetto version of it last year lol

    MattCowsmasher and Matmo215 [OP] like this.
  4. May 14, 2020 at 9:25 AM
    #4
    MattCowsmasher

    MattCowsmasher Short Bus Captain/TTC #0010

    Joined:
    Apr 7, 2017
    Member:
    #215629
    Messages:
    39,389
    Gender:
    Male
    Temple, TX
    Vehicle:
    2015 sporty dcsb 4wd
    Lifted, armored, lumenz w/ switches, positraked, long legged, big tars, debadged with a hood skewp
    Subbed

    Matmo215 [OP] likes this.
  5. May 14, 2020 at 9:30 AM
    #5
    ISU800m

    ISU800m Active Member

    Joined:
    Jan 29, 2020
    Member:
    #317656
    Messages:
    44
    Gender:
    Male
    First Name:
    Kyle
    Plymouth, MA
    Vehicle:
    2018 Silver TRD OR
    My setup looks like your before shot. What are the advantages to what you did? Purely aesthetics, or does it improve the function of the lights/make it easier to change things around?

  6. May 14, 2020 at 9:39 AM
    #6
    Matmo215

    Matmo215 [OP] Baylor '23

    Joined:
    Sep 15, 2016
    Member:
    #197333
    Messages:
    5,629
    Gender:
    Male
    First Name:
    Matthew
    Denton, TX
    Vehicle:
    2011 DCSB
    Aesthetics mostly, but everything is fuse protected and with only positive wires going through the firewall it’s much less of a hazard having positive and negative wires running through. Overall a much cleaner and safer alternative.

    Beretta4x4 and ISU800m like this.
  7. May 14, 2020 at 9:53 AM
    #7
    Beretta4x4

    Beretta4x4 Infantry leads the way! TTC #114

    Joined:
    Jan 20, 2016
    Member:
    #175568
    Messages:
    23,876
    Gender:
    Male
    First Name:
    Josh
    USA
    Vehicle:
    6-speed death mobile
    I grounded most of my stuff locally at the accessory and only ran a power wire. I did write up the ground on my bussman first block yesterday to run wiring for a QD connection for led lights on my awning

    MattCowsmasher and Matmo215 [OP] like this.
  8. May 19, 2020 at 2:47 PM
    #8
    zippo88

    zippo88 Well-Known Member

    Joined:
    Jun 11, 2018
    Member:
    #256154
    Messages:
    148
    Gender:
    Male
    First Name:
    L
    Vehicle:
    2012 sport
    Nice write up. All looks super clean, I'm gunna order all my parts soon. Any update on the dimensions you used for the power tray?
    Did you just self tap into the inner fender to secure it?

    Beretta4x4 likes this.
  9. May 19, 2020 at 2:50 PM
    #9
    Matmo215

    Matmo215 [OP] Baylor '23

    Joined:
    Sep 15, 2016
    Member:
    #197333
    Messages:
    5,629
    Gender:
    Male
    First Name:
    Matthew
    Denton, TX
    Vehicle:
    2011 DCSB

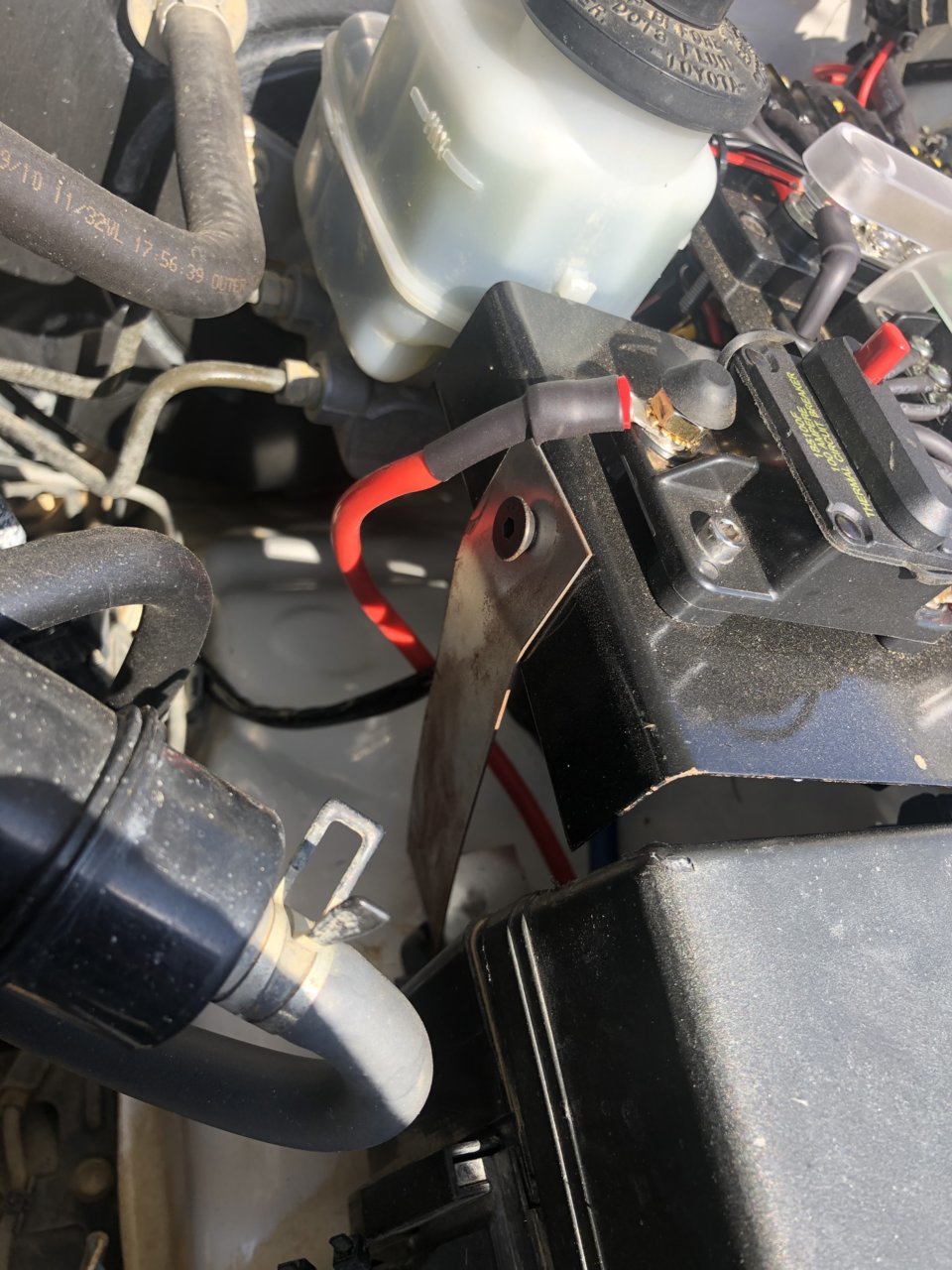

    I’ll go outside and grab them right now totally forgot. There are 2 bolt holes on the side of the fenderwell. I found 2 bolts in my bolt drawer that fit in there perfectly so I don’t know the threads. Just drilled holes in the side and used ths bolts. On the engine side of the mount, I made a support brace that goes down to give that side support. Ill snap a picture of it. It’s janky but it works and that’s all I really care about.

  10. May 19, 2020 at 2:53 PM
    #10
    Col4bin

    Col4bin Well-Known Member

    Joined:
    Apr 6, 2018
    Member:
    #249606
    Messages:
    772
    Gender:
    Male
    Maine
    Vehicle:
    2018 TRD OR Double Cab
    You did a really nice job. I think it’s not necessarily fair to say this is essentially an SPOD or SwitchPro though. There have been a bunch of threads on the debate on the cost of those systems and what you’re paying for etc etc and I’m not here to debate that. Super slick fuse panel set up? Yes. But not essentially a sPOD or SwitchPro system. People who are/may be weighing options should be educated on the vast differences between what you have nicely put together, and a $600+ system like sPOD,SwitchPro or the like offers.

    Matmo215 [OP] and Beretta4x4 like this.
  11. May 19, 2020 at 3:00 PM
    #11
    Matmo215

    Matmo215 [OP] Baylor '23

    Joined:
    Sep 15, 2016
    Member:
    #197333
    Messages:
    5,629
    Gender:
    Male
    First Name:
    Matthew
    Denton, TX
    Vehicle:
    2011 DCSB
    True. I’m relating it to an Spod or Switchpro in the way it functions. Yes, they have far more features, but at the end of the day they accomplish the same general thing. I don’t mean to take away from those companies and what they’ve done, I simply want to show everyone an alternative for those who can’t spend $500+ on a switch system. Thank you for the compliments, I tried hard to make it look nice.

    Beretta4x4 likes this.
  12. May 19, 2020 at 3:01 PM
    #12
    Matmo215

    Matmo215 [OP] Baylor '23

    Joined:
    Sep 15, 2016
    Member:
    #197333
    Messages:
    5,629
    Gender:
    Male
    First Name:
    Matthew
    Denton, TX
    Vehicle:
    2011 DCSB

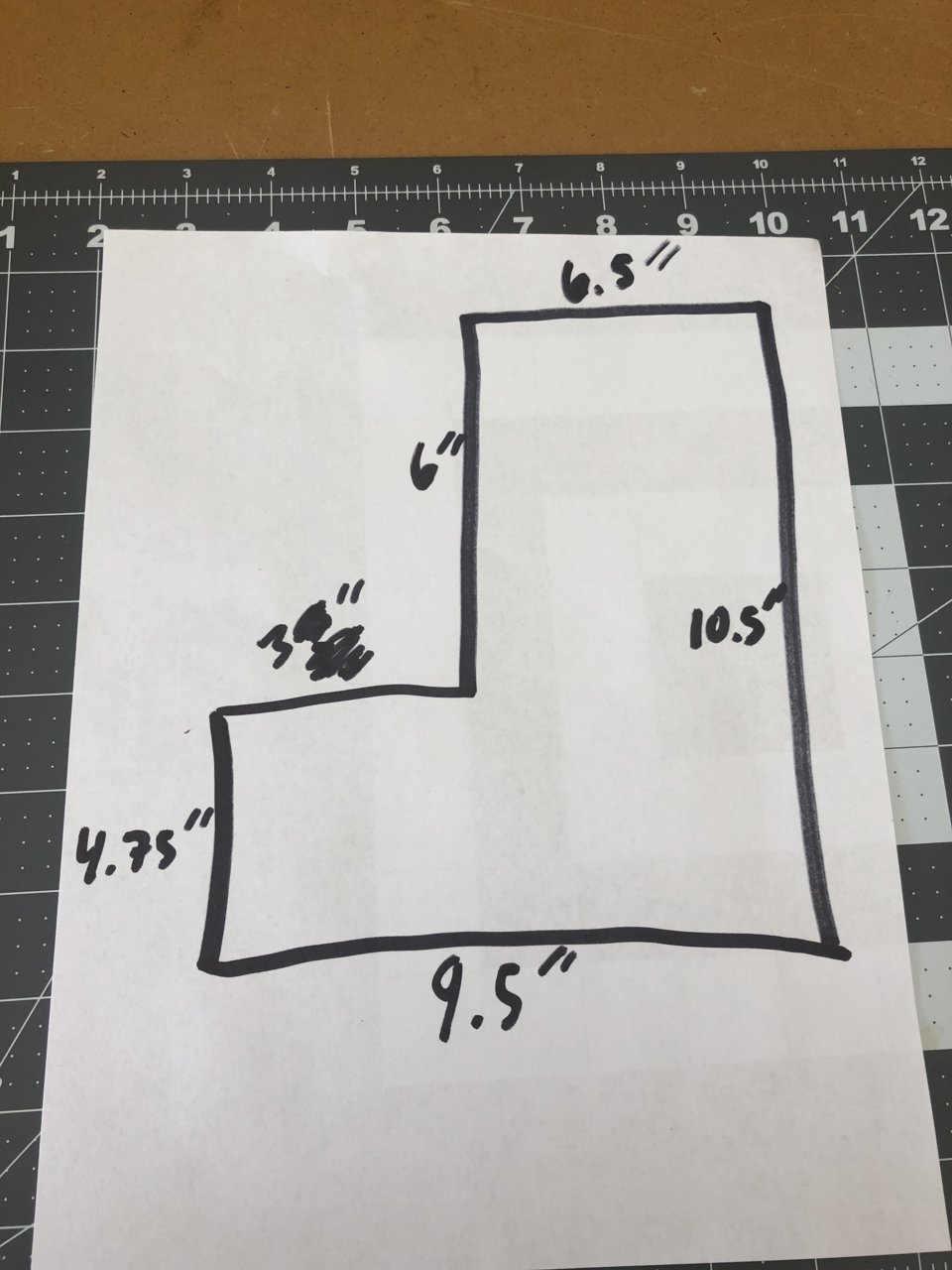

    Here is a crude drawing of the dimensions and a picture of the side brace.


    zippo88 and Beretta4x4 like this.
  13. May 19, 2020 at 3:21 PM
    #13
    zippo88

    zippo88 Well-Known Member

    Joined:
    Jun 11, 2018
    Member:
    #256154
    Messages:
    148
    Gender:
    Male
    First Name:
    L
    Vehicle:
    2012 sport
    Awesome! thanks for the quick reply

    Matmo215 [OP] and Beretta4x4 like this.
  14. May 20, 2020 at 12:33 PM
    #14
    zippo88

    zippo88 Well-Known Member

    Joined:
    Jun 11, 2018
    Member:
    #256154
    Messages:
    148
    Gender:
    Male
    First Name:
    L
    Vehicle:
    2012 sport
    Going this route you are omitting the negative bus bar?
    Looking at other builds I haven't seen anyone running one. I'm assuming they've ground their goodies locally like you said.

    Beretta4x4 and Matmo215 [OP] like this.
  15. May 20, 2020 at 1:07 PM
    #15
    Beretta4x4

    Beretta4x4 Infantry leads the way! TTC #114

    Joined:
    Jan 20, 2016
    Member:
    #175568
    Messages:
    23,876
    Gender:
    Male
    First Name:
    Josh
    USA
    Vehicle:
    6-speed death mobile
    Pretty much, but I've since grounded my aux fuse panel in order to ground locally near the battery without cluttering the battery terminals.

    zippo88 likes this.
  16. May 20, 2020 at 1:55 PM
    #16
    zippo88

    zippo88 Well-Known Member

    Joined:
    Jun 11, 2018
    Member:
    #256154
    Messages:
    148
    Gender:
    Male
    First Name:
    L
    Vehicle:
    2012 sport
  17. May 20, 2020 at 1:57 PM
    #17
    zippo88

    zippo88 Well-Known Member

    Joined:
    Jun 11, 2018
    Member:
    #256154
    Messages:
    148
    Gender:
    Male
    First Name:
    L
    Vehicle:
    2012 sport
    Just have to find the dimensions to see if she'll fit

  18. May 20, 2020 at 2:01 PM
    #18
    zippo88

    zippo88 Well-Known Member

    Joined:
    Jun 11, 2018
    Member:
    #256154
    Messages:
    148
    Gender:
    Male
    First Name:
    L
    Vehicle:
    2012 sport

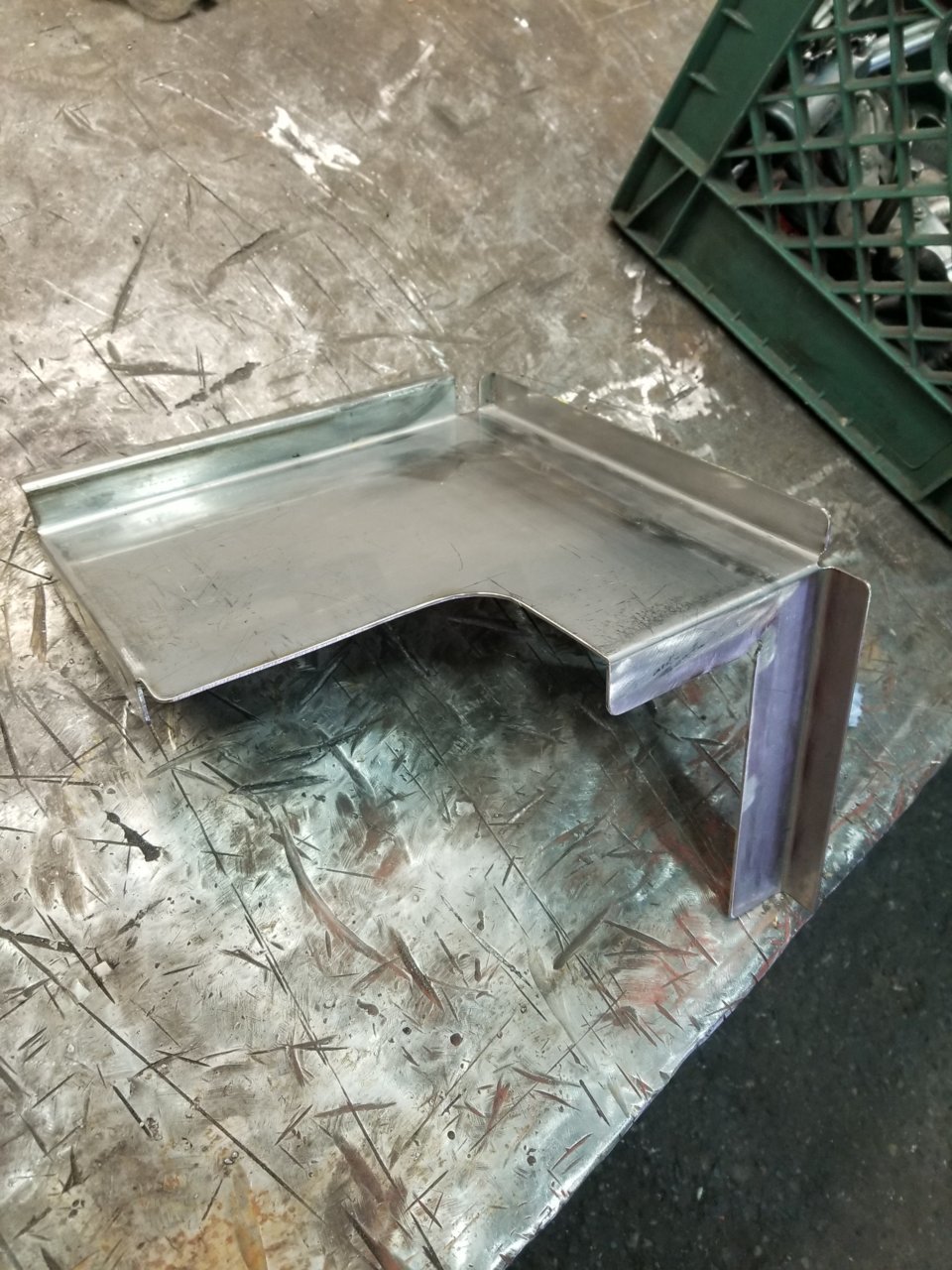

    Started my tray..


    Beretta4x4 likes this.
  19. May 20, 2020 at 2:03 PM
    #19
    Matmo215

    Matmo215 [OP] Baylor '23

    Joined:
    Sep 15, 2016
    Member:
    #197333
    Messages:
    5,629
    Gender:
    Male
    First Name:
    Matthew
    Denton, TX
    Vehicle:
    2011 DCSB
    Damn that looks a hell of a lot better than mine nice job

    Beretta4x4 likes this.
  20. May 20, 2020 at 2:14 PM
    #20
    zippo88

    zippo88 Well-Known Member

    Joined:
    Jun 11, 2018
    Member:
    #256154
    Messages:
    148
    Gender:
    Male
    First Name:
    L
    Vehicle:
    2012 sport
    Thanks man! I am a welder fabricator.. I'm scared for all the wiring ahead of me tho haha
