DIY wiper fluid reservoir relocation for 1st Gen Tacomas

Discussion in '1st Gen. Tacomas (1995-2004)' started by DJB1, Jul 19, 2016.

  1. Jul 19, 2016 at 12:12 AM
    #1
    DJB1

    DJB1 [OP] Well-Known Member

    Joined:
    Jun 8, 2013
    Member:
    #105835
    Messages:
    1,626
    Gender:
    Male
    First Name:
    Dave
    SLC, UT
    Vehicle:
    2003 Regular Cab 4X4 5MT
    I just put on a Trail Gear low profile front bumper and on the right side it leaves the wiper fluid reservoir and a bunch of wiring exposed. I found a good work-around for anyone who wants to relocate their wiper fluid reservoir.

    Here you can see that the wiper reservoir and some wiring for the wiper fluid pump and horn are now exposed. First I tried covering everything up and it looked OK from a distance but looked like shite up close:
    IMG_0340 (1).jpg

    I re-routed the wiring for the horn and it's in my review of the Trail Gear low profile bumper here:
    https://www.tacomaworld.com/threads...ow-profile-bumper-for-1st-gen-tacomas.441752/

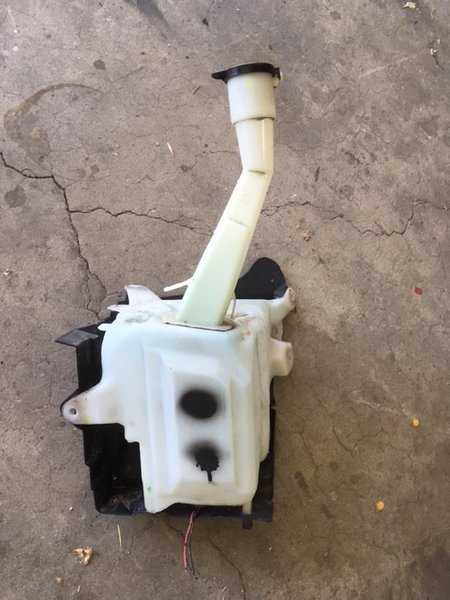

    I removed the OEM wiper fluid reservoir and pulled the wiring harness and fluid tubing up into the engine bay. Looks much cleaner now and both sides match:
    IMG_0401.jpg IMG_0352.jpg

    I did the deckplate mod last year and the filler neck for the OEM reservoir was in the way. This looks much better now.

    Before:
    After:

    There is an empty space behind the airbox on 1st Gen 2.7L Tacomas that's approximately 6" X 6" X 6." I went to the nearest pull-it-yourself salvage yard and eventually discovered that the 1993-2004 Kia Sportage has a wiper reservoir measuring about 6" X 6" X 6." It even has tabs on each side that could potentially line up with the threaded holes on the inner fender lip of my 2003 Tacoma. The salvage yard I was in had four 1993-2004 Kia Sportages. They charged me an obscene $11.00 for entry, the reservoir, fluid pump and pigtail connector. Looks like this might work:

    Take an el-cheapo homemade tester with you when you're shopping for second hand relays, motors or other electrical bits:
    IMG_0375 (1).jpg

    This rubber 90-degree fitting and white connector came off of the OEM fluid pump. I positioned them like so and the wiper fluid tubing that I pulled into the engine bay was long enough to reach:
    IMG_0369 (1).jpg
    The OEM wiper fluid pump is slightly wider and taller than this P.O.S. fluid pump. Sometime I'll hit the Kia fluid reservoir with a heat gun and and make the Toyota fluid pump fit.

    There is a short intermediate harness that's really just two terminal connectors and some wiring, which connects the chassis harness to the OEM fluid pump. Rather than cut into the chassis harness, I chopped up the little intermediate harness and spliced in the Kia pigtail connector. The gray one is the Toyota connector that plugs into the chassis harness on the truck, and the yellow one is the Kia connector that powers the P.O.S. fluid pump:
    IMG_0370 (1).jpg
    I used butt connectors and of course I saved the rest of the Toyota harness so it will be easy to re-use the OEM fluid pump.

    I removed that gold bolt and used a pry bar to hold the ABS modulator bracket out of the way so I could thread in a cap screw for the Kia fluid reservoir:
    IMG_0371 (1).jpg
    That hole behind the ABS modulator bracket is pre-threaded. All of the pre-threaded holes on the inner fender lip take an M6X1.00 bolt. I already had a bunch of those in my coffee can full of random shit.

    I was going to drill a hole in the inner fender lip and use a lag screw to fasten the other side of the reservoir, but that would make it sit at a weird angle and it looked like the hood might hit the top. Lag screws also tend to wallow out the hole over time, so I summoned my redneck upbringing and made a bracket out of a hose clamp, also found in my coffee can full of random shit. Now I can use a pre-threaded hole, the hood won't hit the reservoir, and it sits pretty level in there:
    IMG_0373 (1).jpg

    The chassis harness, tubing, wiper motor and pigtail connector all tuck neatly into the cavity behind the reservoir. The end result; an $11.00 relocated wiper fluid reservoir that looks almost like it was meant to be there:
    IMG_0372 (1).jpg

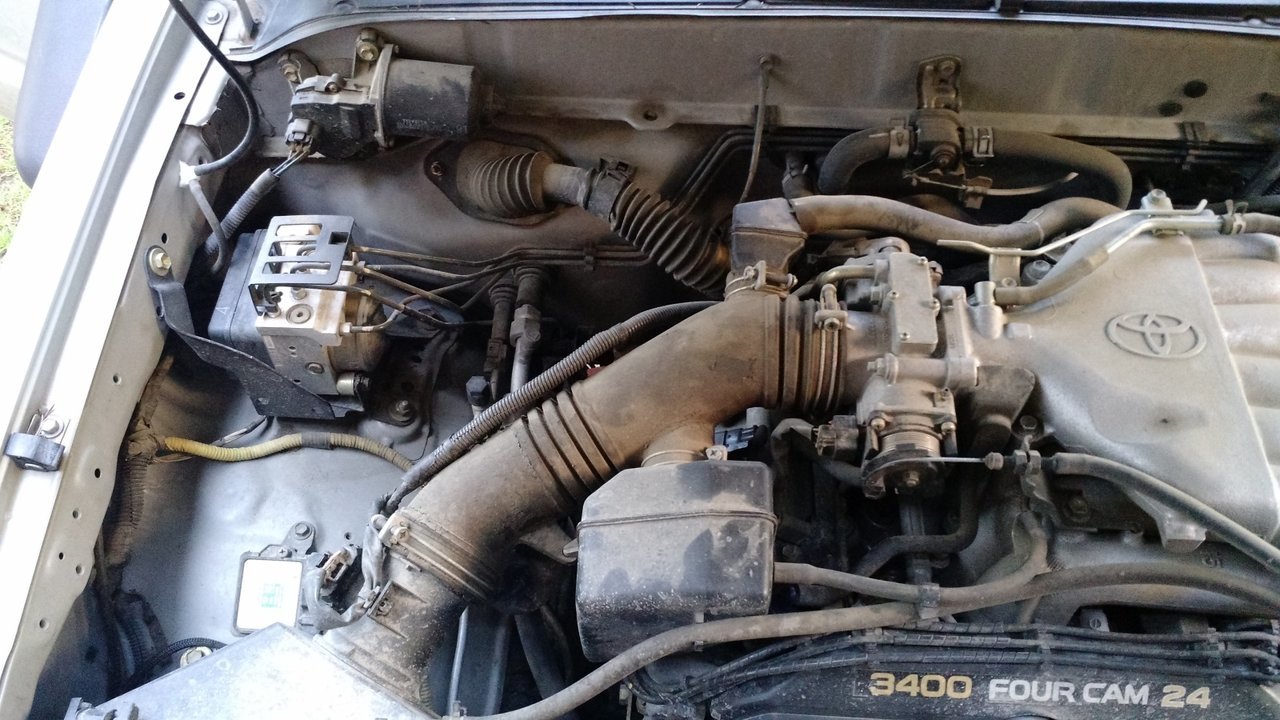

    I think this will also work on 3.4L Tacomas and 4Runners. It looks like they have a similar 6" X 6" X 6" space behind the airbox:
    If someone with a 3.4L can confirm, I'll update the info in this thread.

    EDIT: There's an Ebay wiper reservoir that's designed to fit in this same spot on the 1st gen Tacoma. Thanks @keakar!
    http://www.ebay.com/itm/Windshield-Washer-Reservoir-Bottle-with-Pump-for-95-00-Toyota-Tacoma-/310801491979?hash=item485d36680b:g:V-oAAOSwpDdU~~UG&vxp=mtr&rmvSB=true

    You can also make one out of PVC pipe:
    http://www.expeditionportal.com/forum/threads/31898-Washer-reservoir-relocation

    Last edited: Nov 15, 2016
    mac33, roosterburm, Wulf and 4 others like this.
  2. Jul 19, 2016 at 3:25 AM
    #2
    ajm

    ajm Well-Known Member

    Joined:
    Jul 24, 2015
    Member:
    #160179
    Messages:
    626
    Gender:
    Male
    First Name:
    Anthony
    AZ
    Vehicle:
    96 2.7 4x4
    Excellent, thanks!

  3. Jul 19, 2016 at 8:42 AM
    #3
    mtnkid85

    mtnkid85 Well-Known Member

    Joined:
    Sep 10, 2014
    Member:
    #137993
    Messages:
    143
    Gender:
    Male
    MT
    Vehicle:
    1999 TRD Taco
    Locked, 255/85, blown
    Looks good. I did the same thing using a Mazda B2200 reservoir, which was a similar size and shape to you Kia reservoir.

  4. Jul 20, 2016 at 12:01 PM
    #4
    DJB1

    DJB1 [OP] Well-Known Member

    Joined:
    Jun 8, 2013
    Member:
    #105835
    Messages:
    1,626
    Gender:
    Male
    First Name:
    Dave
    SLC, UT
    Vehicle:
    2003 Regular Cab 4X4 5MT
    That's good to know. I looked for Japanese parts first, but the few Toyotas, Hondas, Mazdas and Nissans there looked like they'd been skeletonized by pirahnas. There were tons of Kias, Hyundais and Audis, though.

    Last edited: Jul 20, 2016
  5. Jul 20, 2016 at 12:52 PM
    #5
    Digiratus

    Digiratus Adventurer

    Joined:
    Mar 26, 2010
    Member:
    #34006
    Messages:
    18,281
    Gender:
    Male
    First Name:
    Mike
    Roaming the PNW
    Vehicle:
    The RedHead
    2002 XtraCab TRD 4x4 v6 Auto Trans With Lots of Mods King Extended Travel COs Camburg Uniball UCAs Whiteline Lower Control Arm Bushings Alcan Custom 8-Leaf Rear Spring Packs Fox 2.0 Resi Rear Shocks FrankenFab Rear Shock Relocate All-Pro U-bolt Flip w/Timbren bumps Toytec 1" Extended Shackle 4.88 Nitro Gears ARB Front Locker ARB Twin Compressor Gunmetal 16x8 SCS Ray10s 285/75r16 Cooper STT Pros Limited Edition Relentless Front Bumper Smittybilt X2O 10K Winch 3" LED Pods w/Amber covers in the Bumper 22" Single Row LED Bar on the Bumper Mini D2S Projectors XB35 Ballasts + 4500K Bulbs Badland Sliders FrankenFab Tire Carrier Swingout bumper w/kitchen BudBuilt Front & Bellypan Skids BAMF Rear Diff Skid Whynter 65 qt. Fridge/Freezer CVT Mt Bachelor RTT Badland Custom Bed Rack GM 140 amp alternator Dual Northstar 24F AGM batteries BlueSea 7622 ML-ACR Battery controller Peak DBI Dual Battery Voltage Monitor Magnaflow 18" Muffler 13WL Brake Calipers Braided Steel Brake Lines AFE Pro Dry S air filter ScanGauge II OBDII Scanner Kenwood TM-71A Dual Band Ham Radio Larson 70CM/2M Antenna Uniden 520xl CB radio 3' Firestik Adjustable tip antenna Pioneer DEH-P9400BH HU Alpine Amps & Type R components (F) and coaxials (R) Wet Okole Seat Covers Weathertech Digital Liners Deck Plate Mod 1" Diff Drop Carrier Bearing Drop
    Those that have factory cruise control, will have a big control module already mounted in the spot where you located your reservoir.

  6. Jul 20, 2016 at 4:24 PM
    #6
    keakar

    keakar Well-Known Member

    Joined:
    Oct 2, 2014
    Member:
    #139537
    Messages:
    5,262
    Gender:
    Male
    First Name:
    karl
    louisiana
    Vehicle:
    2006 4runner sport 4.7L V8 (white)
    used to have - 99 2.4L I4 5 lug & 04 prerunner v6
  7. Jul 21, 2016 at 12:53 AM
    #7
    DJB1

    DJB1 [OP] Well-Known Member

    Joined:
    Jun 8, 2013
    Member:
    #105835
    Messages:
    1,626
    Gender:
    Male
    First Name:
    Dave
    SLC, UT
    Vehicle:
    2003 Regular Cab 4X4 5MT
    Thank you for the link, @keakar. I would have bought that so fucking fast but google clearly failed me when I was searching Toyota wiper reservoirs.

  8. Jul 21, 2016 at 5:19 AM
    #8
    JPinFL

    JPinFL Well-Known Member

    Joined:
    Nov 16, 2015
    Member:
    #169817
    Messages:
    751
    Vehicle:
    '01 Tacoma Xtra Cab 4x4
    Cool. Thanks for the link.
    I just noticed that mine has a bunch of cracks and is very brittle. Looks like I'll be ordering one of these soon.

  9. Jul 21, 2016 at 9:07 AM
    #9
    iDigTulsa

    iDigTulsa Well-Known Member

    Joined:
    Aug 11, 2010
    Member:
    #41554
    Messages:
    144
    Gender:
    Male
    First Name:
    Luke
    Tulsa, OK
    Vehicle:
    03 DoubleCab TRD SR5 4x4
    Free Alarm Mod, Grey Wire Mod, Reverse Leaf Spring Helper Mod, Kenwood Deck, Memphis 10'', Yakima Roof Rack, Debadged Sides,Silver Toyota Skid Plate, Injen CIA, 3.5'' Amsoil Dry Filter, 17 x 7.5 Tundra Split Spoke Alloy's
    Awesome write up, especially considering that the neck of my reservoir let's more fluid out than it keeps in when filling it currently. Sadly, the cruise control on my 3.4 takes up most of that room, but it has at least encouraged me to get creative before I cough up enough money for a replacement OEM reservoir.

  10. Jul 21, 2016 at 3:58 PM
    #10
    keakar

    keakar Well-Known Member

    Joined:
    Oct 2, 2014
    Member:
    #139537
    Messages:
    5,262
    Gender:
    Male
    First Name:
    karl
    louisiana
    Vehicle:
    2006 4runner sport 4.7L V8 (white)
    used to have - 99 2.4L I4 5 lug & 04 prerunner v6
    I had cruise on my 99 5lug and it fit nicely tucked into that spot between the CC and the firewall, all you need is about 6-7" of space for it

  11. Jul 21, 2016 at 10:42 PM
    #11
    DJB1

    DJB1 [OP] Well-Known Member

    Joined:
    Jun 8, 2013
    Member:
    #105835
    Messages:
    1,626
    Gender:
    Male
    First Name:
    Dave
    SLC, UT
    Vehicle:
    2003 Regular Cab 4X4 5MT
    I'll sell you mine for $20.00 shipped if you want it. It's in good shape, the plastic isn't deteriorated anywhere on it.

  12. Jul 23, 2016 at 9:10 AM
    #12
    McMash

    McMash The only thing better than light bars? Sarcasm.

    Joined:
    Nov 28, 2015
    Member:
    #170899
    Messages:
    580
    Gender:
    Male
    First Name:
    Tyler
    Gig Harbor, Wa.
    Vehicle:
    '04 Tacoma AC TRD 4x4
    This is on my to-do list. Need to see how it fits around the cruise control, though.

  13. Jul 23, 2016 at 3:09 PM
    #13
    UtahTacoma02

    UtahTacoma02 Well-Known Member

    Joined:
    Dec 5, 2014
    Member:
    #143730
    Messages:
    545
    Gender:
    Male
    First Name:
    Dave
    SLC
    Vehicle:
    02 Tacoma Double cab TRD Limited
    ARB front bumper, Old Man Emu suspension, on board air compressor, on board hot water converter, cb radio, safari snorkel, warn 8K lb. winch, AP rock slidders/rear bumper, gray wire mod
    i would be interested in your original one if no one else grabs it. i am just north of Salt Lake.

  14. Jul 23, 2016 at 11:38 PM
    #14
    DJB1

    DJB1 [OP] Well-Known Member

    Joined:
    Jun 8, 2013
    Member:
    #105835
    Messages:
    1,626
    Gender:
    Male
    First Name:
    Dave
    SLC, UT
    Vehicle:
    2003 Regular Cab 4X4 5MT
    You can have it for $0.00 in cash if you come pick it up. I PM'd you my contact info. Sunday is fine with me, I'm a heathen.

  15. Jul 24, 2016 at 1:14 AM
    #15
    UtahTacoma02

    UtahTacoma02 Well-Known Member

    Joined:
    Dec 5, 2014
    Member:
    #143730
    Messages:
    545
    Gender:
    Male
    First Name:
    Dave
    SLC
    Vehicle:
    02 Tacoma Double cab TRD Limited
    ARB front bumper, Old Man Emu suspension, on board air compressor, on board hot water converter, cb radio, safari snorkel, warn 8K lb. winch, AP rock slidders/rear bumper, gray wire mod
    pm'd thanks

  16. Jul 24, 2016 at 11:04 AM
    #16
    McMash

    McMash The only thing better than light bars? Sarcasm.

    Joined:
    Nov 28, 2015
    Member:
    #170899
    Messages:
    580
    Gender:
    Male
    First Name:
    Tyler
    Gig Harbor, Wa.
    Vehicle:
    '04 Tacoma AC TRD 4x4
    Just checked my '04 with cruise control, and other than a small igniter module, the space is open. Gonna see if I can source that eBay linked 95-00 Tacoma reservoir. Does the pump/connector match up with the later 1st gens?2j5dv77_9f028461873ab0788c7e4eee4dfee3f7fd2bd8f3.jpg

    DJB1 [OP] and whitey420 like this.
  17. Jul 24, 2016 at 2:04 PM
    #17
    keakar

    keakar Well-Known Member

    Joined:
    Oct 2, 2014
    Member:
    #139537
    Messages:
    5,262
    Gender:
    Male
    First Name:
    karl
    louisiana
    Vehicle:
    2006 4runner sport 4.7L V8 (white)
    used to have - 99 2.4L I4 5 lug & 04 prerunner v6
    yep, its direct plug in ready to go, all you need to do is unplug the wire under the fender and pull it back up into the engine bay along with the water line and plug both in.

    I recall on my 99 it was a PITA and hard to get my hands in those tight spots to unsnap the clips, you don't want to just pull on things so take your time and unsnap any wire clips holding it to the body

    digitalferg, whitey420 and McMash like this.
  18. Jan 30, 2017 at 5:28 PM
    #18
    McMash

    McMash The only thing better than light bars? Sarcasm.

    Joined:
    Nov 28, 2015
    Member:
    #170899
    Messages:
    580
    Gender:
    Male
    First Name:
    Tyler
    Gig Harbor, Wa.
    Vehicle:
    '04 Tacoma AC TRD 4x4
    Finally got around to doing this today. Bought the linked 95-00 Tacoma reservoir, plugged right in (minus the fluid low-level sensor) and fits like a glove. Glad to get rid of the ugly, low-hanging, tire-rubbing stock one! Great mod, thanks @keakar !


    ThunderOne, gumbo-taco and DJB1 [OP] like this.
  19. Jan 30, 2017 at 6:15 PM
    #19
    TooMuchToDo

    TooMuchToDo Well-Known Member

    Joined:
    Jul 22, 2016
    Member:
    #192615
    Messages:
    401
    Gender:
    Male
    Vehicle:
    2002 Gold Tacoma XtraCab with 192k
    ...we'll get there.
    All you fancypantses with your abs and your cruise control...I've got a wide open space there...But I'm saving it for battery #2. I'll have to see what other options i have for placement. I hardly ever use washer fluid...Maybe I'll put a tiny resovoir somewhere.

    DJB1 [OP] likes this.
  20. Jan 30, 2017 at 6:57 PM
    #20
    DJB1

    DJB1 [OP] Well-Known Member

    Joined:
    Jun 8, 2013
    Member:
    #105835
    Messages:
    1,626
    Gender:
    Male
    First Name:
    Dave
    SLC, UT
    Vehicle:
    2003 Regular Cab 4X4 5MT
    That looks good, @McMash. I'm going to get one of those if my junkyard reservoir breaks.

    McMash likes this.
